Veranda in Shanghai, China / tf Architecture Office and ppas

You will see different scenery everywhere you go.

Project Specs

Location:
Materials:

来自 tf Architecture Office 对gooood的分享。Appreciation towards tf Architecture Office for providing the following description:

根据一项雄心勃勃的计划,上海西南郊的金山现代农业园正在转变成复合功能的城市郊野公园。核心区域公共空间提升正是这一转变启动的领航员项目。在tf的构思中中国传统造园的要素——游廊再次成为设计的主题。东西向延伸的游廊将快速路北侧数个孤立的农业旅游项目连接起来,未来还将继续向西延伸,并通过东侧景观高台以步行桥向南整合更多的旅游项目。游廊南侧景观台地隔绝了快速路噪音与视线的干扰,在朝向快速路一侧与游廊一同形成了舒展的大地景观,保证了快速路沿线的高可识别性。

According to an ambitious plan, the Jinshan Modern Agricultural Park, located on the southwestern outskirts of Shanghai, is being transformed into a suburban park with composite functions. Enhancement of the public space in the core area of the park is the pilot project for initiating this transformation. In the conception of design, the veranda, an essential element in traditional Chinese gardening, has been selected as the theme of the design. In the park, a veranda extending in the east–west direction links up several isolated agricultural tourism projects on the north side of the freeway. This veranda will be expanded farther westward and will pass through the eastern landscape mound to be integrated with other tourism projects towards the south via a pedestrian bridge. The landscape mound on the south side of the veranda will isolate the park from the noise and sight of the freeway, and the freeway-facing side of the park, together with the veranda, will form an extended earthscape, thereby ensuring high identifiability along the freeway line.

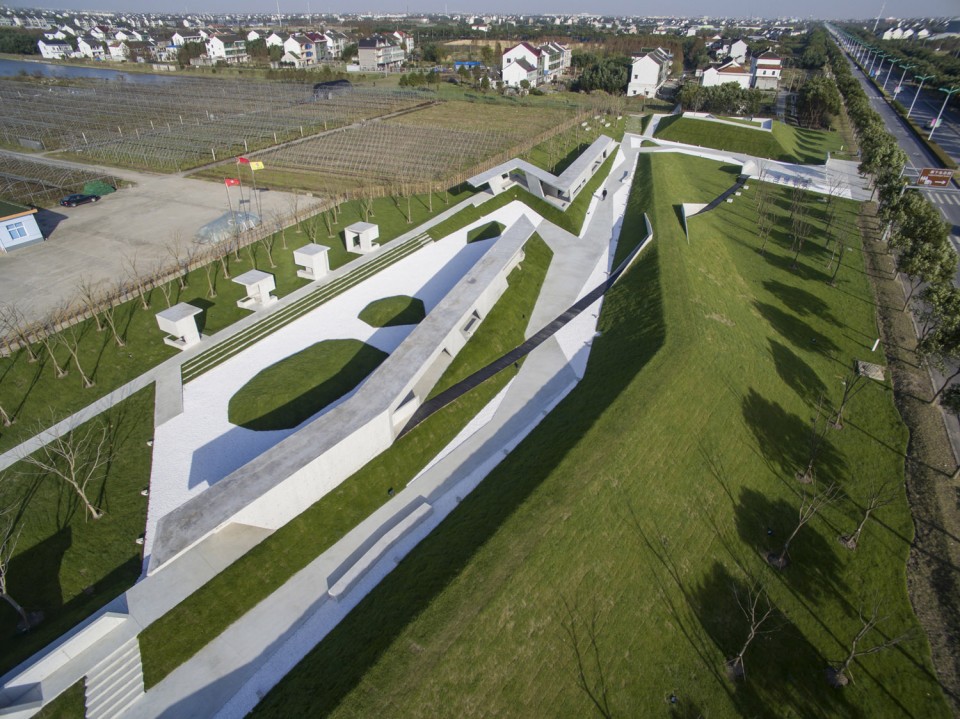

001-Veranda in Shanghai by tf Architecture

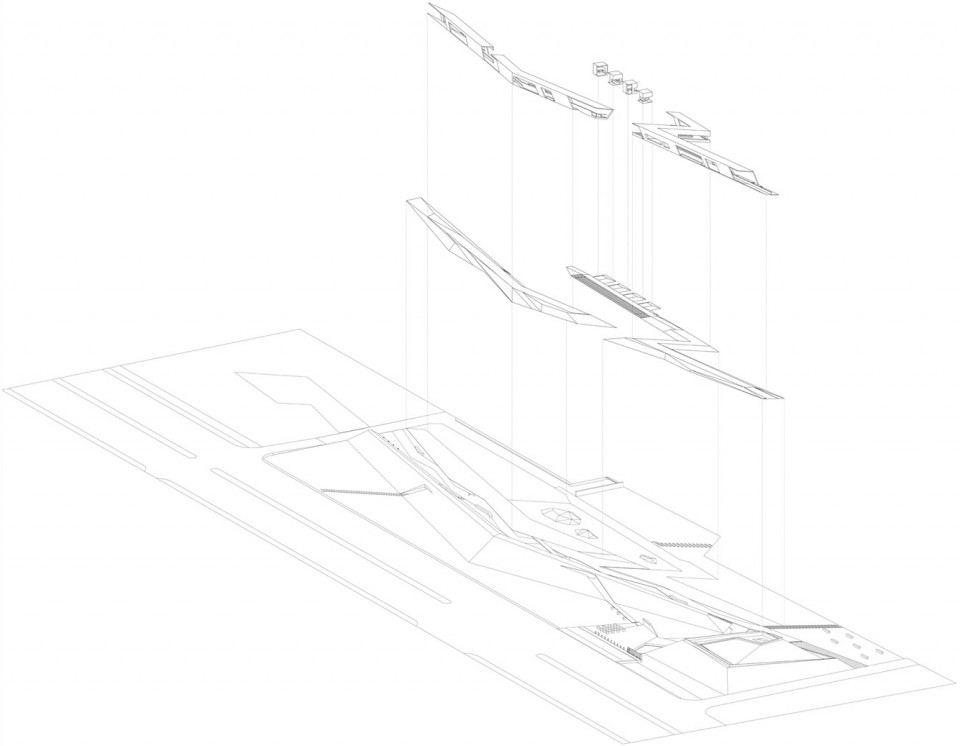

轴侧03

简洁的白色混凝土结构替代了传统游廊昂贵复杂的木结构,以与周边现代设施农业环境相匹配,同时有效的将造价控制在了项目所限制的80欧元/平米之下。整体折线形的布局使得基地东西不同区段节点都可以获得充足的活动空间。特别是中部游廊与景亭一起围合而成的院落已经成为了核心区游客驻足与活动的中心。结合不同区段景观,游廊两侧墙体交替导向性开口,使“步移景异”的空间体验变为可能。类似于传统高台建筑,底部洗练的台地赋予了游廊与周边环境微妙的高差变化与强有力造型特征。

Replacing the expensive and complex wooden structure of a traditional veranda, a simple, white concrete structure will not only harmonise the agricultural environment and the surrounding modern facilities but will also effectively ensure that the project costs less than 80 euros/square metre, in accordance with the financial restrictions of the project. The overall folded planar structrue provides sufficient activity space in various eastern and western areas of the project. In particular, the courtyard enclosed by the central veranda and the sightseeing pavilions has become a rest stop for the visitors and a centre for tourist activity in the core area. Combined with the landscapes in various areas, the alternative guiding openings on the walls at each side of the veranda allow the scenery to change with each step. Similar to the traditional high-platform architecture, the bottom platform endows the veranda and surroundings with subtle height changes and powerful styling characteristics.

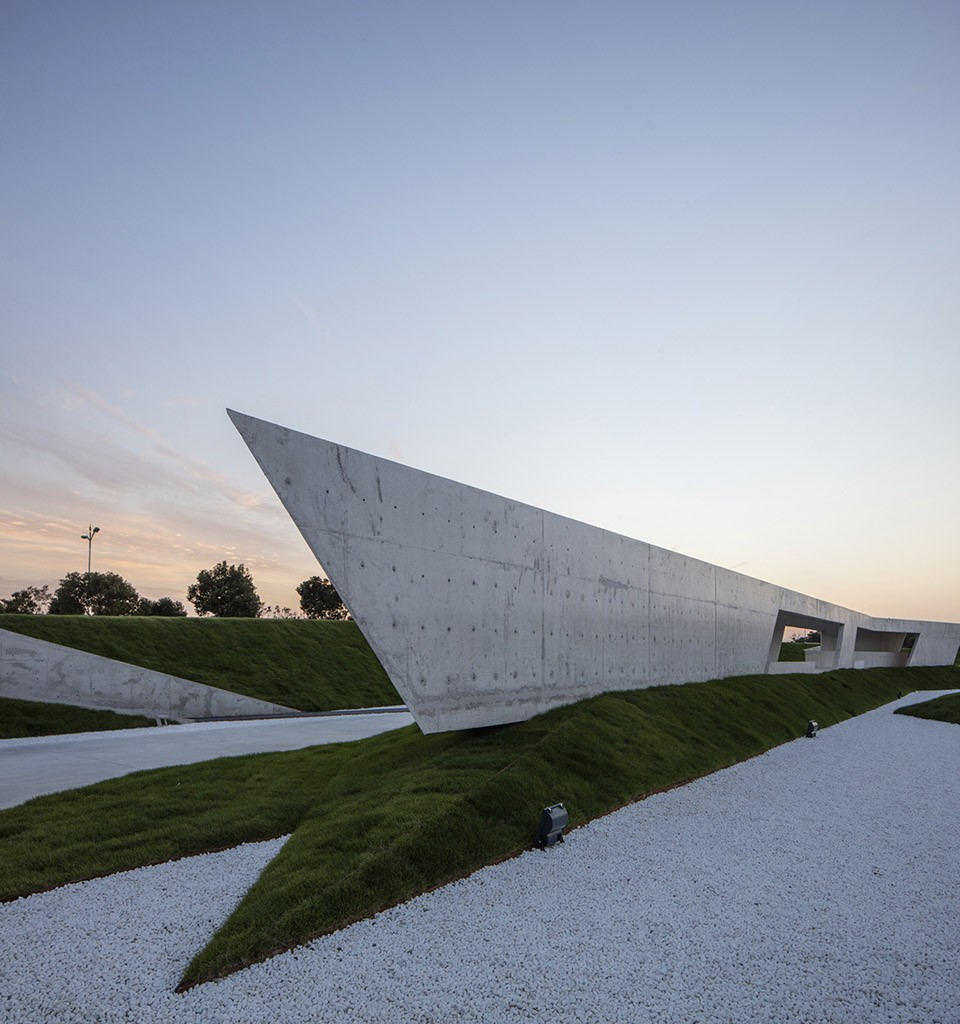

▽ 简洁的白色混凝土结构,white concrete structure

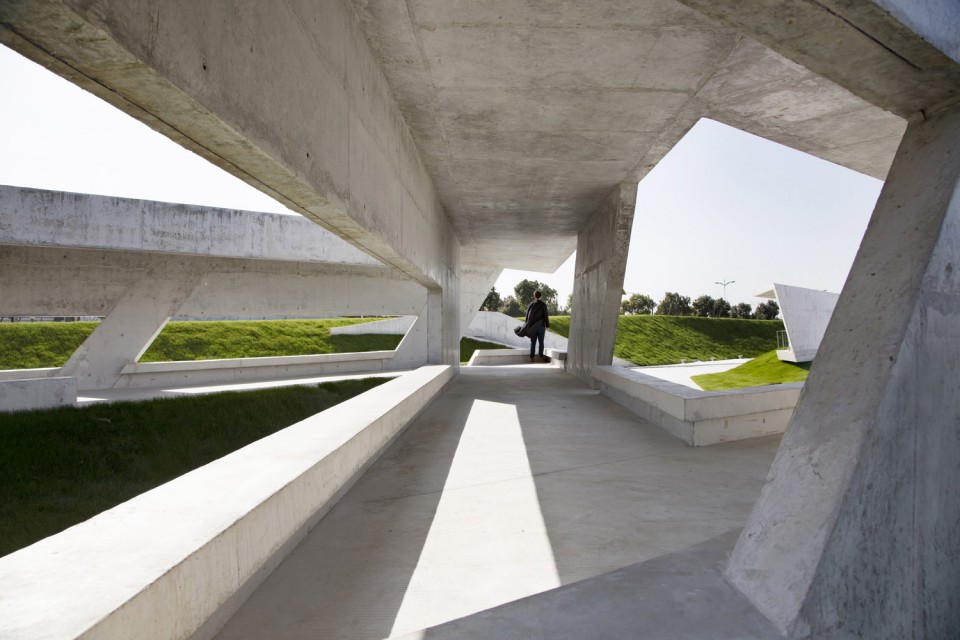

003-Veranda in Shanghai by tf Architecture

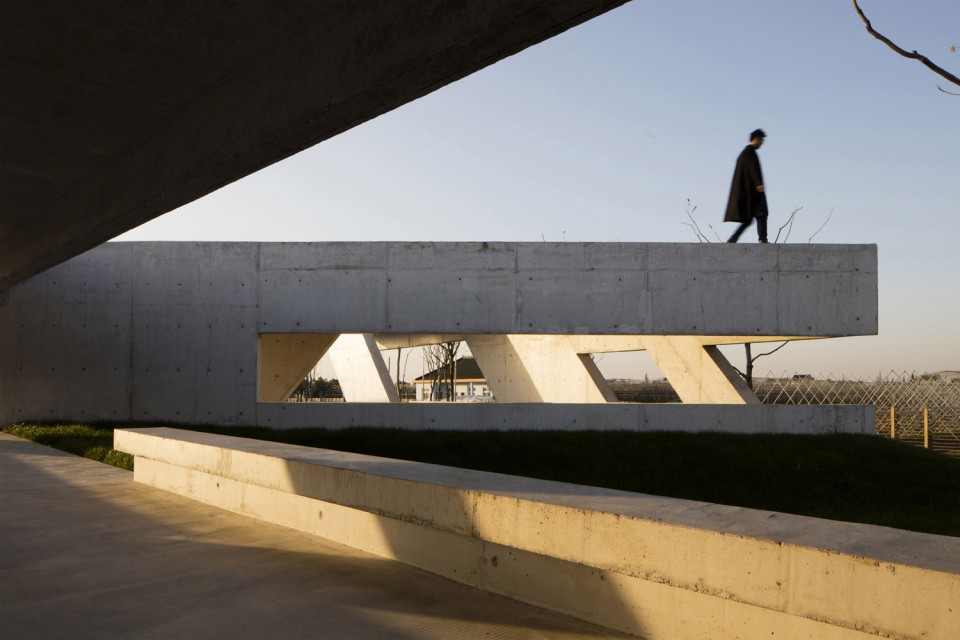

004-Veranda in Shanghai by tf Architecture

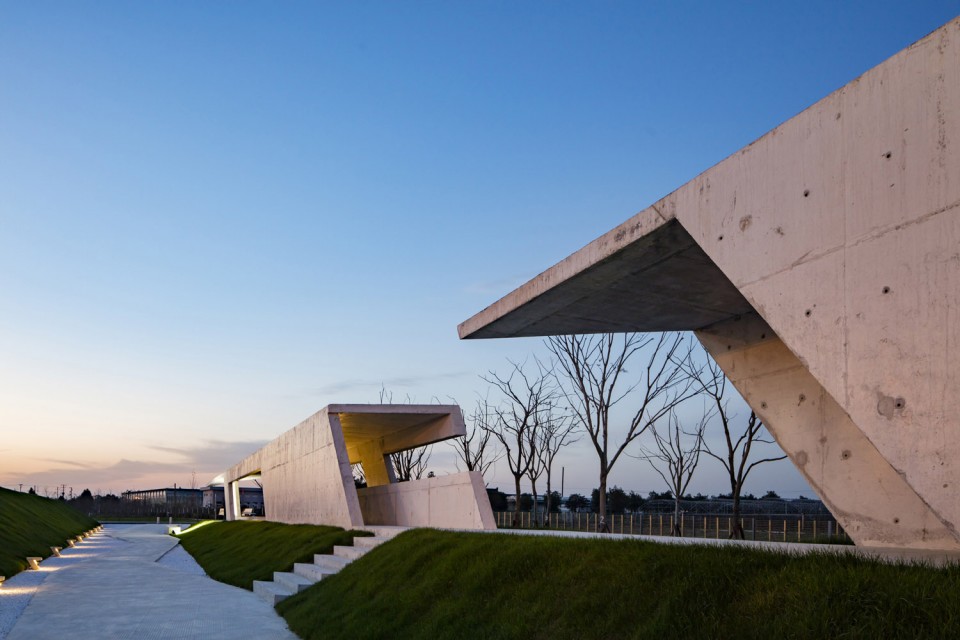

005-Veranda in Shanghai by tf Architecture

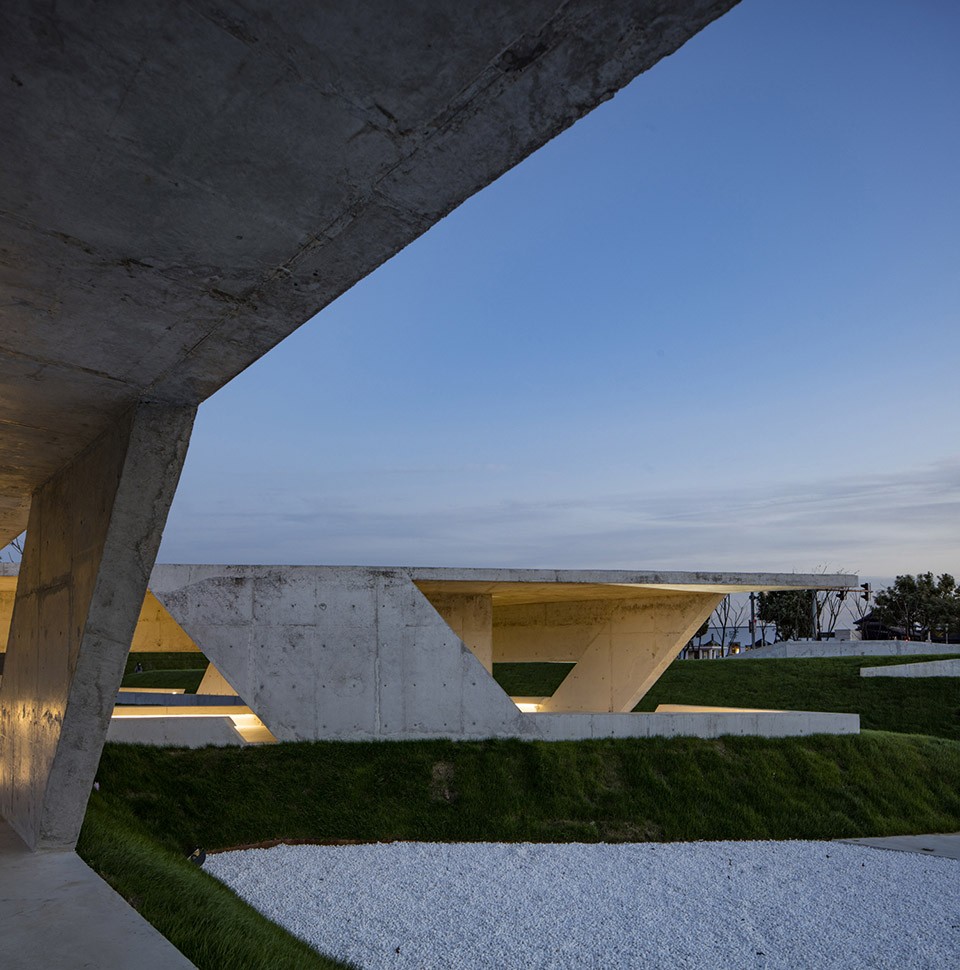

006-Veranda in Shanghai by tf Architecture

007-Veranda in Shanghai by tf Architecture

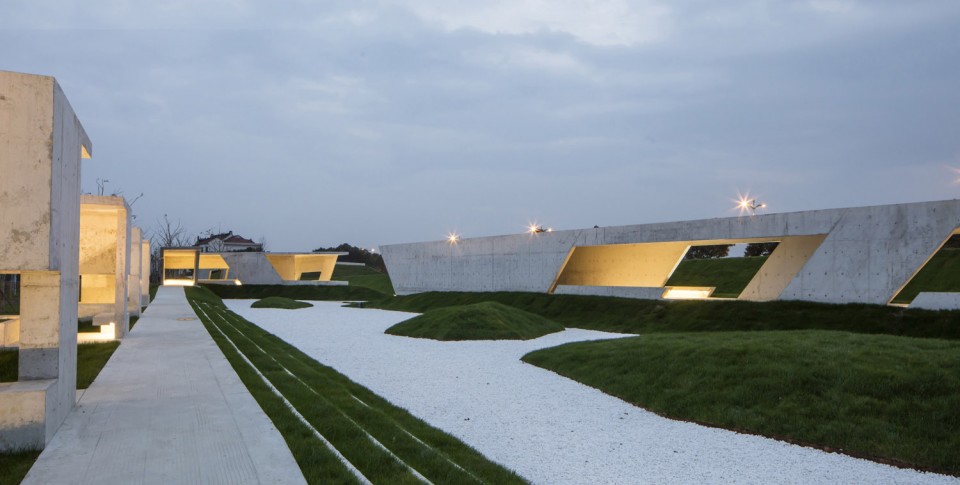

002-Veranda in Shanghai by tf Architecture

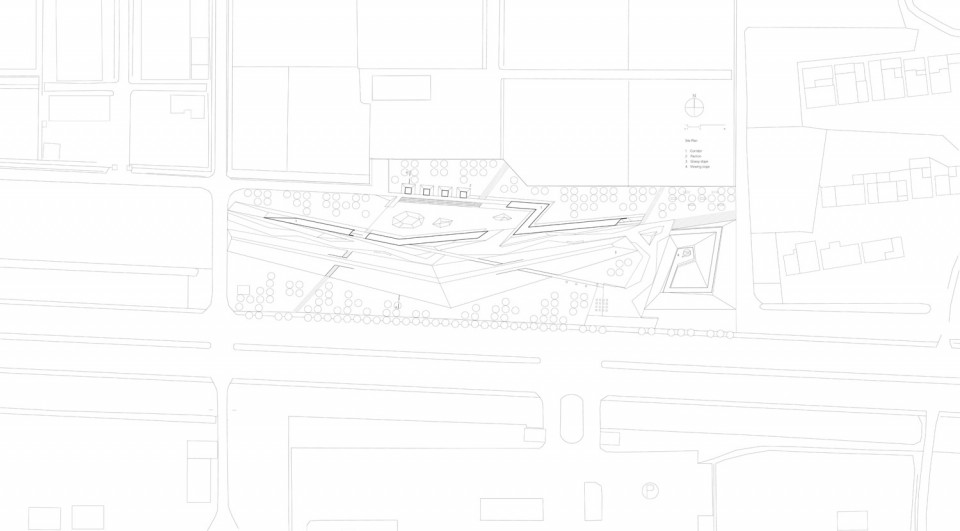

▽ 平面图,plan

160105总平面图.线2

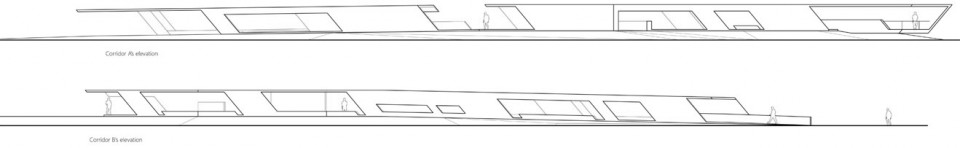

▽ 立面,section

打印

业主:上海市金山区廊下镇政府
设计单位: ppas德国珮帕施城市发展咨询 /上海tf建筑事务所
项目建筑师:张宁
团队:李振国、刘晋鹏、李毅、邬丹
景观设计师:王洪、王鹏程、董小惠
结构工程师:刘明远
施工经理:余汛洲
摄影师:申强

Client:Government of Langxia Town, Jinshan District, Shanghai, China
Architects:ppas / tf Architecture Office, Shanghai
Project Architect:ZHANG Ning
Team:LI Zhenguo, LIU Jinpeng, LI Yi, WU Dan
Landscape Designer: WANG Hong, WANG Pengcheng, DONG Xiaohui
Structural Engineer:LIU Mingyuan
Construction Manager: YU Xunzhou
Photographer: SHEN
