Research Cluster on FlowMorph by Bartlett Research Cluster 9

investigating the possibility of an unconventional way of plastic fabrication.

Project Specs

非常感谢 Bartlett Research Cluster 9 将项目授权gooood发行。更多关于:Bartlett Research Cluster 9 on gooood
Appreciation towards Gallery by Bartlett Research Cluster 9 for providing the following description:

增强现实(或混合现实)技术虽然不能算作一种新兴科技,然而具有这一类功能的设备只是在近三年内被推入市场,逐渐进入公众眼帘,并直到最近才变为切实可行且价格被公众接受的科技产品。

Augmented reality (or mixed reality) technology is not a new technology. However, only recently (not more than 3 years time), more of these devices became finally available (commercialized) to public, only recently they became feasible to use, reasonably affordable.

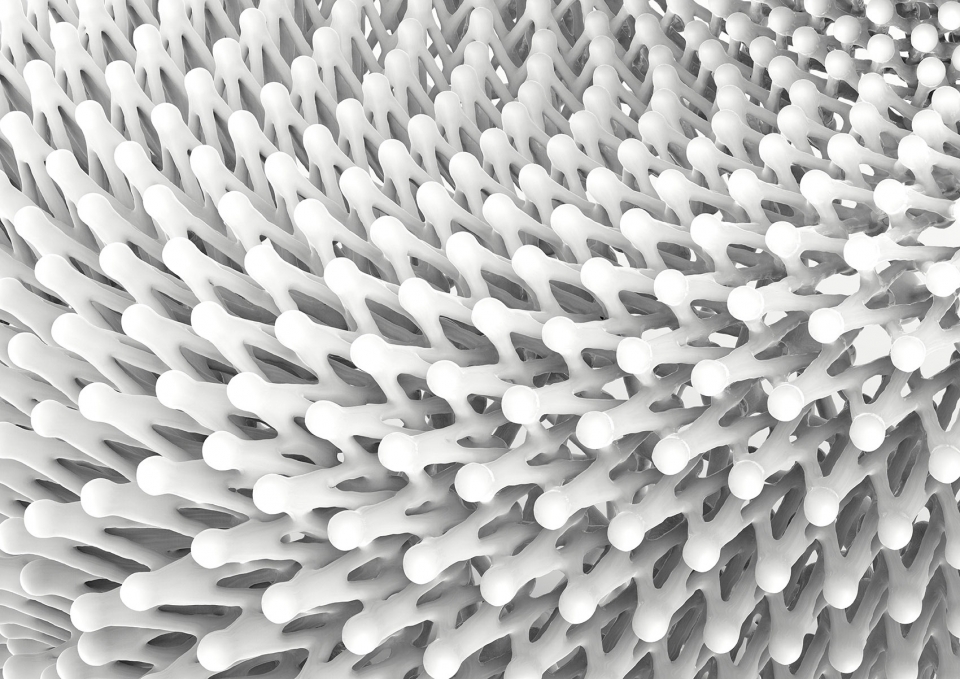

▼研究项目概念图,research concept illustration

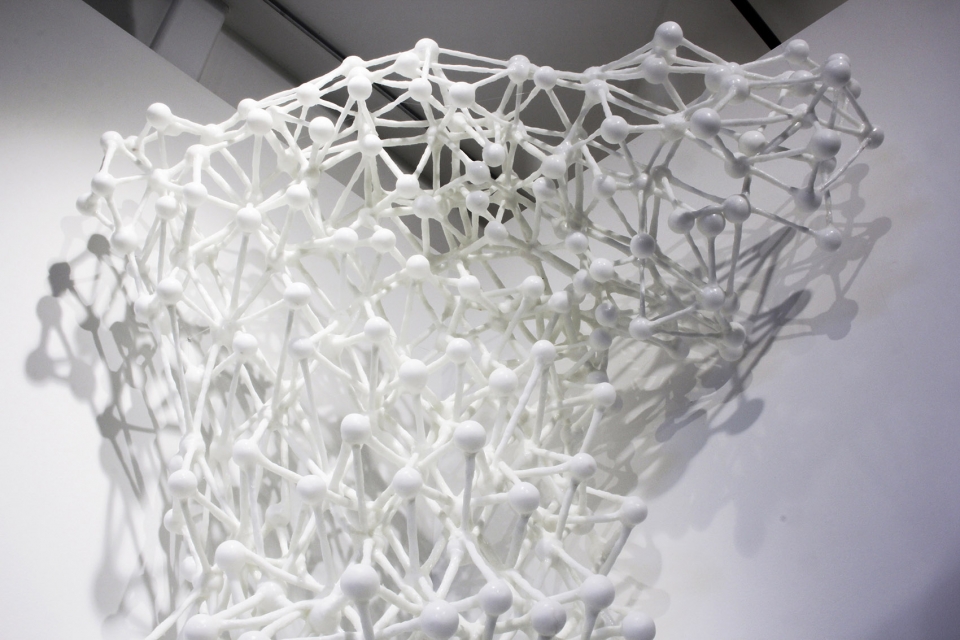

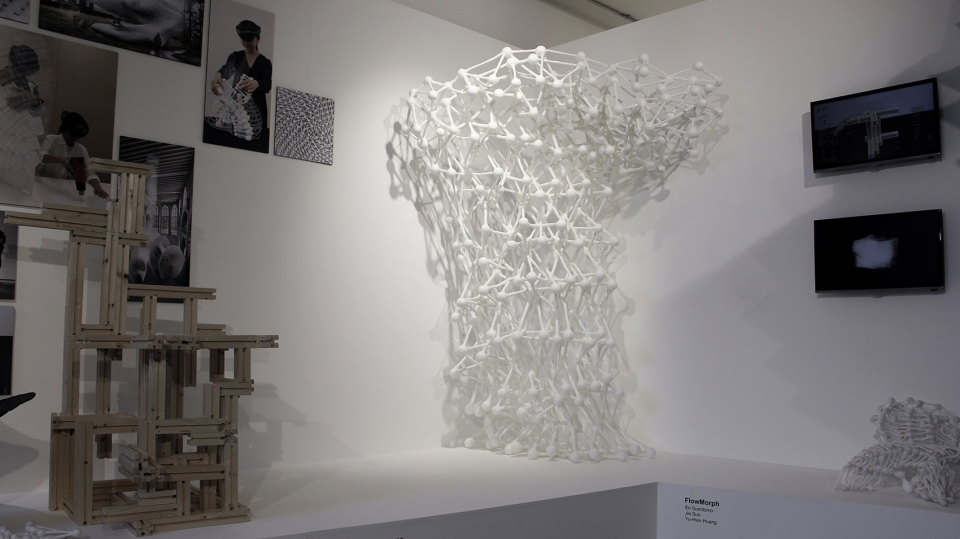

▼毕业设计展中展出的项目模型,structure corner piece showed on BPro

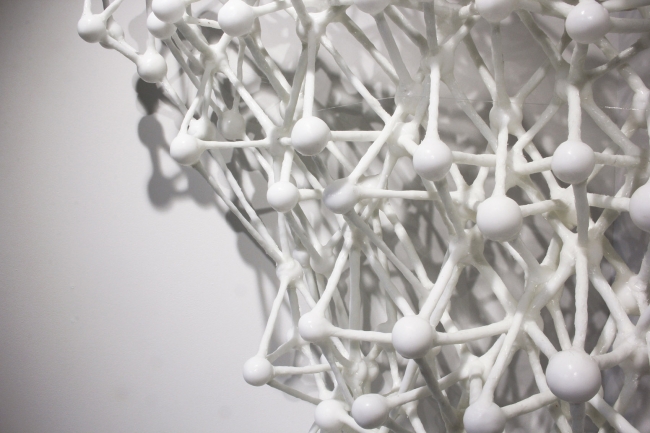

▼模型细部,detailed model

增强现实科技使我们的日常生活中的各个方面变得丰富多彩,也必将在不久的未来对于包括设计和制造业的多个领域带来极其重大的影响。我们在巴特莱特建筑学院的学术研究群体对这一议题十分感兴趣,从2017年9月起展开为期一年的研究生设计课题深入研究。

This opened up great possibilities in every aspect in our daily life and inevitably this will have great impact of every field in near future including design and fabrication. Our Research Cluster at the Bartlett is interested in this issue and started to research on this matter from September 2017 within a year-long design masters course.

▼研究生课题研究团队,research studio for design master course



流体变形项目
Project FlowMorph

流体变形项目是一个应用混合现实(Augmented Reality)技术,探索有别于传统制造模式,使加工方案更加多样化的项目研究,以此实现高度复杂的几何结构。这些结构通常不能手工实现或利用简单的机械制造生产成形。

FlowMorph is a research project which investigates the possibility of an unconventional way of fabrication using Mixed Reality, in order to materialize highly complexed geometry which cannot be achieved by manually as well as by simple robotic fabrication.

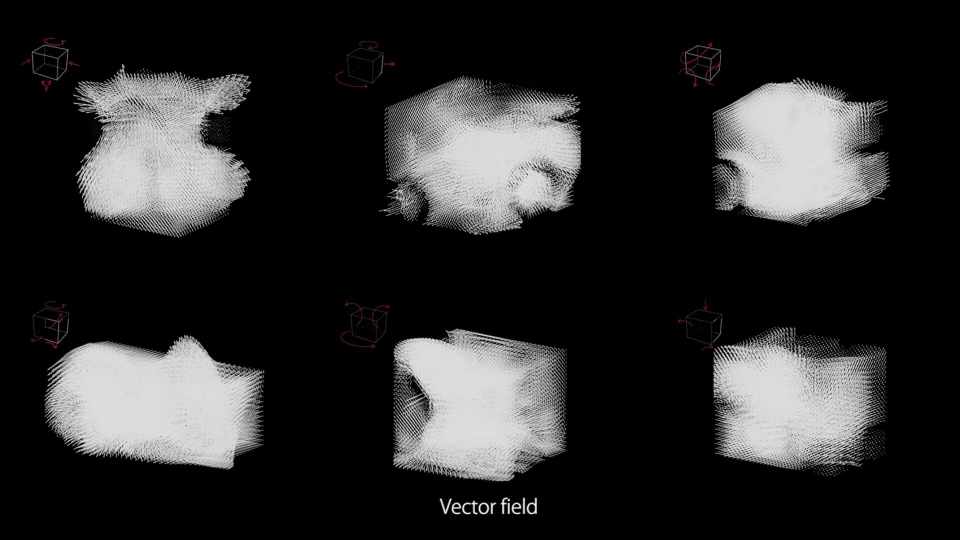

▼由流体模拟器生成的数字模型,digital form generated from flow engine

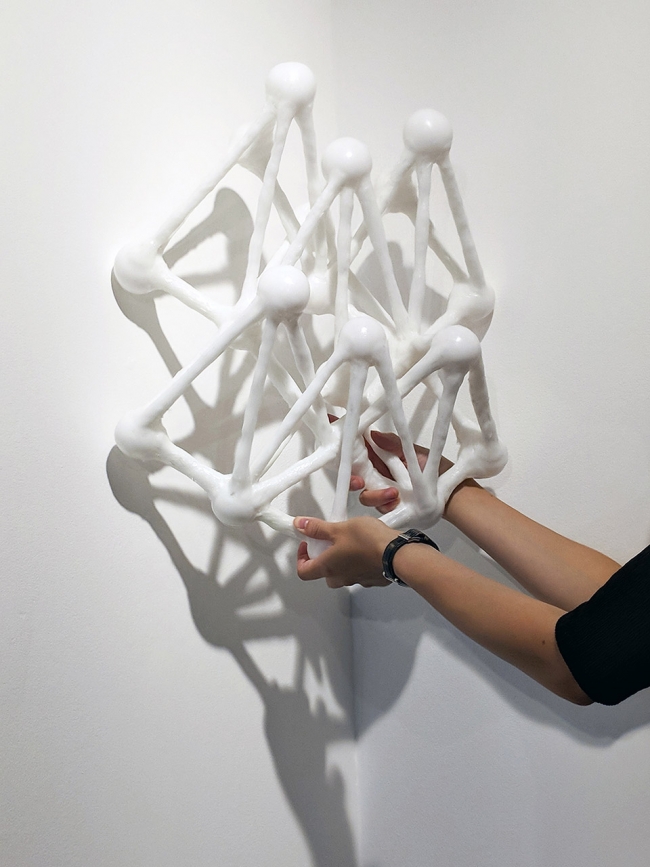

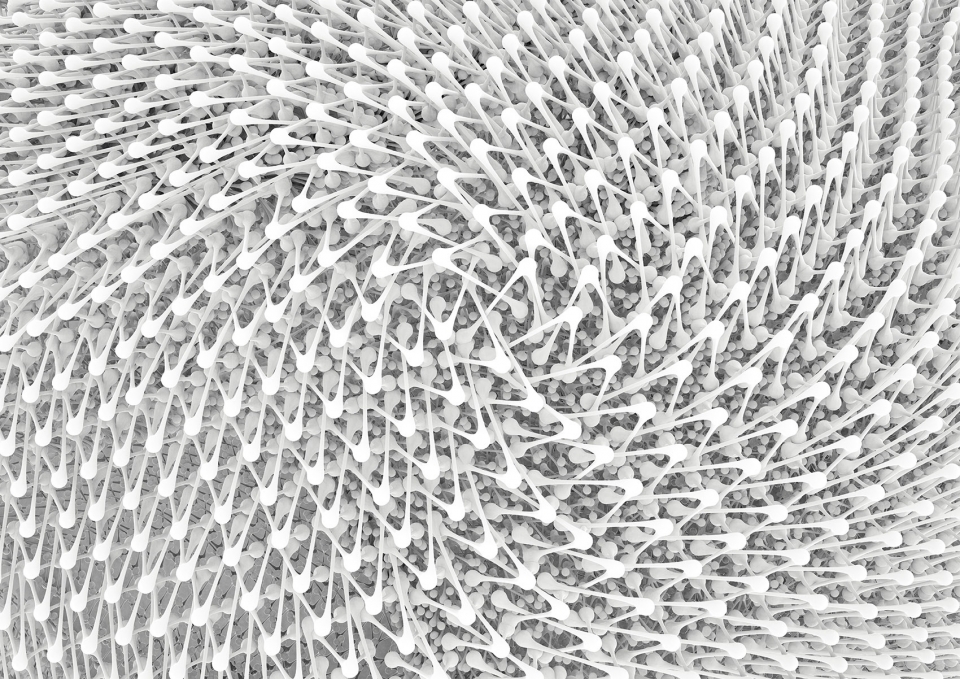

▼适用于新型塑料加工的独特结构,unique structure for plastic manufacture

▼高度复杂的几何模型得以实现,materialize highly complexed geometry

我们先由材料研究开始。塑料这种广泛应用于3d打印,机械打印等多种制造方式的加工材料,引起我们的关注,我们试图挑战其现有的生产过程。这种可以热熔的物质启发我们去设计一种独特的结构,既生产简单高效,又可以省时节约成本。在机械生产中,对塑料通过简单的“拉伸”动作即可实现的制造过程。

We have started with material research. Our interest was in plastic which is commonly used in broad ways of fabrication such as 3D printing or Robotic printing. However, we have tried to provoke these kind of existing fabrication process. The materiality of the melted plastic inspired us to design a unique structure which is also formed easily and efficiently in terms of time and cost consumption. A simple ‘stretching’ action was applied into this making process.

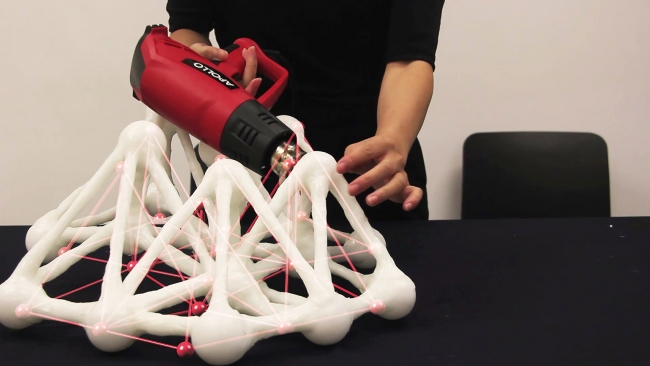

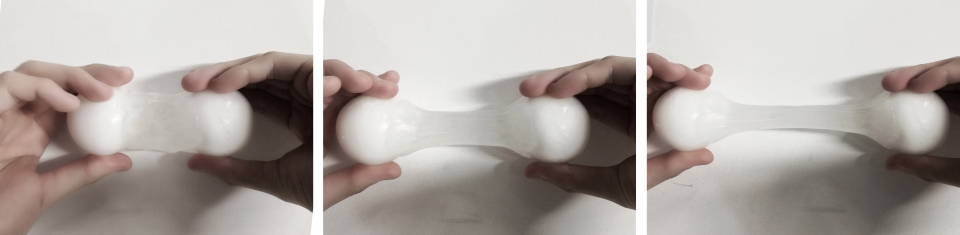

▼塑料在热熔物质属性下被拉伸,stretching action based on melted plastic’s materiality

对于使用增强现实技术,指的是整个过程中的两个阶段,交互设计和增强式制造。我们设计出一种3d流体模拟系统,并通过设备的识别系统实现与人们的交互活动。

In terms of Augmentation, there are two stages through the whole process in this project; Interactive design and augmented fabrication. We designed a 3D fluid simulation to let human interact with it thanks to the recognition function available in the device.

▼3d流体模拟系统实现交互设计,3D fluid simulation interact with people

我们在流体模拟器生成的数字化三维模型中加入这种塑料拉伸技术。制造过程将通过全息计算机设备(Hololens)产生,该设备可协助研究团队完成物理模型构成的推敲。毕业设计展(BPro Show)中呈现的结构模型由3名成员历时5天完成。

We utilized the plastic stretching technique with combining a digitally generated form by fluid engine. The fabrication process was delivered with Hololens which guides us the structure of the physical model. The construction of the corner piece for the BPro show is completed in five days with three people as a fabrication team. The noticeable aspect is that we could add some changes by ourselves rather than just followed the hologram while making.

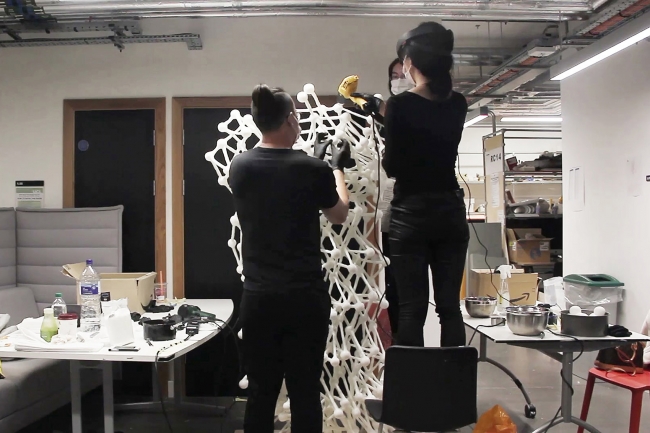

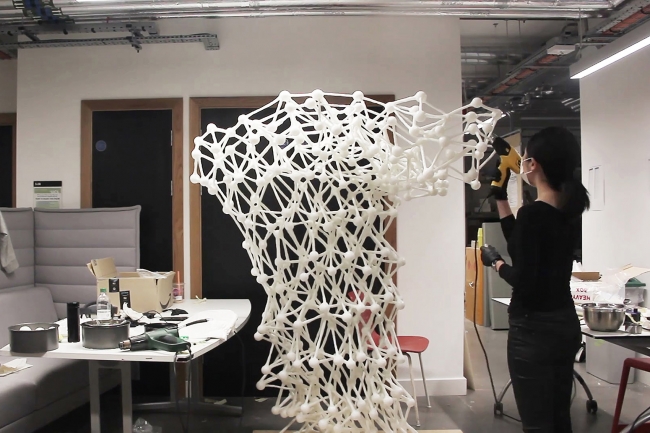

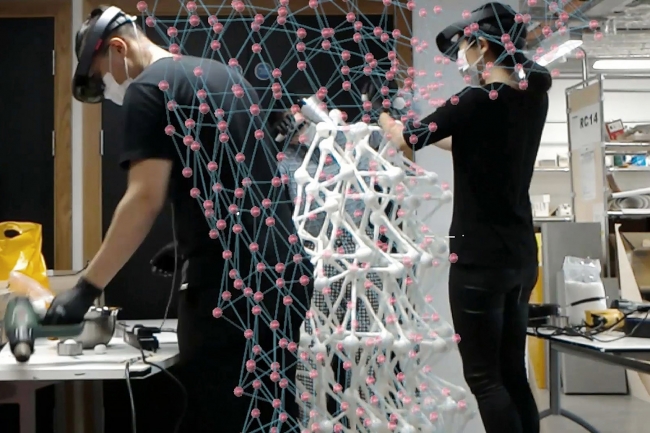

▼研究模型的完成,construction of physical model

这种制造模式很为人瞩目的一点是,容许设计者不仅仅依照全息图的影像,还可以融入自己的主观改动生成最终模型。因而,这种制造模式将发扬人们的主观判断力和对精工细制的追求,使人类的工作不再只是劳动力产出。

The noticeable aspect is that we could add some changes by ourselves rather than just followed the hologram while making. Thus, this fabrication process keeps human intuition and delicacy, not just make a human to be a labour.

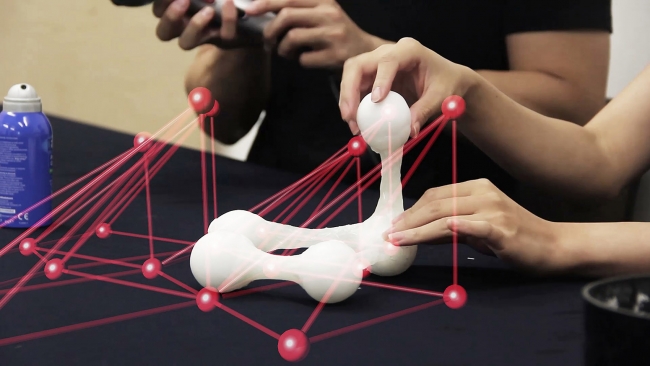

▼运用主观意识改变设计形态,human intuition could be add into design process

Design Tutor: Soomeen Hahm, Alvaro Lopez Rodriguez
Design Team: Eri Sumitomo, Jie Sun, Yu-Hsin Huang
Project video link: https://vimeo.com/294766769
