非常感谢 dongqi栋栖设计 予gooood分享以下内容。更多关于他们：dongqi Design on gooood
Appreciation towards dongqi Design for providing the following description:

由栋栖设计的7咖啡与甜品星球的新店，坐落于常州闹市中心的街角，在旧店址基础上扩大了面积并进行了全新改造。立面由内外两排波浪形钢丝帘上下牵拉而成，建筑师用坚硬的钢板和钢丝模仿柔软的手工皮具走线，直径2.5mm的钢丝绳在钢板上穿引而过，在底部形成了两排精密细致的弧形走线。

dongqi Architects transformed and enlarged an old café into a new space with coffee, craft beer、food and bakery in the downtown of Changzhou.The facade are composed of two layers of steel wire screens. The 2.5 mm steel wires are pulled through the steel plates like threads on a soft piece of leather, and form beautiful hand sewn stitches on the steel.

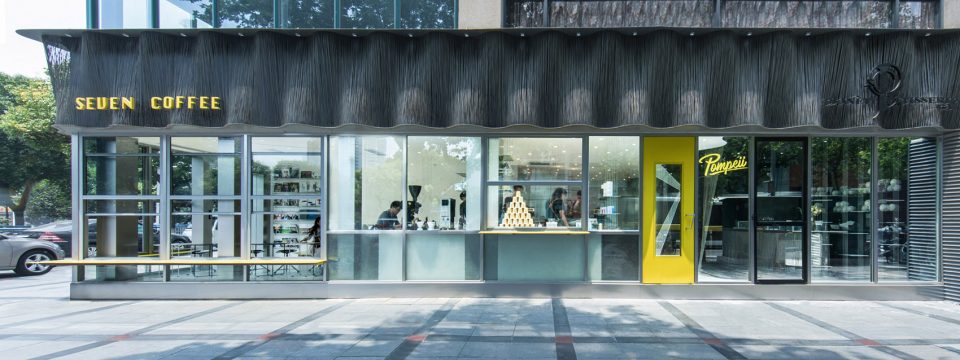

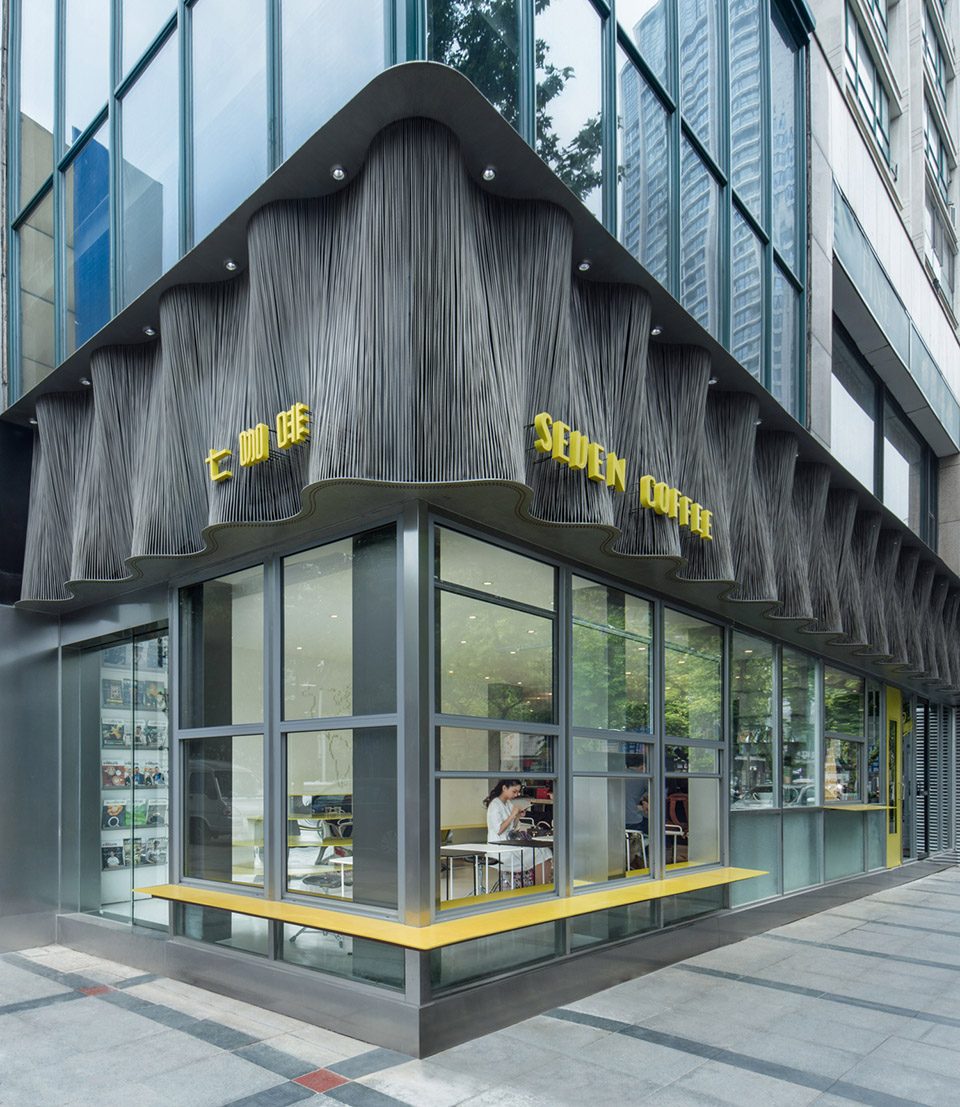

▼咖啡店外观，view of the cafe

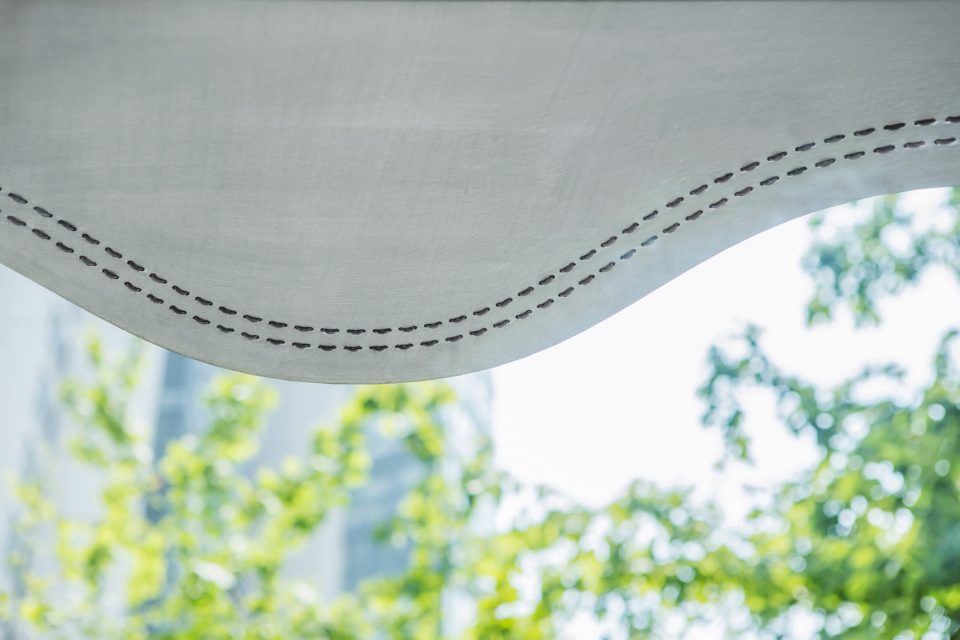

▼用坚硬的钢板和钢丝模仿柔软的手工皮具走线， steel wires are pulled through the steel plates like threads on a soft piece of leather

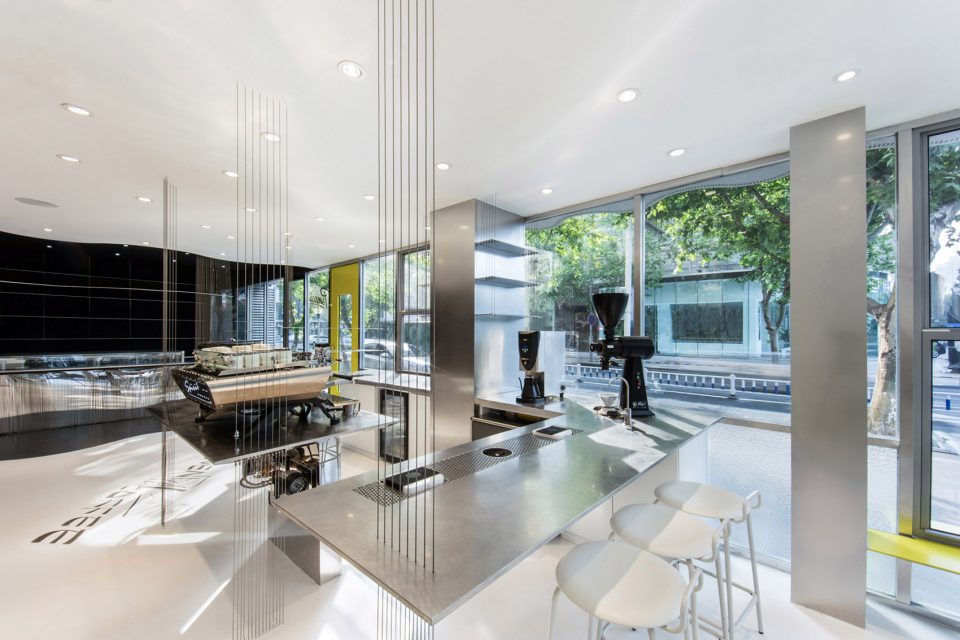

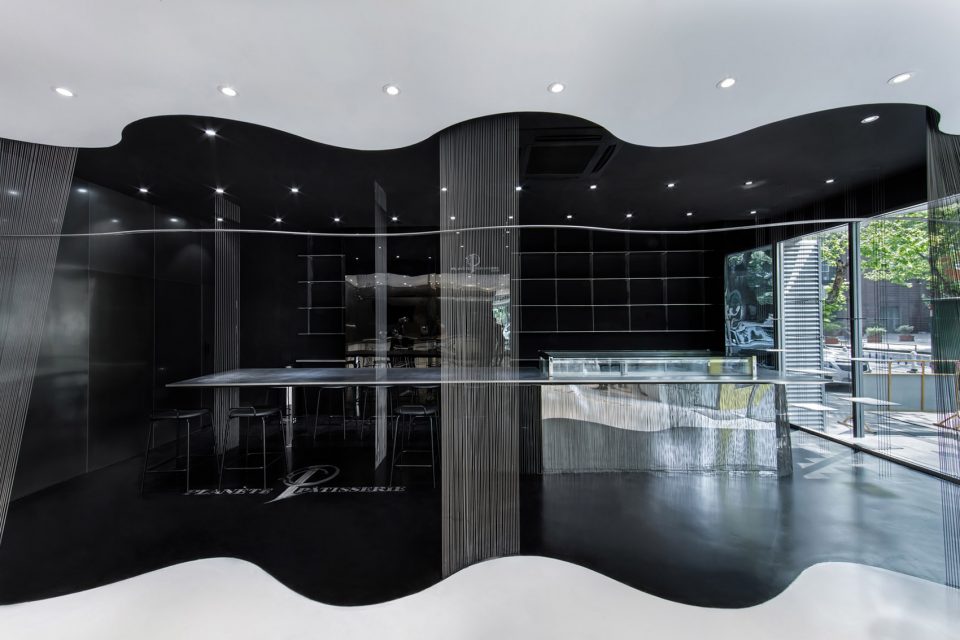

室内空间在平面上呈L形，精品咖啡、精酿啤酒和烘焙甜品各自占有L形空间的一隅。咖啡和啤酒空间以纯白色的吊顶和地面，以及七咖啡的主题黄色为主色调；烘焙甜品区域为全黑色调的空间。黑白两色空间以波浪形的吊顶边缘以及钢丝帘加以分隔，两侧吊顶高度错落不一，区分了不同功能的空间，也消化了室内新旧两部分的顶面高低差。室内的吧台以及局部墙面均以雾面不锈钢作为主要材料。吧台面的侧面斜向内收，边沿最薄处仅10mm。间距均等的钢索犹如从地面生长而出，在吧台的几个关键受力点穿过内部钢结构，向上固定到顶面。吧台远观似悬浮于空中一般，钢丝绳则充盈着力量感，整个吧台犹如踮起脚尖的芭蕾舞者，刚与柔恰到好处地平衡在一起。

The interior space is an overall “L” shape space. Coffee, craft beer and bakery zones take places separately in the three corners of the “L”. Coffee and craft beer zone have white ceilings and floors，and the bakery zone is a space with black covered all surfaces. The black and white spaces is divided by the curvy ceiling edge and steel wire. The heights of the ceilings on the two sides are different，which not only differentiate the spaces according to their functions, but also naturally merge the old space and the new space together into an indivisible whole. The surface of the coffee counter and part of the walls are mainly made of matte stainless steel. The section edge of the counter is tilted to make the surface of the counter looks quite skinny. The thinnest part of the edge of the counter is only 10mm. Steel wires with same gaps are like growing out of the floor and going through the inner steel frames, in the end fixed tightly up on the ceiling. Therefore, from a distance the customers would see counters “floating” in the air. The steel plate looks light while the steel wires are full of tension and strength. The counter is like a ballet dancer standing on her tiptoes. The architect hopes that the customers could feel the balance of power and grace in this space.

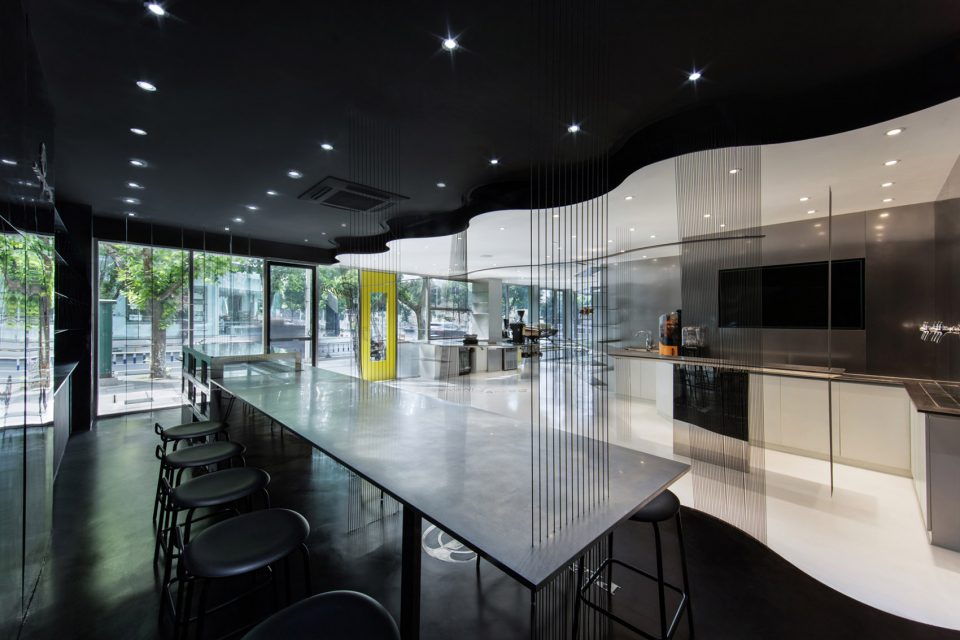

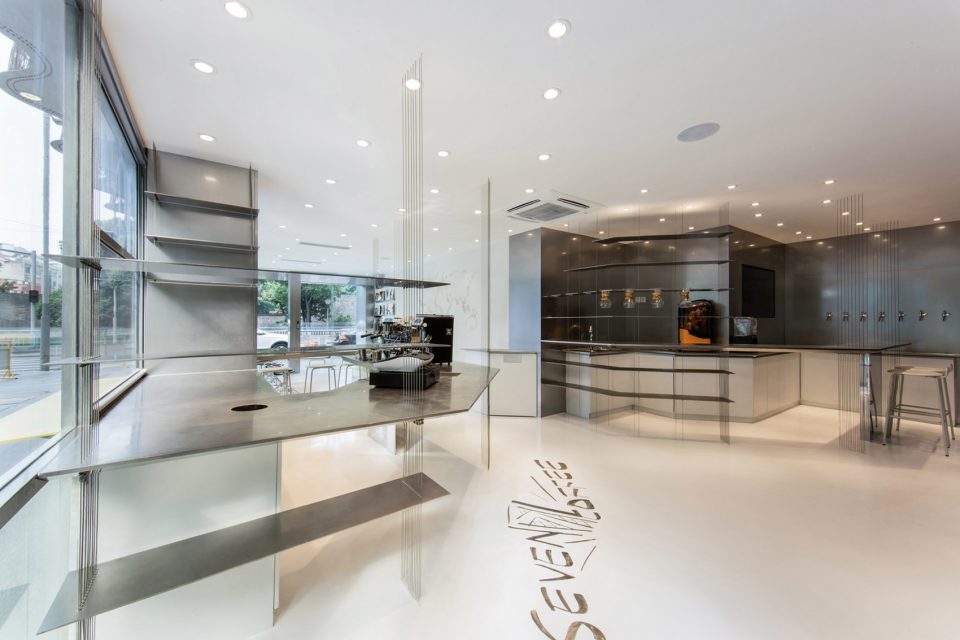

▼功能空间层次分明，distinct functional division

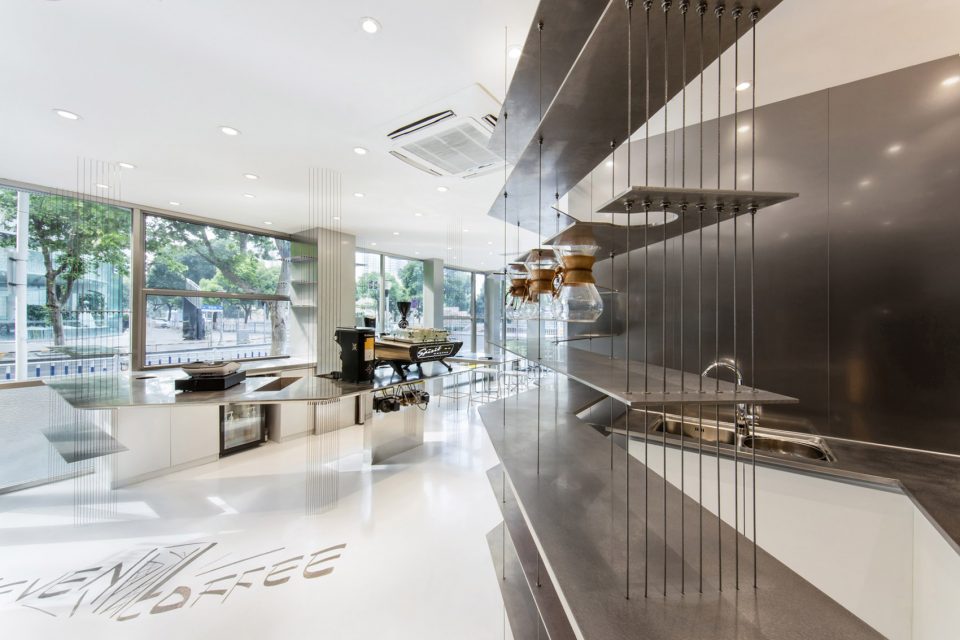

咖啡吧台做为一个整体经过精心设计，手冲咖啡（hand drip）区的秤和洗杯器（Cup rinser）被结合到一起，洗杯器上漏水网（the filter of cup rinser）的激光穿孔被设计为7咖啡的logo。冰槽和洗杯器与吧台面焊接打磨抛光成为一体。这一切的设计都让吧台更加简洁纯粹的同时具有最佳的操作体验。用于展示的层板架，在进门可见的醒目位置。用单根钢索等距地将其与地面和顶面连接。在人视线的高度，设计有放置滴滤壶的层板架。滴滤壶（FILTER-DRIP COFFEE MAKER）嵌入由激光切割而出的圆形孔洞中，悬挂于层板架上，层板一同漂浮起来。

The coffee counter as a solid steel massing is designed delicately. The scale in the hand drip zone and the cup rinser are combined together. The filter of the cup rinser is designed to have a lot of laser-cut holes with shapes of “7”. The ice-bath and the cup rinser are welded and embedded into the surface of the coffee counter. All these design strategies are aiming to give the counter a cleaner and simpler look and give baristas a more professional experience when they are using it. The shelves for display are put in an eye-catching place facing the entrance. A single steel wire goes through all the shelves from ceiling to floor and makes sure the gaps are of the same distance. At human’s eye level, circles are laser-cut on the steel plate and the filter-drip coffee makers could perfectly fit in them. Since they are only supported by the 6mm steel plate, these filters are like floating together with the shelves and create a fascinating visual focus at the entrance.

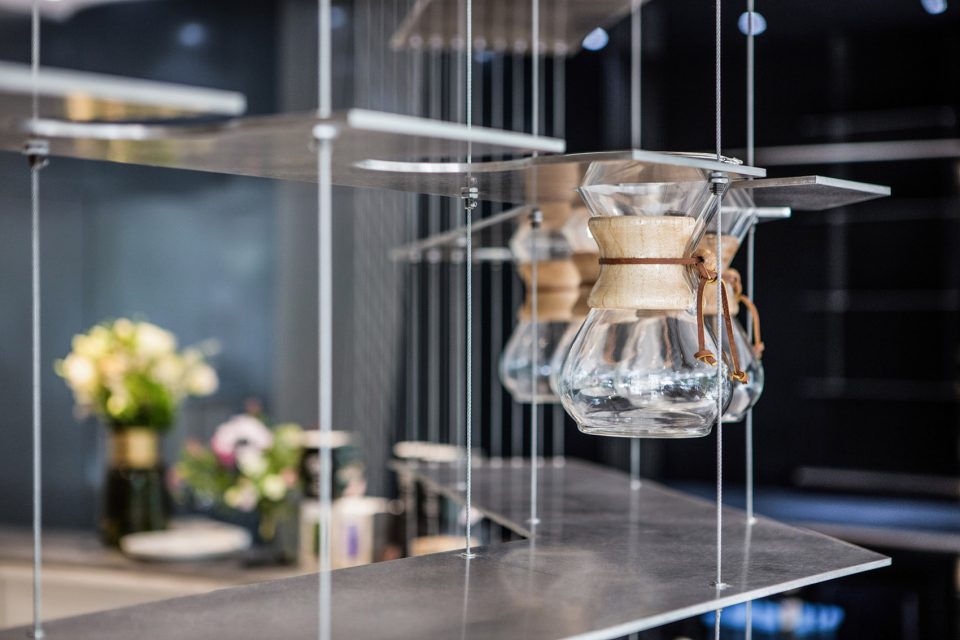

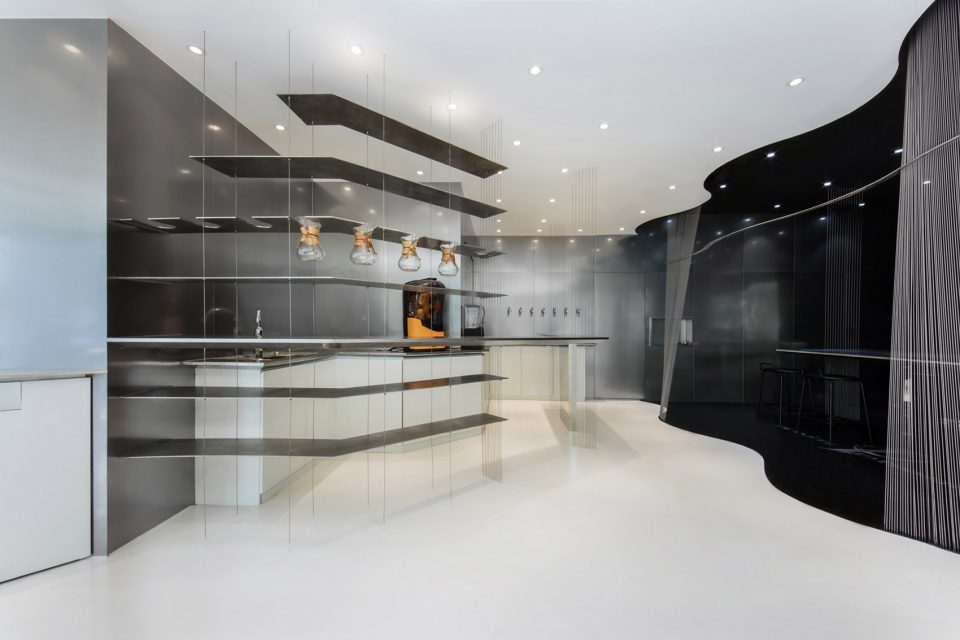

▼漂浮般的层板架，the floating shelves

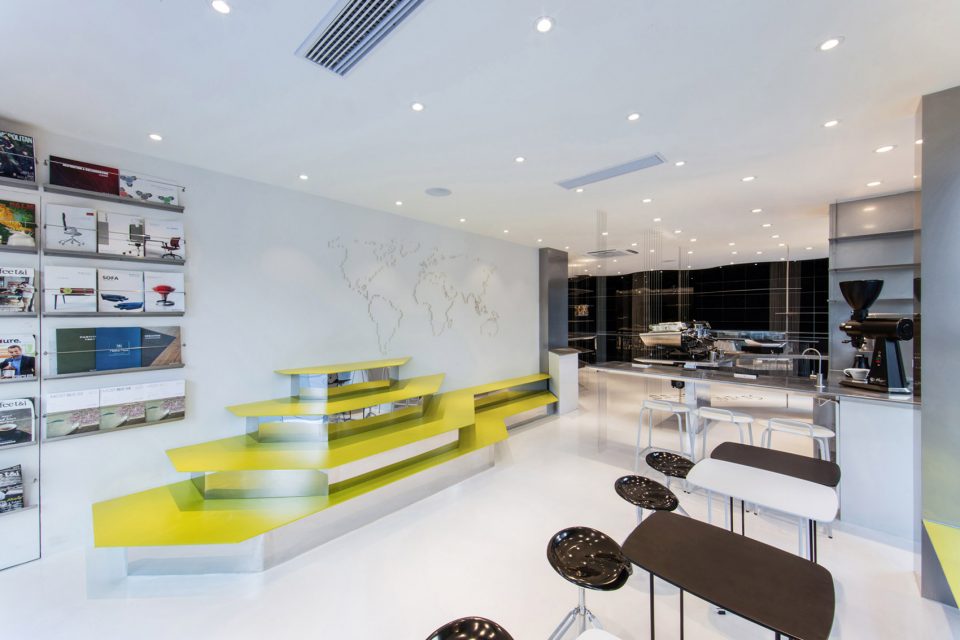

室内靠墙的大台阶的面层为喷涂七咖啡主题黄色漆的钢板，底下的垂直面向内收，台阶边沿挑出，营造出了如纸的轻薄感。大台阶垂直面通过镜面被消隐，再次增强了台阶的漂浮感。

The big steps pushed against the wall are made with steel plates sprayed yellow. The elevation sides are pushed inward to let the surface of the steps jut out and give a feeling of lightness. The bottom part of the steps are covered with mirror stainless steel. The use of this material here conceals the elevation parts to emphasize the feeling of floating of the yellow surfaces.

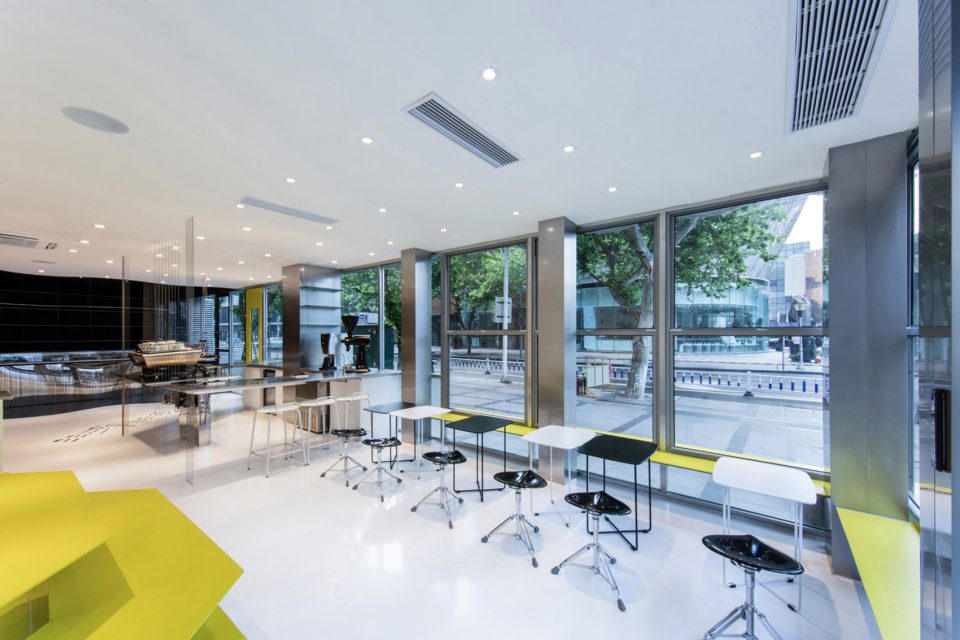

▼靠内墙的台阶面层展现漂浮感，the big steps emphasize the feeling of floating

沿街角的五扇提拉窗，在充分上提打开的时候，与黄色的悬挑坐台一起，最大程度地联通室内外。

The five sash windows on the street side could be totally open. When they are open, with the yellow window sills, they could form a relaxing seating area for the pedestrians and merge the boundary of indoor and outdoor space.

▼沿街提拉窗将室内外最大程度连通，the sash windows on the street merge the boundary of indoor and outdoor space

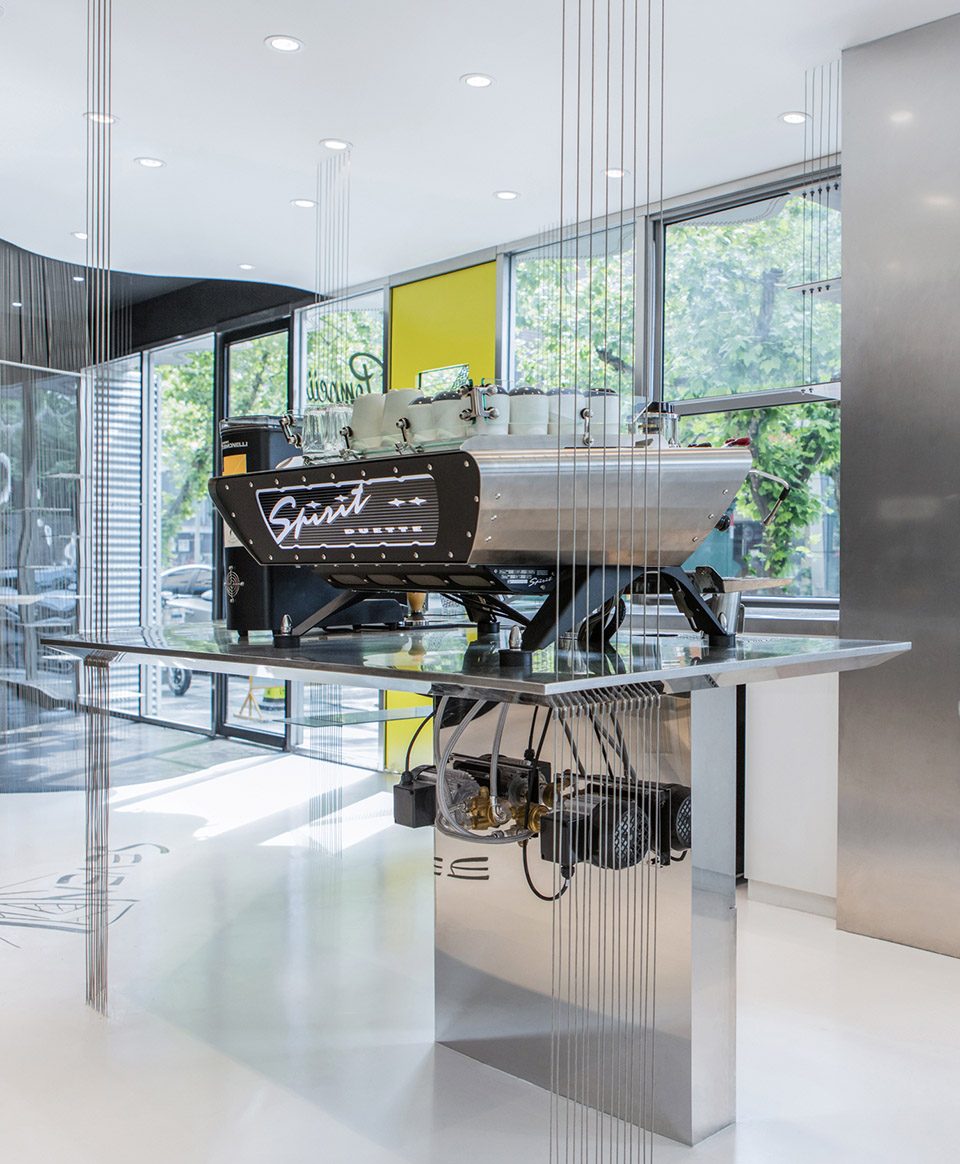

咖啡机的泵被建筑师特意暴露展示出来，上下水被隐藏在了镜面不锈钢中；而另一侧单品区的上下水则被隐藏在了吧台面的空腔内。这一切都是为了将空间的轻盈感发挥到极致。

The pump of the coffee machine is totally exposed on purpose. The pipes of the coffee machine are hidden by wrapping mirror finished stainless steel plates around them. On the other side the pipes of the water filter are hidden in the cavity of the coffee counter. All these details aim to create a lighter feeling and a lightsome atmosphere.

▼将咖啡机暴露在外展现空间的轻盈感，the exposed coffee machine is aim to create a lighter feeling

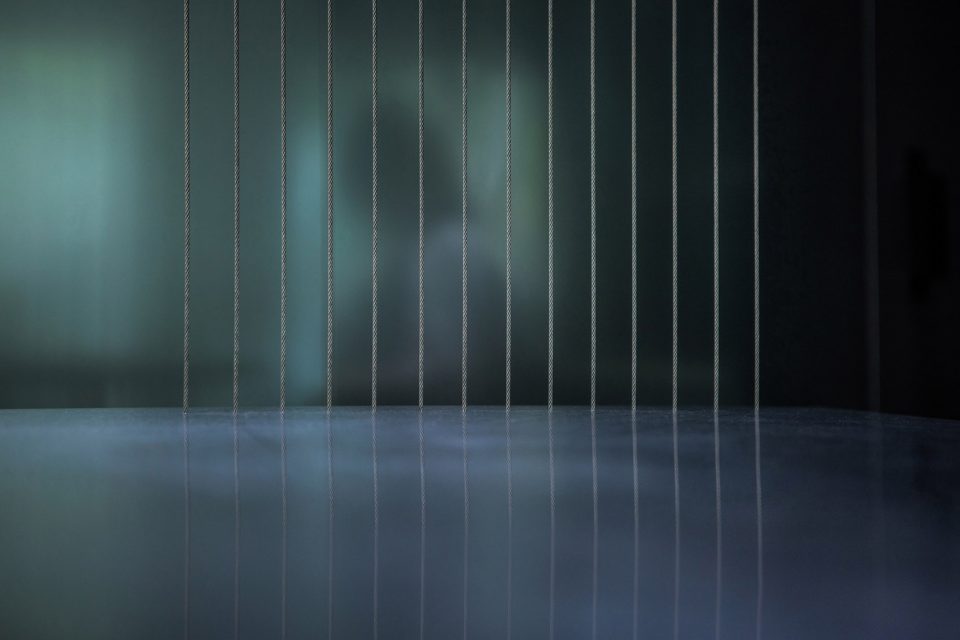

钢索是整个设计的灵魂，贯穿于各个细部之中，并呈现出丰富多变的气质。门头钢丝帘如迎风待舞的丝质裙摆；支撑吧台面的钢索沉稳冷峻、散发着张力；分隔黑白空间的钢丝帘，以琴弦般的优雅自如，平衡着两侧不同功能的空间。

Steel wire is the main design element and plays the role of soul in the project. With all kinds of beautiful forms , steel wire is as a thread running through the whole space. The wire on the facade is curvy like a silky dress; the wires supporting the coffee counter filled with tension; the wires as screen to divide the black and white spaces are graceful like harp strings and functionally balance the two spaces. With all kinds of techniques and forms, the architect plays around with this material and puts on different masks for it. The “thread” helps add another layer of translucency and weightless for the overall atmosphere and the whole space turns out neatly as a whole.

▼钢索细节贯穿于室内设计，the steel wire is the main design element

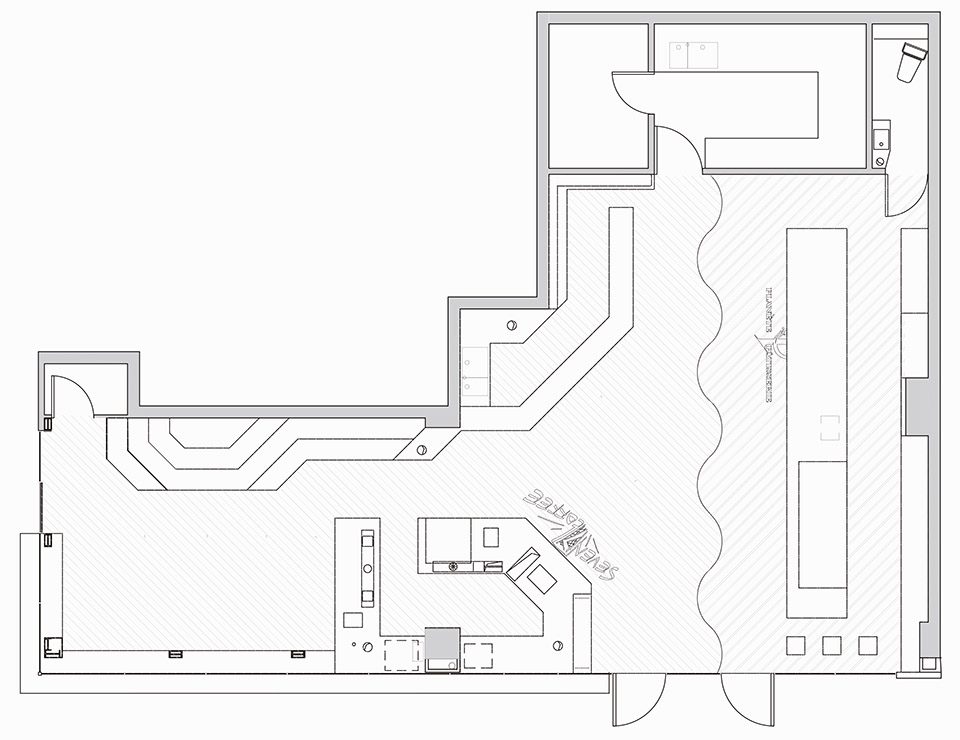

▼平面图，plan

项目名称：七咖啡
建筑公司：栋栖建筑设计（上海）有限公司
设计团队：姜南马翌婷王仁杰
项目位置：中国，江苏省常州市
项目年份：2017
建筑面积：100 m2
摄影师：刘瑞特
材料：镜面不锈钢，雾面不锈钢，钢丝绳

Project Name: Seven Coffee
Architect Firm: dongqi Architects
Project Team: Jiang Nan, Yiting Ma, Renjie wang
Location: Changzhou, China
Completion: 2017
Area: around 100 m2
Photography: Raitt Liu
Material: stainless steel sheet, wirerope
