Rotatable Security Kiosk, China by NAN Architects

variable-angle cabin modules

Project Specs


非常感谢 NAN建筑事务所 予gooood分享以下内容 。更多关于:NAN建筑事务所 on gooood
Appreciation towards NAN Architects for providing the following description:

项目位于上海黄浦江西岸文化走廊。业主计划在西岸沿线升级30个治安岗亭,兼顾治安和服务市民的综合功能。已贯通的西岸公园与各大美术馆成为上海市民参与公共活动和体验艺术文化的平台。 如何满足不同场地的各自条件,并集合信息互动,公共服务,治安管理等功能,是这个项目要解决的问题。

▼项目视频,video introduction

The project is located in the Shanghai West Bund. The client plans to upgrade 30 security kiosks along the West Bank, which have the comprehensive functions of public service. The West Bund Park and major art galleries have become a platform for Shanghai residents to participate in public activities and experience art and culture. How to meet the respective conditions of different venues and integrate the functions of information interaction, public services, security management, etc., is the problem to be solved by this project.

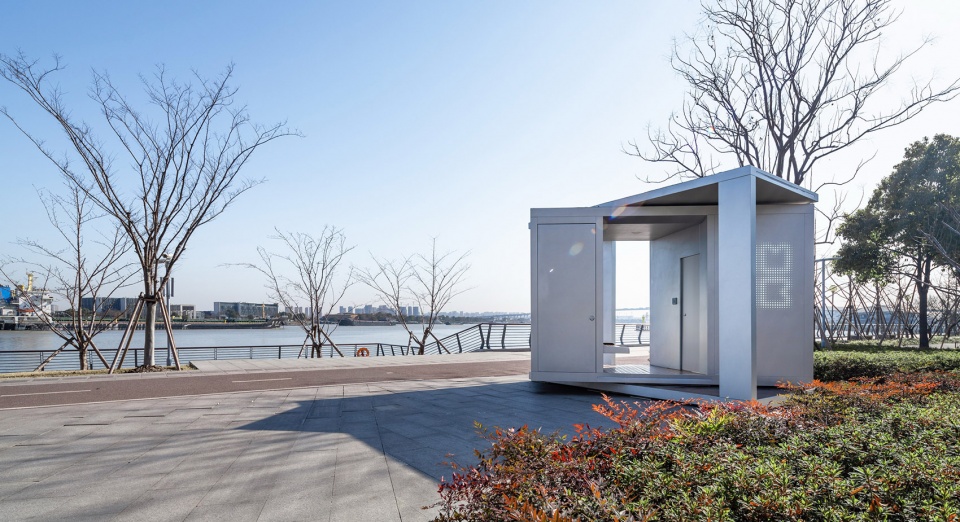

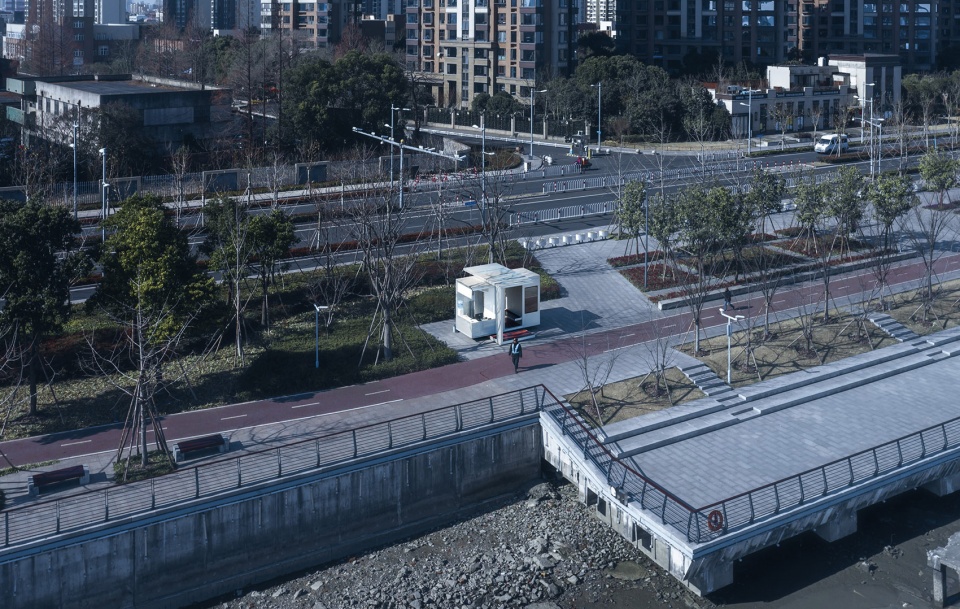

▼景观远眺,overview of the project © 刘松恺

▼景观与城市,the landscape and the city © 刘松恺


We use variable-angle cabin modules to adapt to different site roads and landscape views. Different from the traditional security pavilion, the open and changing kiosk presents an inviting gesture, enhancing the sense of public participation. It provides a place where people can relax, talk, inquire, shop, and get emergency assistance. Hinges and bearings turn simple forms into interactive urban landscapes that are changeable and adaptable to different sites.

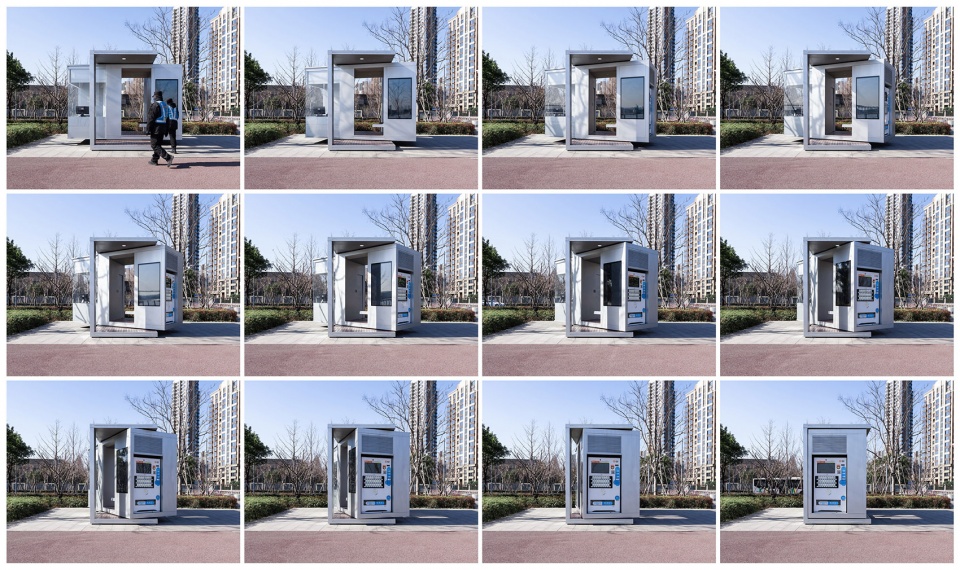

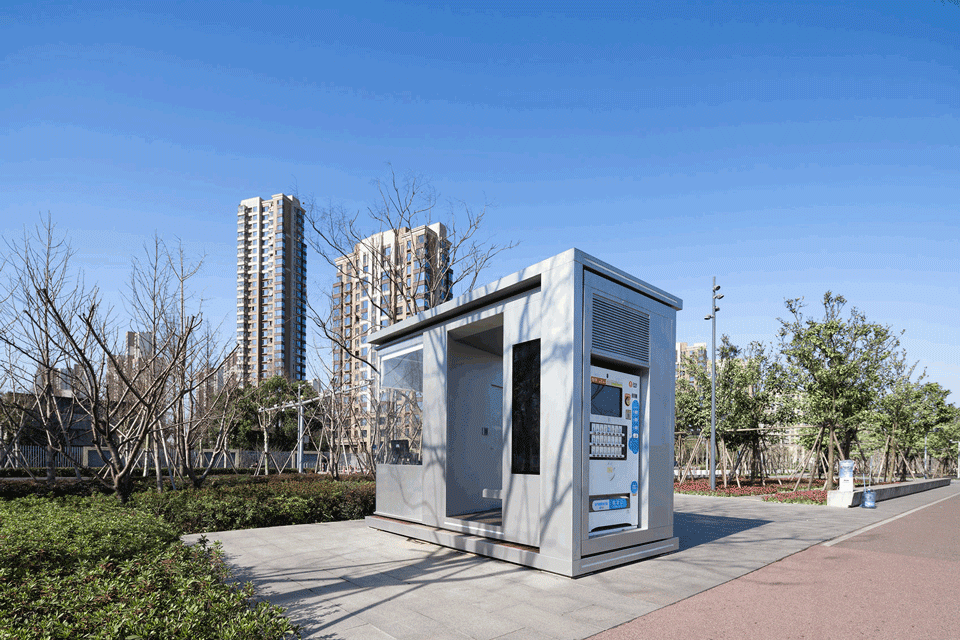

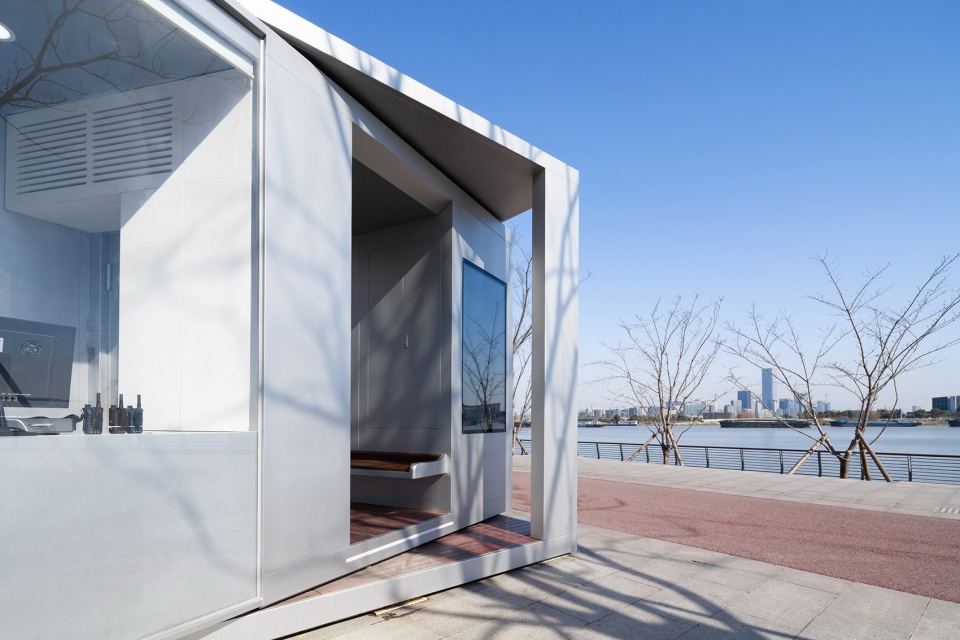

▼旋转的治安亭,the rotating security pavilion © 刘松恺

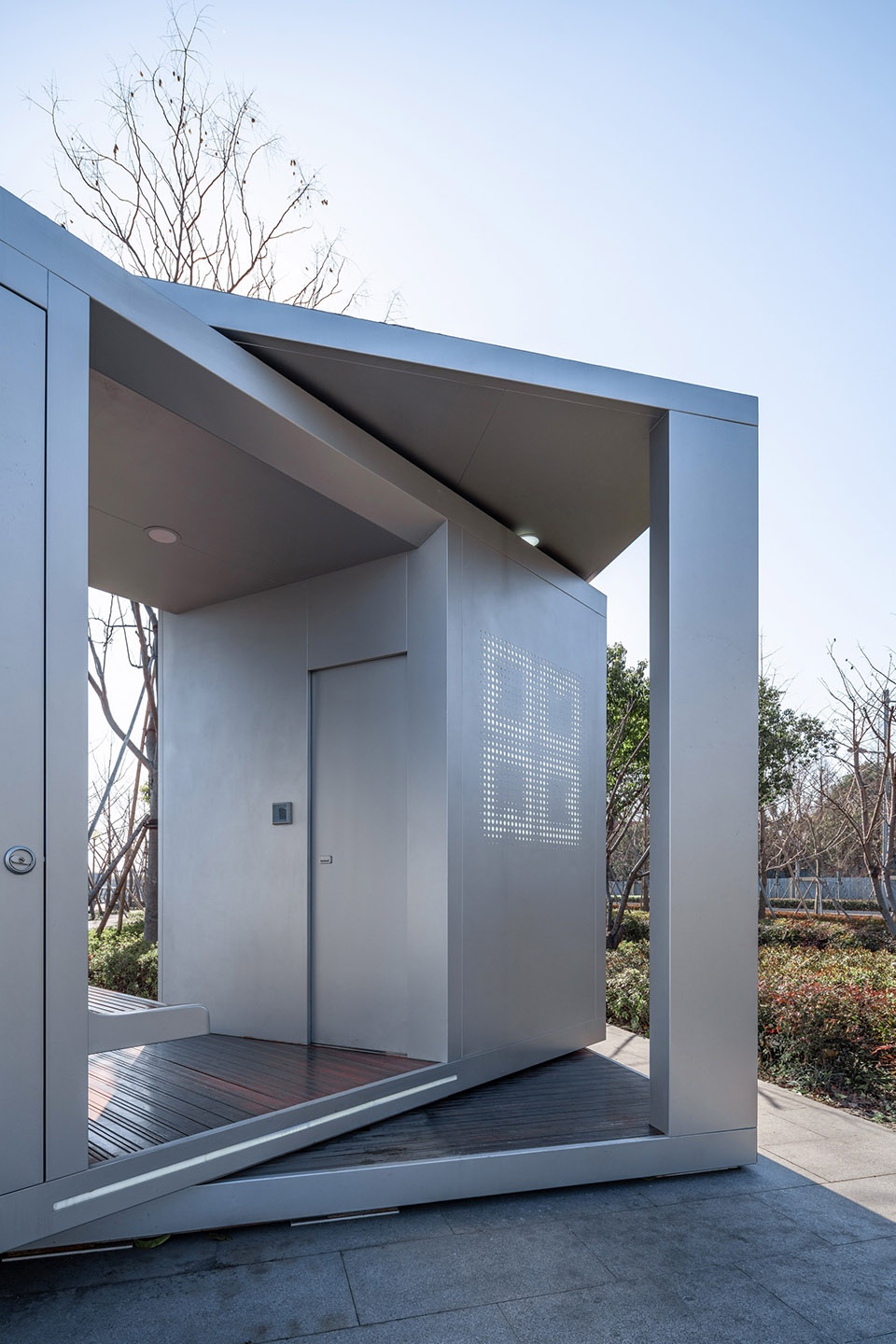

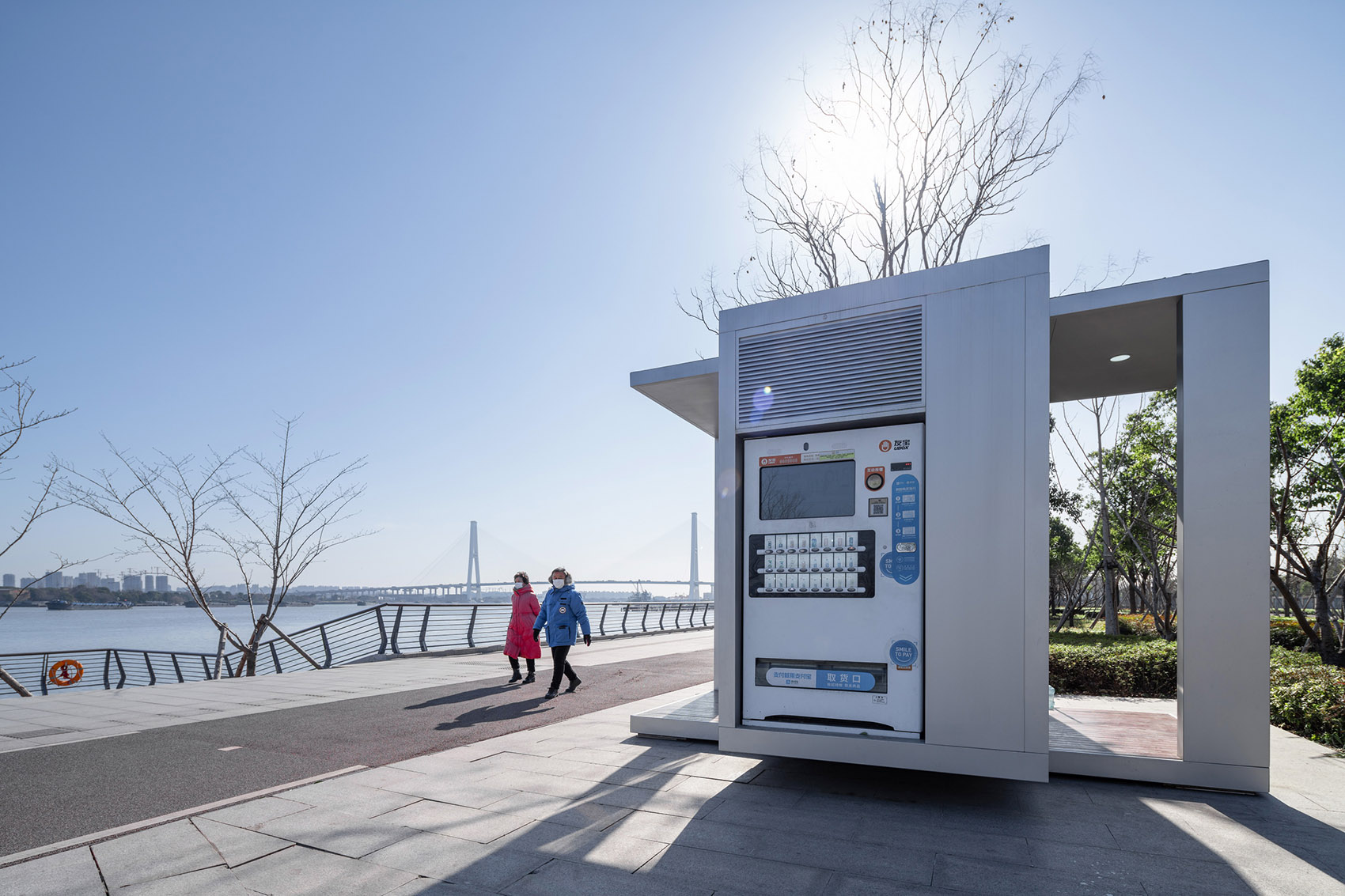

▼走近治安亭,by the security pavilion © 刘松恺

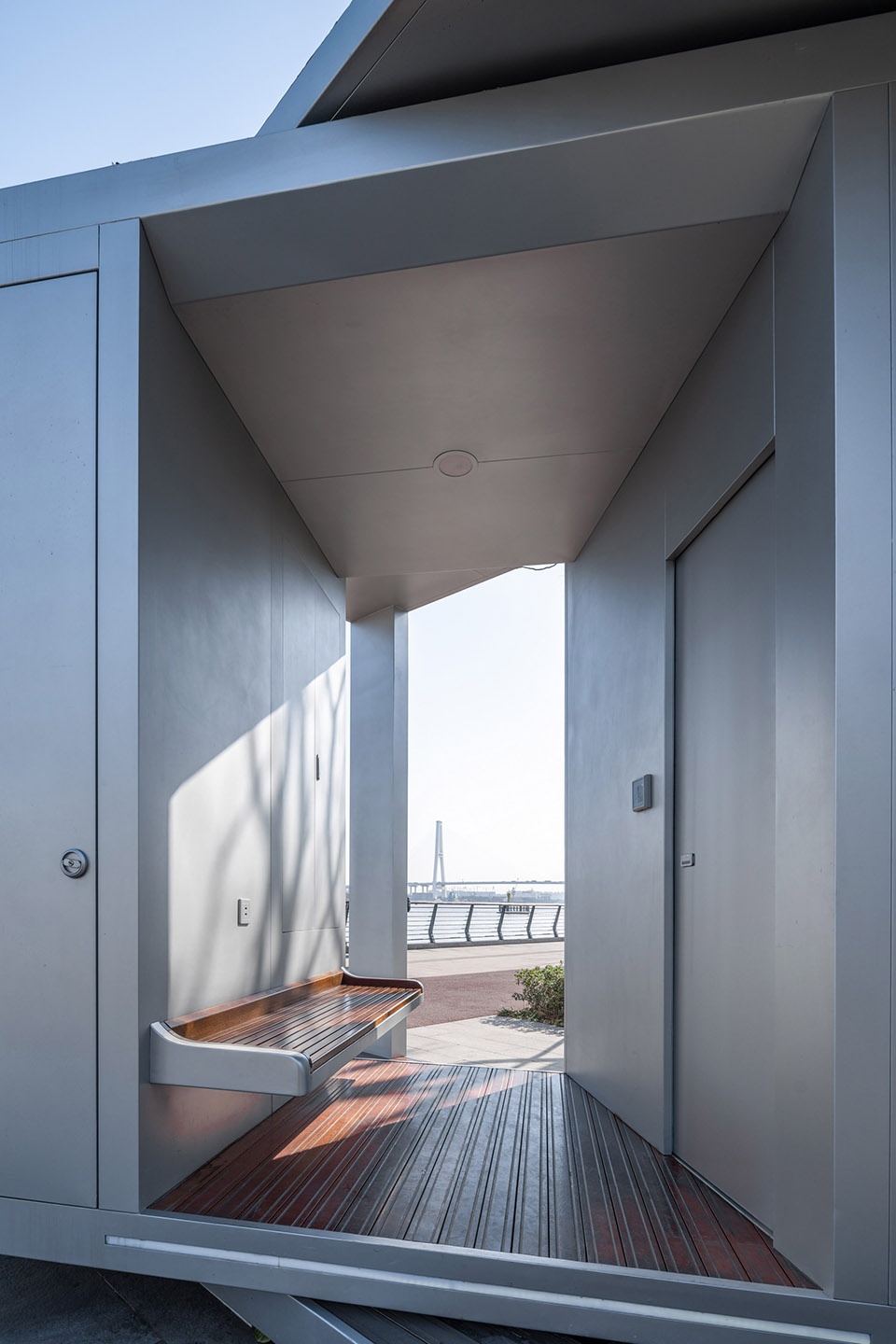

▼不同角度看舱体模块,view of the cabin modules from different angles © 刘松恺

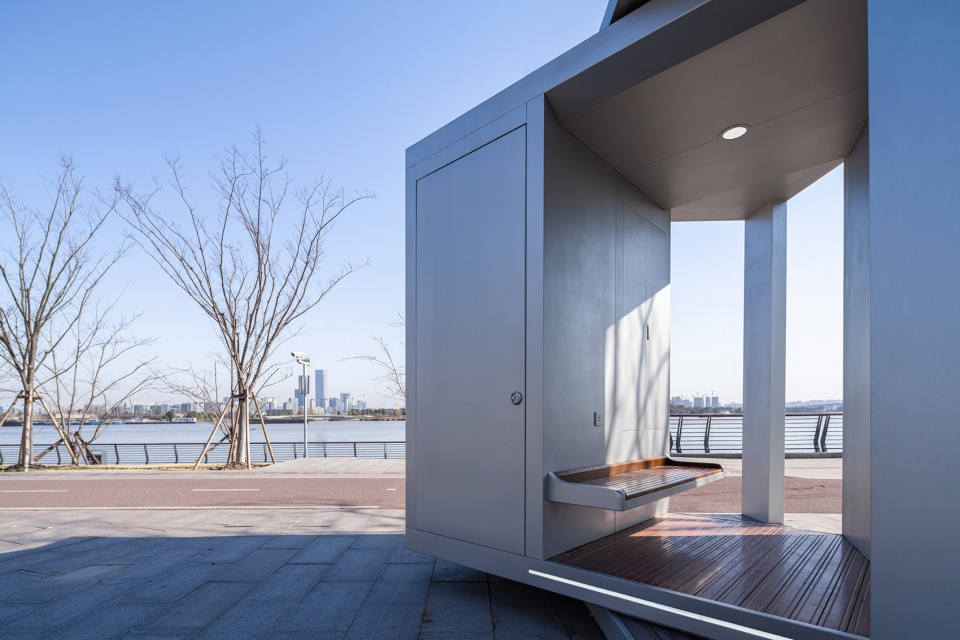

▼通过治安亭看城市,view of the city through the kiosk © 刘松恺


It is not only a machine, but also a movable space, breaking people’s traditional expectations of architecture, blurring the boundaries between objects, buildings and events, and delivering part of the power to shape the space into the hands of users.

▼使用示意,the using scene © 刘松恺

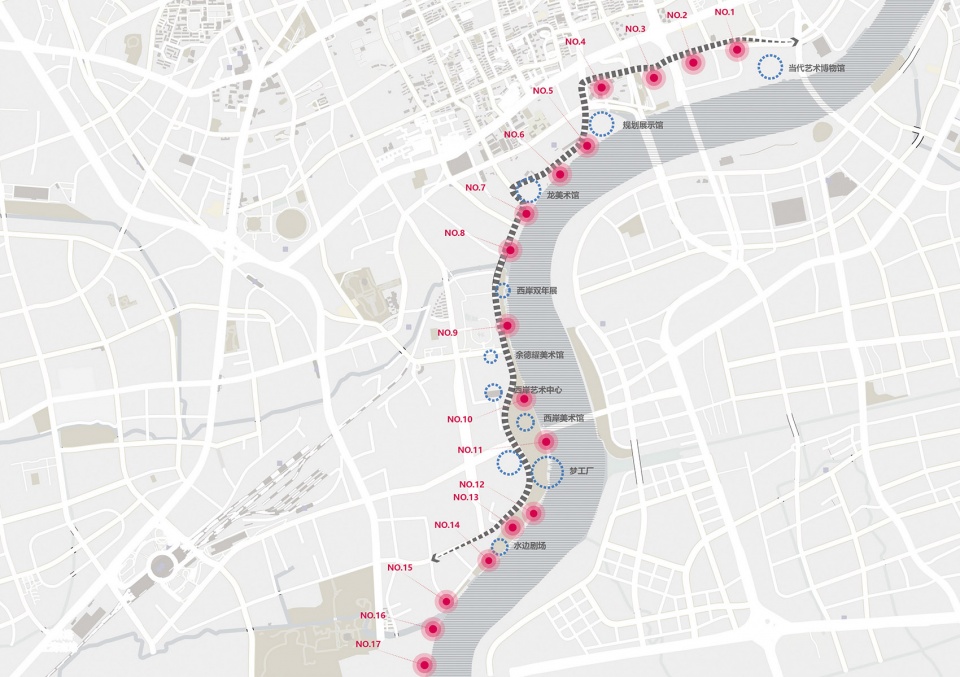

▼区位,the location © NAN建筑事务所

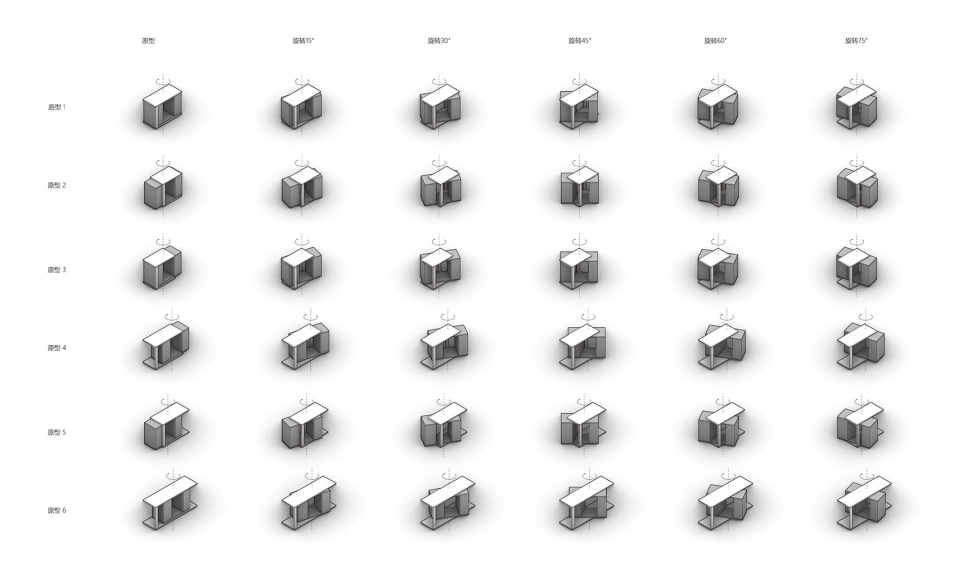

▼类型分析,the typology diagram © NAN建筑事务所

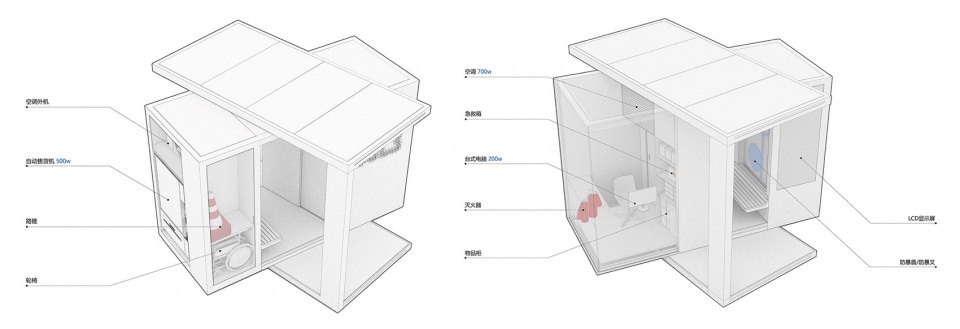

▼结构说明,the structure instruction © NAN建筑事务所


NAN Architects
Principal: Xu Nan
Design team: Zhang Yi, Zhang Yi, Cheng Ziyu, Zhou Dingqi, Liu Songkai, Wang Xiaomin, Tan Zhonghan
Curtain Wall Design: Yang Rui
Client: West Bund Group
Client Management: Cao Yuanjie, Guo Liming, Xu Zuohang
Photography: Liu Songkai
Contractor: Shanghai Commuter Sheet Metal Manufacturing Co., Ltd.
Address: Shanghai
Project year: 2020
Building area: 8.25 square meters
Material: steel, aluminum, glass, wood

More: NAN Architects  更多关于:NAN建筑事务所 on gooood
