Ranwu Lake (Tibet) International Self-drive Tour and Recreational Vehicle Campsite by Arch-Hermit

Among the glistening light of waves and the mist

Project Specs

Location:

来自小隐建筑(Contact:panyoucai@qq.com)对gooood的分享。更多请至:Arch-Hermit on gooood
Appreciation towards Arch-Hermit for providing the following description:

每个向往西藏的孩子都有一个G318之梦,而紧邻中国最美公路的藏东第一大湖“然乌湖”,便是镶嵌在318国道上的一颗耀眼明珠。幽蓝深遂的然乌湖水恍若天空滑下的一滴眼泪,寂静得没有丝毫声息,犹如被久远时光凝固的女子,心头再也泛不起涟漪。她不食人间烟火,依然保留了世界难觅的原始美,传说中的高原梦境。

Every person with a yearning for Tibet has a dream of traveling on China National Highway 318 (G318). Ranwu Lake, the biggest lake in eastern Tibet and adjacent to the most beautiful national highway in China, is a bright pearl along the G318. Blue deep Ranwu Lake is like a drop of tears from the sky. It is calm and silent, just like a woman who is frozen by time and has no more ripples in her heart. She is otherworldly, remaining the precious original beauty rarely seen in the world. She is a dream in the plateau.

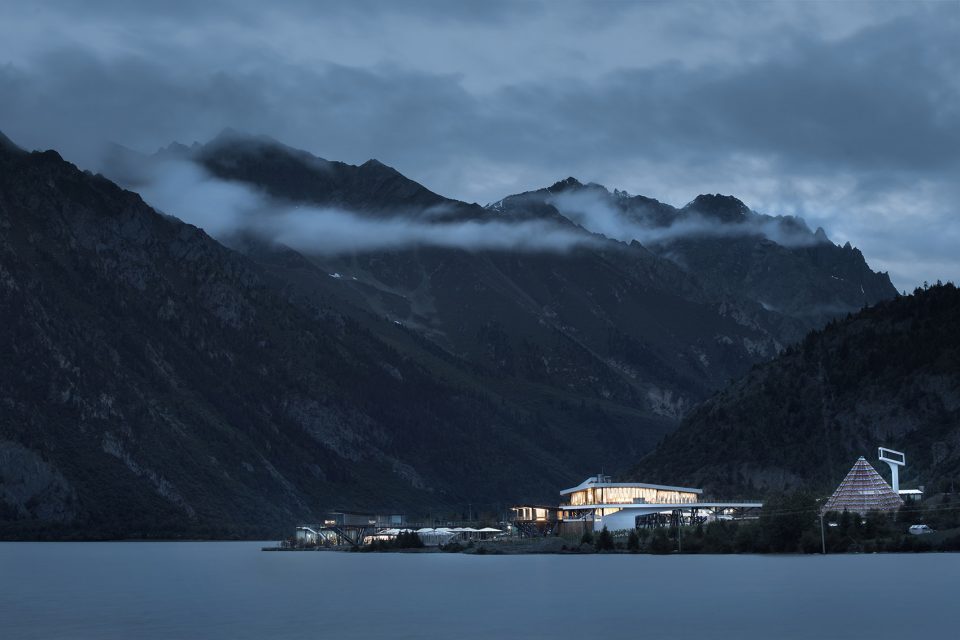

▼然乌湖是藏东第一大湖,Ranwu Lake is the biggest lake in eastern Tibet

营地位于然乌湖拉热村,北侧318国道蜿蜒而过,南侧然乌湖如梦幻之境,是自驾旅行者观赏然乌湖美景的最佳停驻点。营地地形北高南低,最大高差约13米,地势相对平缓、开阔,景观视野绝佳。湖边绿草茵茵、古树婆娑,山腰青松摇曳、杜鹃烂漫,山顶皎洁莹蓝、云浮玉色。

The campsite is located in Lare Village, Ranwu Lake. Its north is the winding G318, and its south is the dreamland Ranwu Lake. The campsite is the best spot for self-drive travelers to stop and enjoy the beautiful scenery of Ranwu Lake. The campsite is high in the north and low in the south, with maximum altitude difference of 13 meters. The terrain slopes gently and is broad with a spectacular field of view. There are green grass and ancient trees beside the lake, green pine trees and azalea flowers on the mountainside, and blue sky and floating clouds above the mountains.

▼营地位于然乌湖北岸的拉热村,the campsite is located in Lare Village to the north of Ranwu Lake

营地集旅游资讯中心、服务管理中心、简餐、中餐、咖啡、24h便利店、藏药文化展览馆、藏地特产展销中心、高端度假酒店、休闲酒吧、休闲茶吧、BBQ自助烧烤、医疗救助中心、星级卫浴设施、车辆维修、帐篷露营、房车露营、儿童森林乐园、观景平台、亲水平台等综合旅游项目于一体,包含176个小汽车停车位、5个旅游大巴停车位和7个房车停车位。总占地面积约70亩,一期工程建筑使用面积为2400平米。

There are comprehensive travel services at the campsite, such as travel information center, service management center, simple snack, Chinese food, coffee, 24-hour convenience store, Tibetan medical culture exhibition center, Tibetan specialty exhibition and sales center, high-end holiday hotel, bar, tea bar, BBQ buffet, medical assistance center, star-rated bathroom facilities, vehicle repair, tent camping, recreational vehicle (RV) camping, children’s forest park, view platform and waterside terrace.176 car parking lots, 5 tour bus parking lots and 7 RV parking lots are provided. With a total project area of about 70 mu, Phase 1 Project uses an area of 2,400 square meters.

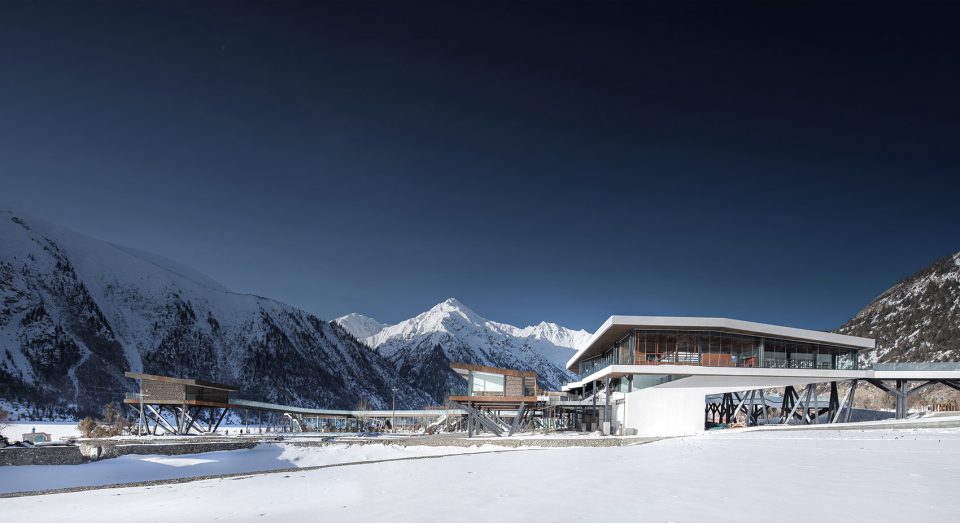

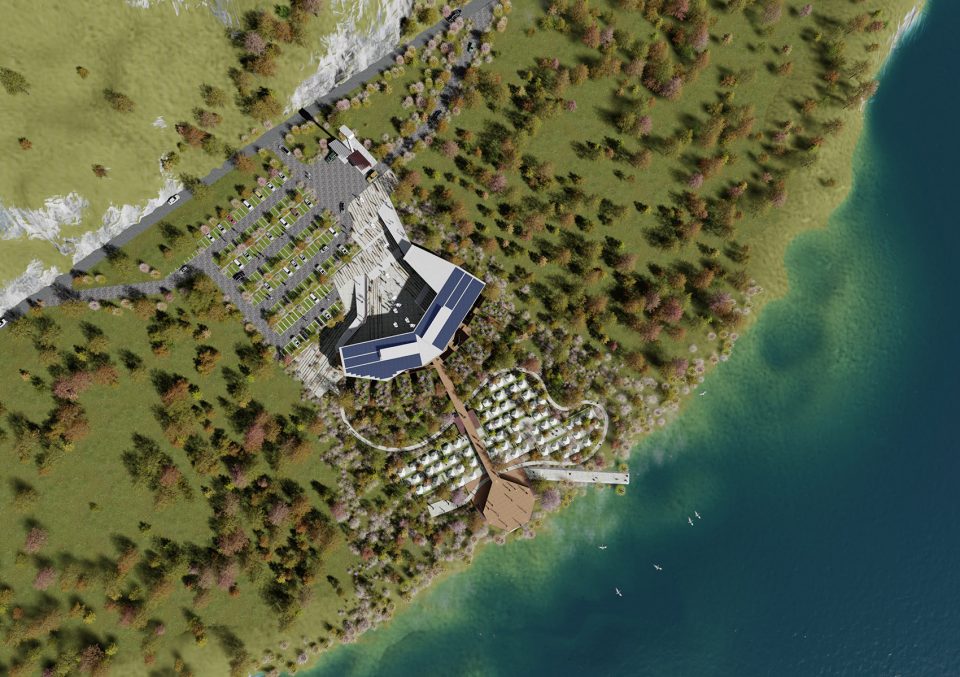

▼营地概貌,an overview of the campsite

利用原有地形的高差,保证从湖边到318国道的各建筑依次抬高、互不遮挡;通过架空层高度调节,使得旅游服务中心主体建筑整体高于318国道6-8米,并在临318国道入口处设置约20米高的景观灯塔,从而保证项目安全性、昭示性和景观资源的最大化利用。

By taking advantage of the original terrain height difference, all buildings from the lakeside to the G318 are elevated and do not block each other. The main building of the travel service center can be 6-8 meters higher than the G318 by the height adjustment of the overhead layer. There is a landscape lighthouse of nearly 20 meters next to the entrance of the G318 to ensure the safety and visibility of the Project and the maximum utilization of the landscape resources.

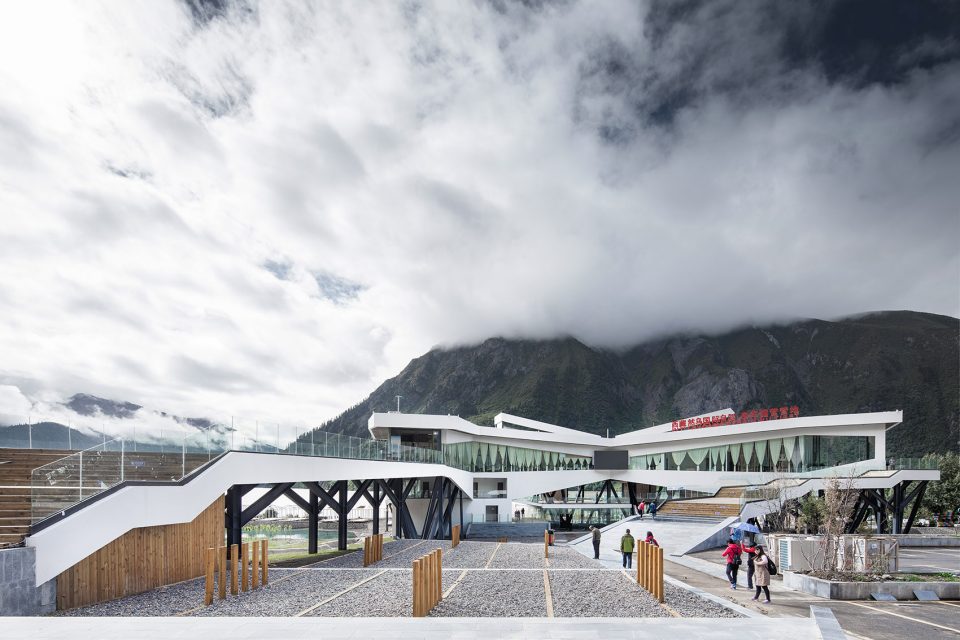

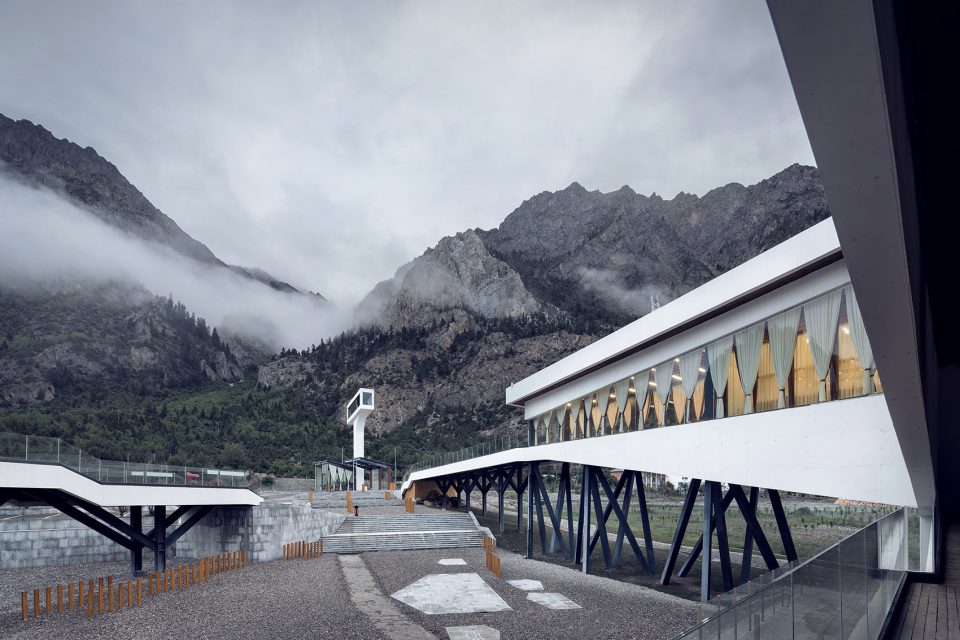

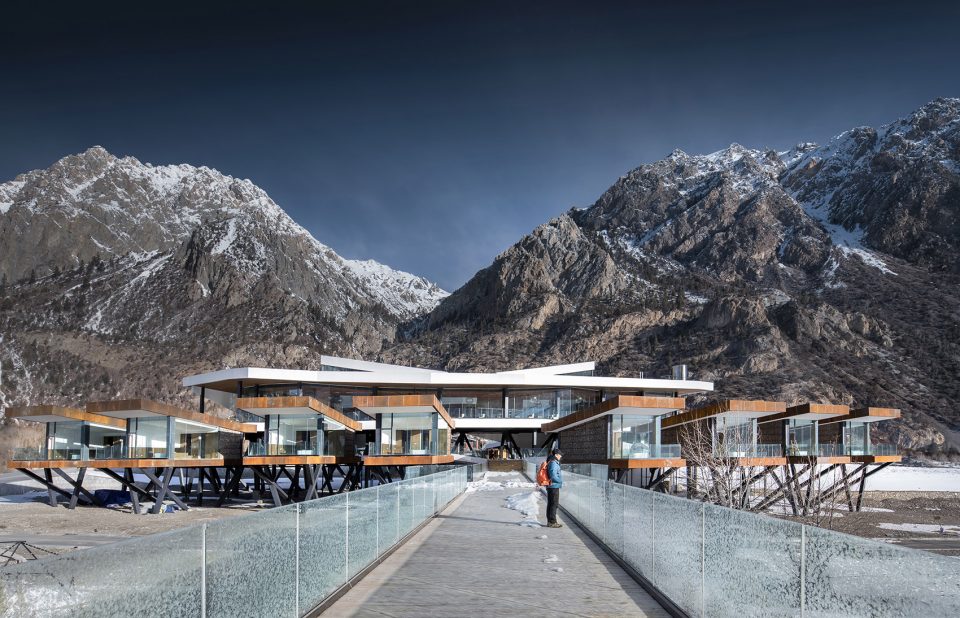

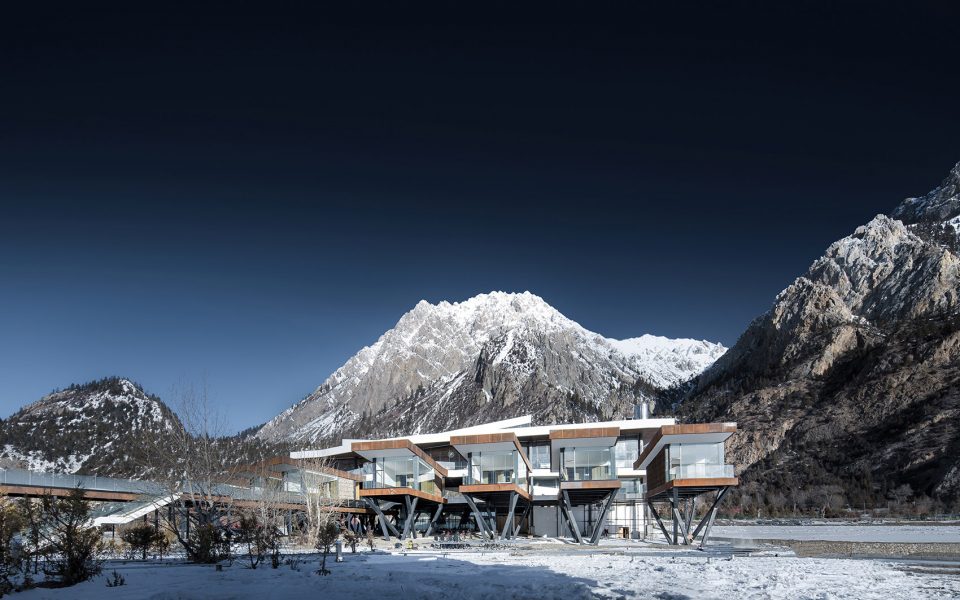

▼建筑整体架空于地面,the volumes are basically elevated from the ground

为最大化观湖视野,综合服务中心主体建筑沿318国道横向折线延展约80米,临湖一侧为全落地玻璃,保证主体建筑临湖一侧绝佳观景视野。主体建筑由白色实体不规则线条和大量通透玻璃构建而成,通过平面和竖向的造型变化最终以缓坡坡道重新与地面连接。营地主体建筑外观顺应地形转折起伏似雄鹰展翅栖于湖案。

In order to maximize the field of view, the main building of the integrated service center extends about 80 meters along the horizontal line of the G318. The walls facing the lake are all glazed in order to ensure the best view. The main building is made of white irregular lines and a large quantity of transparent glass. The changes of plane and vertical shape make the gentle slope to re-connect with the ground. The appearance of the main building is shaped by the terrain, just like an eagle spreading its wings near the lake shore.

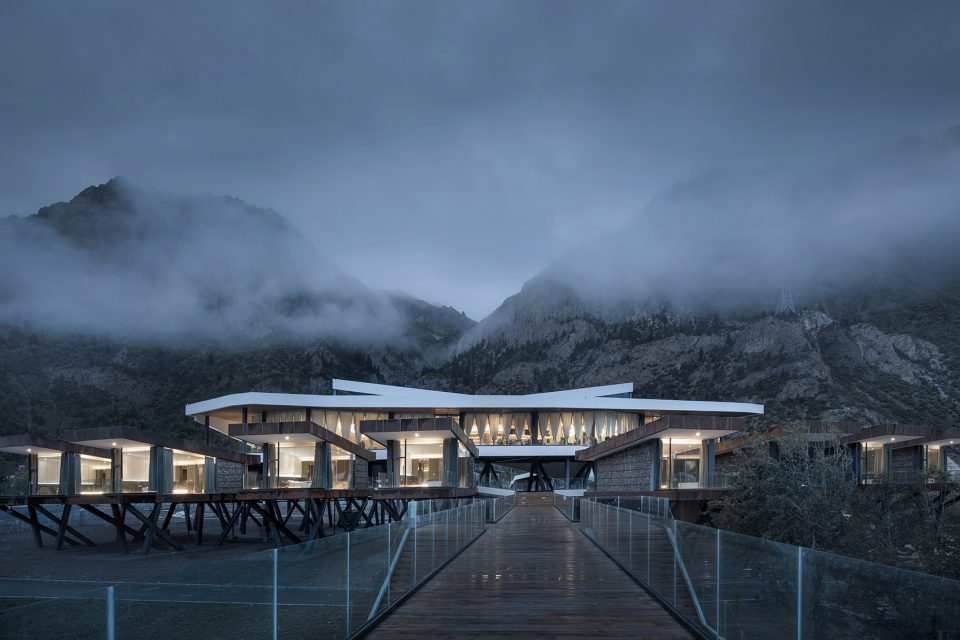

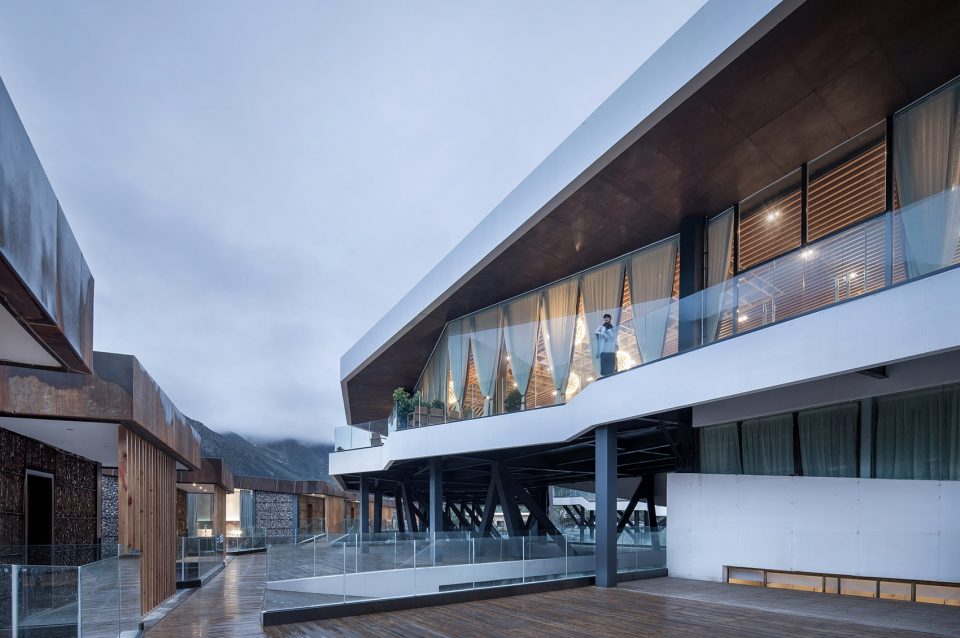

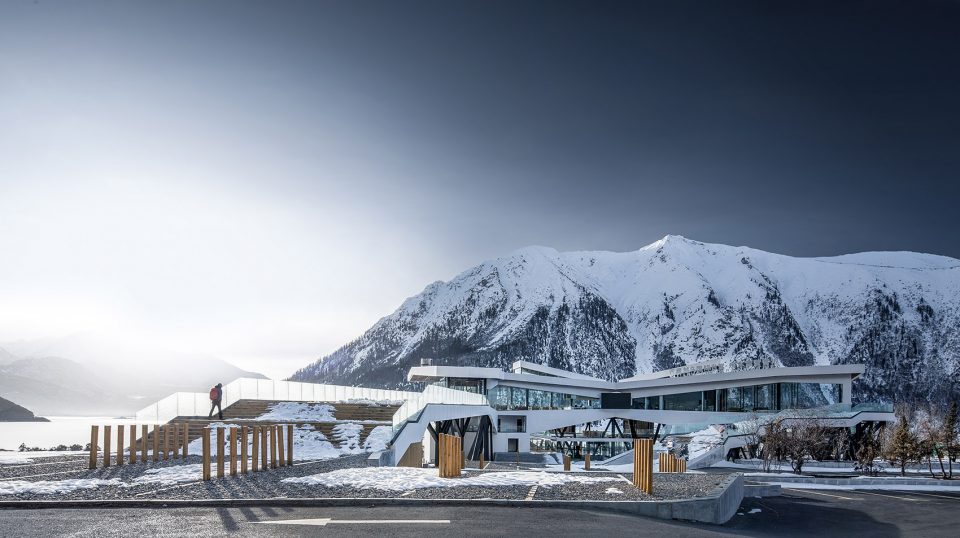

▼主体建筑由白色实体和大量通透玻璃构建而成,临湖一侧为全落地玻璃,the main building has a large quantity of transparent glazed walls to ensure the best view of the lake

主体一层为旅游服务资讯中心、管理中心、简餐、咖啡、24H便利店、藏地特产展销中心等景观要求高的功能空间,简餐以面点、快餐、糕点为主,咖啡为现磨咖啡,为游客提供一处休闲放松的观景空间。

There is travel information center, management center, simple snack, coffee, 24-hour convenience store, Tibetan specialty exhibition and sales center on the first floor of the main building. Simple snacks are mainly pastries, fast food and cakes, and coffee is freshly ground. The first floor serves as a wonderful place for tourists to relax and enjoy the view.

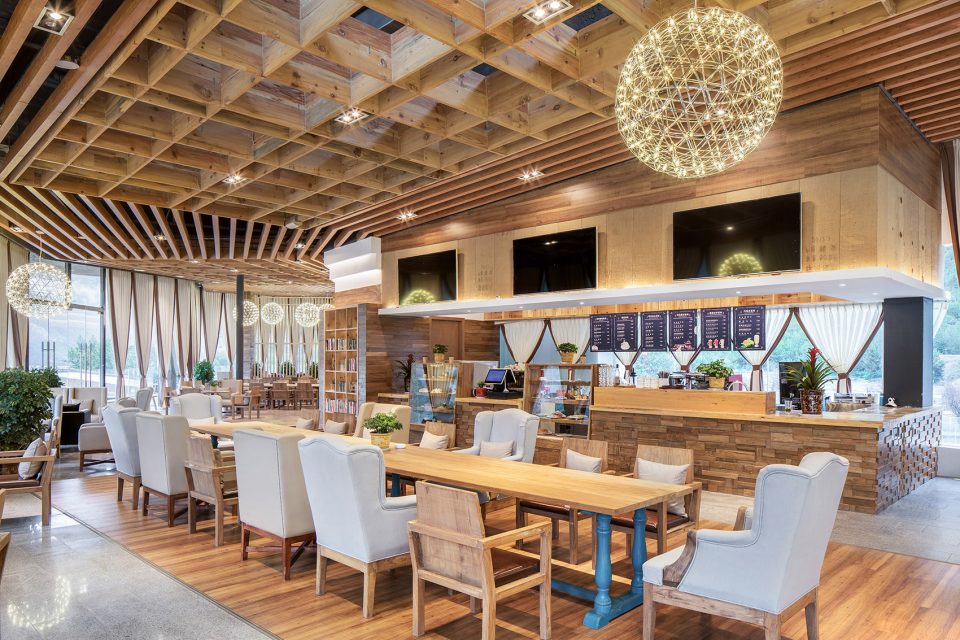

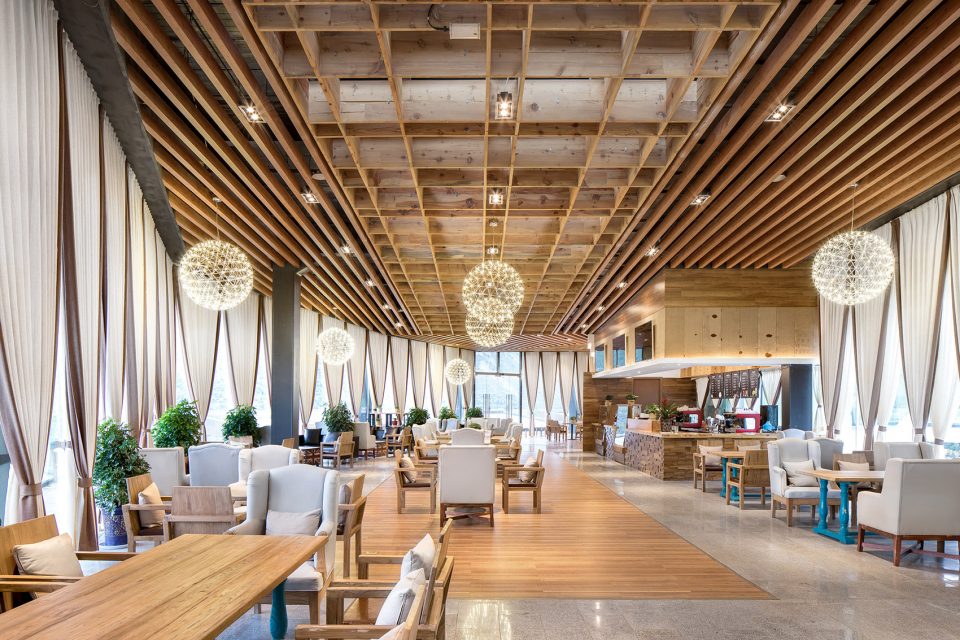

▼位于一层的服务空间,the service area on the ground floor

端坐在大悬挑的观景阳台上,远处的蓝天、白云、雪山、彩林倒映在蓝绿色的湖面中,耳旁风声、水声潺潺拂过,沐浴着高原的暖阳,嘬一口美味的咖啡或是闻着淡淡的茶香,抑或是把爱人、家人的笑脸烙在旅途的胶片上……

Sitting on the large-cantilever view balcony, you can see the blue sky, white clouds, snow mountain and colorful forests reflecting their shadows on the crystal water of the lake. With the sound of wind, the gurgling of water, and the warm sunshine, you can take a sip of the delicious coffee or smell the fragrance of tea. You can also take a picture of your loved ones as a precious memory.

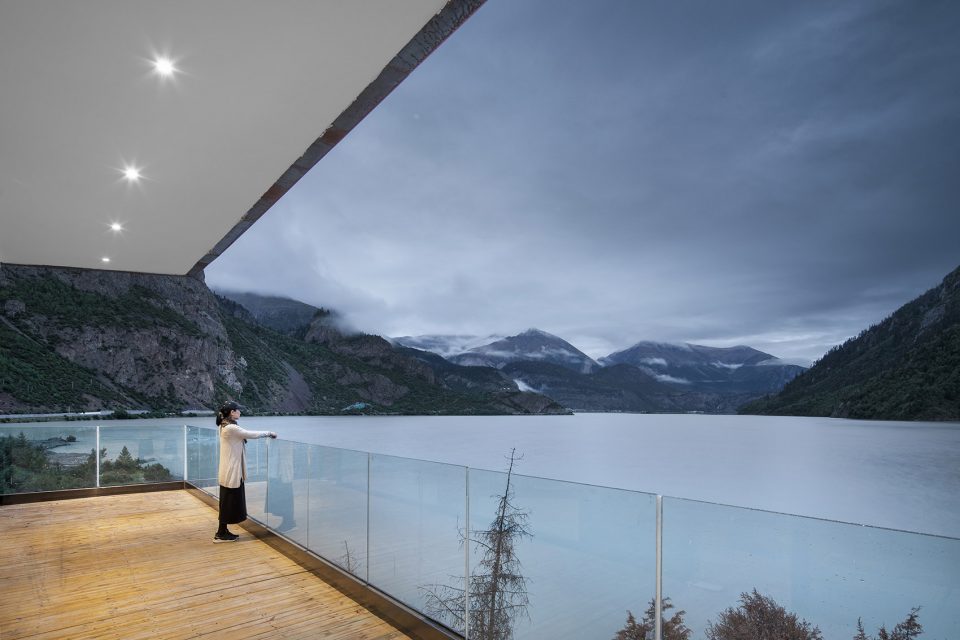

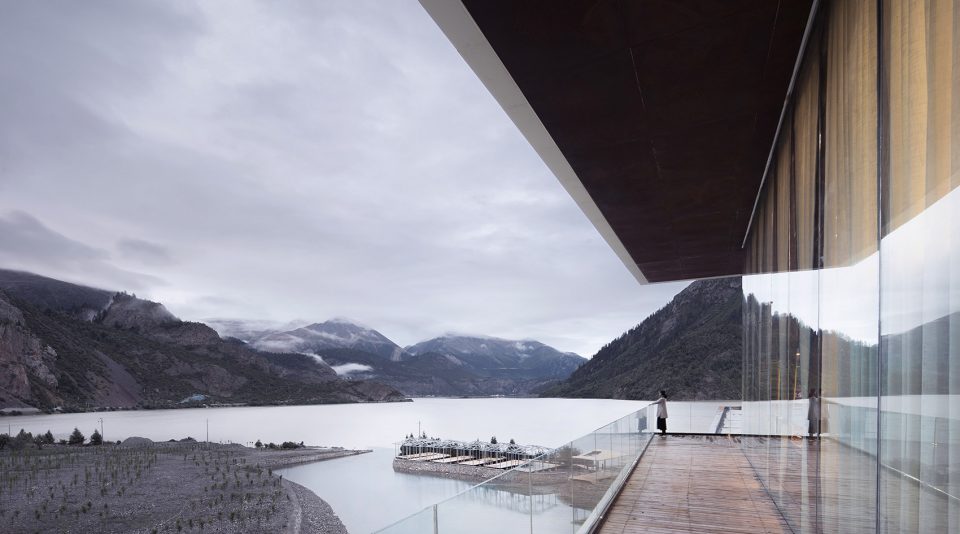

▼悬挑的全景阳台,the large-cantilever view balcony

主体建筑前方点缀了8栋独栋式度假酒店,酒店底部架空2-4米,根据视线需求高低错落布置,且控制酒店屋顶高度均低于旅游服务中心一层1.5米以上,保证酒店客房绝佳景观视野和客房相互间私密性的同时,亦可保证旅游服务中心优越的临湖景观视野。酒店客房西侧为当地卵石制作的特色景观墙,临湖东南两侧均为4米高180°超宽落地玻璃窗,躺在床上然乌湖巍峨俊秀的雪山、满天繁星的夜空即可尽收眼底。

There are 8 independent holiday hotel buildings in front of the main building. The bottom overhead of the hotel is 2-4 meters. They are arranged high and low according to the visual requirements, and over 1.5 meters lower than the travel service center. This can ensure the privacy of hotel rooms and their view of the scenery, without blocking the field of view from the travel service center. The west side of the hotel rooms is a special feature wall made of local pebbles. The east and south side of the lake have two glass walls of 4 meters high and 180° wide. You can just lie on the bed to enjoy the beautiful snow mountains of the Ranwu Lake and the starry night.

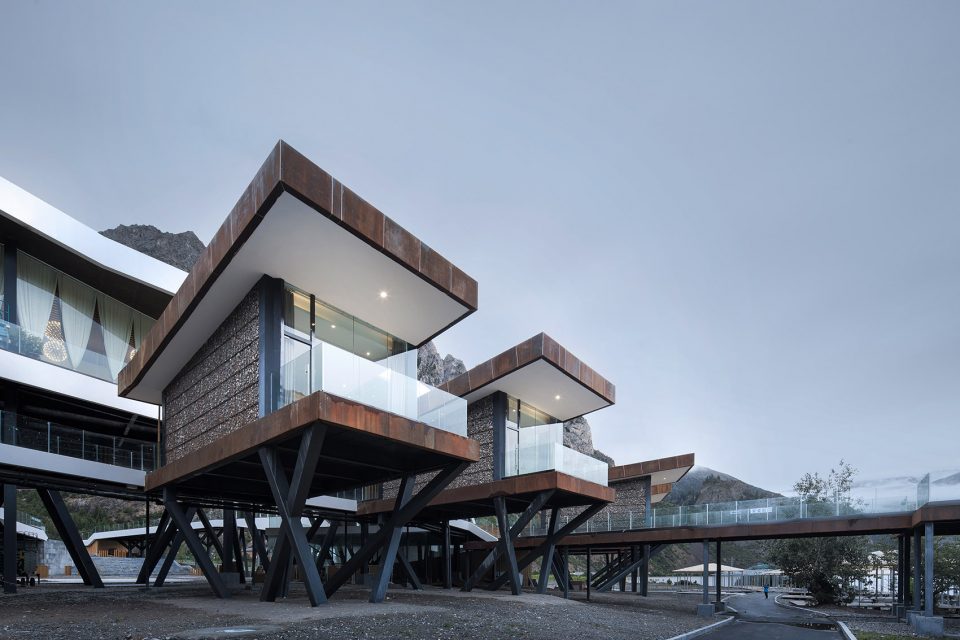

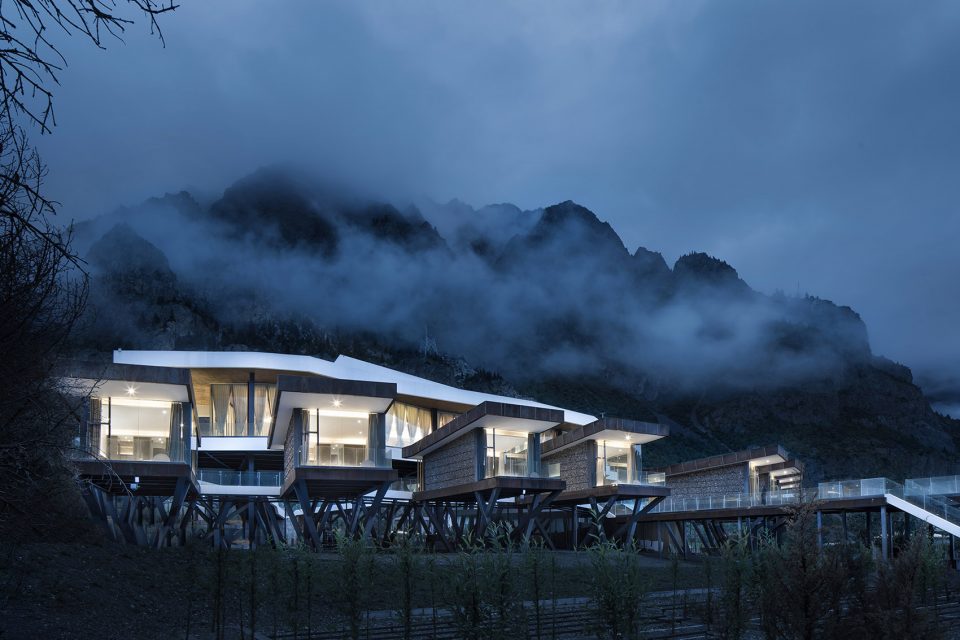

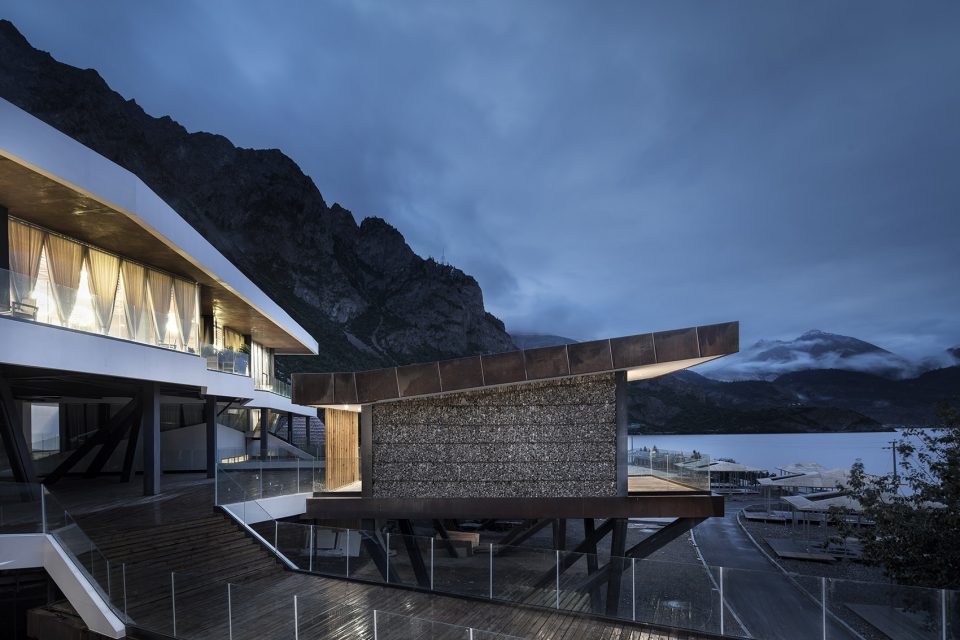

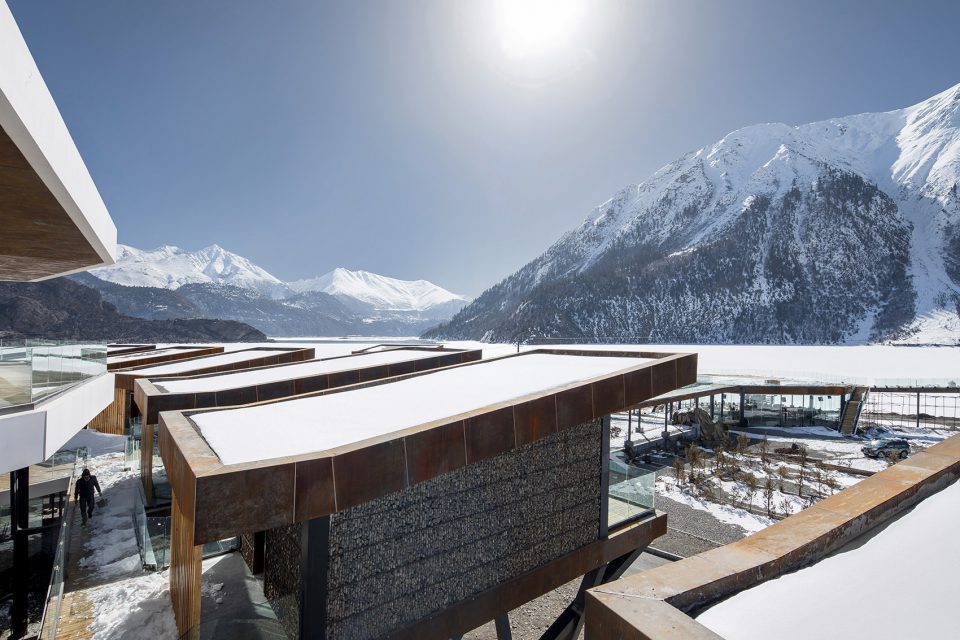

▼8栋独栋式度假酒店,8 independent hotel buildings

利用主体建筑下部架空层布置景观要求较低的医疗救助及星级卫浴设施、藏药文化展览馆和设备管理用房,为游客提供安全、舒适、优质的辅助服务配套设施。不管是朝圣的徒步信徒,还是玩命的自行车行者,还是狂放的摩托车狂徒,还是猎奇的自驾车游者,这里都有你所想、所需、所乐……

It provides safe, comfortable and qualified supporting service facilities for tourists via medical assistance center, star-rated bathroom facilities, Tibetan medicine culture exhibition center and equipment management room in lower part of the building where less viewing is required. No matter you are a pilgrim on foot, an adventurous cyclist, or a self-drive traveler hunting for novelty, this place has everything that you want, desire and are pleased with.

▼主体建筑下部用于配套设施,the service facilities are arranged in lower part of the building

为更好地利用然乌湖的水位变化,套房酒店底部架空约4米,然乌湖枯水期酒店掩于水草丛生,然乌湖丰水期酒店漂于波光之上,游于薄雾之间……“面朝大海,春暖花开”,这是多少人所向往的生活呀!

In order to make good use of the water level changes of Ranwu Lake, the bottom overhead of the suites hotel is about 4 meters high. The hotel is among water plants in dry season and above the glistening light of waves and the mist in wet season. “Face the sea, with spring flowers blossoming”, what a dream life!

▼漂于波光之上,游于薄雾之间,among the glistening light of waves and the mist

临湖地势最低的位置设置约400平米的休闲酒吧,酒吧顶部为空中观景平台,景观平台通过景观廊桥与服务中心、酒店、及服务中心北侧小广场直接连接,方便项目内部各功能空间的交通组织。酒吧四面均为4米高全落地窗,室内为大跨度无柱空间,觥筹交错、激情狂欢的画面荡漾在悠然的然乌湖面……

The lowest position near the lake is a bar of about 400 square meters. The top of the bar is a view platform which, through the view corridor, is directly connected with service center, hotels and a small square at the north of the service center. It is convenient for all functions to be made good use of. All sides of the bar have glass walls of 4 meters high, and the inside of the bar is spacious with no columns. You can have a good drink and enjoy yourself here.

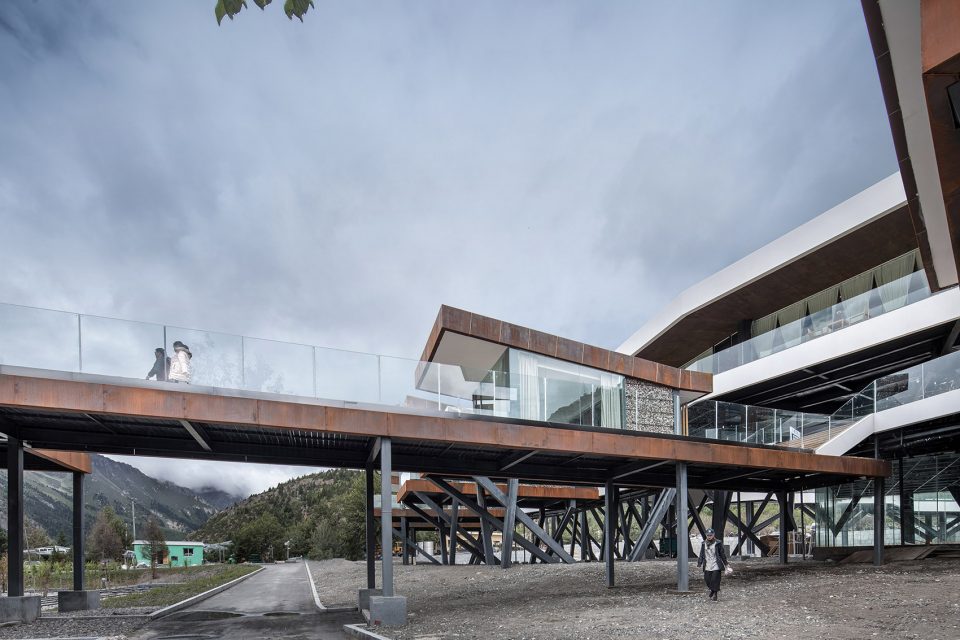

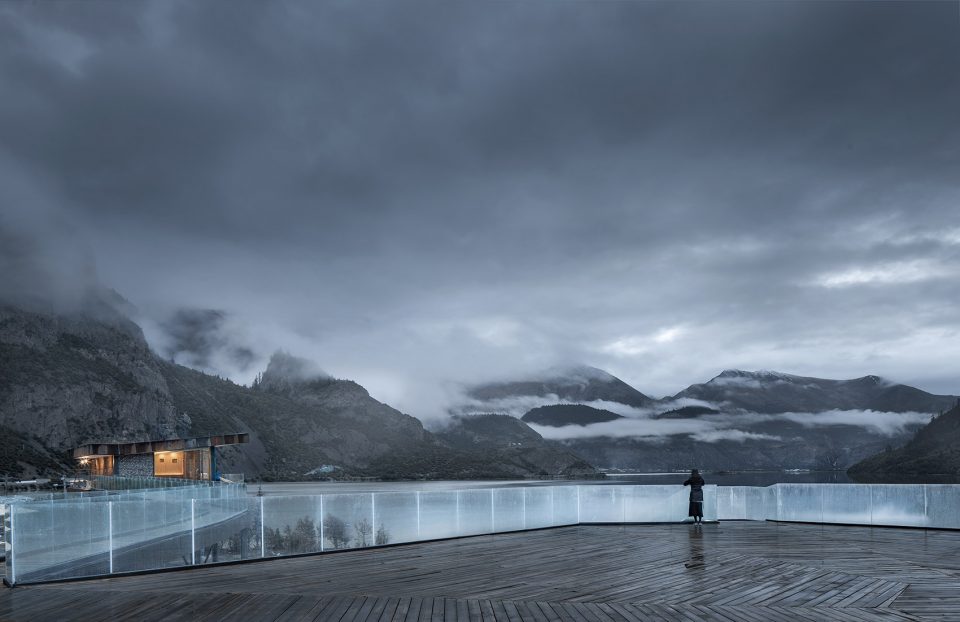

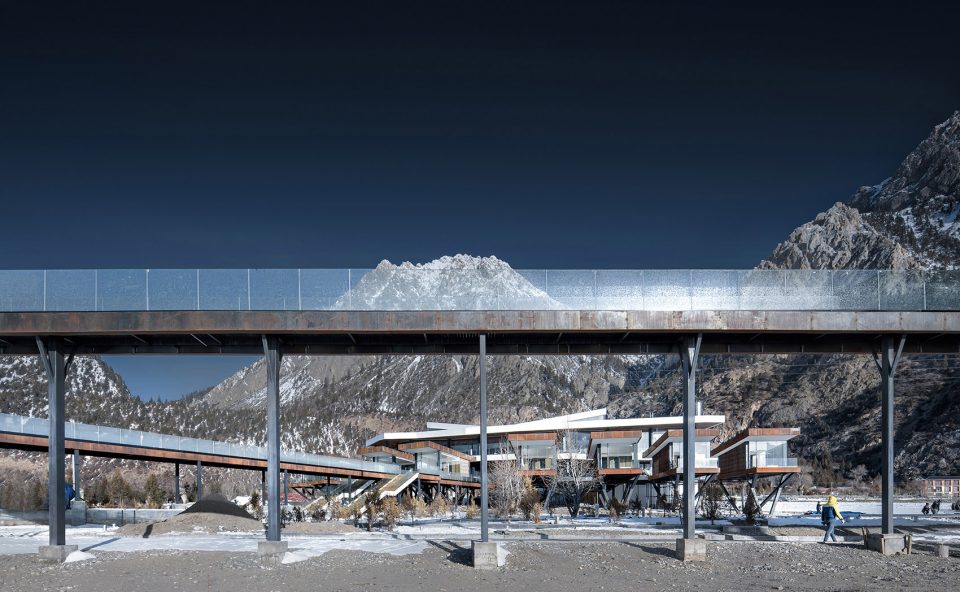

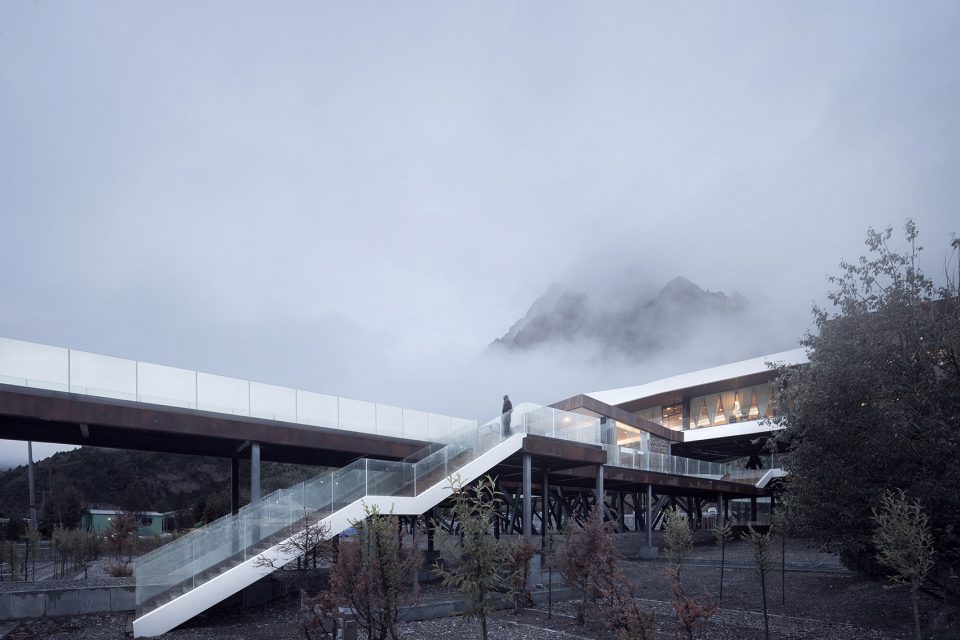

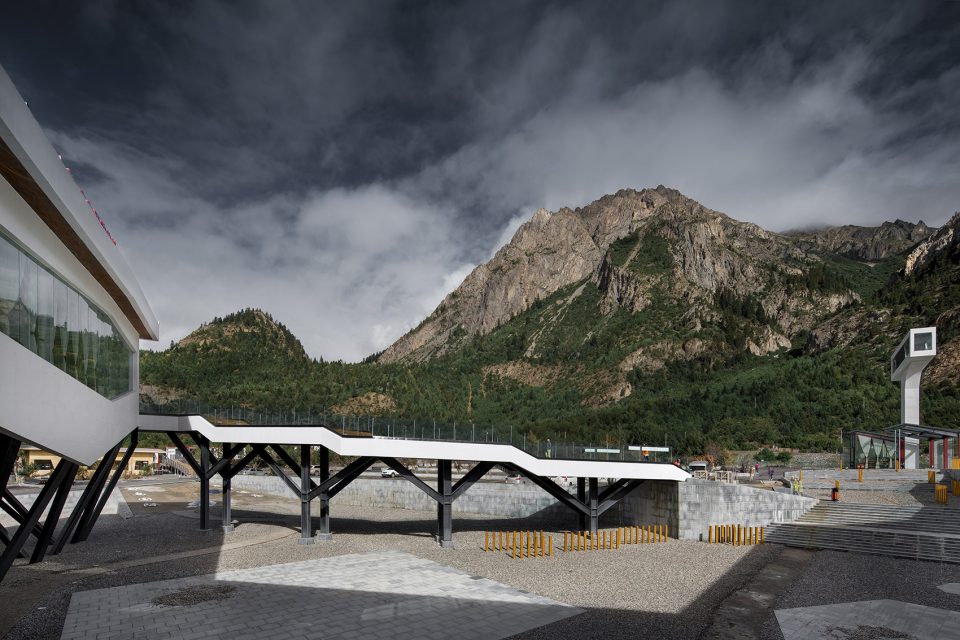

▼宽阔的空中观景平台,the wide view platform

东南角湖案水边点缀1栋套房式独栋酒店,配置独立会客厅、休闲厅、棋牌室、约40平米临湖空中观景露台。房间内任何位置都可将然乌湖美景一览无余。

There is one independent suite hotel building at the southeast corner of the lakeshore. It has separate living room, recreation room, chess and cards room and an aerial view platform of about 40 square meters. Standing at every position in the room enables you to have a good view of the Ranwu Lake.

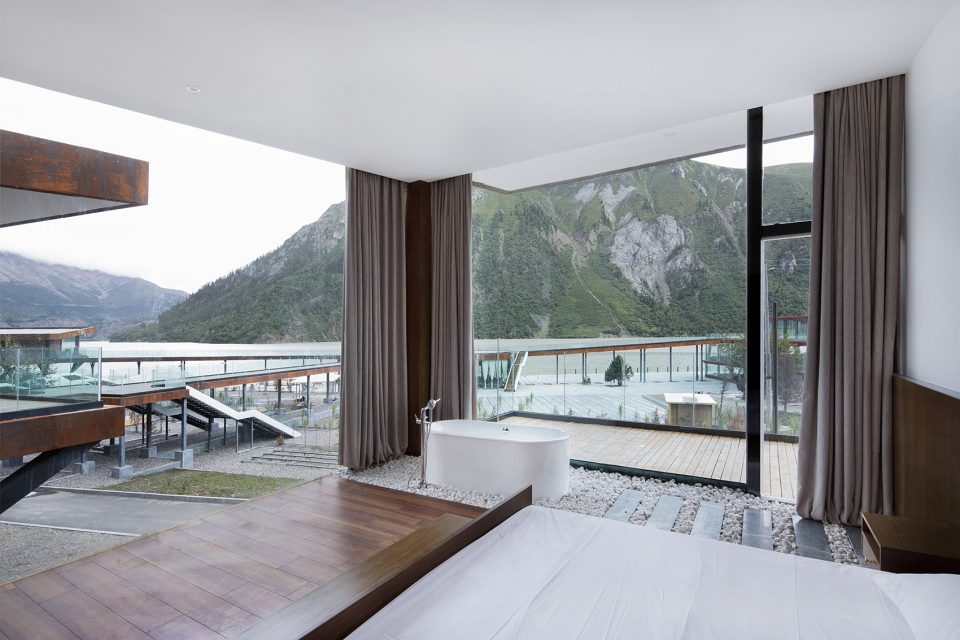

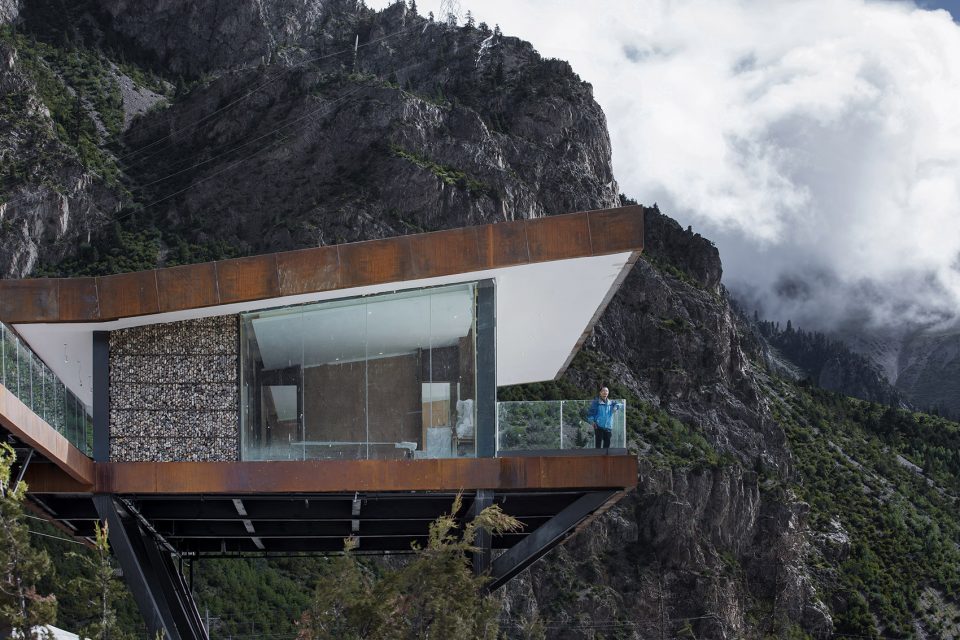

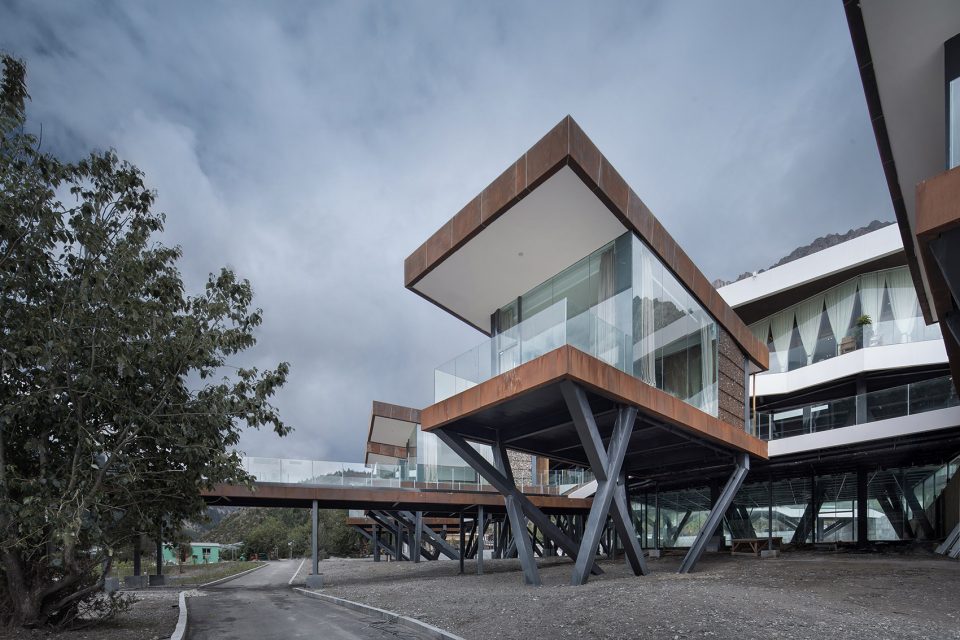

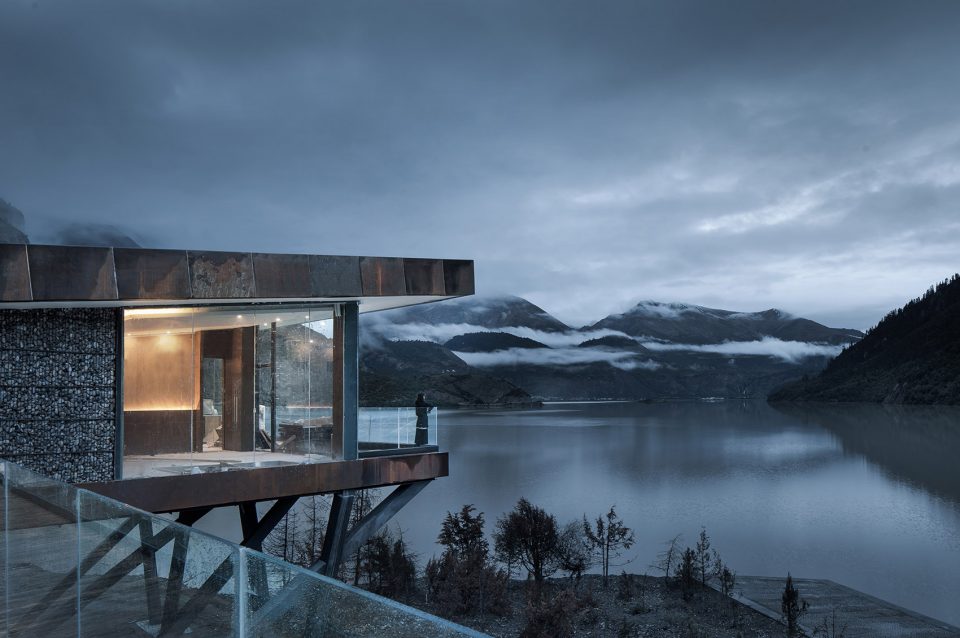

▼独栋套房,the independent suite hotel building

为尽可能降低项目对用地及周围环境的影响,更好地保护项目地“然乌湖景区”的自然环境,结合项目所在地材料物资运输的难度,气候条件对工程建设的影响等诸多因素,整个项目建筑物及构筑物除结构基础采用钢筋混凝土之外,其余部分全部采用装配式钢结构建造。装配式钢结构在环境保护、建设工期、材料运输、抗震效果等方面都有绝对的优势。

In order to minimize the impact of this project on the land and its neighboring environment and protect the natural environment of “Ranwu Lake Scenic Spot” better, by combining the difficulty in transporting the materials and the climate influence on the project construction, the buildings and structures of the whole project all use assembled steel structure except that the structural foundation uses reinforced concrete. Assembled steel structure has absolute advantages in environment protection, construction period, material transportation and anti-seismic effect.

▼装配式钢结构充分考虑到了对周围环境的影响,the use of assembled steel structure takes account of the impact on environment

项目建筑以藏民族所喜爱和崇尚的白色、红色为主色调,通过白色水泥纤维板、红色耐候钢板、超厚透明玻璃、深灰色钢材、当地木材及当地卵石等材料巧妙搭配,共同营造一个独特、自然、温馨、别致的空间环境。

This Project uses white and red preferred by Tibetans as the main color of the buildings. It creates a unique, natural, warm and extraordinary living space with a great combination of white cement-fiber plates, red weather-resisting steel plates, thick transparent glass, dark gray steel, local woods and local pebbles.

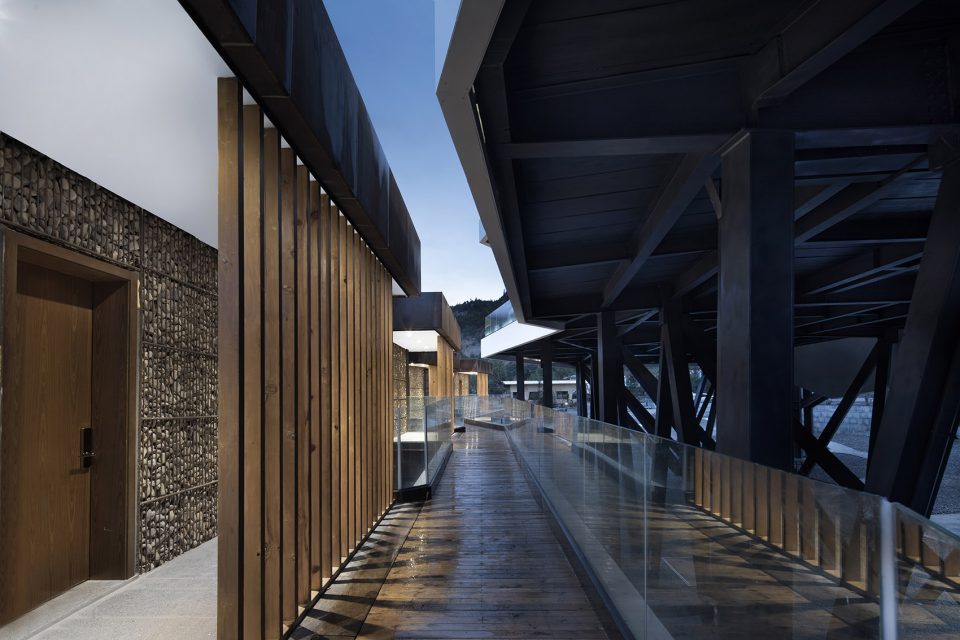

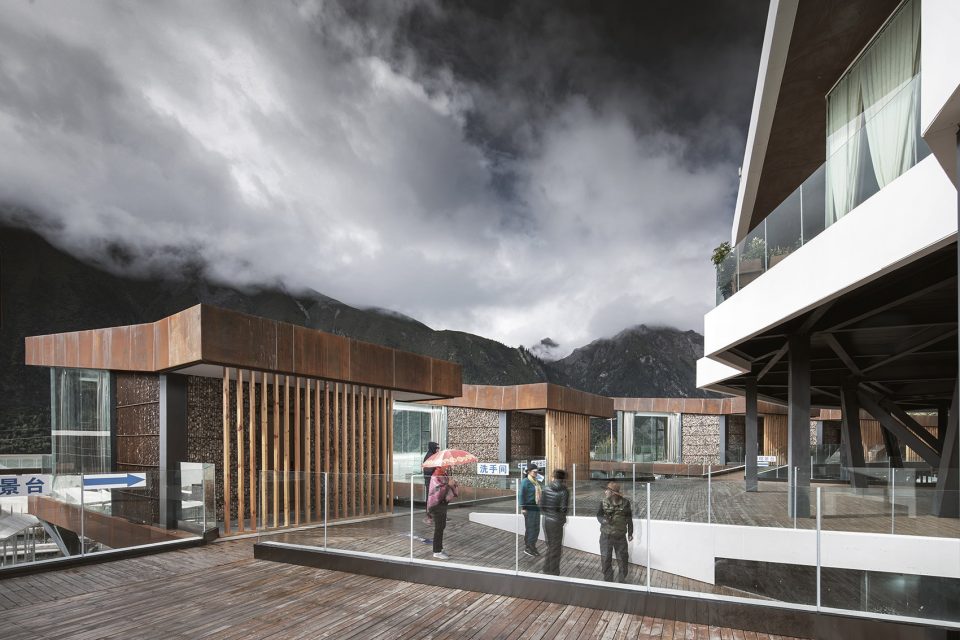

▼建筑近景,a close shot of the building

▼然乌湖美景,the splendid landscape of Ranwu Lake

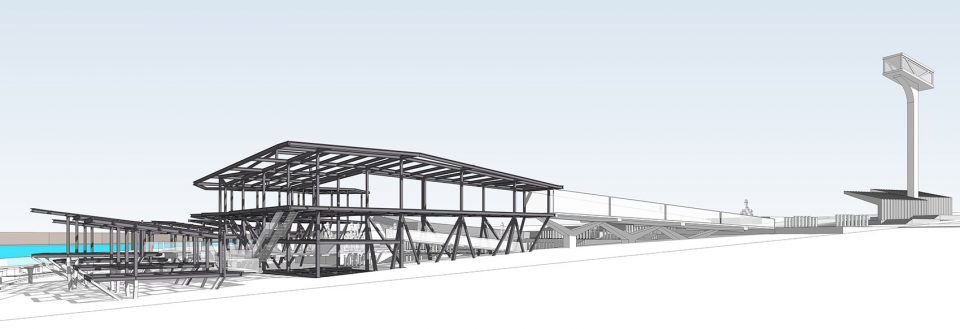

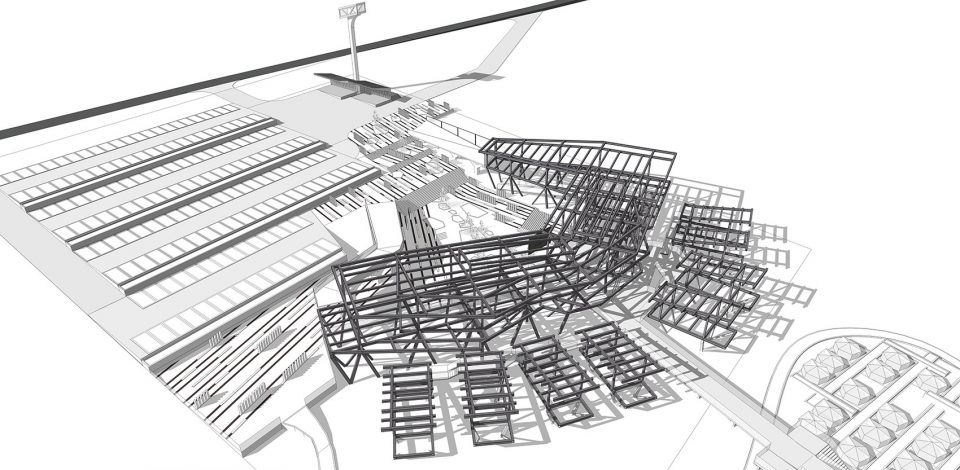

▼钢结构框架示意图,design of the assembled steel structure frame

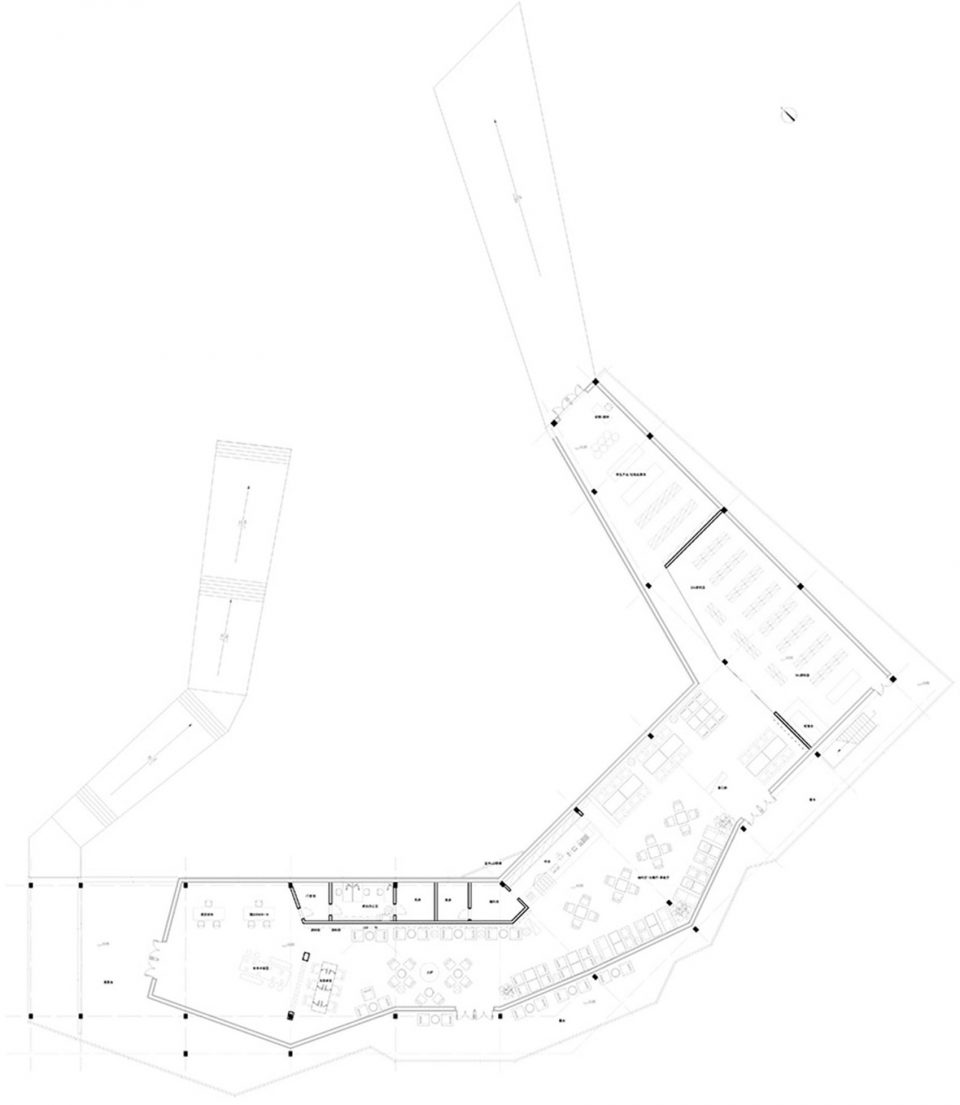

▼服务中心一层平面图,ground floor plan of the service centre

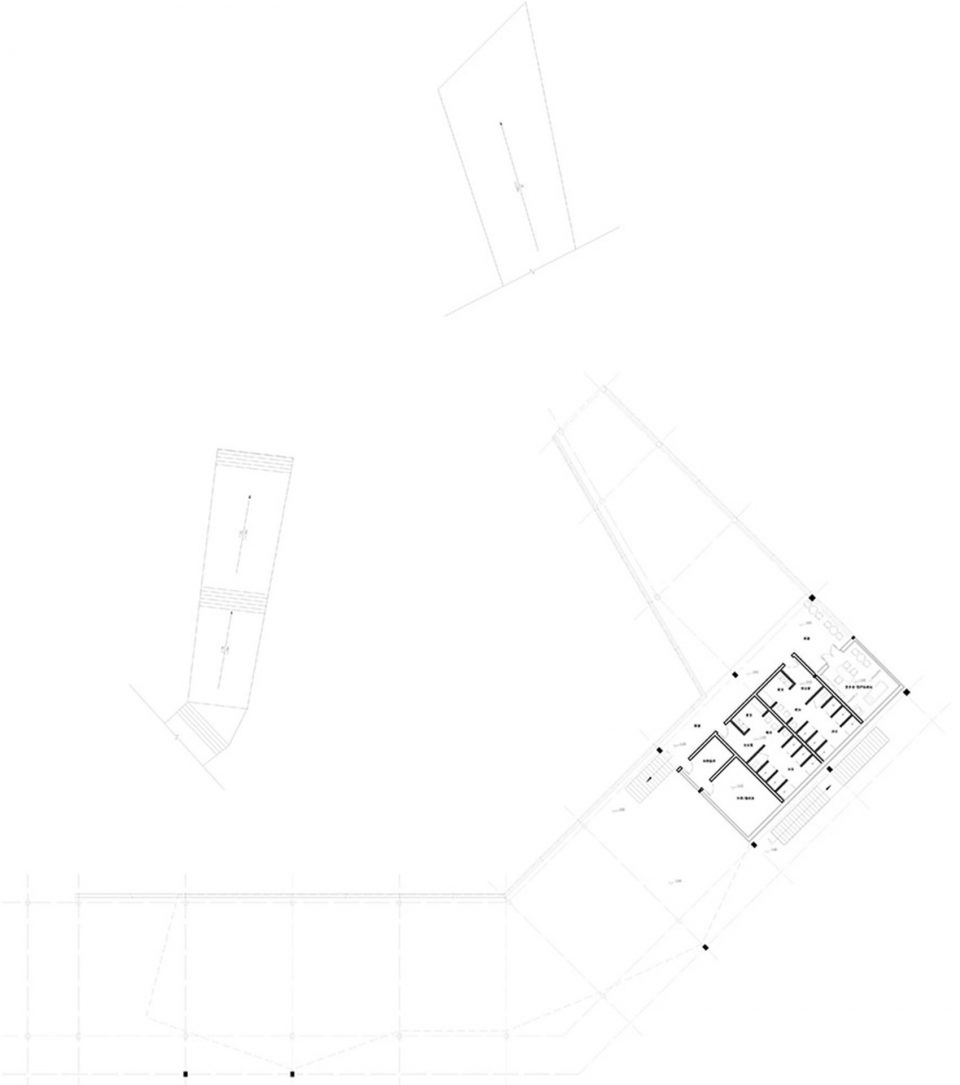

▼服务中心负一层平面图,-1 level plan of the service centre

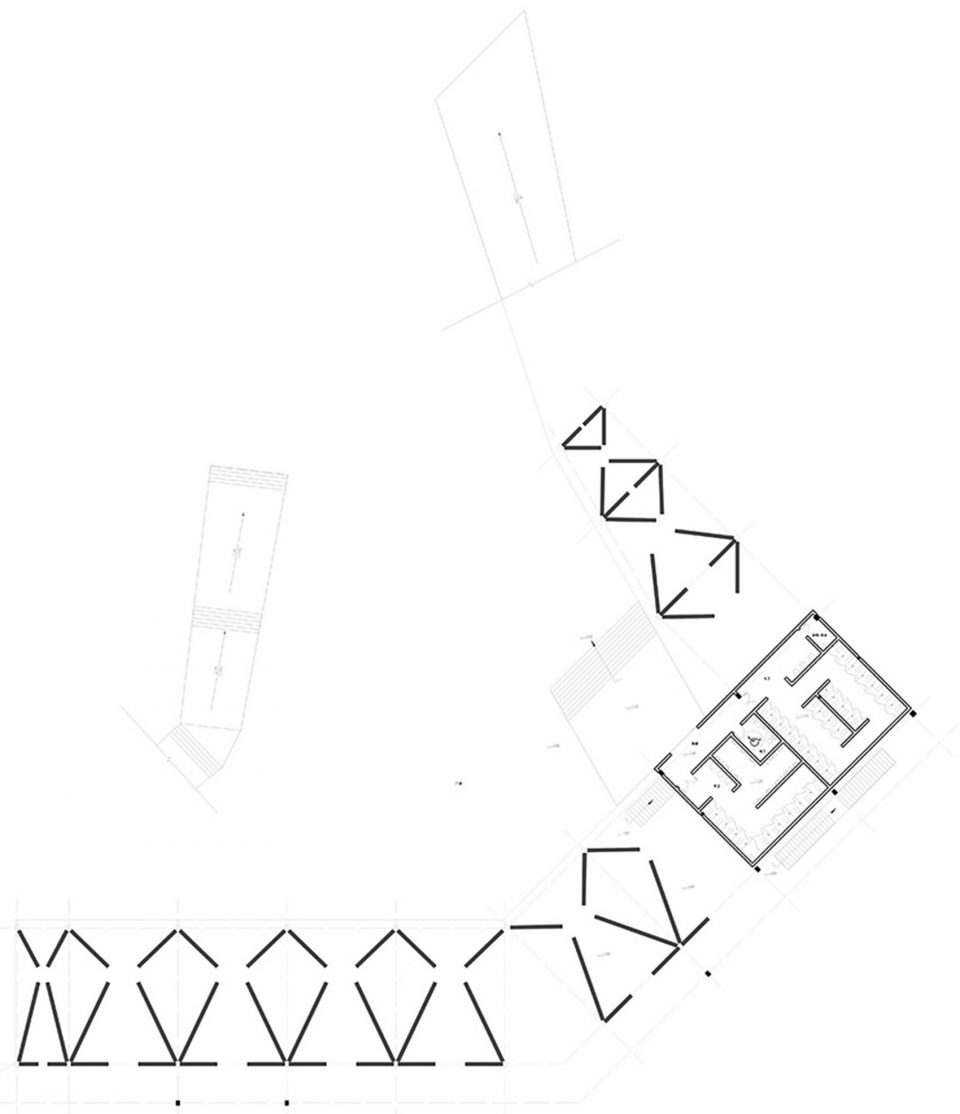

▼服务中心负二层平面图,-2 level plan of the service centre

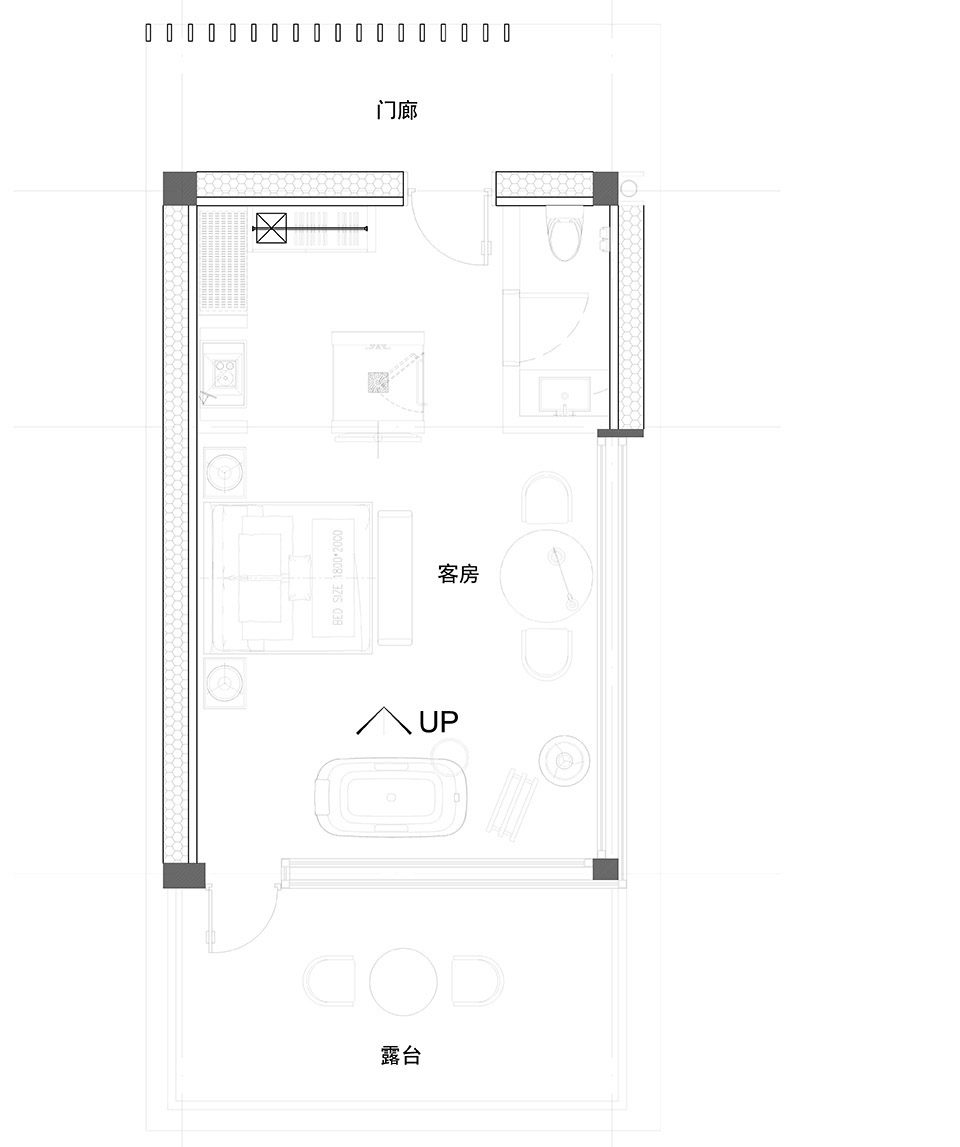

▼独栋酒店套房平面图,plan of the hotel suite

项目地址:西藏·然乌湖风景区·然乌镇
总用地面积:46668平方米(约70亩)
总建筑面积:2400平方米(一期)
项目时间:2016年-2017年
设计机构:小隐建筑设计事务所
主持建筑师(总设计师):潘友才
景观&规划设计:杨喆、黎天景
室内设计:何苗、江涛、张宇、秦淼森
建筑摄影:存在建筑-建筑摄影
Project location: Ranwu Town, Ranwu Lake Scenic Spot, Tibet
Total land area: 46,668 square meters (about 70 mu)
Total building area: 2,400 square meters (Phase 1)
Project time: from 2016 to 2017
Designed by: Xiao Yin Architecture Design Firm
Chief Architect (Chief designer): Pan Youcai
Landscape and planning designer: Yang Zhe & Li Tianjing
Interior designer: He Miao, Jiang Tao, Zhang Yu & Qin Miaosen
Architectural photographer: Arch-exist Photography
