New administration building Textilverband in Münster by behet bondzio lin architects

A seemingly moving facade of light and shadow

Project Specs

Location:

感谢 behet bondzio lin architects 对gooood的分享。更多关于:behet bondzio lin architects on gooood
Appreciation towards behet bondzio lin architects for providing the following description:

德国西北纺织服装业协会行政楼的设计旨在为员工提供北边如画的景观,同时用强烈的纺织元素来欢迎南边来访的人。这个细长结构有三个完全封闭的砖砌立面。整个体量设计为建立节能办公建筑打下基础,东部、南部和西部采用实体砖墙,北部采用玻璃幕墙。

The design concept of the building for the Association of the Northwest German Textile and Garment Industry aims to provide all employees with a view of the picturesque landscape to the north and to welcome those arriving from the south with a strong textile image. The elongated structure is enclosed on three sides by a completely closed brick facade. The volume, closed to the east, south and west and open to the north, is the basis for an energy-optimized office building.

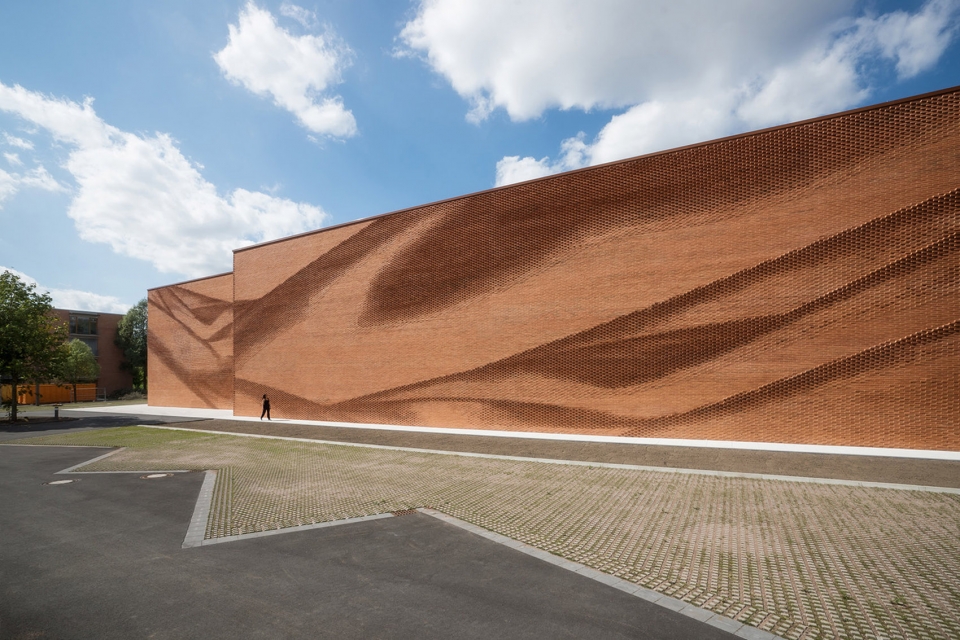

▼三个立面由砖块组成,three sides made by a completely closed brick facade

在Leipzig Bilder博物馆内有一尊Max Klinger制作的贝多芬雕像,砖墙立面的设计灵感就源于此雕像上的雪花石膏褶皱。Max在雕像上营造了一个矛盾的视觉点。观赏雕像的人会看到一个仿佛很柔软轻便的围巾盖在贝多芬的腿上,但实际上它是由坚硬的石头构成。根据贝多芬雕像给人的感觉,建筑师采用了六种特殊石材,营造出渐变的效果,立面随着光影产生变化,类似于贝多芬雕像上仿佛可以随风而动的织物。

The inspiration for the brick facade is the alabaster fold of the Beethoven statue by Max Klinger, which is located in the Leipzig Bilder Museum. Max Klinger created a paradoxical perception here. The viewer sees a seemingly fluent light scarf over the knees of Beethoven and recognizes at the same time that it consists of solid stone. Following this image, behet bondzio lin architekten employ six special stones with a gradient that increases in gradient, creating a seemingly moving facade of light and shadow. The analogy to a light cloth over which the wind blows arises.

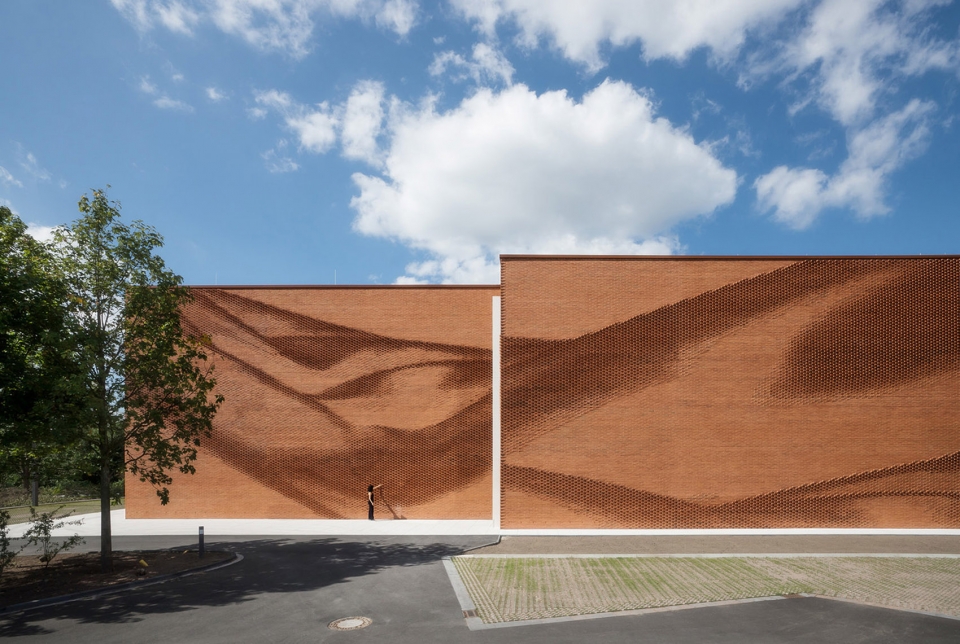

▼墙面随着光影产生变化,a seemingly moving facade of light and shadow

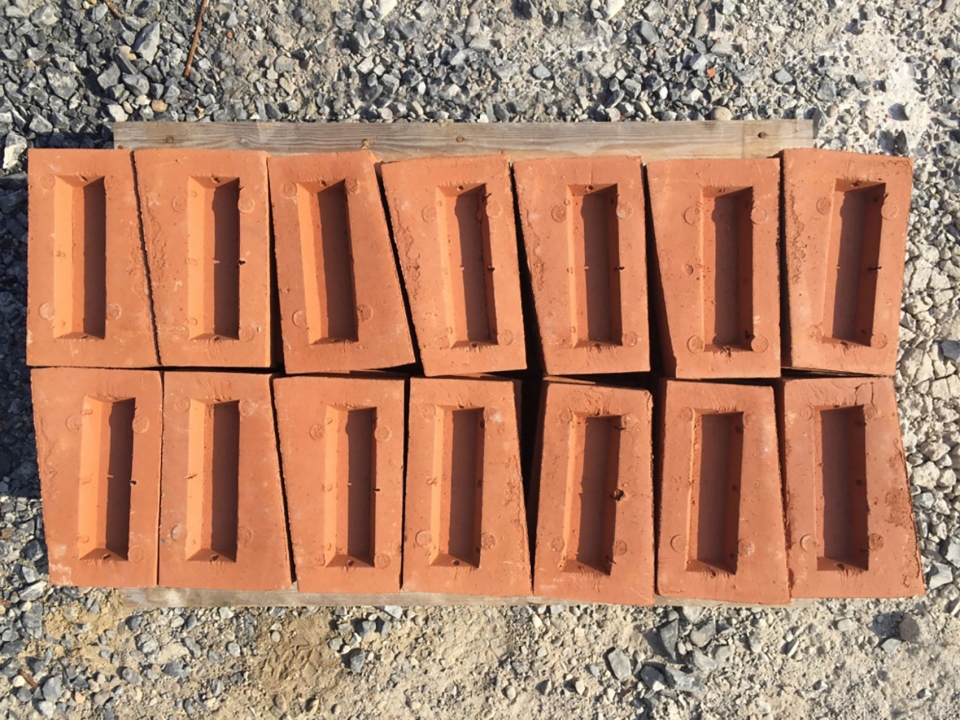

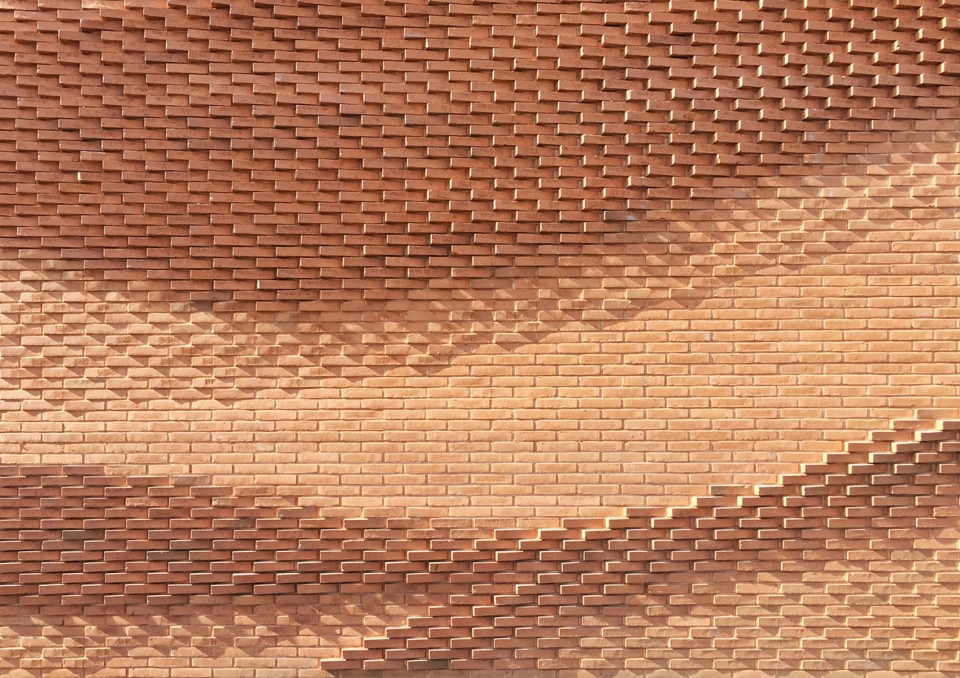

▼有梯度的砖块,special stones with a gradient

建筑体量的变化营造出了一个入口前的引导空间,指引来访者进入建筑的方向。朝北的立面完全由玻璃组成,面向绝美的景色。所有的房间采光都源于北方,既保证了充足的日照又不需要额外的遮阳设施。即使在盛夏,员工们也可以完整欣赏如画的景色。

The separation and easy movement of the building volume creates a pre-area that receives the users and visitors and leads them into the building. To the north it opens almost completely over a glass facade to the exceptionally beautiful landscape. Due to the north orientation, all rooms are well supplied with daylight and do not require sun protection. This allows even in midsummer the full-time view of the employees in the countryside.

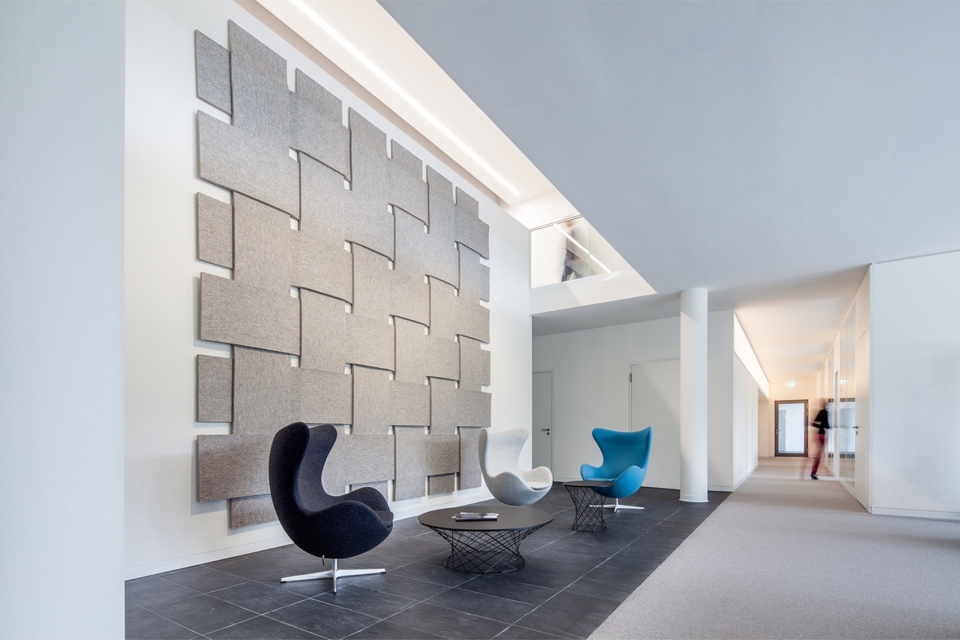

▼房间既保证了充足日照又不需要额外的遮阳设施,all rooms are well supplied with daylight and do not require sun protection

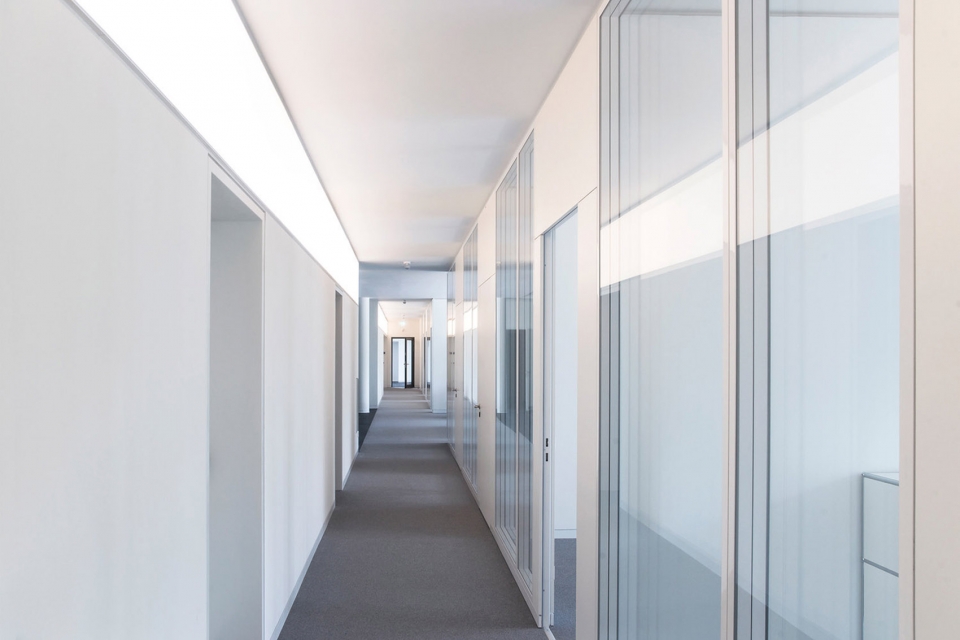

▼走廊,corridor

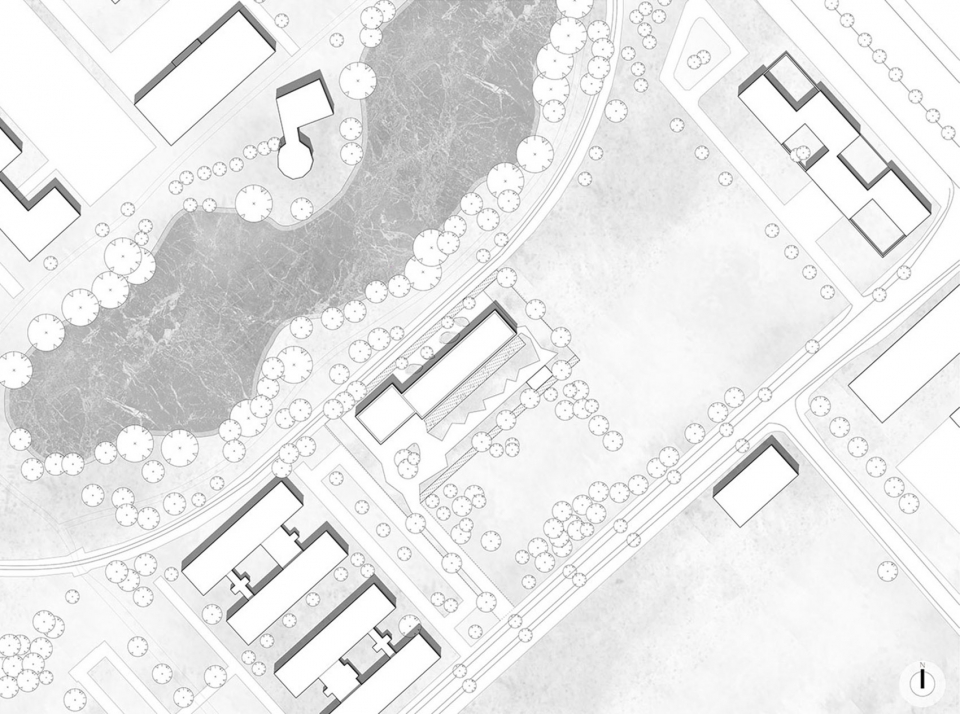

▼总平面,site plan

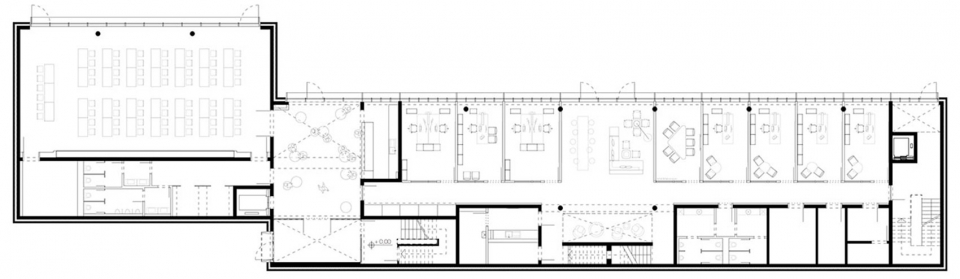

▼一层平面图,ground floor plan

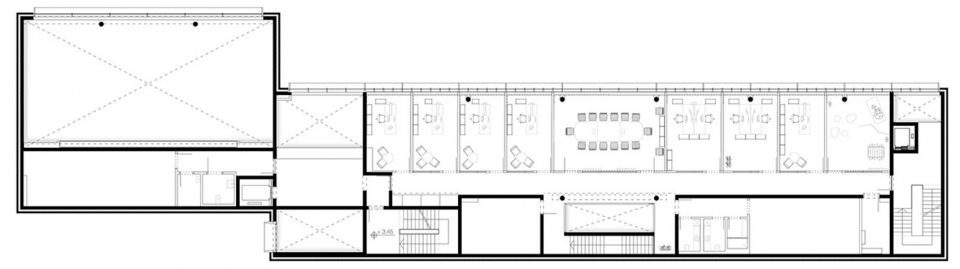

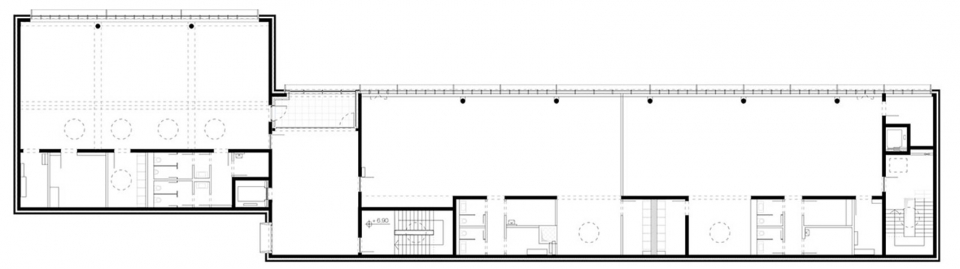

▼二层平面图,first floor plan

▼三层平面图,second floor plan

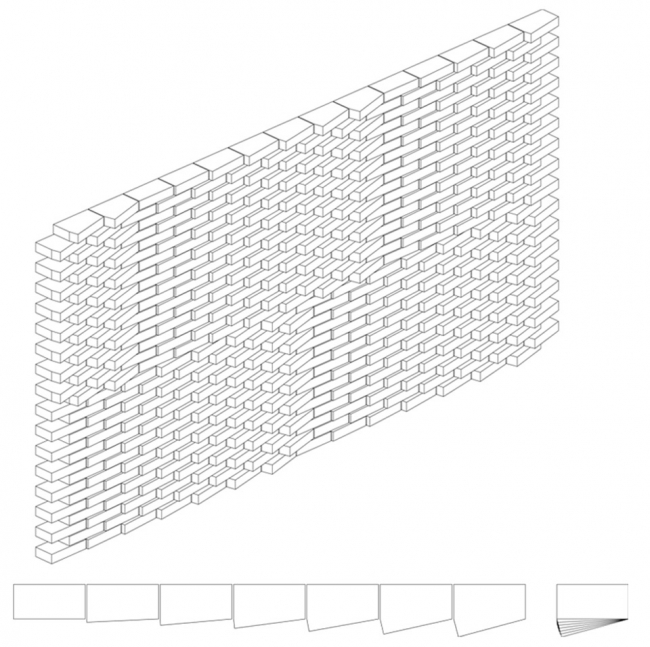

▼砖墙面透视图,perspective view of brick wall

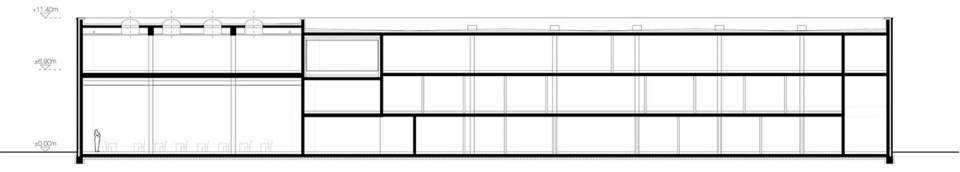

▼剖面图,section

Project name: New administration building Textilverband in Münster
Client: Verband der Nordwestdeutsche Textil- und Bekleidungsindustrie e.V. Martin Luther King Way 10, 48155 Münster – www.textil-bekleidung.de
Project participants:
Architect: behet bondzio lin architects GmbH & Co. KG, Hafenweg 26b, 48155 Münster – www. 2bxl.com
Structure / Construction Management: Gantert + Wiemeler engineering planning, Krögerweg 17, 48155 Münster – www.gwims.de
Technical building equipment: Ingenieurbüro Nordhorn GmbH & Co. KG, Am Mittelhafen 16, 48155 Münster – www.ib-nordhorn.de
Landscaping: Tamkus landscape architecture, Castroper Strasse 154, 44357 Dortmund – www.tamkus.org
Project management: agn Niederberghaus & Partner GmbH, Groner Allee 100, 49479 Ibbenbüren – www.agn.de
Photographer:  Thomas Wrede VG Bild-Kunst, Bonn; HEY-SIGN, Fotografie: Reimund Braun
Land area: 4,948 square meters
Built-up area – BF: 975 sqm
Usable area – NGF: 2.162 sqm
Gross floor area – BGF: 2,620 sqm
Constructed room – BRI: 11.356 cbm (construction volume)
Storeys: 3 storeys
Type of use: Main office of the association, office and administration, service
Construction time: from 11/2015 to 05/2017
Construction costs: 5.5 million euros gross (KG 200-500)
Total cost: EUR 8.2 million gross (KG 100-500 + 700)
Energy Efficiency: KfW Efficiency House 55
Annual energy demand: Annual heating demand: 76 kWh / m2a
