非常感谢 Brenac & Gonzalez & Associés 予gooood分享以下内容。更多关于他们请至：Brenac & Gonzalez & Associés on gooood.
Appreciation towards Brenac & Gonzalez & Associés for providing the following description:

该项目场地位于正在全面开发的港口新城的中心。曾经这里是塞纳河边的30英亩采石场，如今已渐渐充斥着各种高层建筑。2014年春天起Brenac + Gonzalez＆Associés公司在巴黎郊区Choisy-le-Roi打造全新的媒体图书馆，该项目的建成将使这个地区的文化重心向塞纳河靠近，使长期被铁轨隔离的两岸城市空间得到新的发展。

The new media library in Choisy-le-Roi (Paris suburb), delivered in the spring of 2014 by Brenac+Gonzalez & Associés, is located in the Port urban development zone at the heart of a new urban sector in full redevelopment. This former 30-acre working harbor, still typified by a landscape of sand quarries, has already been partially filled by tall buildings that line the Seine. This location is enabling the town’s cultural center of gravity to gravitate towards the Seine, the banks of which, long isolated by the presence of railroad tracks, will soon be redeveloped on both sides of the river.

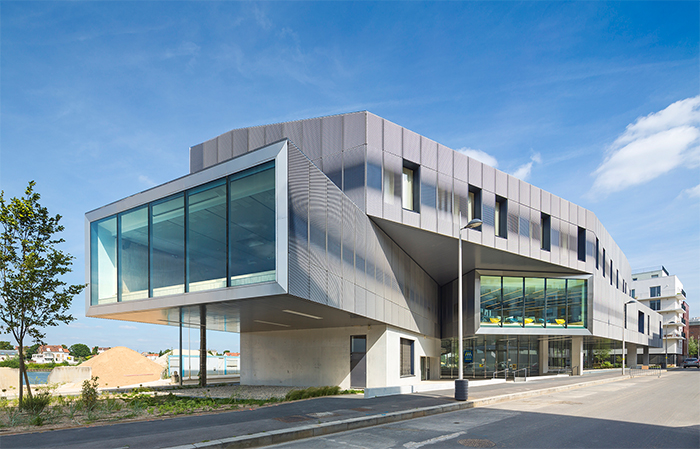

▼建筑外观，exterior view

巴黎Choisy-le-Roi地区是Marne省唯一一个跨越塞纳河的城区。该项目毗邻河岸的地理位置以及洪水控制的考虑使设计方向得以确立。媒体图书馆立于水边，船型的外观使人回想起河岸的过去，宽阔的金属立面能够调节室内的光照强度，也预示着这个地区光明的未来。

Choisy-le-Roi is in fact the only town in the Val de Marne département to straddle the Seine. The exceptional location, its proximity to the river banks and the risk of flooding have defined the project’s fundamental orientations. Although the media library’s simple volumes recall the site’s port past by playing on the metaphor of a ship moored on the river, its expanded metal facing, modulating the interior luminosity, is turned towards this area’s bright future.

▼船型外观让人回想起这段河岸的过去，the media library recalls the site’s port past by playing on the metaphor of a ship moored on the river

▼宽阔的金属立面能够调节室内的光照强度，its expanded metal facing, modulating the interior luminosity

抬升的建筑|A raised building

依据洪水风险减缓计划（PPRI），该建筑与地面间的设计受到了影响，其底层区域开发也受到了很大程度的限制。因此，建筑物底层被抬起，与地面分离，从二层起才是整个建筑的主要内部空间。这个分离设计为建筑物的底层创造了一个广阔的景观空间，其中包含草坪、种植池以及一个石笼花槽，同时这里也成为一个连接空间，引导游客进入由玻璃围合的接待区；外部展览空间和巨大的橙色旋转楼梯。整个建筑布局像一条绸带一样围绕建筑的中心展开，其中垂直的中空空间被建造成了建筑的中央庭院。

▼建筑轴测，the axon

The Flood-risk Alleviation Plan (PPRI) applies to this area, and its rules strongly influence the relationship of buildings to the ground. The library’s ground floor therefore could not be developed. The building has thus been raised, detaching it from the ground, and only begins its architectural brief from the first floor upwards. This detachment of the volume creates room under the building for an extensive landscape composed of grass, plant cover and a bed of gabions that guides visitors to a glassed-in wind-break reception area, a protected exterior exhibition space and a monumental “orange-peel” access staircase. This horizontal space is echoed in a vertical void at the core of its thickness, forming a central patio around which the whole building wraps like a ribbon.

▼建筑物底层被抬起，从二层起才是整个建筑的主要内部空间，the building has thus been raised, detaching it from the ground and only begins its architectural brief from the first floor upwards

▼垂直的中空空间， a vertical void

抬起的建筑二层作为一层空间使用，接待迎宾的大厅位于此层，大厅连接建筑内自主活动空间，同时将办公区、成人区和年轻人区划分开来。两个巨大的落地窗将活动空间展现给城市界面，而接待区则面向河岸展开。窗户内的情景如同一幅幅生活的画卷，将建筑内部的日常展现给城市中的人们。成人区和行政办公区位于再上一层，设计师利用内部的带状路线引导游客进入充满植物的屋顶露台。

The real first floor is therefore one level up and serves as the reception and orientation area. It also delineates the controlled sectors, the areas for adults and young people and gives access to the building’s space for activities, which can also function autonomously. Two monumental picture-windows open the activities area onto the decor-like city and the reception area onto the river banks. These two screens work like living paintings, a contemplative image from the inside and can be seen from the outside as urban signals. The next floor up is of mixed use, housing the adult area and the library’s administrative offices and departments. The visitors’ route takes them to the buildings planted roof terrace that materializes and reveals its ribbon-like layout.

▼位于建筑的二层的接待迎宾大厅，the real first floor is therefore one level up and serves as the reception and orientation area

▼从办公区观看大厅，view the lobby from the office area

▼屋顶露台，the buildings planted roof terrace

带有象征意义的媒体图书馆|A media library as symbol

媒体图书馆是一个象征知识的地方，它的螺旋形状象征着知识的进步；文化推动社会，以及隔代间的文化融合。大多数开放空间围绕一个中空的核心结构上升展开。为了结合 “21世纪媒体库”的未来用途，设计师将建筑结构与外部空间相接，以此来减少布局限制，并增大了整体的灵活性。建筑整体都覆盖着密集的金属网，有的窗户则通过这种网状结构来调节光线，整体立面形成一种蓝色步枪枪管的感觉。

A (media) library always symbolizes a place of knowledge, so it is shaped in a spiral, an emblem of progress through knowledge, social ascension through culture and the blending of cultures and the inter-generational. The majority of the open spaces turn around an empty core and form a rising ribbon-like volume. With a view to anticipating future uses in a “21st-century media library” a choice was made to push the structure to the outer limits of the plot so as to free the arrangement of all constraints, thus ensuring maximum flexibility. The facility is covered with graduated-density expanded metal with this mesh sometimes covering the windows to filter the light and sometimes the facing of “rifle-barrel-blue” aluminum.

▼建筑整体都覆盖着密集的金属网，the facility is covered with graduated-density expanded metal mesh

大窗户的特色窗框突显了周边的景色。图书馆的抽象建筑形式灵感来源于这里的港口形状，并借用这样的设计纪念港口的历史。设计师利用这个三角形的地块，构造出如同漂浮在一片植物上的系泊船。图书馆的标志采用霓虹灯形式附在建筑物的上部，方便人们从桥上和另一侧河岸迅速定位到它。当从塞纳河上浮起的冬雾的衬托下，这艘“船”型建筑如同一艘幽灵船一般漂浮于水面。

▼大窗户的特色窗框突显了周边的景色，the views from the large screen-windows have been favored for highlighting the exceptional framing

Only the views from the large screen-windows have been favored for highlighting the exceptional framing. The volumes are abstract, and the esthetics are inspired by the elementary shapes of harbor buildings in memory of the site’s history. Using the exceptional location of this triangle-shaped plot, the building speaks of a moored ship floating on planted ground in movement. The library’s name in the form of a neon sign will be attached to the upper part of the building to increase its visibility from the bridge and from the other side of the river. From afar when the Seine exhales its winter mist, this “boat” will look like a ghost ship.

▼场地平面，the site plan

▼一层平面，the 1st floor plan

▼二层平面，the 2nd floor plan

More： Brenac & Gonzalez & Associés 。更多关于他们请至：Brenac & Gonzalez & Associés on gooood.

Project Specs

Brenac + Gonzalez et associés
