折叠时光线 – 2019深港双城双年展龙岗分展场设计 / 一树建筑工作室

以线性时间顺序呈现城市发展的历史线索

项目标签

位置:

感谢 一树建筑工作室 予gooood分享以下内容。更多关于他们:ATELIER XI on gooood
Appreciation towards ATELIER XI for providing the following description.

一树建筑工作室(ATELIER XI)将1万平米的废弃空调厂改造为2019深港城市\建筑双城双年展的龙岗分展场。设计团队在展览开幕前三个月收到策展团队(未来家学院)委托,希望能在一处废弃空调厂房内改造为双年展展场,以线性时间顺序呈现所在的坂田地区城市发展的历史线索。

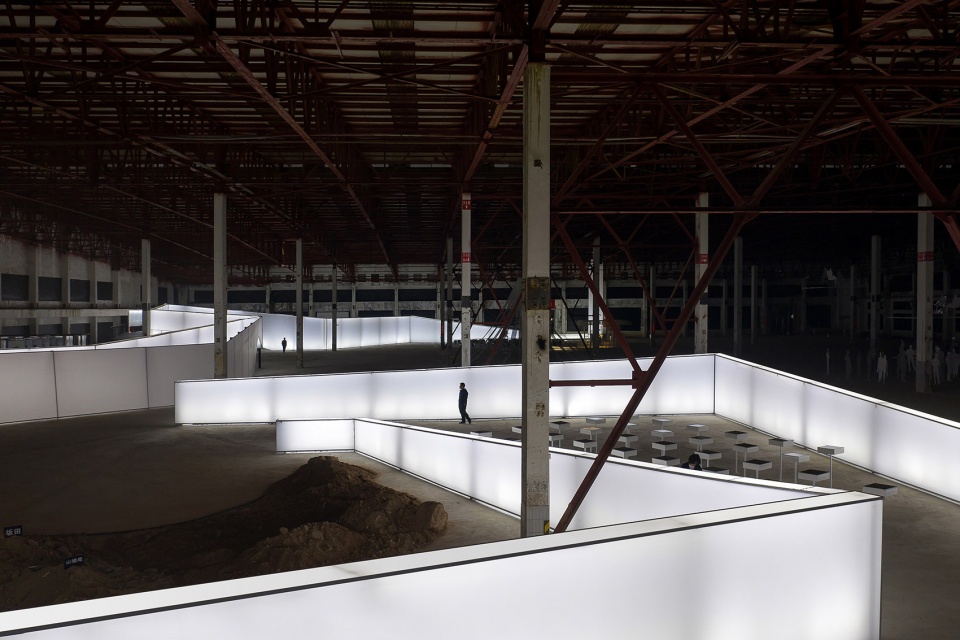

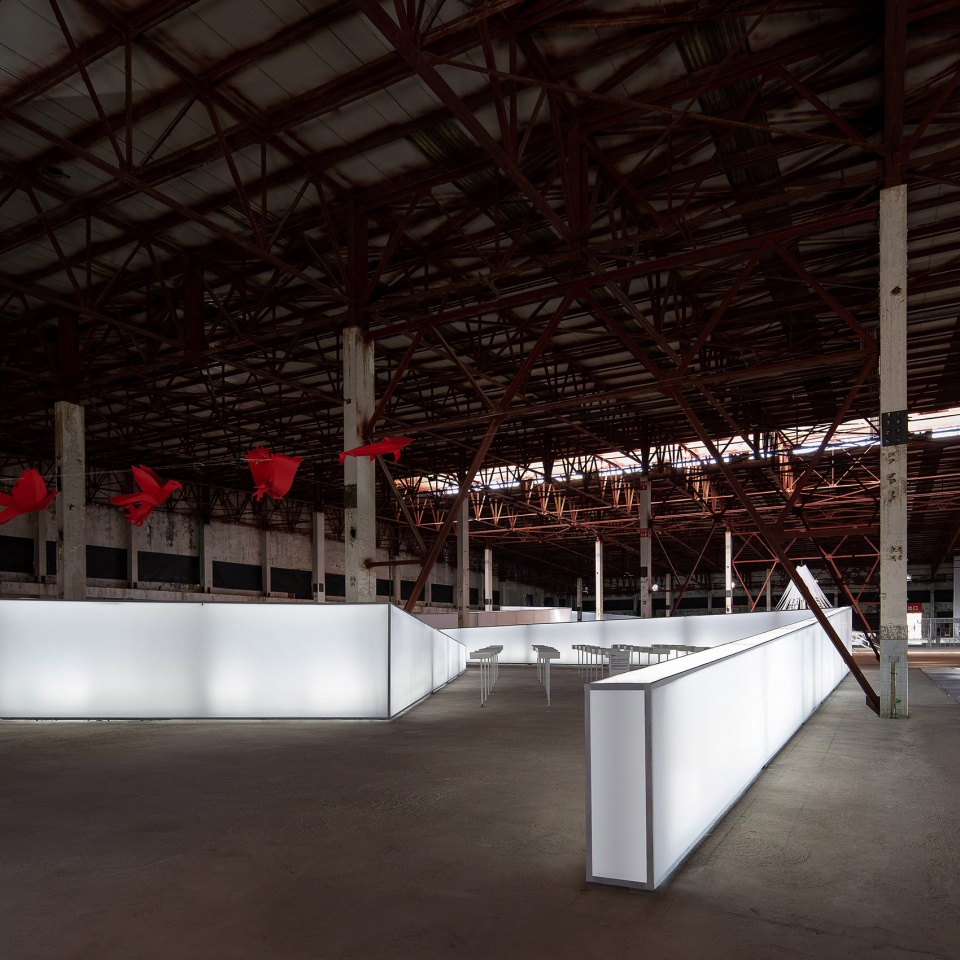

▼项目概览,overview © Zhang Chao

ATELIER XI transforms a 10,000 m2 abandoned air-conditioner factory into 2019 UABB (Bi-City Biennale of Urbanism\Architecture) – Longgang sub-venue exhibition hall. Three months before the exhibition opening, the architects received an urgent commission from the curators to transform the abandoned manufactory into an exhibition venue. And the subject of the exhibition is said to outline a chronological narrative on the urban development of the local area where the factory locates.

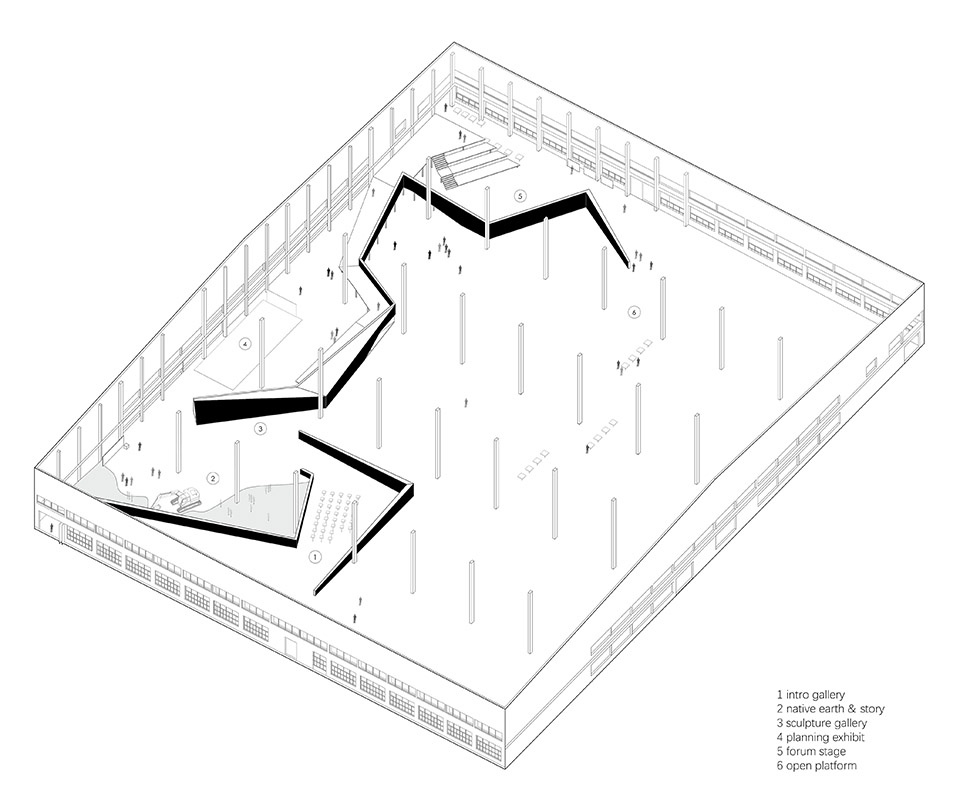

▼轴测图,axonometric © ATELIER XI

建筑师在现场考察后,被厂房巨大的尺度、秩序严谨的柱网与桁架结构打动,希望在尽可能保护工业遗迹气质的同时,置入最轻的介质(光)以形成展场空间。考虑到最终只有不到一个月入场施工的时间限制,一树建筑团队为空厂房设计了一条250米长光膜墙“折叠时光线”,以此重新限定展场的空间结构。

After visiting the site, the architects are impressed by the vast scale as well as the rigid grid and truss system demonstrating the history behind this factory. Therefore, they suggest keeping the original industrial traces as much as possible while applying a minimum amount of intervention which takes form as a light-filled structure in contrast with the existing heavy framework. The 250-meters long “Folded Time-Light-Line”is proposed as continuous membrane walls filled with light to reshape the space to have a linear exhibition sequence within a limited construction time (one month).

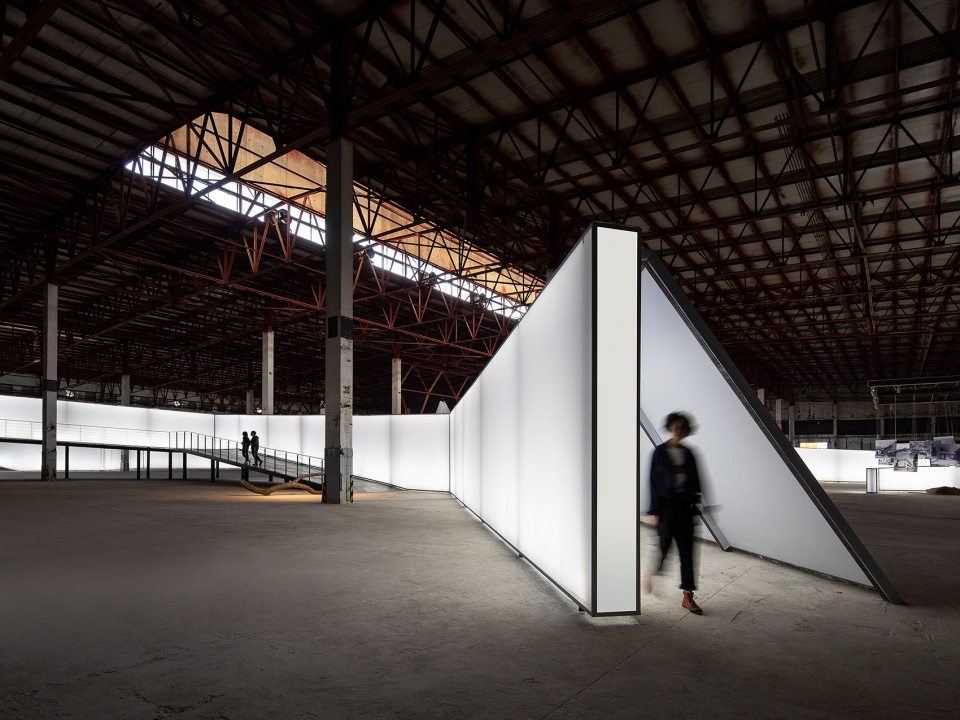

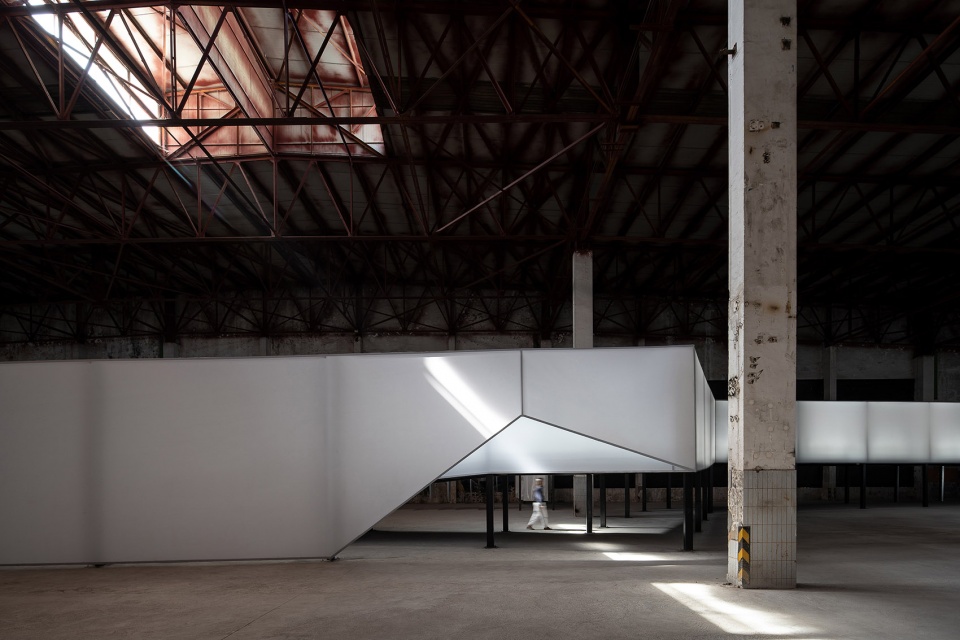

▼入口展廊,the intro gallery © Zhang Chao

建筑师写到:“如何让转瞬的光线讲述一段曲折的时间?如何用空间的轻微弯折回溯历史的巨大变迁?折叠是让光线与时间互相讲述的方式,也构成了对废弃宏大空间的微小再诠释。在一个秩序井然的工业结构中,这条时光线用轻微的空间弯折,构建出对于历史残骸的时间扰动。时光线既是时间废墟中跳跃出的前景物,更是以背景的方式,烘托出每一处前景物:曾经的原始土壤、工业时代的零部件,当下的数字幻景、又或是来自未来时代的谜。”

The architects ponder: “Could the fleeting light lead us into the maze of time in the past? Could we trace the changes in history by slightly folding the space? By folding, the light and time conceptually initiate a dialogue reflecting the subject narrative, and at the same time, physically reinterpret this vast abandoned area. The rigidly ordered industrial space thus experiences a subtle glitch by the folded line of light which disturbs the passing of time and arouses the dormant relics of history. Time – Light – Line is made through folding. On one hand, it jumps out from the ruins of time and occupies the foreground of the space. On the other hand, it acts as a backdrop on which all the fragmented pieces of time unfold: the pristine soil in the first place, the mechanical parts from the Industrial Age, the illusions of the present digital world, or the myths of the future.”

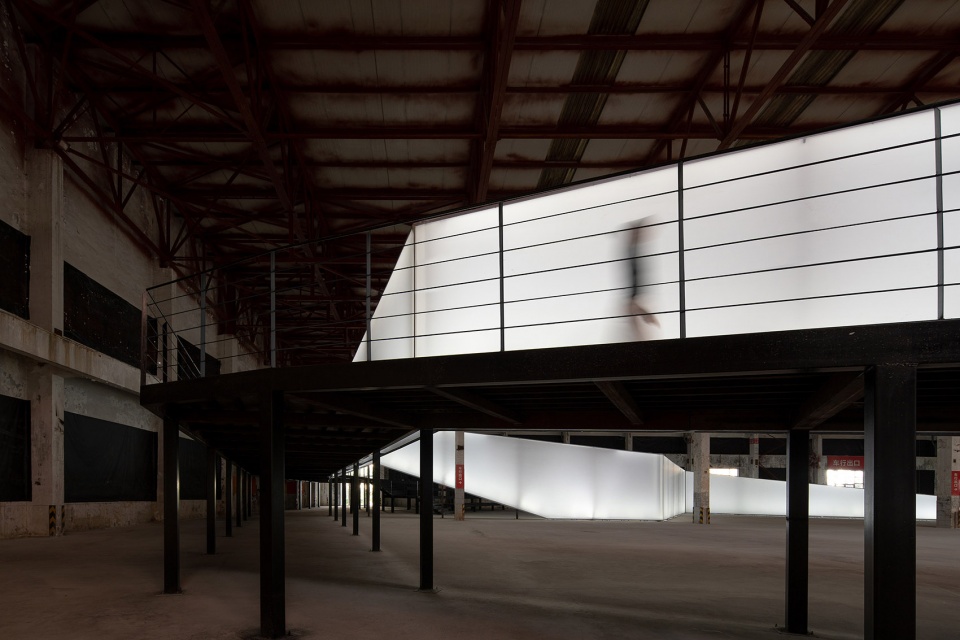

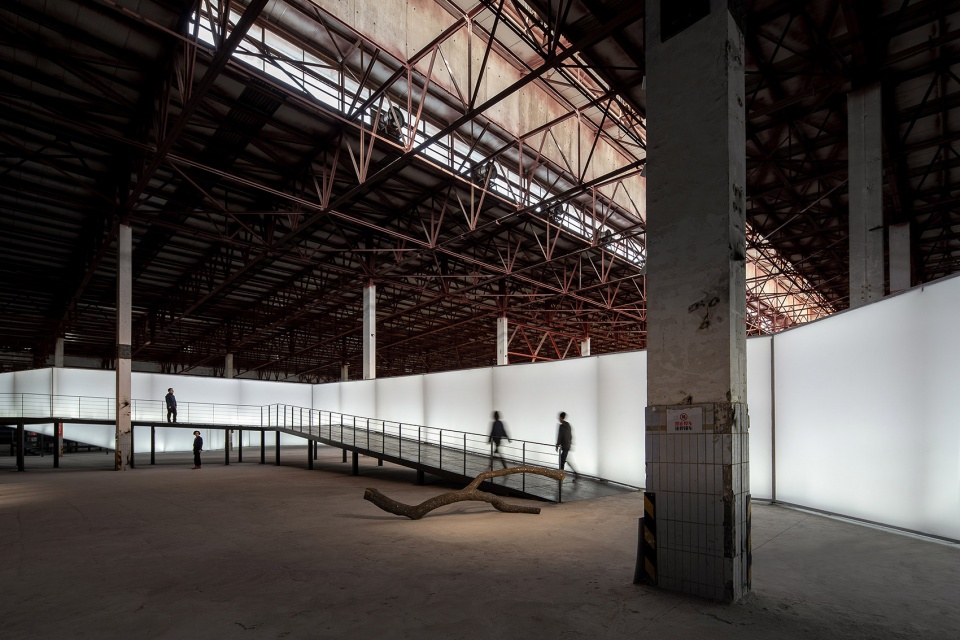

▼坡道展廊,ramp gallery © Zhang Chao

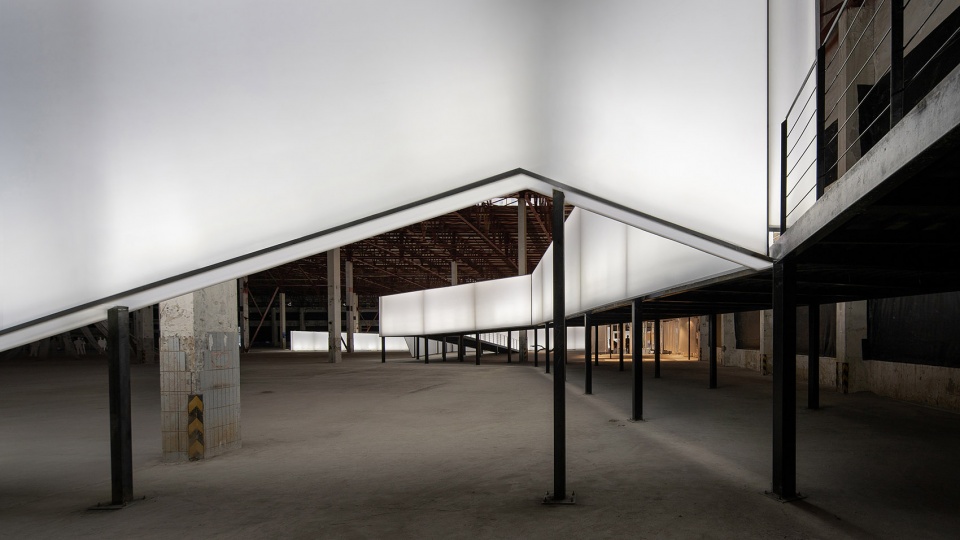

▼坡道顺应折叠墙体,the ramp way following the folded walls © Zhang Chao

来自深圳大学、华南理工大学、未来家学院、与本地艺术家、建筑师20余件参展作品呈现在此展场中,讲述出坂田城市区域从自然农耕状态(1G、2G)到科技与未来(4G、5G)的时代变迁。

Around twenty research and art works from universities, institutes, artists, and architects are shown in the rehabilitated venue where the folded light wall forms a series of spaces hosting these works in a linear (chronological) sequence.

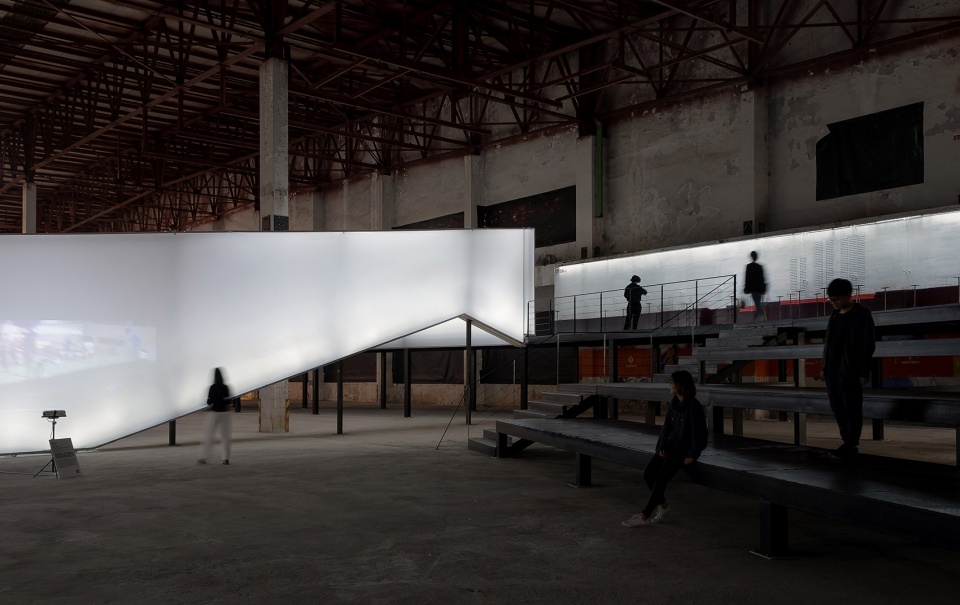

▼论坛广场,forum stage © Zhang Chao

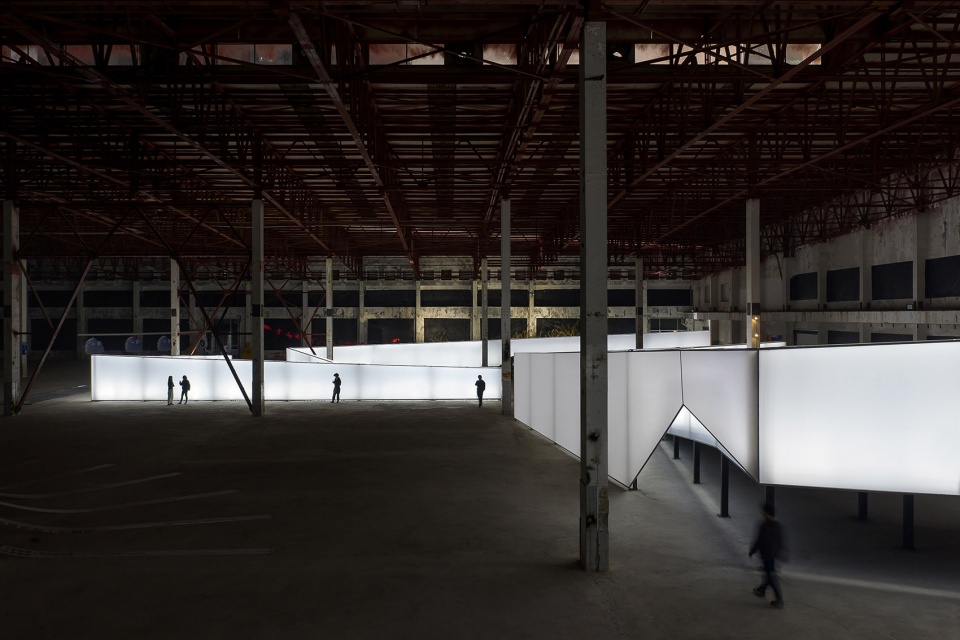

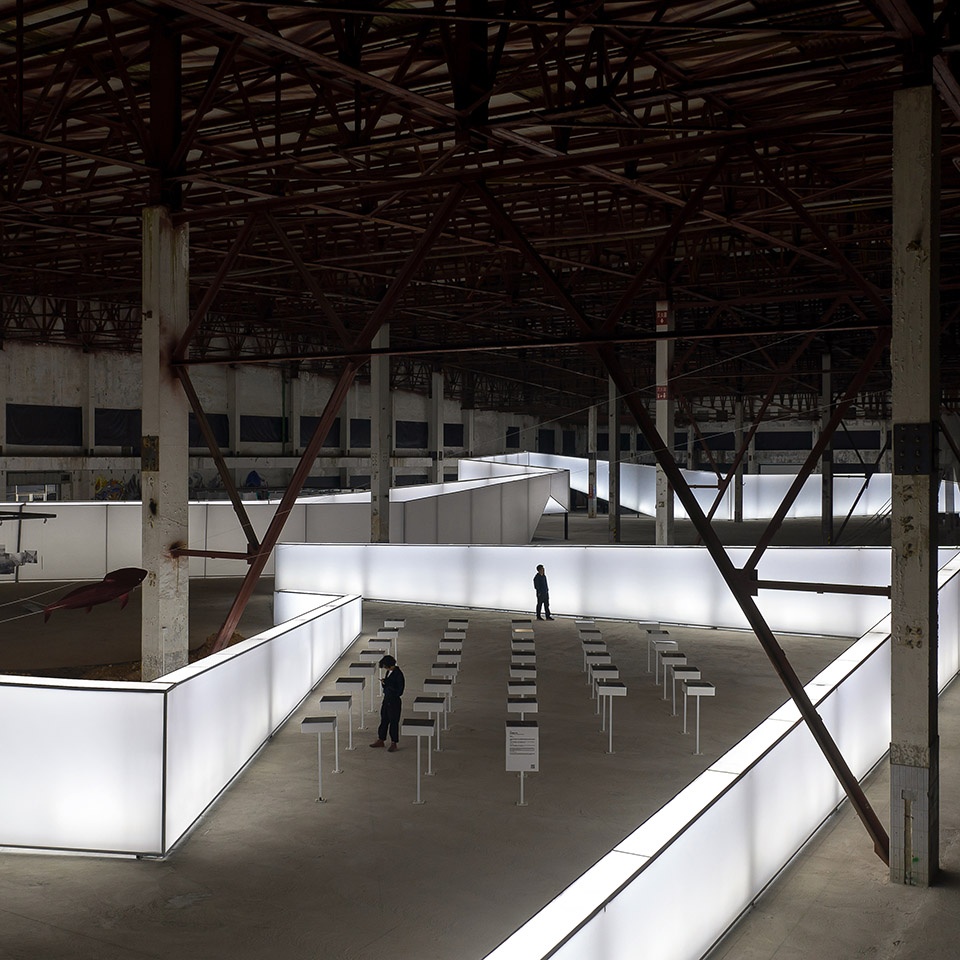

▼回望展厅,looking back at the exhibition hall © Zhang Chao

实施过程中巨大的挑战来自于严峻的时间要求、非常有限的造价与巨大的施工尺度。总体施工时间只有不到一个月,在一万平米的工厂里折叠穿梭的发光墙体该用什么材料来实现呢?

The main challenges of the project come from limited construction time, restrained budget, and big scale of the space. To respond to these factors, the architects deliberately choose the affordable membrane material which is capable of spanning over 50-meters. With such material, the 250-meters long wall finished its construction within 20 days, and was ready for visitors prior to the exhibition opening day.

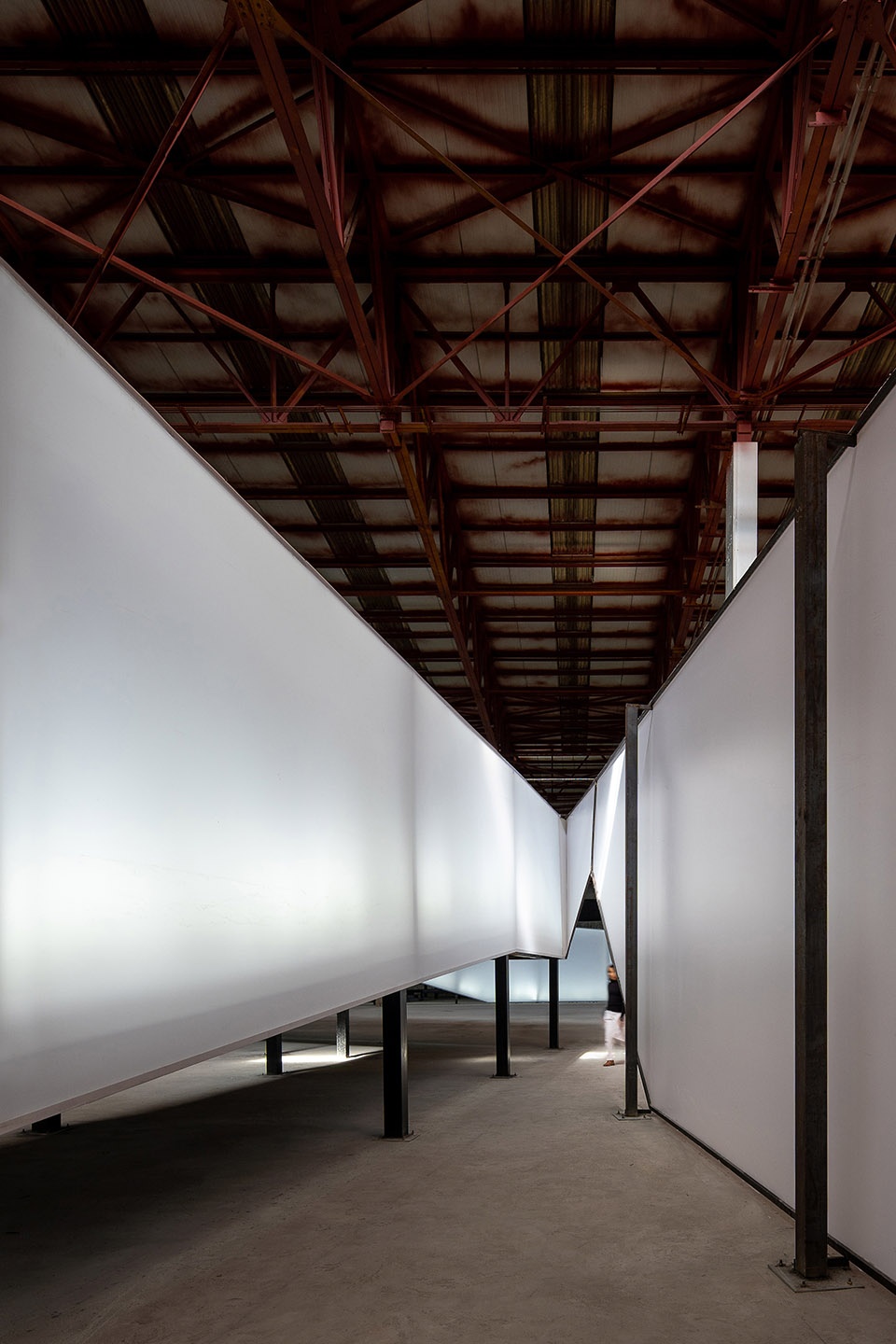

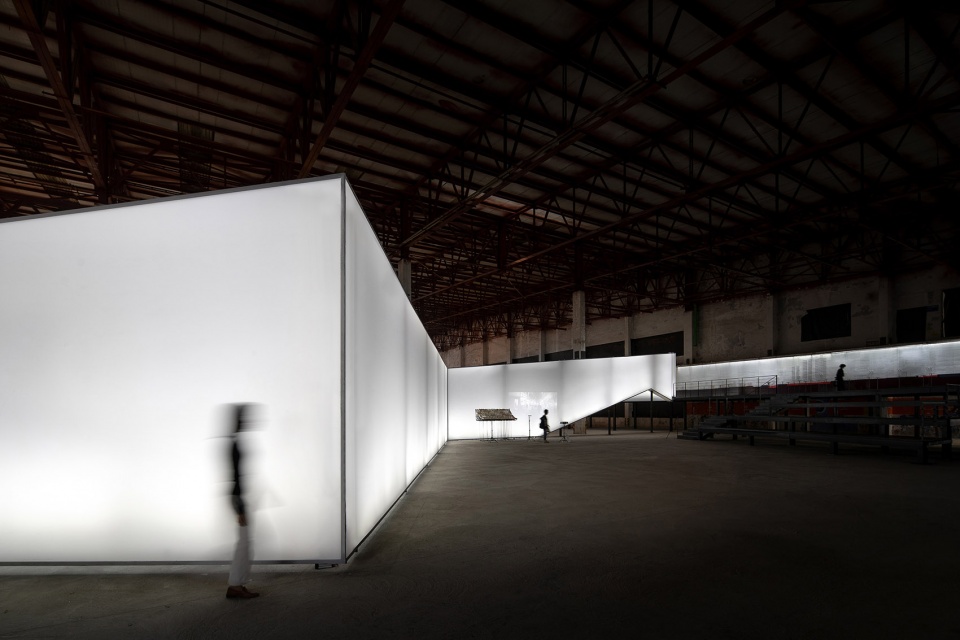

▼走近半透明膜的墙体,approaching the translucent membrane wall © Zhang Chao

▼层叠墙体中的视角,view of the membrane walls © Zhang Chao

建筑师提出采用普通灯膜来构建这个大跨光墙,价格低廉的普通膜材料极限可以拉到50米长无缝,而在实际施工过程中最终实现了单片40米,总长度250米的光膜墙,在开展前夕仅用20天的时间完成了整体施工。半透明的膜材可以无缝延展实现单膜、双膜和双曲面等不同墙体类型,允许参观的人群在半透明墙后若隐若现而与装置互动。

The translucent membrane allows for seamless installation of single-sided, double-sided, and double-curved light walls. The translucency of the material and the lighting environment also encourage visitors to interact with the installation by adjusting their physical distances to the membrane for engaging light effects.

▼与半透明膜墙体的互动,interacting with the translucent membrane wall © ATELIER XI

产业升级与转型背景下,深圳及珠三角地区的一部分工厂搬迁到土地及各方面成本更低廉的地区,留下了许多空置的工业厂房。建筑师团队希望能借双年展展场呈现废弃工厂转化为艺术与文化发生器的契机。他们预留了一个阶梯剧场,可供艺术交流、分享、观影使用。而建筑师与策展人仍在计划中的另一个企愿,是能够在这个厂房中做一次现代舞表演、一次诗歌朗诵或者音乐演奏——能够通过轻盈的艺术介入在巨大的工业尺度中、在天光的倾注下、在空旷的回声中形成一种反响;通过与这座城市曾经快速工业化的过去进行对话,建构关于这座城市未来文化与艺术的愿景。

In recent years, many manufacture plants in Shenzhen and surrounding areas have moved to regions with lower land and labor cost, resulting in a large number of empty factory halls left behind. Through this intervention project, the architects seek to present the general public with the opportunity to transform these post-industrial containers to cultural and art incubators.

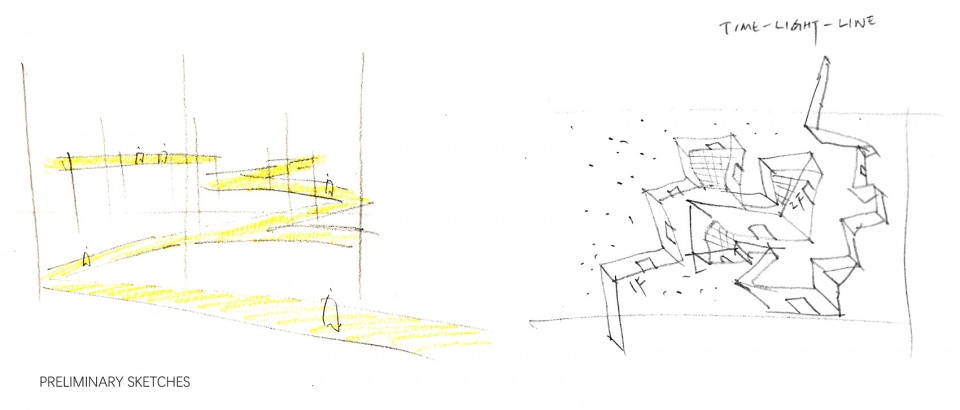

▼概念草图,concept sketch © ATELIER XI

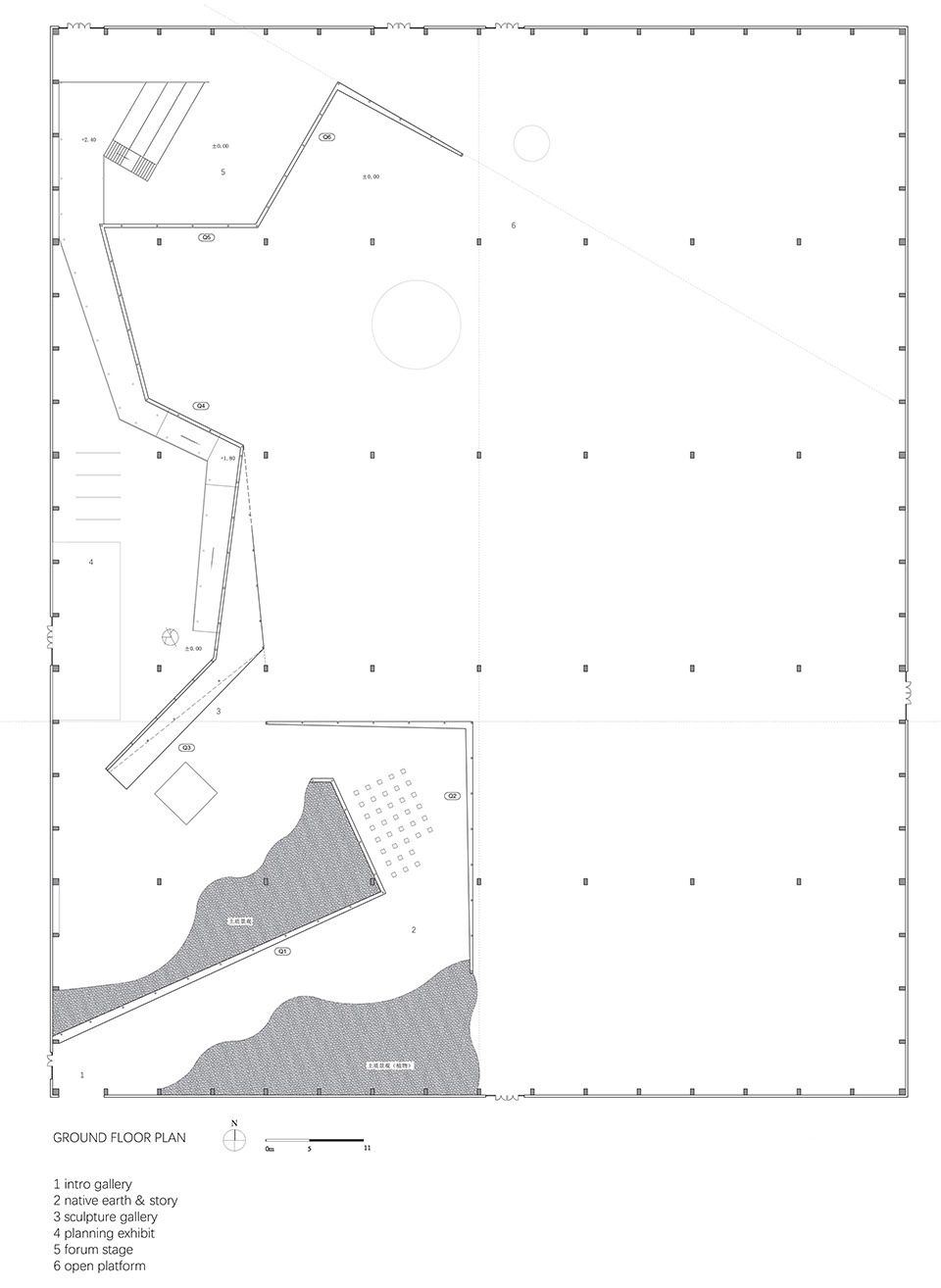

▼平面图,plan © ATELIER XI

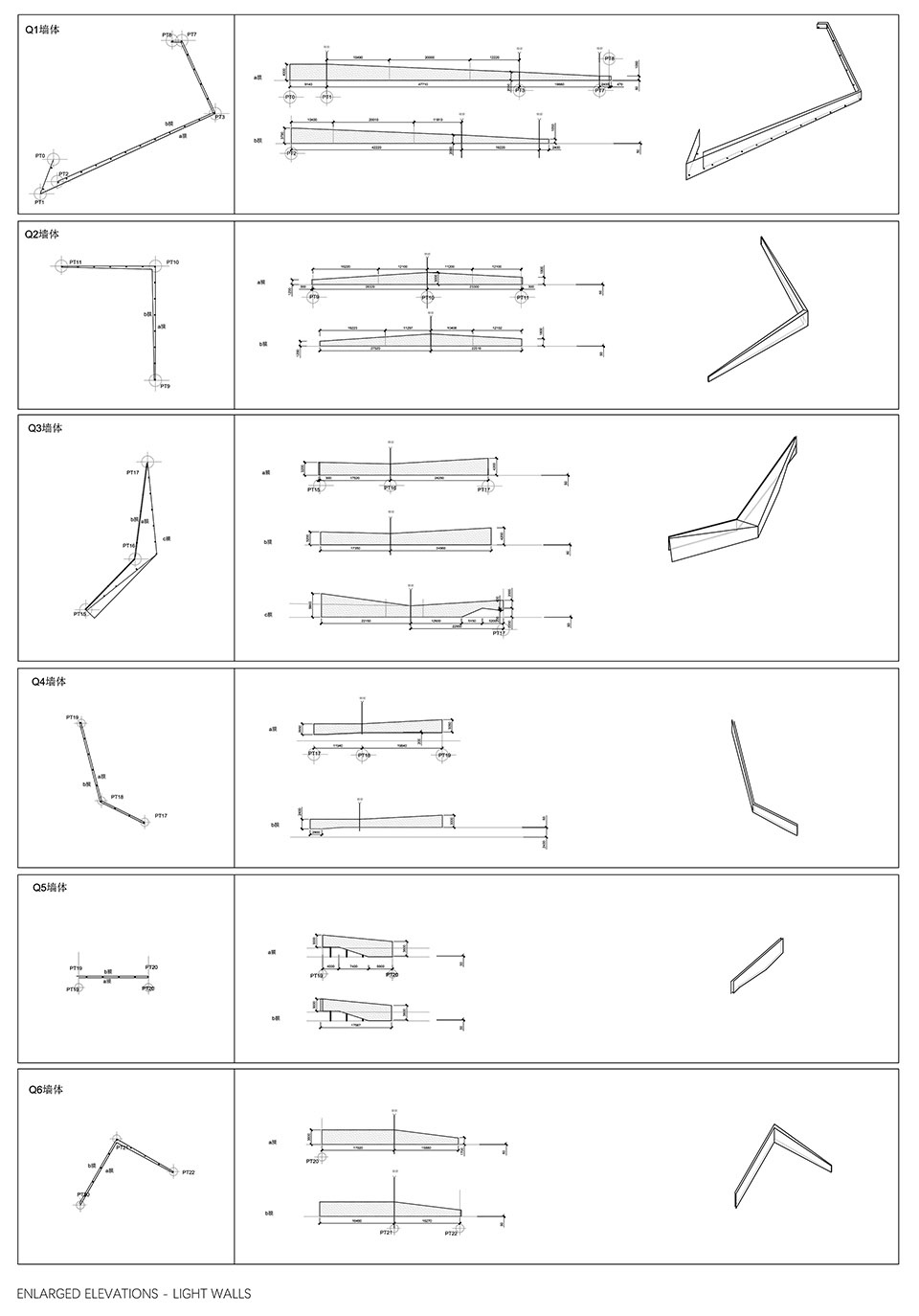

▼展开立面图,enlarged elevations © ATELIER XI

项目名称:折叠时光线 – 2019深港双城双年展龙岗分展场设计
设计团队:一树建筑工作室
网址:www.atelierxi.com
联系邮箱:cx@atelierxi.com
公司地址:Shenzhen, China
建成时间:2019.12
建筑面积:5000平米(实际展场面积)
项目地址:深圳市龙岗区坂田五和大道南2号万科星火Online园区
主持建筑师:陈曦
项目建筑师:田笛
设计团队:梁佳欣、徐志维、黄家杰、林子雅
委托方/策展团队:未来家学院
灯光顾问:灯光方程式
结构顾问:谭焯平
摄影师:张超
摄影师网站:https://cargocollective.com/ZCSTUDIO
摄影师邮箱:Chaos_Zhang@foxmail.com

Project Name:”FOLDED TIME-LIGHT-LINE”-2019 UABB Longgang Sub-Venue Exhibition Hall
Architecture Firm:ATELIER XI
Website: www.atelierxi.com
Contact e-mail:cx@atelierxi.com
Firm Location:Shenzhen, China
Completion Year:2019.12
Gross Built Area: 5000 m2
Project location:Bantian Wu He Da Dao 2# Vanke Xinghuo Online Campus,
Longgang District, Shenzhen, China

Lead Architects: Chen Xi
Project Architect: Tian Di
Design Team: Liang Jiaxin, Xu Zhiwei, Huang Jiajie, Lin Ziya
Clients: Future+ Academy
Lighting Consultant: Lighting Formula
Engineering Consultant: Tan Zhuoping
Photo credits: Zhang Chao
Photographer’s website:https://cargocollective.com/ZCSTUDIO
Photographer’s e-mail:Chaos_Zhang@foxmail.com
