Crystal Forest – Personalized City planed by teamLab Architects and Shenzhen Centralcon Group in Shenzhen, China

Integrate individual celebration with art to re-establish it as public.

Project Specs

Design Firm:
Location:
Materials:

来自 teamLab 对gooood的分享。更多关于:teamLab on gooood. Appreciation towards teamLab for providing the following description:

teamLab Architects计划与中洲集团在深圳共同创造 “Personalized City”(个性化城市)在总建筑面积3,000,000平方米的区域里用数字科技与艺术创立一个保持公众性的同时也可被个性化的空间。项目计划于2021年公开。

teamLab Architects and Shenzhen Centralcon Group plan to develop a “Personalized City” with total floor area of 3,000,000 square meter in Shenzhen, China. Through digital art the project will allow the public space to be personalized while maintaining its publicness. The project will open in 2021.

▼视频,Video (You could also click HERE to watch the video on YouTube)



城市的概念:个性化城市
City Concept “Personalized City”

城市的公共性与个性化并存。将公共空间通过数码技术的分享来实现个性化,再把个性化的当事者本人也融合到艺术作品当中,重新塑造公共空间。

Coexistence of public and personal in the city. By sharing public space using digital technology, personalize it and turn it into art which includes the existence of the individual, then once again re-establish it as public.

在城市里,到目前为止公共事物和个人事物完全分离。然而,数字技术使分享个人的东西变得更加容易,并且通过时间分享,例如优步(Uber)和滴滴出行,爱彼迎(Airbnb)和 途家等,每当被共享时,个人的私家车和住家就扮演了城市里,如公共出租车和酒店一样的公共角色。

相反,通过与数字技术共享喷泉和广场等城市里的公众事物,使之个性化,我们就有可能创建一个公共性和个性化模糊共存的城市。之后,被个性化的事物,包括当事人本身在内, 通过数字艺术的方式,将个人的事物给公众化,创造美感,并且能够避免他人的不适,使得更多人体验到艺术之美。这次,我们想要提案的就是,在新时代的城市里,人们的全新的存在方式。

In the city, public and personal used to be completely separated. However, digital technology has made it easier to share things of individuals. Car-sharing services such as Uber and Didi, and home-sharing services such as Airbnb and Tujia are prominent examples of such phenomenon. By being shared by a time slot, personal belongings such as cars or homes started to play public roles like public taxies and hotels in cities.

On the other hand, by sharing the public presence in cities such as fountains and plazas via digital technology, they become personalized public things, creating a city where the public and personal ambiguously coexist. Furthermore, digital art can turn personalized public things as well as the individual inside into art, creating an art space within the city that changes according to the presence of people. This dissolves the feeling of discomfort among others, allowing more people to experience
the beauty of art, hence turning the personalized things public again.

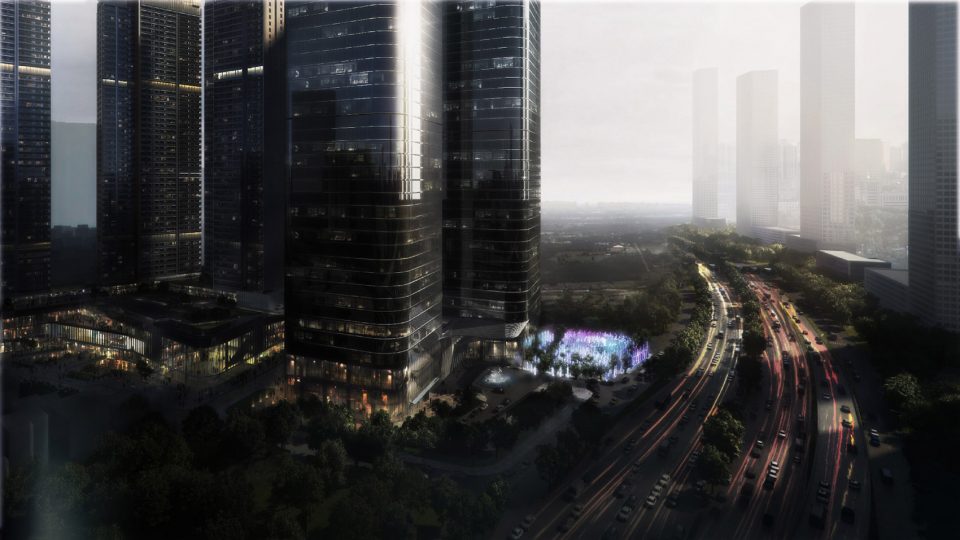

▼项目鸟瞰效果图,bird view rendering



水晶森林
Crystal Forest

连续的 “个人,空间,象征性的三维物体”。从形成个人交互体验的一个三维物体,到与他者有一体感且无边界的的装置空间,以及从疏到密无边界的巨大三维物体之间的连续性。

Continuous space, symbolic forms and the individual. From one three-dimensional object with personal interactive experience, an installation space with a sense of unity, and where no boundaries exists among people. A giant three-dimensional object with continuity from sparse to dense without boundaries.

“水晶森林广场” (计划中) 由光的点集合形成的水晶柱群体组成,我们称这些水晶柱为“水晶树”。水晶柱群体所发出的光,整体形成一个三维物体。由于三维物体是由光构成的,因此可以通过数字化来操控,使它产生互动。通过接近每一棵水晶树,或通过智能手机发出信号,我们可以改变光构成的三维物体。

每棵水晶树从单体来看,是可以进行个人和互动的体验的三维物体,从整体来看,作为一个稀疏的集合,它可以成为一个不与他人分界的有一体感的装置空间,并且作为一个密集的集合,它可以成为一个巨大的三维物体。这些变化,由于数学规则上的连续性,它们会根据地点而无边界地变化。作品会随着在这个空间里的人的存在,而不断地进行改变。

This installation is made of a group of Crystal Trees that are composed of points of light, and the set of points of light by a group of Crystal Trees creates one solid object. Because the three-dimensional object is made of light, it functions interactively and we can control it digitally. By approaching each Crystal Tree, or by using a smartphone, we can change the light object.

Each Crystal Tree is a single three-dimensional object that each individual can have personal interactive experience with. As a whole, it becomes an installation space that creates a sense of unity with no boundary with others, and this dense group of trees becomes a gigantic three-dimensional object. With mathematical continuity, they transform seamlessly. This work transforms in perpetuity due to the presence of people in the space.

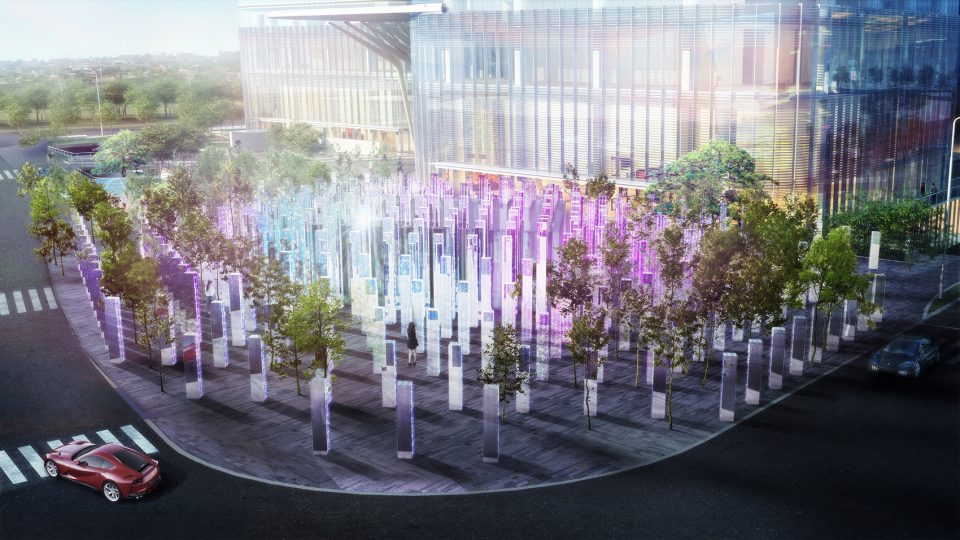

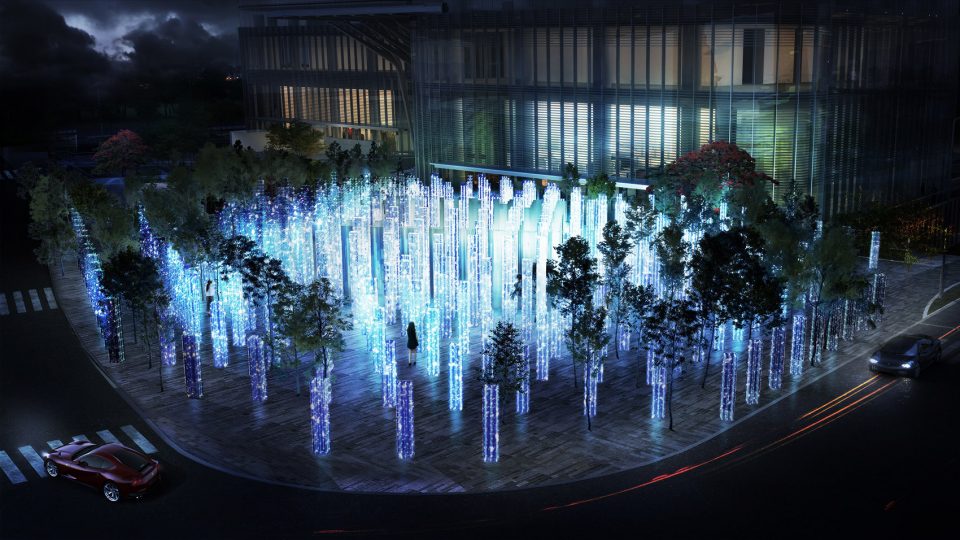

▼光柱构成的水晶森林效果图,renderings of the crystal forest composed of illuminant pillars



水晶森林广场
Crystal Forest Square

“水晶森林广场” 是由数码装置水晶森林所形成广场,我们称每根由覆盖着半反射镜的光点组成的柱子为“水晶树”。“水晶树”根据数学规则 (根据二次函数法从中间到周边的排列由密集变得稀疏)模拟蜂巢结构排列。

This installation is made of a group of Crystal Trees that are composed of points of light, and the set of points of light by a group of Crystal Trees creates one solid object. Crystal Tree is pillar made up of a set of light points covered with translucent mirrors. They are arranged according to mathematical rules (density decreases along quadratic curve from center to edge of the square), on the basis of a honeycomb structure.

▼广场效果图,square rendering

景观:连续而一体化的自然和公共空间。模糊边界,通过数字艺术整合自然和公共空间。

Landscape: Continuous unified nature and public space. Integration of nature and public space through digital art.

树木的中心点和水晶树的中心点分别位于广场中不同的地理位置。树木群有多个中心点,互相共享着邻接点,使树木群连续。越接近树木群的中心,树林越密集,形成人们无法自由活动的空间。相反,离开中心越远,树木越稀少,最边缘就剩一棵树,形成人们可以自由活动的空间。密度不一的空间是相互连续的,边界也是模糊的。整个水晶树群体发光形成的发光块,会超越连续的树木群形成密度不一的空间,使所有密度不一的空间被整合在一起。

The center point of real trees and the center point of the Crystal Trees are located in different places on the site. Real trees have multiple center points and they appear continuous and overlapping with the Crystal Tree by sharing connecting points. The closer to the center, the denser the forest, where people cannot move freely. Conversely, the farther away from the center the more sparse the trees, which allows people to move freely. Contradictory spaces are continuous and boundaries are ambiguous. Light emitted by the entire Crystal Tree group exceeds the boundary of contradictory spaces, which are composed of continuous trees with varying density, and unifies the contradictory spaces.

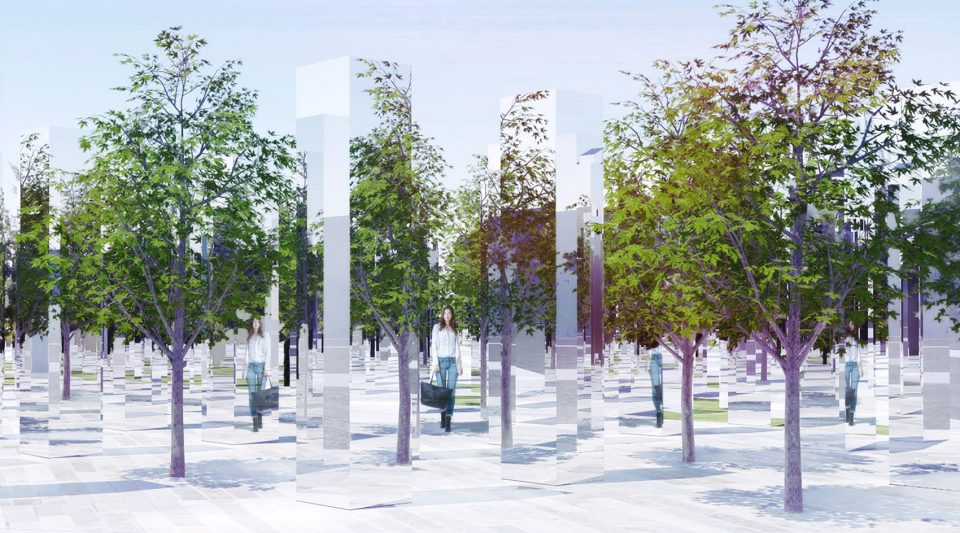

▼效果图,边界模糊的自然和公共空间,rendering showing the integration of nature and public space

建筑:个性化无常的外形。以个人引起的变化为出发点,结合建筑物的外形和内部结构改变其形态的数码艺术手法,来扩张建筑物的印象,并以此来模糊建筑的边界,个性化建筑。

Architecture: Personalized ambiguous form. Change initiating from the individual, expansion of the architectural image by digital art which crosses outside and inside of the architecture, and thereby create ambiguous architectural boundaries and personalization of architecture.

在广场中心部有一个空间,它的天花板和墙壁是由玻璃组成的。中心部没有水晶树,是空心的。出于建筑结构的合理性的考虑,靠近中心的水晶树被排列成网格状。蜂窝结构的部分和网格结构的邻接点布置在近端柱的平均值处,网格结构和蜂窝结构是连续的。通过水晶树在排列上连续的改变着密度,水晶树从中心部到远处的位置上都是独立存在的。朝着中心部走时,柱子会慢慢变的密集,密集的柱子们会形成一个新的空间。而中心部因为密度最高,产生象征意义。

In the center, a space with glass ceiling and walls is arranged. No Crystal Tree exists in the center; it is hollow. In addition, due to architectural rationality, Crystal Trees near the center are arranged like a grid. The contact points of “honeycomb arrangement” and “grid arrangement” are arranged at average value of Crystal Trees nearby, so that “honeycomb arrangement” and “grid arrangement” are continuous. (a smooth transition point) The density of the Crystal Trees is changed constantly, Crystal Trees at the center are independent from those positioned far from the center. When approaching the center, the pillars position becomes more dense, which forms a new space. The center pillar is symbolic because of its high density.

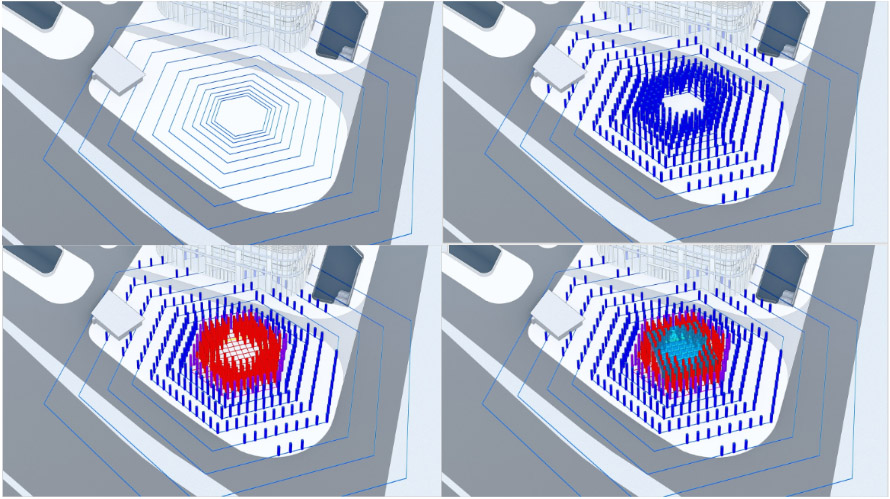

▼水晶树的排列网格,中部为玻璃覆盖的中空空间,grid arrangement of the crystal trees, creating a hollow in the center with glass ceiling

在横截面设计上,每棵水晶树的高度基于三角函数的工式来决定 ,中心部最高周围呈放射状下降。水晶树的光点群整体受控,每棵水晶树的光点集合起来变成一个发光块。发光块穿过玻璃做的墙和天花板,以形成建筑的轮廓。随后,发光块会根据在现场每个人的举止而发生变化。也就是说,发光块是会根据个人行为而变化的模糊的建筑形态。

这个空间在某一刻成为了具有个人意义的发光块时,如果在他人眼里看来很美丽的话,那么它仍然是一个公共空间。中心部是个人举办庆典的场地,它的功能相当于随着时间的推移而被共享的个性化空间。用于个人庆典的发光块,如果在他人看来,能够维持该场地的象征性,那么个性化空间也能维持公共空间的特性。换言之,用于个人庆典的个性化空间将逐渐蔓延开来覆盖整个广场。那么,在广场上所有的每个人都会得到祝福。

In cross-sectional planning, the height of each Crystal Tree is determined by a mathematical expression based on trigonometric functions, and the central part will radially descend in a maximum arc. The point cloud of the light of Crystal Tree is integrated and controlled, and the light points of each Crystal Tree gather to form a light mass. The architectural outline crossing the glass wall and ceiling.The shape of the light mass changes according to people’s behavior. In other words, the light mass
has an ambiguous architectural outline which changes according to the behavior of individuals nearby.

When a space at a certain moment becomes a mass of light with personal meaning, it looks beautiful to others, and the personal is shared with the public. The hollow at the center is a venue for individual celebrations. That being said, it functions as a personal space to be shared over time. If the light block for personal celebrations is perceived as a symbol of the venue, this personal venue also maintains the characteristic of a public space. The personalized space for personal celebrations will gradually spread to cover the entire square. Then, everyone in the square receives the joy and blessings of the celebration.

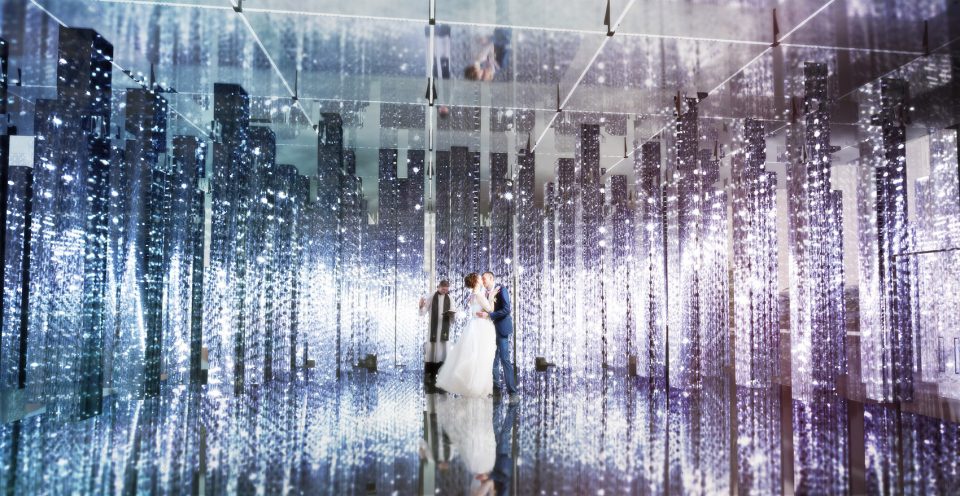

▼效果图,在中部空间里举办个人庆典,rendering, individual celebration in the hollow at the center

这座水晶森林广场,在保持公共空间特性的同时,也充满着个人庆典。并且,如果个人庆典有可能覆盖整个广场的话,通过公共空间和个性化的开展,它将成为一个新的城市的象征性广场,公共空间和个性化空间将在这个广阔的空间里共存。

This Crystal Forest Square , whilst maintaining the characteristics of a public space, can also be full of personal celebrations. If personal celebrations cover the entire square, through the development of the public space being personalized, it will become a symbolic square of new cities in the digital era, where public space and personalized space coexist in the squre.

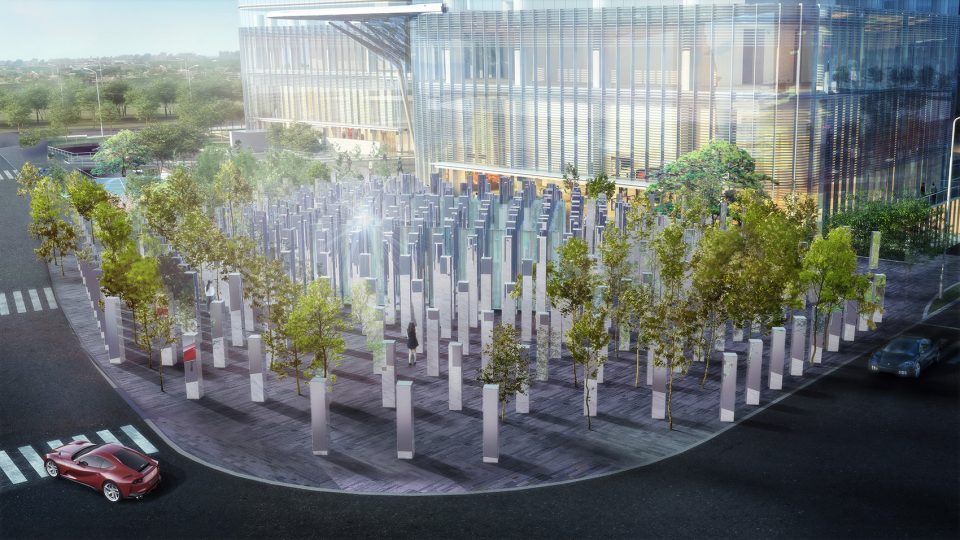

▼水晶森林日景效果图,day view of the crystal forest

设施名称:中洲湾C FutureCity(中国 深圳)
总建筑面积:3,000,000 平方米
商业面积:160,000 平方米
开业时间:2021年初

Complex: C Future City (Shenzhen, China)
Total floor area: 3,000,000 square meters
Commercial area: 160,000 square meters
Opening: Early 2021
