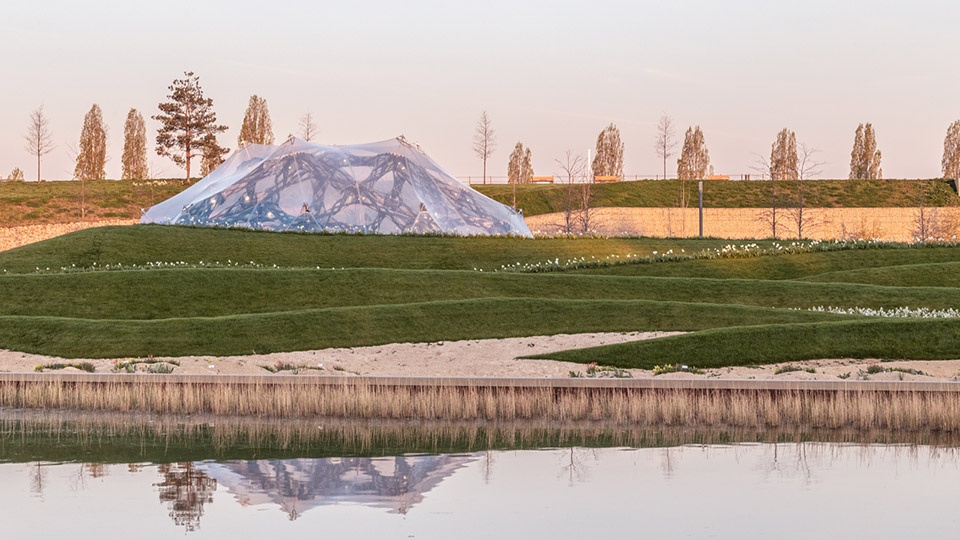

Embedded in the wavelike landscape of the Bundesgartenschau grounds, the BUGA Fibre Pavilion offers visitors an astounding architectural experience and a glimpse of future construction. It builds on many years of biomimetic research in architecture at the Institute for Computational Design and Construction (ICD) and the Institute for Building Structures and Structural Design (ITKE) at the University of Stuttgart. The pavilion demonstrates how combining cutting-edge computational technologies with constructional principles found in nature enables the development of truly novel and genuinely digital building system. The pavilion’s load-bearing structure is robotically produced from advanced fibre composites only. This globally unique structure is not only highly effective and exceptionally lightweight, but it also provides a distinctive yet authentic architectural expression and an extraordinary spatial experience.
Novel composite building system inspired by nature
In biology most load-bearing structures are fibre composites. They are made from fibres, as for example cellulose, chitin or collagen, and a matrix material that supports them and maintains their relative position. The astounding performance and unrivalled resource efficiency of biological structures stems from these fibrous systems. Their organization, directionality and density is finely tuned and locally varied in order to ensure that material is only placed where it is needed. The BUGA Fibre Pavilion aims to transfer this biological principle of load-adapted and thus highly differentiated fibre composite systems into architecture. Manmade composites, such as the glass- or carbon-fibre-reinforced plastics that were used for this building, are ideally suited for such an approach, because they share their fundamental characteristics with natural composites.
▼纤维展亭以人造玻璃纤维和碳纤维增强塑料构成，glass- or carbon-fibre-reinforced plastics were used for this building

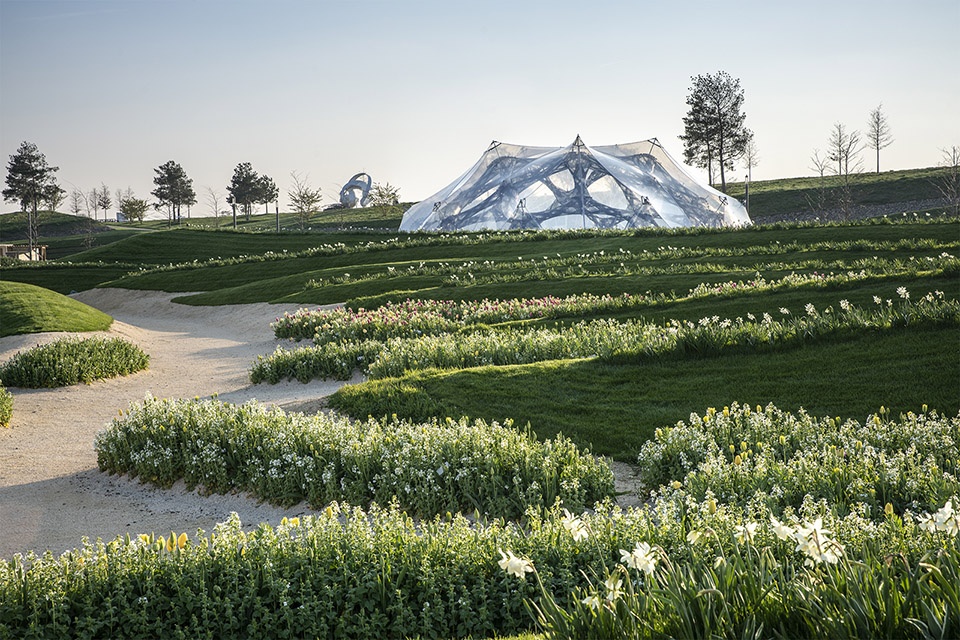

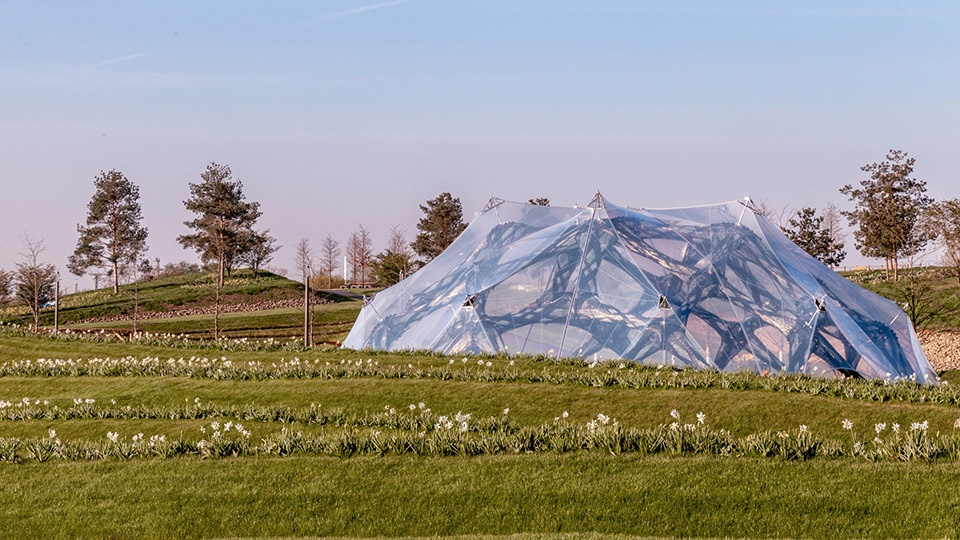

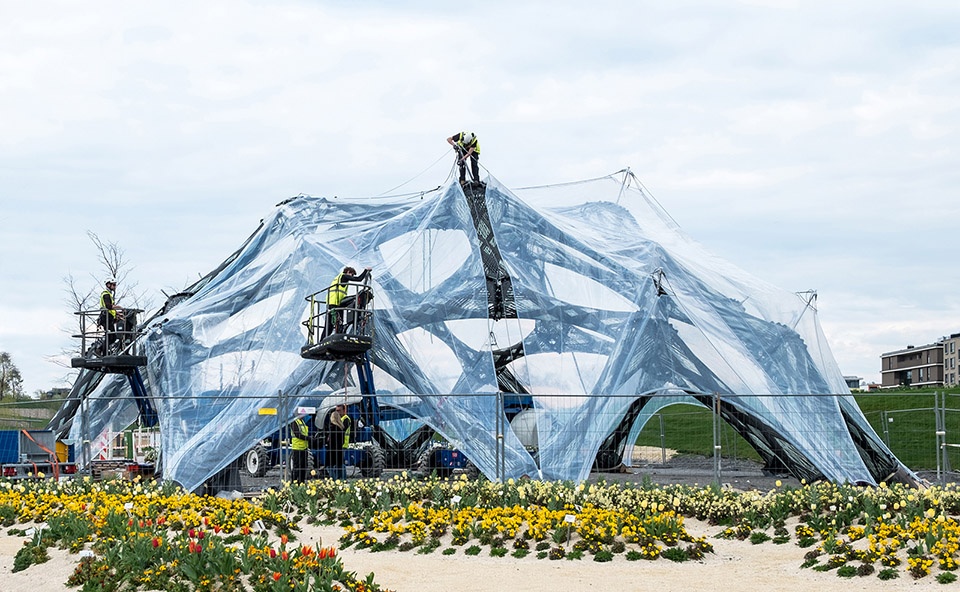

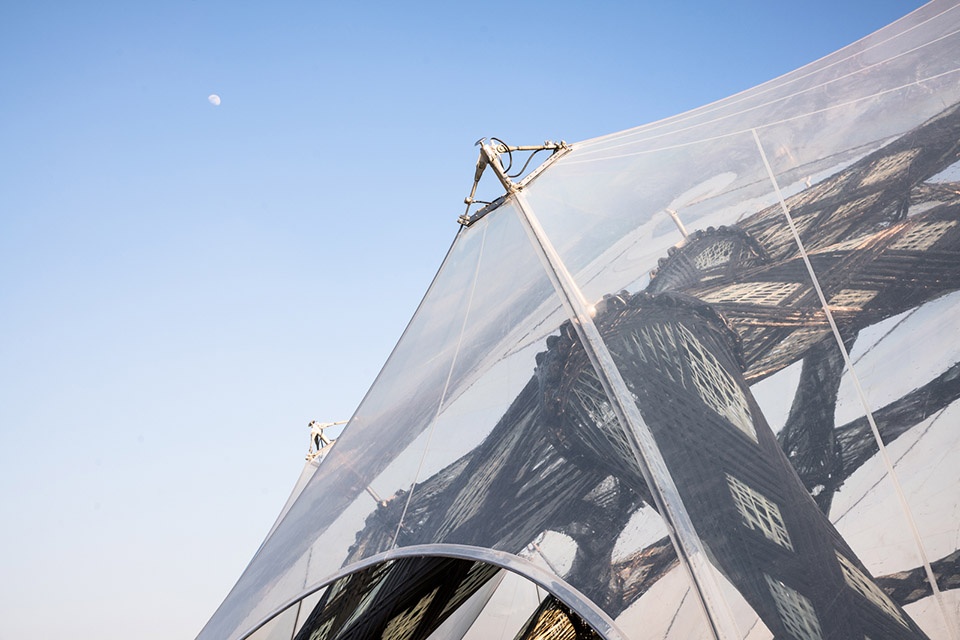

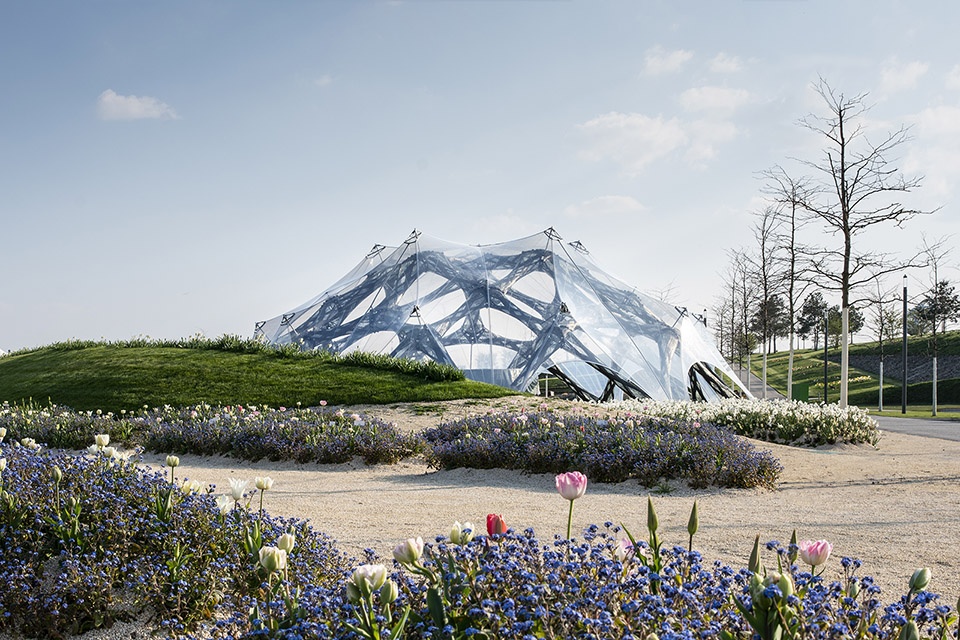

▼展亭外部以透明的ETFE膜材料包覆，the pavilion is enclosed by fully transparent, mechanically pre-stressed ETFE membrane
The project builds on many years of biomimetic research at the Institute for Computational Design and Construction (ICD) and the Institute for Building Structures and Structural Design (ITKE). It shows how an interdisciplinary exploration of biological principles together with the latest computational technologies can lead to a truly novel and genuinely digital fibre composite building system. Only a few years ago, this pavilion would have been impossible to design or build.
Integrative computational design and robotic fabrication

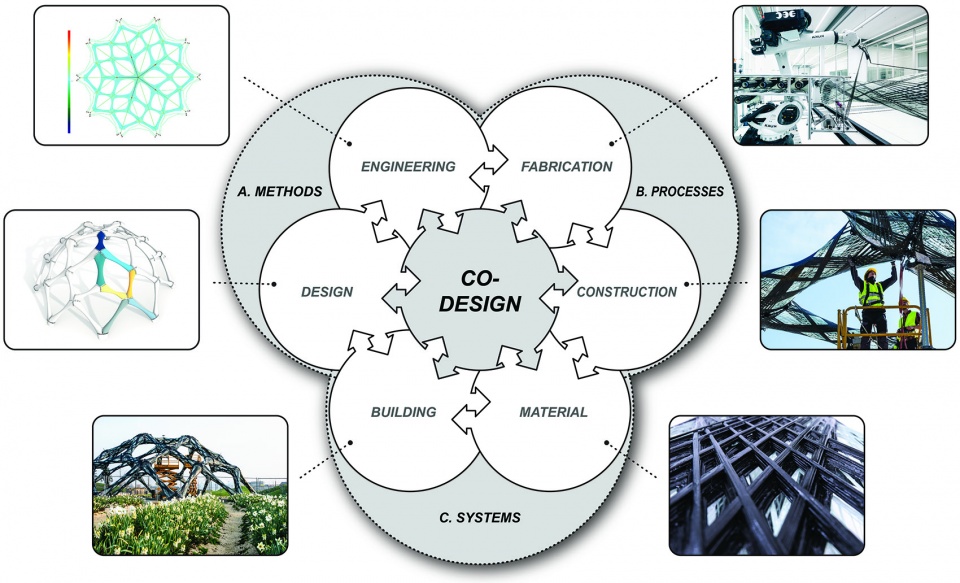

The pavilion is made from more than 150.000 meters of spatially arranged glass- and carbon fibres. They all need to be individually designed and placed, which is very hard to achieve with a typical linear workflow and established production technologies. Thus, it requires a novel co-design approach, where architectural design, structural engineering and robotic fabrication are developed in continuous computational feedback. In this way, the fibre arrangement, density and orientation of each building component can be individually calibrated, structurally tuned and architecturally articulated, while remaining directly producible.

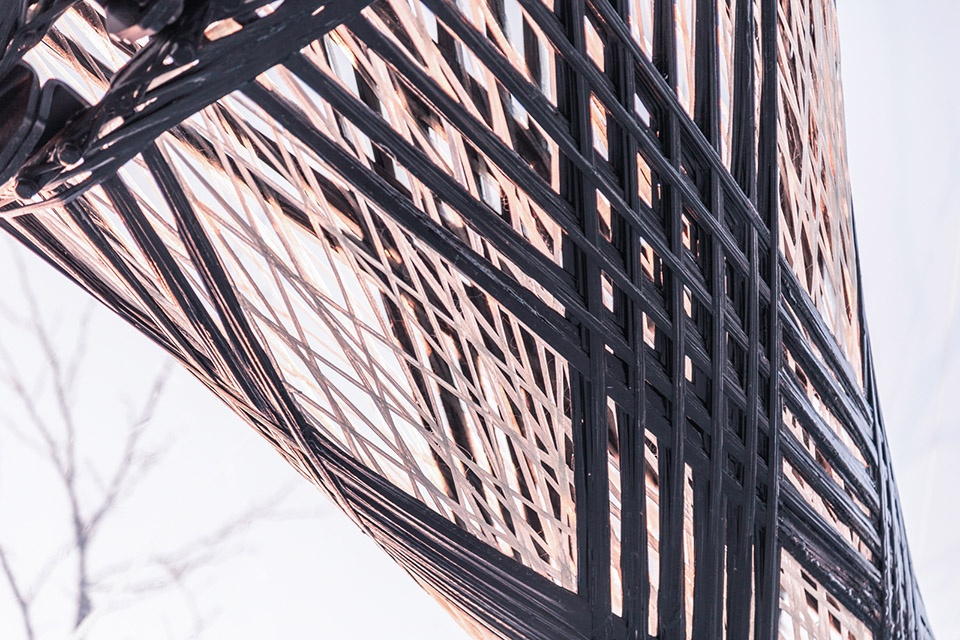

▼建筑构件细部，component detailed view

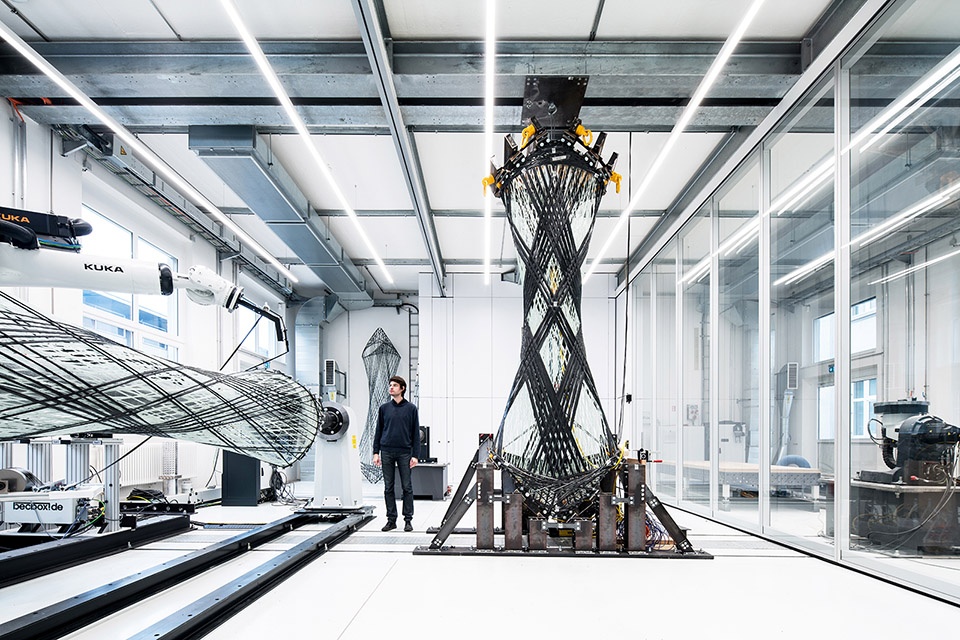

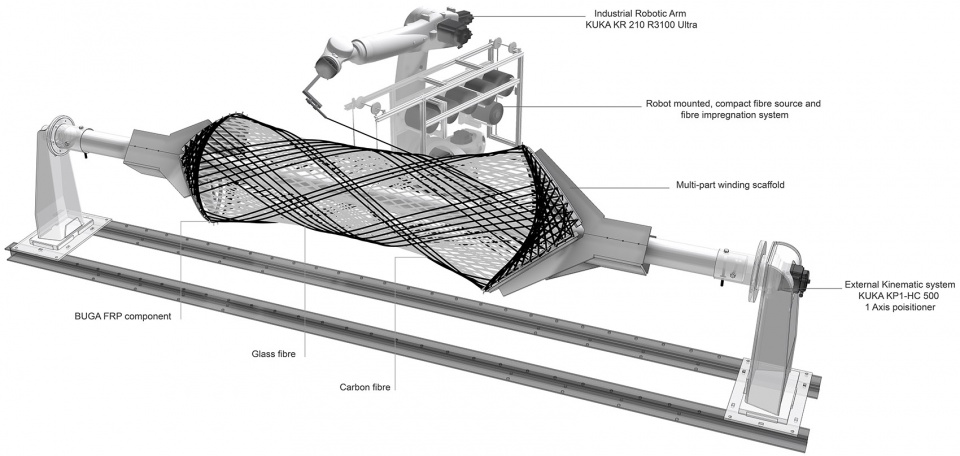

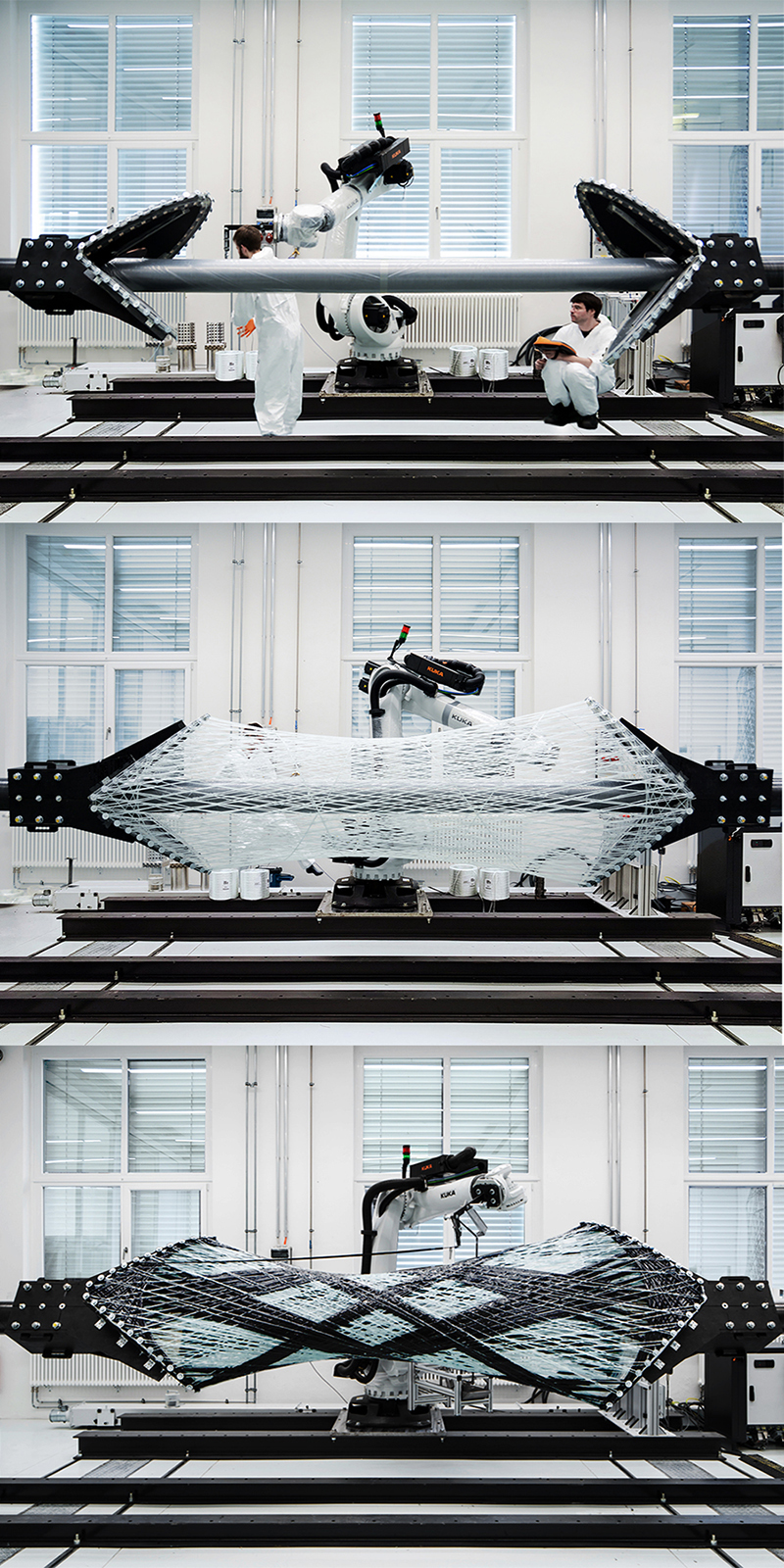

▼机械化无芯纤维缠绕成型，robotic, coreless filament winding

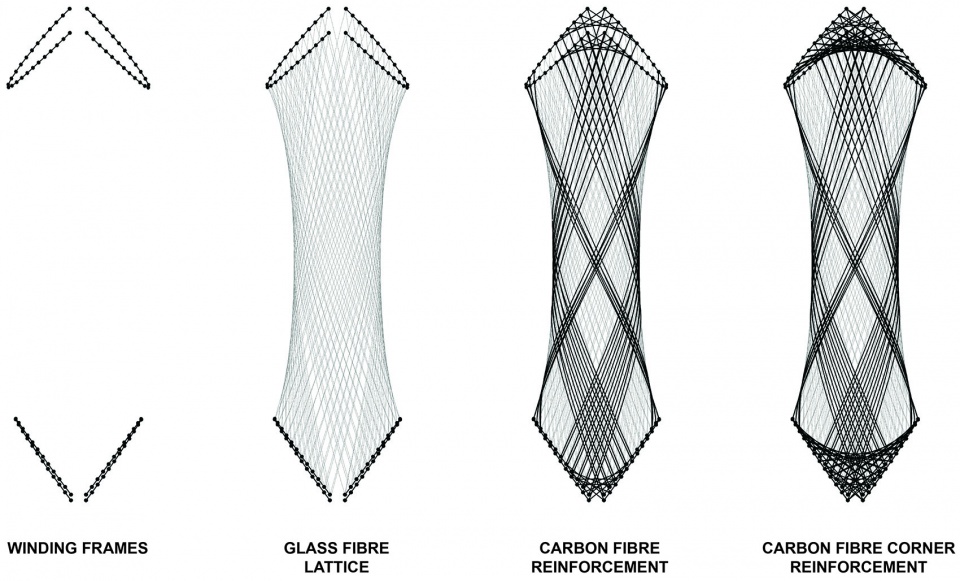

▼建筑构件生成示意，component processing diagram
The building components are produced by robotic, coreless filament winding, a novel additive manufacturing approach pioneered and developed at the University of Stuttgart. Fibrous filaments are freely placed between two rotating winding scaffolds by a robot. During this process, the predefined shape of the building component emerges only from the interaction of the filaments, eliminating the need for any mould or core. This allows for bespoke form and individual fibre layup for each component without any economic disadvantage. In addition, there is no production waste or material off-cuts. During manufacturing, a lattice of translucent glass fibres is generated, onto which the black carbon fibres are placed where they are structural needed. This results in highly load-adapted components with a highly distinct architectural appearance.

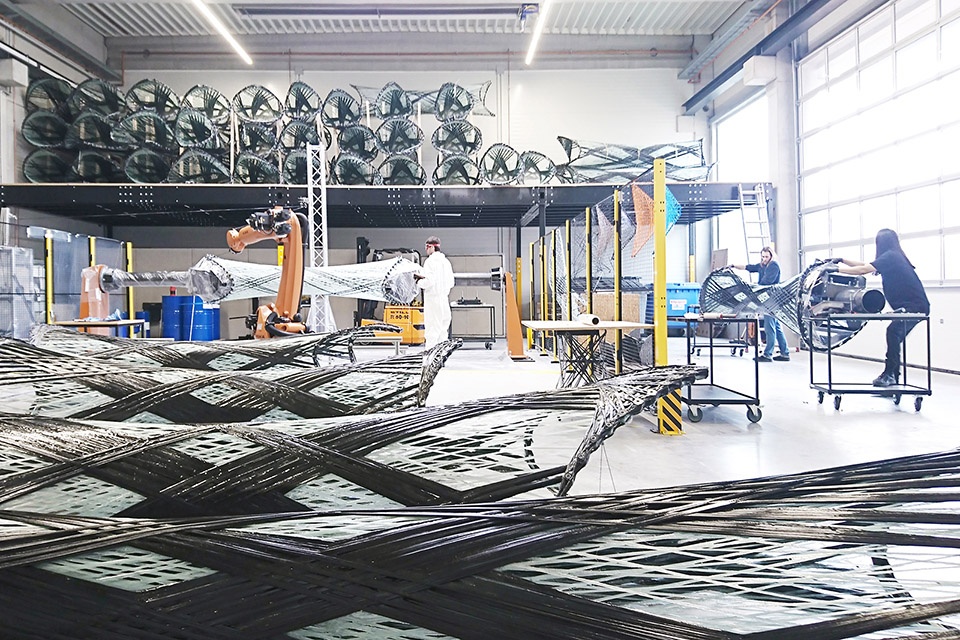

Full production took place at the project’s industrial partner FibR GmbH. Each component takes between four to six hours to make from around 1.000 meters of glass fibre and 1.600 meters of carbon fibre on average.

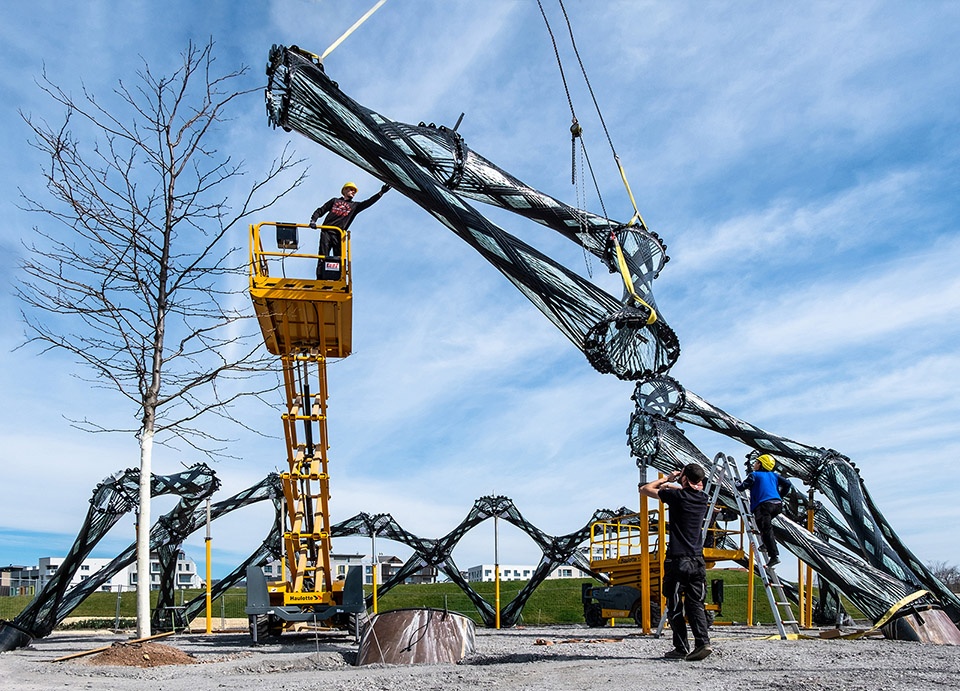

Unique lightweight structure and expressive architectural space

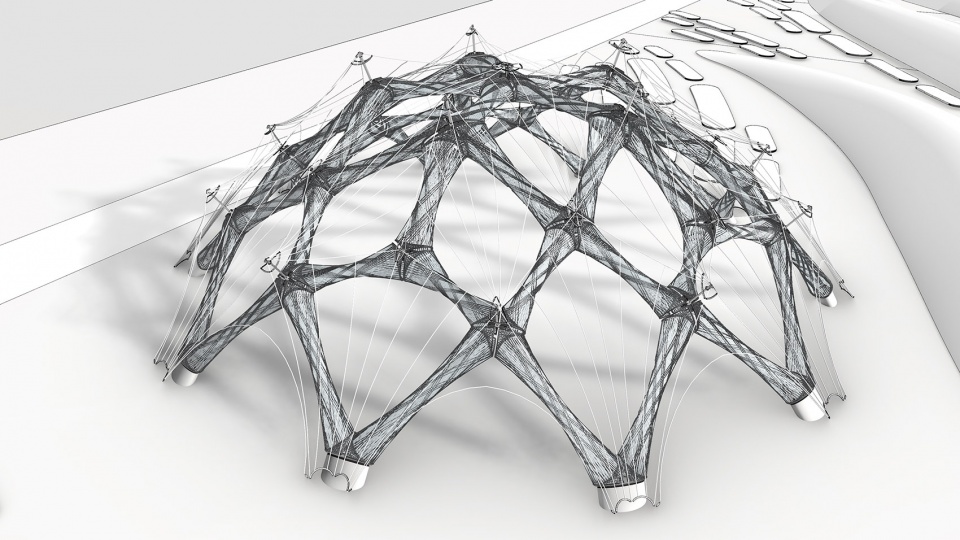

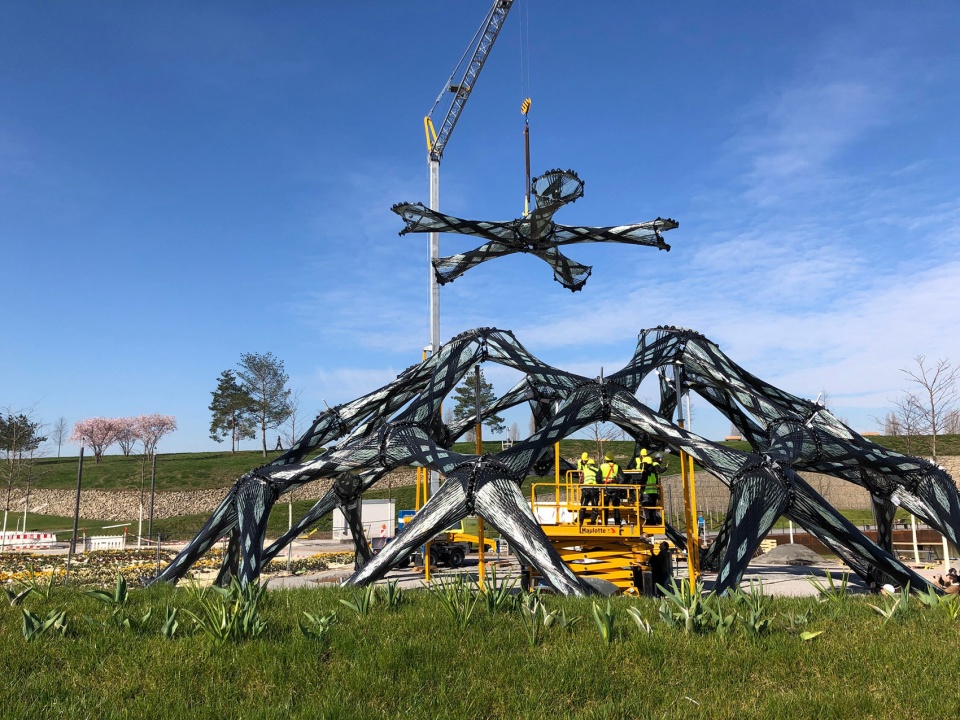

The pavilion covers a floor area of around 400 square meters and achieves a free span of more than 23 meters. It is enclosed by fully transparent, mechanically pre-stressed ETFE membrane. The primary load bearing structure is made from 60 bespoke fibre composite components only. With 7.6 kilograms per square meter it is exceptionally lightweight, approximately five times lighter than a more conventional steel structure. Elaborate testing procedures required for full approval showed that a single fibrous component can take up to 250 kilo newton of compression force, which equals around 25 tons or the weight of more than 15 cars. The pavilion shows how a truly integrative approach to computational design and robotic fabrication enables the development of novel, truly digital fibre composite building systems that are fully compliant with the stringent German building regulations, exceptionally light, structurally efficient and architecturally expressive.

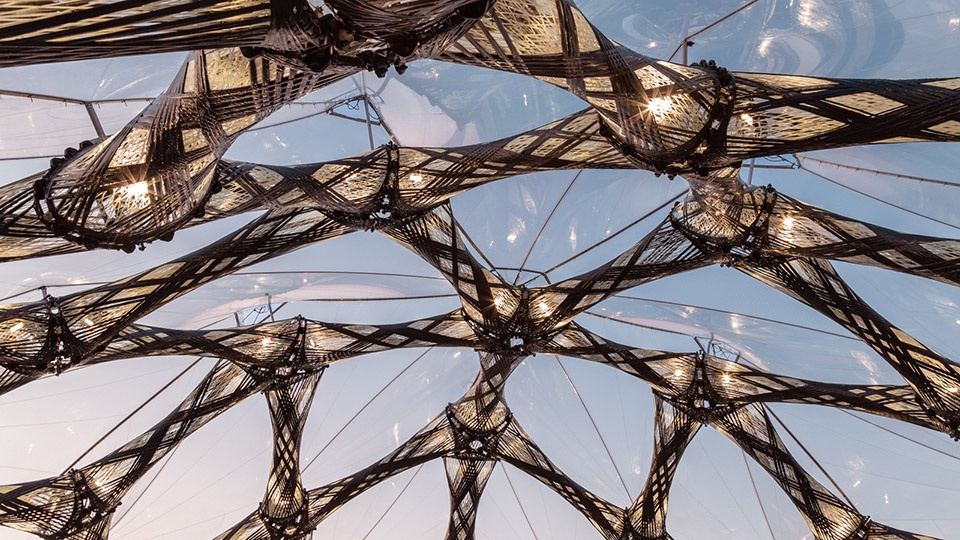

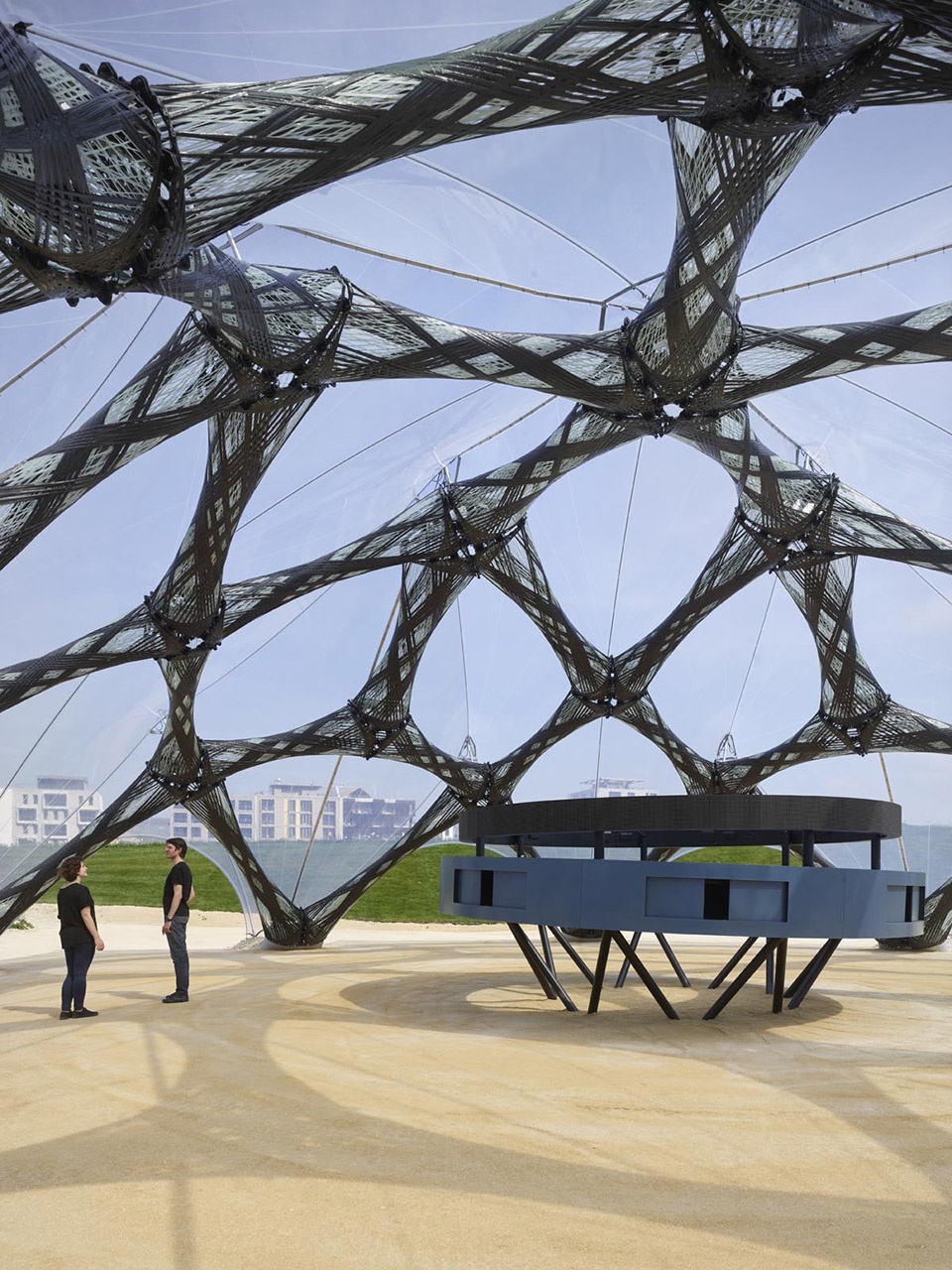

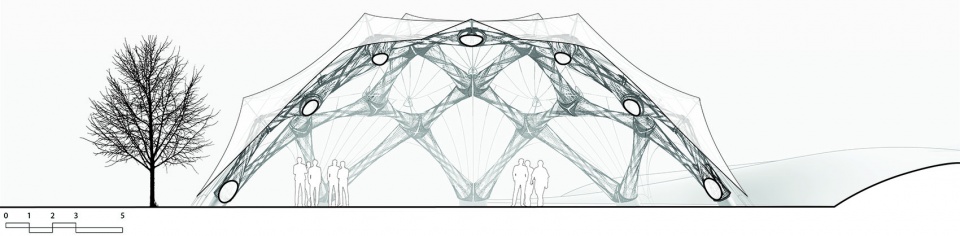

▼展亭的自由跨度超过23米，the pavilion achieves a free span of more than 23 meters ©Roland Halbe

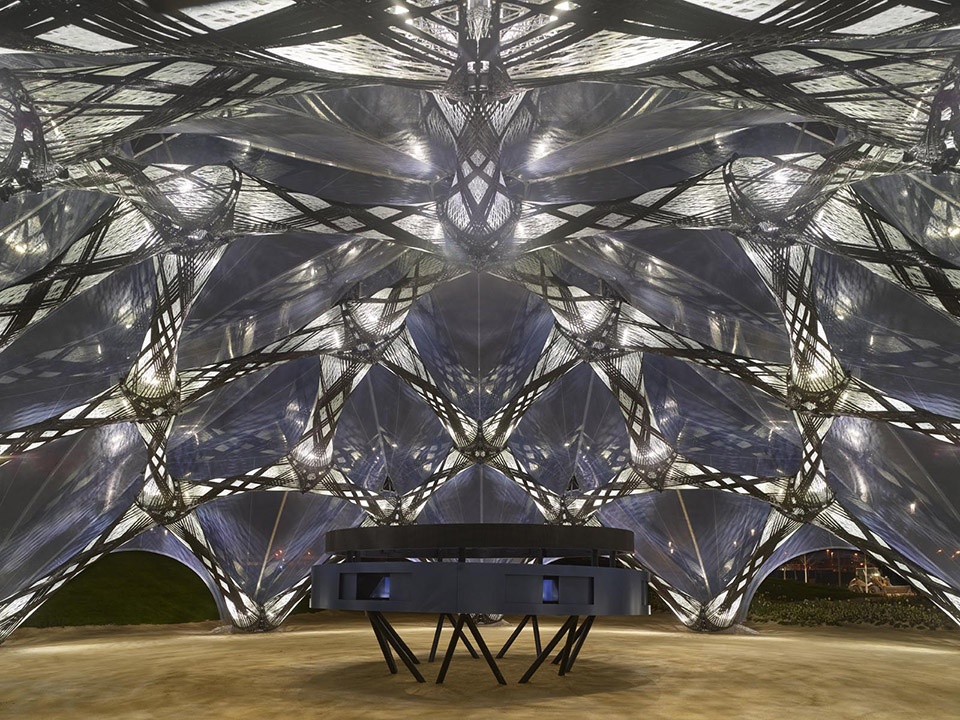

▼每平方米的结构重量仅有7.6公斤，比传统的钢结构轻约5倍，with 7.6 kilograms per square meter it is exceptionally lightweight, approximately five times lighter than a more conventional steel structures ©Roland Halbe

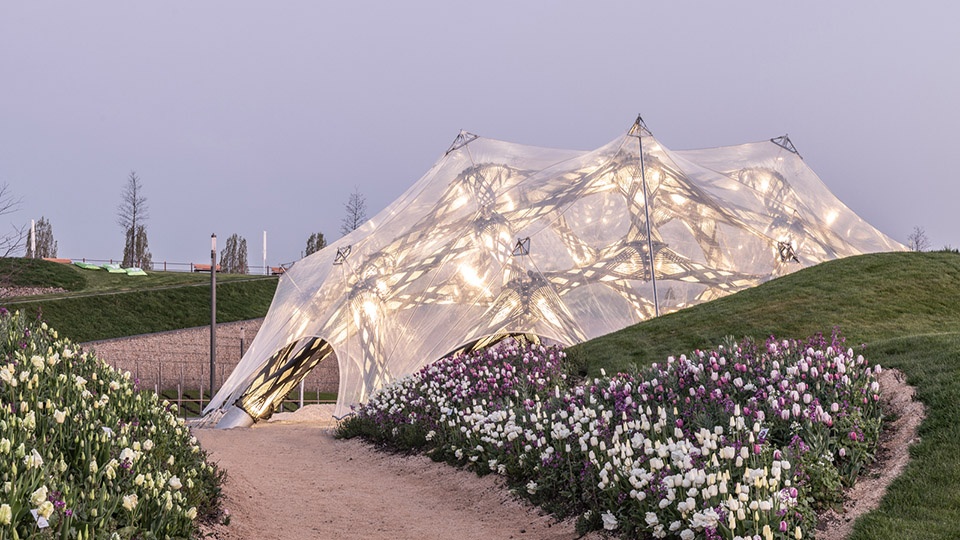

Embedded in the wavelike landscape of the Bundesgartenschau grounds, the pavilion translates the innovation on a technical level into a unique architectural experience. The black carbon filament bundles, wrapping around the translucent glass fibre lattice like flexed muscles, create a stark contrast in texture that is highlighted by the pavilion’s fully transparent skin. This distinctive architectural articulation is further intensified by the gradient from sparser carbon filaments at the top towards their denser application on the slenderest components that meet the ground. While most visitors may not have seen anything like it before, the pavilion exposes its underlying design principles in an explicable yet expressive way. Its unfamiliar yet authentic architectural articulation evokes new ways of digital making, which no longer remain a futuristic proposition but already have become a tangible reality.

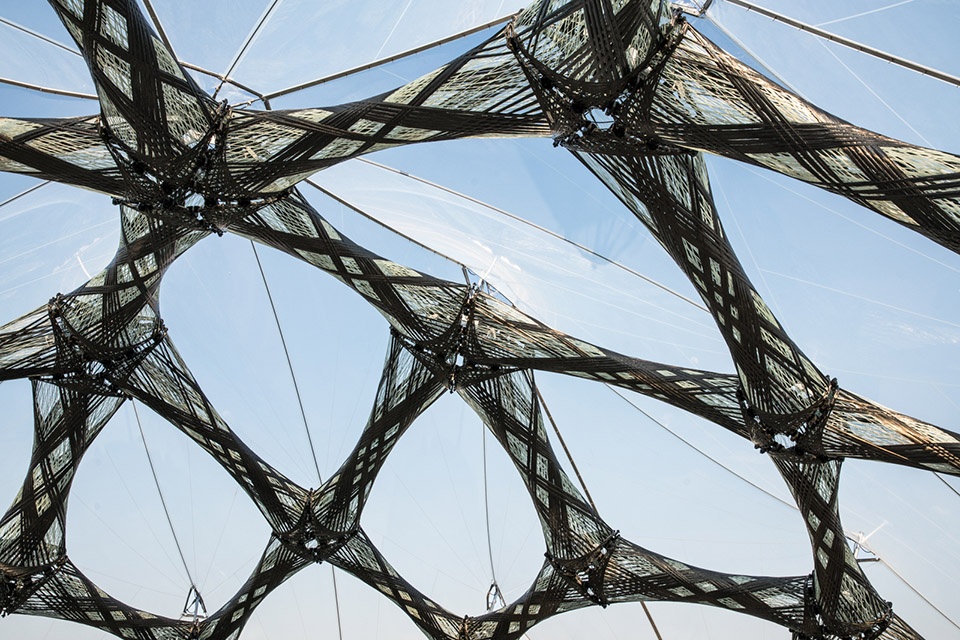

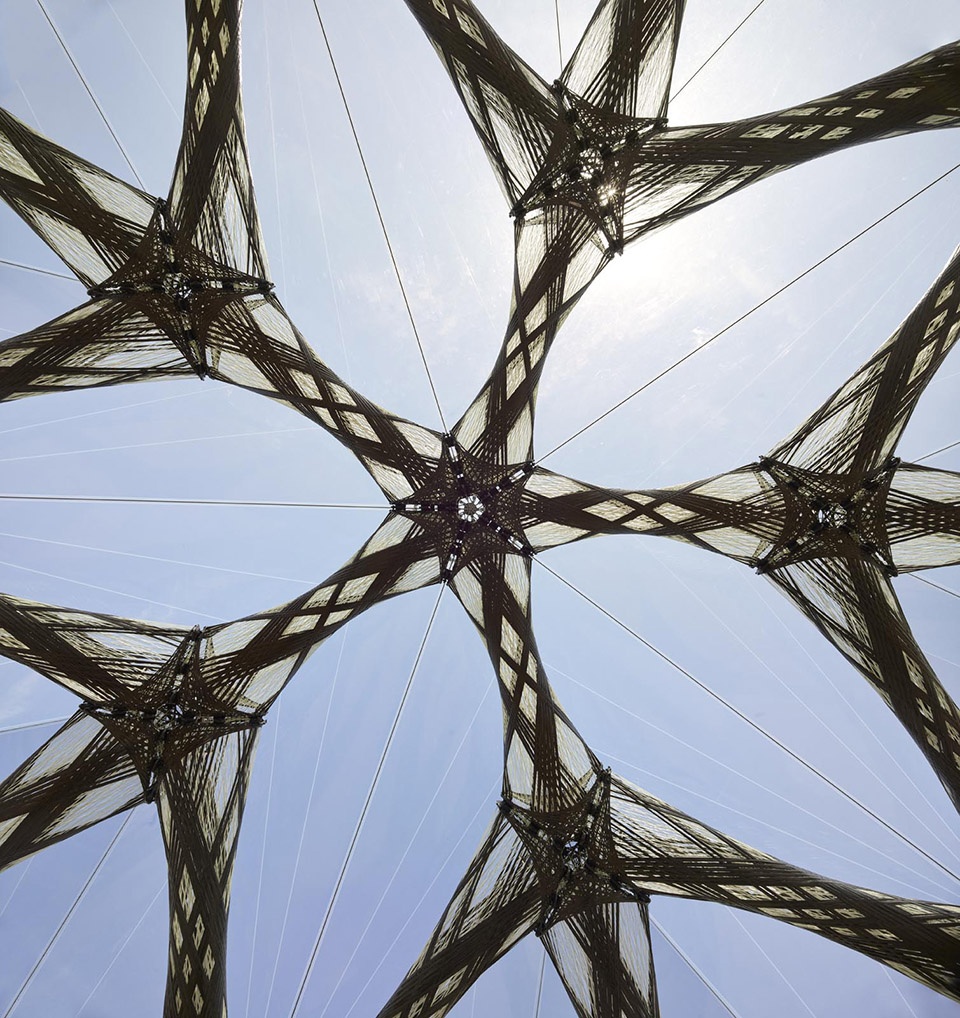

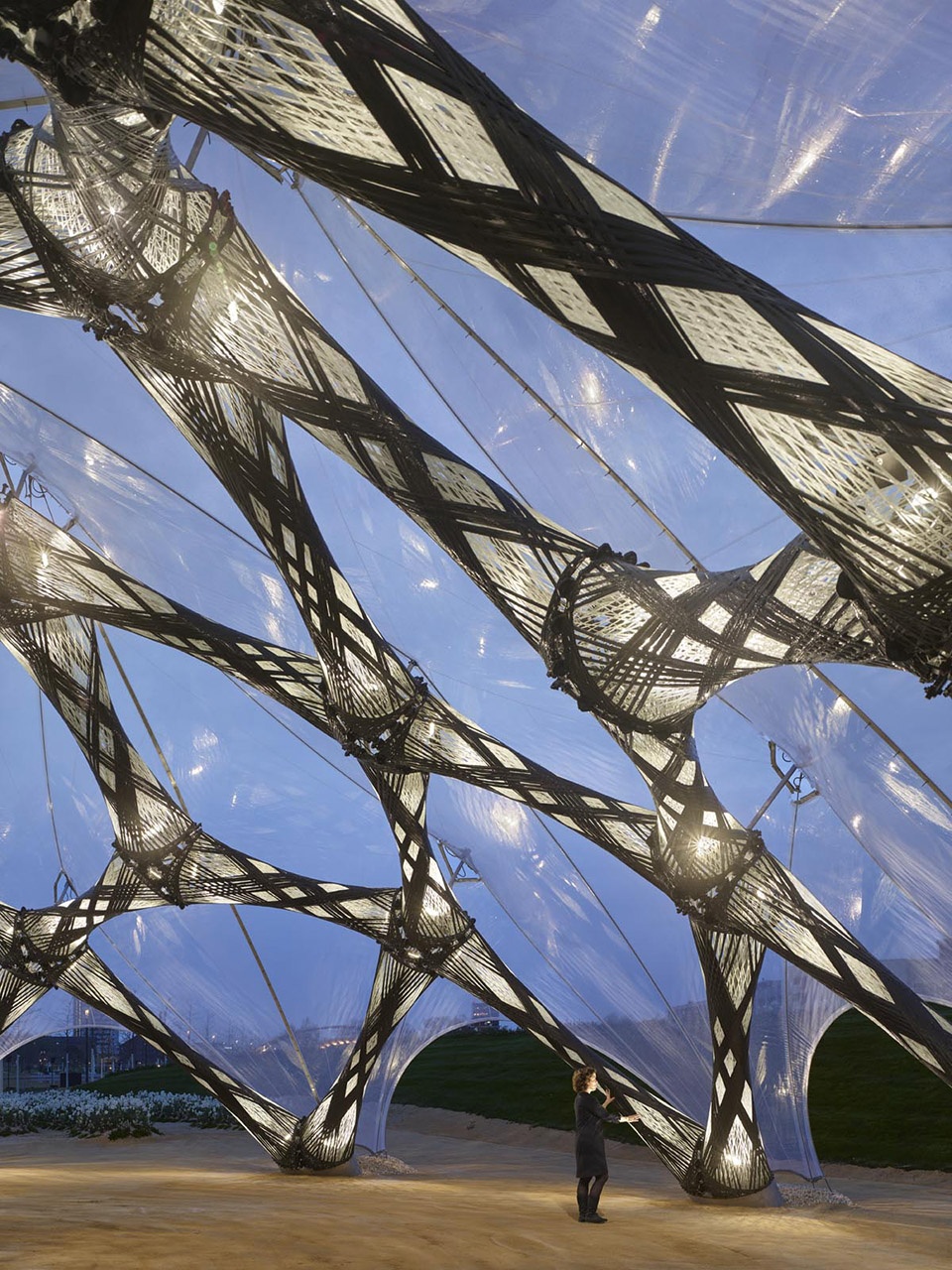

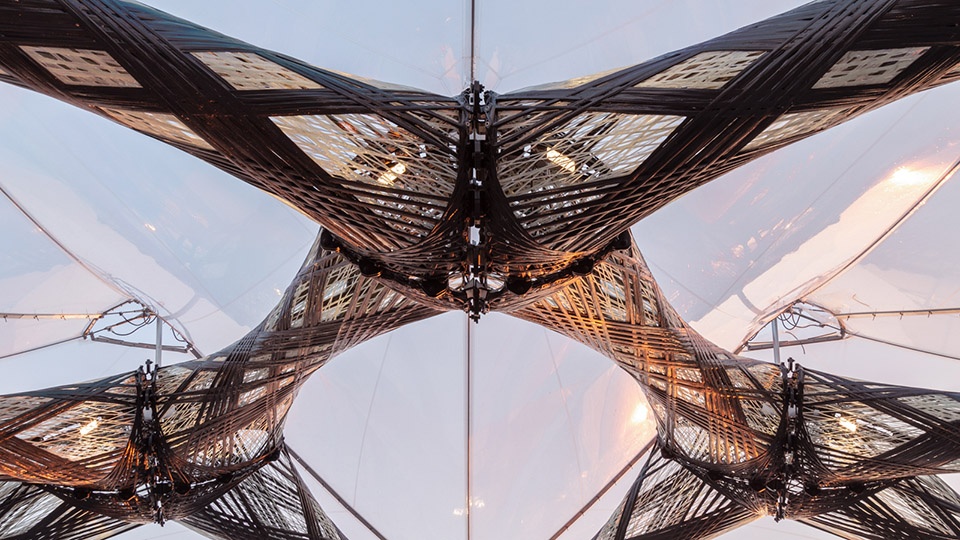

▼黑色的碳纤维束像肌肉般缠绕在半透明的玻璃纤维网格上，the black carbon filament bundles, wrapping around the translucent glass fibre lattice like flexed muscles ©Roland Halbe

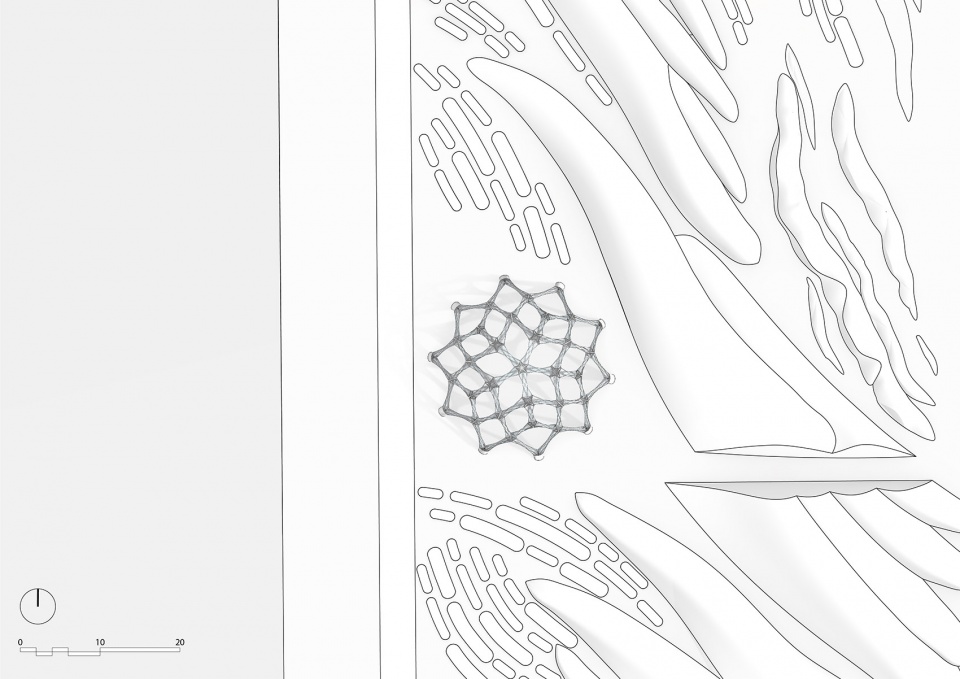

The BUGA Fibre Pavilion is centrally located on the Summer Island of the Bundesgartenschau 2019 and will house the exhibition “Zukunftskarusell”. It will be opened on 17th of April 2019 by the Minister President of the State of Baden-Wuerttemberg. The research on fibre composite building systems and structures will be further pursued in the context of the new Cluster of Excellence “Integrative Computational Design and Construction for Architecture” at the University of Stuttgart.

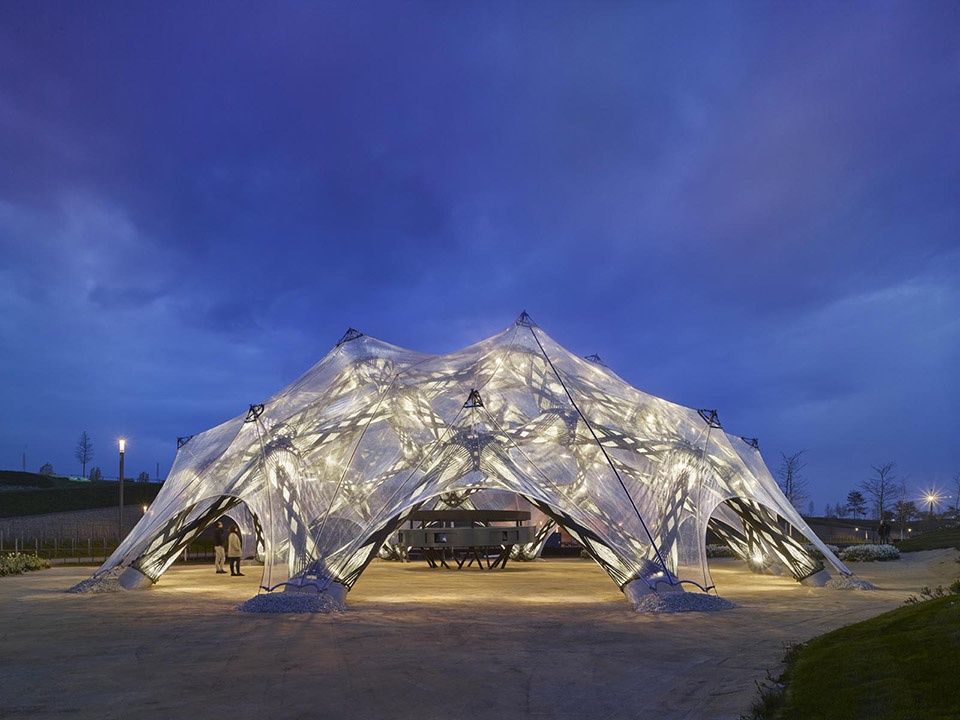

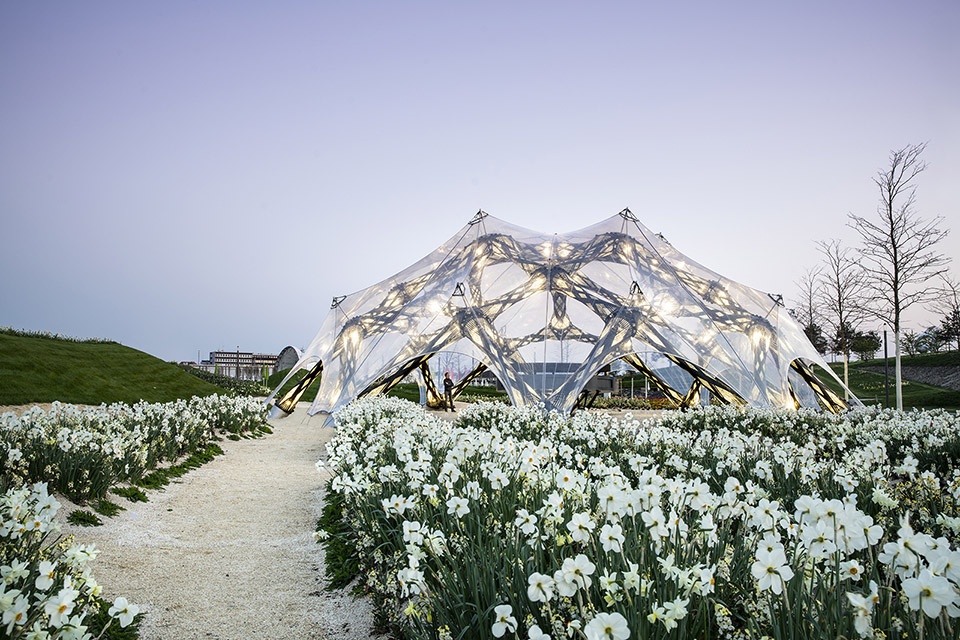

▼夜间灯光效果，lighting effect by night
©ICD – Institute for Computational Design and Construction, University of Stuttgart
©ITKE – Institute of Building Structures and Structural Design, University of Stuttgart
©Roland Halbe, www.rolandhalbe.de
ICD – Institute for Computational Design and Construction, University of Stuttgart
Prof. Achim Menges, Serban Bodea, Niccolo Dambrosio, Monika Göbel, Christoph Zechmeister
ITKE – Institute of Building Structures and Structural Design, University of Stuttgart
Prof. Jan Knippers, Valentin Koslowski, Marta Gil Pérez, Bas Rongen
FibR GmbH, Stuttgart
Moritz Dörstelmann, Ondrej Kyjanek, Philipp Essers, Philipp Gülke
Bundesgartenschau Heilbronn 2019 GmbH
Hanspeter Faas, Oliver Toellner
Project Building Permit Process
Landesstelle für Bautechnik
Dr. Stefan Brendler, Dipl.-Ing. Steffen Schneider
Dipl.-Ing. Achim Bechert, Dipl.-Ing. Florian Roos
DITF German Institutes of Textile and Fiber Research
Prof. Dr.-Ing. Götz T. Gresser, Pascal Mindermann
Forschungsinitiative Zukunft Bau

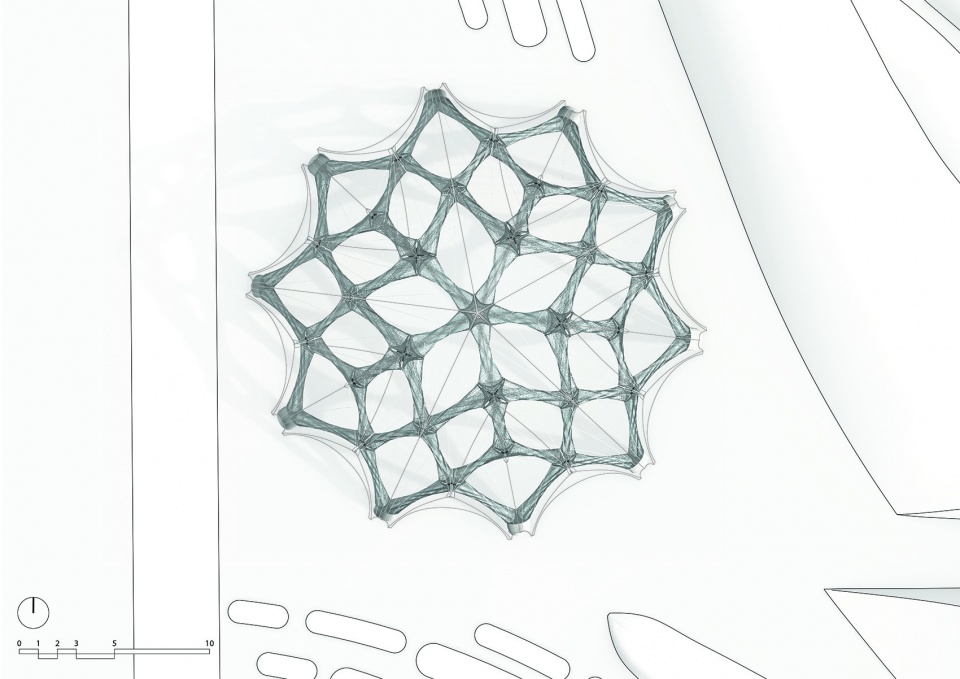

23m diameter, Covered Area: 400m², Weight of loadbearing fibre composite structure: 7,6kg/m²
60 load bearing robotically fabricated glass- and carbon fibre composite elements, out of 150.000m glass- and carbon fibres; transparent, mechanically pre-stressed ETFE membrane
