A residential care-home for the elderly + A nursery, Paris / Atelier Zündel Cristea

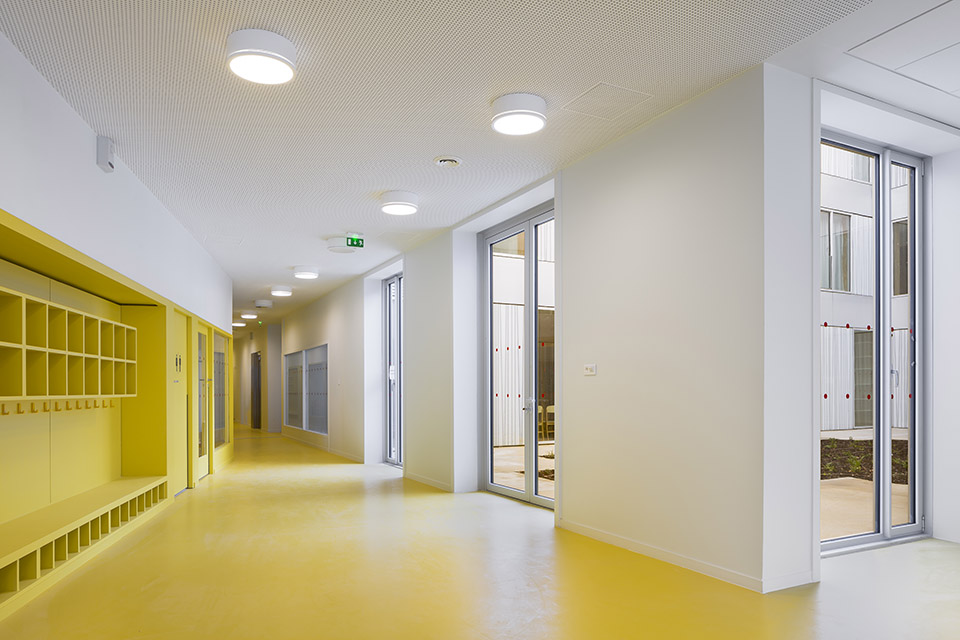

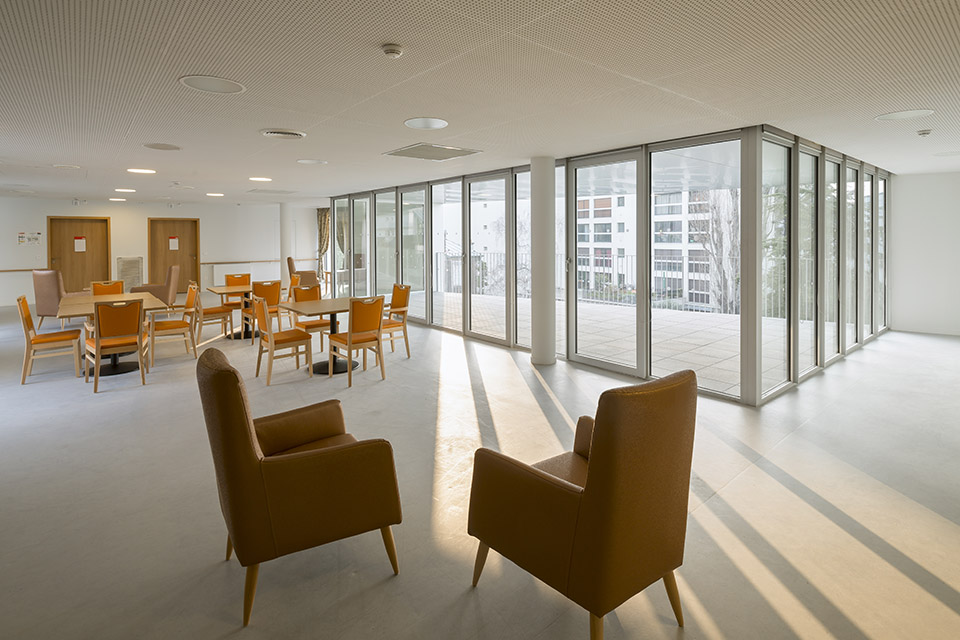

The interior corridors and public spaces are brightened by the presence of the inner courtyard.

Project Specs


来自Atelier Zündel Cristea对gooood的分享。更多请至:Atelier Zündel Cristea on gooood


Residential care-home for the elderly (98 places), nursing home (66 places), nursery (64 places), children’s healthcare centre and car park (44 places)

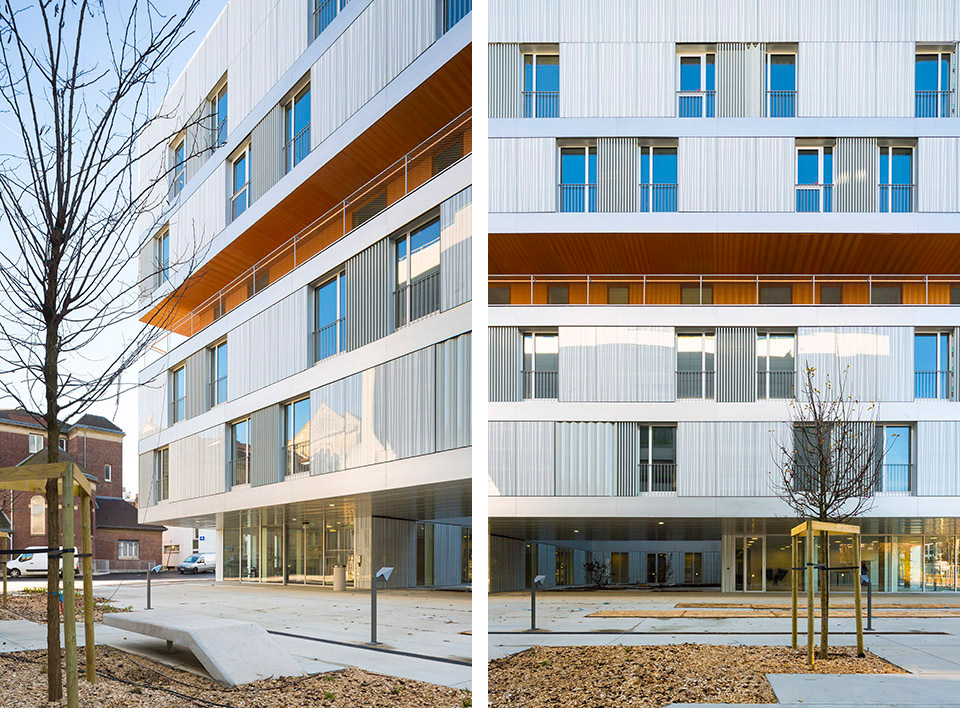

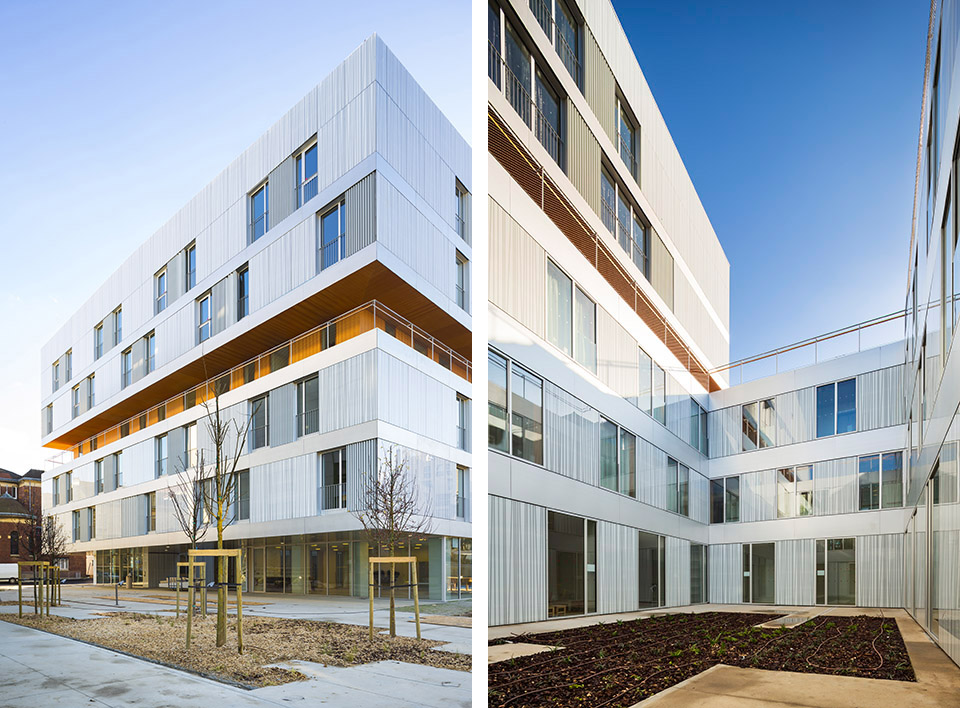

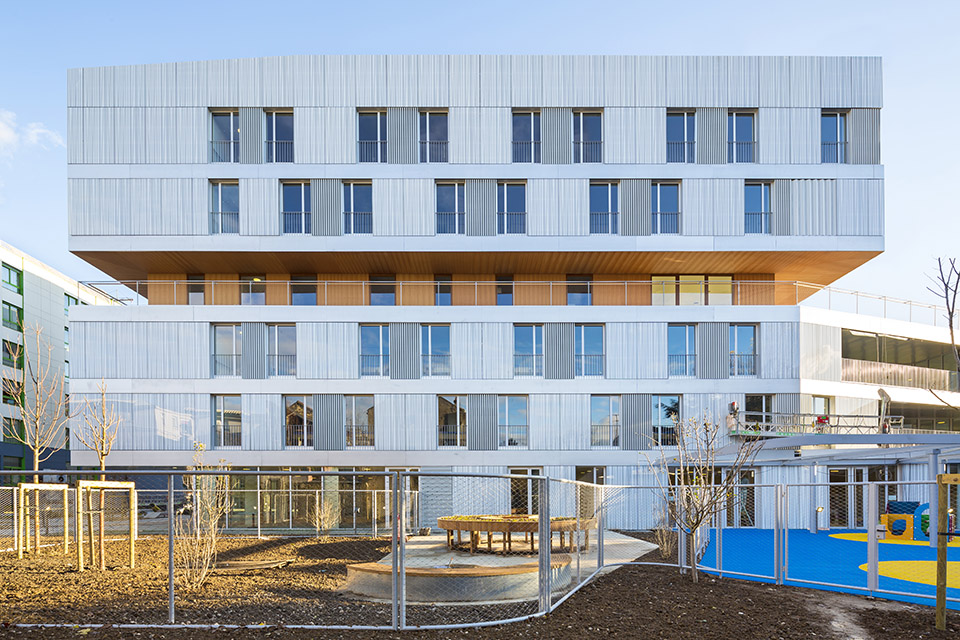

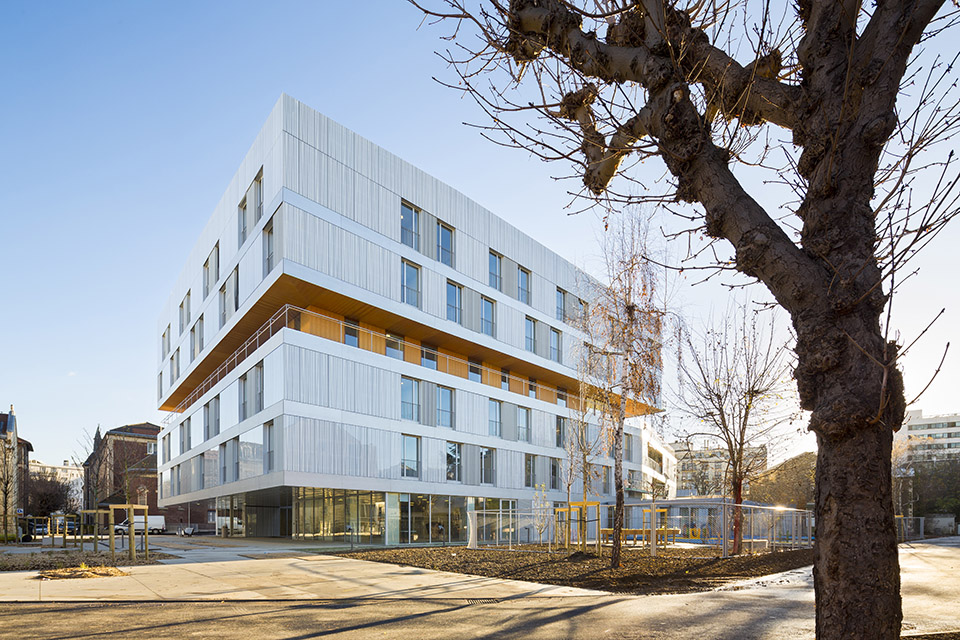

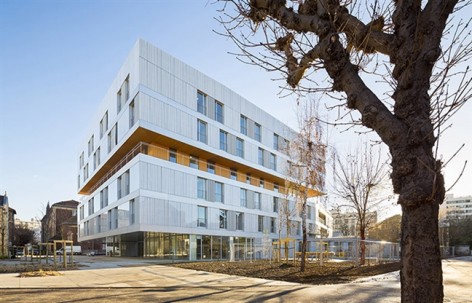

▼ 外观


▼ 外观


From a suburban hospital to an urban community healthcare centre

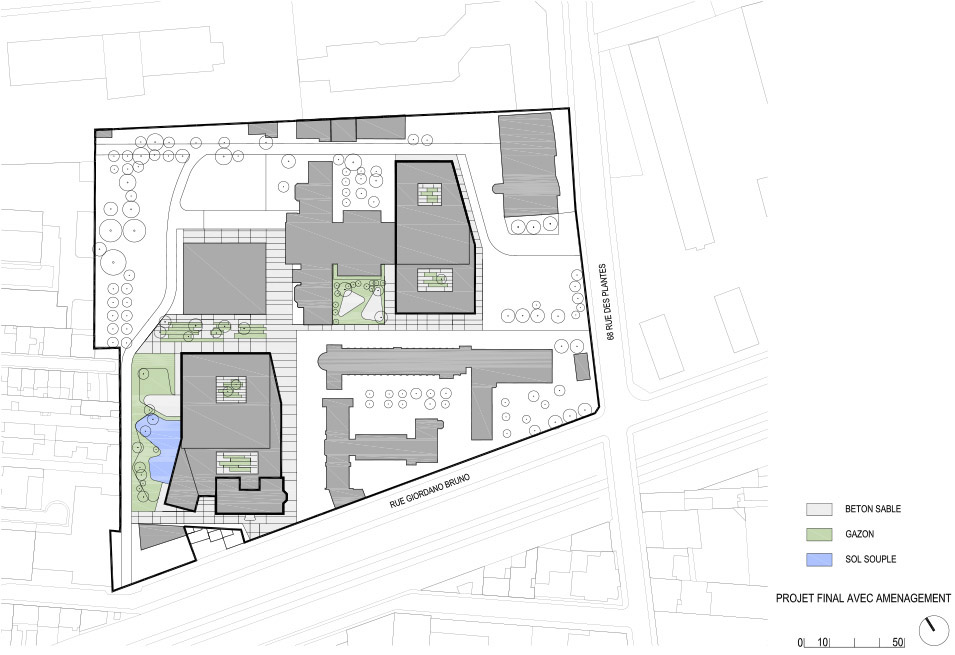

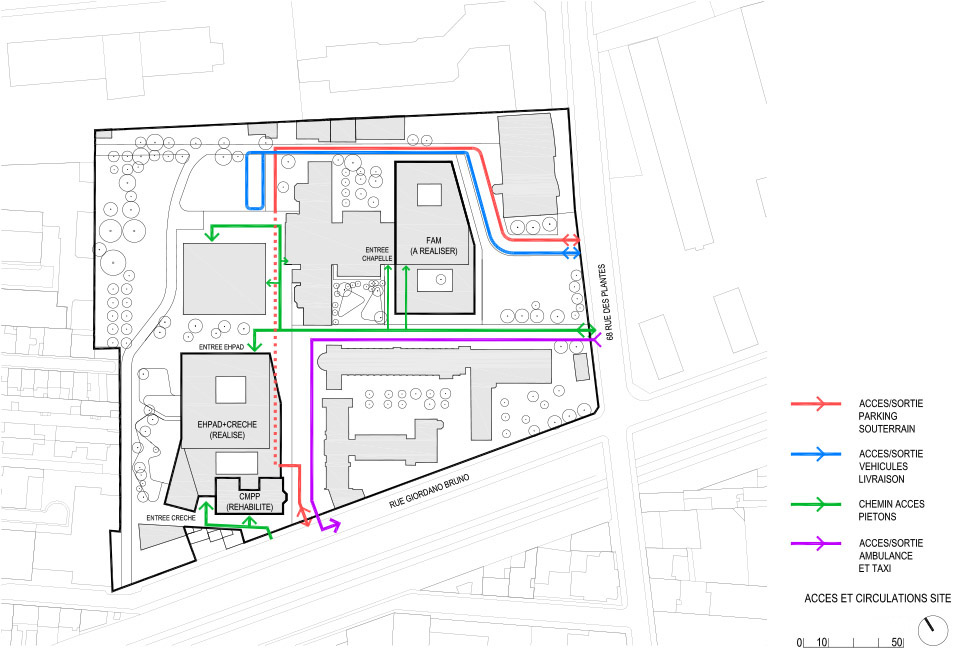

The collection of buildings that makes up Notre-Dame de Bon Secours is to be found at 68 Rue des Plantes, in southern Paris’ 14th arrondissement. Bordered to the south and the east respectively by Rue Giordano and Rue des Plantes, the site has an area of almost three hectares.

The heritage of this site is a long history of building that began in 1875. The first wings of the hospital and the chapel were soon joined by new buildings in the same architectural style, following an orthogonal plan along two axes, alternating buildings and garden areas. In 1985, demolitions and new constructions broke the architectural coherence and upset the reading and use of the site. The recent transfer of the maternity unit to another hospital (Saint Joseph) provided the opportunity for the organisation to convert the Rue des Plantes site into a leading community healthcare centre, as well as to re-establish a harmonious and functional architectural ensemble.
The transformation of the Notre-Dame de Bon Secours site reflects the evolution of healthcare; from the late 19th-century linear building, to the broad floors of modern medical centres.

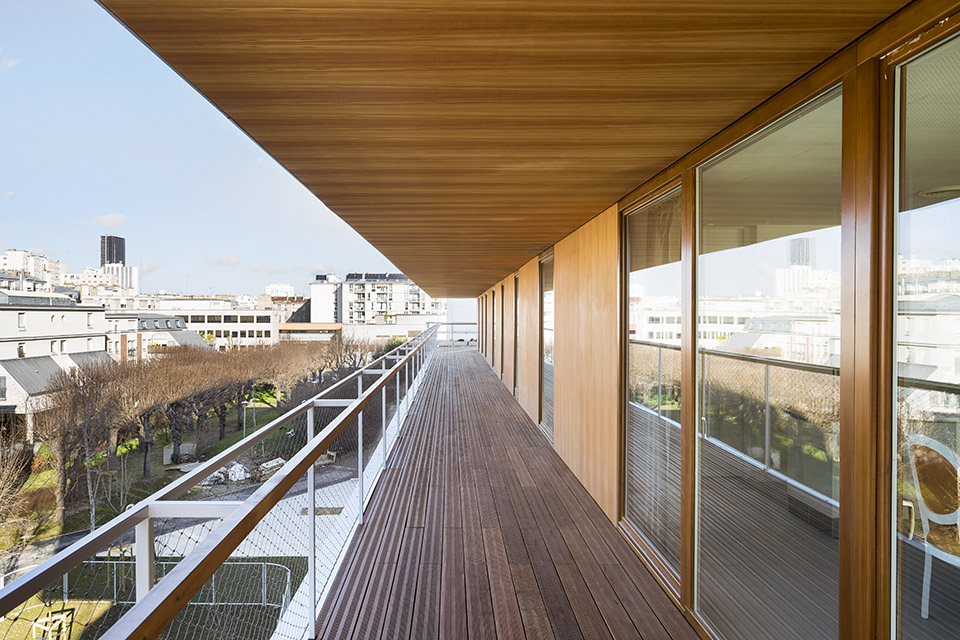

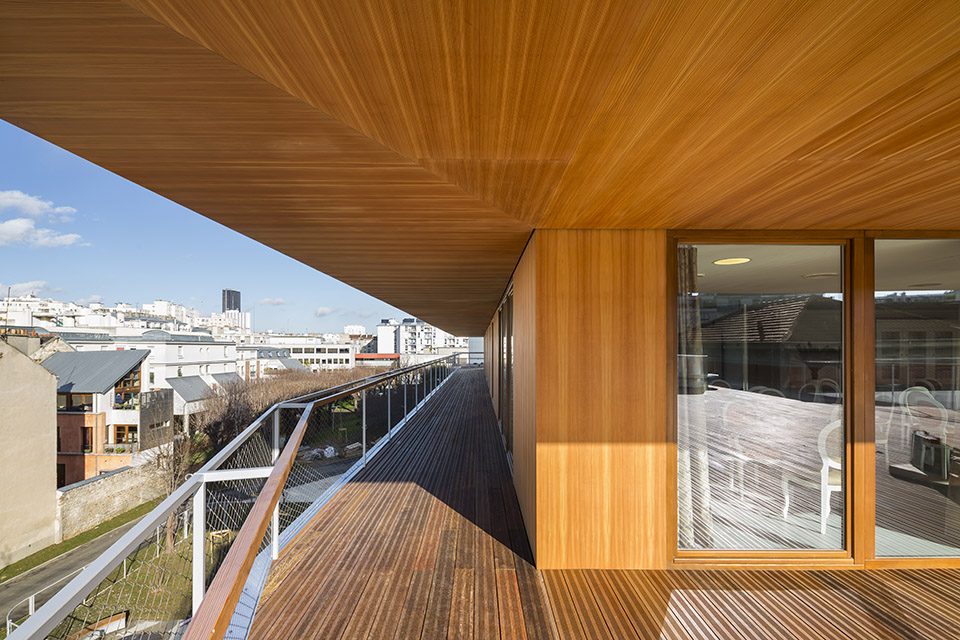

▼ 第四层通廊深暖色与建筑周身银色外观形成鲜明对比。




A project in two phases

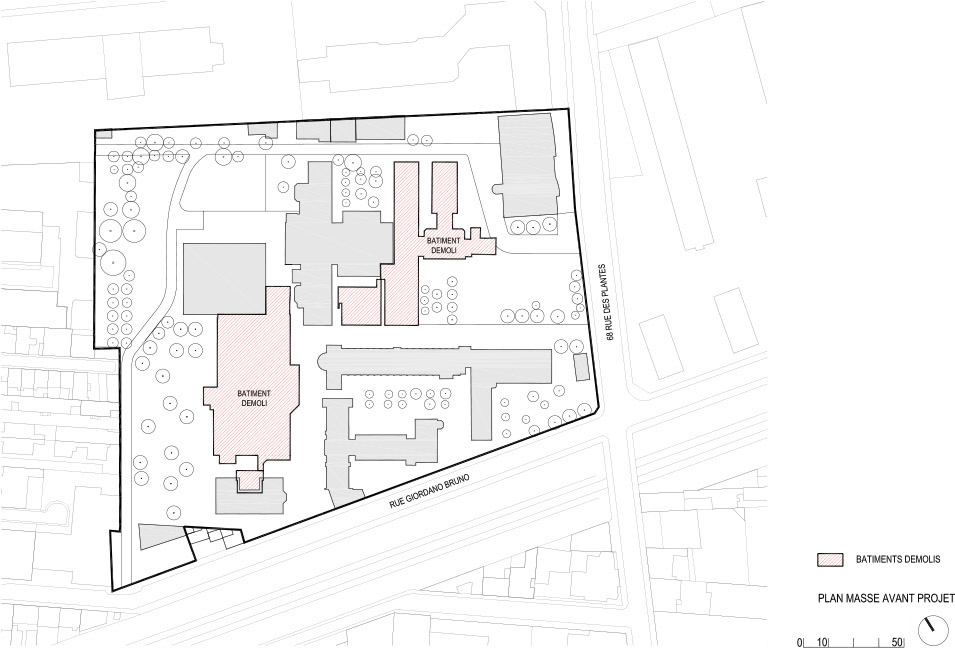

Following the demolition of the most problematic buildings on the site, including the maternity wing, a large building operation was planned in two phases so as to manage re-housing and building on an occupied site.

Phase one, now completed, comprised the construction of a new building to house a 98-bed residential care-home for the elderly and a 64-place nursery. It is built on the site of the demolished maternity wing, in the south-west corner of the plot, on the Rue Giordano Bruno side. The project also involved the renovation of the street-front building of the old nursing school, known as the ‘château’, to house a new children’s healthcare centre. The overall programme covers a total surface area of 14,000 square meters.

Phase two, due for completion in 2017, will see the construction of a nursing home for disabled patients at the northern corner of the site by the Rue des Plantes.

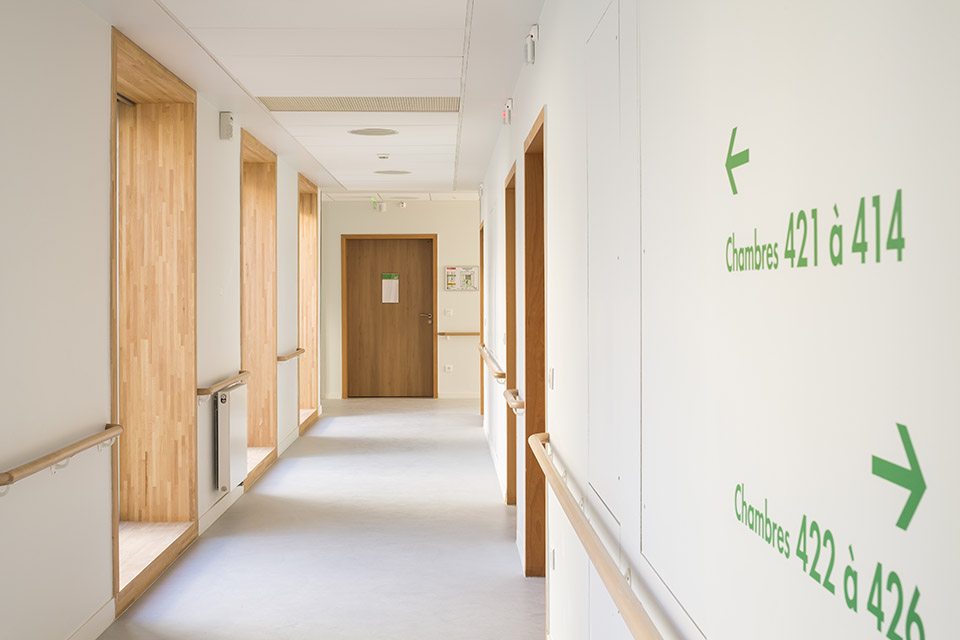

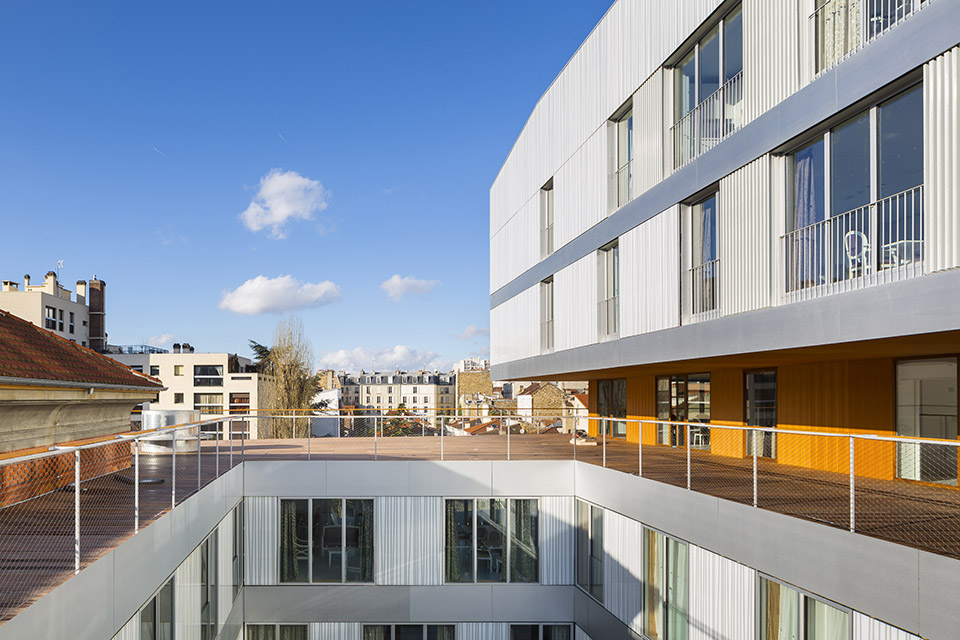

▼ 走廊联系各个老人护理用房,内院为走廊带来明亮的自然光。















Photographer: Sergio Grazia
Résidences sociales de France (RSF), a subsidiary of the group I3F

Association Notre-Dame de Bon Secours

Architects: Atelier Zündel Cristea
Engineers: Igrec Ingénierie (general engineering),
Landscape architect: Atelier Villes et Paysages
Consultants: VS-A (facade engineers), Acoustique & Conseil (acoustic engineers)

Competition: 2009
Design studies: 18 months
Work on site begins: July 2012
Completion dates:
Phase 1: November 2014 – Phase 2: 2017 (provisional)

Surface area of site: 29,000 sq m
Specific urban regulations/ listed site and protected inner-city green space / Specific climatic and geological constraints

Approx 28.6 M€

Footprint: 27,000 sq m
Useable surface area and circulation space: Useable surface area: 8,460 sq m / Circulation: 3,312 sq m

External insulation, AHU ventilation, low-energy lighting.
Energy production: linked to the Parisian urban heating network with water pre-heated via condensate retrieval and coupled with a HelioPAC system for solar-heated hot water.
BBC Effinergie, H&E Ehpad
