7 in 1 :A house to stimulate harmonious family relations by anonymo-us

a house that motivates family members to live in harmony

Project Specs

Design:

来自佚名设anonymo-us对gooood的分享。更多请至:anonymo-us on gooood
Appreciation towards 佚名设 anonymo-us for providing the following description:

一所美丽的住宅可以指一所宽敞明亮的房子,一所拥有优美造型的房子,一所细部考究并与环境相衬的房子,但是对我们来说,它首先应该是一个人类最小社会单元“家庭”的社会交往的地方,它能够既尊重每位成员的个体差异,又能激励亲情为集体活动提供可能,既满足了确定性的需求,又为不确定性留下余地。

For us, the definition of “home” comes first. A home is where can both respect each member’s individual needs and stimulate family interactions; also where can both meet the needs of certainty and leave room for the uncertainty.

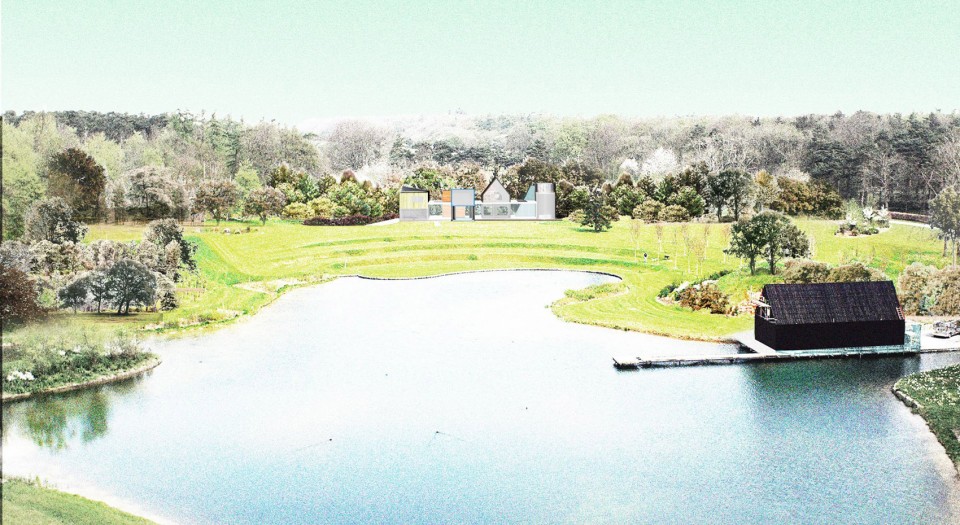

▽ 自然景观中的住宅 reserve existing golf course natural landscape

002 7 in 1 reserve existing golf course natural landscape

“我要一个大阳台和抬升的景观视线”, “我要一个跃层且直面相景观的工作会议室”, “我要一个内向的封闭庭院”, “我要一个灵活的空间,每天&每年”, “我要大窗和高屋顶”, “我要一个玩耍的地方”, “我要一个内向的冥想空间”, “我不能行走,我要一个没有阻碍的自由空间“, “我们要一个四季可用的游泳池”, “我们要一个家庭影院”… 摘自任务书。

‘I really like balconies and elevated views’, ‘I would like a ‘man cave’ that doubles up as an office with views to the landscape – it should also have capacity to hold a meeting’, ‘I want an intimate walled garden’, ‘I need a flexible space, daily & annually’, ‘I like big windows and high ceilings’, ‘I like to have a place to play’, ‘I need a place(s) for sensory and light stimulation’,‘I cannot walk, but I would like obstruction free areas in the house’, ‘We would like an accessible, all weather swimming pool’, ‘We would like a cinema’… quoted from brief.

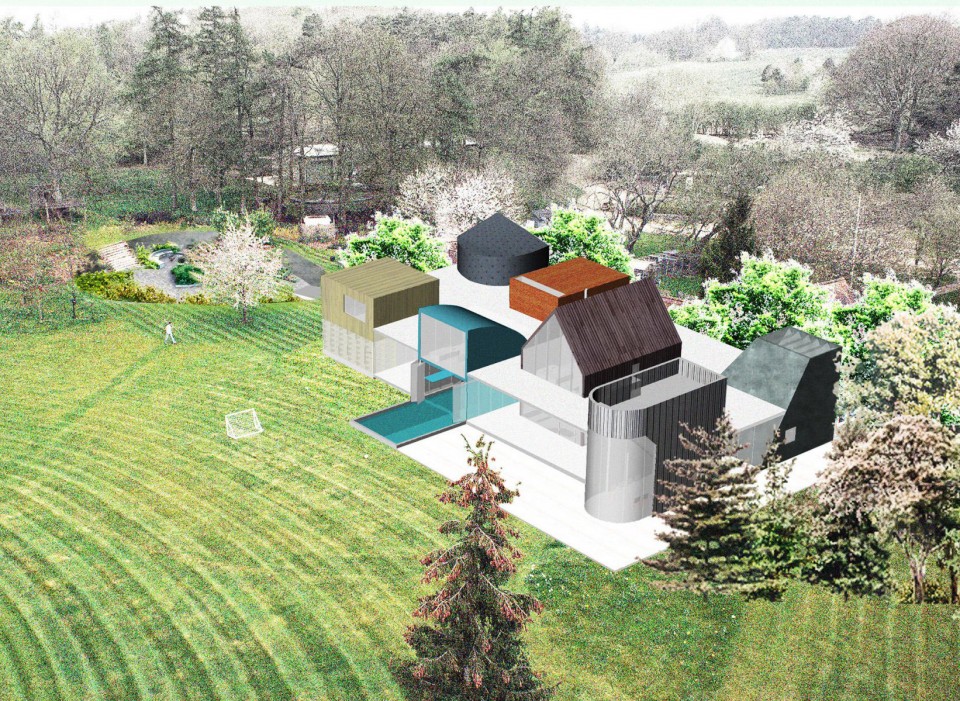

▽ 鸟瞰 birdview

001 7 in 1 birdview

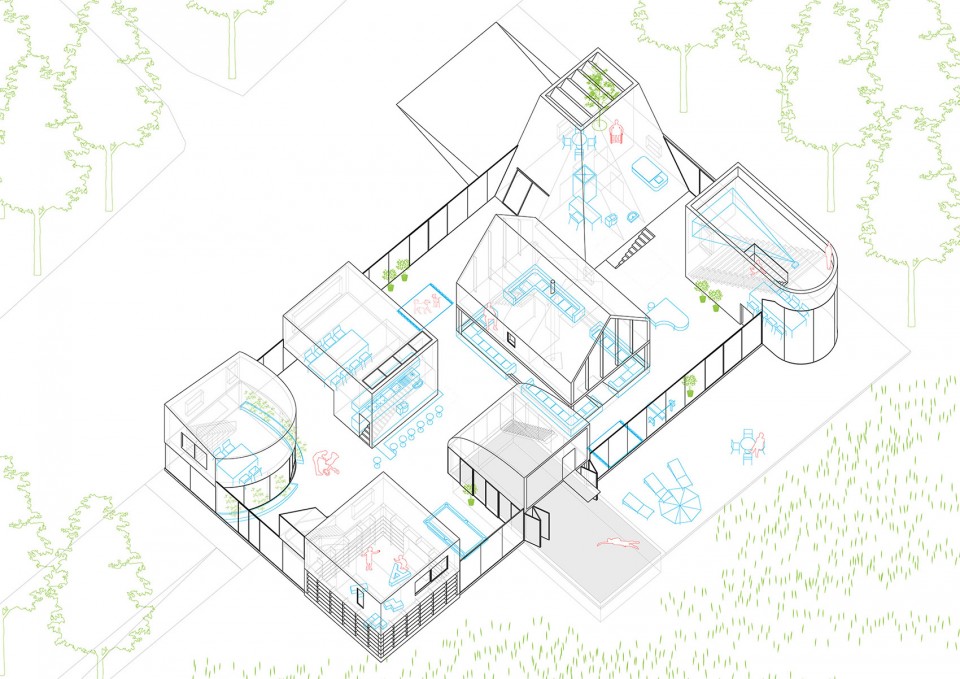

▽ 轴测图 axo

012 7 in 1 axo

我们设想的美丽住宅,就是为这个7口之家而量身定做的社会学空间模型。它首先按照7个家庭成员的独立需求分别定制了一个别具一格的梦的小屋,然后各个小屋内部分别安插了一个家庭公共活动空间,使所有的小屋成为一个既相对隔离又向家庭成员彼此开放的inbetween状态。整个场地首层被一个落地玻璃围合的平整的矩形开放空间贯穿,这个白色的共享空间既是建筑的主要交通区域同时也补足了家庭未来的不确定性需求,内部功能可以被灵活置换。

景观设计延续了对inbetween的思考,希望与现存高尔夫球场的自然景观建立对话。我们在别墅周边强化了林木植被,与下沉庭院的灌木一起提升了住宅的私密性。更大尺度上,我们采用“woods archipelago”的松散植被策略保留了开放的草坪区域,只在山丘处引入新的林木和设施。

一所美丽的住宅,可以为其“美丽”一词赋予千百种定义,但是因为和睦的家庭关系,才能让它成为一个美丽的家。我们希望用空间,创造一所激励家庭成员和睦相处的房子。

The beautiful house we envisioned is designed as a sociological space model for this family of seven. We customized seven unique dream rooms for each family member according to their specific needs; and we inserted a shared space in each room for family activities. All the rooms create a “in-between” situation which become relatively isolated, at the same time, interactively associated.Dwelling site was occupied by a generic white plinth which surrounded by glasses, which works as the main transport area of the house, also a “blank space” for future uncertainty that the internal functions can be flexibly replaced.

Landscape design continue to reflect our thoughts of “in-between”, by establishing a dialogue with the existing golf course natural landscape.

Only with harmonious family relations can create “a beautiful home”. With our design, we hope to create a place where can stimulate harmony relationship between all the family members.

▽ 白色底座联系所有房间 a generic white plinth merge all the rooms together

003 7 in 1 a generic white plinth merge all the rooms together

▽ 女儿卧室楼下的书房 daughter’s bedroom with study room beneath

004 7 in 1 daughter's bedroom with study room beneath

▽ 客房用餐区 guest apartment with dinning space beneath

005 7 in 1 guest apartment with dinning space beneath

▽ 主卧与景观紧密相联系 master bedroom with living space beneath

006 7 in 1 master bedroom with living space beneath

▽ 残疾少年想要的内向冥想空间之屋 room of disabled youngster with light stimulation space

008 7 in 1 room of disabled youngster with light stimulation space

▽ 儿童房下方的泳池 son’s bedroom with half indoor swimming pool beneath

009 7 in 1 son's bedroom with half indoor swimming pool beneath

▽ 儿童房下方的游戏空间 son’s bedroom with play room beneath

010 7 in 1 son's bedroom with play room beneath

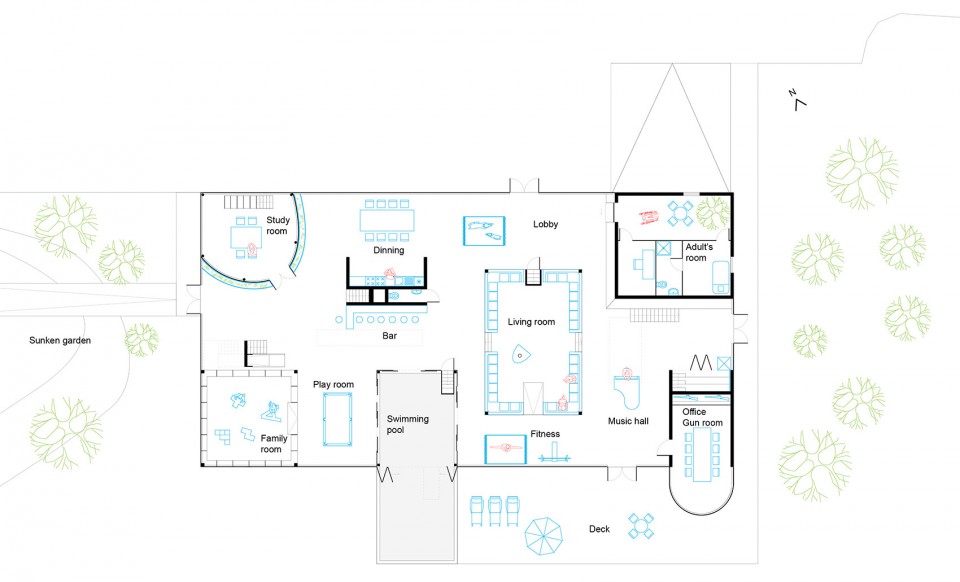

▽ 地面层 plan groundfloor

013 7 in 1 plan groundfloor

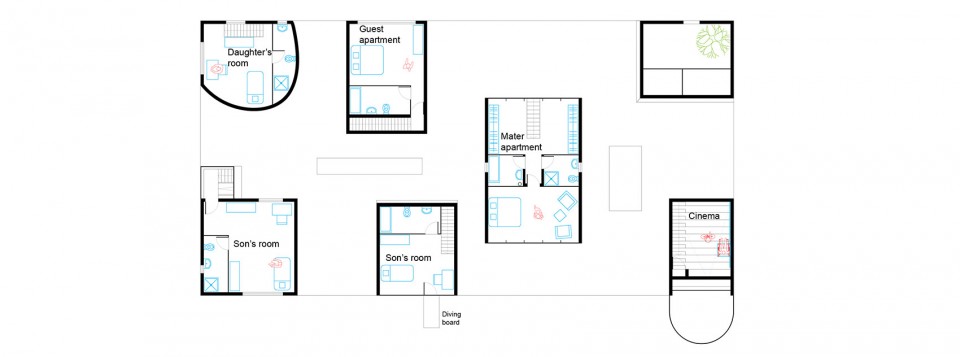

▽ 顶层 1st floor

014 7 in 1 plan 1st floor

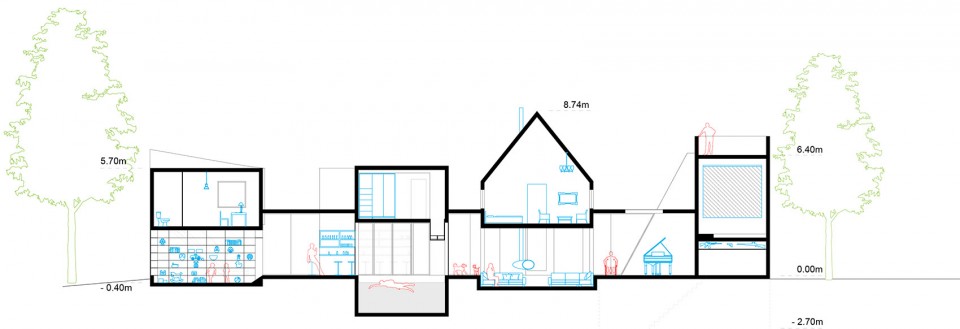

▽ 剖面 section

018 7 in 1 section



Project name: 7 in 1
Location&Year: London, UK, 2015 (英国伦敦,2015)
Program: 900m2 villa design. (功能:900平米住宅设计)
Status: “Design a beautiful house” 2015 international competition (“设计一座美丽的房屋”2015国际竞赛参赛作品)
Credits: Sai Shu, Lingxiao Zhang, Ming kong,Yang Zhang (项目组:舒赛,张凌霄,孔鸣,张洋)
