Verbania Cultural Complex and Theatre by Studio Bargone Architetti Associati

湖畔卵石

Project Specs

Location:

来自 Studio Bargone Architetti Associati 对gooood的分享。更多请至: Studio Bargone Architetti Associati on gooood
Appreciation towards  Studio Bargone Architetti Associati for providing the following description:

造型简洁现代、极富雕塑感的Verbania多功能文化中心坐落于意大利第二大湖-马焦雷湖湖畔、 San Bernardino河河口处,距其不远便是现用作当地图书馆、历史悠久的Villa Maioni。这座拥有分别可容纳500人和200人的一大一小两个剧场,相应的服务、配套、办公空间以及排练厅、餐厅和咖啡馆等功能的建筑综合体将成为众多文化活动和艺术展览的举办场所。在建筑外侧,沿着地势逐级下沉的露天台地则是眺望小城壮丽风光的不二之选。

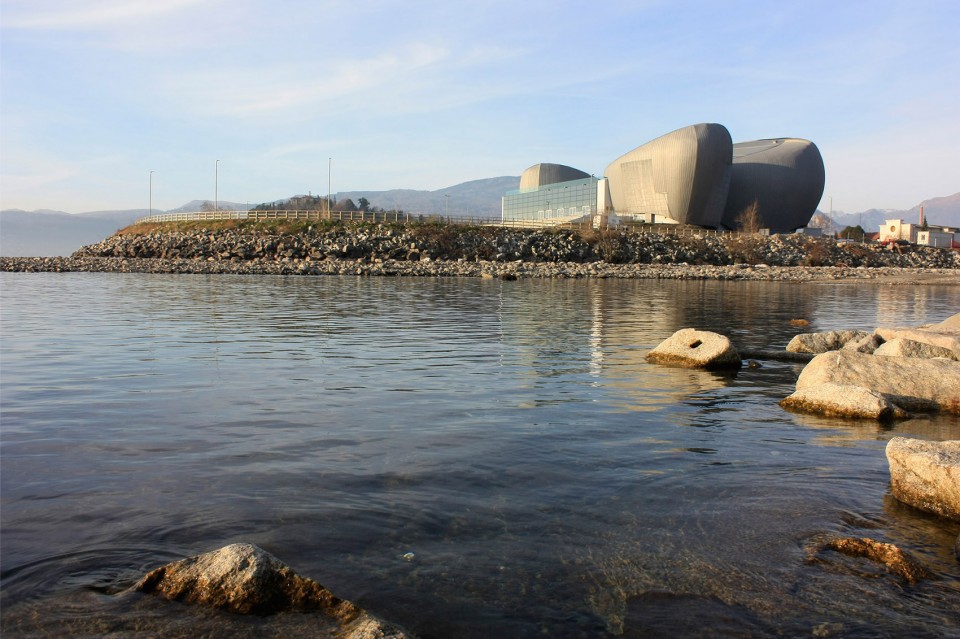

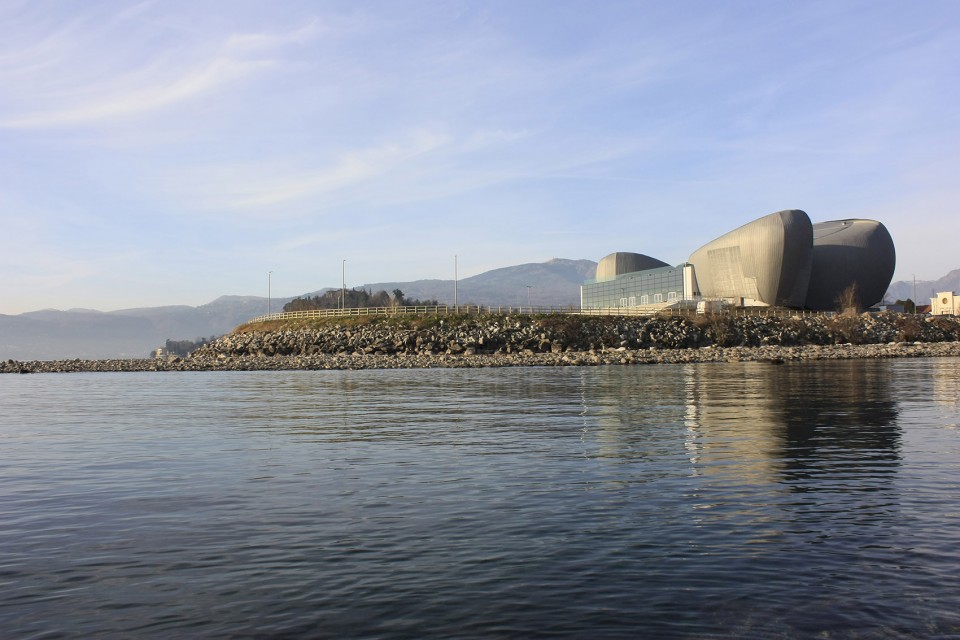

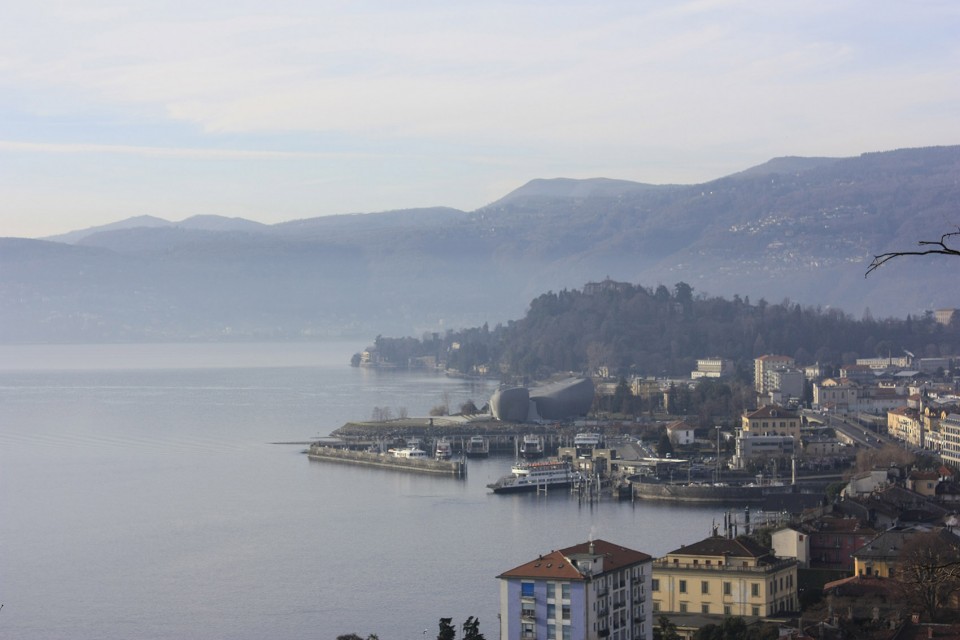

▽ 位于河口的建筑,building located at the San Bernardino river estuary

019-Cultural Complex and Theatre by Studio Bargone Architetti Associati

The multifunctional cultural complex (CEM), with a contemporary and sculptural identity, is located on the Maggiore Lake coast.

The architectural complex hosts a wide entrance foyer for cultural events and art exhibitions, a theatre for 500 people and a 200 one, service and ancillary spaces, offices, a rehearsal theatre, a restaurant and a cafe. The building is located right at the San Bernardino river estuary, near the historical Villa Maioni and behind the local Civic Library. The external landscape is sculptured with a system of descending bleachers allowing a breathtaking panoramic view of the lake and the surrounding Italian Alps.

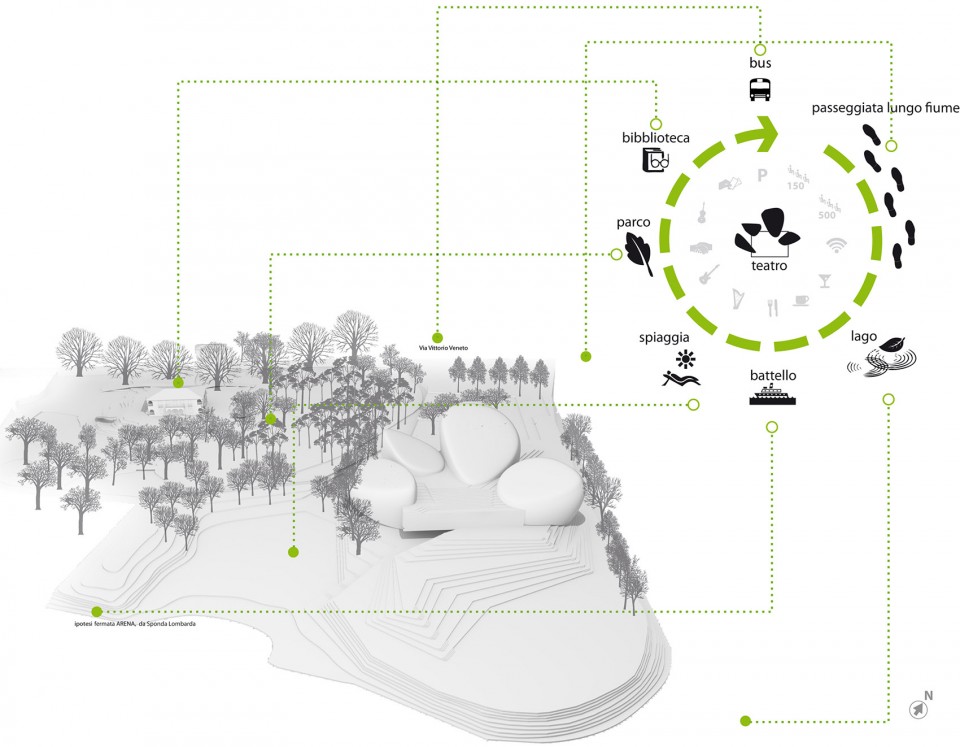

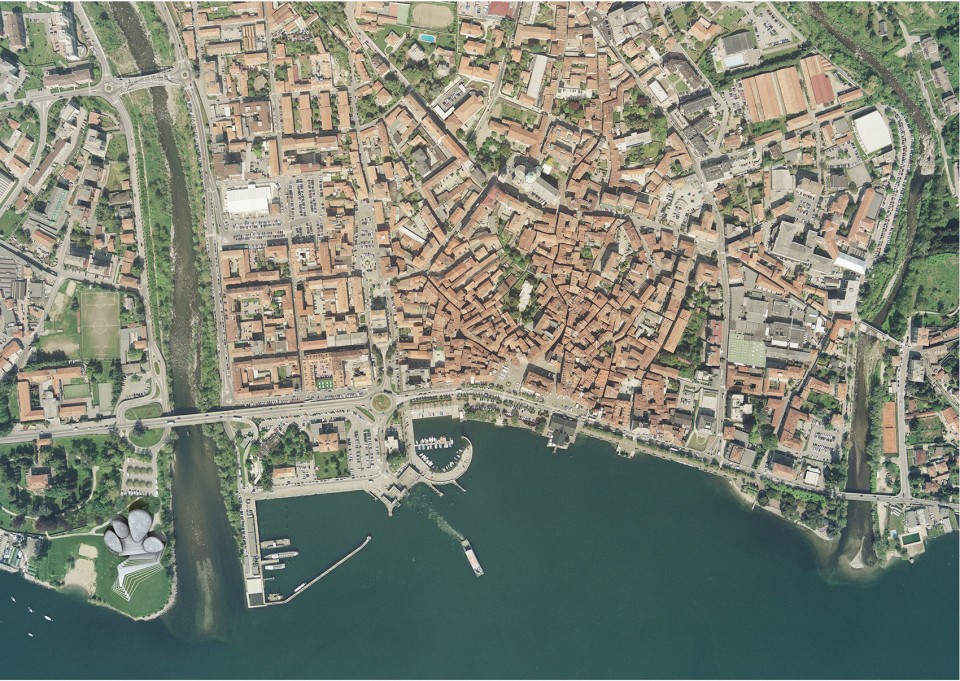

▽ 区域平面图,regional area

002-Cultural Complex and Theatre by Studio Bargone Architetti Associati

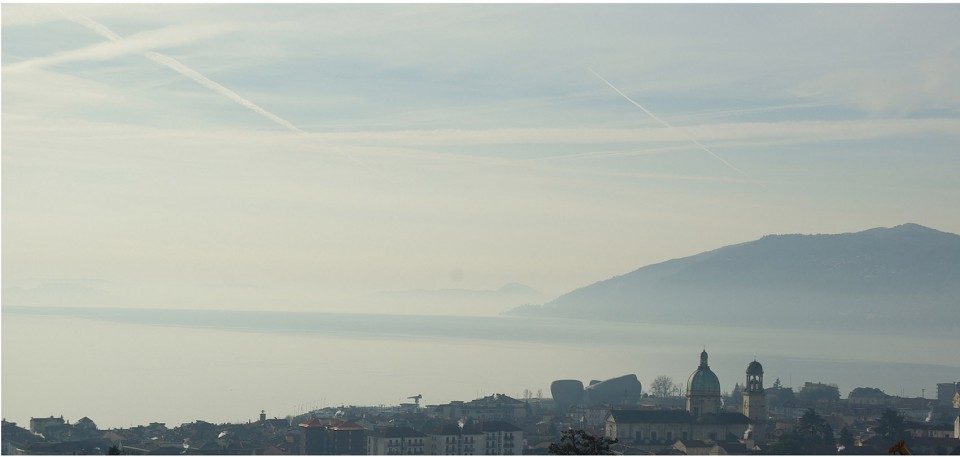

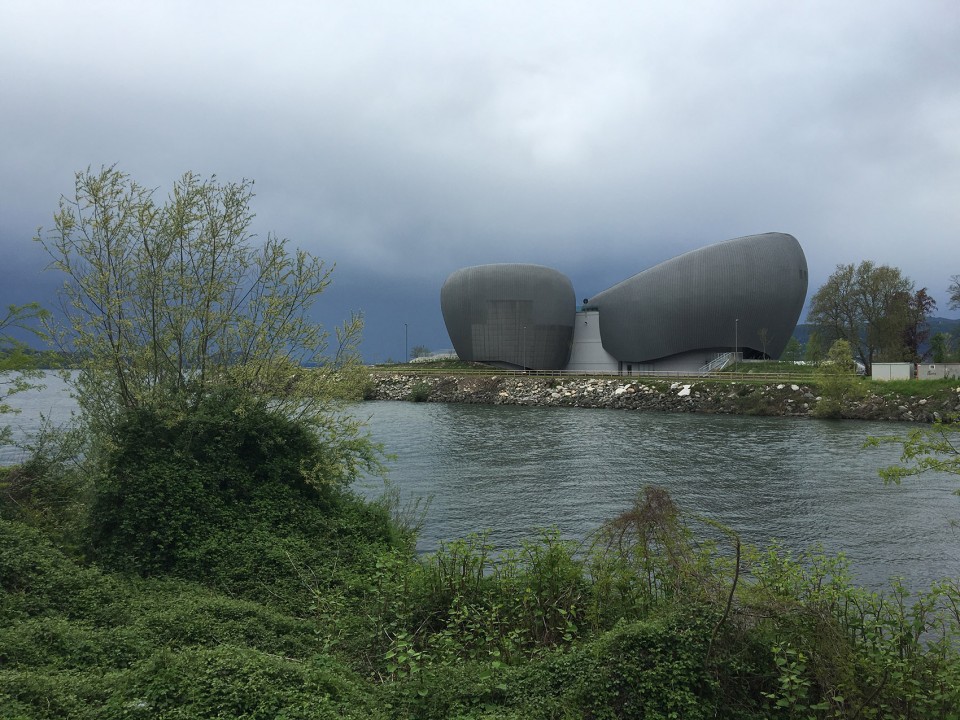

▽ 建筑面对着小城壮丽的自然风光,breathtaking panoramic view of the lake and the surrounding Italian Alps

005-Cultural Complex and Theatre by Studio Bargone Architetti Associati

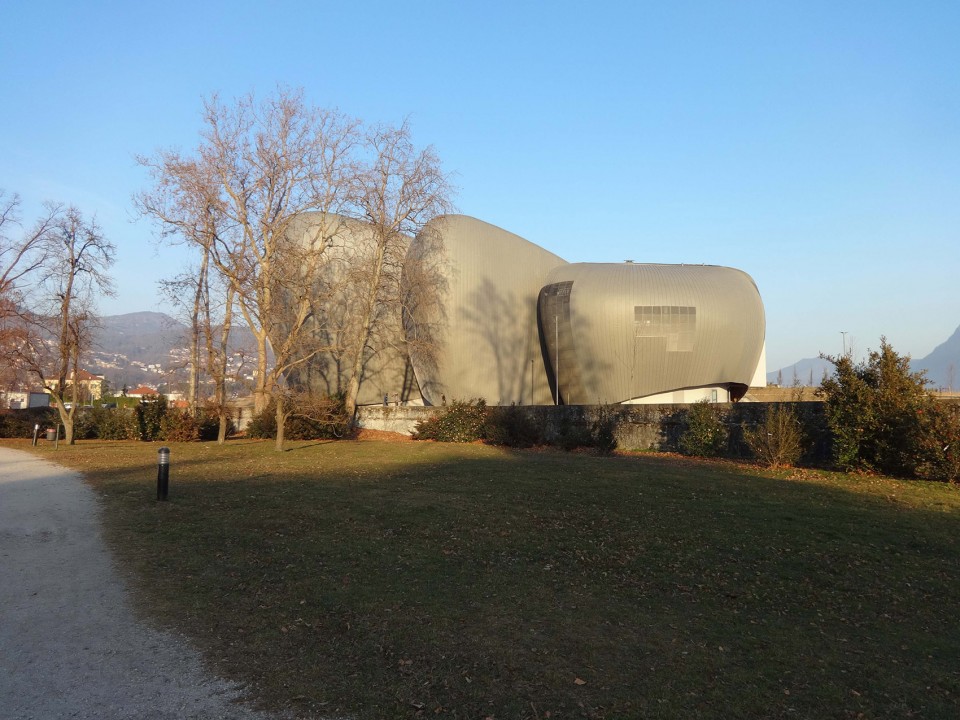

▽ 建筑呼应着山川、城市和湖泊的空间关系,an architecture grows from the unique relation between mountains, city and lake

007-Cultural Complex and Theatre by Studio Bargone Architetti Associati

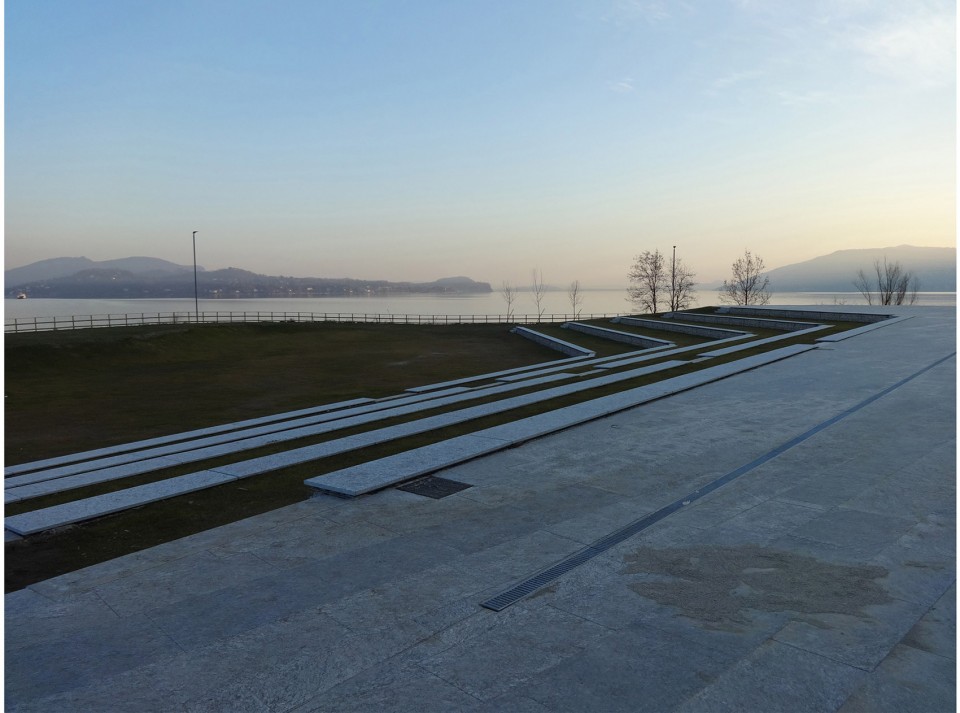

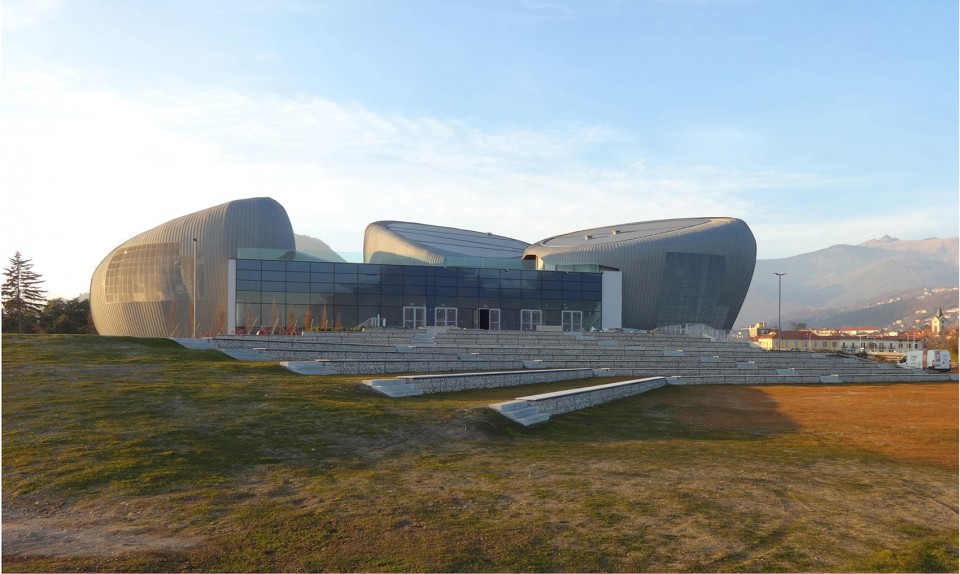

▽ 建筑外侧的露天台地,descending bleachers outside the building

021-Cultural Complex and Theatre by Studio Bargone Architetti Associati

027-Cultural Complex and Theatre by Studio Bargone Architetti Associati

四个如卵石般圆润的曲形体量分别从西、南、北三侧嵌入中部的方形体块中,而东侧通透的玻璃幕墙则保证了其与外部空间的紧密联系。建筑呼应着山川、城市和湖泊的空间关系,浑然天成的独特造型使其成为了周边环境中最引人注目的存在。

Four big volumes with gentle and curved shapes inspired by the lake stones and linked by a prismatic volume facing the landscape formed the new public Centre on the Maggiore Lake of Verbania.

The lake stone is the very symbol of the project and the striking surrounding context the utmost trigger of the Centre. Its architecture grows from the unique relation between mountains, city and lake.

▽ 圆润的曲形体量如同河流中的一颗颗卵石,the lake stone is the very symbol of the project

020-Cultural Complex and Theatre by Studio Bargone Architetti Associati

建筑的屋顶广场具有极高的社会价值,这个全新的城市公共场所将成为市民举办各类休闲、集会和娱乐互动的首选。优越的中心区位注定了建筑将成为当地最核心也是最有活力的公共场所,并进一步提升城市生活质量和景观质量。

The building is open towards the surrounding. The big external square defines a new urban and public place of great social value, an open space designed as meeting place, leisure, events. The location is perfect, focal between the urban centres of Intra and Pallanza. The Centre acts as the pivotal start-up of a wider city requalification, both social and landscape wise.

013-Cultural Complex and Theatre by Studio Bargone Architetti Associati

▽ 开放性的公共广场具有极高的社会价值,the big external square defines a new urban and public place of great social value

026-Cultural Complex and Theatre by Studio Bargone Architetti Associati

▽ 建筑将成为当地最核心也是最有活力的公共场所,the Centre acts as the pivotal start-up of a wider city requalification, both social and landscape wise.

048-Cultural Complex and Theatre by Studio Bargone Architetti Associati

外立面上,冷灰色的锌板在不同的天气条件下变换着色彩和光影,呼应着Verbania湖水和天空的色彩,与当地石材制成的铺地一起,让建筑完全融于环境之中。而在内部,诸如木材等建筑材料在暖黄灯光的照射下愈发温馨,落地玻璃窗则将自然引入室内,保证着内外空间的紧密联系。

Zinc metal sheets with a characteristic shading and vibrant colour clad the four curved volumes, with the colour recalling and harmonizing with the Verbania lake and skies. A local stone is used for the external pavings. Inside timber, warm welcoming and natural is the main element.

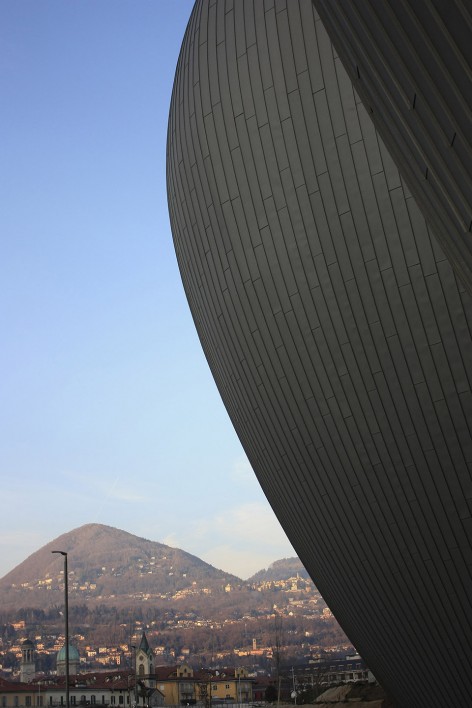

▽ 锌板在阳光的照射下带上了暖黄,the color of the zinc metal sheets change under the sunlight

023-Cultural Complex and Theatre by Studio Bargone Architetti Associati

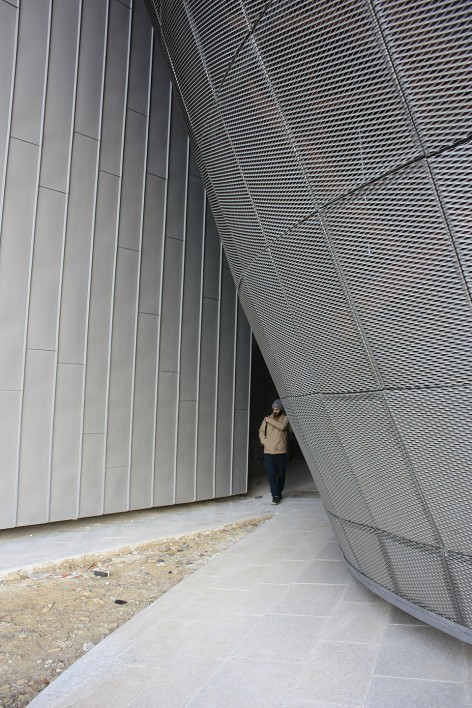

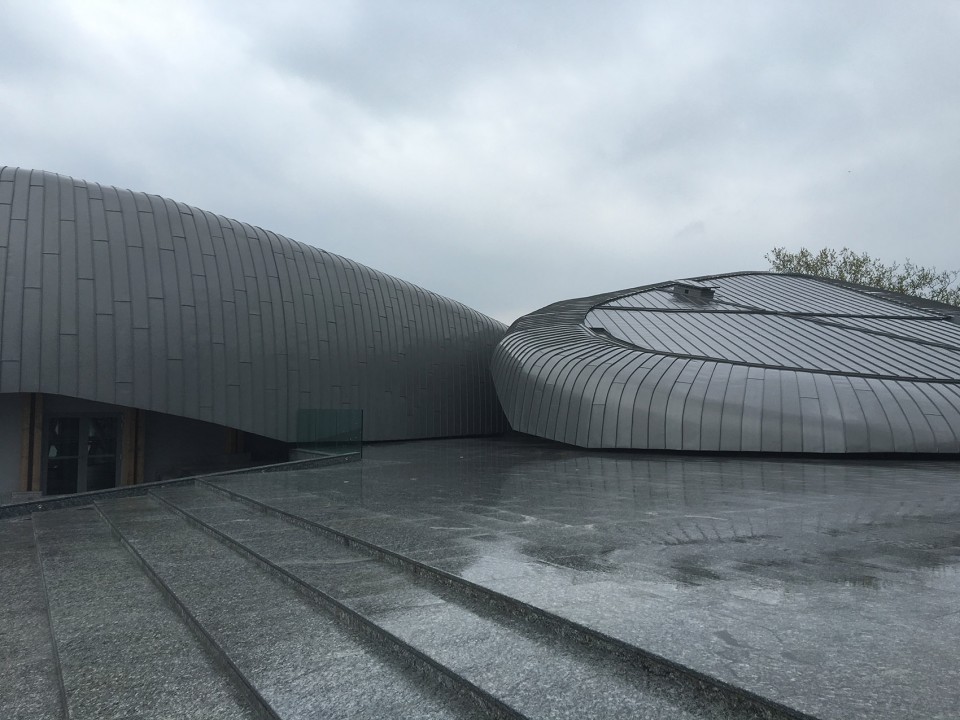

▽ 锌板细部,details

029-Cultural Complex and Theatre by Studio Bargone Architetti Associati     030-Cultural Complex and Theatre by Studio Bargone Architetti Associati

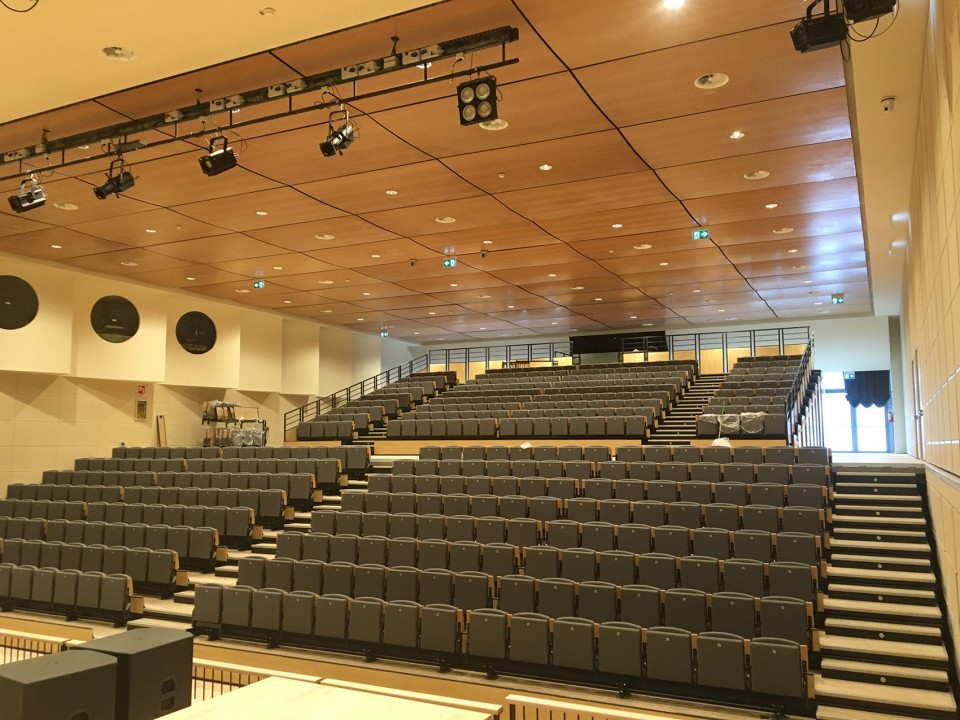

▽ 暖色调的内部空间,warm welcoming interior

032-Cultural Complex and Theatre by Studio Bargone Architetti Associati

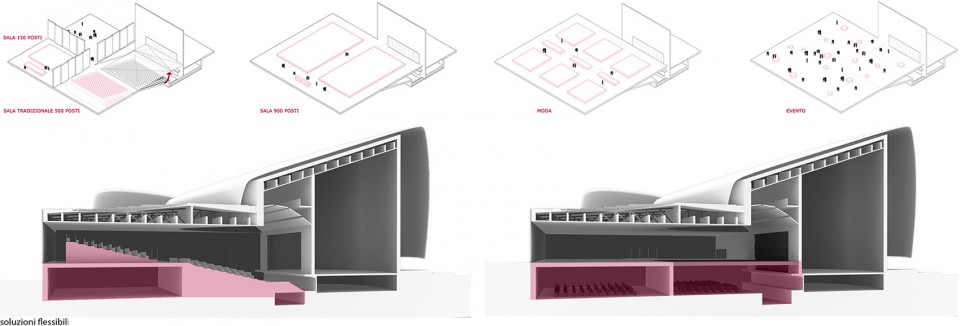

▽ 内部场地可随功能变化而改变形态,flexibly interior design

049-Cultural Complex and Theatre by Studio Bargone Architetti Associati

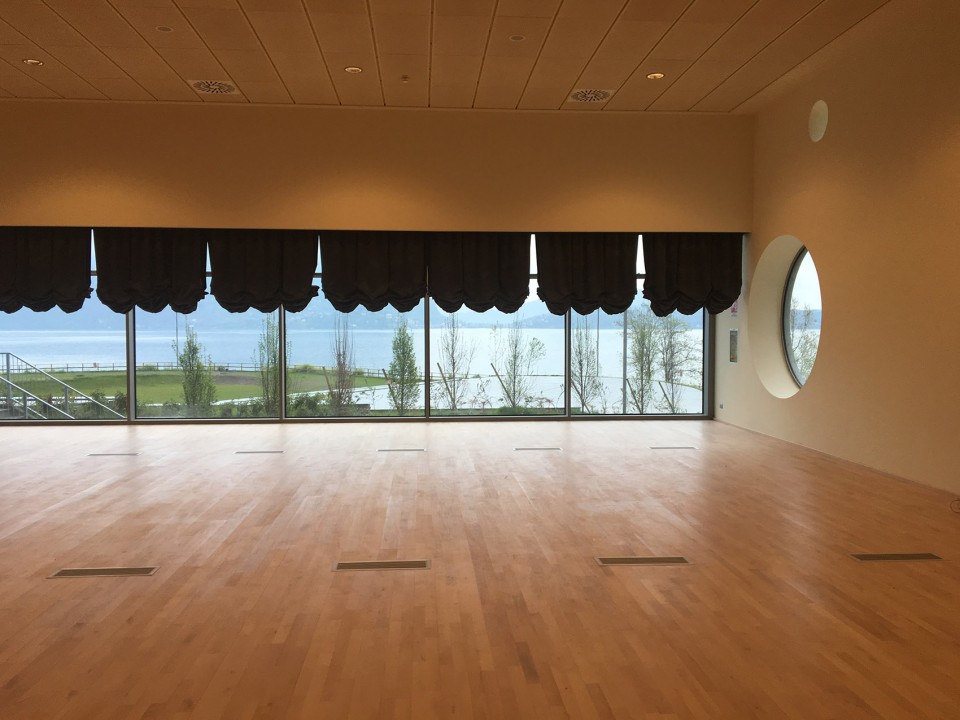

▽ 被引入内部的自然如同一幅幅美丽的风景画,nature is one of the main elements of the interior

035-Cultural Complex and Theatre by Studio Bargone Architetti Associati

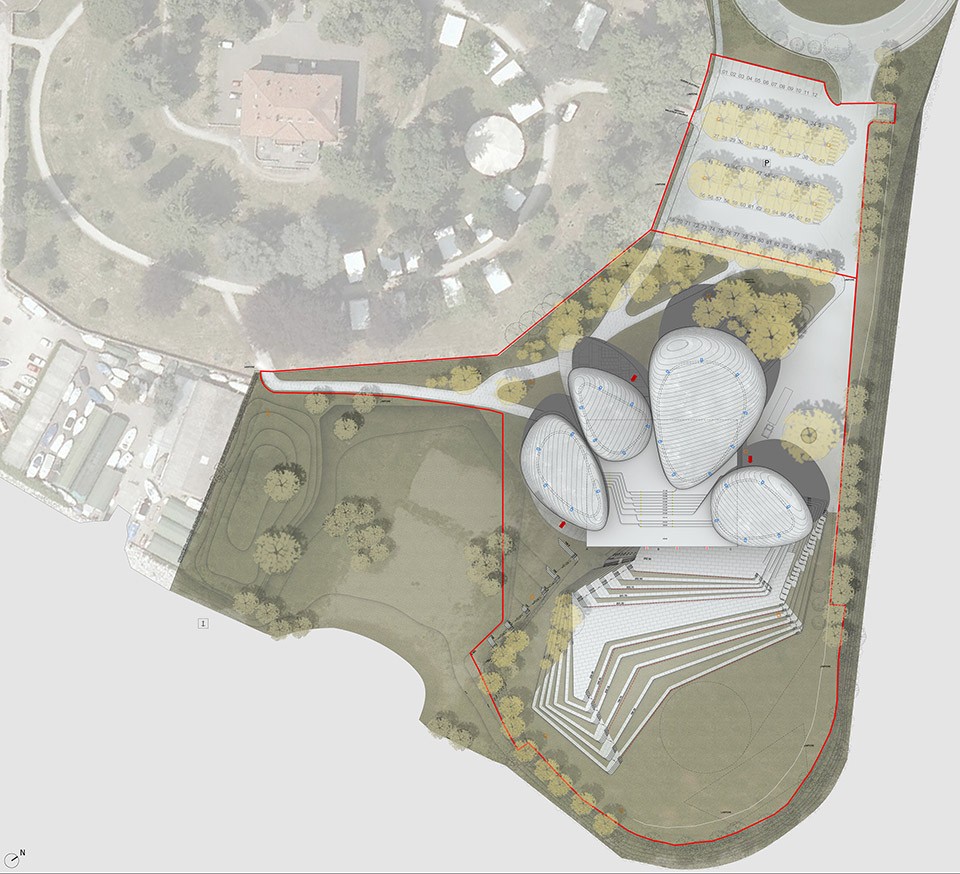

▽ 总平面图,site plan

039-Cultural Complex and Theatre by Studio Bargone Architetti Associati

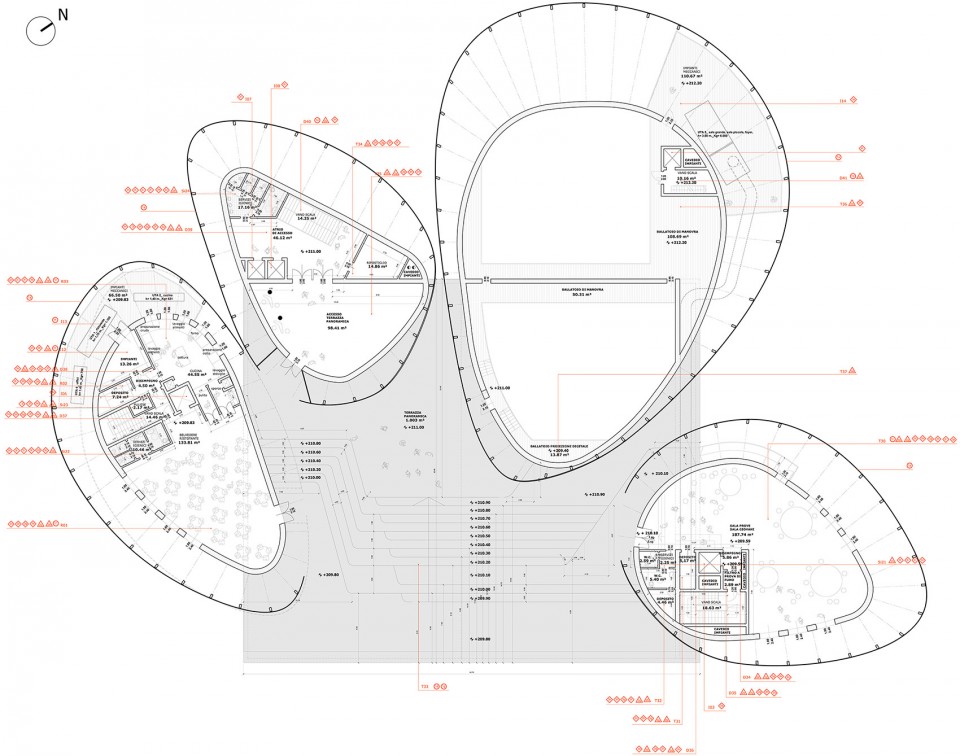

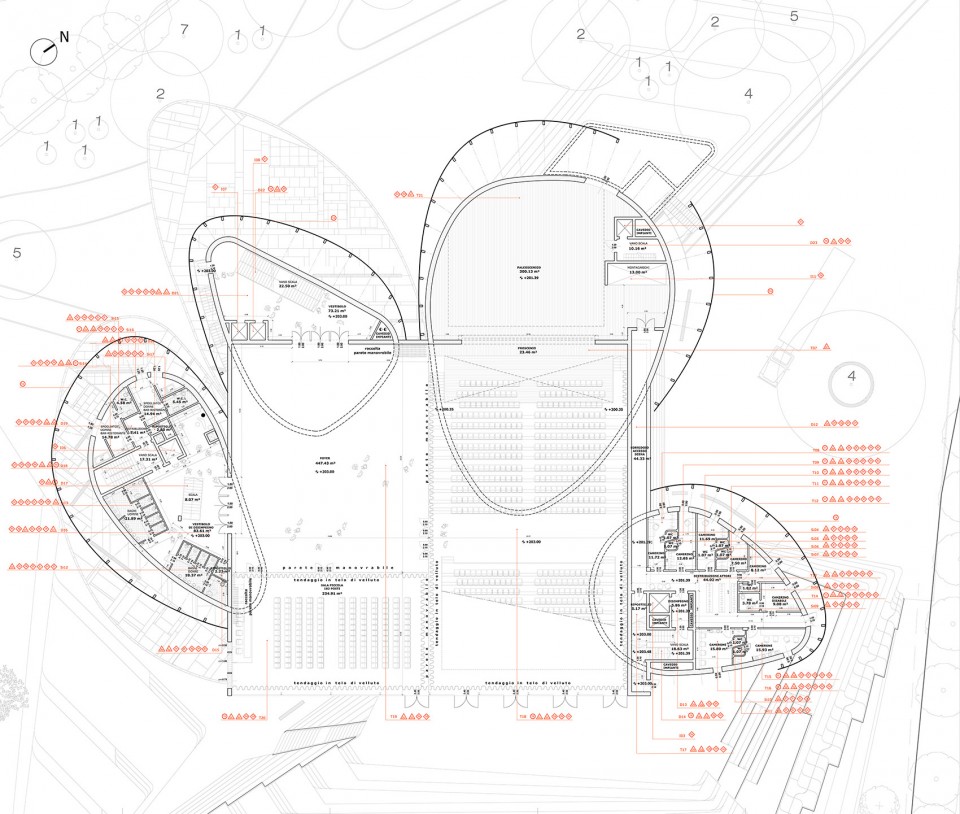

▽ 一层平面,first floor

\Host-001Lavori_in2Teatro Verbania _ ArenaProgettoProgetto

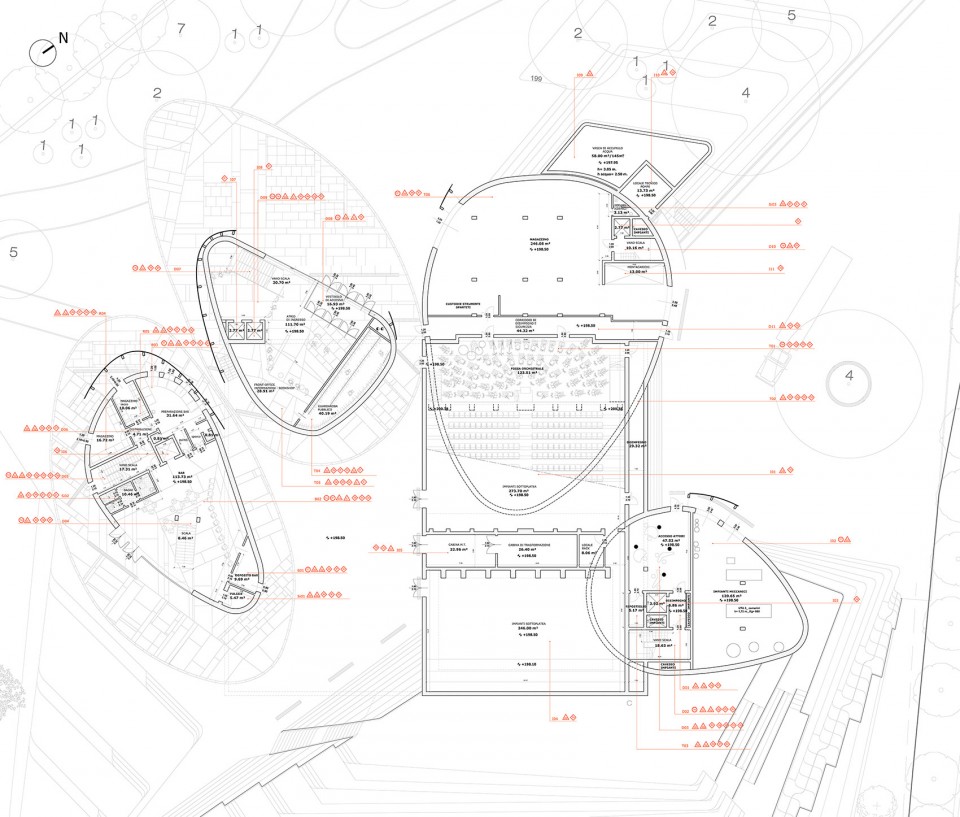

▽ 二层平面,second floor

\Host-001Lavori_in2Teatro Verbania _ ArenaProgettoProgetto

▽ 四层平面,forth floor

\Host-001Lavori_in2Teatro Verbania _ ArenaProgettoProgetto

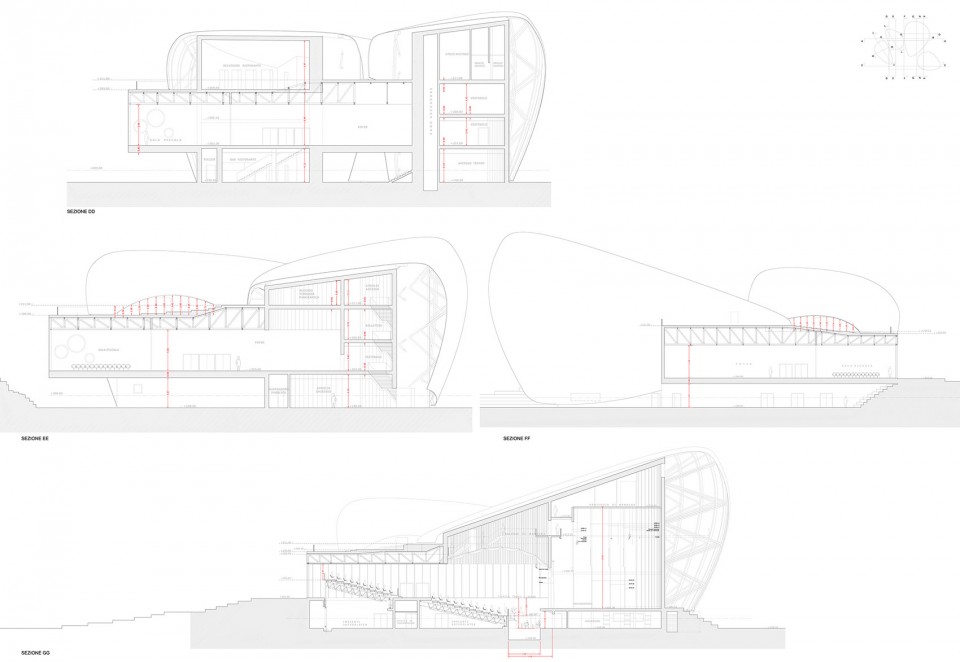

▽ 剖面,section

045-Cultural Complex and Theatre by Studio Bargone Architetti Associati

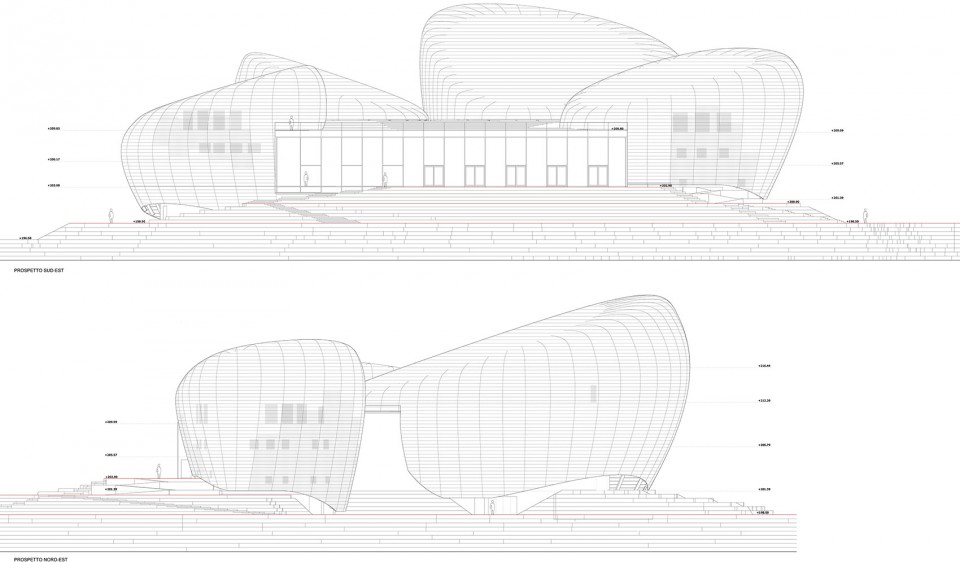

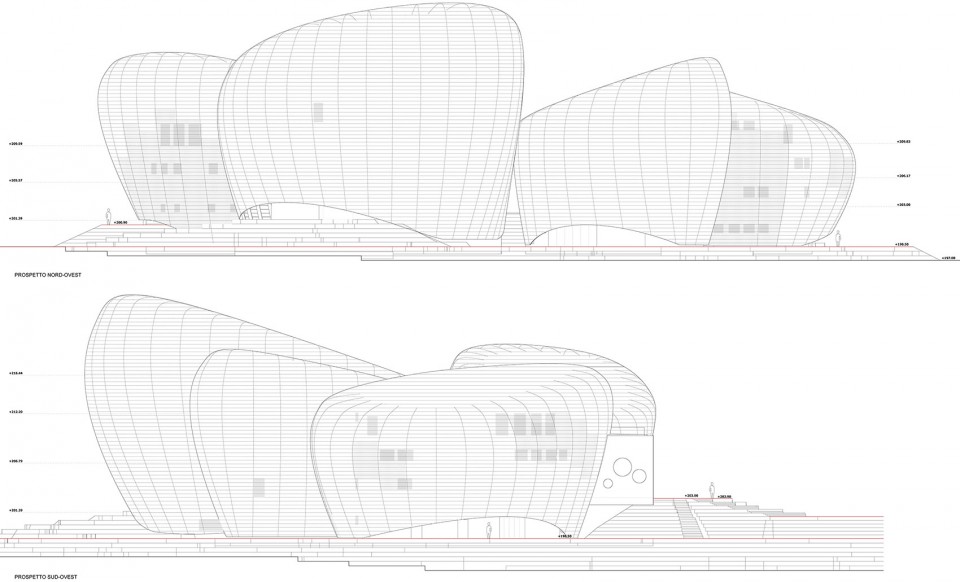

▽ 立面,elevation



046-Cultural Complex and Theatre by Studio Bargone Architetti Associati

047-Cultural Complex and Theatre by Studio Bargone Architetti Associati

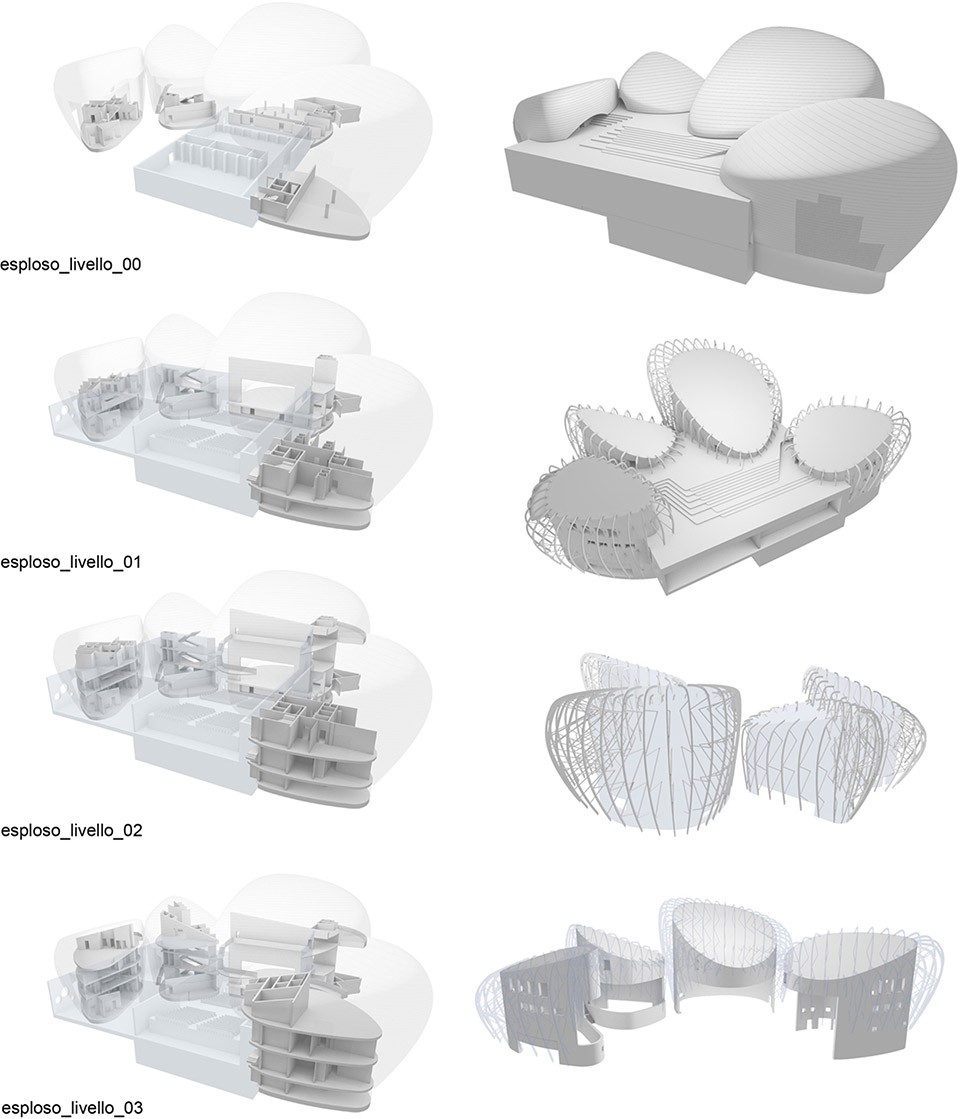

▽ 空间与结构,space and structure

Affiche_candidature_Moe_MIQCP2

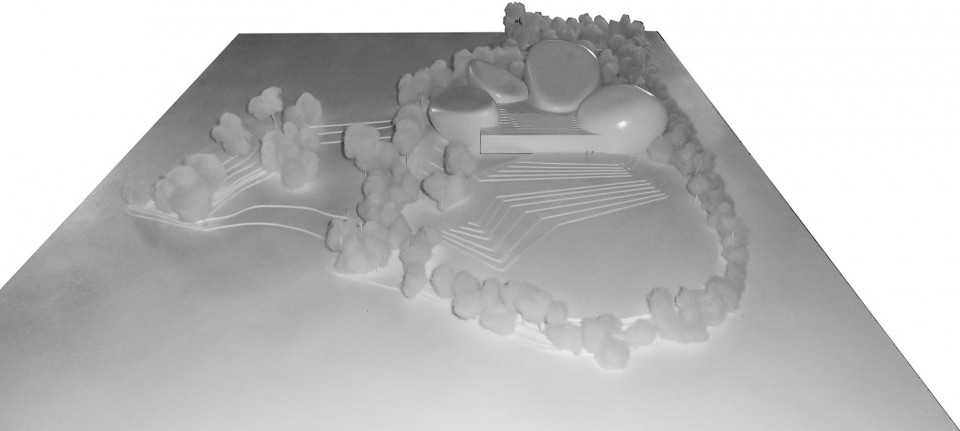

▽ 建筑模型,model

SAMSUNG DIGITAL CAMERA

Location: Verbania (VB) _ Italia
Client: Comune di Verbania
Area: 5.000 mq + 5ha
Construction Cost: 13.600.000,00 euro
Volume: 25.000 mc
Design 2010-2012
Realization 2013-2015
CONCEPT DESIGN, PRELIMINARY DESIGN:STONES _ Arch. Salvador Perez Arroyo (TEAM LEADER), Sbarch Studio Bargone Architetti Associati (COORDINATOR) (arch. Federico Bargone, arch. Francesco Bartolucci), Arch. Peter Cook, Garcia BBM, Ing. Arch. M. Mariani, Arch. E. Auletta, Bianchini e Lusiardi Associati, Ing. A. Sandelewski, Arch. F. Brenci, Arch. A. Di Muzio
TENDER DESIGN:STONES _ Arch. Salvador Perez Arroyo (TEAM LEADER) Sbarch Bargone Architetti Associati (COORDINATOR), Arch. Peter Cook, Garcia BBM, Ing. Arch. M. Mariani, Arch. E. Auletta, Bianchini e Lusiardi Associati, Ing. A. Sandelewski, Arch. F. Brenci, Arch. A. Di Muzio
CONSTRUCTION DESIGN:Arch. Fabrizio Bianchetti (progetto architettonico, progettazione ambientale e coordinamento) – Arch. Giancarlo Marzorati, (capogruppo) (progetto architettonico, scenotecnico ed arredi) – Ing. Stefano Rossi (progetto strutture) – Ing. Guido Davoglio direttore Tecnico di Tekser srl (progetto impianti) – Geol. Fulvio Epifani (indagini geologiche e geotecniche)
General Contractors:Notarimpresa s.p.a./Tecno Costruzioni S.r.l./CDL s.r.l.

Drawings: Studio Bargone Architetti Associati
English Text: Studio Bargone Architetti Associati
Chinese Text: gooood
