Single family house, Trin, Switzerland by schneller caminada architekten

Concise style with abundant views

Project Specs

Location:

来自 schneller caminada architekten 对gooood的分享。更多请至:schneller caminada architekten on gooood
Appreciation towards schneller caminada architekten for providing the following description:

该项目位于瑞士Grisons山脚下一个叫Trin-Mulin的村庄里。业主是一对年轻夫妇,他们希望能拥有一栋包括客厅、起居室、厨房、两个卧室(带卫生间及衣帽间)的房子。根据业主要求,设计师打造了一座方形三层坡顶建筑,身处其中,周边风景可尽收眼底。其附属建筑与主体建筑相连,通过连接结构不仅定义出了入口位置,还留出了两个停车位。

The house is situated in Trin-Mulin wich is a small village in Grisons in front of an impressive mountain chain. The task was to draft a domicile for a couple. They required a living and dining room, a kitchen, two bedrooms with a bath and a dressing room, a library, a studio and a wine cellar. The conception was a three level house with almost a square footprint and a steep roof, precisely placed in the scenery. The flanking single-storey annex integrates the building in the landscape and defines the entrance. Further it allows to have two integrated covered parking places.

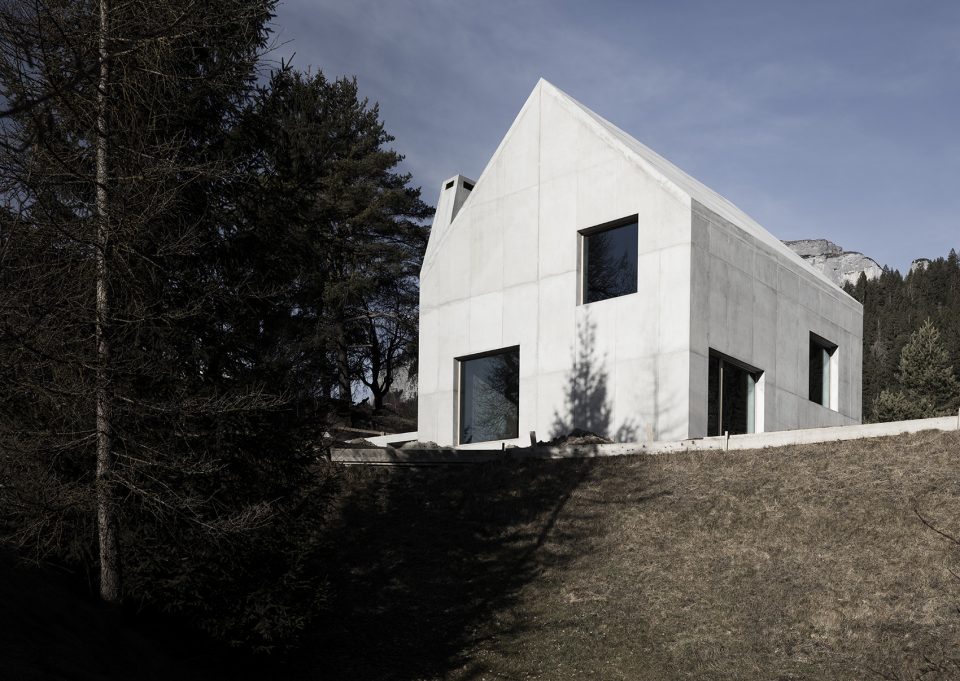

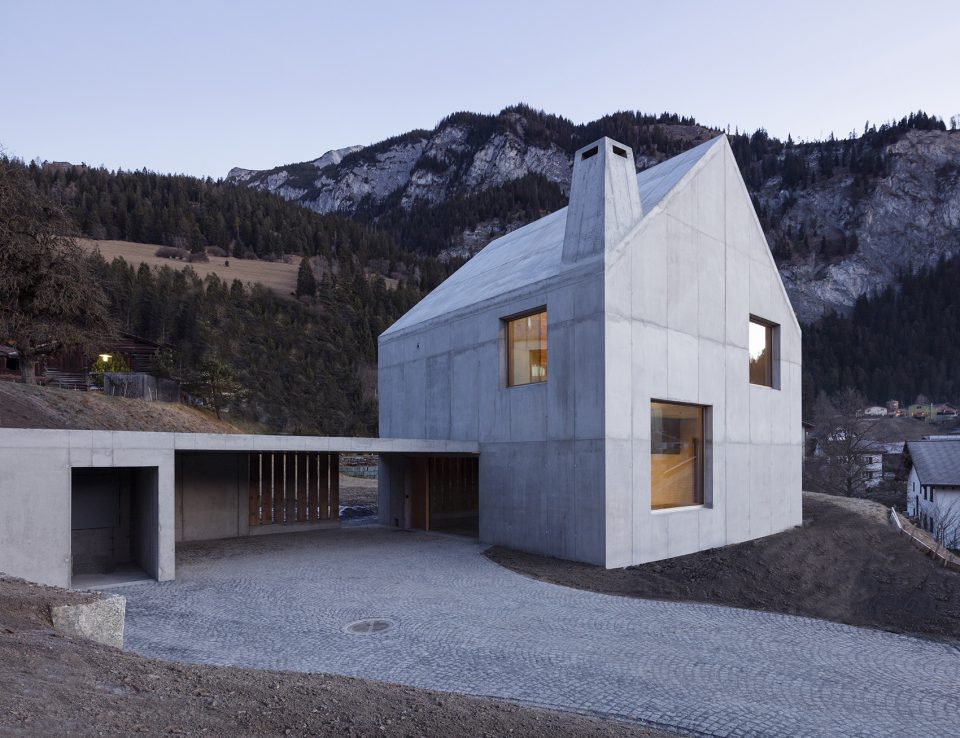

▼建筑全貌,full view

主体建筑内的所有房间均围绕着中心木质台阶排列。该建筑内所有房间的高度均不同,被提升的起居室夹在一层和二层之间。窗户的位置是依据室外自然风景而定的,加强了室内外的联系。

In the inside all the rooms are arranged around a central wooden stair core. The heightened living room causes mezzanine levels in the upper floors. This rooms varies in their height and orientation. The large windows are correspondingly located which proposes specific views in the mountains and strengthens the homogeneous appearance of the house.

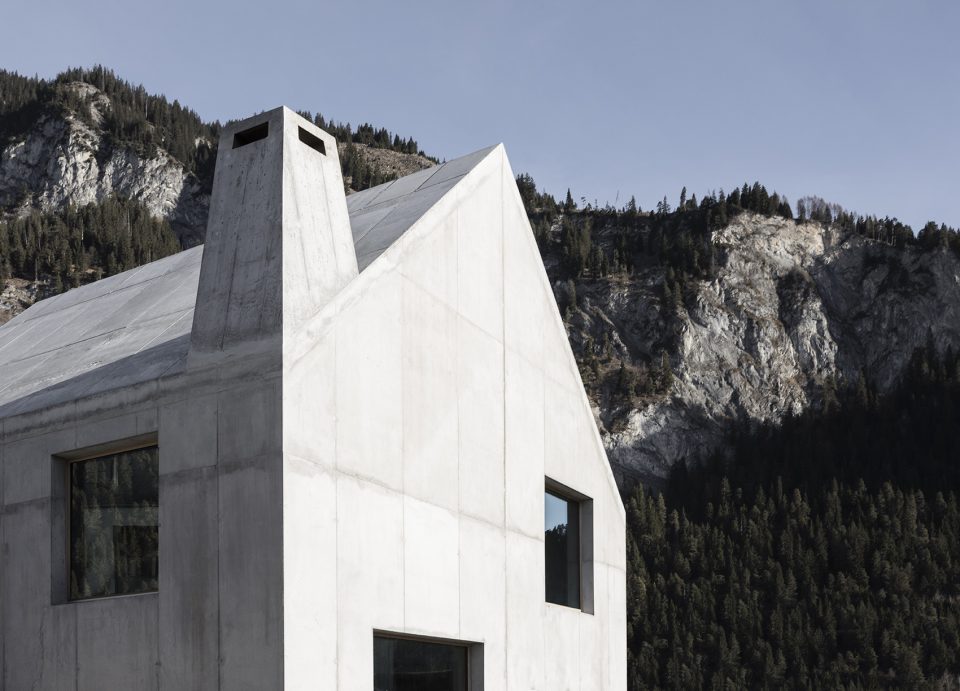

▼建筑立面,facade

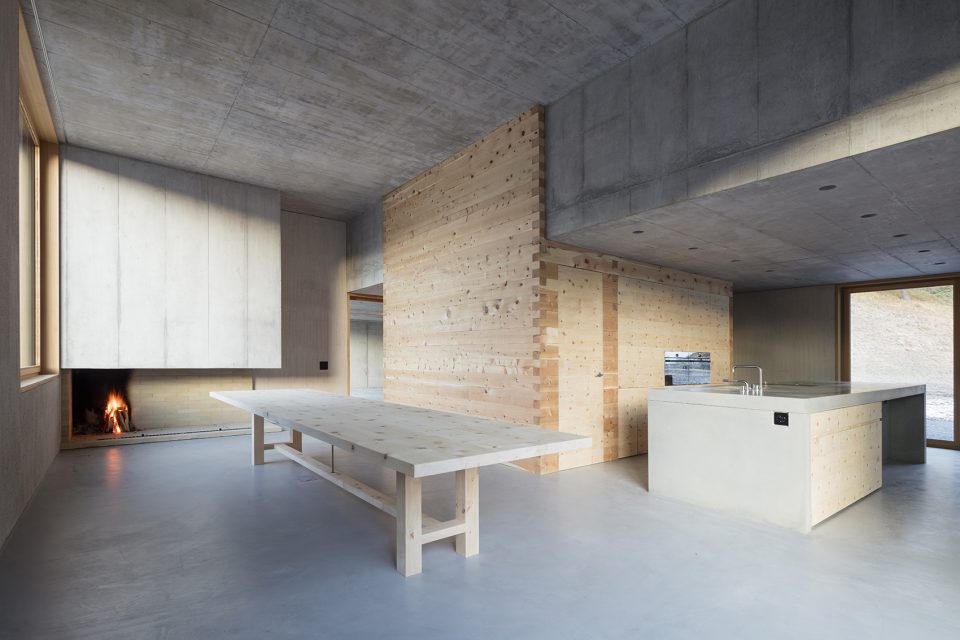

▼一层起居室,living room

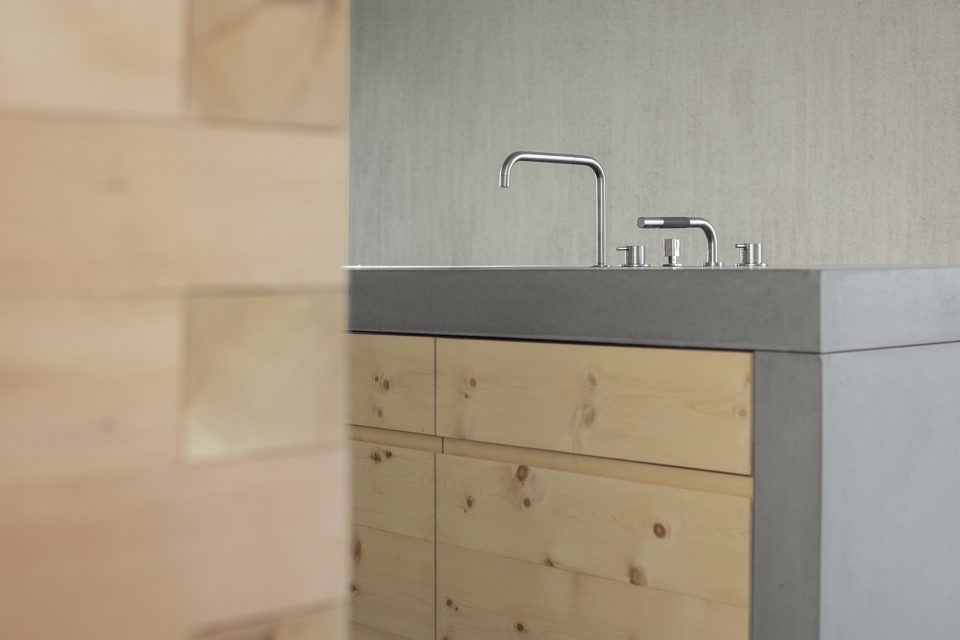

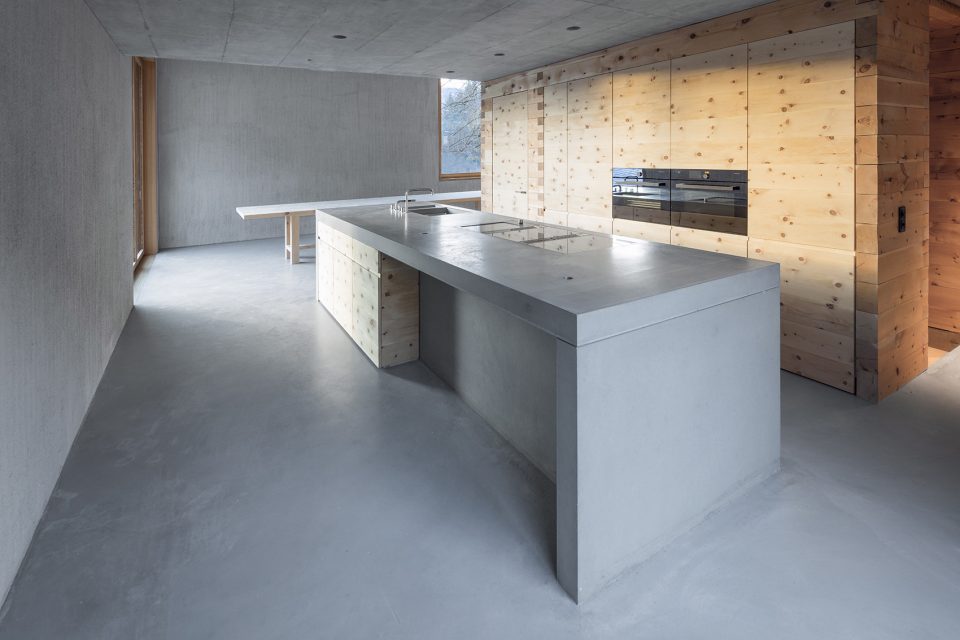

▼一层厨房,kitchen

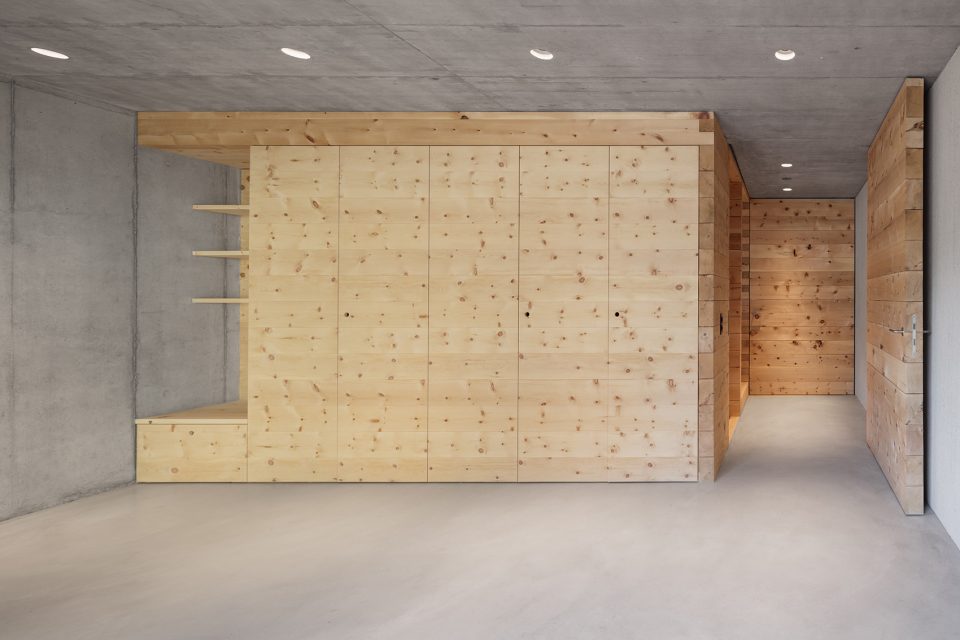

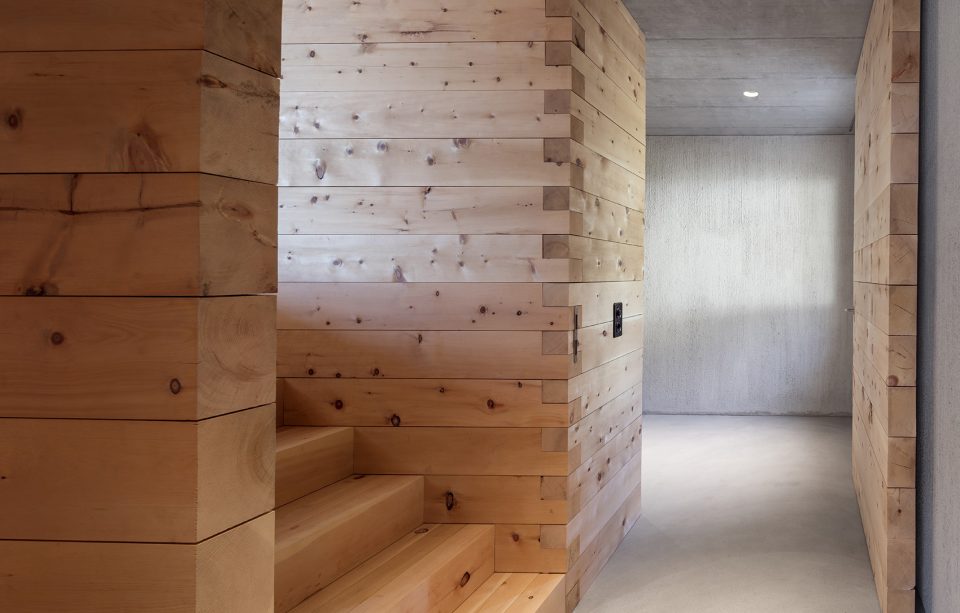

▼过渡空间,transition

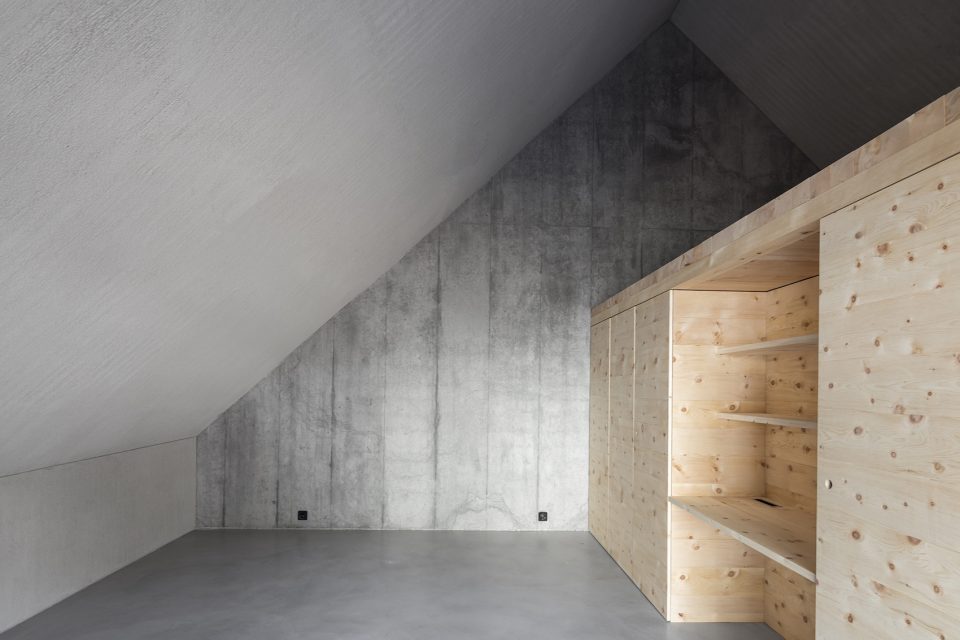

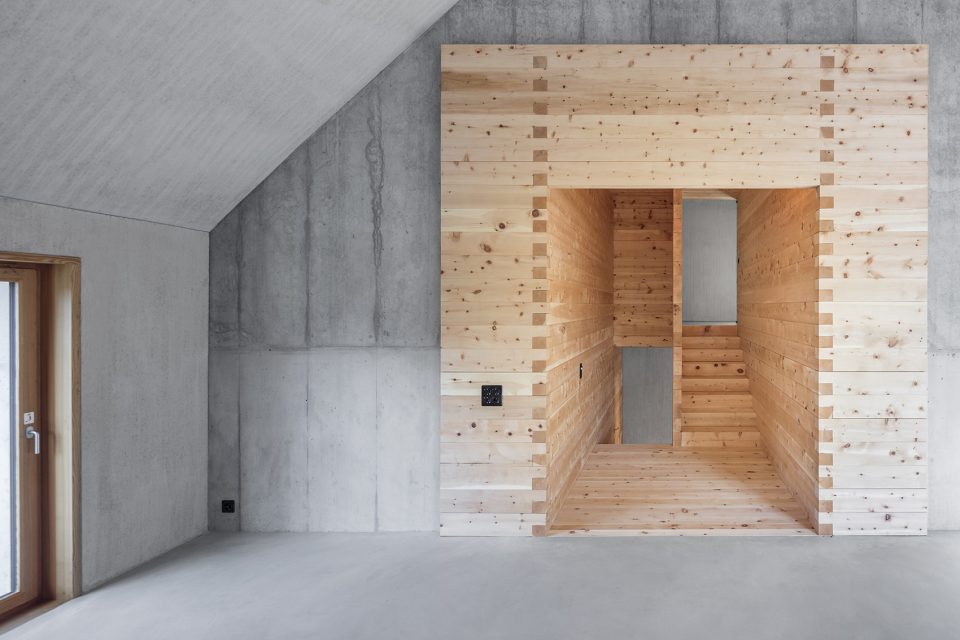

▼二层卧室,bedroom

该建筑为混凝土结构。其内部木质核心并非其承重结构,它的表面附有一层矿物内灰作为隔热层。建筑呈现出的混凝土颜色则是由当地水泥颜色决定的。

The supporting structure is built with a external leaf in concrete and supporting slabs. The inner wooden core is non-structural. Consequently it has an internal insulation with a mineral plaster on its surface. The color of the concrete is based on the regional cement.

▼卧室,bedroom

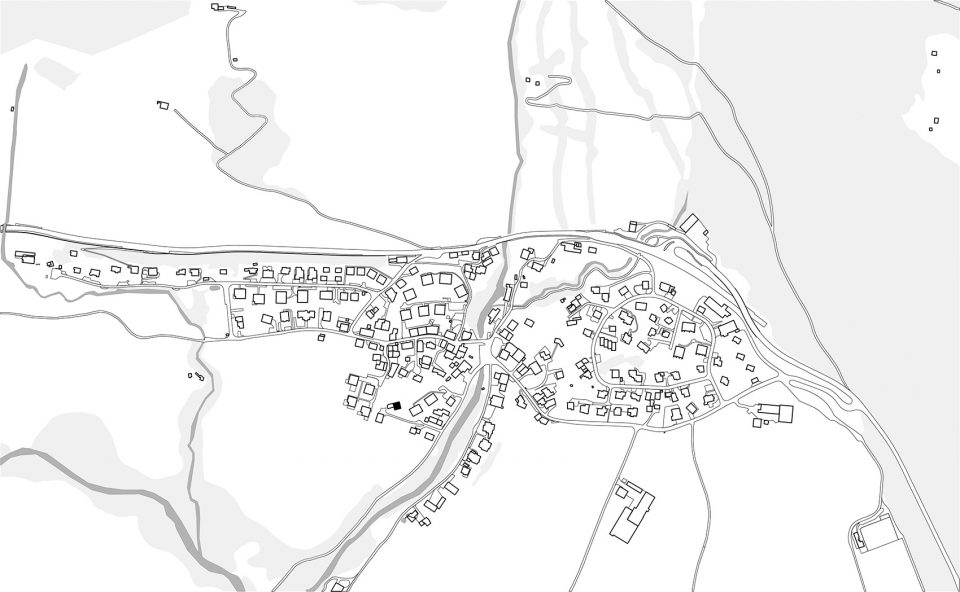

▼场地平面,site plan

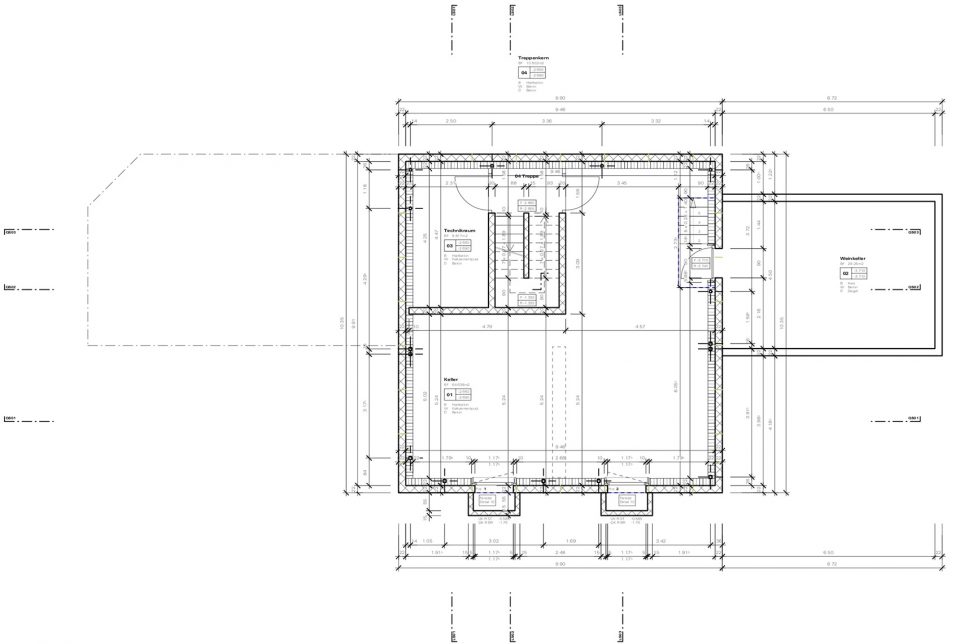

▼地下一层平面,basement plan

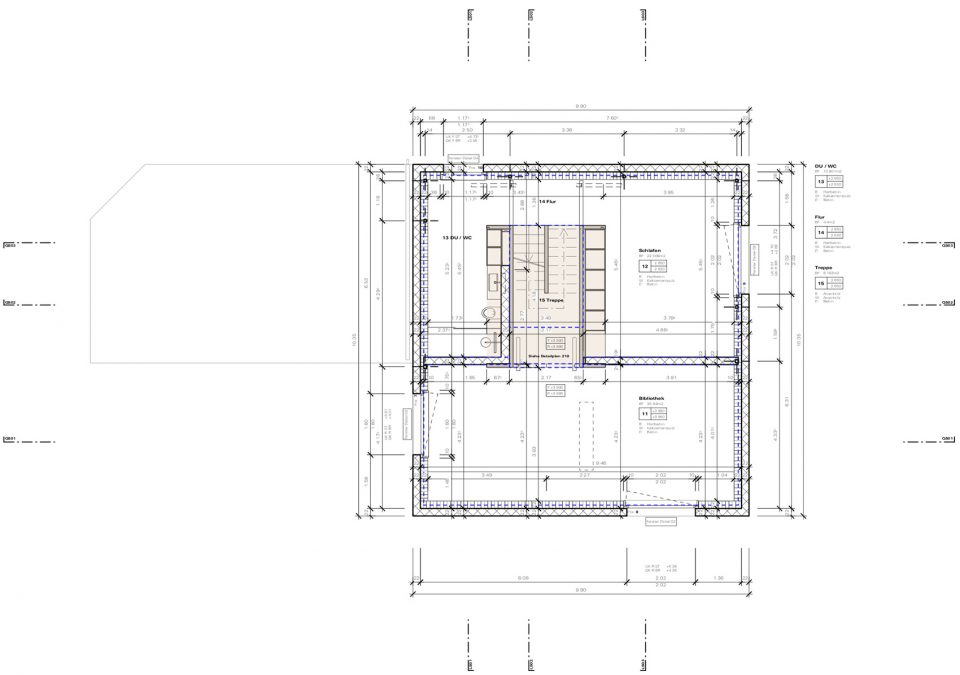

▼一层平面,first floor

▼二层平面,second floor

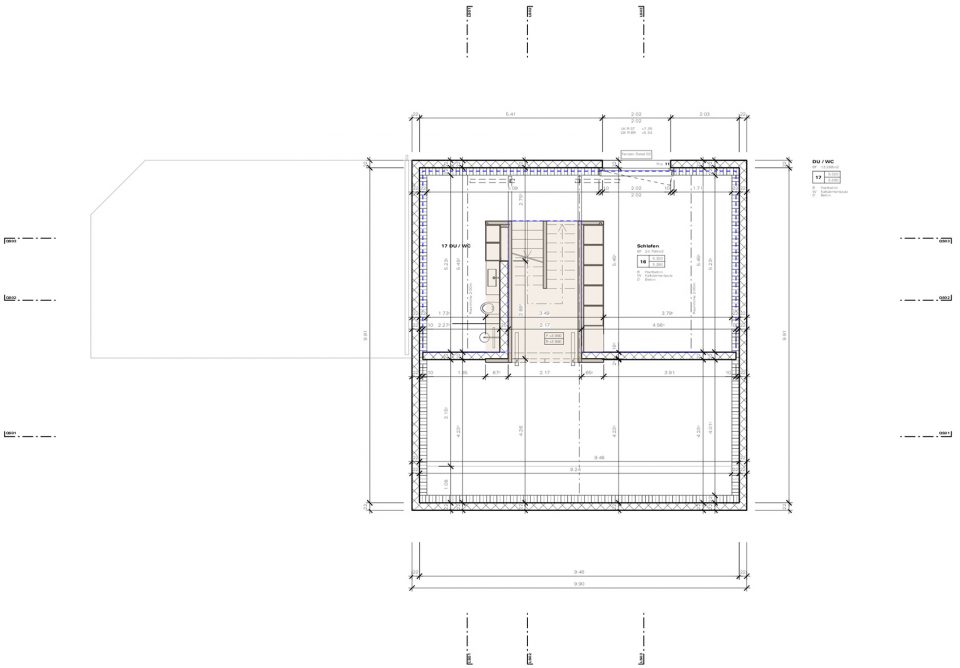

▼三层平面,third floor

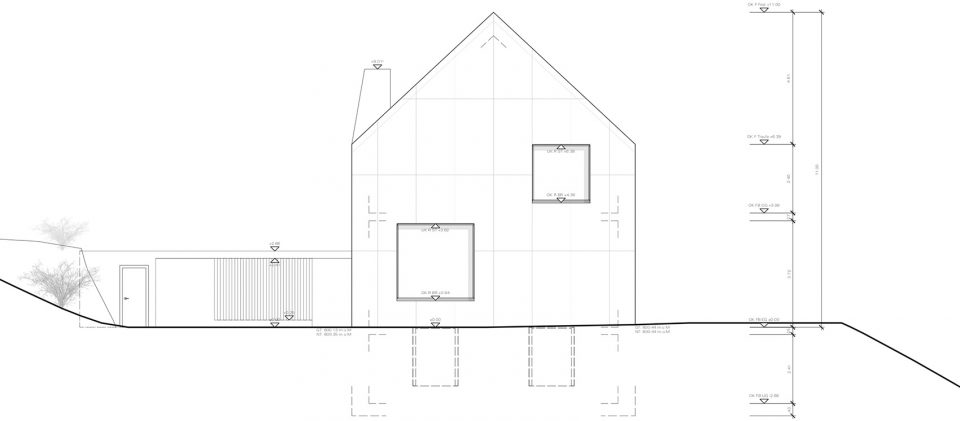

▼北立面,north elevation

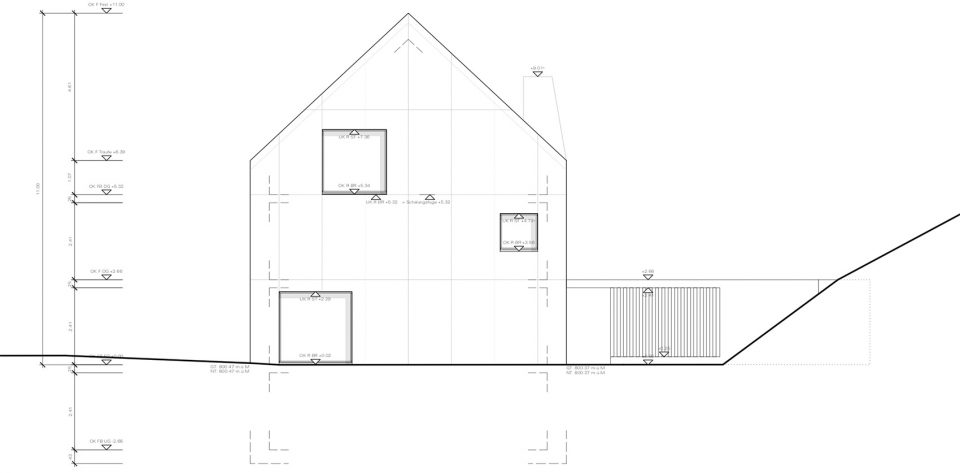

▼南立面,south elevation

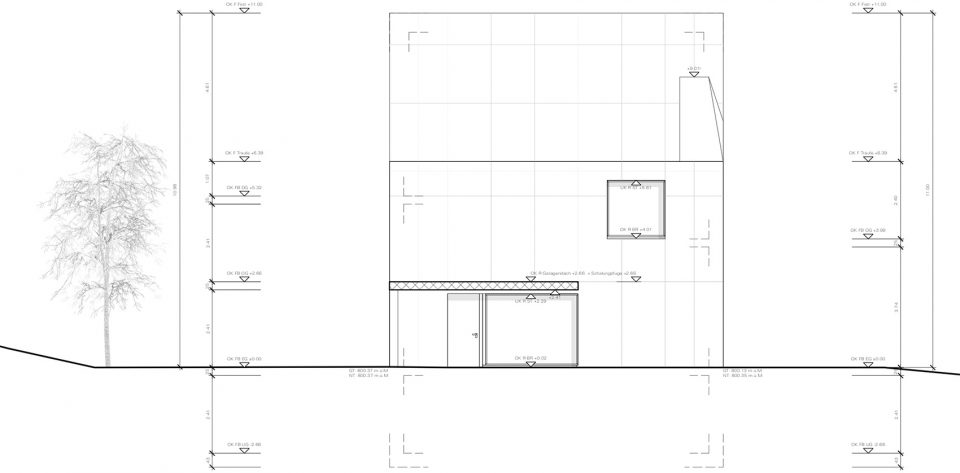

▼东立面,east elevation

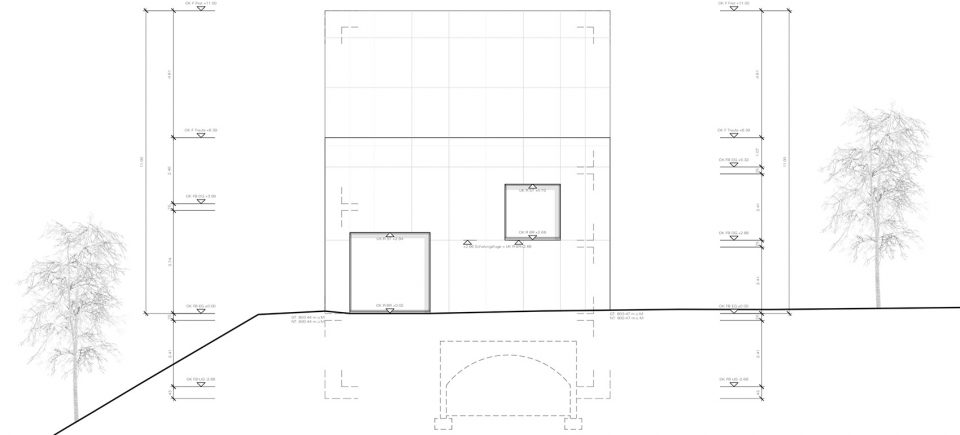

▼西立面,west elevation

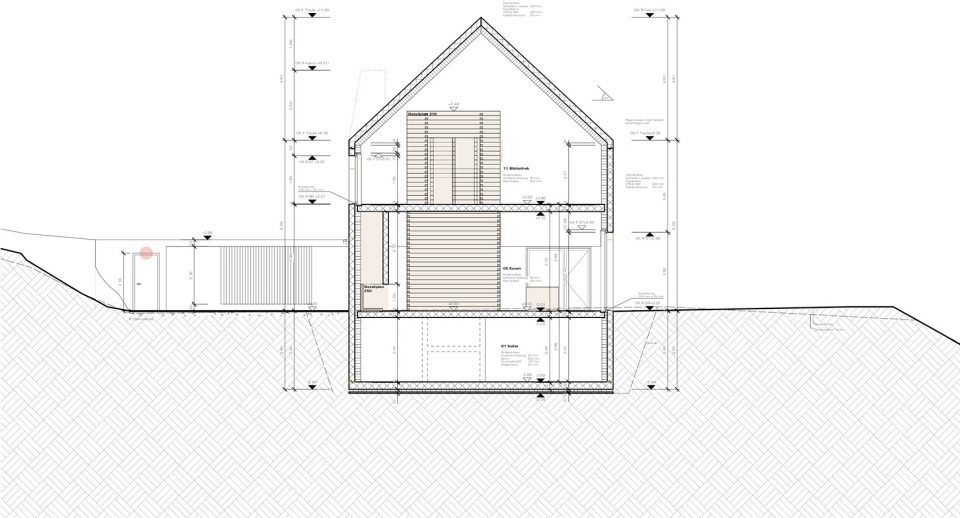

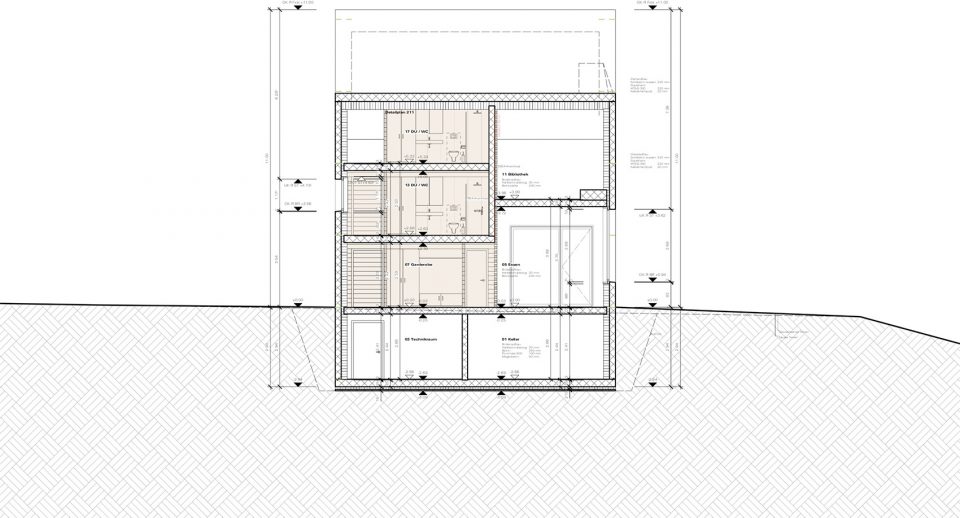

▼剖面一,section 1

▼剖面二,section 1

ARCHITECT / FIRM NAME: schneller caminada architekten
PROJECT: single family house, 2016
PHOTOGRAPHER: Gaudenz Danuser
