Root Bench by Yong Ju Lee Architecture

public furniture in dynamic shape of spreading root

Project Specs

Location:
Tags:

感谢 Yong Ju Lee Architecture 对gooood的分享 。
Appreciation towards Yong Ju Lee Architecture for providing the following description:

Root Bench 是对Hangang Art Competition获奖作品的全新阐释。这个安装在草坪上的圆形公共家具直径有30米,以根系蔓延的形态布满了整个公园。它与空旷的室外公园形成了强烈的对比,充满视觉刺激。

Root Bench is the reinterpretation of winning proposal in Hangang Art Competition. This is circle-shaped public furniture with diameter of 30m, installed in grass, which shows dynamic shape of root spreading throughout the park. It provides visual stimulus creating strong contrast to the background of spacious outdoor park.

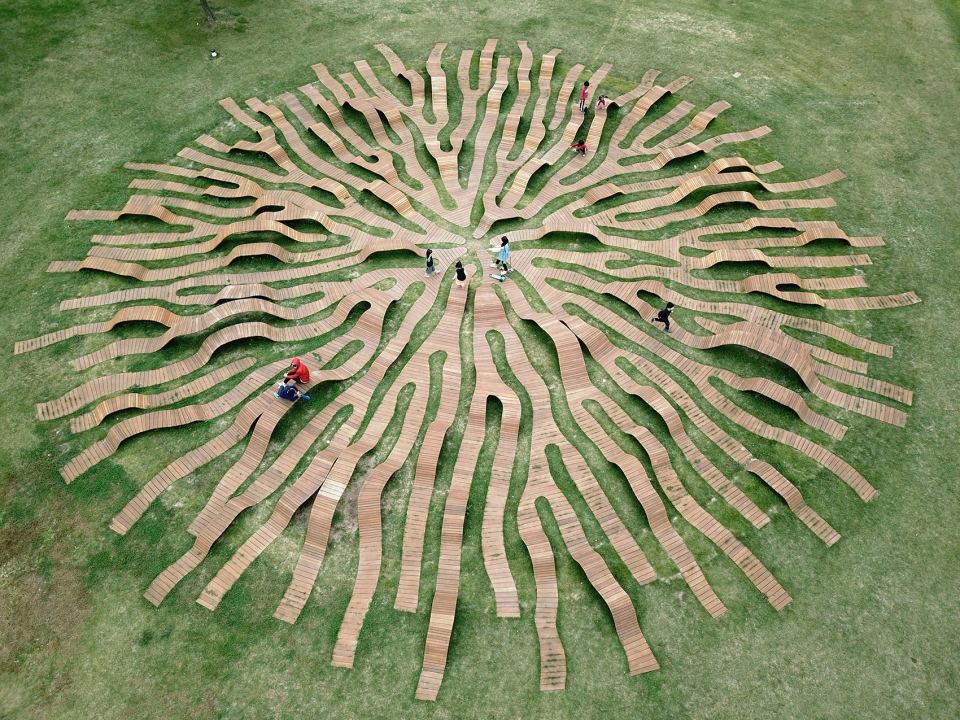

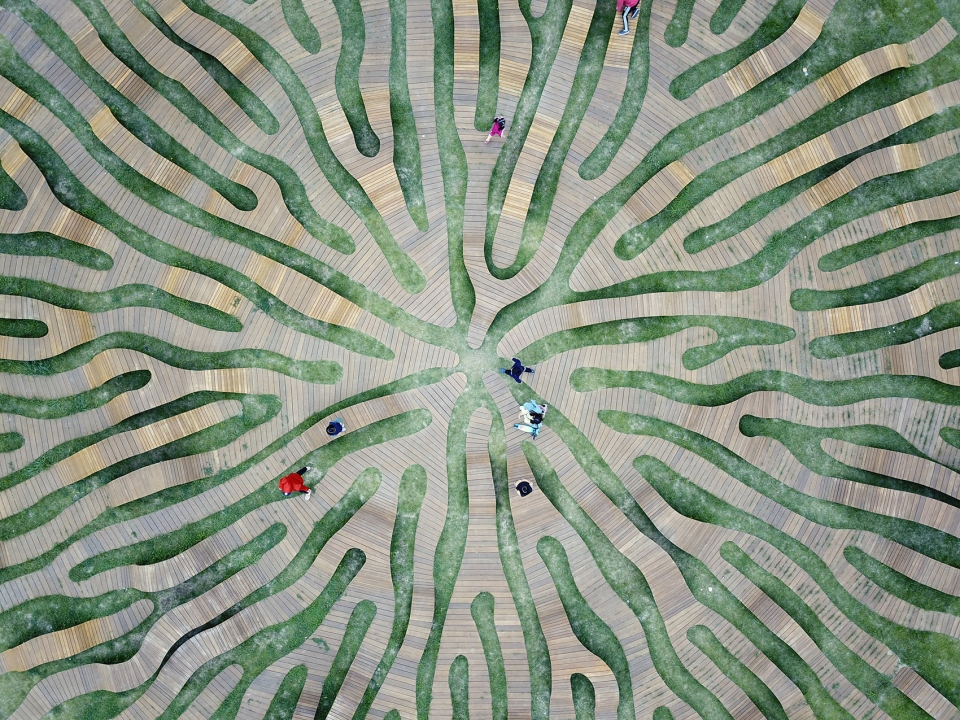

▼鸟瞰图,aerial view

Root Bench高度不同,人们可以坐和依靠在上面休息。从获奖作品中延续的主要理念就是:从中心延伸出的有机形状,创造空间的连续性。

And people can take a rest with it while sitting and leaning on its different height. The main concept continued from the winning proposal is that the organic shape sprawling out from the center creates spatial connectivity.

▼直径30米的公共家具为根系蔓延的形态,public furniture is circle-shaped  with diameter of 30m

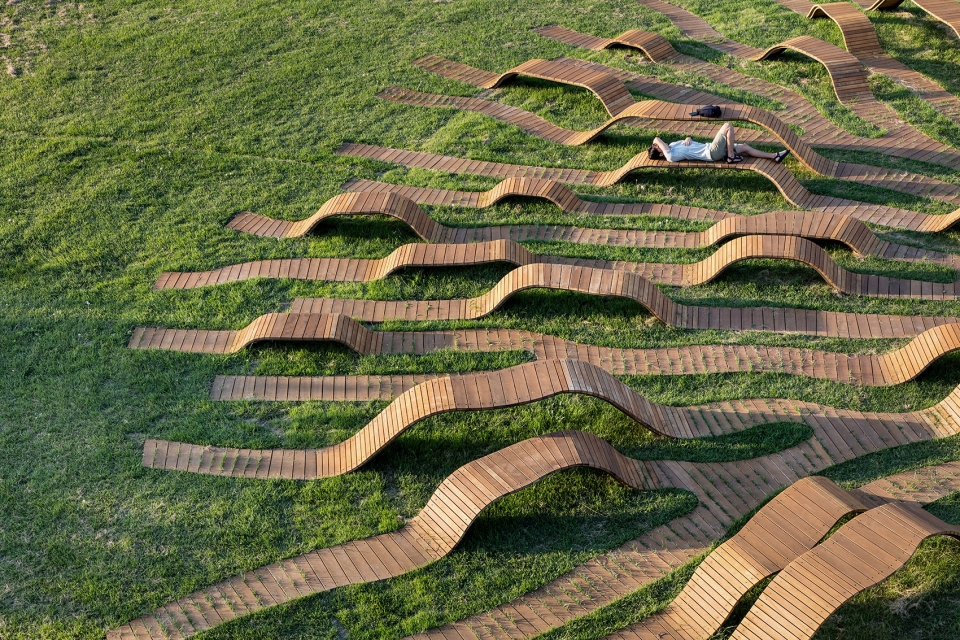

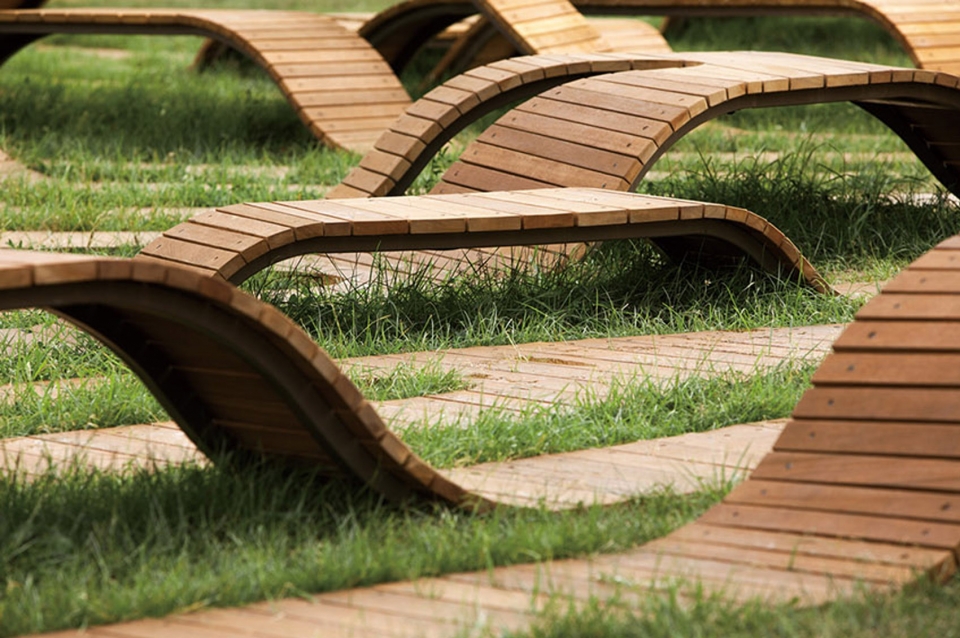

▼细部,detailed view

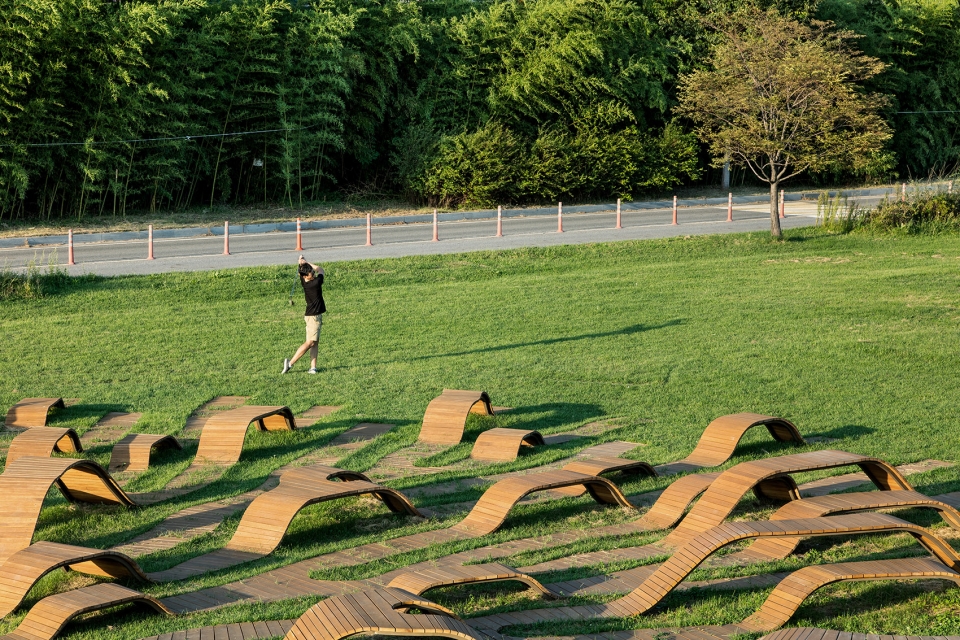

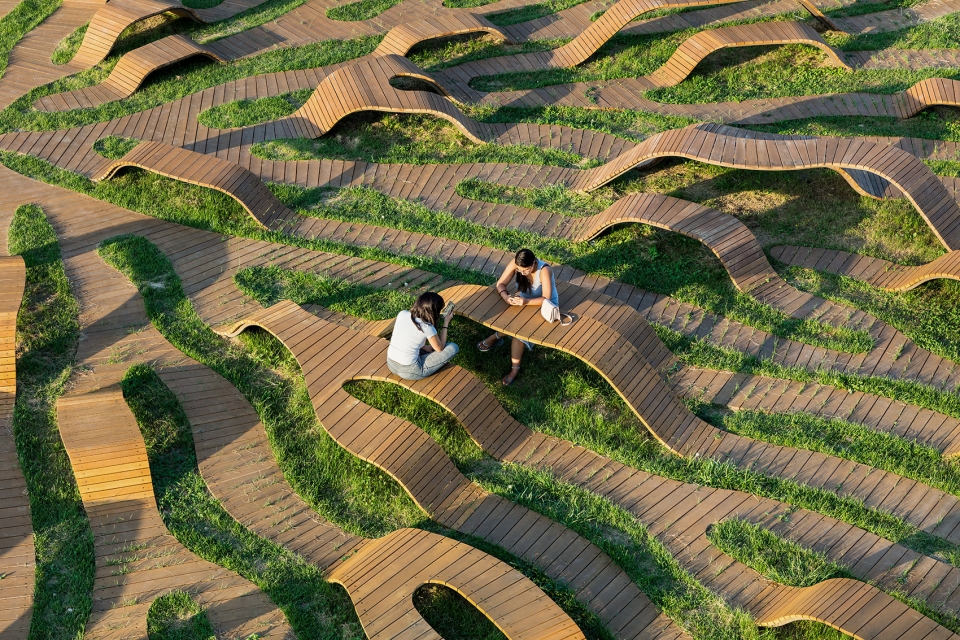

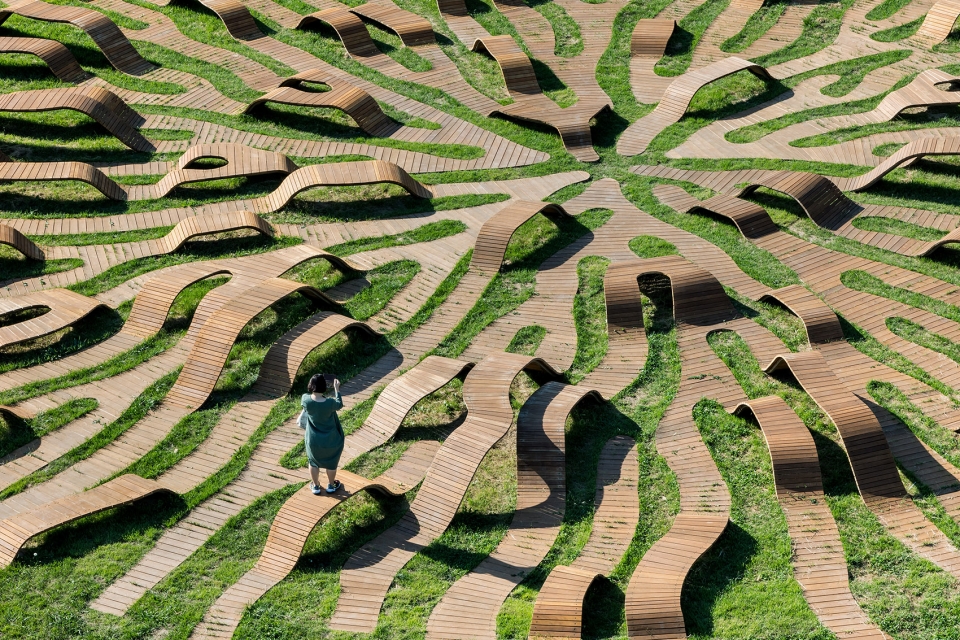

▼长椅为人们提供了休息的空间,people can take a rest here

参观者在休息空间中交流的同时,既舒适又能享受艺术作品。它同时还可以完美的作为三个不同高度的家具:儿童座椅(250mm),成人椅(450mm)和桌子(75mm)。富有韵律的形状为Hangang公园带来了全新的刺激点和多样的乐趣。

While communicating each other, visitors can feel comfortable in resting space and enjoy the art piece at the same time. It also functions perfectly as furniture with three different heights: child chair (250mm), adult chair (450mm) and table (75mm). The rhythmical shape can suggest fresh stimulation to Hangang Park and provide various aspects of pleasure.

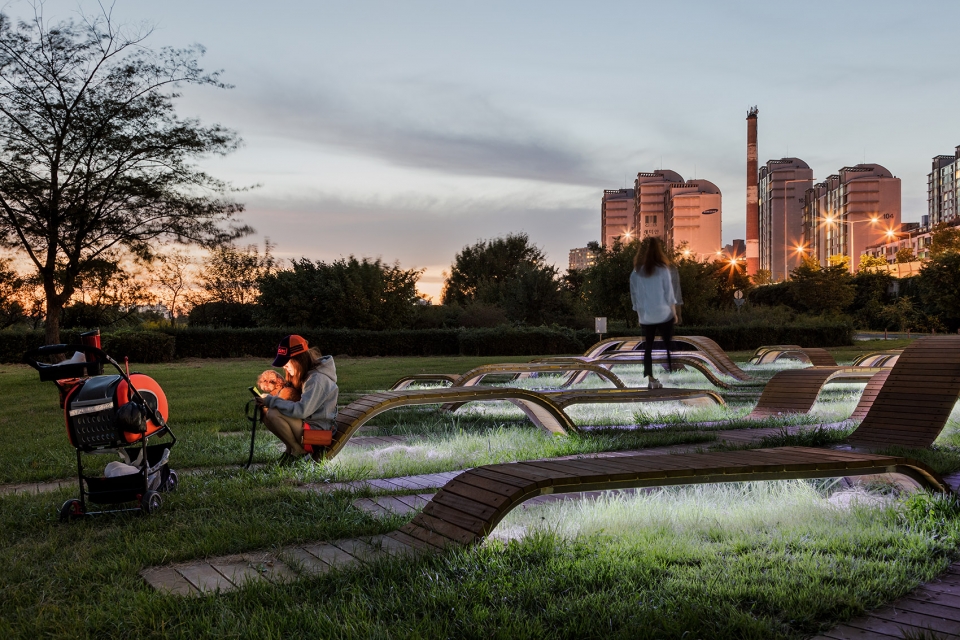

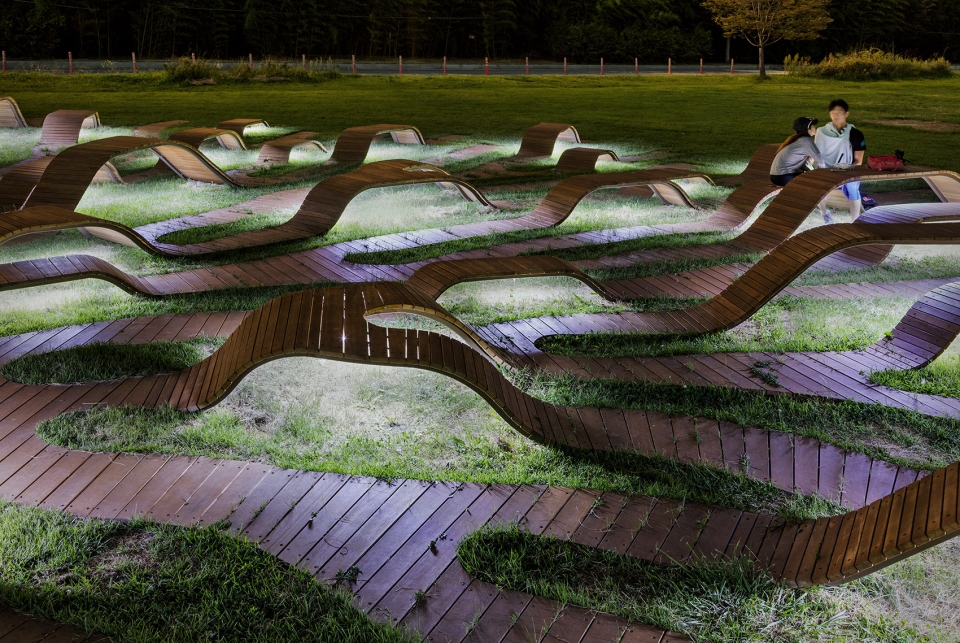

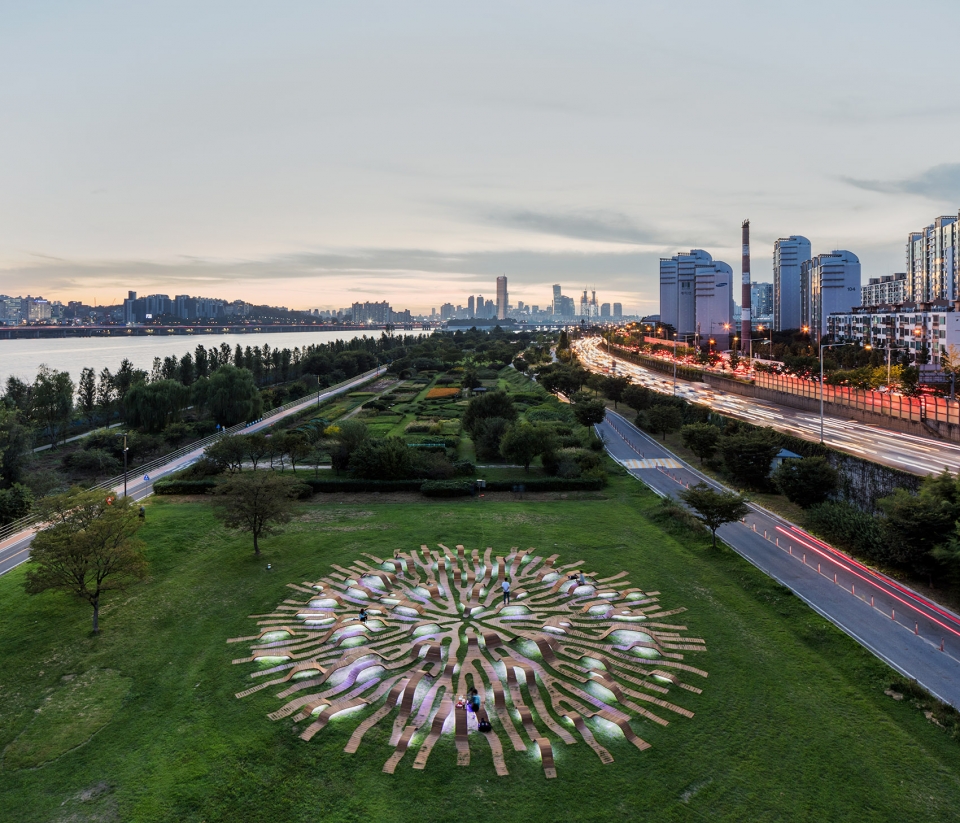

▼夜间视角,长椅为公园带来多样的乐趣,night view: the piece provides various aspects of pleasure

这个艺术作品所呈现的三维几何形态是通过计算机算法设计出来的。金属框架和混凝土底座作为主要结构支撑着整个体系,外部以木板覆盖。通过对常用材料的处理,座位既保持了舒适,又很容易使用和维护。在呈现出完整圆形的同时,Root Bench与草丛融合,模糊了人工设施与自然环境的界线。

The art piece designed by computer algorithm presents dynamicity from three-dimensional geometry. The metal frame with concrete footing supports the overall form as main structure and wooden deck covers it. By applying familiar material for finishing, it is easy to use and maintain as a comfort seat. As well as suggesting complete shape of circle, Root Bench is fused into the grass and blurs the boundary between artificial installation and natural environment.

▼金属框架与混凝土底座作为结构体系,metal frame and concrete footing is the main structure

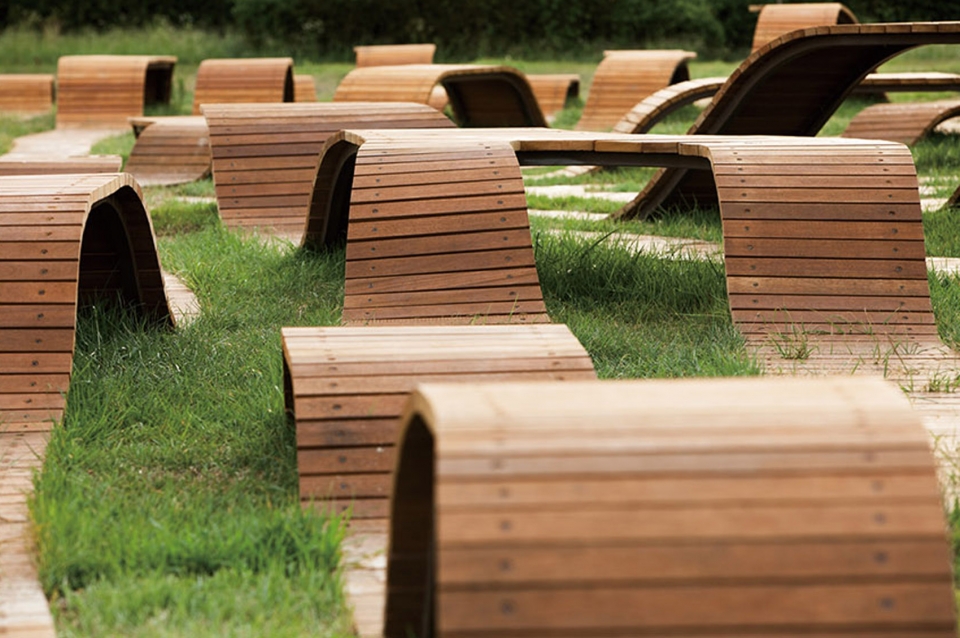

▼Root Bench与草丛形成融合,Root Bench is fused into the grass

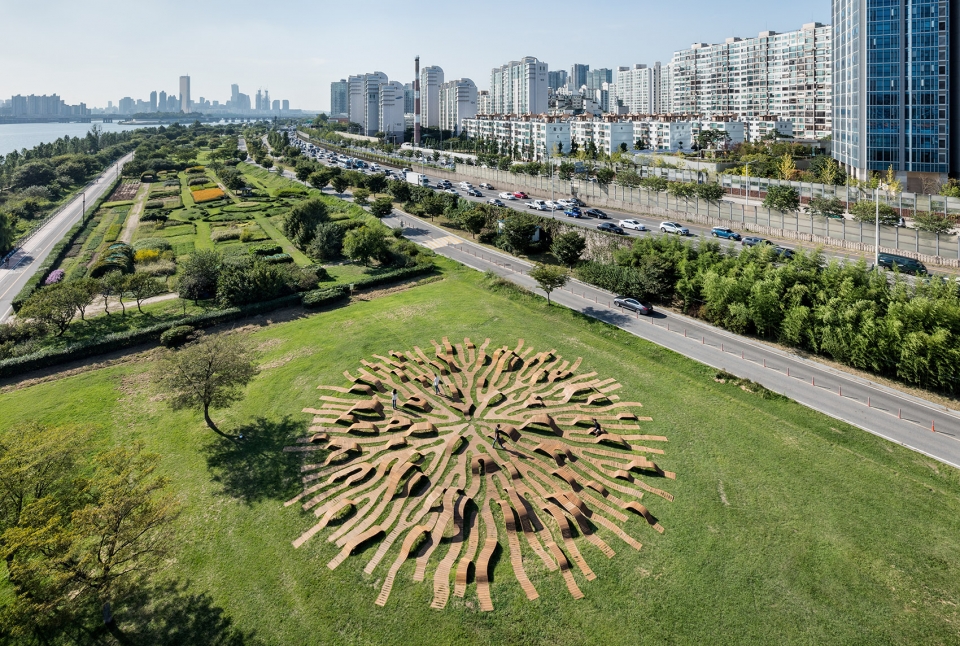

▼城市鸟瞰,urban context

为了更紧密联系扩散的分支,设计过程中采用了反应—扩散系统。这个数学模型描述了一种或多种化学物质在空间和时间中的变化:物质相互转化的局部化学反应和导致物质在空间表面分布的扩散反应。通过算法,在前景(装置)与背景(草)相互融合的情况下,生成整体的径向形态。

To articulate spreading-out branch intensively, reaction-diffusion system is applied to design process. This mathematical model describes the change in space and time of the concentration of one or more chemical substances: local chemical reactions in which the substances are transformed into each other, and diffusion which causes the substances to spread out over a surface in space. Through the algorithm from it, overall radial form is generated with the foreground (installation) merging into its background (grass).

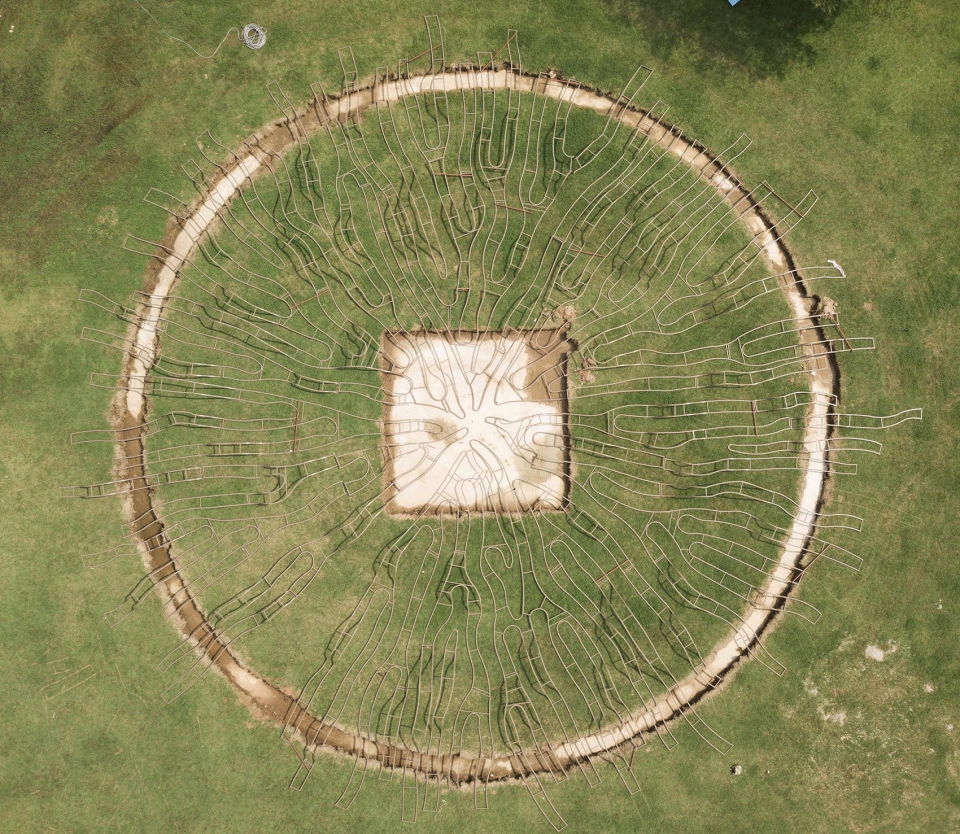

▼施工现场,construction site

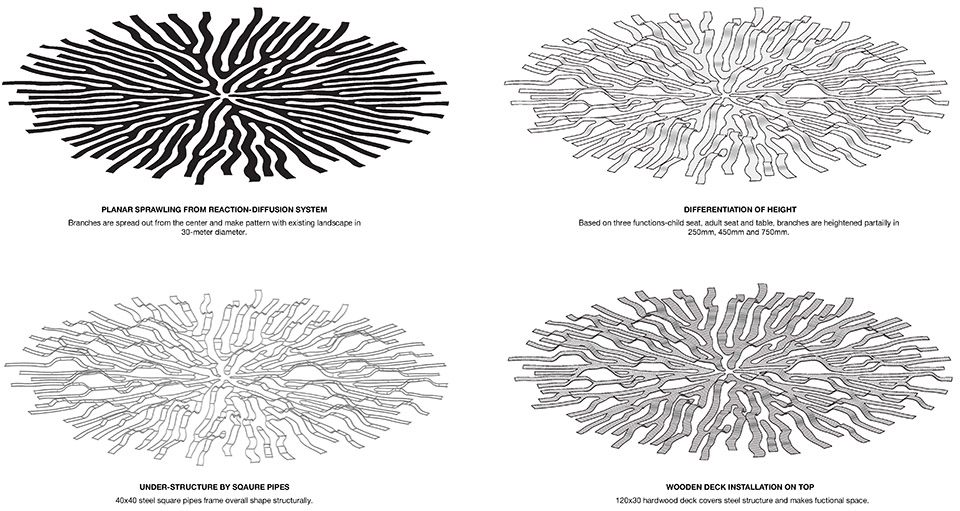

▼数学模型与计算机算法,mathematical model & computer algorithm

▼设计过程中采用了反应—扩散系统,reaction-diffusion system is applied to design process

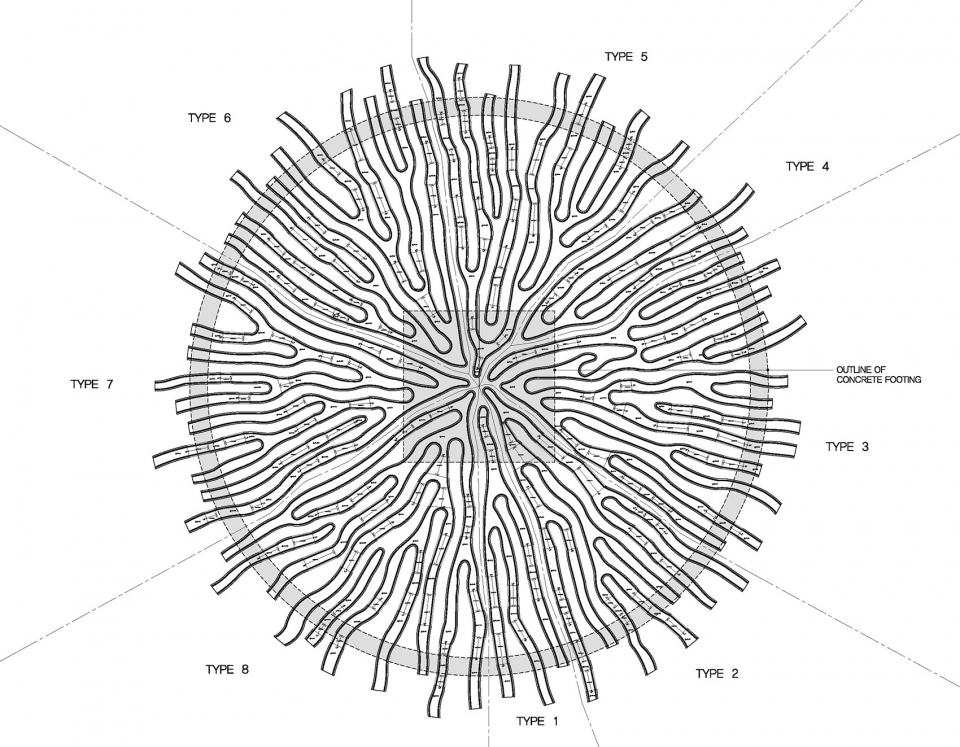

▼平面图,plan

Project name: Root Bench
Architect’s Firm: Yong Ju Lee Architecture
Website: www.yongjulee.com
Contact e-mail: info@yongjulee.com
Project location: 302-17 Ichon-dong, Yongsan-gu, Seoul
Completion Year: 2018
Gross Built Area: 700 sqm
Lead Architects: Yong Ju Lee
Design team: Seung Joon Lee, HyeokJun Dong, Seongmin Moon
Construction: Sunjin Plus
Client: Hangang Art Park
Photo credits: Kyungsub Shin, Dae Won Lee, Kyung Mo Choi, Yong Ju Lee Architecture
Photographer’s website: http://www.shinkyungsub.com

More: Yong Ju Lee Architecture
