Parque Toreo商业综合体,墨西哥 / Sordo Madaleno Arquitectos

带有绿色中庭的商业空间

项目标签

类型:

非常感谢 Sordo Madaleno Arquitectos 予gooood分享以下内容。更多关于他们:Sordo Madaleno Arquitectos on gooood 。
Appreciation towards Sordo Madaleno Arquitectos for providing the following description:

今天,伴随着日益加剧的土地和人口密度之间的矛盾,全世界的大都市都在经历一场有关城市发展的变革。“Parque Toreo”商业综合体项目正是在当前形势下的一个探索。这个庞大的综合体位于墨西哥的Naucalpan,后者是墨西哥城北部最为繁华的郊区,商业发达。项目的总建筑面积为46,793.57平米,毗邻城市主干道,交通便利。

There is a clear trend in leading cities worldwide towards urban transformation that is above all the result of social and demographic evolution, reconciling densities and land uses to trigger development.

“Parque Toreo” was designed as a mixed-use complex and as a prime example of this phenomenon of urbanization. The site is located in Naucalpan, State of Mexico, the most developed suburban area with signi cant commerce to the north of Mexico City. It measures 46,793.57 sqm and includes access to main roads such as: Periférico Norte, Río San Joaquín Avenue and Parque de Chapultepec Avenue.

▼从购物中心入口看向建筑,the exterior view

建筑师对此寄予厚望,评论说,“我们相信Parque Toreo将会成为区域经济振兴的关键之笔,它将带来Toreo-Naucalpan以及Toreo-Reforma区域的复苏。”

“We believe that Parque Toreo, as a focal point of reorganization, it will trigger the recovery of the Toreo- Naucalpan corridor and of the Toreo-Reforma zone.” Commented by Javier Sordo Madaleno Bringas

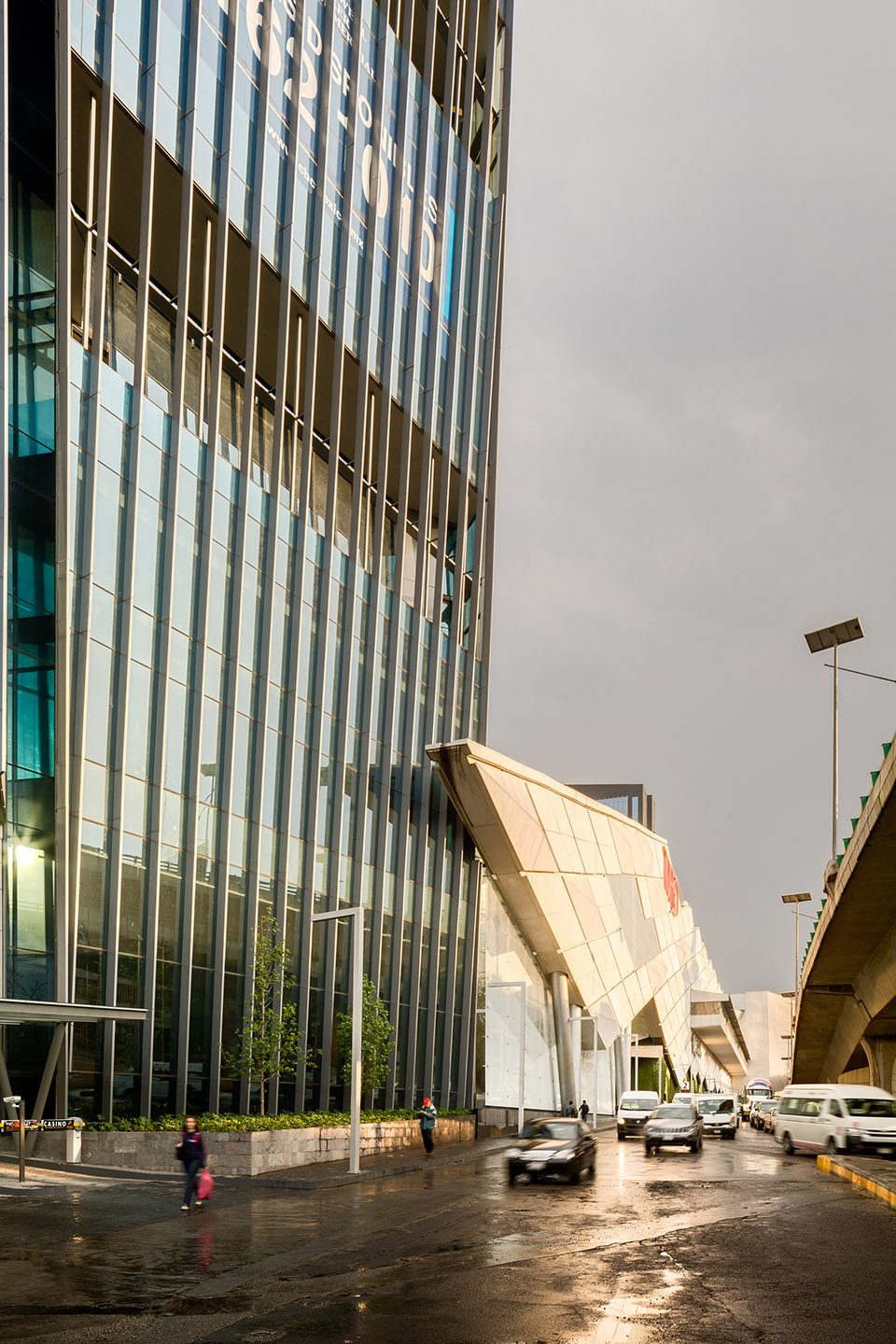

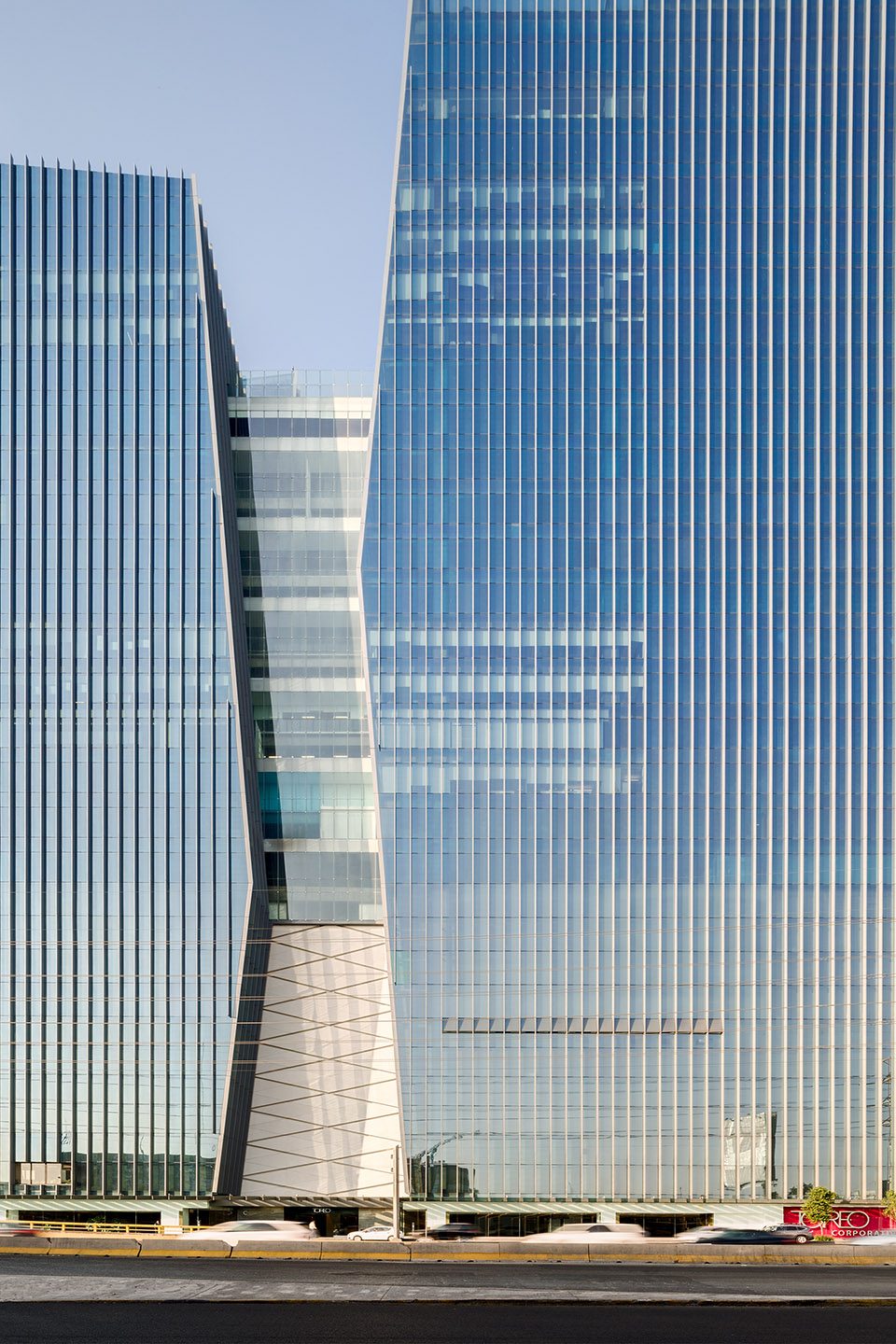

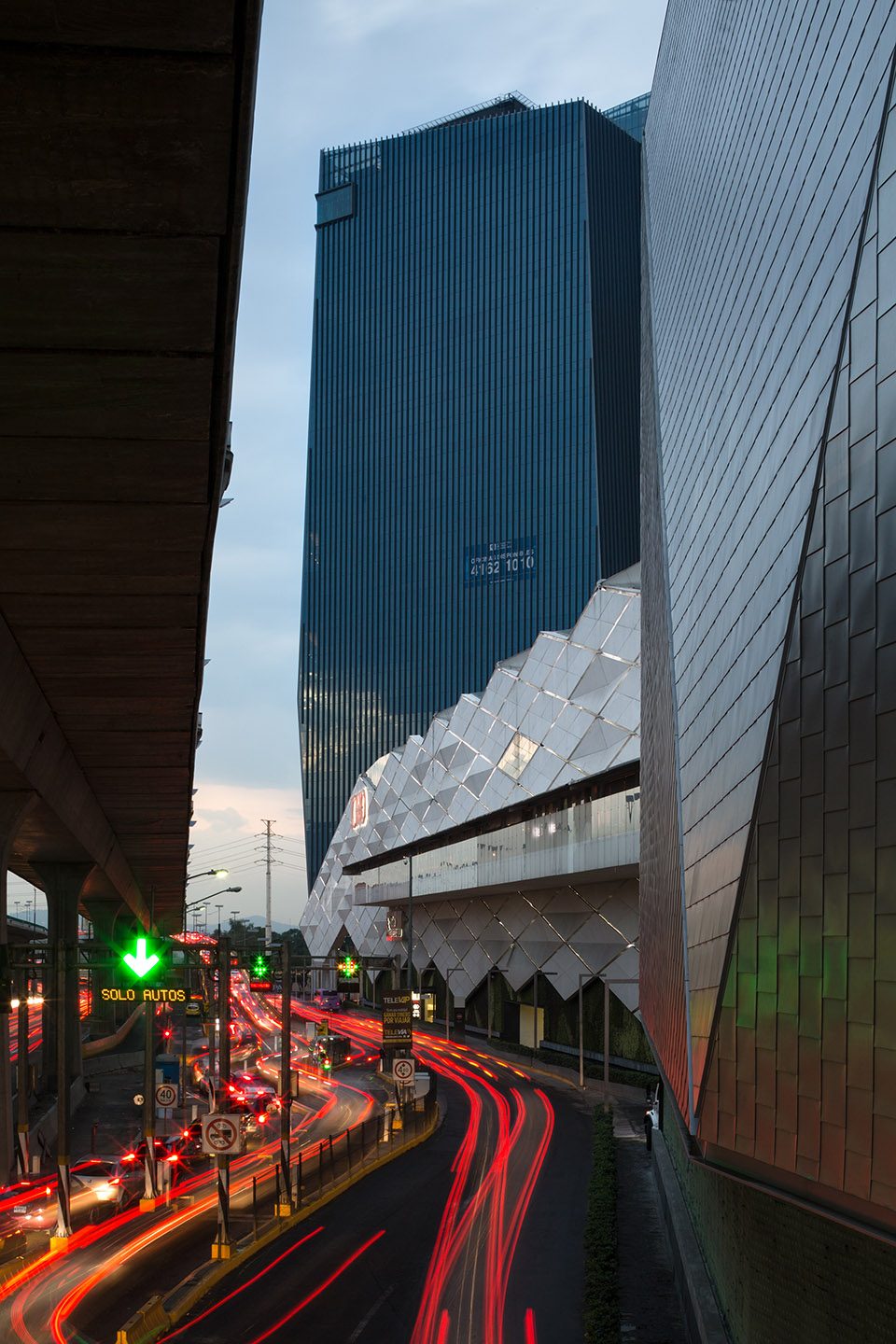

▼从城市道路看向建筑,street view

项目的总体规划被构想为一个“大公园”,包括一个购物中心,酒店以及三座办公楼,总建筑面积达440580平米。其中商场已于2014年十月竣工,二期于2016年开始。

From the start, the master plan was conceived as “a great park,” an urban space that comprehensively unites different uses. This project contains a shopping mall, a hotel and three corporate buildings, covering a total of 440,580 sqm of built area.

The shopping mall successfully concluded in October 2014. Meanwhile the second stage began operation in mid 2016.

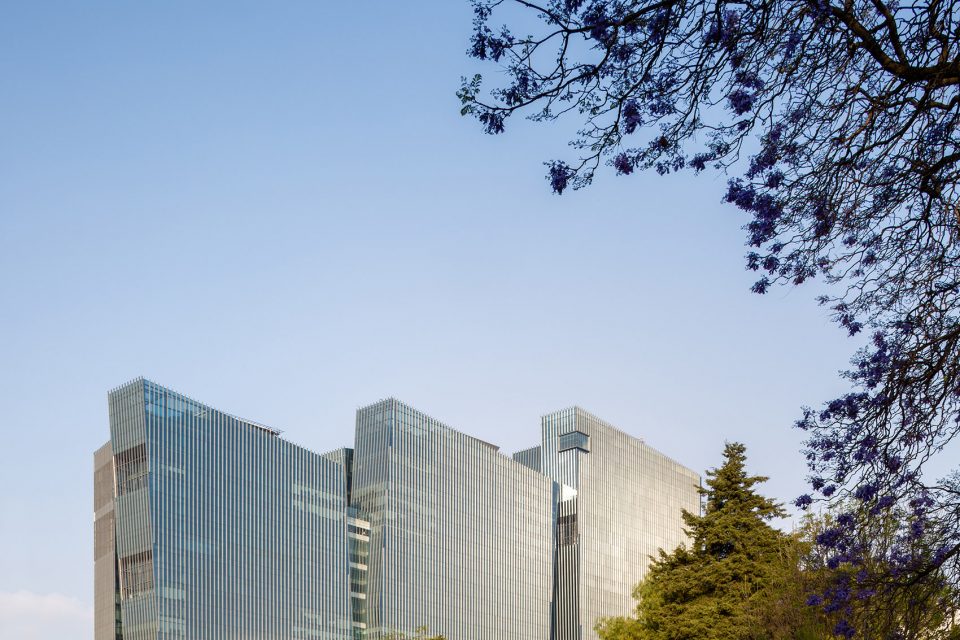

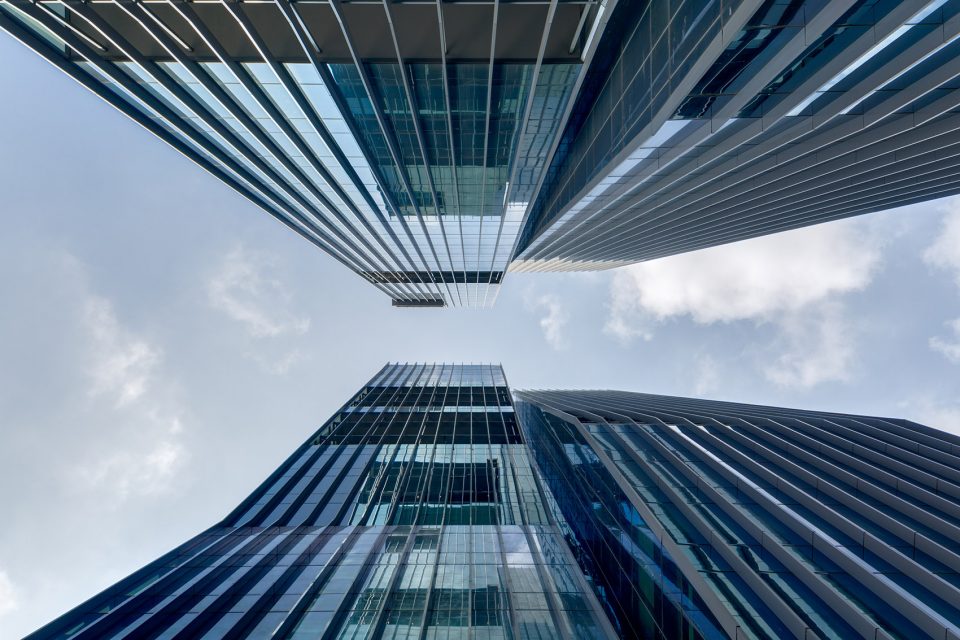

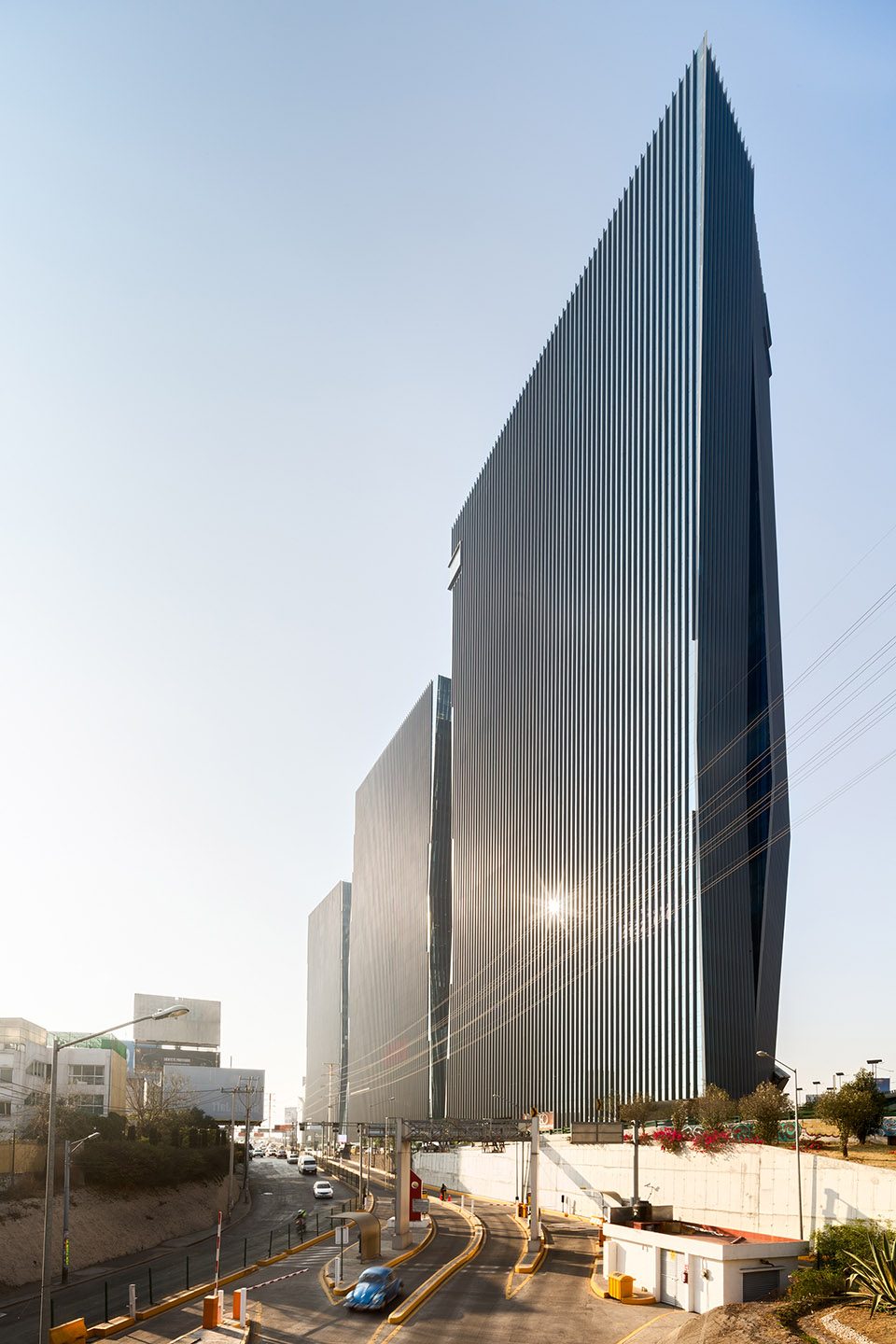

▼综合体由商场、酒店以及办公楼组成,the complex including a shopping mall, a hotel and three corporate buildings

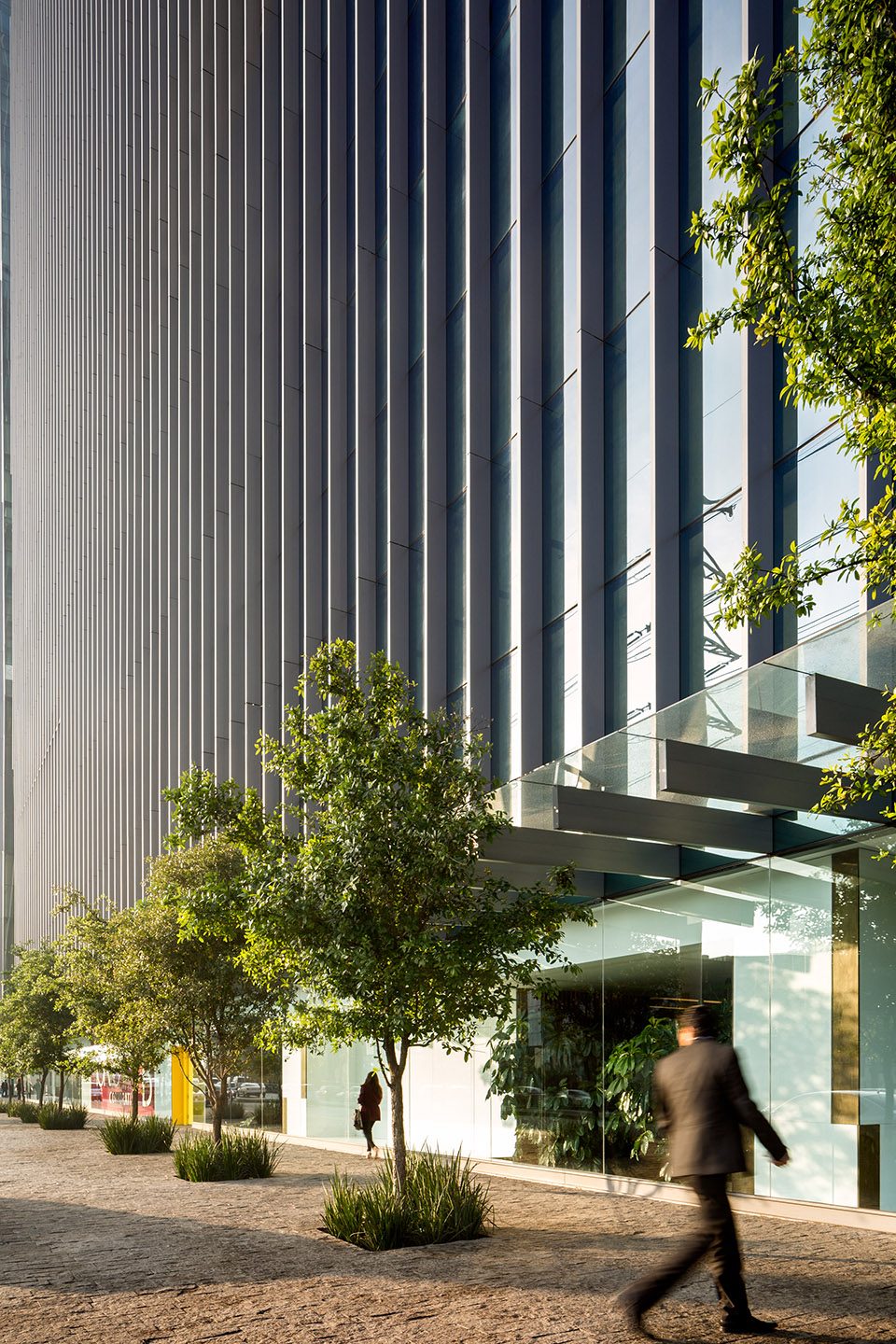

▼建筑入口处的幕墙细节,the curtain wall detail at the entrance

在购物中心,随处可见的植物与商业空间形成了良好的平衡。大约6000平米的公园带来了绿色和宁静的氛围。市民们可以在喷泉和树木环绕的公共空间自在的休憩。这里成为了社区乃至城市文化交流的场所。购物中心占据了四层空间,商店、电影院及餐馆为这个半开放空间带来了活力和人气。一家占地25000平方米的旗舰店即将开幕,为商场增添新的地标。

In the shopping mall the user is at the center circulating among fountains, trees and open spaces, with the aim of enjoying a public space and providing a site for social encounter and interaction for the zone and the city as a whole. The rich vegetation with big trees over the shopping mall generates a balanced atmosphere with the retail spaces.

“The heart of the project is a park of approximately 6,000 sqm that provides a real sense of peace and connection with the green areas in this zone which is so arid because of the junction between Periférico and Río San Joaquín.”

The shopping mall occupies the first four floors, with stores, cinemas and restaurants that fill these semi-enclosed spaces with life and cover approximately 91,500 sqm. The construction of an anchor store is soon to be finalized adding 25,000 sqm to the commercial area.

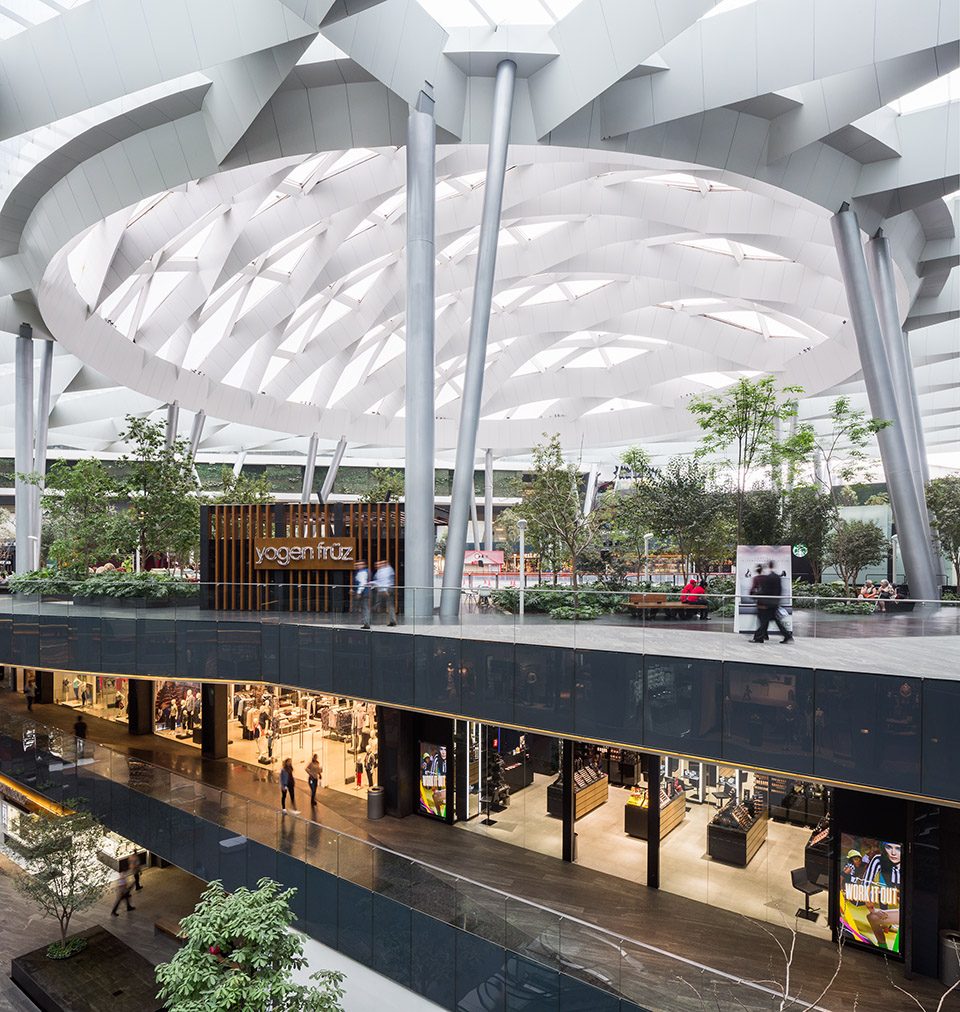

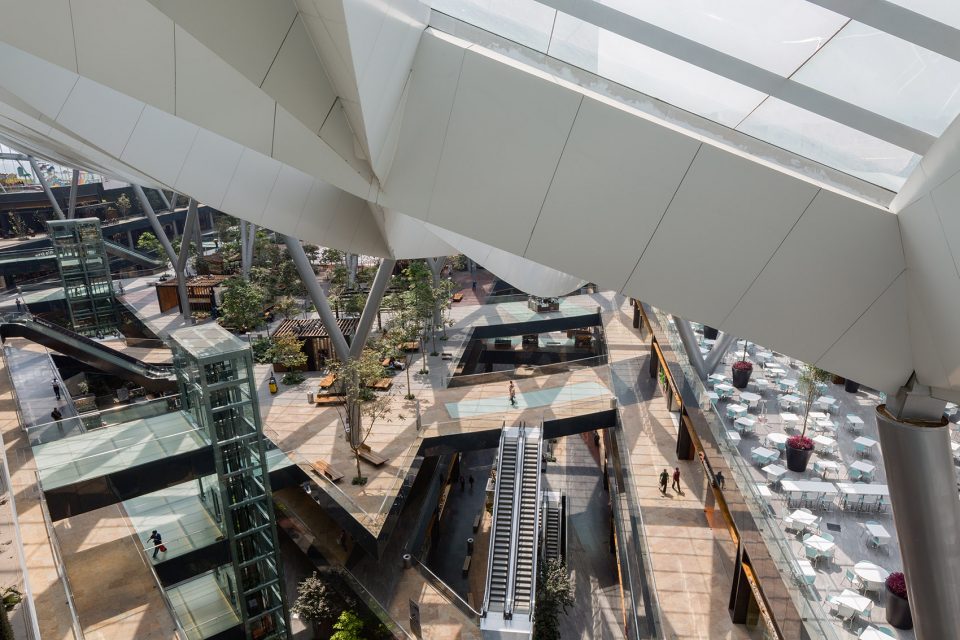

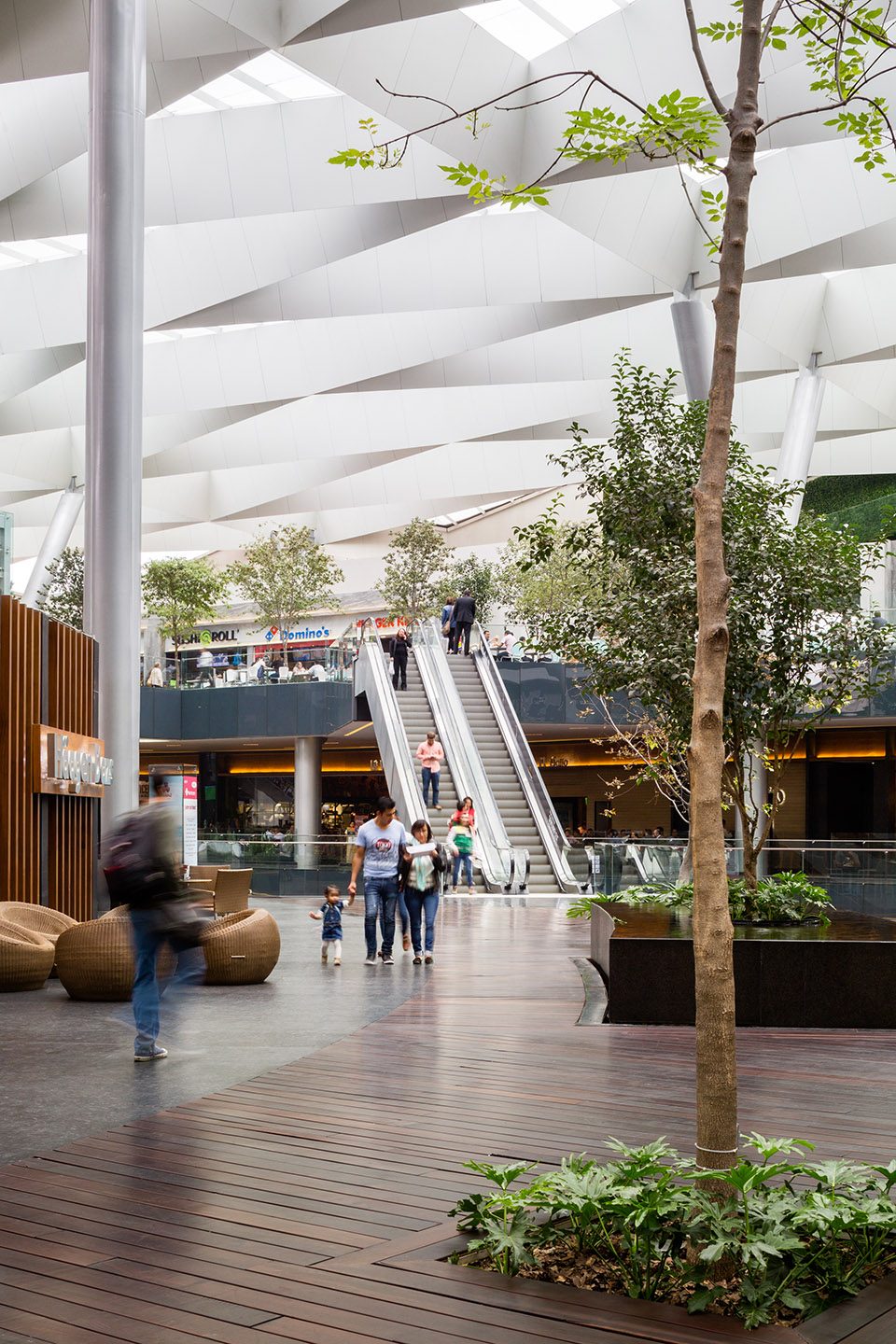

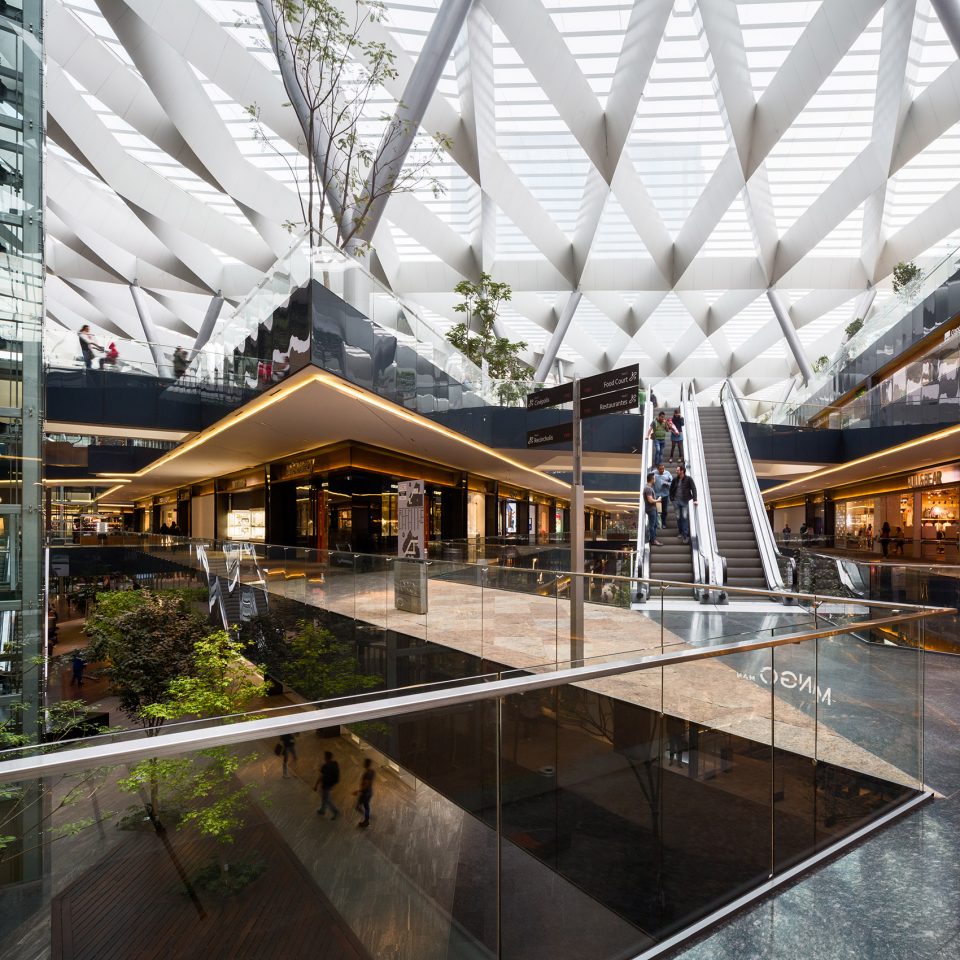

▼四层购物中心内绿荫环绕,the shopping mall with  fountains, trees and open spaces

办公塔楼的B座和C座共有建筑面积约6万平米。行政酒店有220间客房,十五层建筑面积15000平米。而A座的建筑面积为60000平米,目前仍在施工中。

The “B” and “C” office towers hold an approximate built area of 60,000 sqm. The executive hotel includes 220 rooms covering an area of 15,000 sqm over 15 floors with the “A” office tower with a total area of 60,000 sqm are currently under construction.

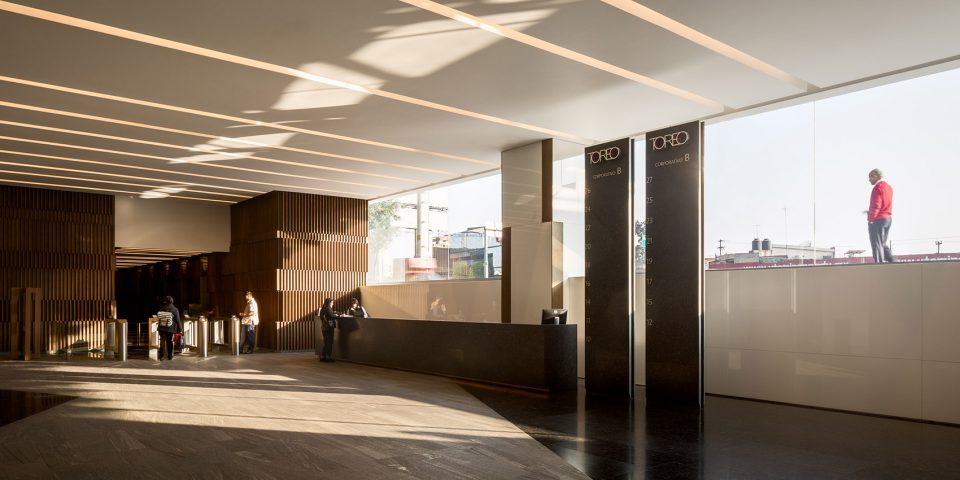

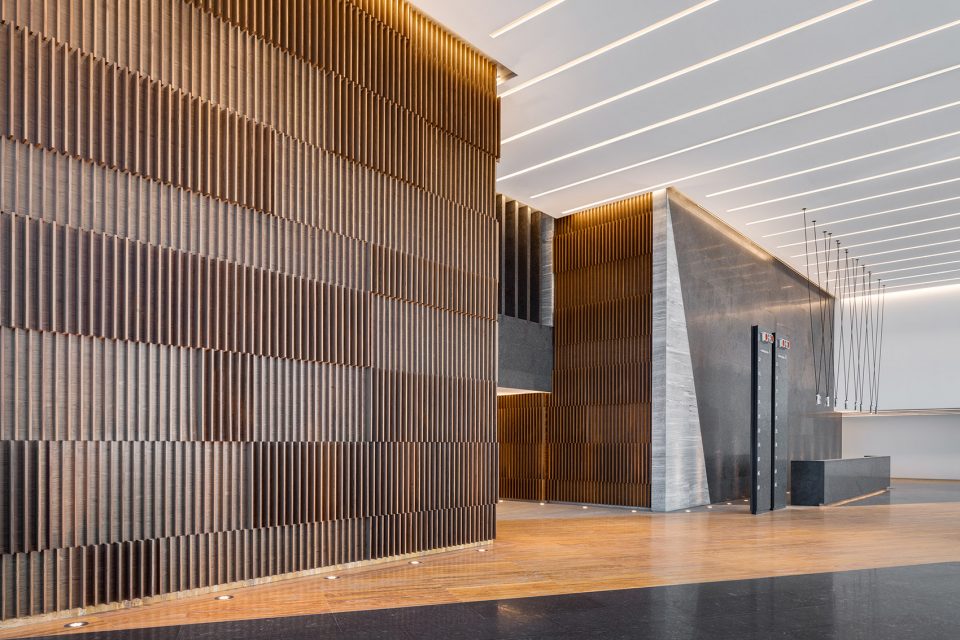

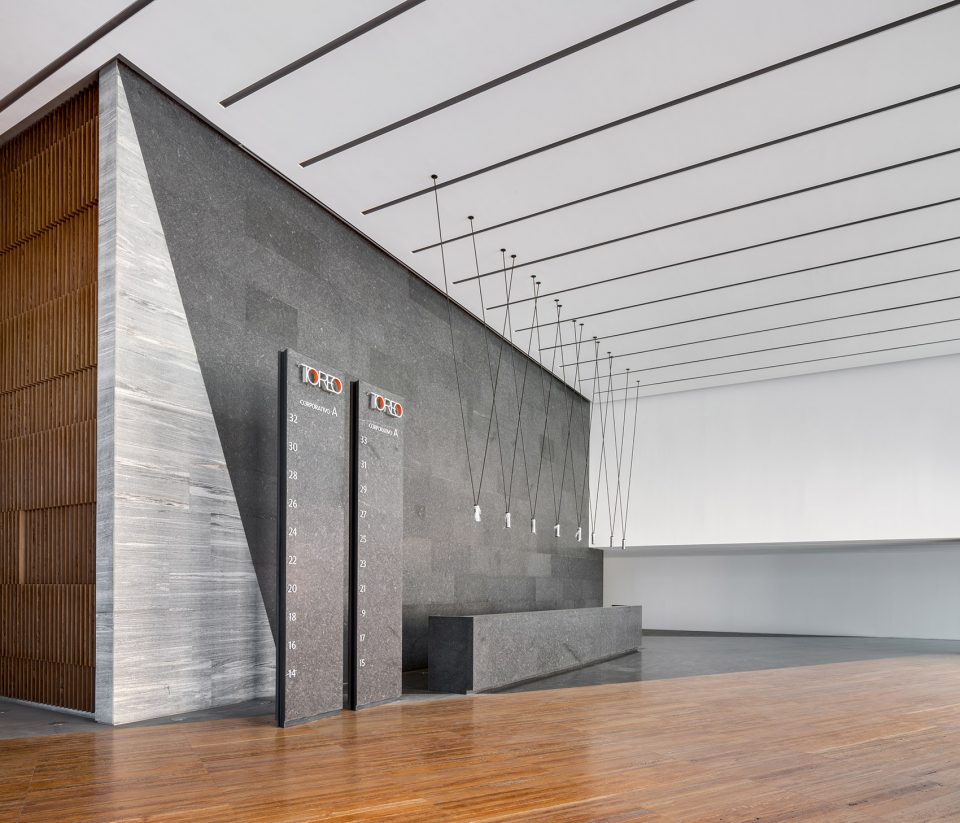

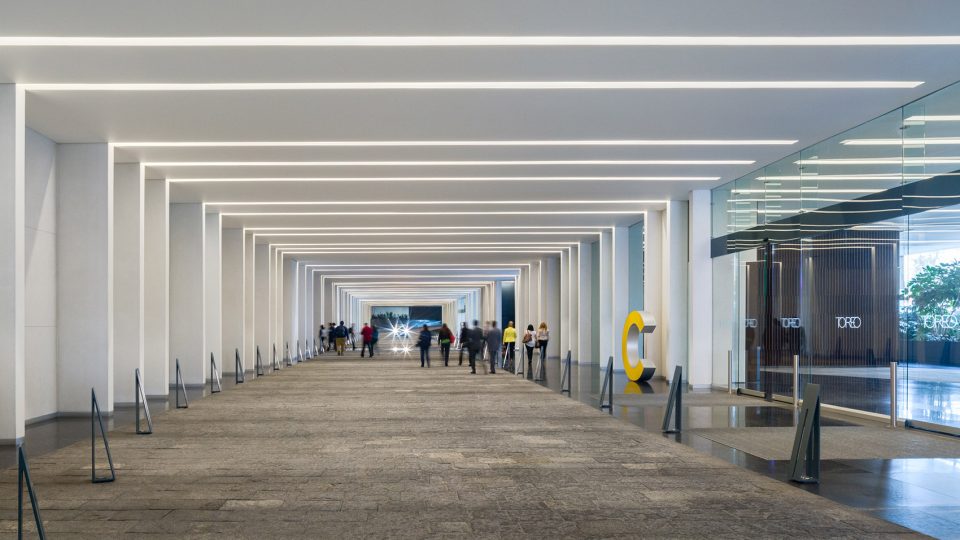

▼办公楼的入口大堂,the lobby at the office towers

建筑师介绍说,“大屋面是这个设计中最有趣的部分,它具有宏大的尺度,可以让自然光甚至雨水从中进入。” 综合体建有六层地下停车场,并在购物中心及办公楼层之间设有转换层,以提供不同功能之间的灵活转换。在转换层还设有商业俱乐部和一个展览空间,这里可以举办画展、文化活动、培训以及演讲等活动。

“The roof is one of the most interesting things we have created – as well as its vast size the design allows light and rainfall into different areas of the complex.”
Javier Sordo Madaleno Bringas

The project includes six floors of underground parking to meet the parking needs. The “transfer” area located between the floors occupied by the shopping mall and the ground floor of the offices serves as a distributor and filter for the good operation of the different uses. This area houses a business club with attractive spaces that generate new experiences such as exhibitions, cultural events, training halls, an auditorium, etc.

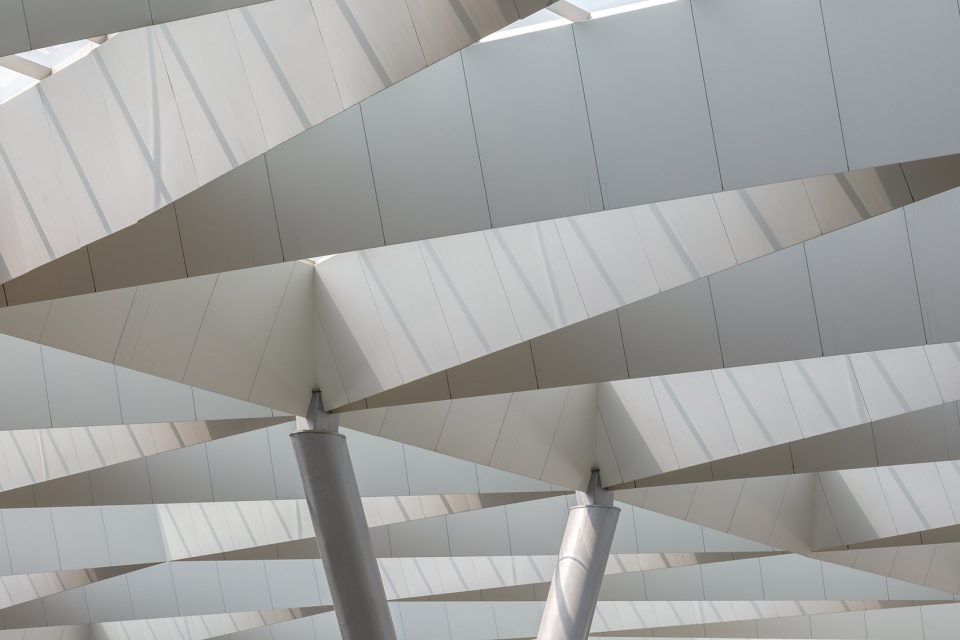

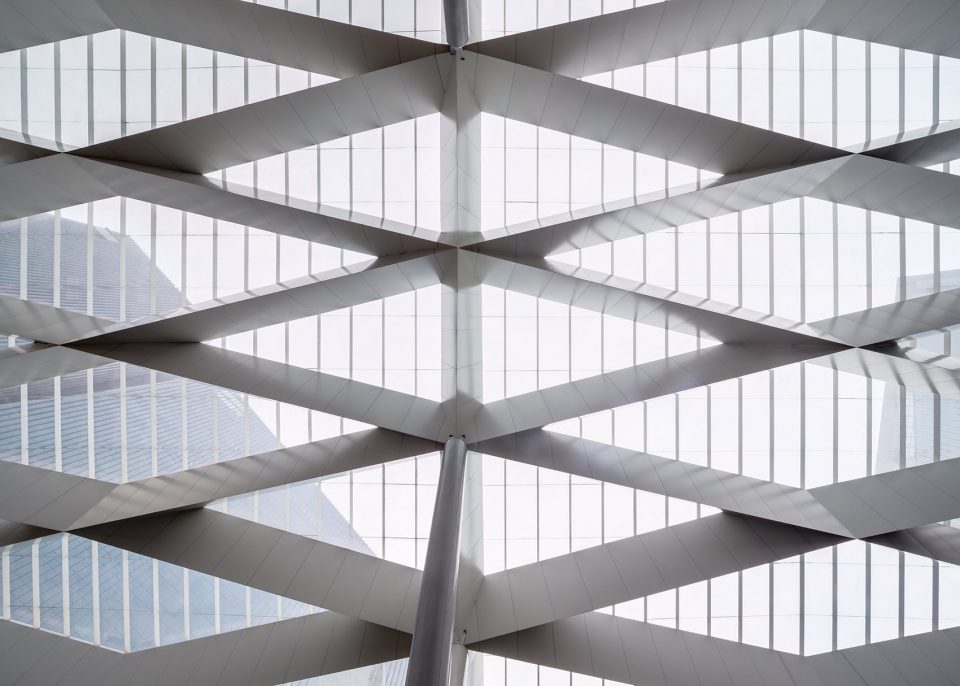

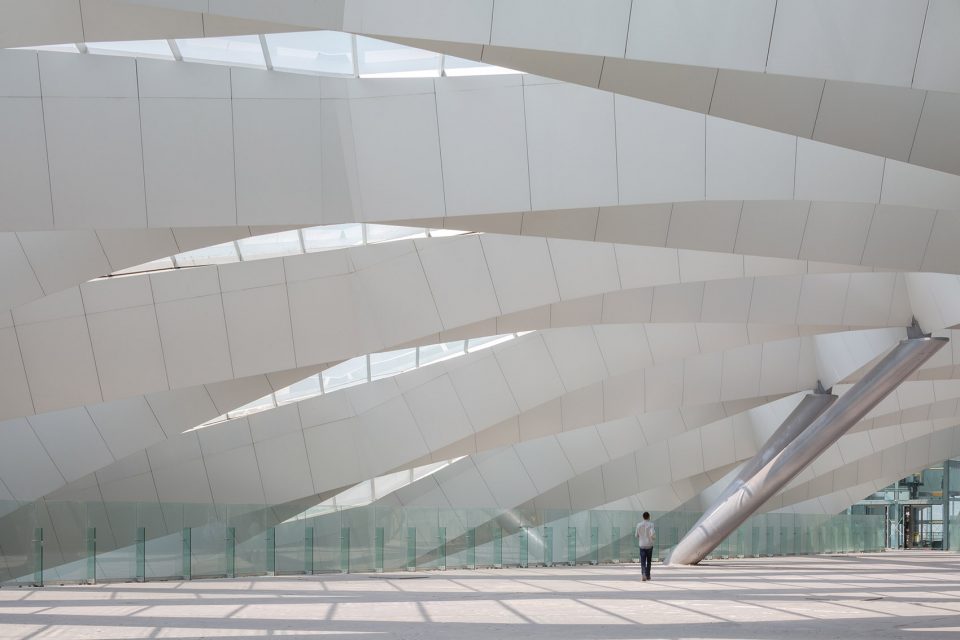

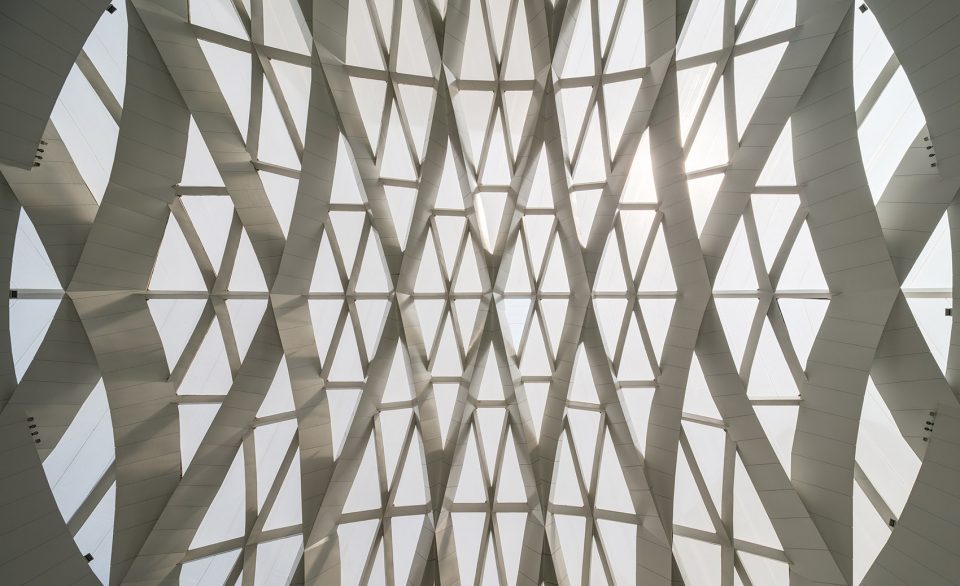

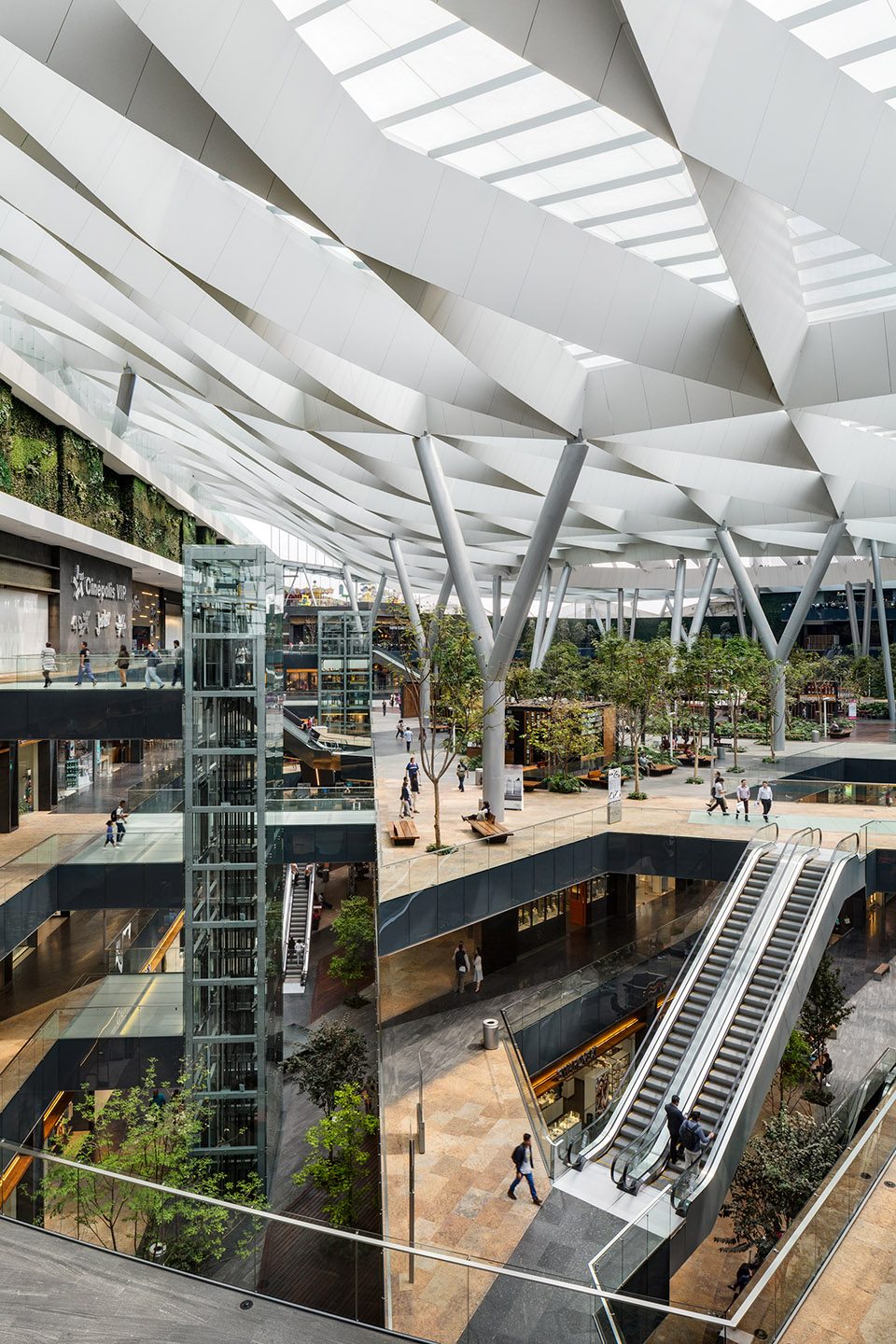

▼大屋面是整个设计中最有趣的部分,the grand roof is one of the most interesting part

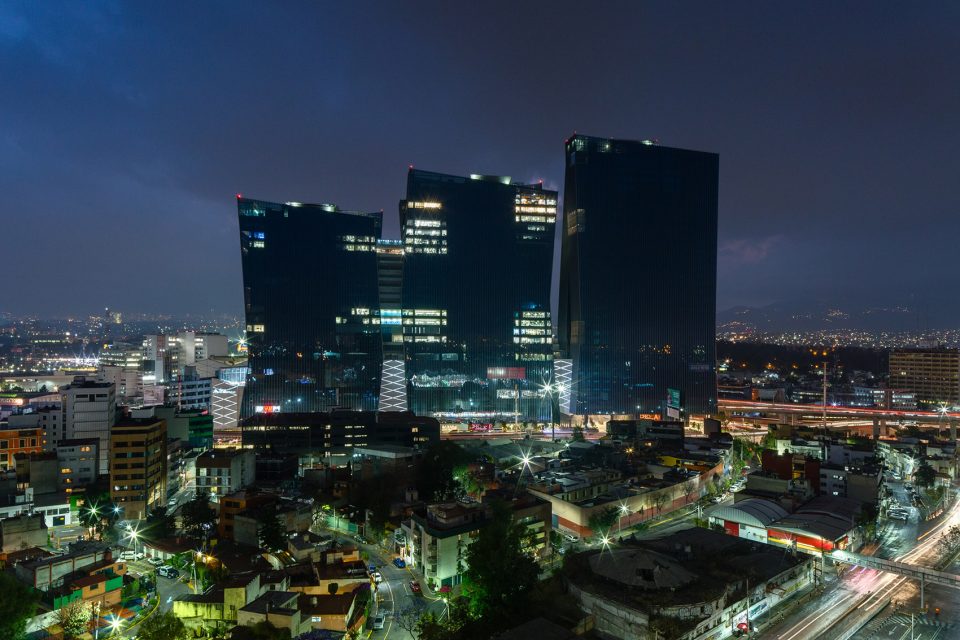

▼夜景,night view

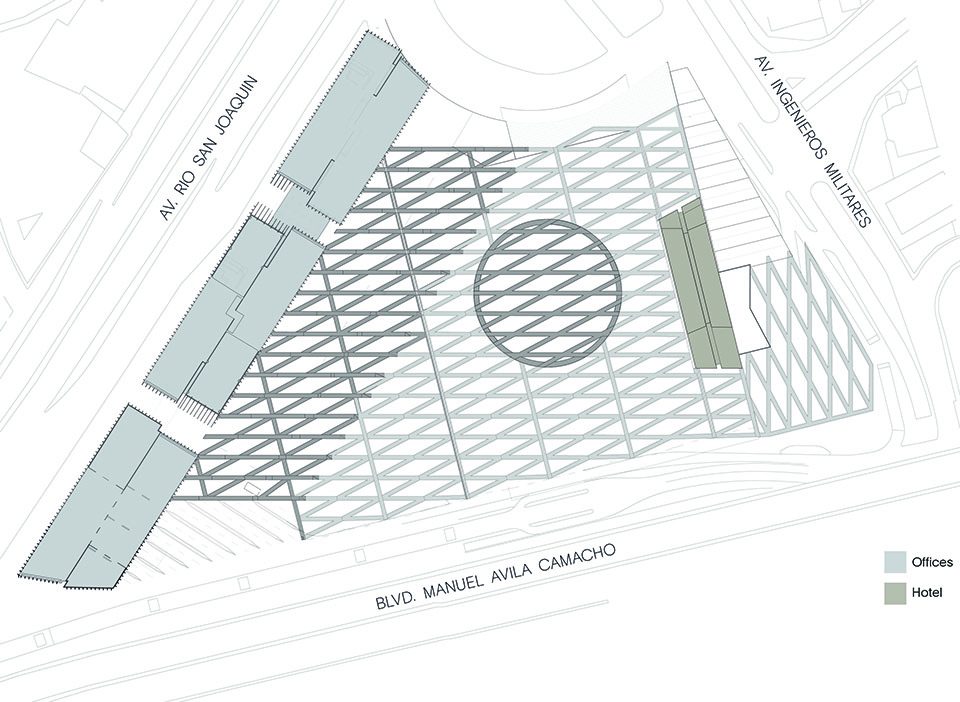

▼总平面图,siteplan

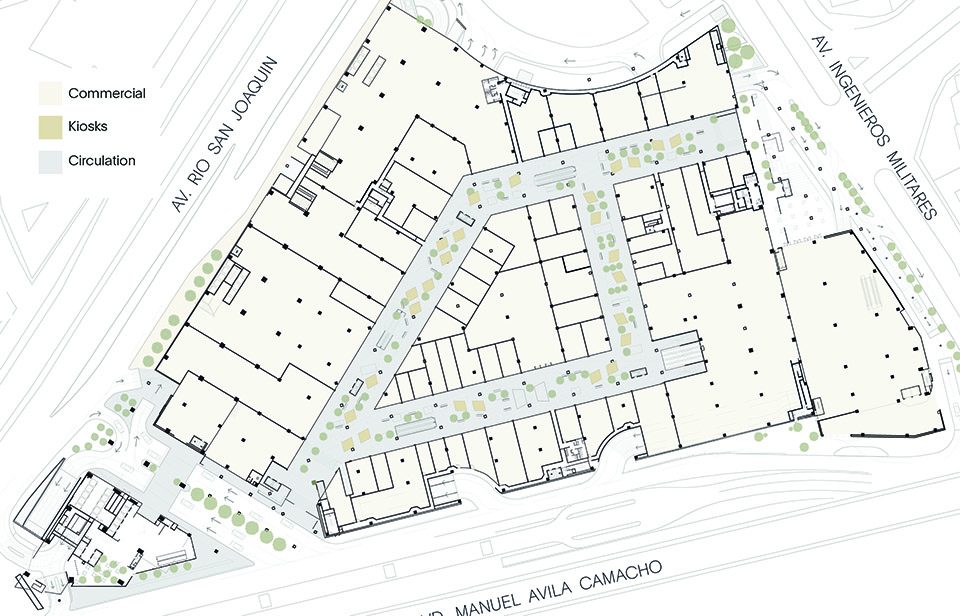

▼地面层平面图,ground floor plan

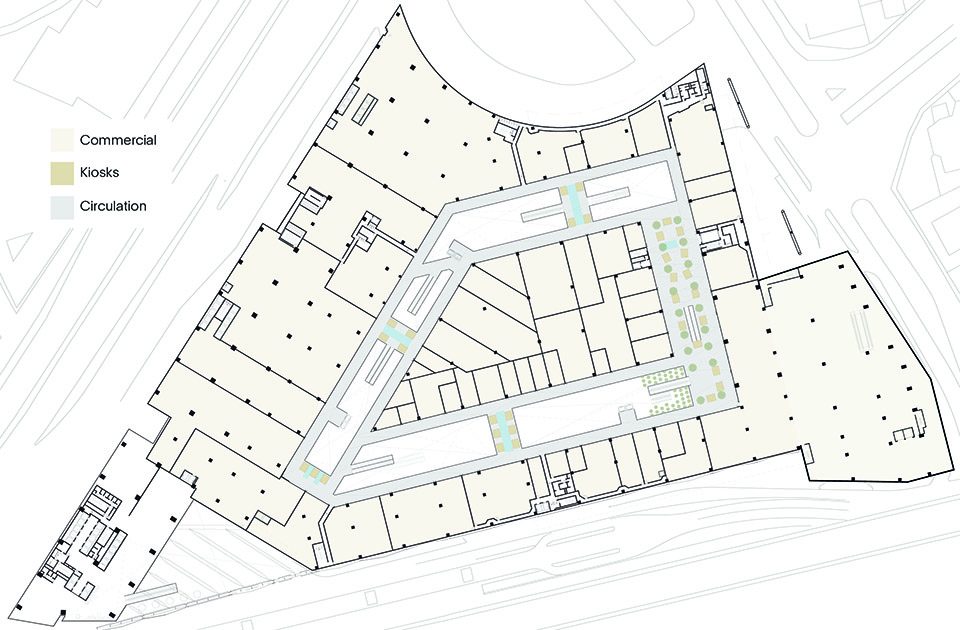

▼一层平面图,first floor plan

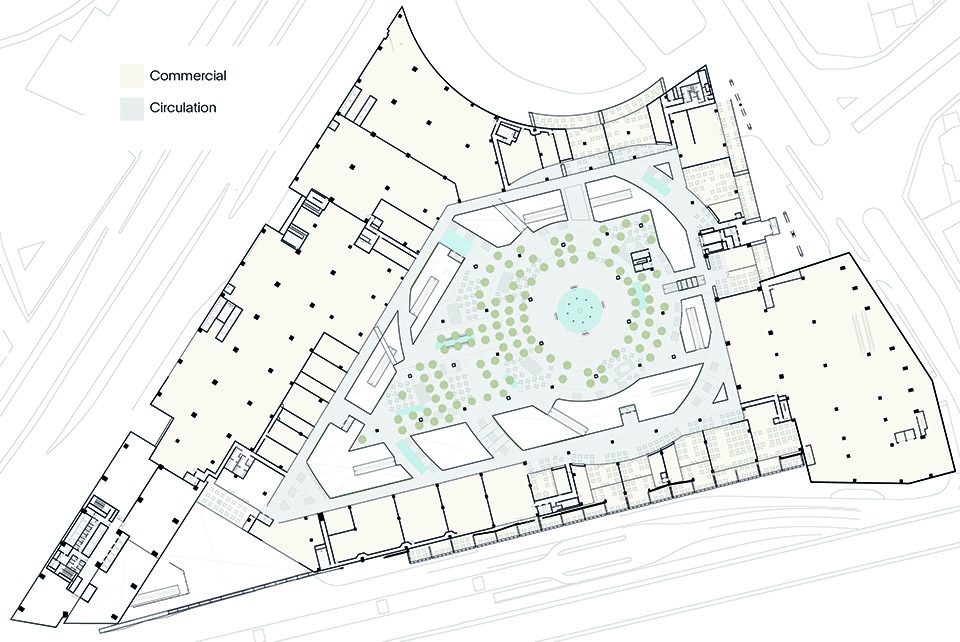

▼二层平面图,second floor plan

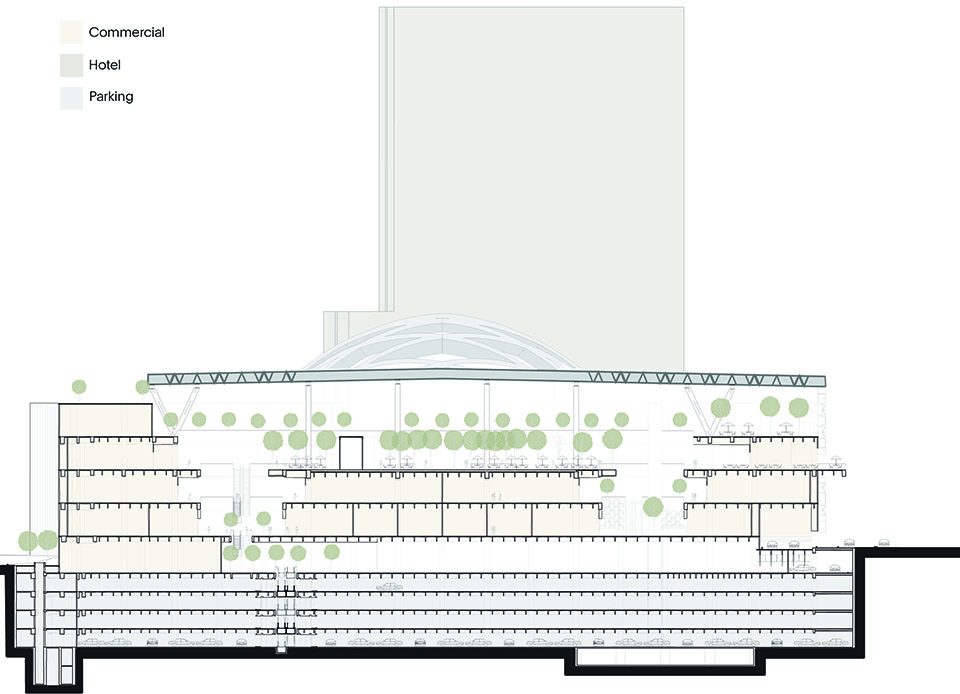

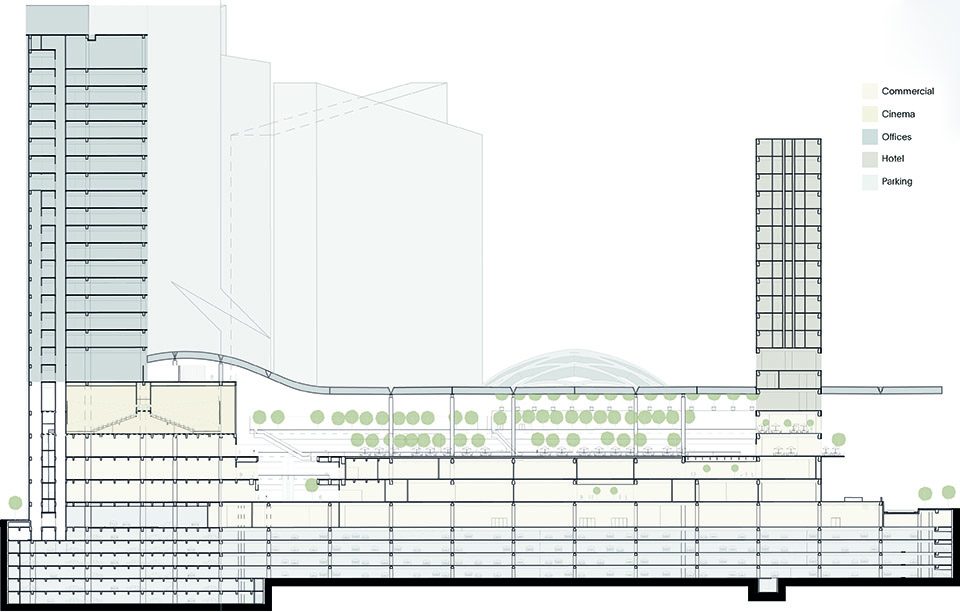

▼剖面图,sections

Sordo Madaleno Arquitectos
Architecture Leader: Javier Sordo Madaleno de Haro
Project Leader: Jorge Isaías
Client: Grupo Danhos
Construction Area: 440,580 sqm
Photography: Rafael Gamo

More: Sordo Madaleno Arquitectos,更多关于他们:Sordo Madaleno Arquitectos on gooood 。
