New engineering faculty for the University of Technology

The building is integrated with the urban context.

Project Specs

Location:

非常感谢Denton Corker Marshall将以下内容授权gooood发行。更多请至:Denton Corker Marshall on gooood
Appreciation towards Denton Corker Marshall for providing the following description:

该项目是由Denton Corker Marshall设计的悉尼科技大学工程和信息技术学院新大楼。该设计从60个参赛作品中脱颖而出,赢得了国际设计比赛的胜利。大楼与城市文脉相融合,展现了大学在创新和技术领域的重要地位。

Selected from over 60 entries in an international two-stage design competition, the design of the new Faculty of Engineering and Information Technology engages with the urban context and conveys the university’s position at the intersection of creativity and technology.

/wp-content/uploads/2014/08/_c_cfsG3qD4G_jgvz5K3wTQyVLowLrHGUbibasrDDp_aO_UKXN_14YS85CQLHM84M-JOiGo3cuMRy7xjFPCk_gSuYieRSuf0yL1.jpg

该建筑位于重要的城市区域内,是悉尼科技大学城市校园和悉尼CBD南端的门户。14层(含4层地下室)的大楼内设有国家级艺术讲室、学术办公室、研讨室、教学和研究实验室、学生会、餐饮娱乐区以及自行车和汽车停车场。

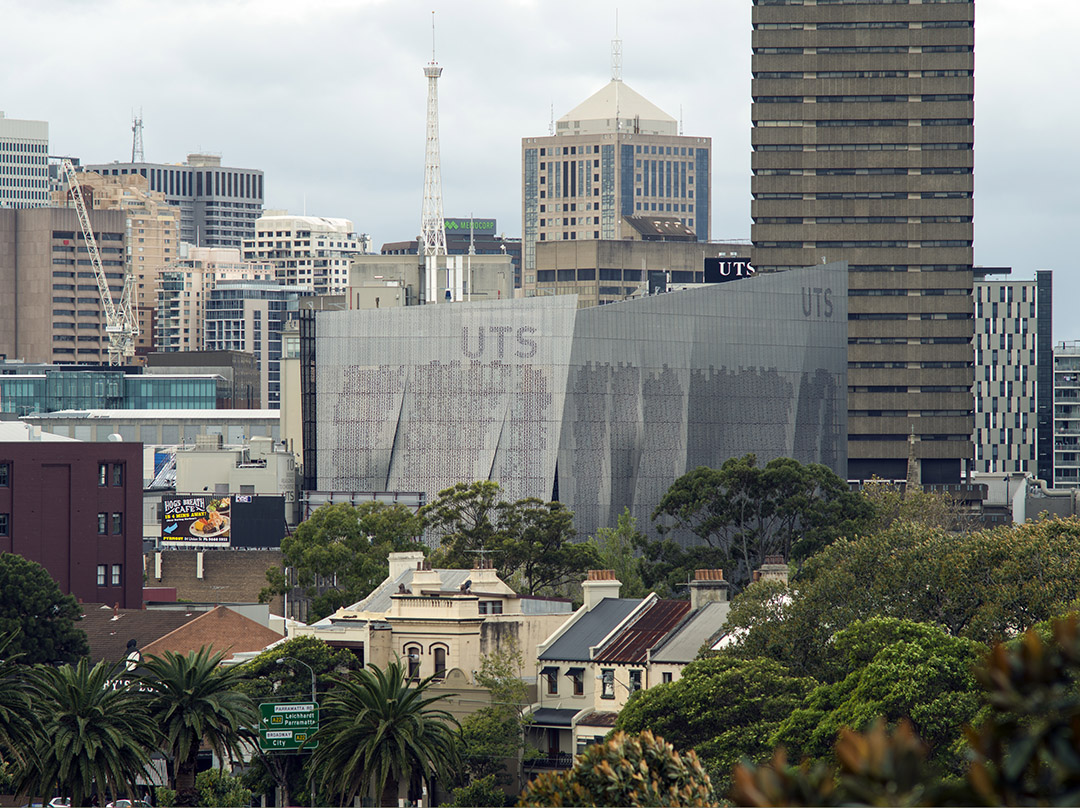

On a prominent urban site, the building creates a gateway to the university’s revitalized city campus and the southern end of Sydney’s CBD. Fourteen levels, plus four below ground, accommodate state-of-the-art lecture rooms, academic offices, seminar rooms, teaching and research laboratories, student union, food and recreation areas, with bicycle and car parking.

/wp-content/uploads/2014/08/_c_lANfzvYmbSs9Z8s5KAd_zJ2oSB7Z3gVnwcqma_ZewFXp0BTzZRPLpCtHuGVgBmUAnAiT6flhdWsX2SFA6HzxafRgmp7BA_ek.jpg

该大楼雕塑感极强,与周围的传统建筑及本区对面的拟建高楼风格迥异。

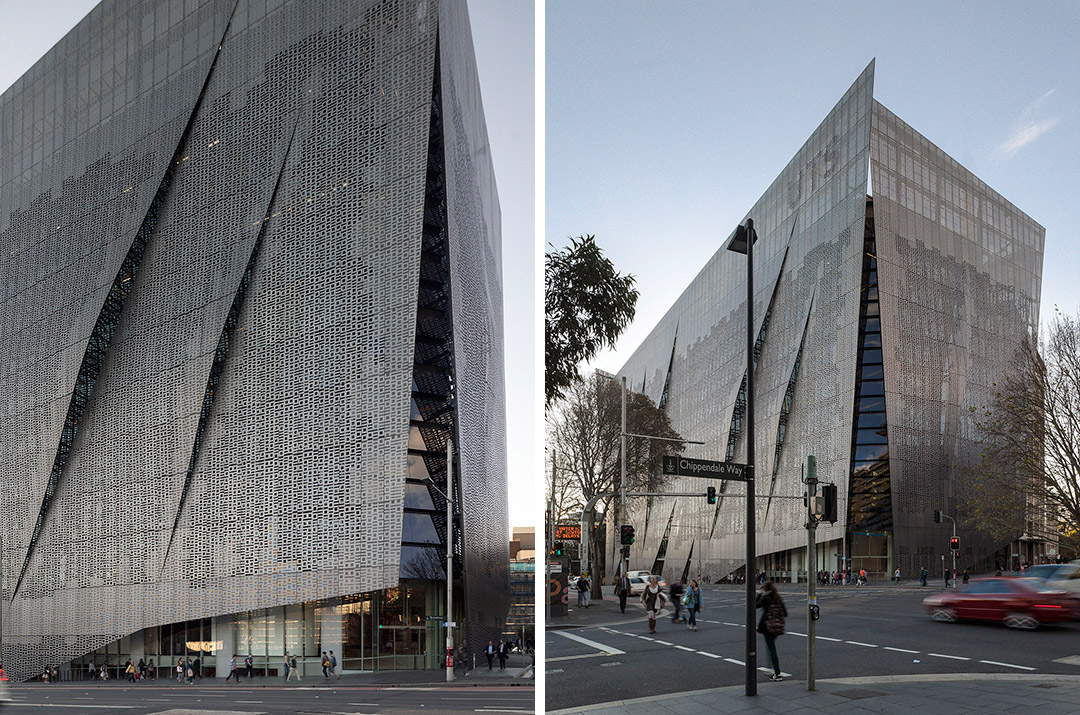

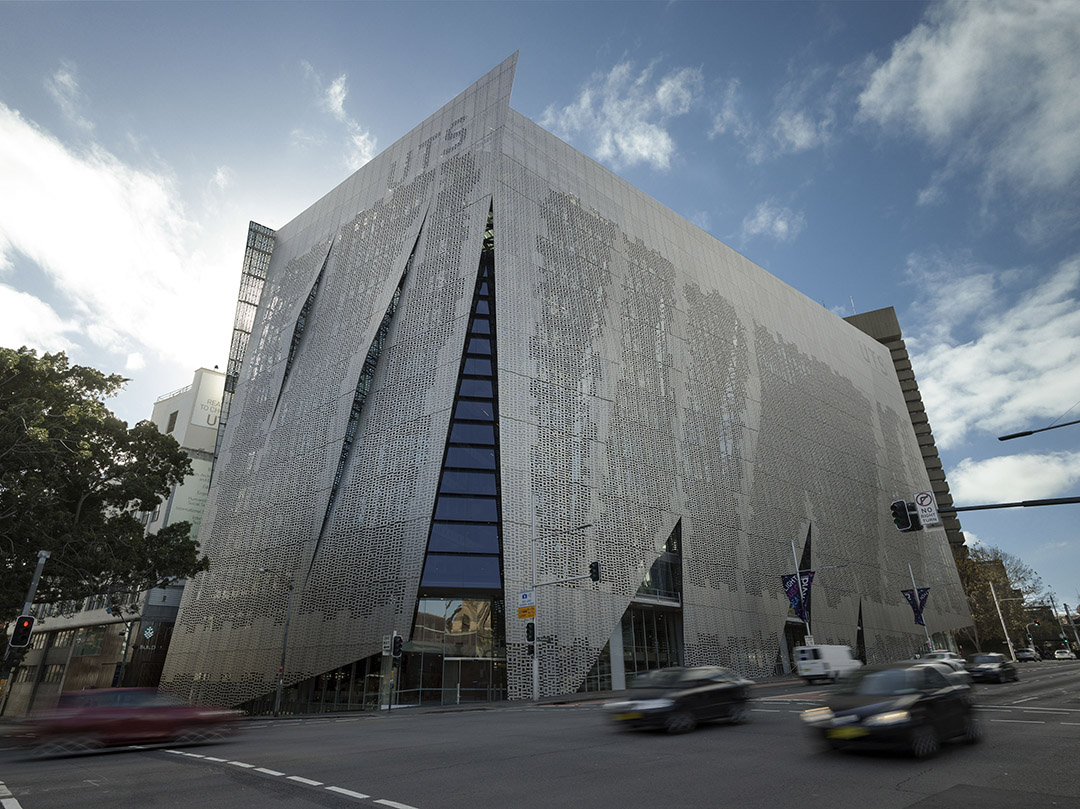

The building is expressed as a singular sculptural object, setting it apart from the more traditional architectural expression of its neighbours and from proposed towers at the Fraser Broadway Development opposite the site.

/wp-content/uploads/2014/08/_c_WRxNMIs1Jh6S_VYFntCHkcFB1drnn5vFVkyPwEECjkvM2TeYHE9kMsNvx2ioVfnMd-TZvOXxj7OYdHjFjD-xyfJUTLFwCej0.jpg

四块倾斜板将建筑体量包覆起来。铝质薄板上孔洞形成的图案源自“悉尼科技大学工程和信息技术学院”的二进制代码。表面“鱼鳃”状的突起结构打破了立面的单调感,不仅在视觉上强化了板材作为大楼皮肤的特性,而且带来了让建筑呼吸的象征意义。

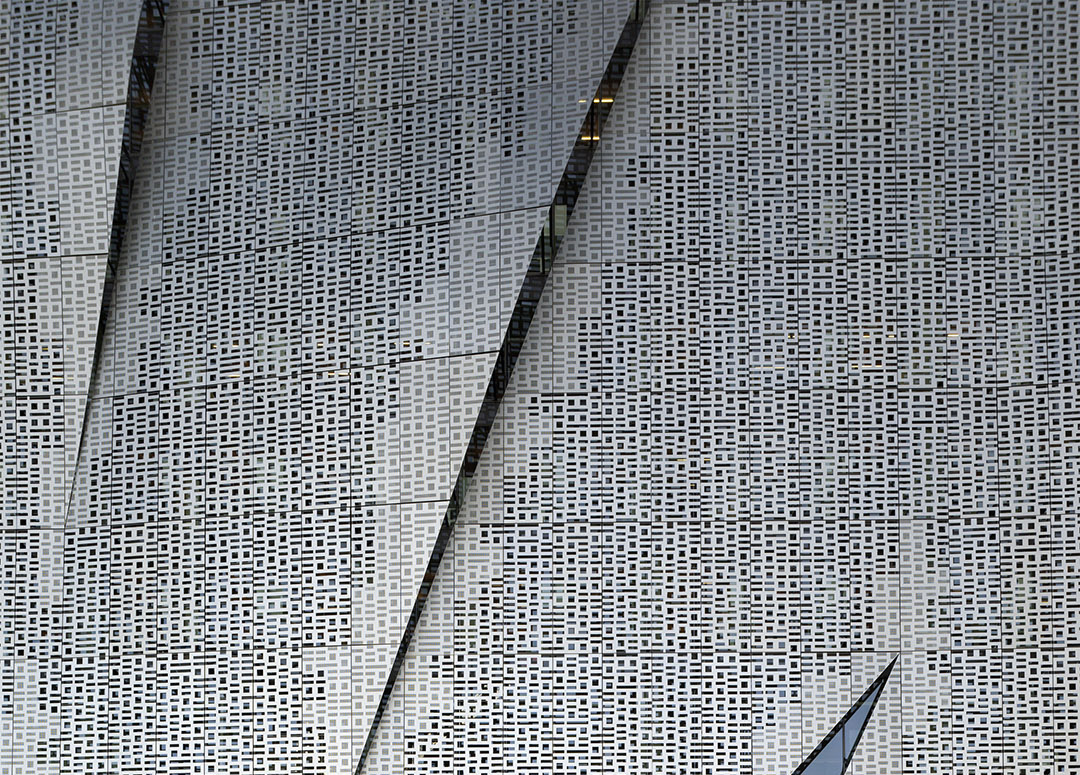

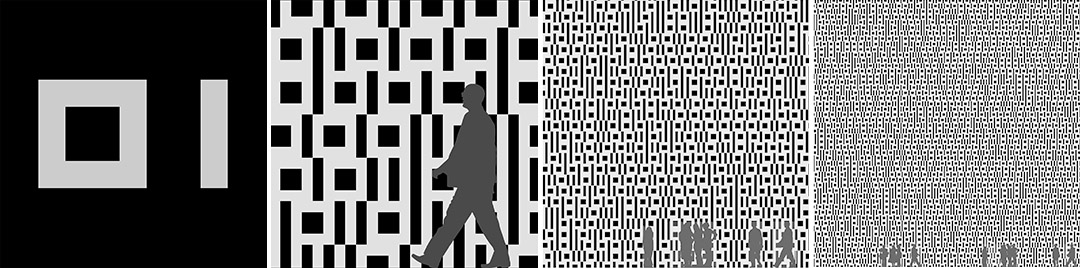

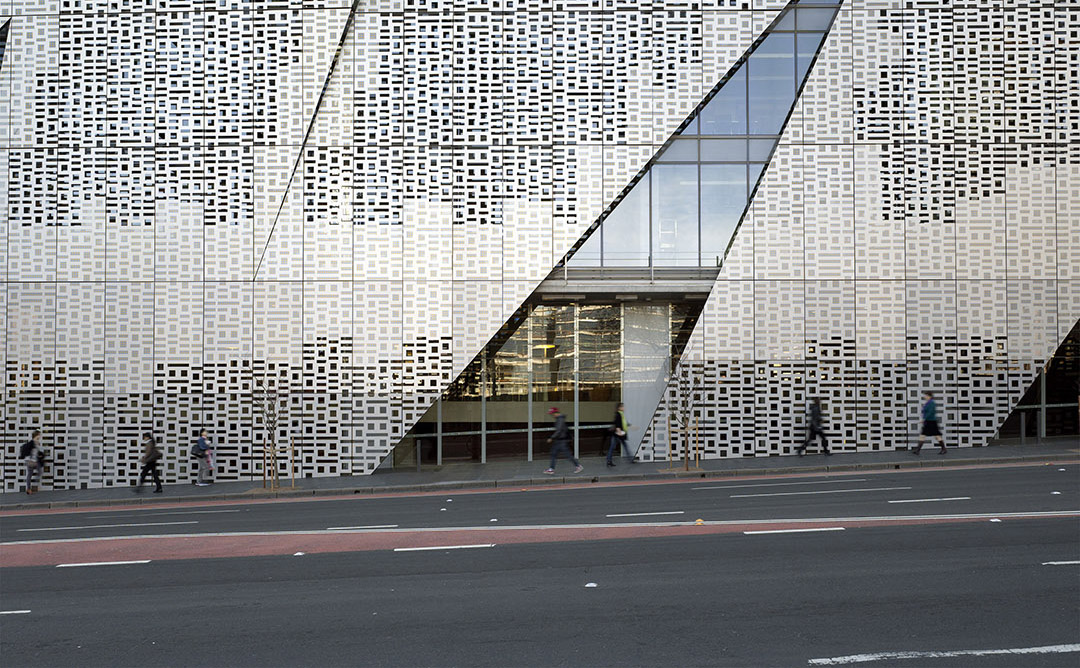

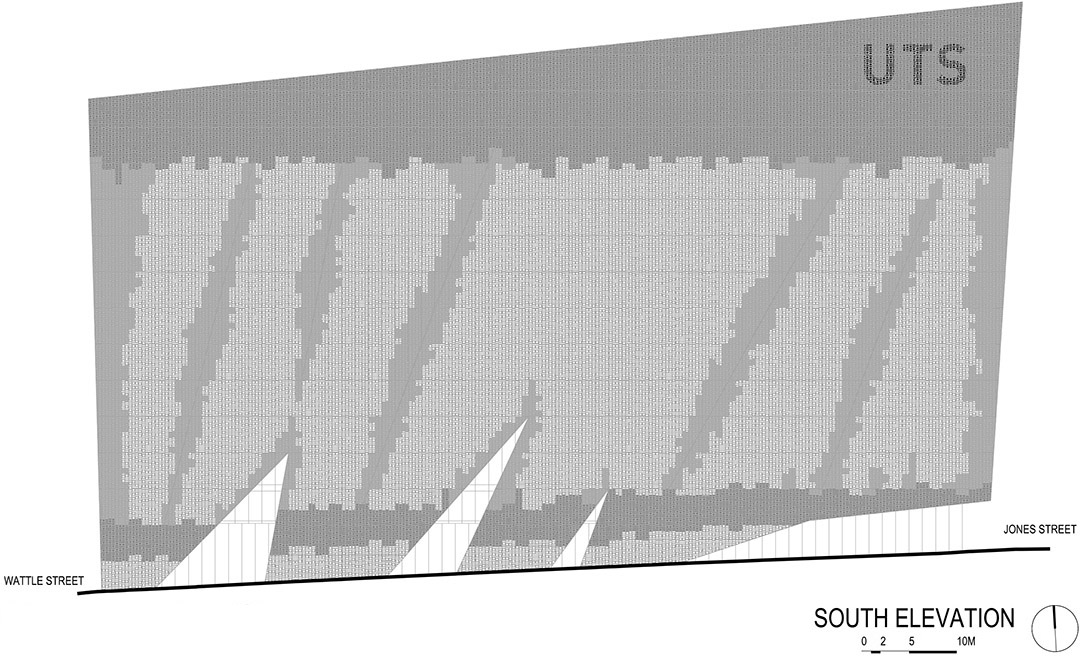

Four tilted and skewed plates envelope the building’s volume. The plates are made of aluminium sheets perforated in a pattern derived from the binary code for ‘University of Technology Sydney Faculty of Engineering and Information Technology’. ‘Gills’ creased into the surface of each plate punctuate the façade, visually reinforcing the sense of plate as skin and symbolically allowing the building to breathe.

/wp-content/uploads/2014/08/_c_3Ac5GeEM0YoySSsmmQvslsO5iTbacmwA_B6QvFdUZ3VhNZ2yhRVtZhYAzxWAsSMs7-b6-kvAYg61Uw3x_YJ9YLa5N1ntnxxN.jpg

/wp-content/uploads/2014/08/_c_Fe01-Y35HEjbRwQYqhLO5NPB65QBXifYTsei_Pj_Q_-Ujaeq1C797BSZ1BnI4rCc8UU7Jq9k4hEp6Om4XrTOT97mzx9Icdnb.jpg

/wp-content/uploads/2014/08/_c_eaznwh_YPpeF00eKPpnAkKyG-nRXrtnpZGIRebweILLAGiLfoNnZXgcwAN55i64vLOySMAn0VGWSCYSRZSv8DvbPEEa_S95A.jpg /wp-content/uploads/2014/08/_c_O0D3BC8XlogG4Bspefb_Hz8heH9GAbqZ1GrodQ_S3wvODrc5HRTA5mt_Jkw3zB2urk-xkY1KkkywRS8yTwHVFaXc8Mj9O3ng.jpg

裂缝般的狭窄中庭连接所有教学、学习和社交区域,通过建筑体现了学院合作学习的文化传统。在这个充满活力的空间内,开放式楼梯贯穿其中,不规则布局的桥梁成为休闲会面的平台,平台两边是宽敞的走廊。大楼内部采用的混凝土和耐候钢打造了“仓库”的质感,呈现出赤裸的原材料的美感和一个为创意产业所青睐的环境。地面层入口处设计了透明玻璃墙壁,这样大学与周围建筑建立了直接联系。

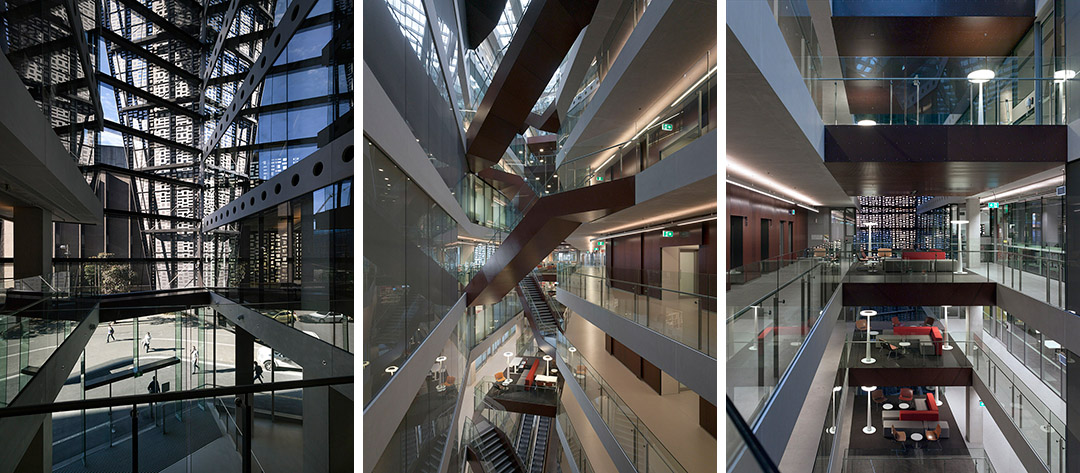

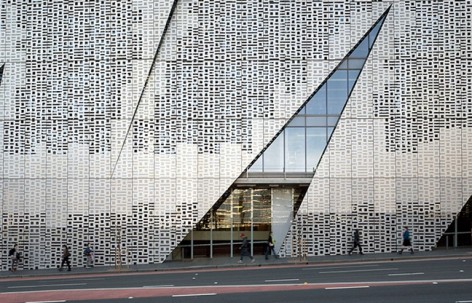

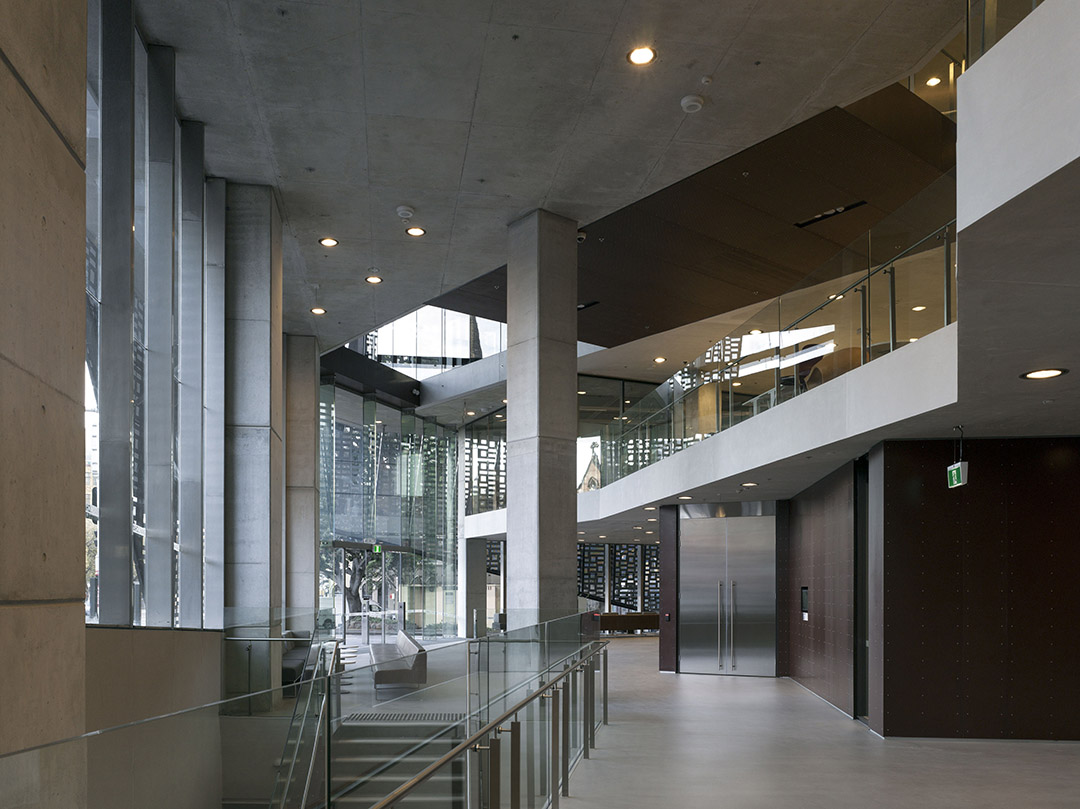

The faculty’s collaborative learning culture materializes in the ultra-thin crevasse-like atrium which links all teaching, learning and social spaces. It’s a dynamic space occupied by open stairs, random bridge links and lounges for informal encounters, with circulation along its edges. The raw aesthetic achieved internally with materials such as off form concrete and Corten steel engenders a warehouse quality, aligning the faculty with environments favoured by the creative industries. Offering naturally-lit access through the building at ground level, the crevasse directly links the university to the local neighbourhood.

/wp-content/uploads/2014/08/_c_S4X5QizR4fZr0ZLiz9ednzd4G9kUR9jf-tlm_BKRpCYcgmekjWKiGlbclbyKucGDKG6bOX8aneqeTZ6w7gEOgs4HwHaA4e1t.jpg

内部设计创造了一个创新和高科技的学术环境,旨在满足学生和未来行业发展的需求。在这里,你可以找到最尖端的科学技术,包括机器人、电脑设计实验室、以人为主导的设计实验室,3D数据可视化设备、以及Data Arena—澳大利亚该领域最先进的研究工具。

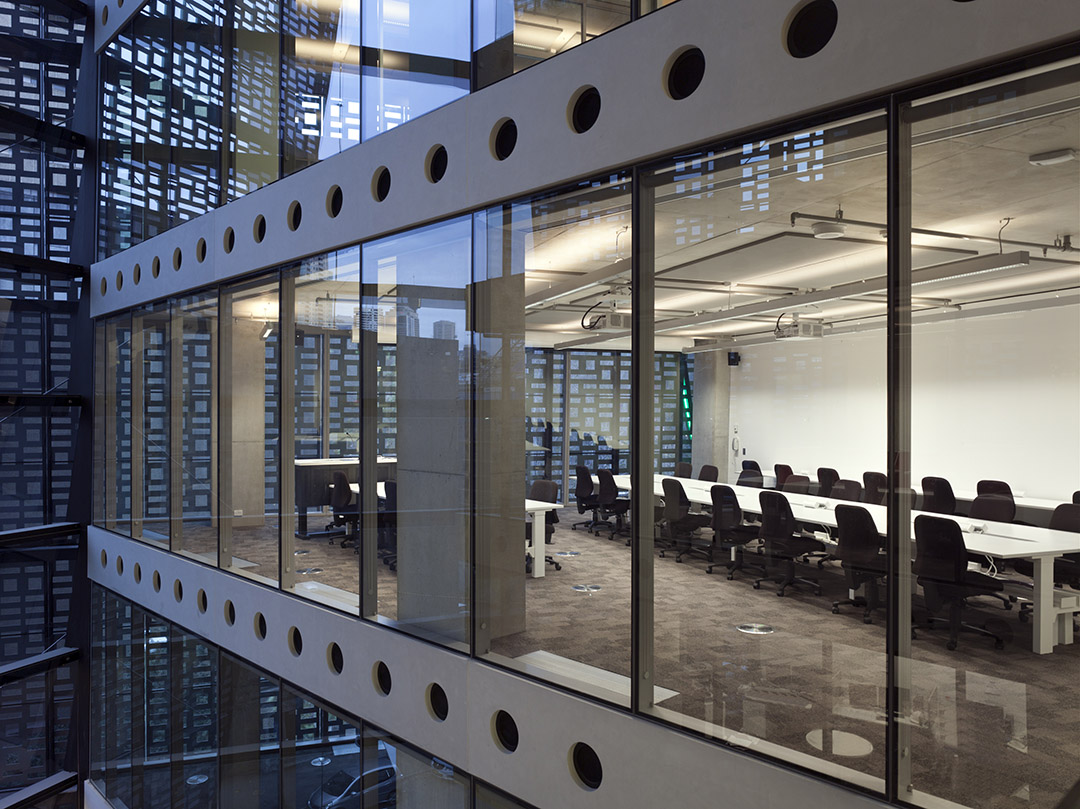

The interior architecture has an innovative pedagogical approach and a technology rich environment at its core, which aims to support student needs and future industry trends. The latest in cutting-edge technology, includes robotics, computer and human-centred design labs, and a 3D data visualisation facility, the Data Arena – the most advanced research facility of its type in Australia.

/wp-content/uploads/2014/08/_c_Lpda9uyCsu7E3Se6REfWSBp_dwWbVhGRRpo_BOVBMV-v0AZ6cog_0H6eEP5nUsYvjpu1nalFfIBTOJF7PrL1zLCFozaYKhjT.jpg

该建筑运用环境可持续设计,力求达到5星级的绿色星级标准,预计能节约30~45%的能源、20-30%的饮用水和减少50%的温室气体排放量。这些数据已经远远超过拥有类似功能空间的高等教学大楼的基准。仅二进制码遮阳铝板就能节约10-15%的能耗。

An extensive range of environmentally sustainable design initiatives make a substantial contribution to achieving best practice standards in the faculty accommodation. The design targets a minimum 5 star Green Star rating, and is expected to deliver an energy savings of 30- 45%, a potable water saving of 20-30% and a 50% reduction in greenhouse gas emissions over benchmarked tertiary educational buildings with similar functional spaces. The shading of the binary code screen alone is estimated to bring about a 10-15% operational energy saving.

/wp-content/uploads/2014/08/_c_R26VTBlLFjw0aoifq9DEkgKWZuAA3DglHXlaZSLStqk-MSOqVKbRvIcKN8jImornduVTY_urDD4FmPuX1PVmxBO3BOViZeWp.jpg

工程和信息技术学院大楼也被称为百老汇大楼。它是悉尼科技大学特色、紧凑校园形象的重要组成部分,为期10年耗资10亿美元的重建计划会将南部打造成另一个悉尼CBD。

Also known as the Broadway Building, the Faculty of Engineering and Information Technology forms a key part of the university’s vision to deliver an iconic and connected campus, a ten year $1 billion redevelopment initiative that will help transform the southern approach to the Sydney CBD.

/wp-content/uploads/2014/08/_c_5JPpjqJYVGE4gsa-8ic3yfiC20N6uVVi5SLvE5lqq9ZBjfouDjayowowIY22azc9XvSX1-7H67_uoQhQwm8Ihyije3J8NwEu.jpg

/wp-content/uploads/2014/08/_c_bEcXTyHmXLRcBbHRGXmG6Kr9UDF1pwfAP58I1NuwBWM4KYoiIRjMiE2pWfcFHHY6ntM9rD28dWkUK34rzaNrVc1bQEe7UihM.jpg

/wp-content/uploads/2014/08/_c_u3VBK7A7xa7tGz30uCYDb5xswjVYrTxZdpyDJVK6_zlehverdge-tG2AX8AXmbhz9GSCteyItEU3HM_MobTz4n94k95XdtLm.jpg

/wp-content/uploads/2014/08/_c_NKdF3SsYg_m3rmydeOoe5HxtUTruz13qyukqzVmPpFU1oGHZ0jEifgp9JMB-_-sh-sKnx4AZaeadLcZ_nYksktDTjOjyiJ_1.jpg

/wp-content/uploads/2014/08/_c_91s4sED-HaeK9oqDdb43SQAWijU9DselU_H5hTQvYKq-jqDKIKbk26hnlmUk86vgn88oHgy6_N_Q3uuqMjZ09n_eVd_FAhM8.jpg

/wp-content/uploads/2014/08/_c_U4oct_bAITZlA5mHSF1Aw_K08BBK0q0BR9hnhcsJ5s1F8yi1nKhuzP7EW04kFfblZV57Rko327_d5nhPL3QjfQNWzpIRRpaw.jpg

/wp-content/uploads/2014/08/_c_MKpSBt2v7Eu5F6zyScdsg88ZuosFJc2vWMPoY51LhyvK6YFlujiKLzGMnq3bczFdNaTuG_EBiiOBs-NeVxlanMfDOSzu9Zch.jpg

/wp-content/uploads/2014/08/_c_ObziBAZuqOgll9nTKbMLtdp7IYiN72EkDLaZnwOGYyGEoMoXy1GQ2yvteksKFH3PQ-y9ZsqZE3f_mCK9lHNc9fEndfLsNgeY.jpg

Key Project Facts

Project Name
Faculty of Engineering + Information Technology, University of Technology, Sydney

Project Address
Building 11, Corner of Broadway + Jones Street
Ultimo, Sydney NSW

Project Type
Tertiary education building

Construction Cost
$205m

Construction cost per m2
$4820

Project Dates
Start Date       January 2009
Early Works Construction Start   April 2011
Early Works Completion     February 2012
Main Works Construction Start   February 2012
Main Works Completion Date   May 2014

Project Size
Total building area   43,500m2
Usable floor area   22,050m2
18 floors: 4 basements + 14 floors (above ground)

Project Team

Client
University of Technology, Sydney

Project Manager
Denton Corker Marshall

Architect + Interior Architect
Denton Corker Marshall

Planning
JBA Urban Planning
Quantity Surveyor + Building Certifier
Group DLA

Structural, Civil, Facades + ESD
Aurecon
Mechanical + Electrical
WatermanAHW

Specialist Lighting
Electrolight

Fire + Hydraulics
Arup

Vertical Transportation + Fire Safety
Aecom
Acoustics + Vibration
Renzo Tonin& Associates

Traffic
Halcrow
GTA Consultants

Landscape Architects
Taylor Brammer
Access
Morris Goding
OH&S
Architecture + Access
Testing + Commissioning
Norman Disney Young
Contractor
Lend Lease
