NEOBRIDGE, Shanghai, China by XING DESIGN

An experiment on the relationship between the hotel and the city. The “bridge” is the theme and the solution

Project Specs

感谢 XING DESIGN 行之建筑设计事务所 予gooood分享以下内容。更多关于他们,请至:XING DESIGN on gooood
Appreciations towards XING DESIGN for providing the following description:



桥的起源
The Origin

该项目位于曹家渡,面朝圣弥额尔天主教堂,背靠苏州河畔的住区花园。原建筑被夹在两栋临街高层住宅之间。我们的挑战是在保留原体量和轮廓不变的前提下,开辟一个极度舒适的戏剧性空间。

The project is located at Caojiadu, Shanghai, with St. Michael’s Cathedral in the front and a residential garden facing Suzhou Creek in the back. Our goal is to create a comfortable but dramatic space in between two high rises while keeping the building’s original massing and form unchanged.

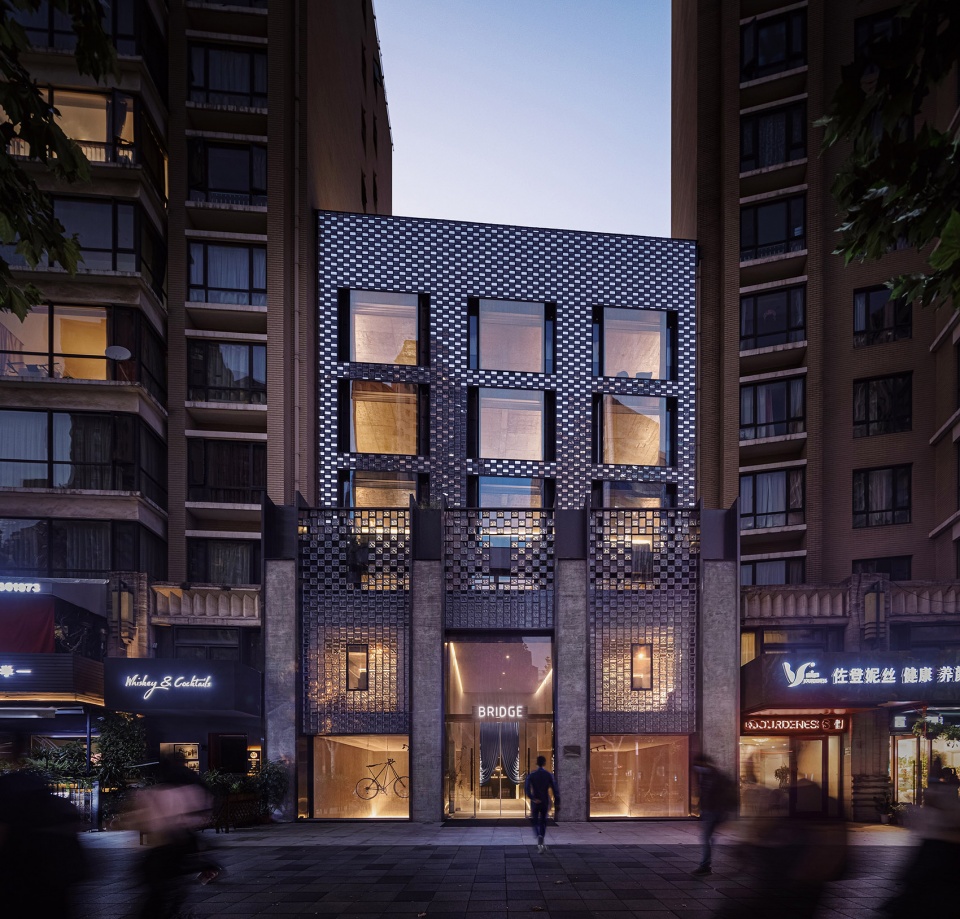

▼酒店外观,external view of the hotel ©苏圣亮

Processed with VSCO with v8 preset原建筑层高低矮,大堂十分压抑。我们决定将首层地板全部打开,形成一个上下通高的大洞穴,并临空架起一座小拱桥。桥下是完全开放的,是城市向内的延伸。酒店则藏在桥的彼岸,和城市保持距离。桥是空间的中心,过桥就像完成一个仪式,被桥下注视,也被两侧的房间窥视。

The problems of the original structure are its low floor height and repressive basement. Hence, we opened up the entire first floor to form a continuous vertical space with a bridge in the bridge. Underneath the bridge is an inner extension of the city; across from the bridge is the hotel, at a distance to the clamour. Walking across the bridge therefore becomes the visual center, a sense of ritual as well as the theme of the hotel.

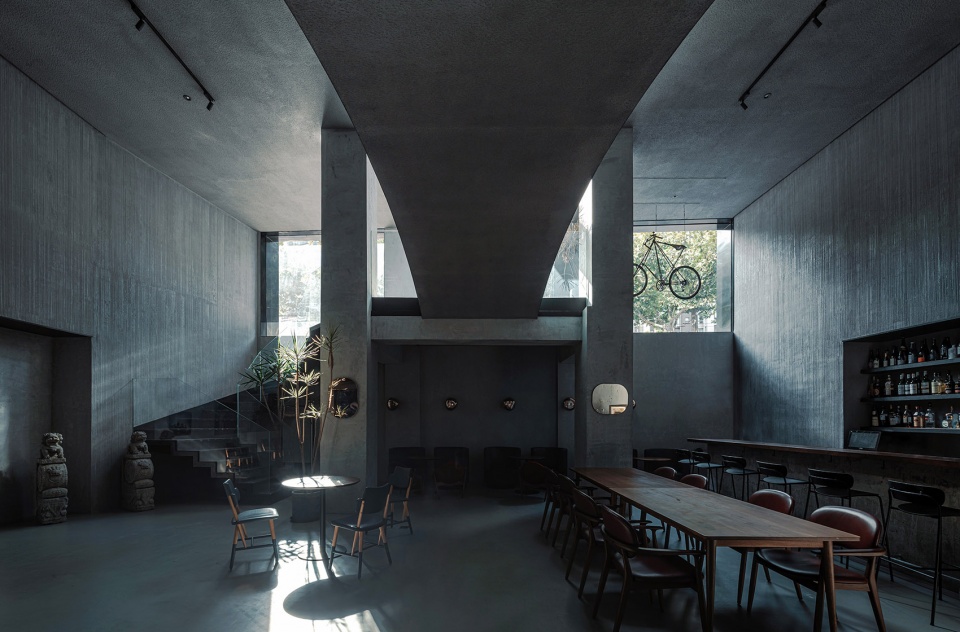

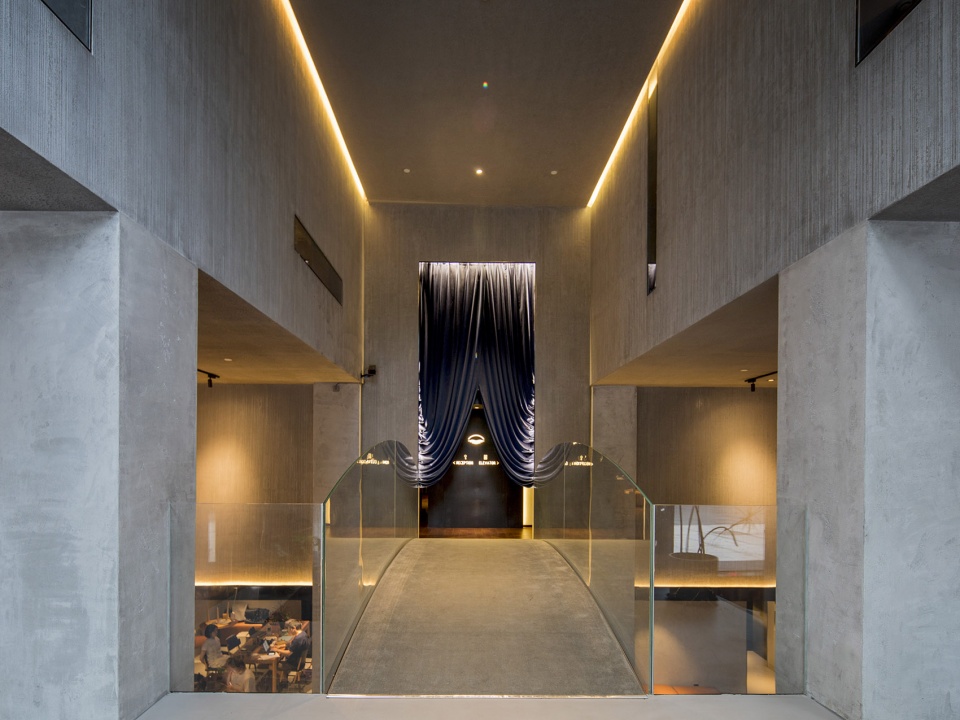

▼大堂空间概览,上下通高,overall view of the double-height lobby ©苏圣亮



水岸与瀑布
The River bank and Waterfall

空间和材质里的隐喻,都围绕着“桥”来展开,造一股“混凝土山谷中的瀑布”。瀑布的室外由玻璃砖做成,在裙房退台处玻璃砖间隙错动,就像溅起水花,最终汇集成三股水帘卡在四根混凝土柱子之间,即透光又私密。

Spaces and materials are expressed based upon the story of “bridge.” It is intended to create a waterfall facade impression in the concrete urban context. The curtain wall is by glass bricks, the which balance the privacy and lightness.

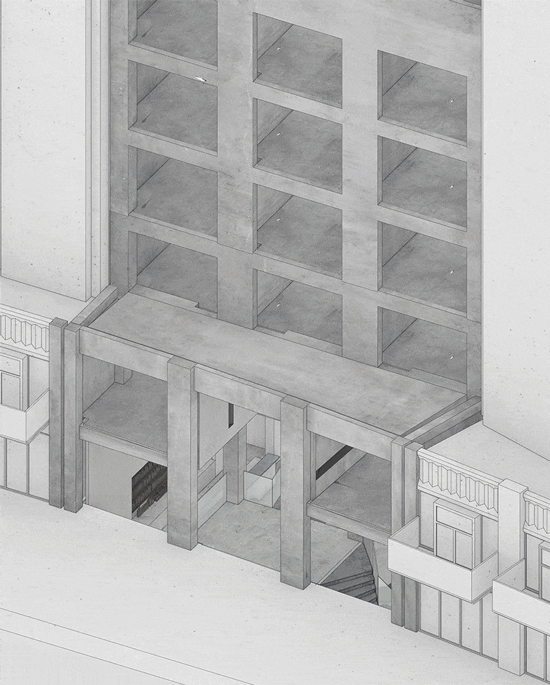

▼立面草图和建造过程示意,sketch of the facade and construction process ©XING DESIGN

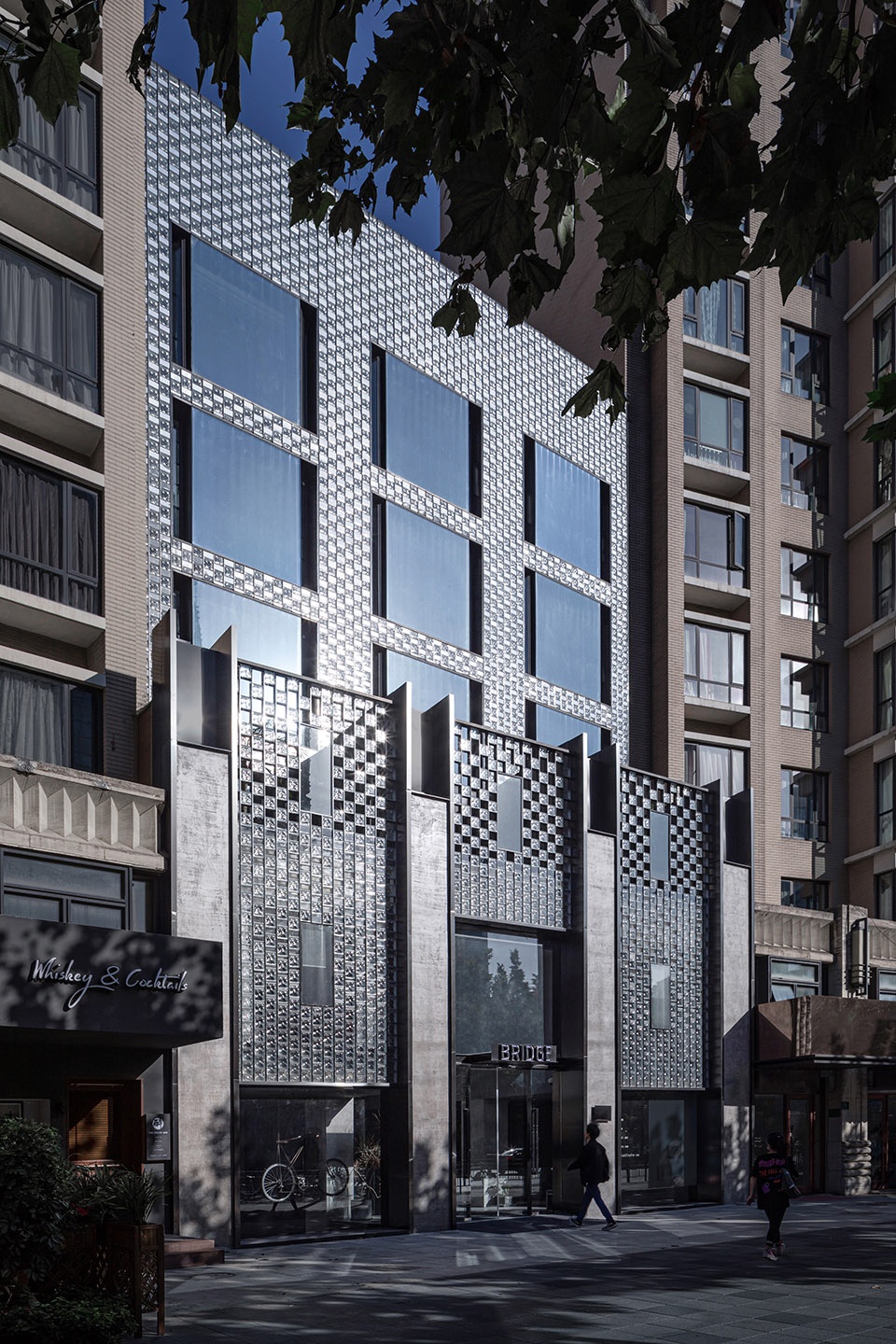

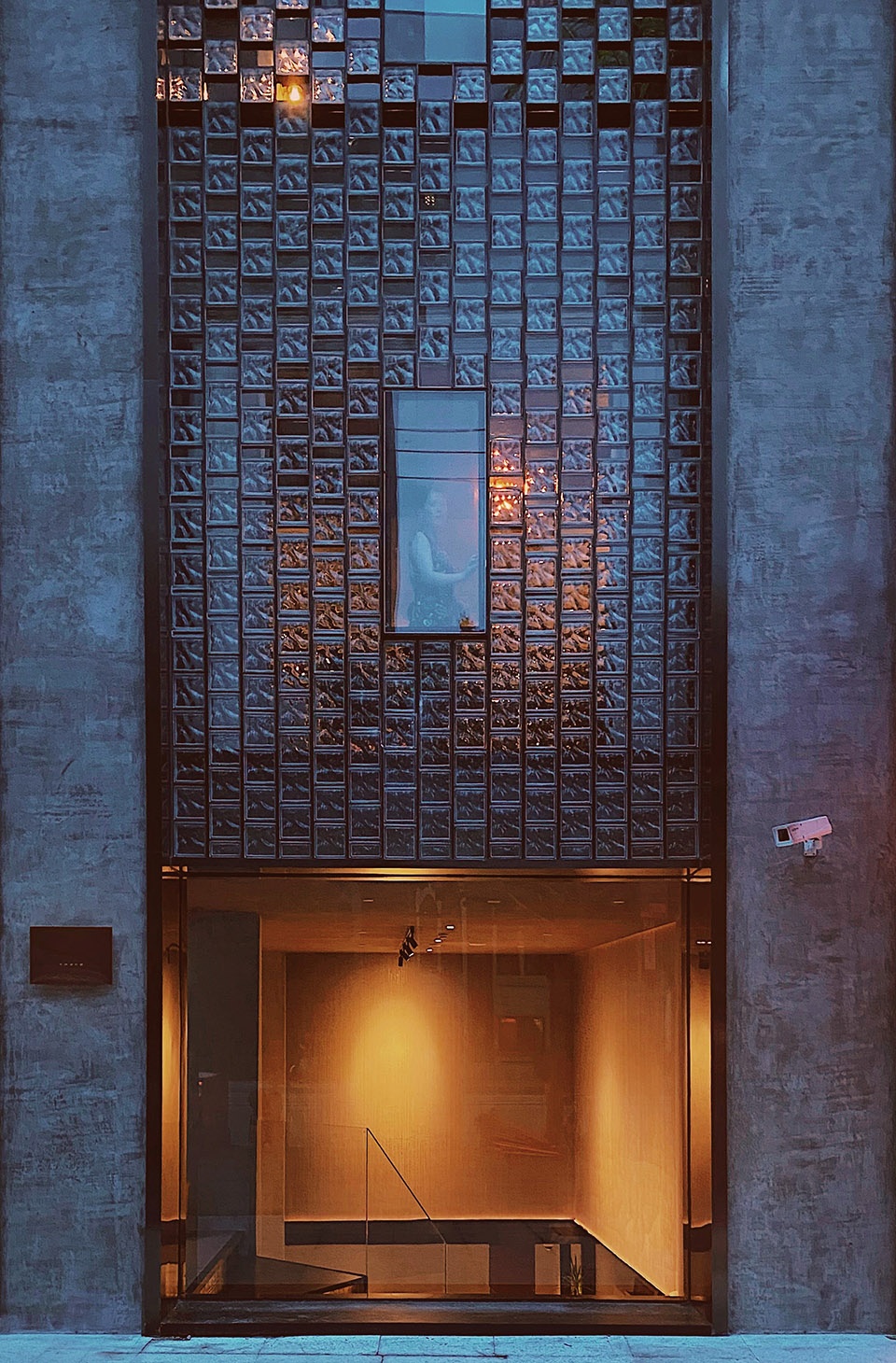

▼改造后的酒店立面,由玻璃砖组成,facade of the hotel after renovation composed by glass bricks ©上:苏圣亮,下:XING DESIGN

同样的意向室内外一以贯之,用材质表现出桥两侧的瀑布,水底和水岸。混凝土材质不同表面处理,表现桥上桥下水的不同形态。水流的暗示也在每个房间中:洗手间的墙面使用手工烧制的青色釉彩砖,透过淋浴间的水纹玻璃,融化色彩和光影。

“Water fall” is carried through both exterior and interior design, in which various materials and finishes expressed different conditions of movement: falling water, underwater and at the bank. The water current is also implied within each room: the walls of bathrooms are made of handmade azure glazed tiles and watermark glass, reflecting the soft movement of river onto the walls.

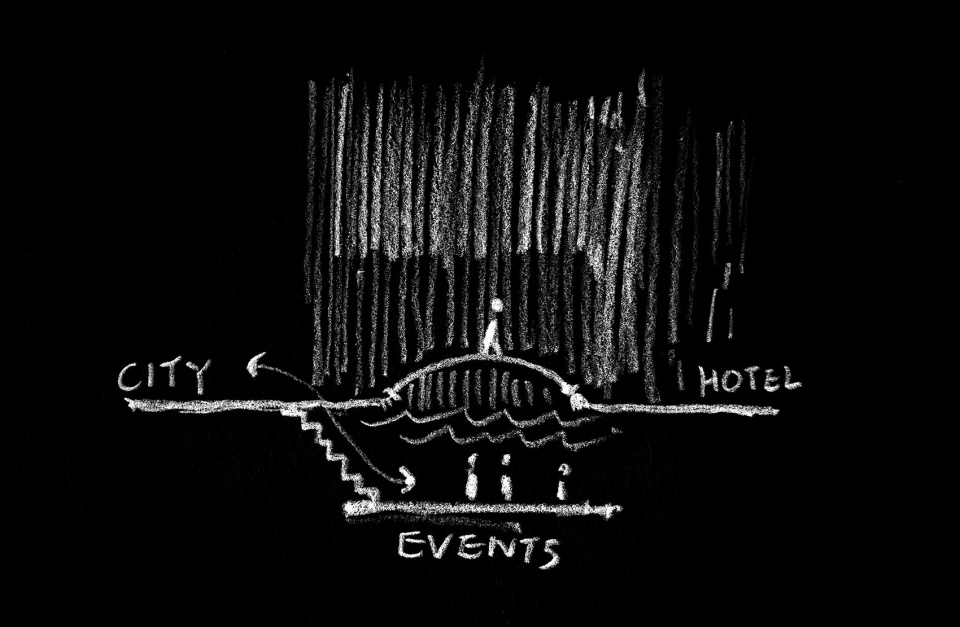

▼大堂设计草图,design sketch of the lobby ©XING DESIGN

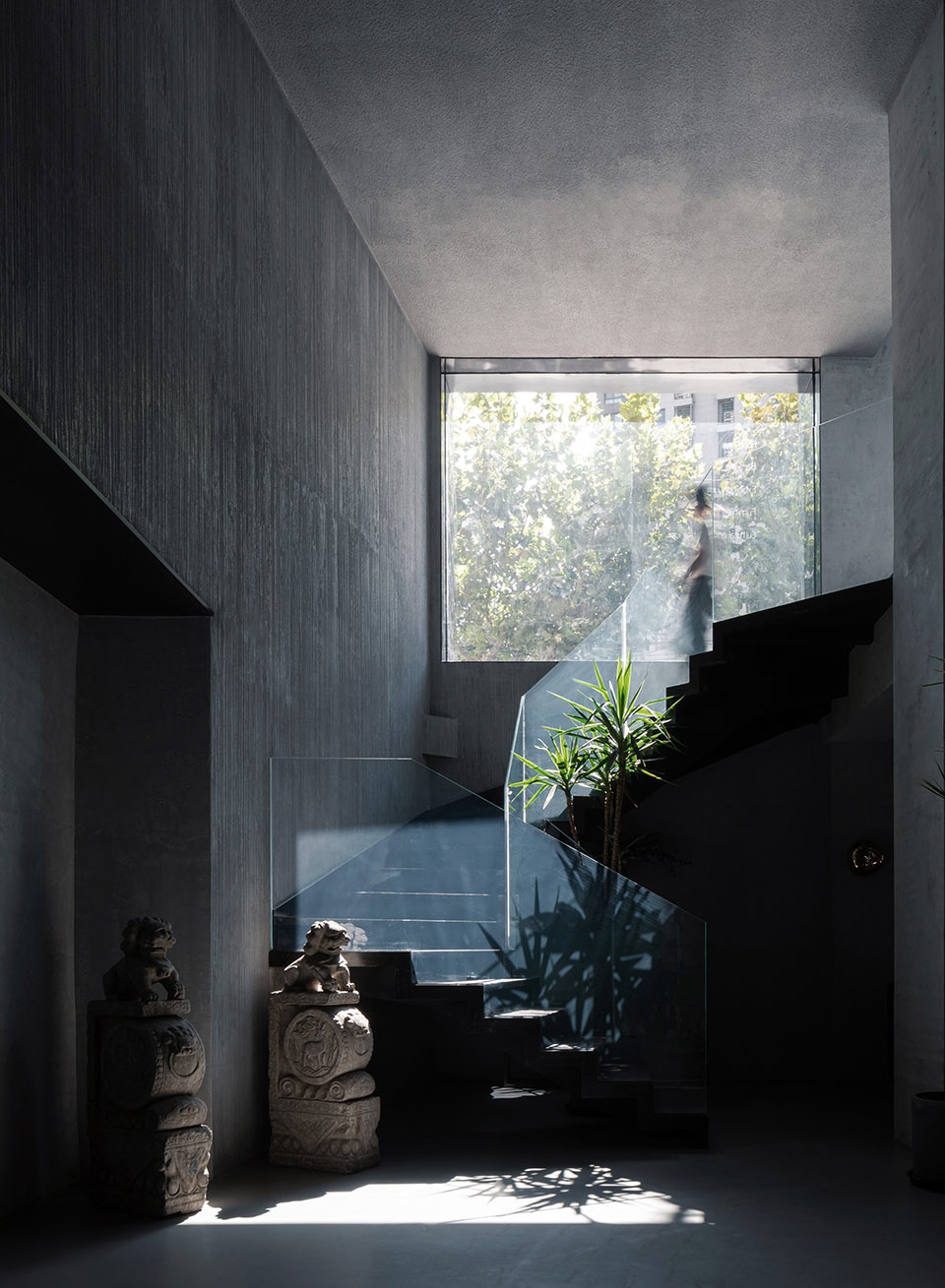

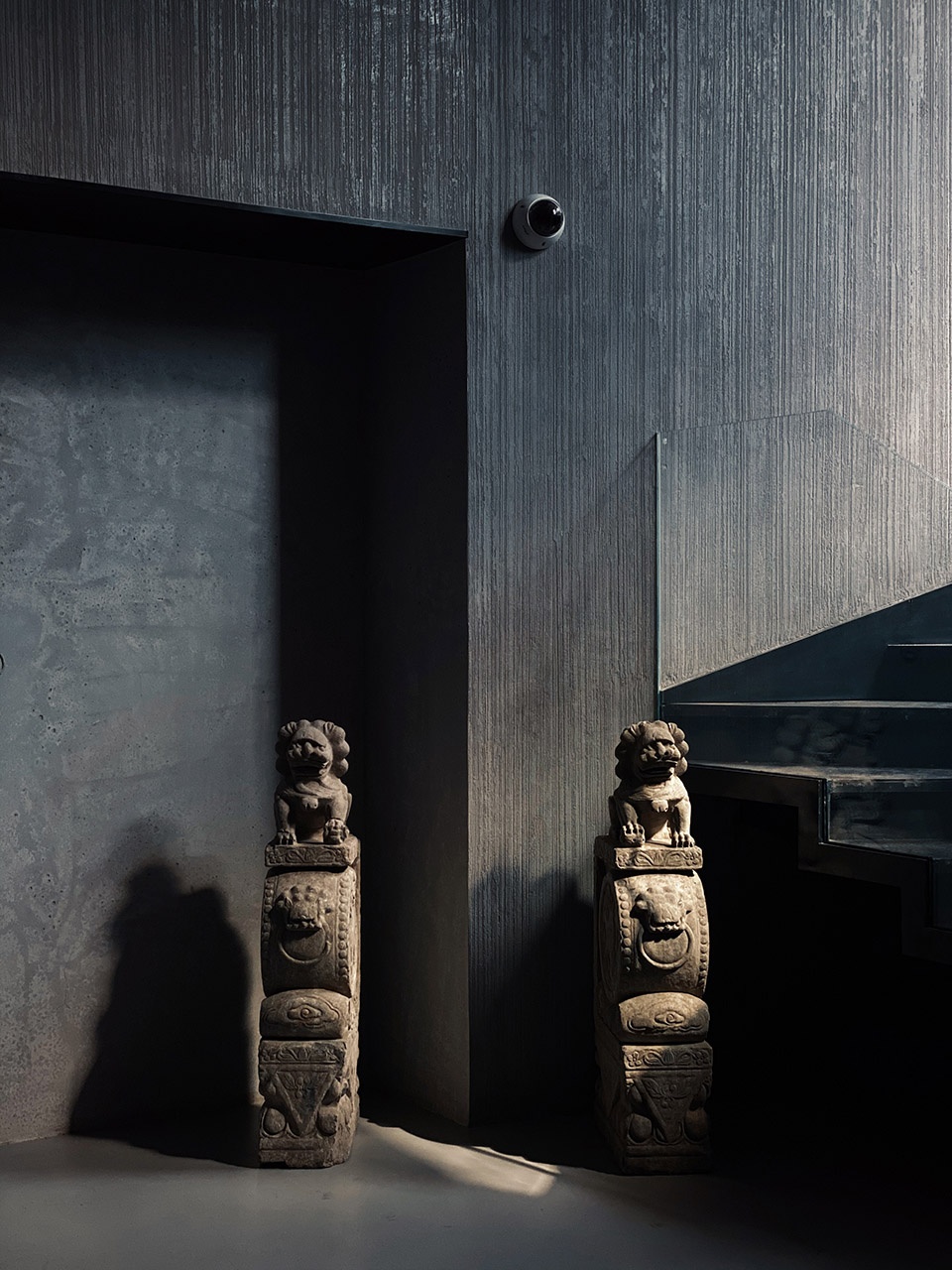

▼入口连接下层空间的楼梯,stairs connecting the entrance and the lower space ©苏圣亮

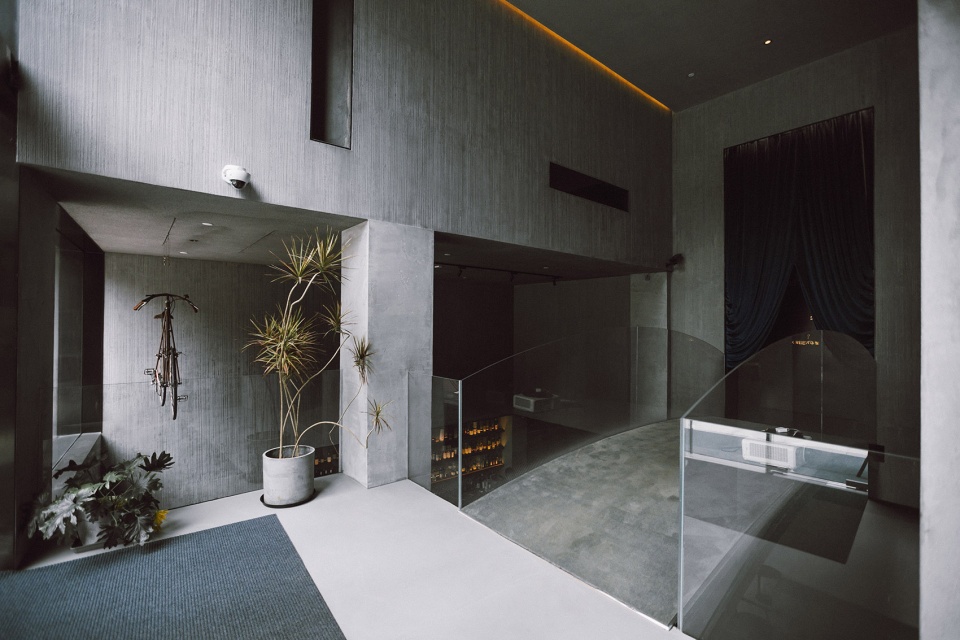

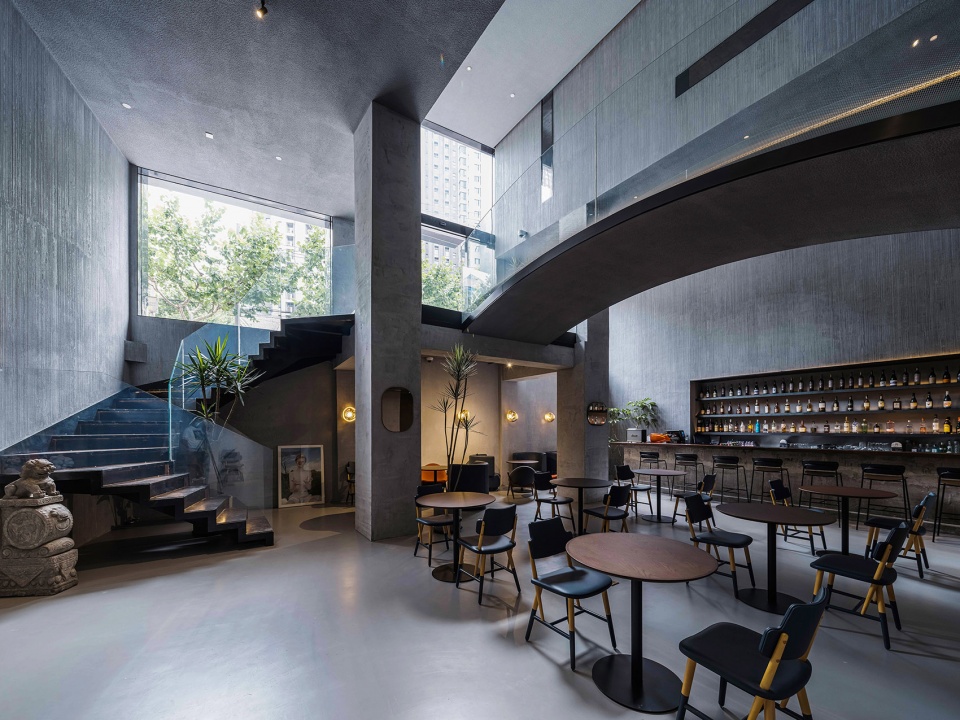

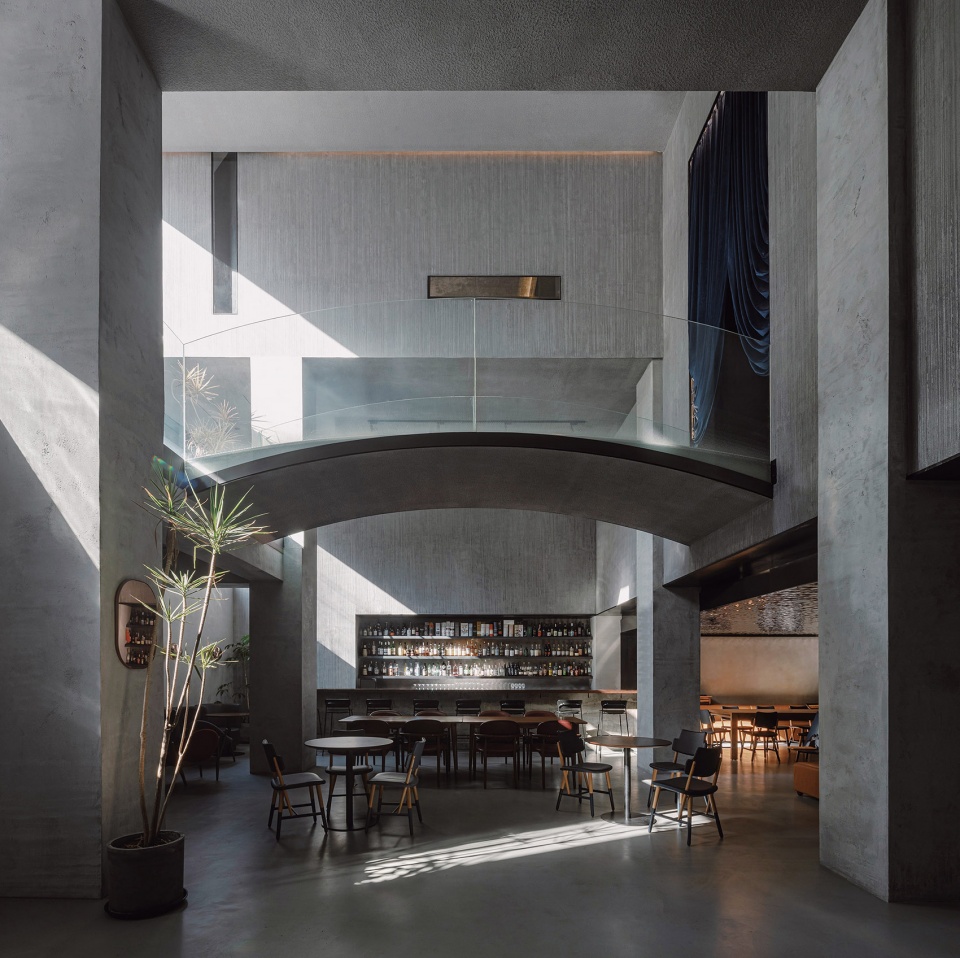

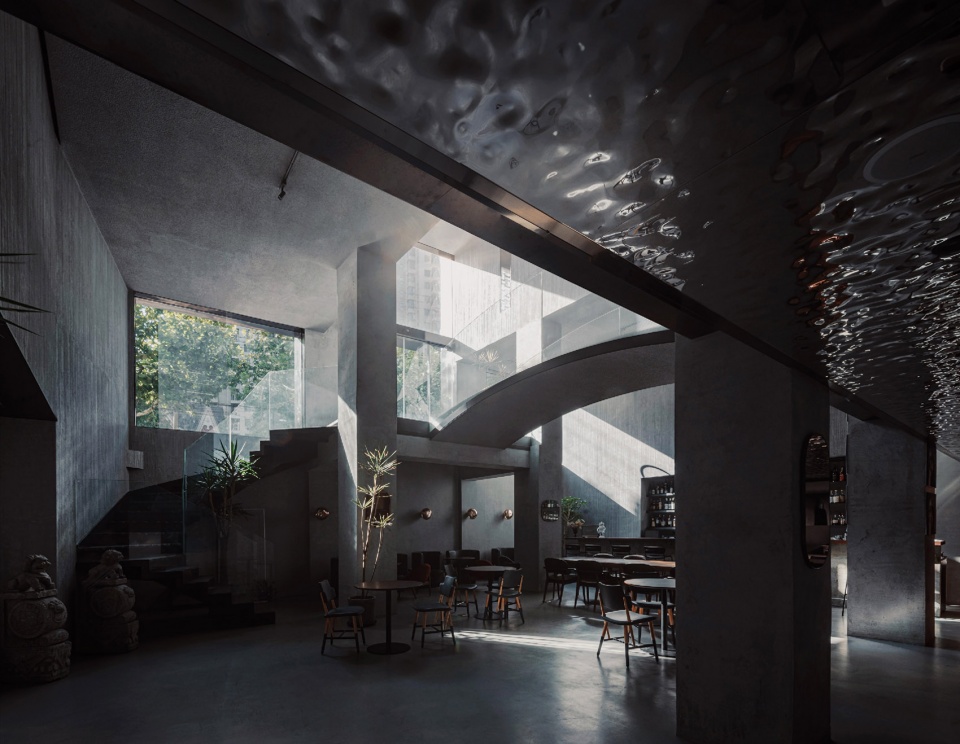

▼下层餐厅和活动空间,桥横跨空间上方,restaurant and event space on the lower floor with a bridge stretching above ©XING DESIGN

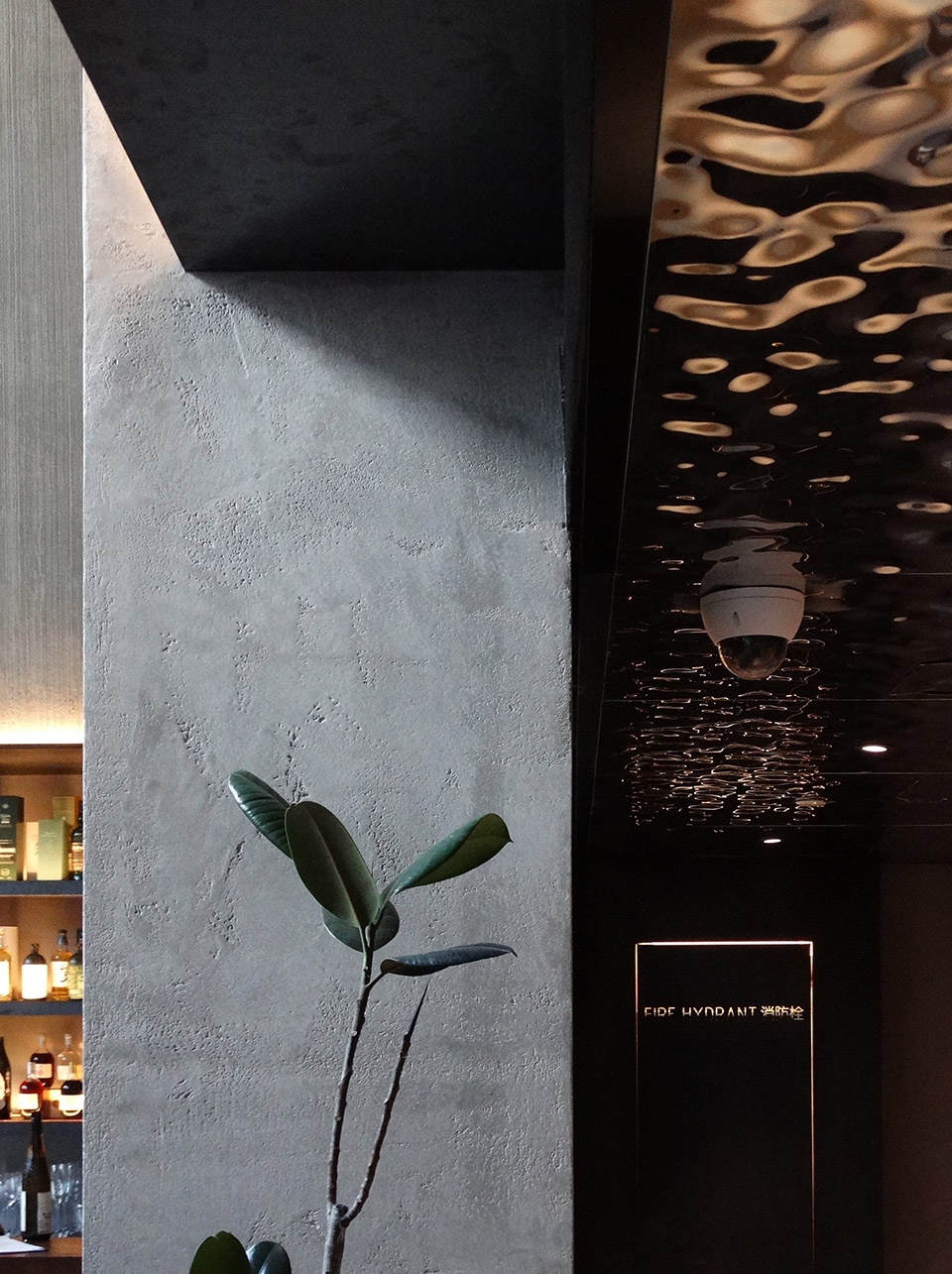

▼纹理混凝土表现桥上的瀑布,textured concrete reflecting the waterfall above the bridge ©XING DESIGN

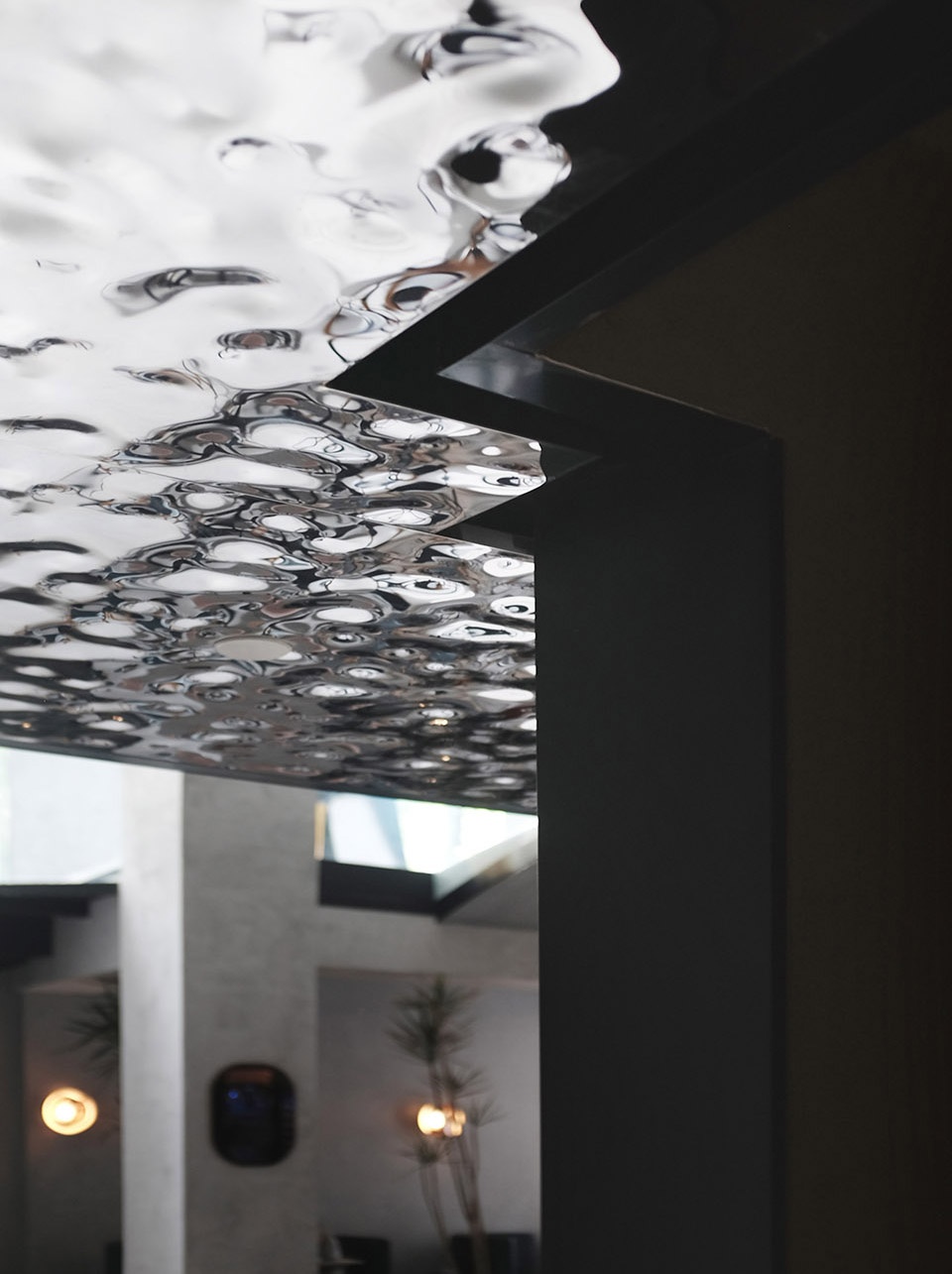

▼水纹材料表现桥下水面,water wave material reflecting water under the bridge ©XING DESIGN

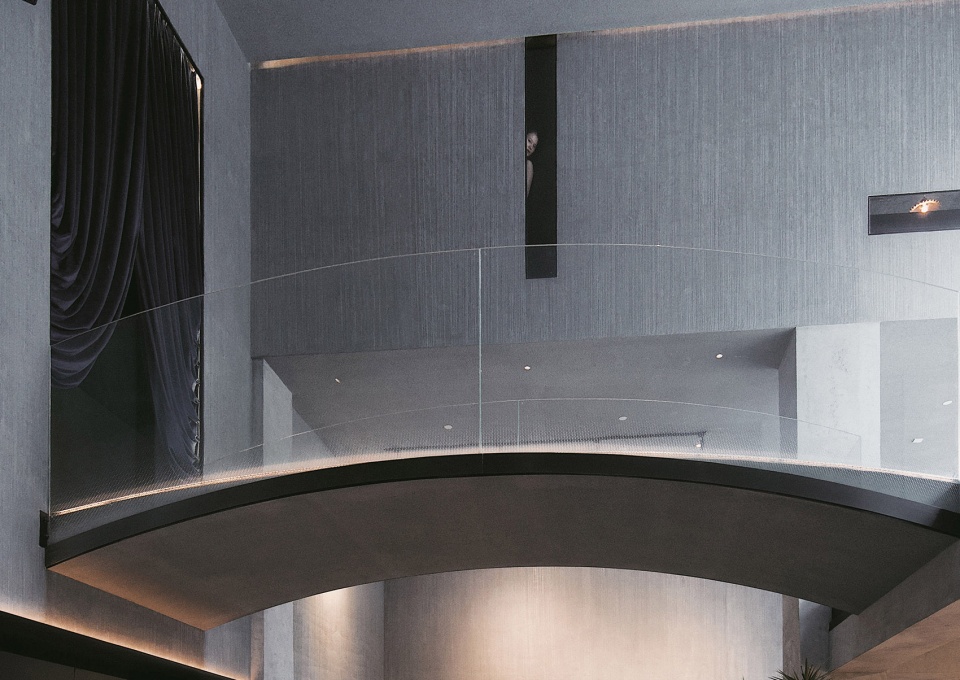

▼上层空间,桥连接前台和起居厅,upper space, bridge connecting the reception and the lounge ©XING DESIGN

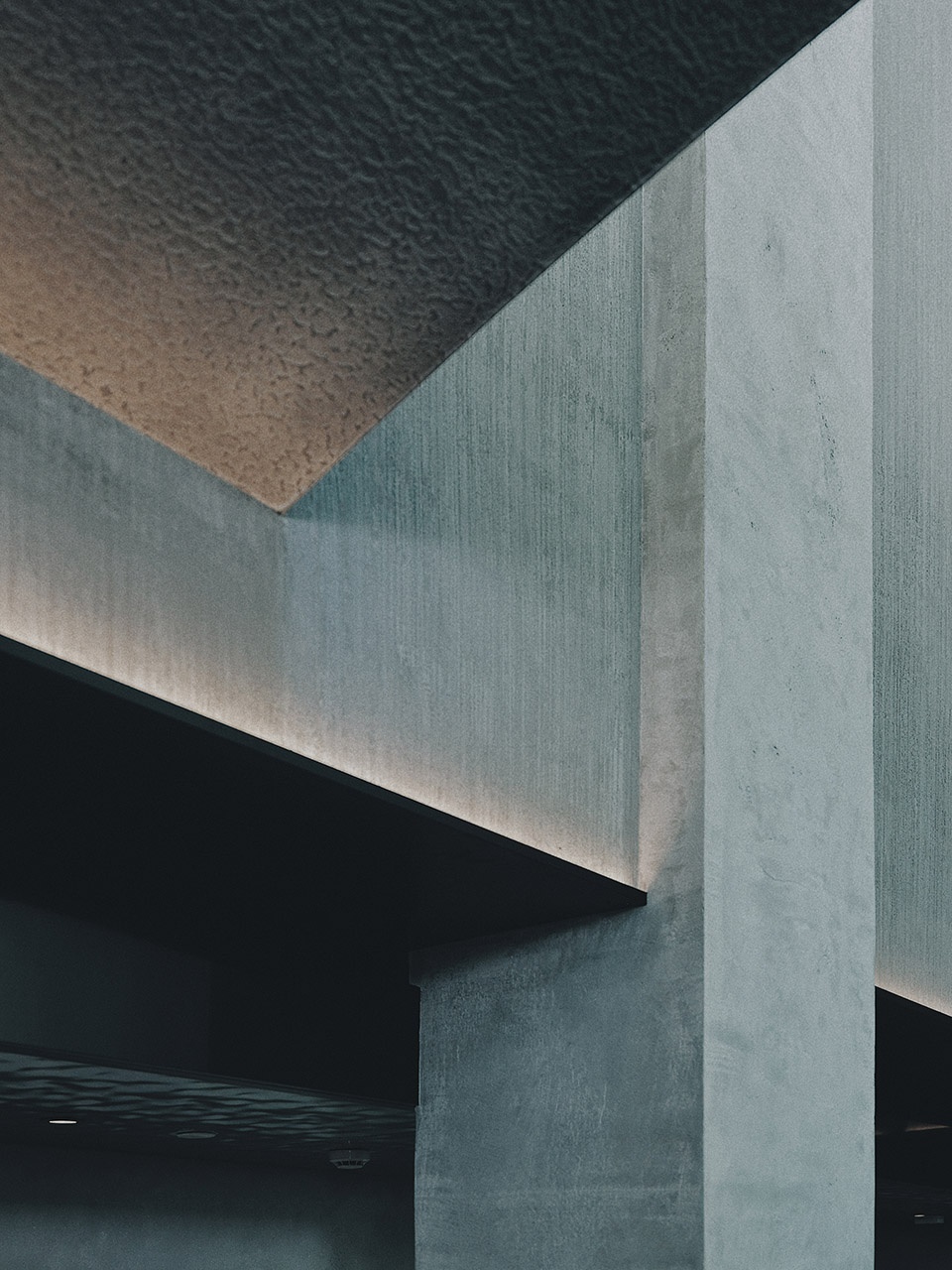

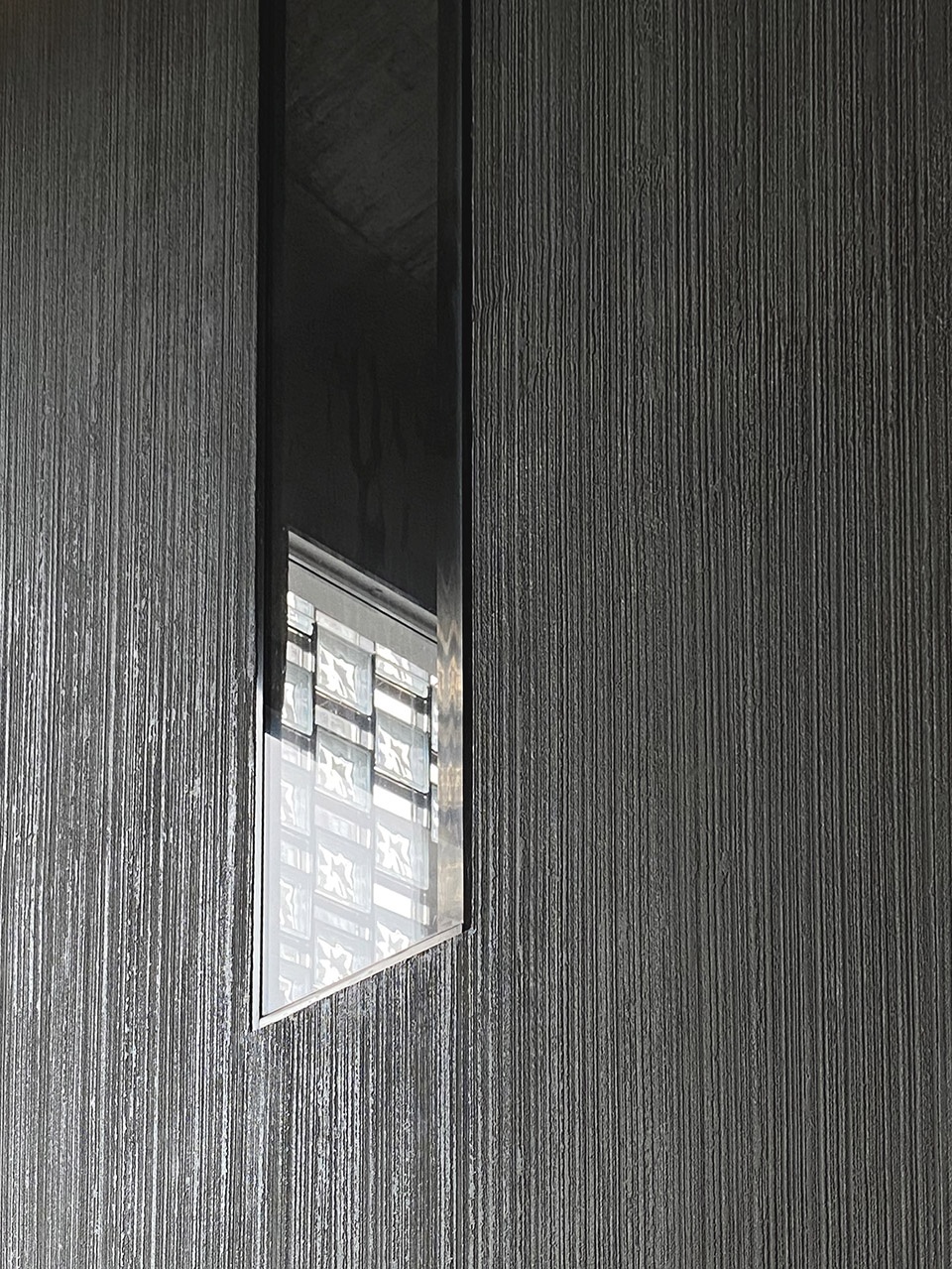

▼不同表面的混凝土材料细部,material details of concrete with different finishing ©XING DESIGN

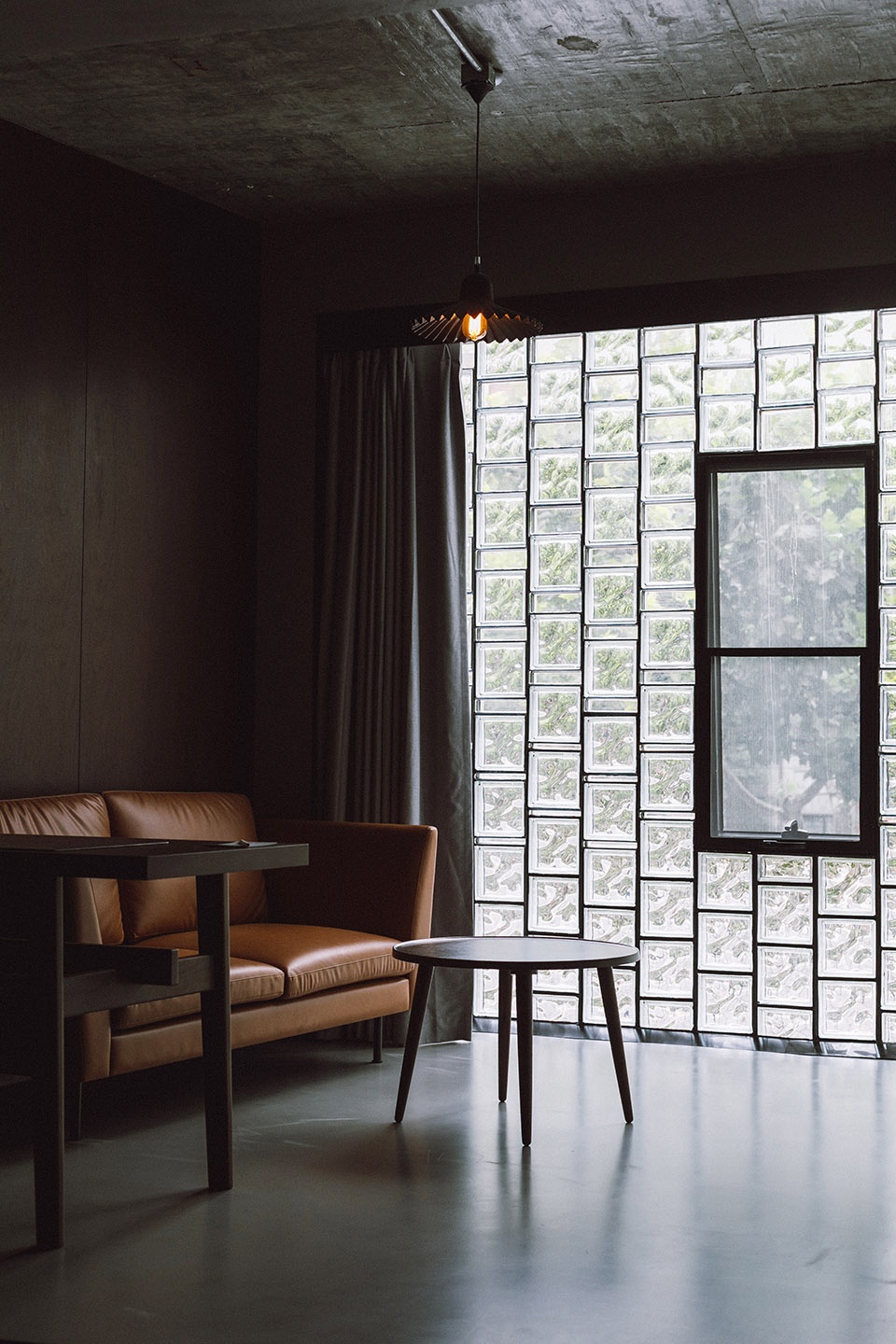

▼起居厅,玻璃砖透光而私密,lounge, glass bricks letting in the light while keeping privacy ©XING DESIGN



戏剧性、实用主义与建构
Drama, Practicism and Construction

房间的布局调整是一场在小空间中与现有管线管井的博弈。客房结构净高矮,所以直接采用原混凝土裸顶;空调管线吊顶区和洗手间被拆解,重新整合做成“嵌在房间里的盒子”,观感更加宽敞。在这酒店里找不到任何一块百叶:所有的风口都藏在材料接缝里。

Solving the layout of rooms is a game with existing pipes and wires. In order to achieve maximum floor height, the original concrete is exposed nakedly. The bathrooms and air-conditioning pipelines are inserted as integral boxes. Most importantly, no louver can be found within the entire building as they all hide within the gaps between materials.

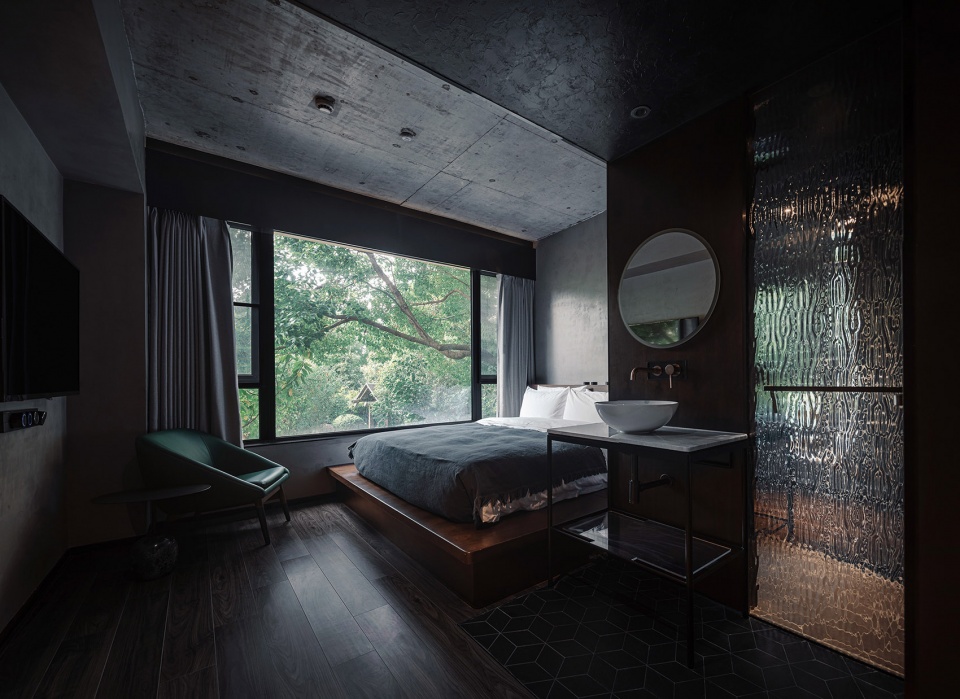

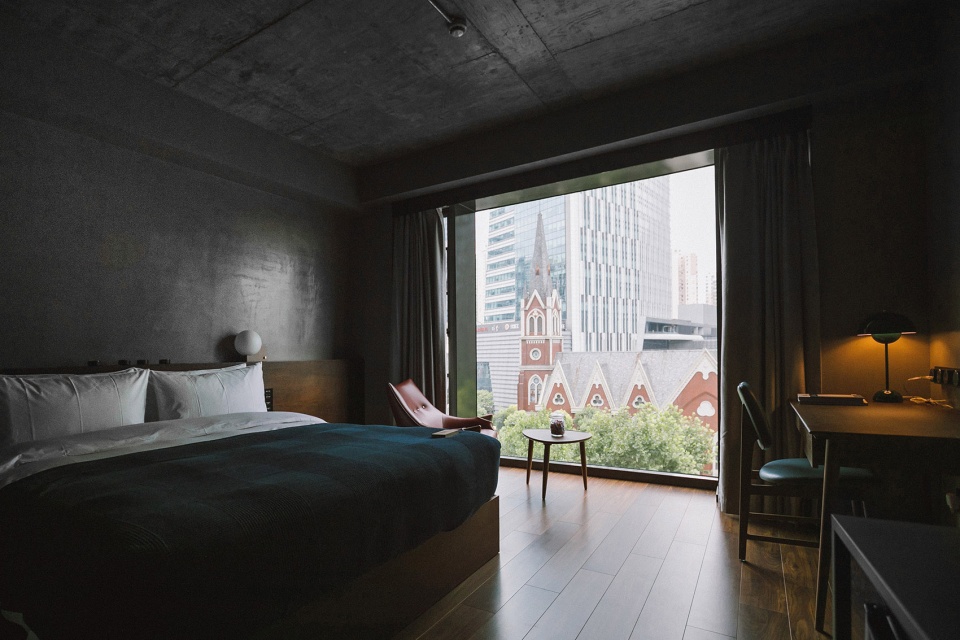

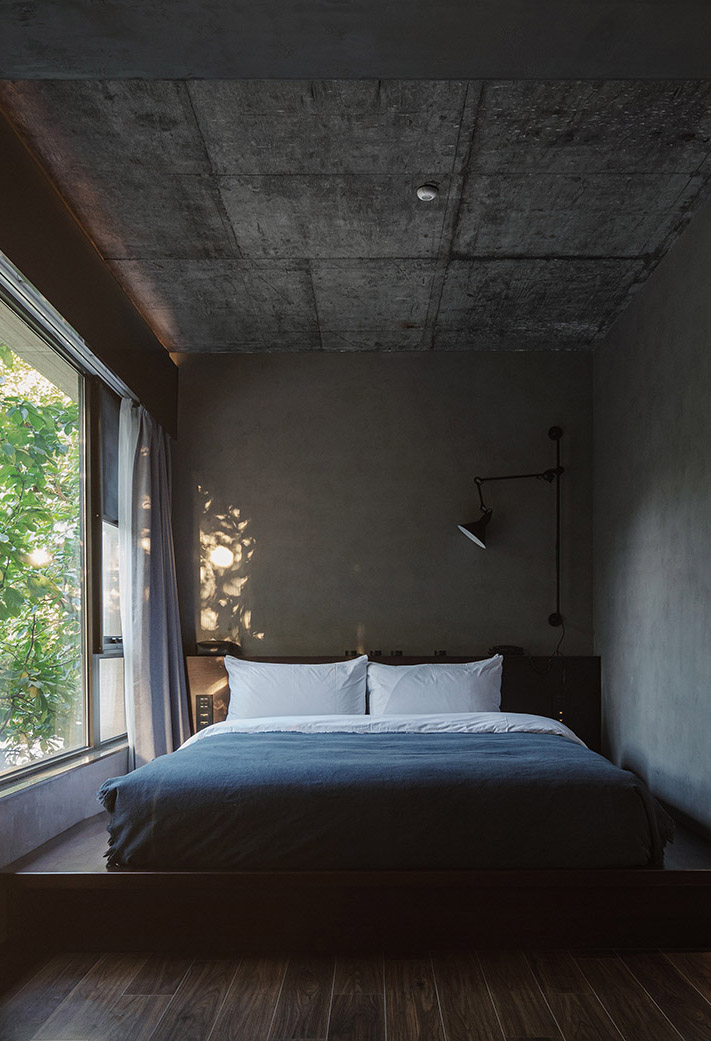

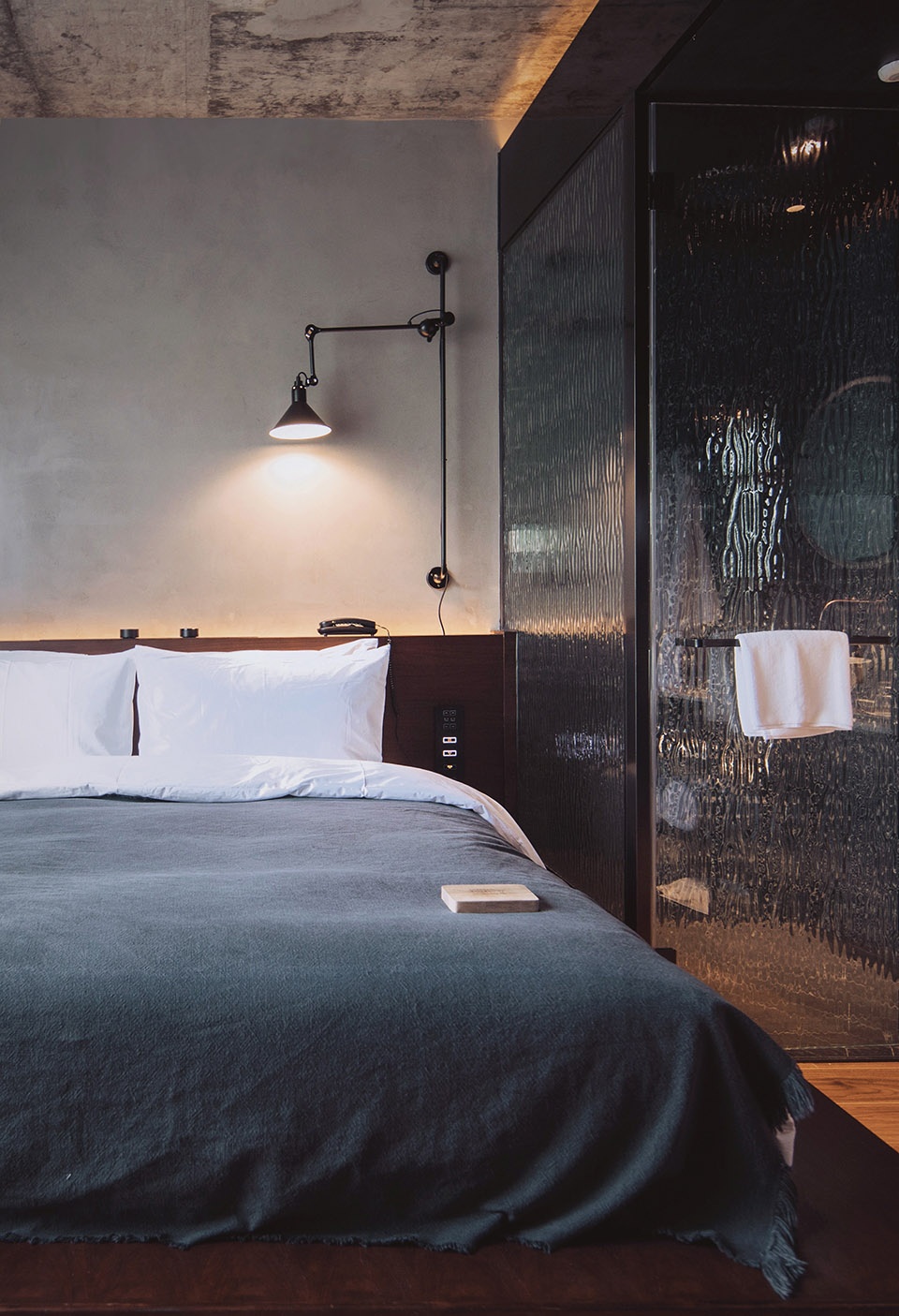

▼客房,所有风口都藏在材料接缝里,guest room, all louver hidden within the gaps between materials ©苏圣亮

化解小空间另一个诀窍,是大到容纳整个室外景观的取景窗。北侧窗外是苏州河的青绿,南侧落地窗外是教堂的橙红。落地窗两侧设置长条开启扇,形成风压通风,但开启与否并不会影响立面效果,保持瀑布立面完整性。

The mullion walls on the southern façade contain two operable windows which are specifically designed to maintain a complete water-falling appearance when opened. Other details in the rooms include: openings on the balcony wall and two overlooking rooms above the bridge, as well as a triangular mirrored window expanding one’s visual experience of a tiny space.

▼整面取景窗化解小空间,space expanded by the panoramic window ©上/下右:XING DESIGN,下左:苏圣亮

空间中隐藏着很多带客人发现的小惊喜:最隐秘房间的飘窗玻璃反射窗外的风景,三层院子隔墙不封死,留一个错缝,说不定与隔壁的目光不期而遇,桥两侧的房间侧墙开槽,洗浴时也能窥视桥上和桥下的觥筹交错,等等。

There are a few surprising setup in the hotel: a mirror periscope window in the darkest room reflecting the exterior landscape; little openings in the courtyards where can handshake with neighbors; strip windows people can peek at the bar and bridge, etc.

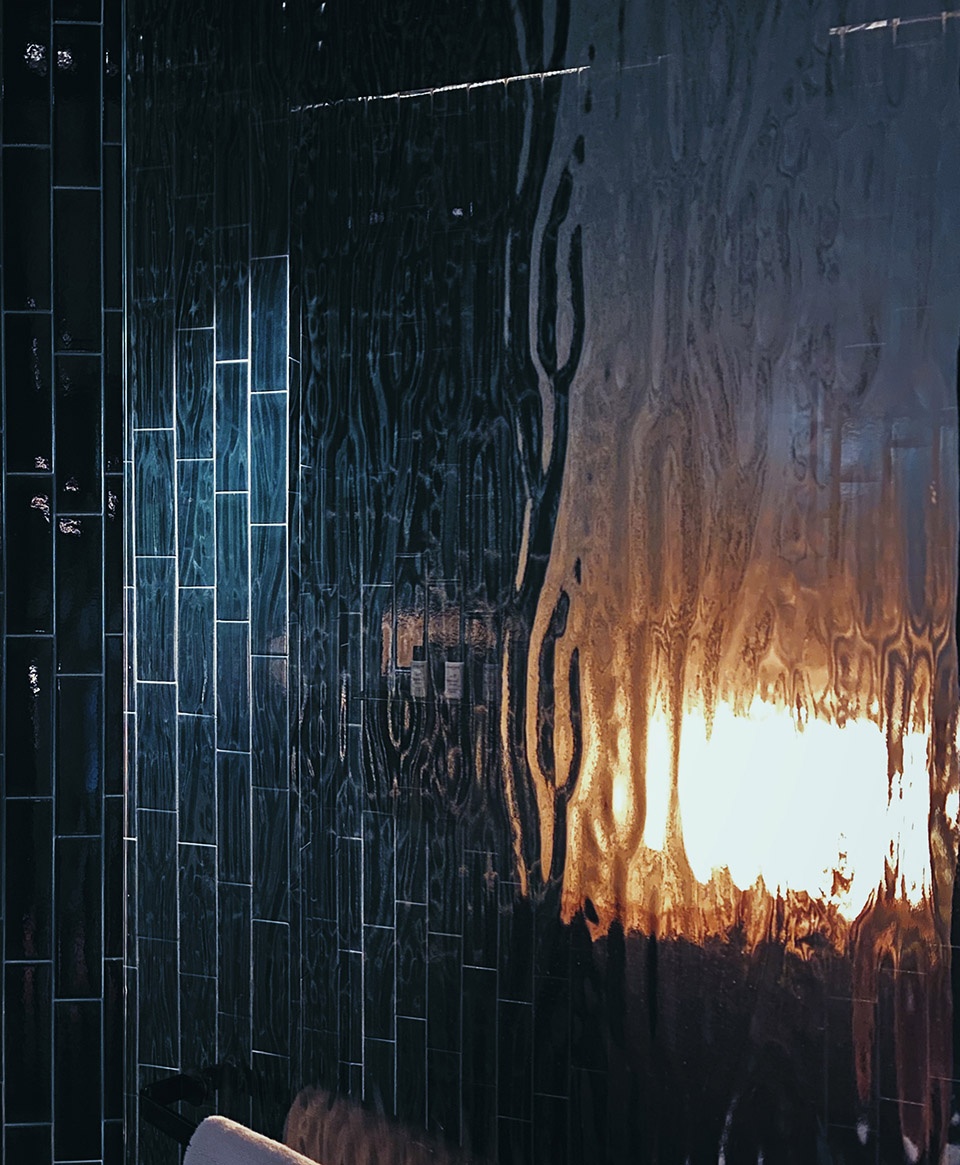

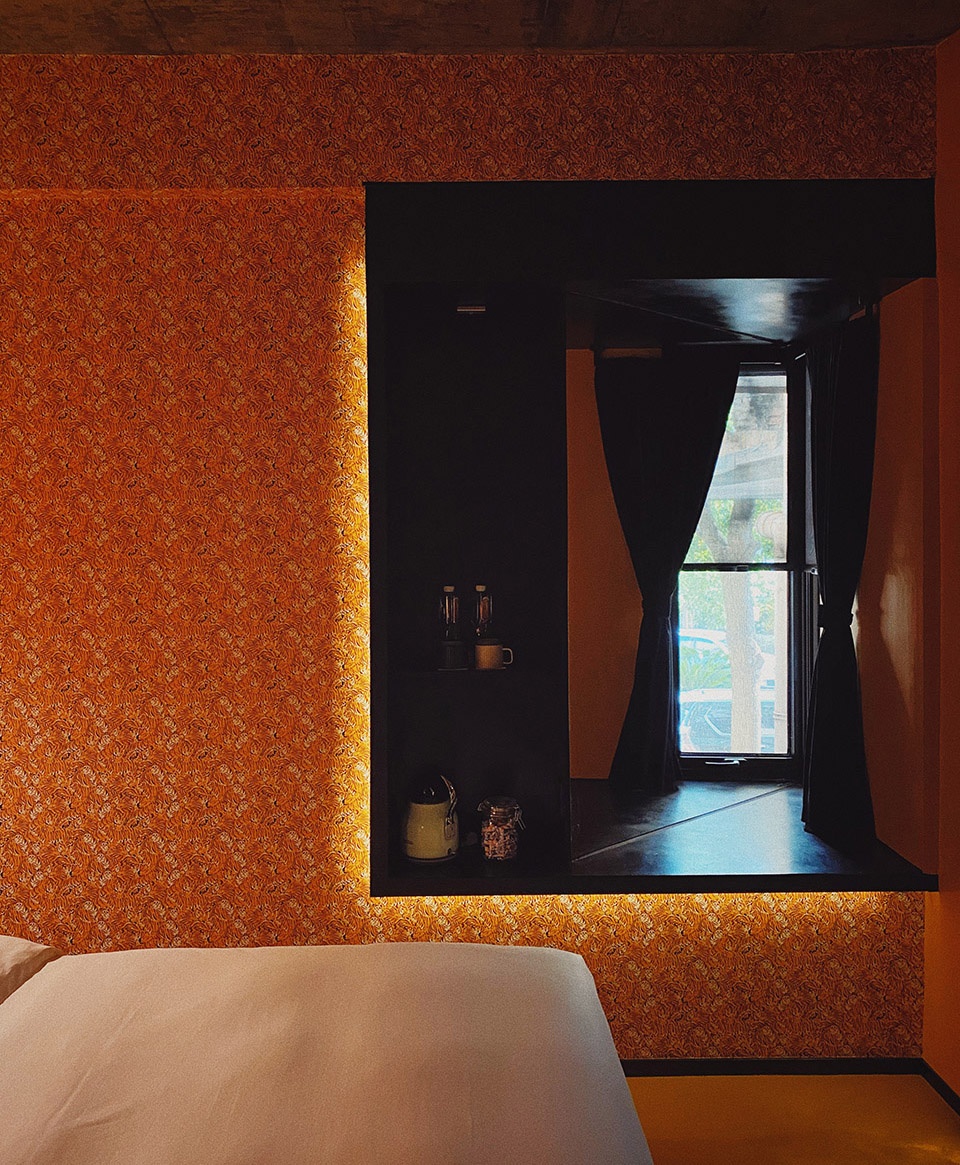

▼客房细部,details of the guest rooms ©XING DESIGN

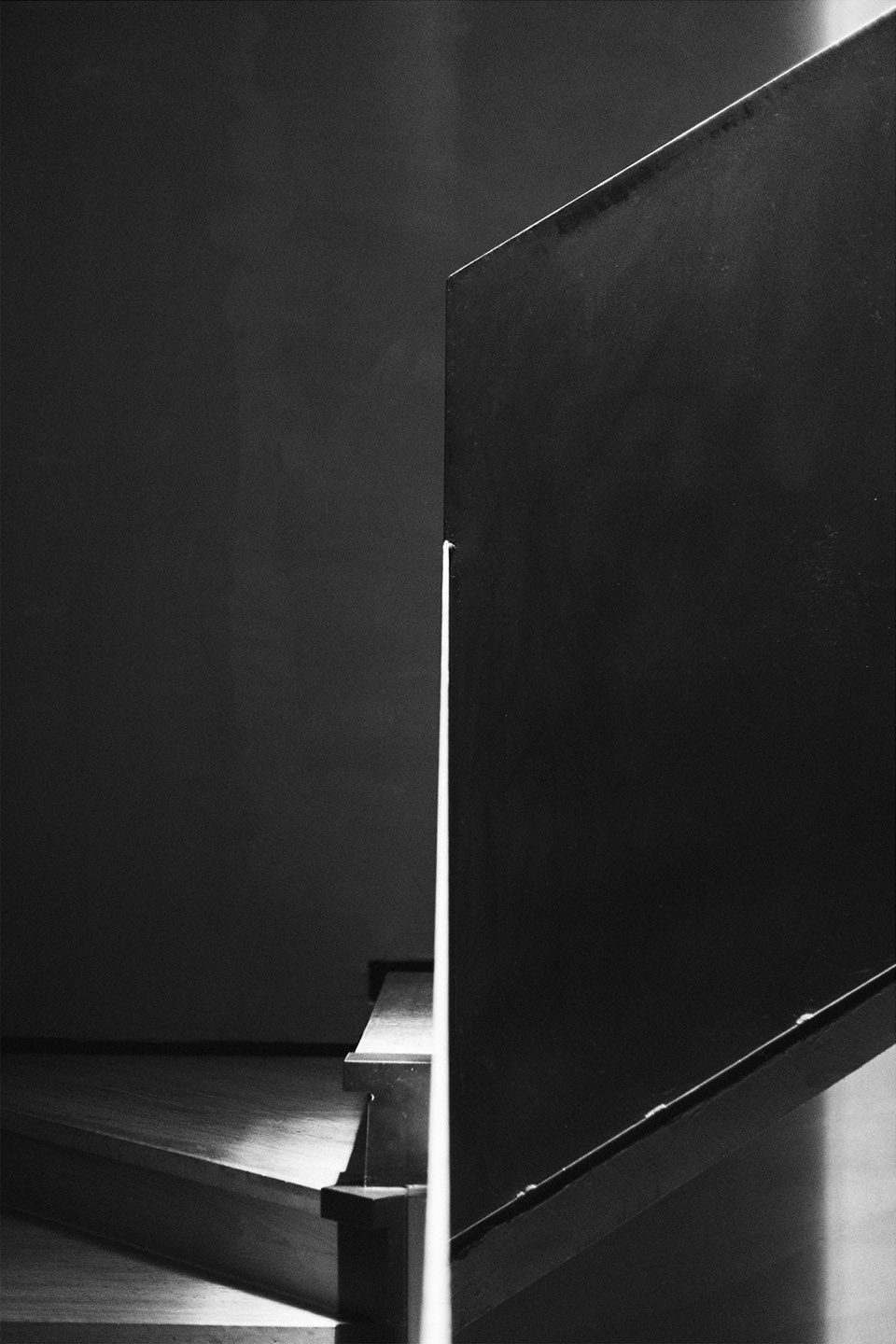

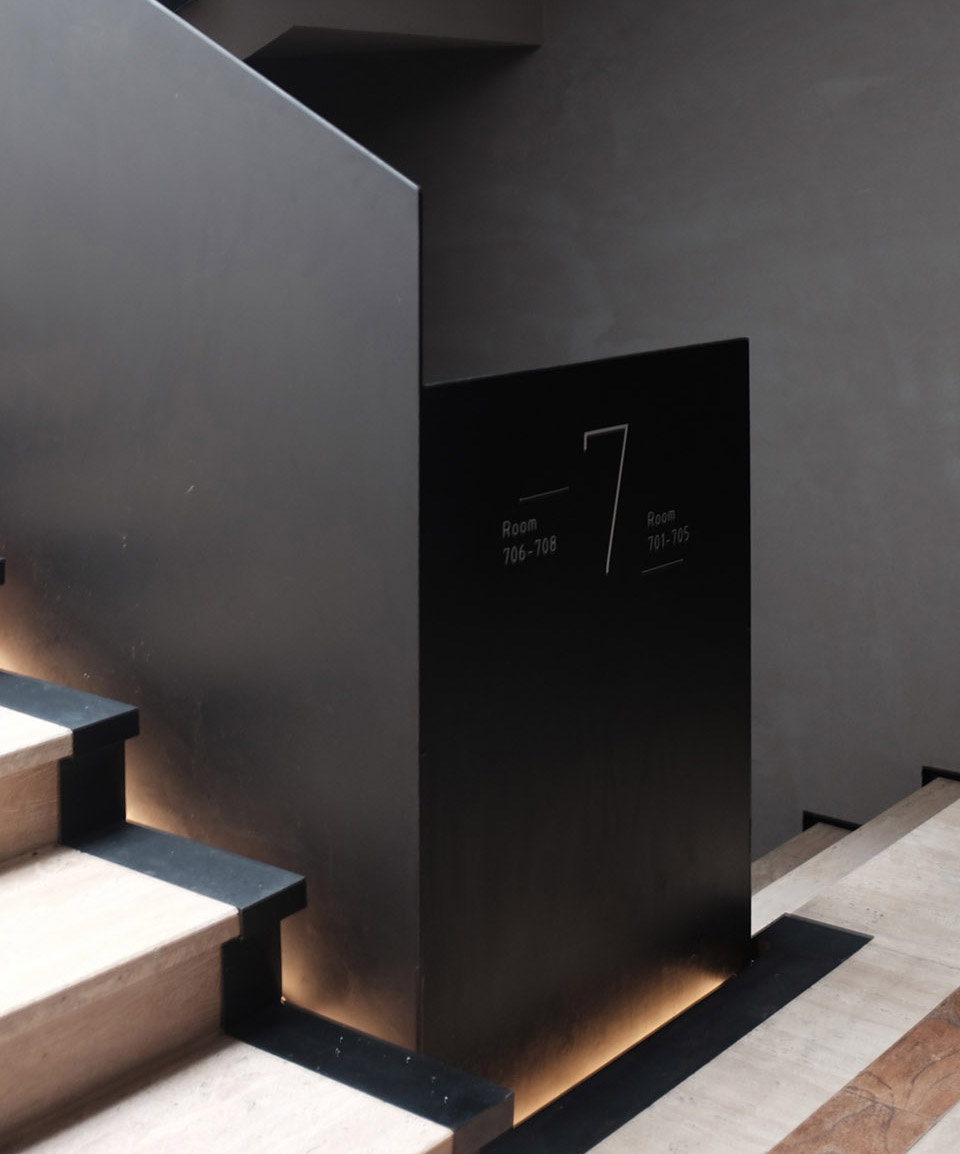

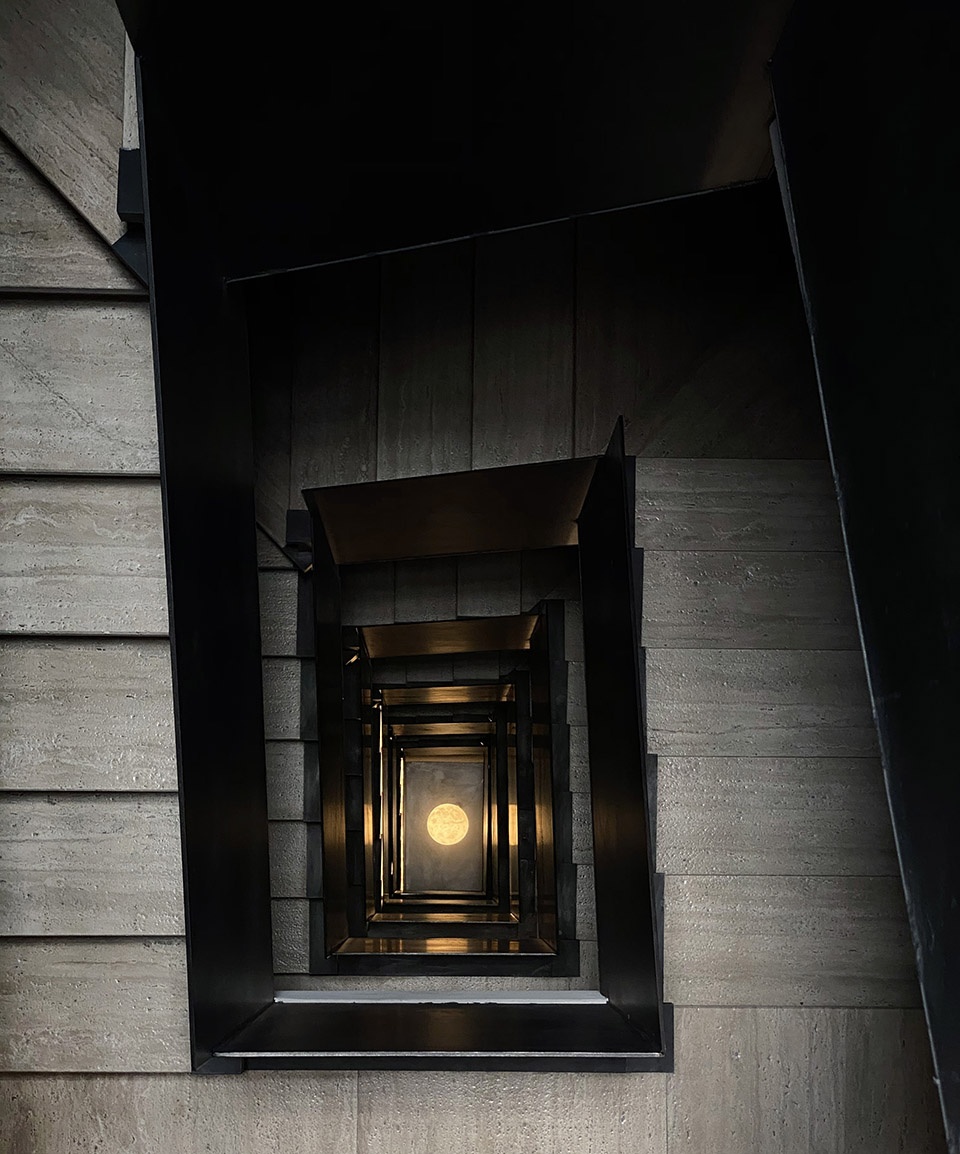

▼楼梯和细部,staircase and details ©XING DESIGN

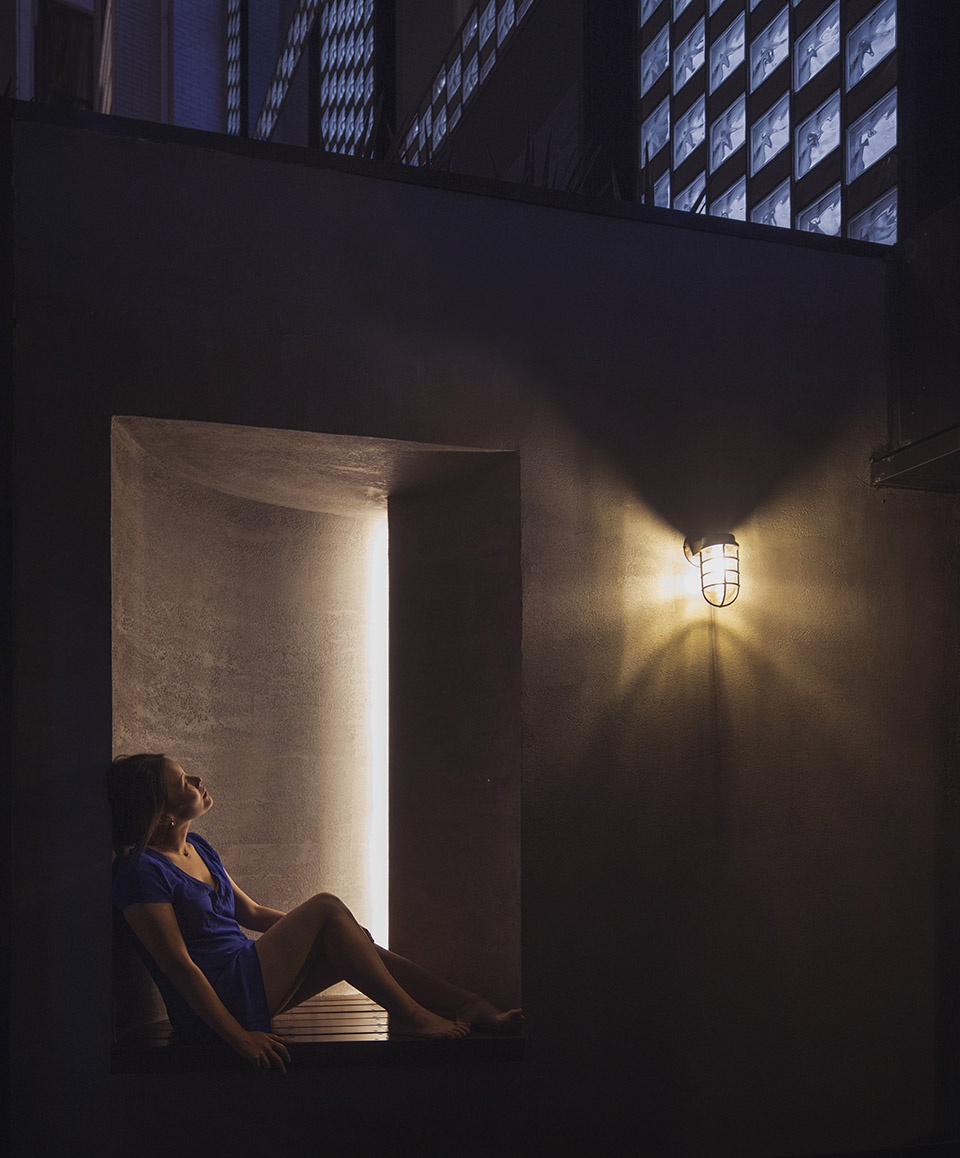

▼夜晚酒店中隐秘而有趣的空间,private and interest space in the hotel in the night ©XING DESIGN

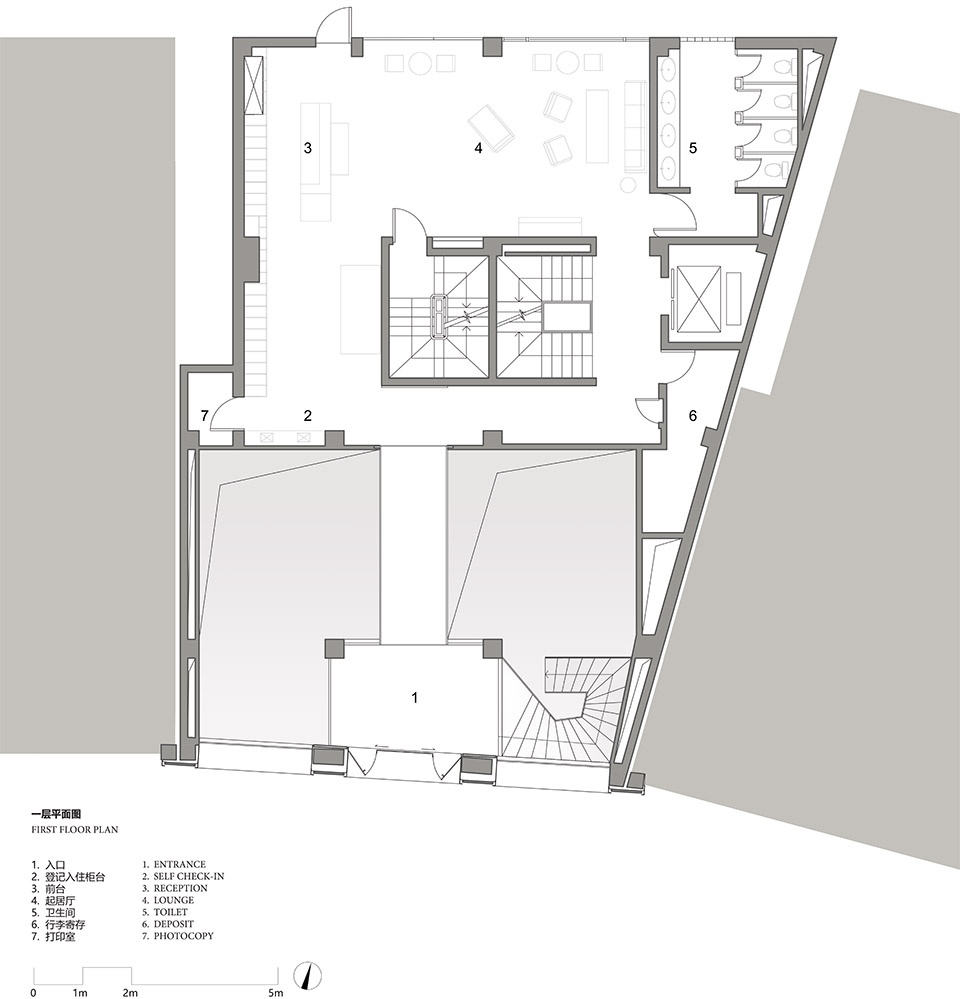

▼一层平面图,first floor plan ©XING DESIGN

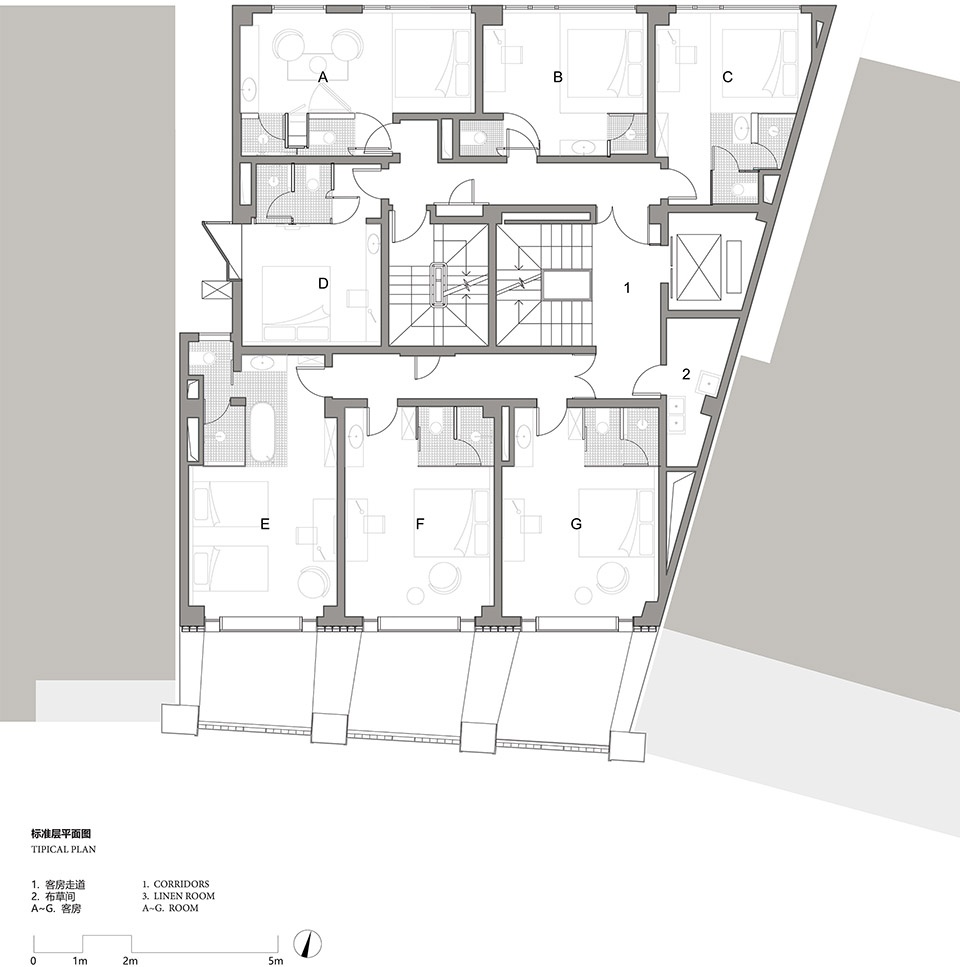

▼标准层平面图,typical floor plan ©XING DESIGN

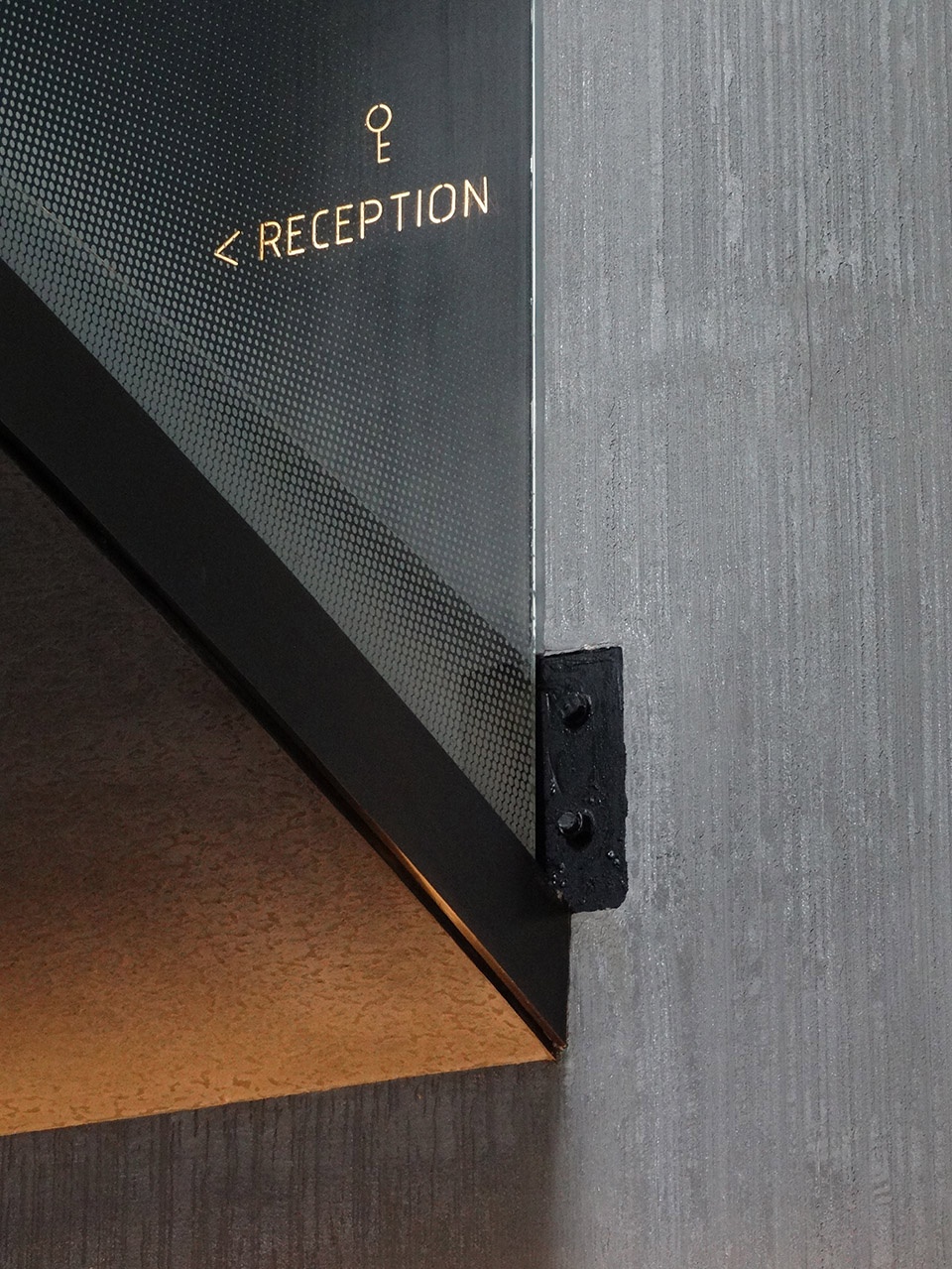

▼细部,details ©XING DESIGN
