Multi-sport Pavilion and Classroom Complex, Francisco de Vitoria University by Alberto Campo Baeza

Designed with lightness.

Project Specs


非常感谢 Alberto Campo Baeza 予gooood分享以下内容。更多关于他们:Alberto Campo Baeza on gooood.
Appreciation towards Alberto Campo Baeza for providing the following description:

该项目位于西班牙马德里的 Francisco de Vitoria 大学校园内,是一个体育中心和教室综合体。其中包含体育馆、多功能厅、健身房、游泳馆和理疗空间。体育馆还可以作为举办大型活动的多功能场地,方便举行会议和其他学生活动。

Designed for the campus of the Francisco de Vitoria University in Pozuelo (Madrid), the building houses a sports center and classroom complex. It includes the use of sports halls, multi-purpose rooms, a gymnasium, swimming pool, physiotherapy, etc. The sports complex can also be used as a large multi-purpose area and meeting hall, facilitating a range of university activities.

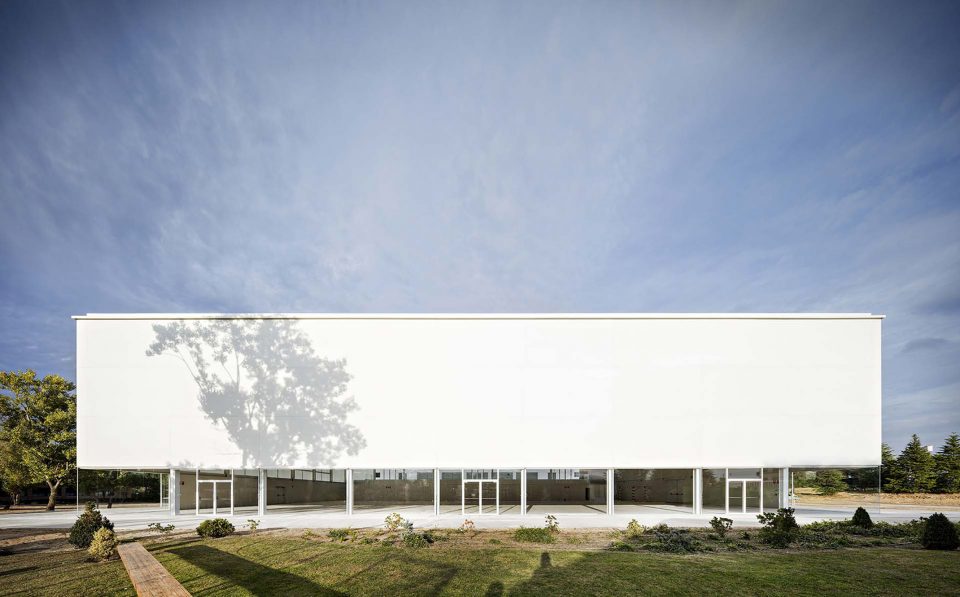

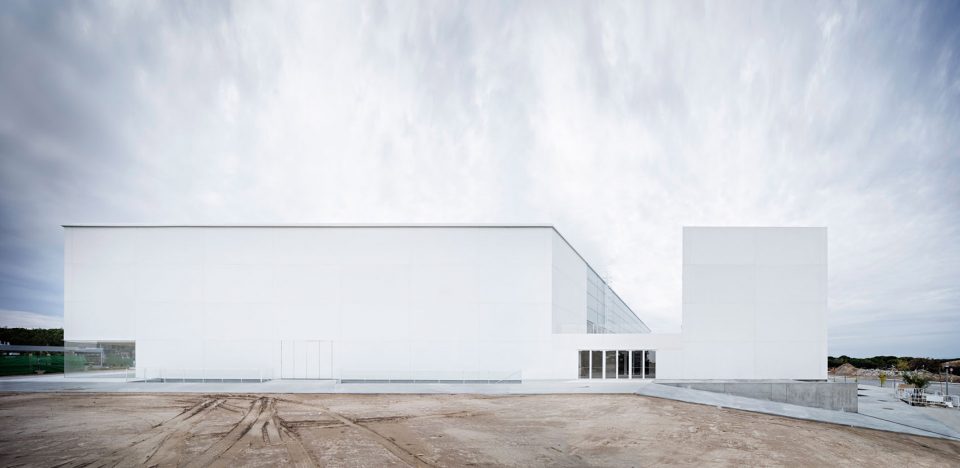

▼体育馆西南立面,southwest elevation


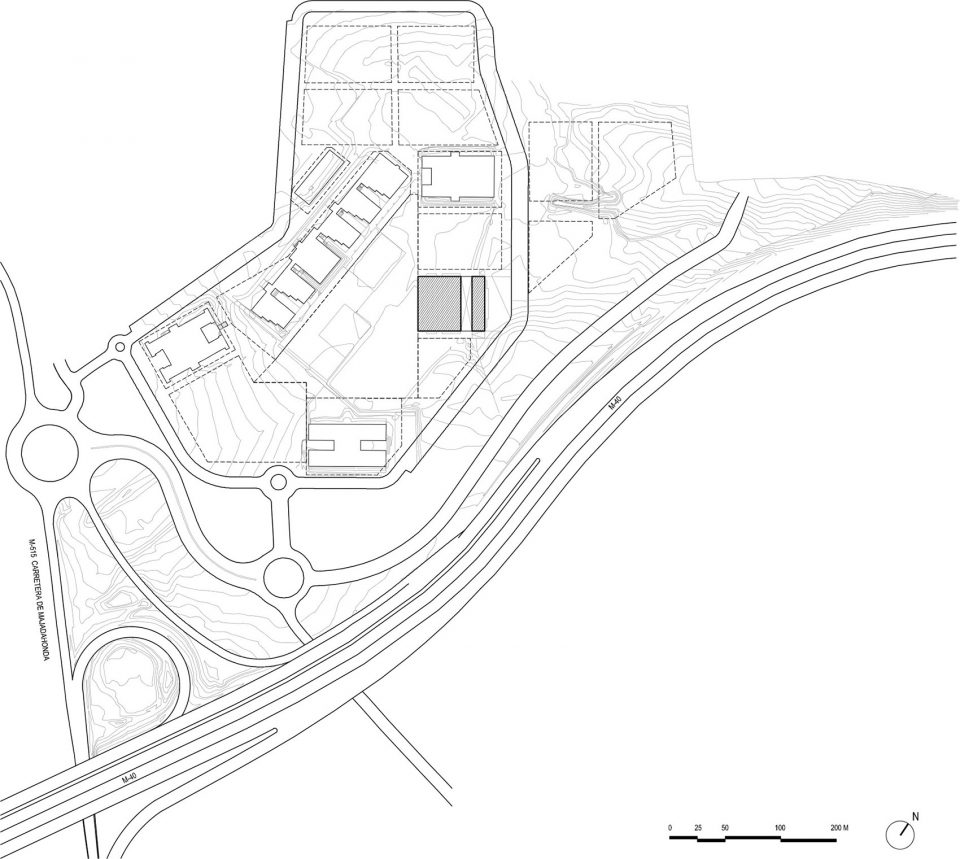

The design of the building is restrained and volumetrically adapted to the general layout of the campus in terms of maximum height and alignment. And it is intended to clearly differentiate the sports and teaching areas in terms of volume and façade material. The fundamental element of the project is a large translucent box of light, 60x50x12m, filtered and controlled, entering into a spatial relationship with the main square of the campus. Two clean, well-defined boxes are joined together by a low-rise building whose roof becomes an inter-connecting patio.

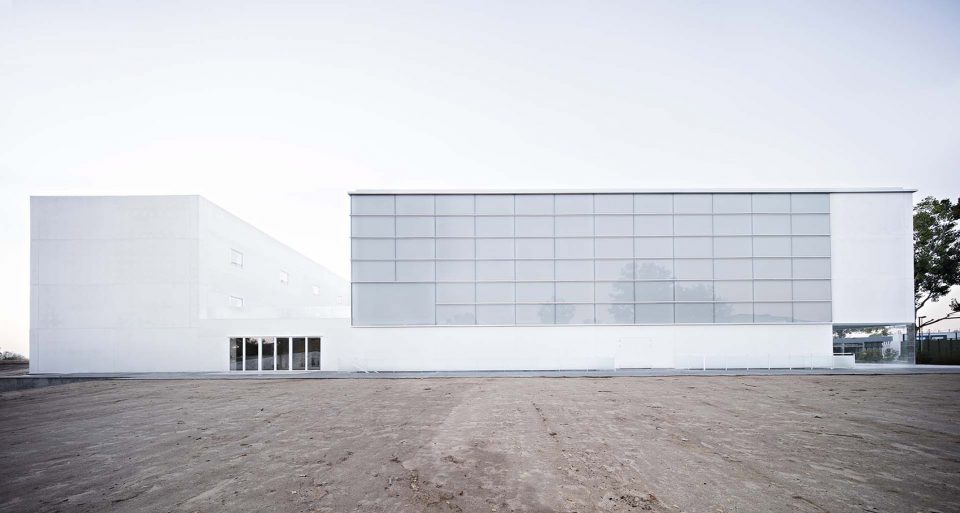

▼体育馆和教室空间明确区分,the sports and teaching areas are clearly differentiated

体育馆使用了 GRC 玻璃纤维强化的混凝土,设计考虑到空间的通透和采光效果,没有使用传统的封闭型教室和低关联性的空间。在体育馆综合体中,不同的朝向布置了不同的功能。南向的立面采用强化混凝土,以免过多的阳光进入室内;北侧的立采用大面积半透明的玻璃。西南立面底部是一条全透明的玻璃墙,加强了校园与主广场的联系。这种运用透明度的手法在东北立面的顶部重复出现,正对两个体块中间的中庭。因此,广场和体育场馆之间形成了良好的视觉关系,而教室空间西南部的立面成为了体育馆的帷幕,将两个场地联系在一起。

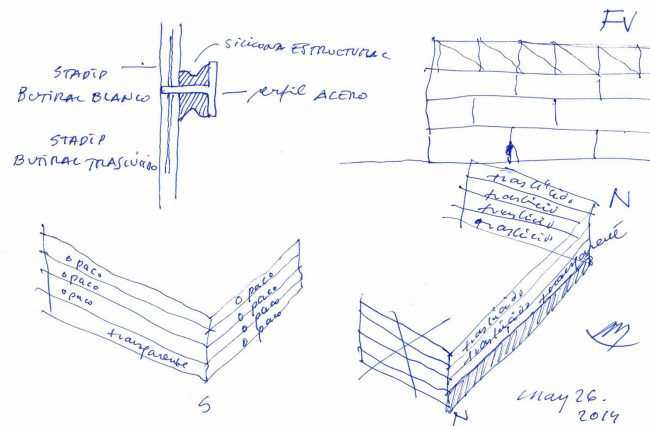

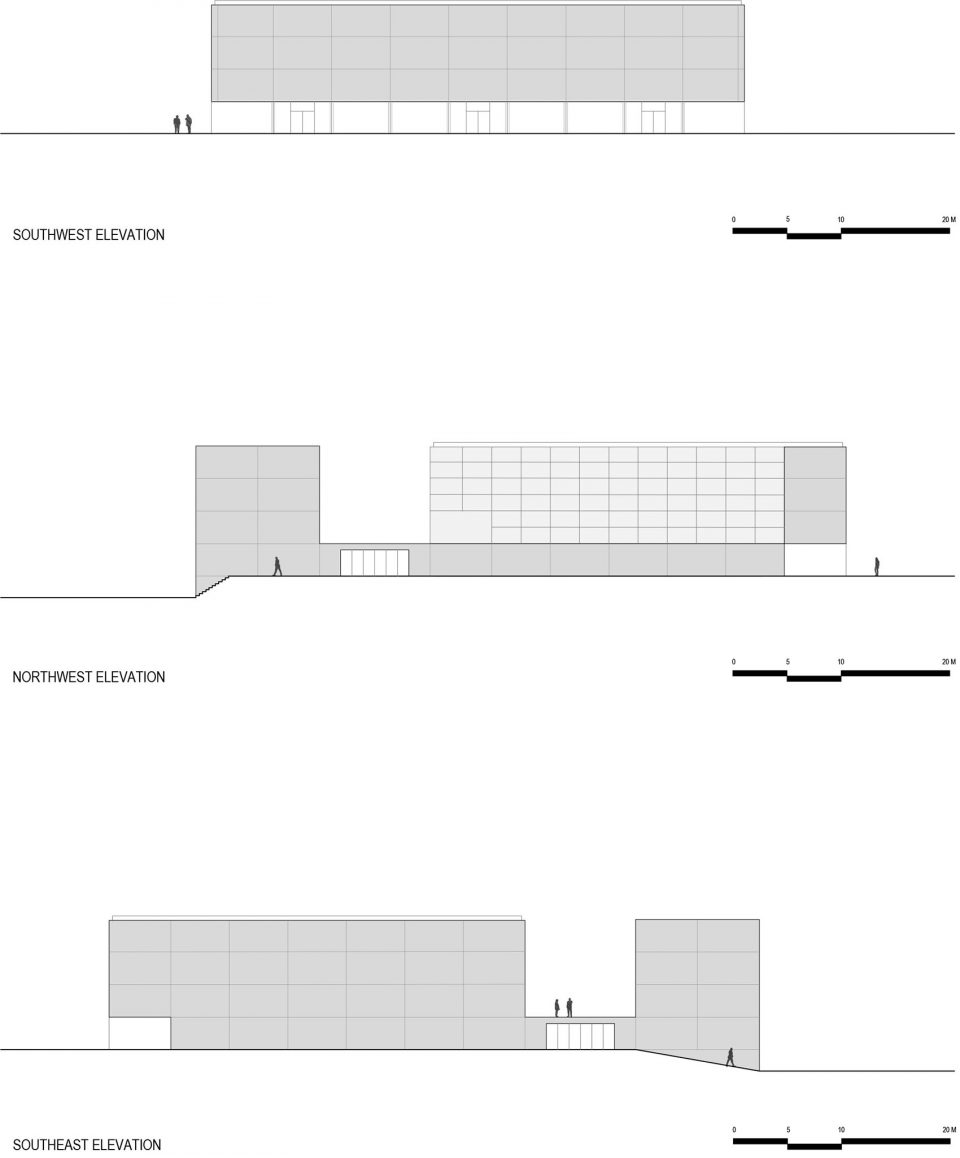

The sports pavilion is designed with lightness in mind, in GRC glass fiber reinforced concrete, unlike the more closed classroom complex and low interconnecting building. In the volume of the sports complex the orientation of the various sides are valued differently, so that the facades of the southern dihedral, more exposed to sunlight, are enclosed in a prefabricated panel of GRC glass fiber reinforced concrete, while those of the northern dihedral are in translucent glass. The southwestern facade features a low strip of transparent glass highlighting the link with the main square of the campus. And this mechanism of transparency is repeated on the north eastern facade facing the upper patio. Thus a visual relationship is created between the square and the sports complex, while the southwestern façade of the classroom complex becomes a backdrop to the complex as a whole.

▼场馆通透的设计,the lightness of the design

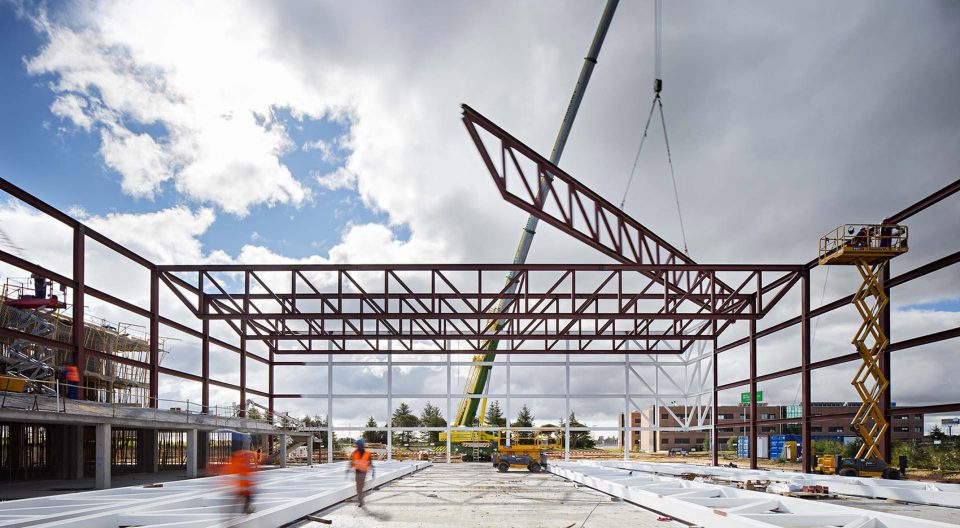

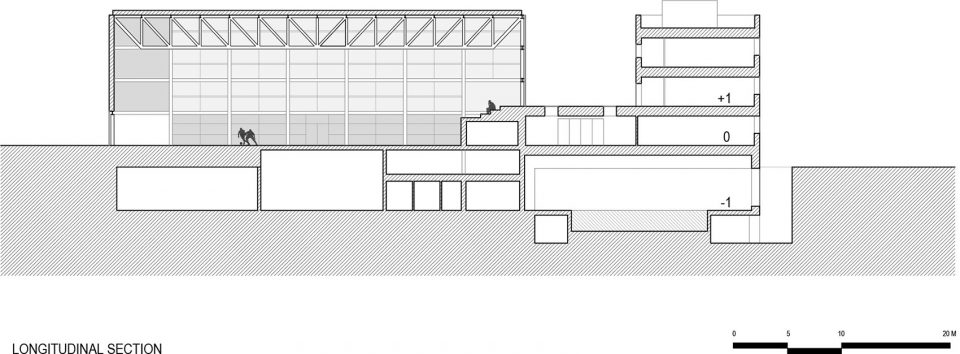

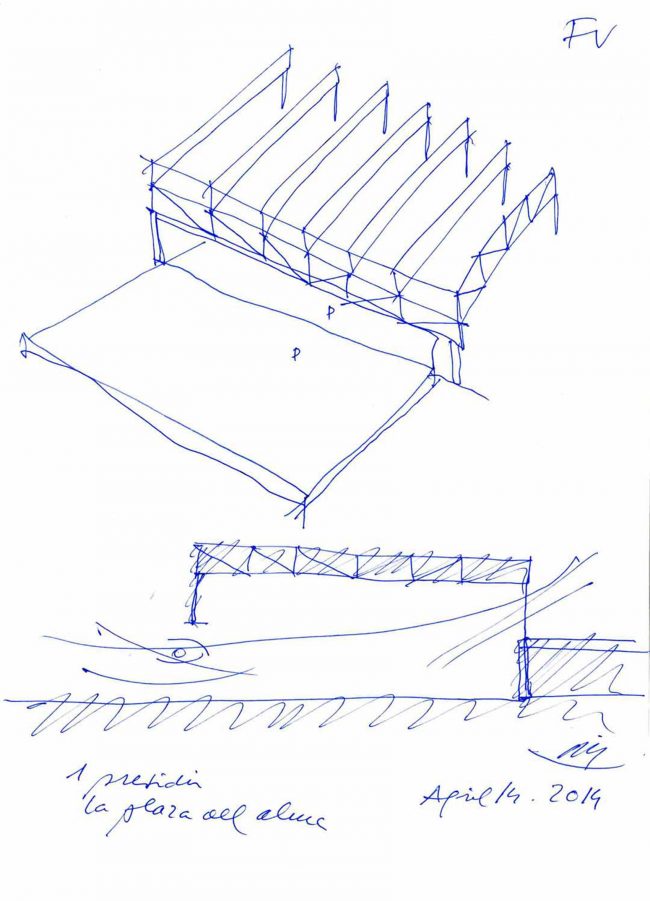

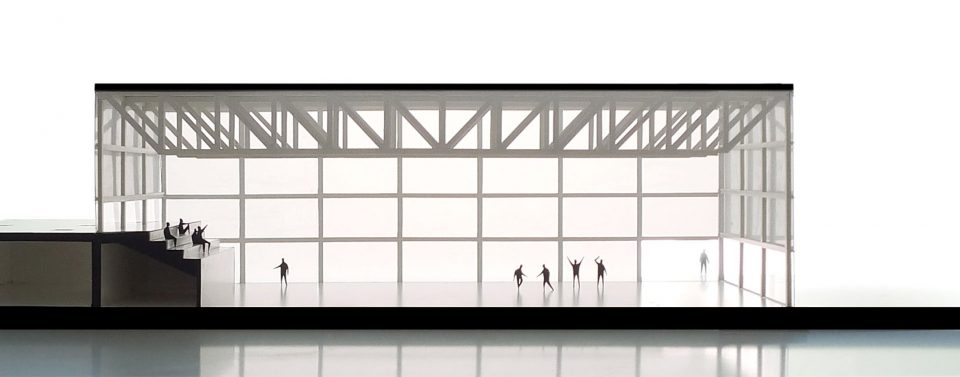

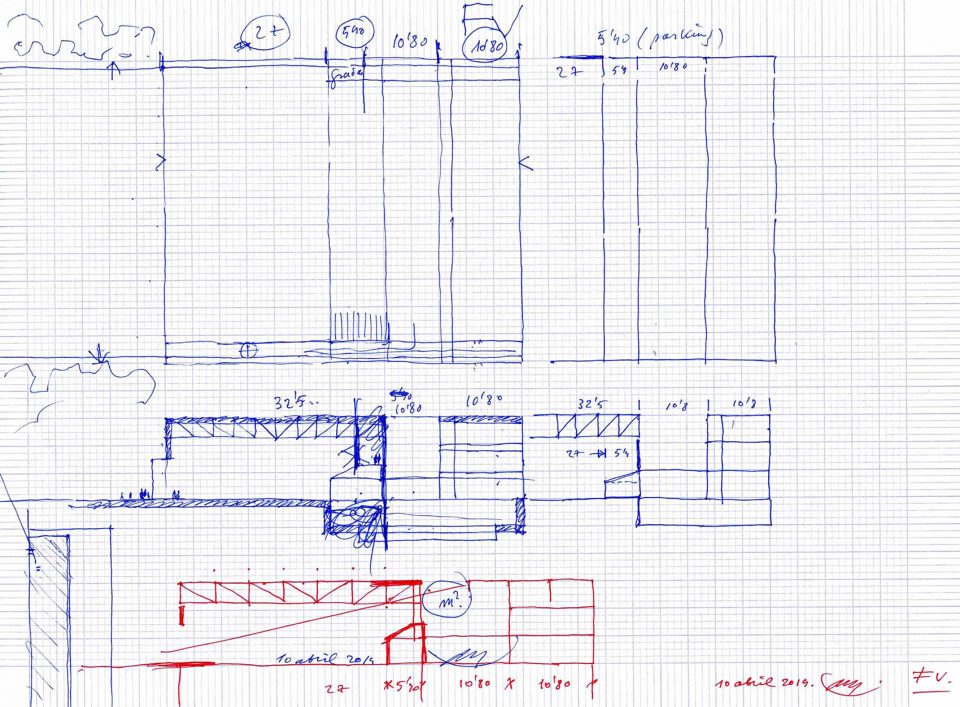

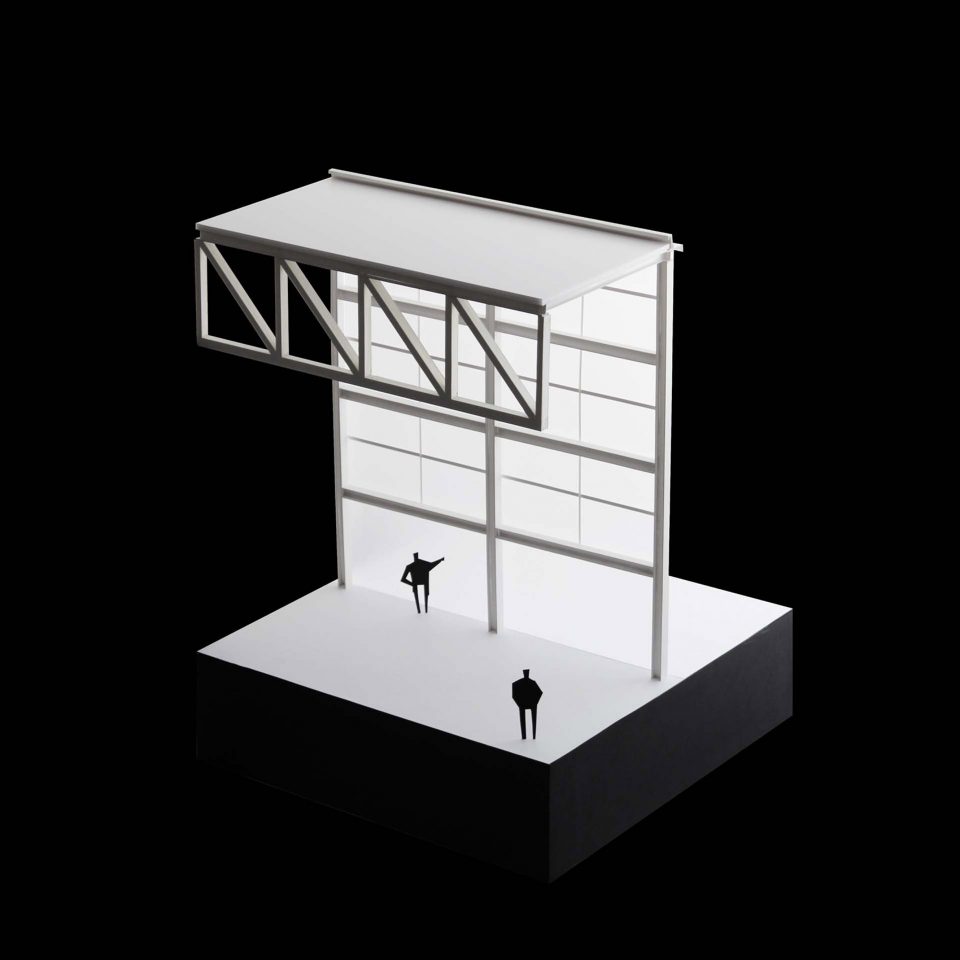

The structure of the pavilion is in steel: a grid of pillars and beams on the facades and trusses to resolve the great roof span. All painted in white. The remainder of the structure is in reinforced concrete, with the unique feature of wide angled beams over the basement swimming-pool area.

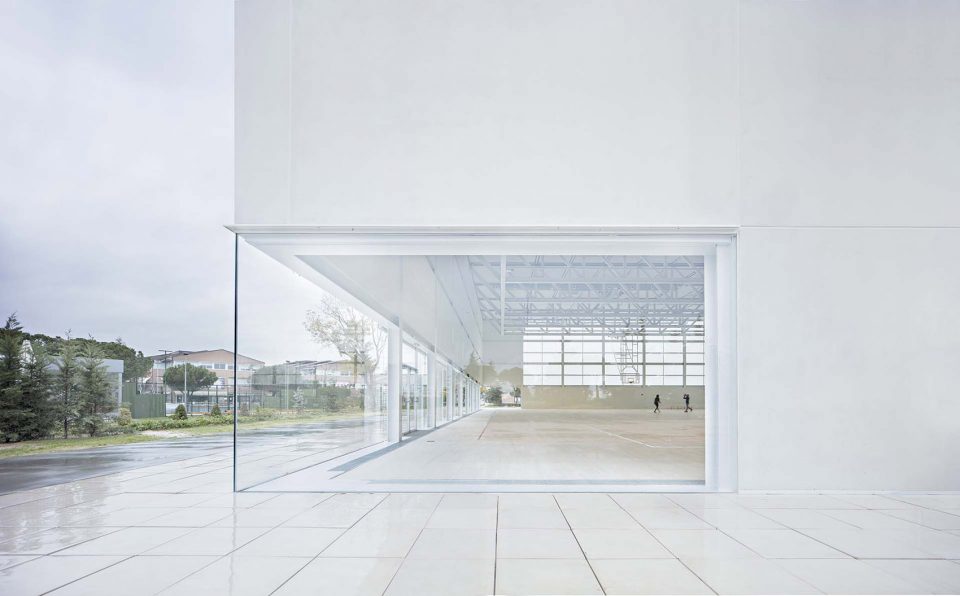

▼体育馆入口,entry of the gym

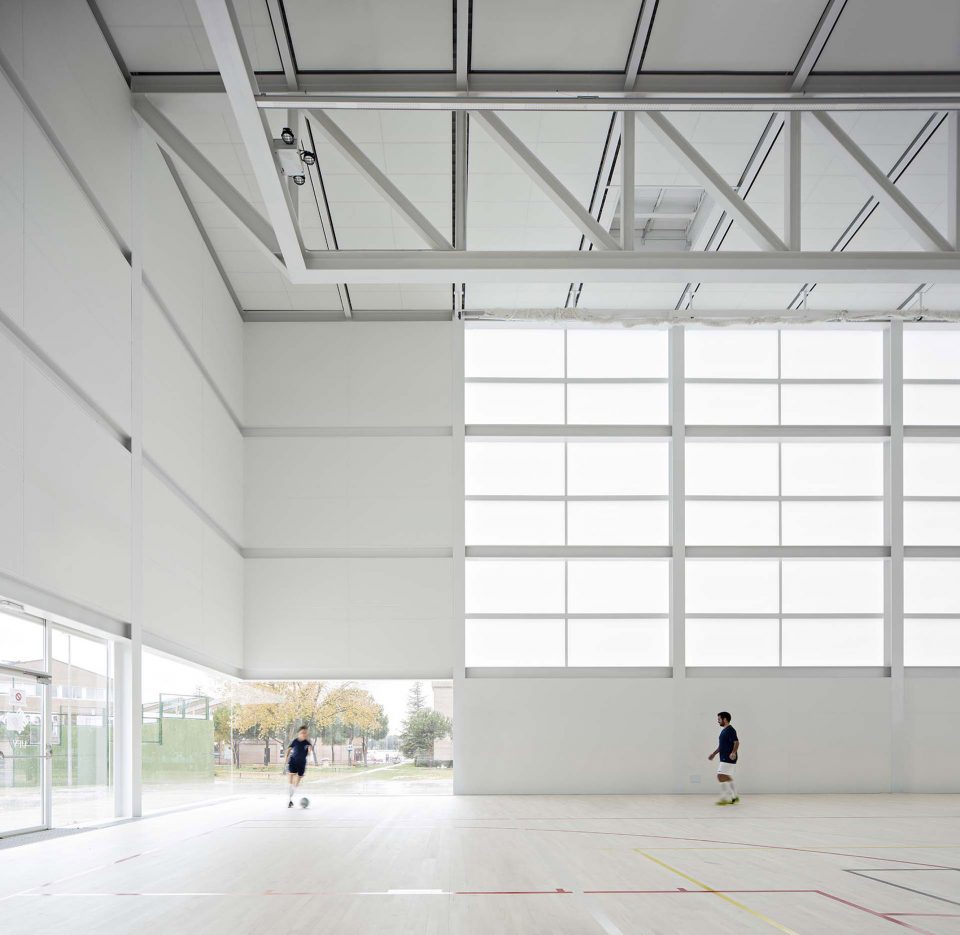

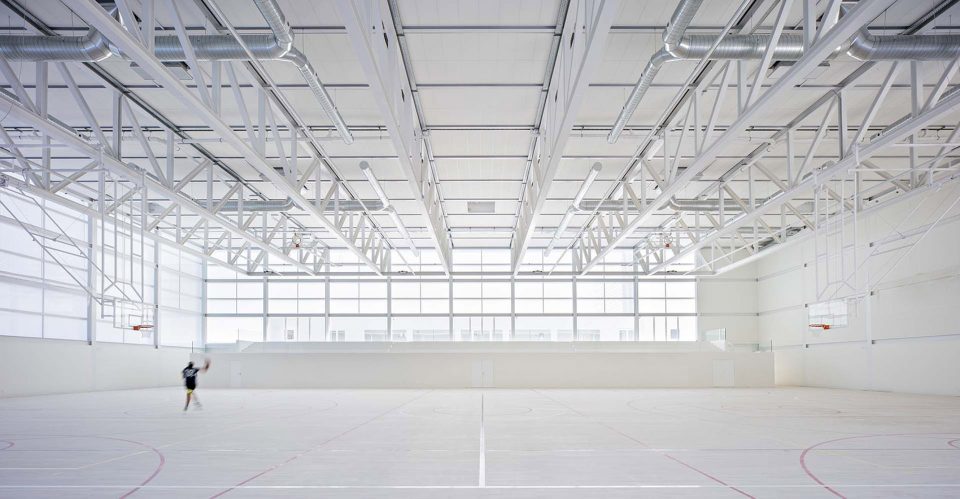

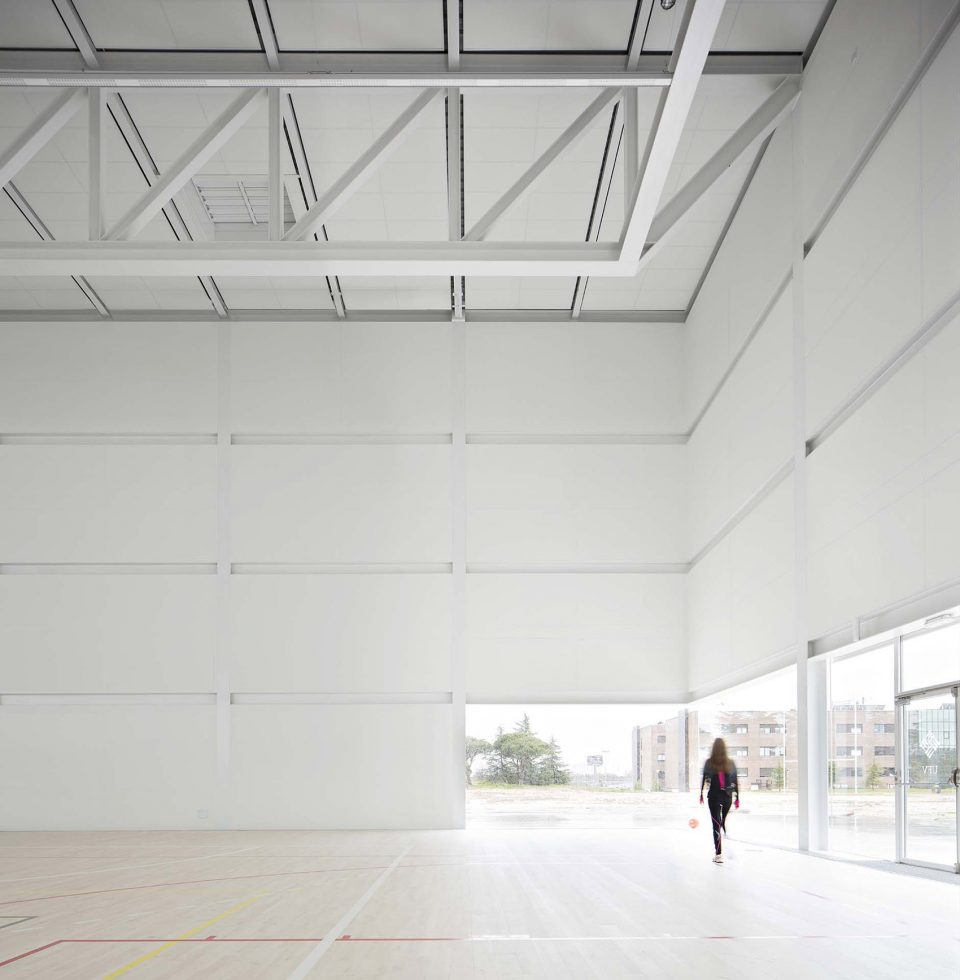

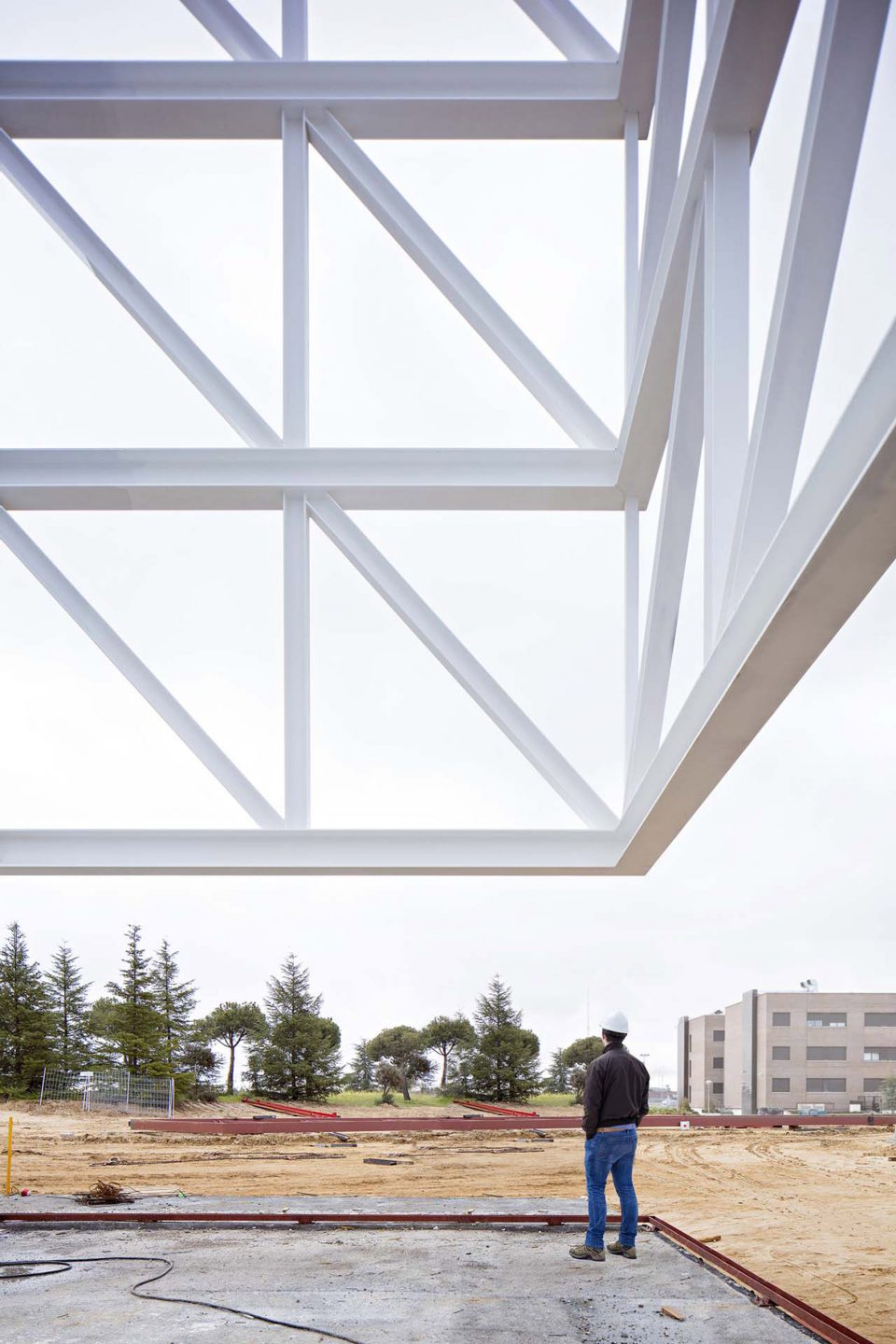

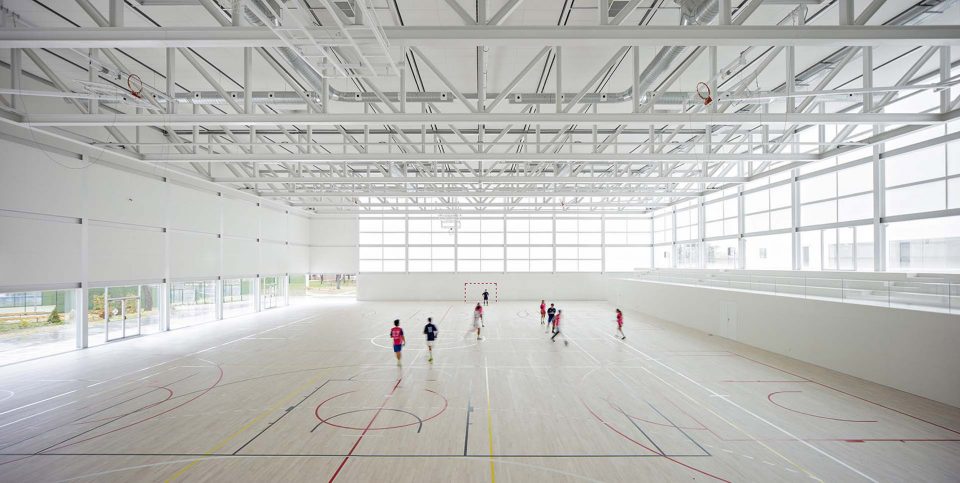

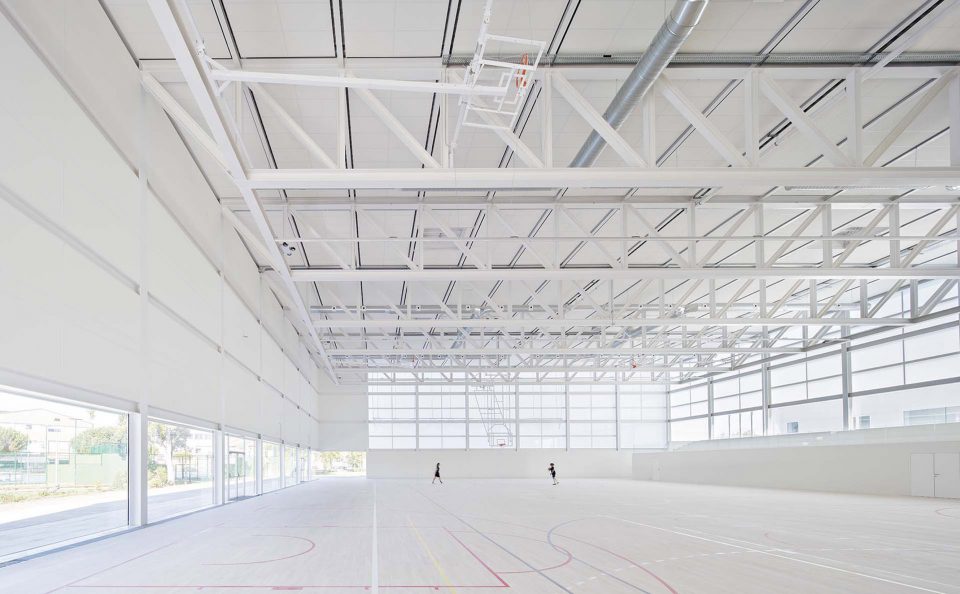

▼钢结构的空间,the steel structure

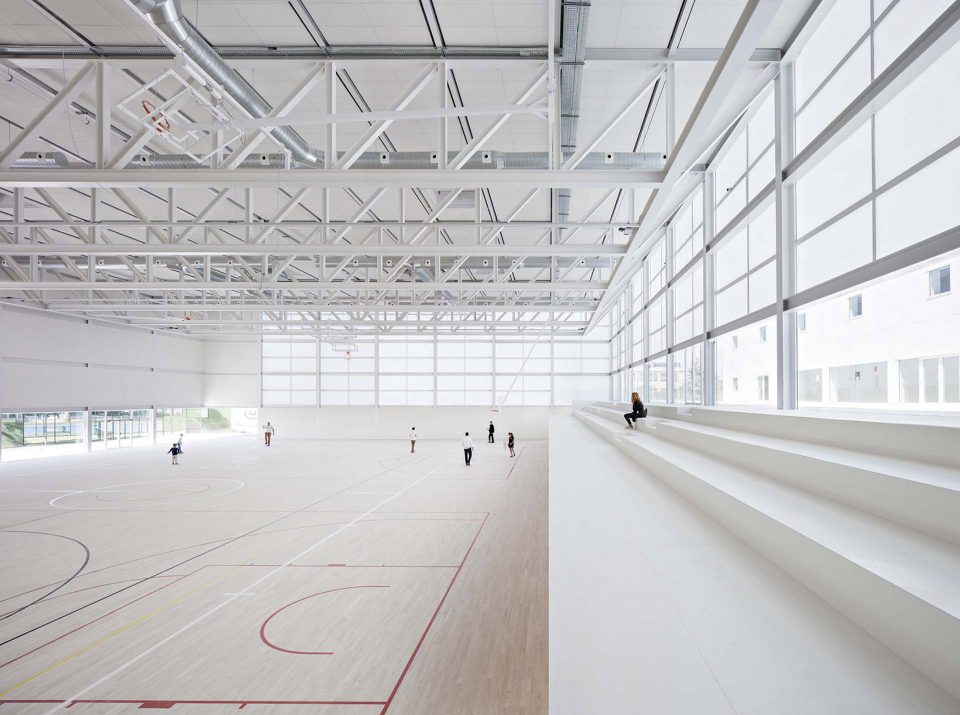

▼看台位于上层,the viewing podium

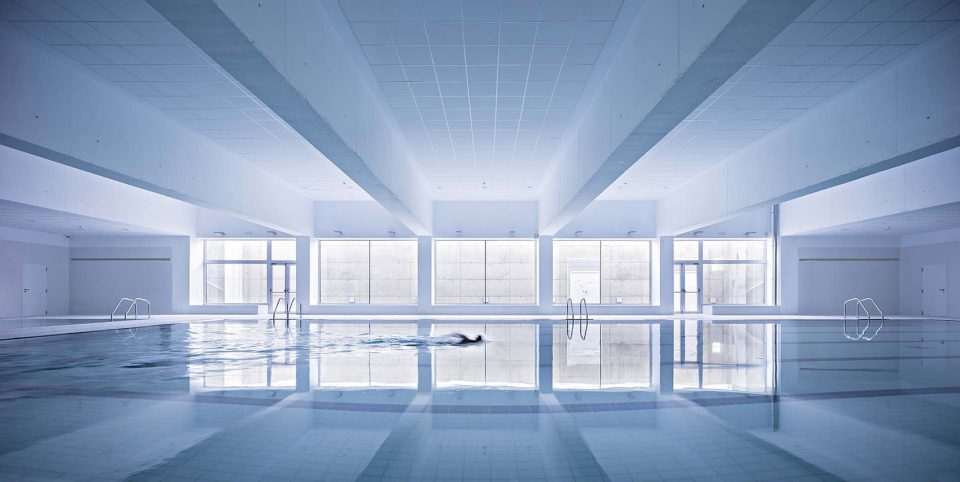

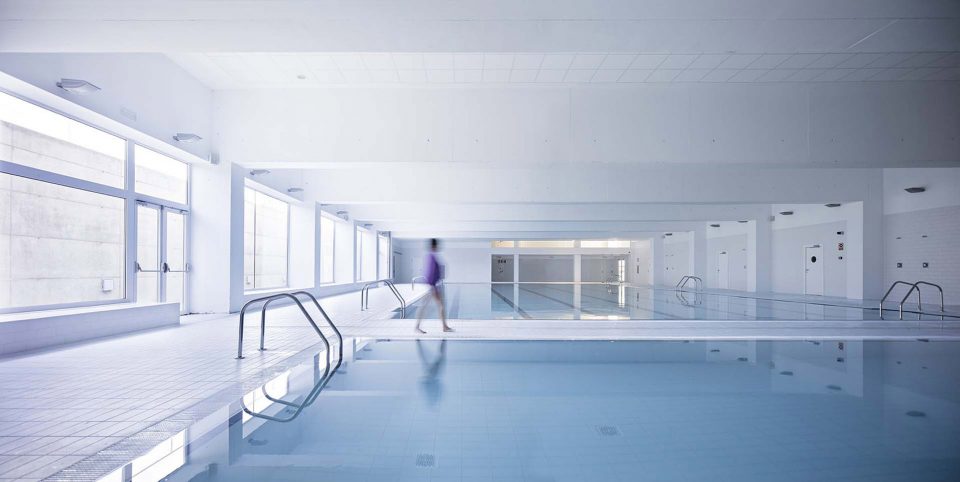

▼游泳馆,swimming pool


The result is a building of great sobriety and formal restraint.

▼体育馆中的表演,the activity in the complex

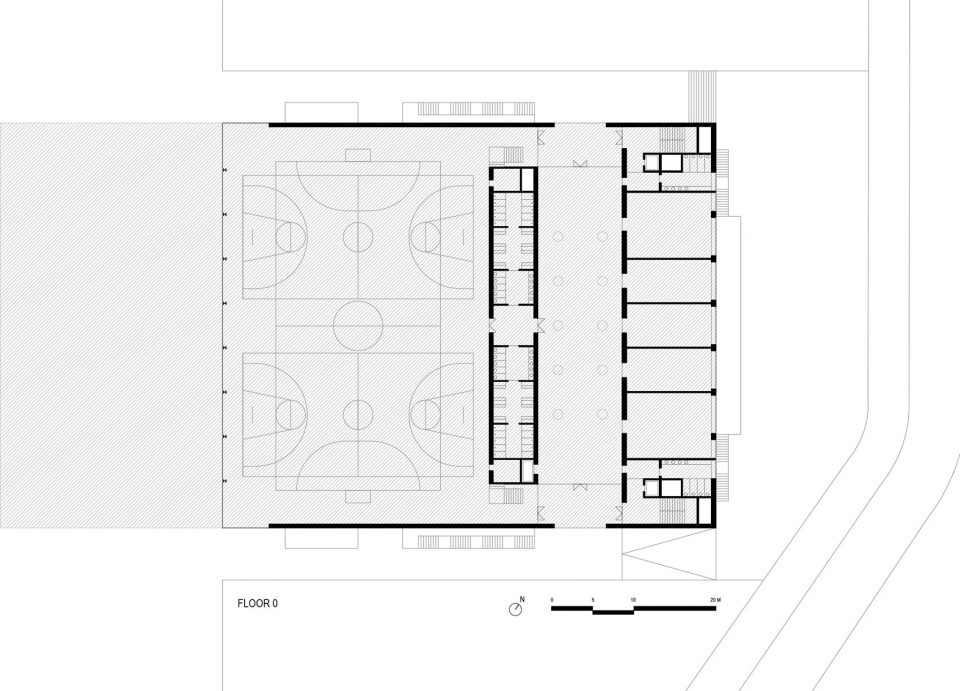

▼首层平面,ground floor plan

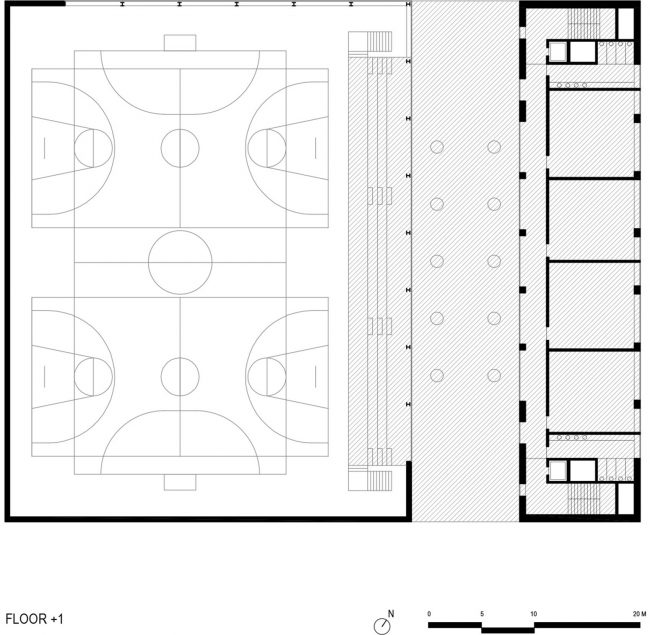

▼看台层平面,first floor plan

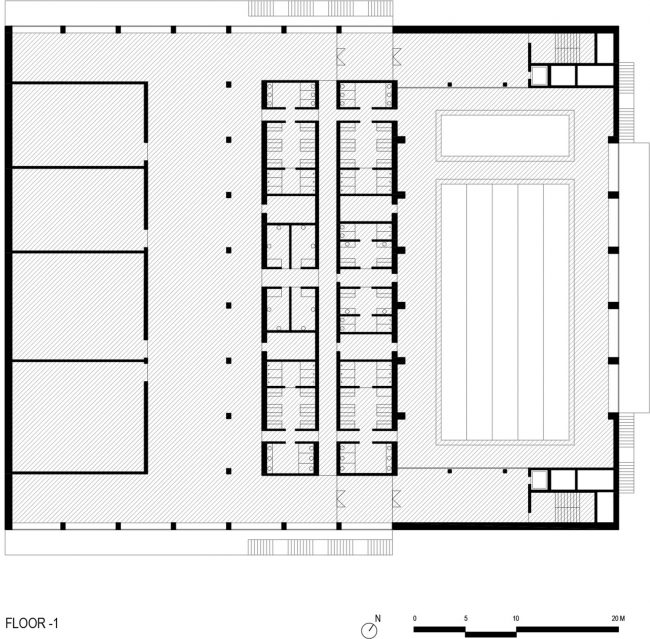

▼地下层平面,basement plan




Architect: Alberto Campo Baeza

Location: Carretera. Pozuelo-Majadahonda km 1.800, Pozuelo de Alarcón, MADRID
Client: Universidad Francisco de Vitoria
Function: Sports center and classrooms
Project: 2012
Built: 2017
Building Area: 9,000 sqm

Collaborators architects: Ignacio Aguirre López, Alejandro Cervilla García, María Pérez de Camino, Tommaso Campiotti, Miguel Ciria Hernández, Elena Jiménez Sánchez, Imanol Iparraguirre, María Moura

Structure: Andrés Rubio Morán
Mechanical engineer: Úrculo Ingenieros
Quantity Surveyor: Francisco Melchor Gallego
Glass consultant: José Pablo Calvo
Project Manager: Francisco Navarro, María Lamela, Francisco Armesto
Contractor: Clásica Urbana (Jesús Díaz Poblaciones, Francisco Martínez Reche, Jorge Garriga, Mónica Grau)

Photographor: Javier Callejas

More: Alberto Campo Baeza,更多关于他们:Alberto Campo Baeza on gooood
