House in Principe Real / Camarim Arquitectos

葡萄牙里斯本Principe Real住宅

Project Specs

Design Firm:
Location:

Camarim Arquitectos给gooood分享了他们最近获得Tile of Spain Awards的住宅作品House in Principe Real。

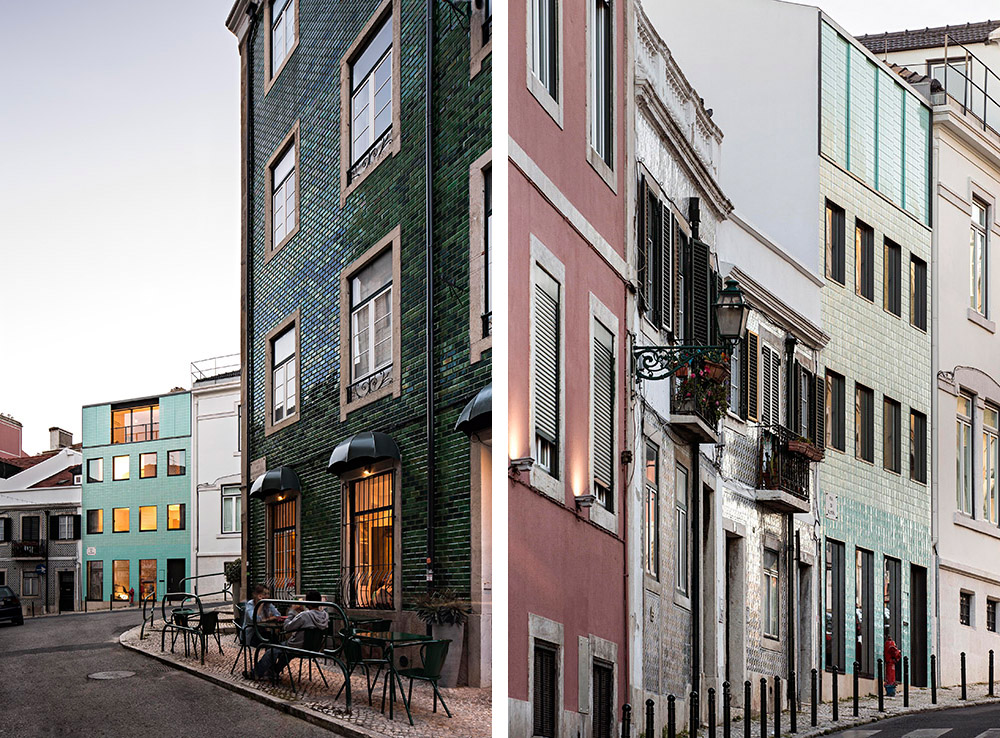

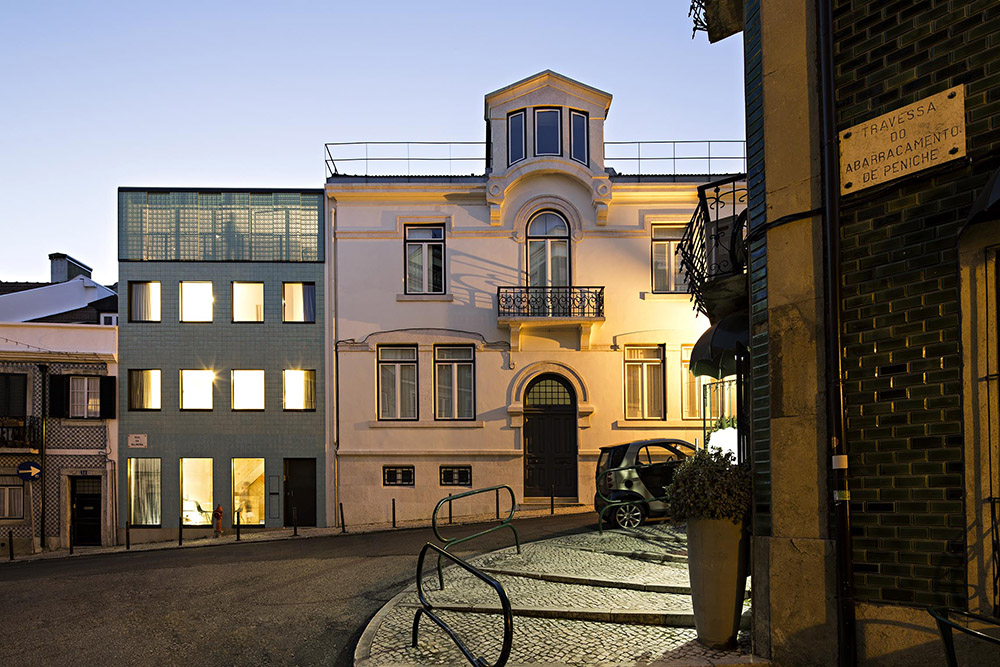

在葡萄牙里斯本,距离普西林花园不远的城区中,这栋占地41平米的绿色小楼安静同其它五颜六色的多层楼房排列在一起,享受着地中海的灿

烂阳光。

Located a few metres from the Garden of Príncipe Real in Lisbon, this 41 m² plot allows the construction of a small 5-storey urban house for a

family.

/wp-content/uploads/2014/12/_c_ZINIyiYmnV2ev7elQEOeFLn0gwnliH0i3vwbGPBpaH5jXu14EgqimS_JW5fZCKdQhaRHXo0l0midxssyyoBGV7pqH4-ZiwZu.jpg

建筑的占地如此之小。建筑师采用了具备良好隔热性和隔音性的LSF轻钢结构建筑系统来进行建设,这是里斯本第一个采用该系统进行建设的

建筑。

/wp-content/uploads/2014/12/_c_pxTIN5B-YODjWmwR1JbtPIfzNQ-jaOazg9pBocjWBoiZG--d7CgSlGfPnfxd3Ta0rXFqnoLt9yZFbDngRVwDbzQJEP0Vn3xp.jpg

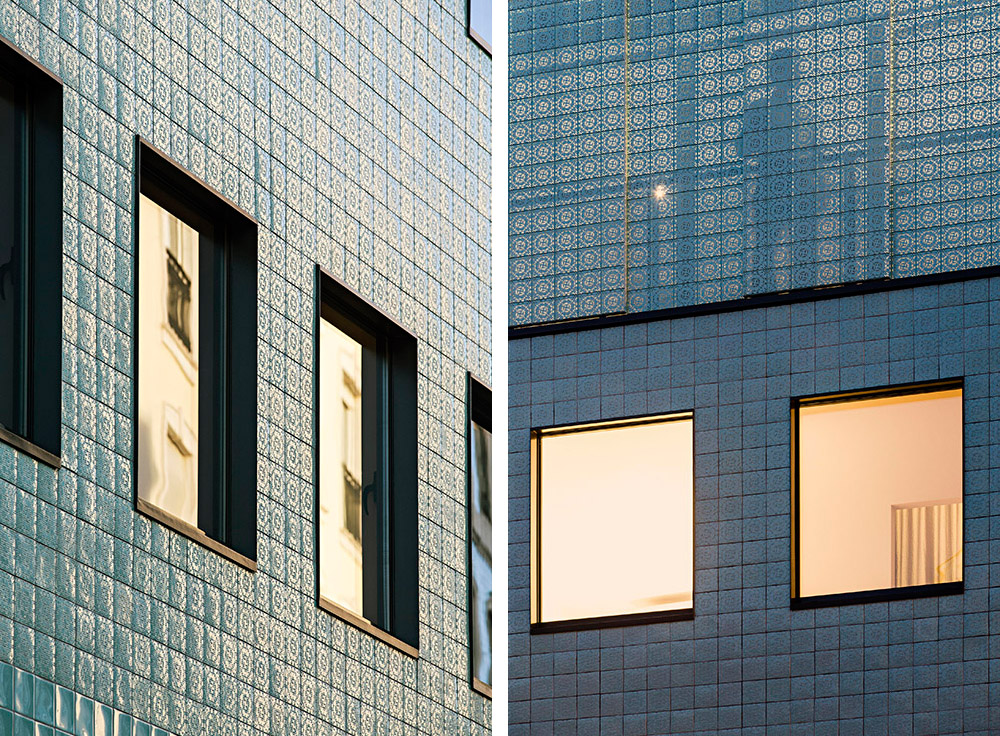

建筑的外表皮采用了三种材料,通过将当地传统的瓷砖花纹抽象化和色彩概括化,打造出平面瓷砖(底部),浅浮雕瓷砖(中部)和穿孔钢板

(顶部)。

/wp-content/uploads/2014/12/_c_VyF3VdhlGKrfjj1FKxumoKSZ59yfdirIcHI-QJ5A91M6jdVWiPwU_Z08-KyBoi3k8Loq94_yGNnYg_SmFq6HChrWJQvUqsdt.jpg

The building’s skin is a contemporary approach to the tiles covering the former building, which was in advanced state of decay. We defined

a setof abstract rules to transform the original tile’s motif in an abstract pattern, embodied in 3 distinct media: a flat-tile base, a bas-relief-tile

body and a perforated-steel, light-permeable, entablature.

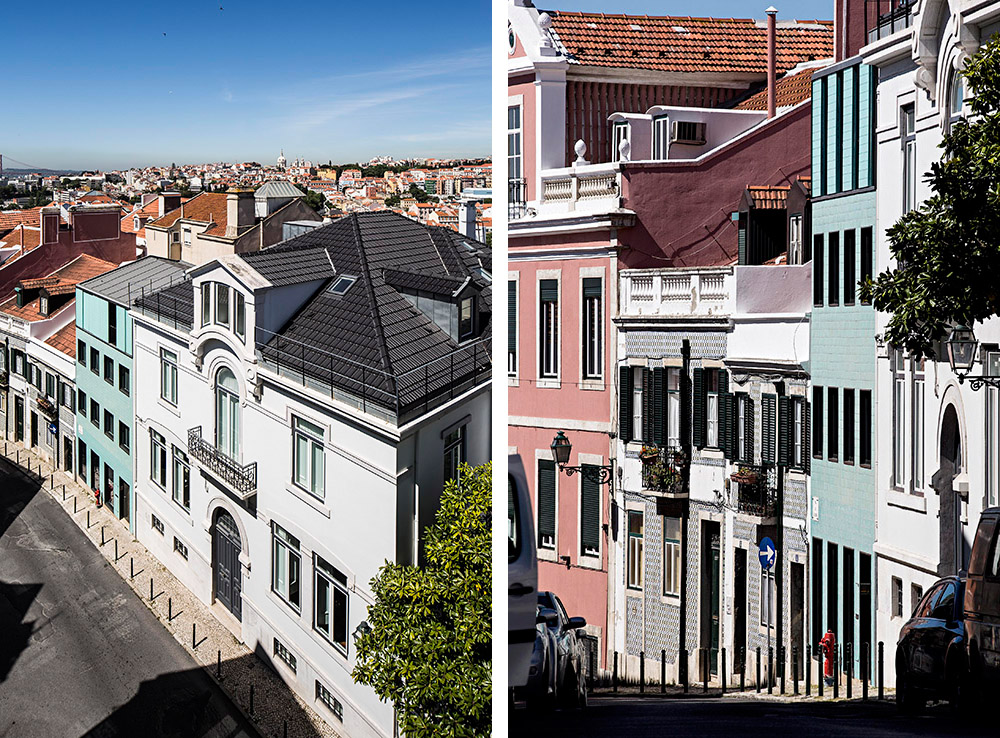

/wp-content/uploads/2014/12/_c_gaWzXNR-i6JWrKLLrHdAkq0_nhdvpGd6VgJyj_f81dh40UsTw2hbWpS_V-LqghxB5Nuj5rbTgiFeNakw1gisp8rQggj6IExz.jpg

/wp-content/uploads/2014/12/_c_mczWhadTfjRQEWliEviuNxFQPlUwMlR01UYboH6x2lZ3icbPJSgkMK5t5BZ1sONsYdRjdfmt2CEaprVJz4Vcn7ZJZZ6Elj1q.jpg

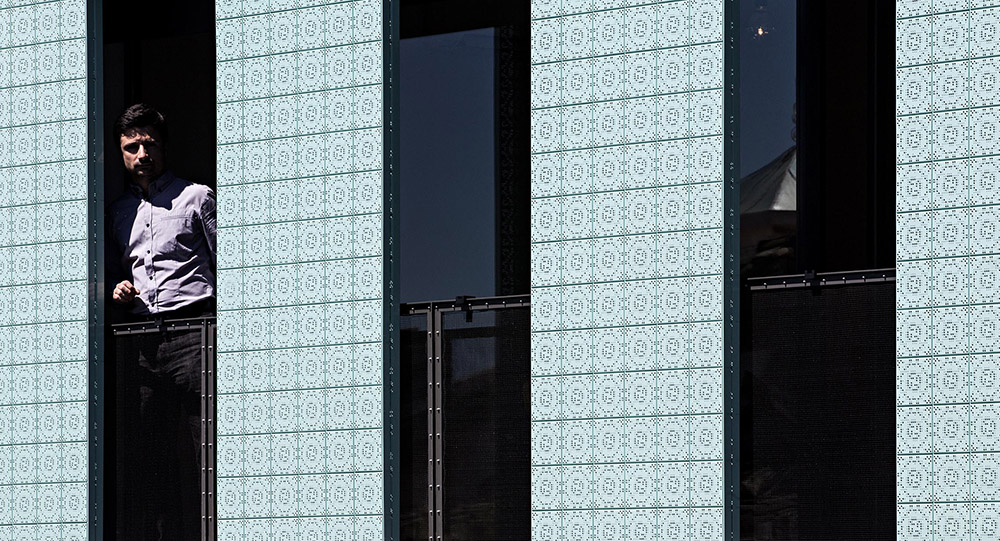

↑ 顶层阳台

建筑师在这栋包含地下室在内的共五层小楼中,设立了一个楼梯系统还有一个贯通四层楼的天井。每一层,都有不同的功能和布局,每一层,

也都有充足的自然光线,和极高的空间品质。天井不光让空间灵动,更作为被动冷却的手段,在炎热季节利用烟囱效应排走热气。

/wp-content/uploads/2014/12/_c_NJ3-6CQnQtXP3tg3NEDF2xGD4fIgWnOPEh7s3cUsA0Y9k30B7kxs3fjY1r6H_QUYuiT2BkM5Cie3VBxFed9H-xIvIPIov3D_.jpg

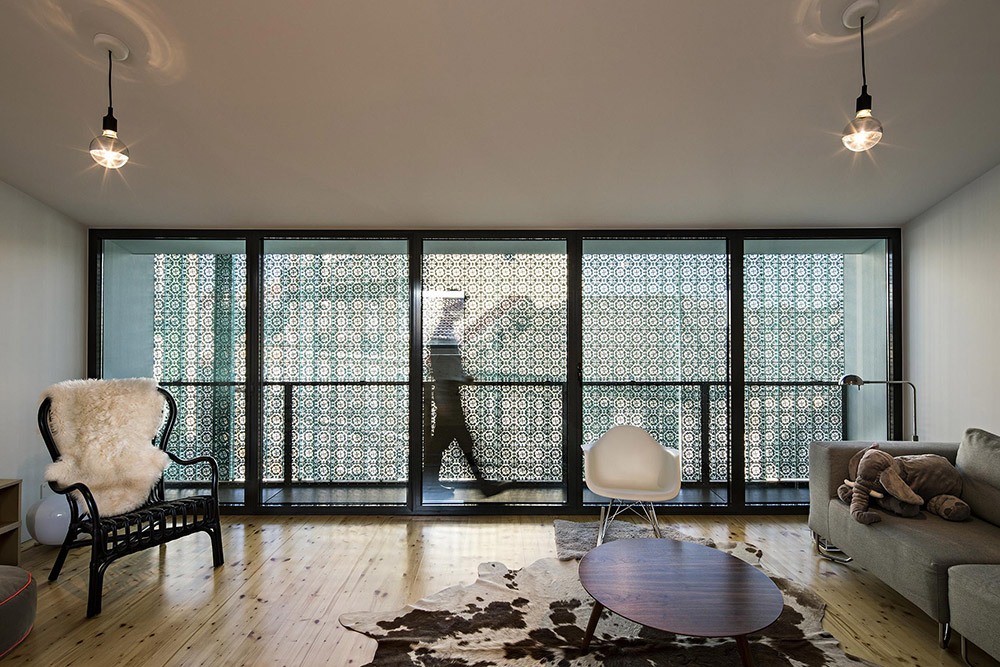

↑  顶层起居室

The exiguity of the plot has led us to a scheme where each floor has a different function and layout and all floors connect through a vertical

atrium of variable geometry, providing a naturally-lit cadenced, progressive route. In addition to its spatial qualities, the atrium works as a

thermal chimney for passive cooling during spring and summer and allows air renewal throughout the year.

/wp-content/uploads/2014/12/_c_pthSsKdWdY0u5-X_iV0SRwhUD0Ks8mTYm4YBnWtRZcir1OymDUEnJo7sWFYTk7J2v47hxuJRGSJ7e8xJr16Oy0qAPKKllQsx.jpg

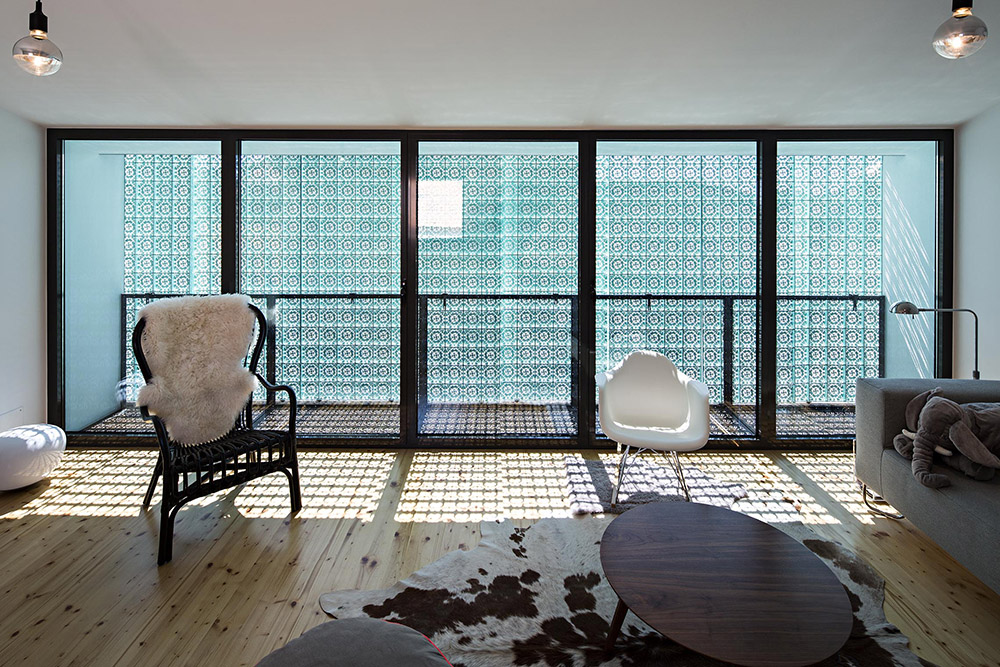

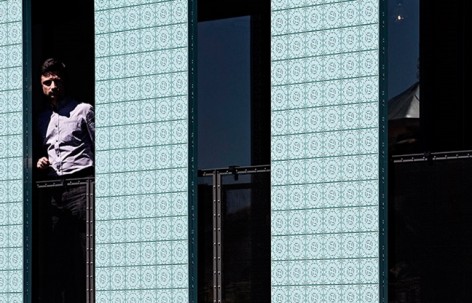

↑  穿孔钢板装饰外表皮过滤进入房间的光线

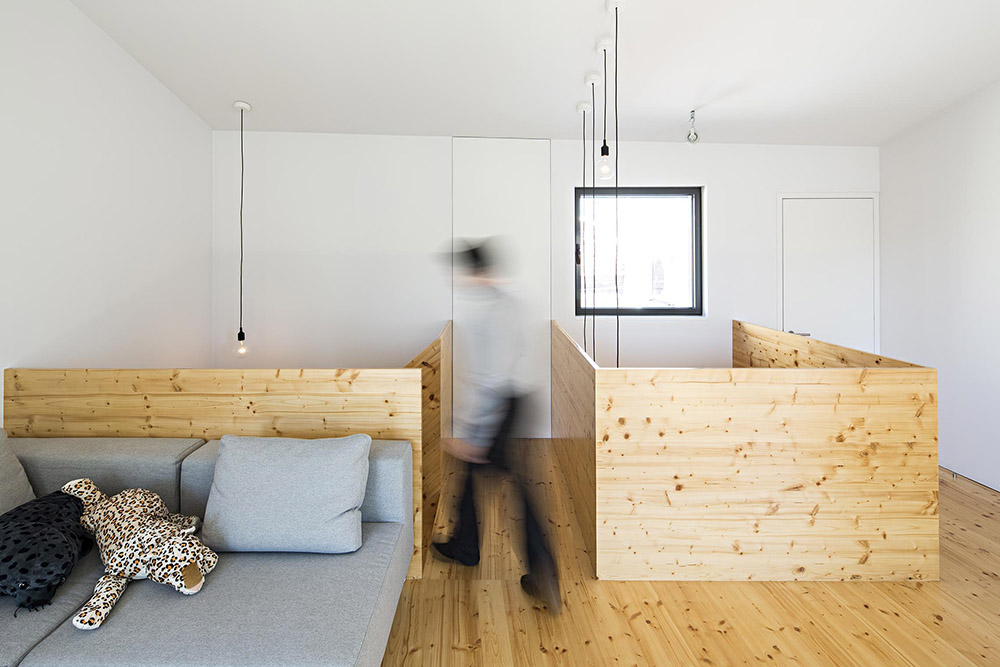

/wp-content/uploads/2014/12/_c_o757mvppl3NrHIM7scdA7rgrXx6GwWgN5QroBxm_3YTEbCTnaEvNm_YQ_xPm6Mhz8RvdIXTdMzr65DaljiNDdrpSyx7G4fg-.jpg

↑  楼梯与天井

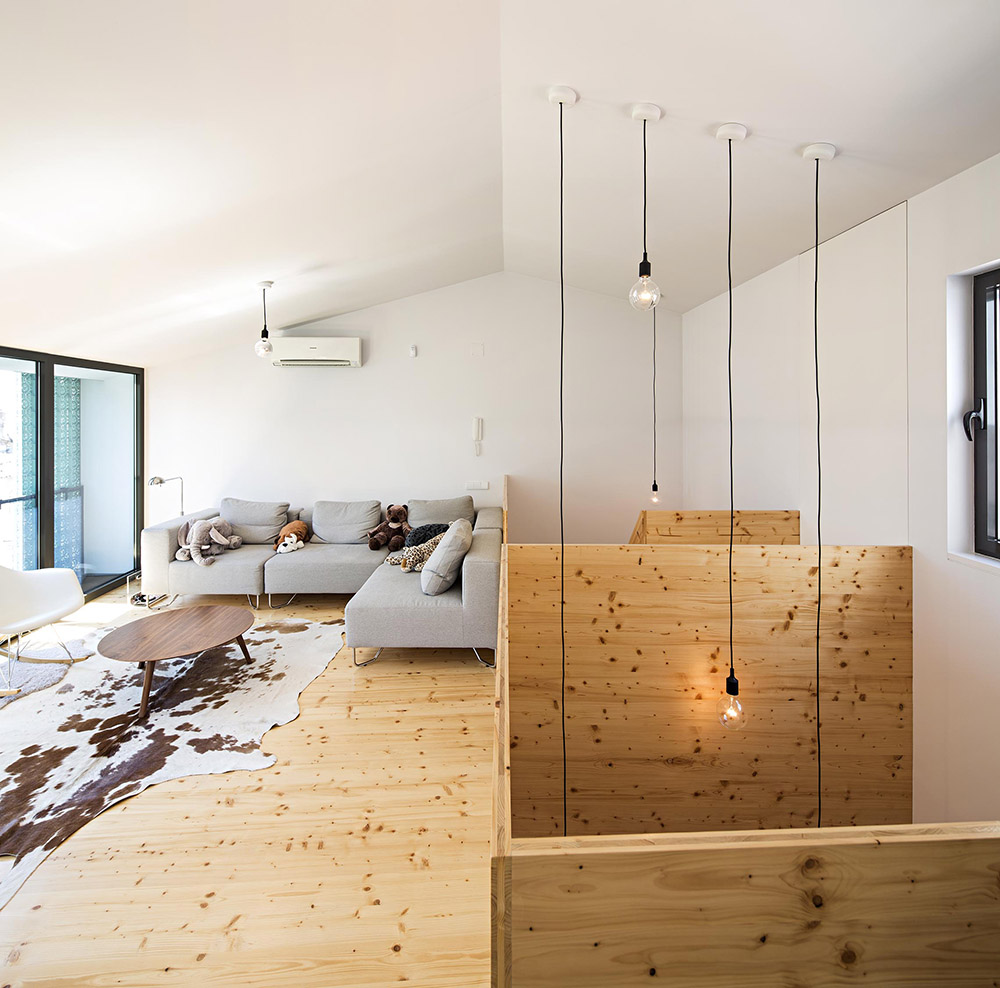

/wp-content/uploads/2014/12/_c_KTR49nq95VU-PyNZRLhqGynkHSPHMiVHhBAYsLw4U2M0U9VUz6fp0uwDWAf_md4FXO1UdqVNOPah7ruqf9sfa9qvpeOJQD8A.jpg

↑  起居室,楼梯,天井

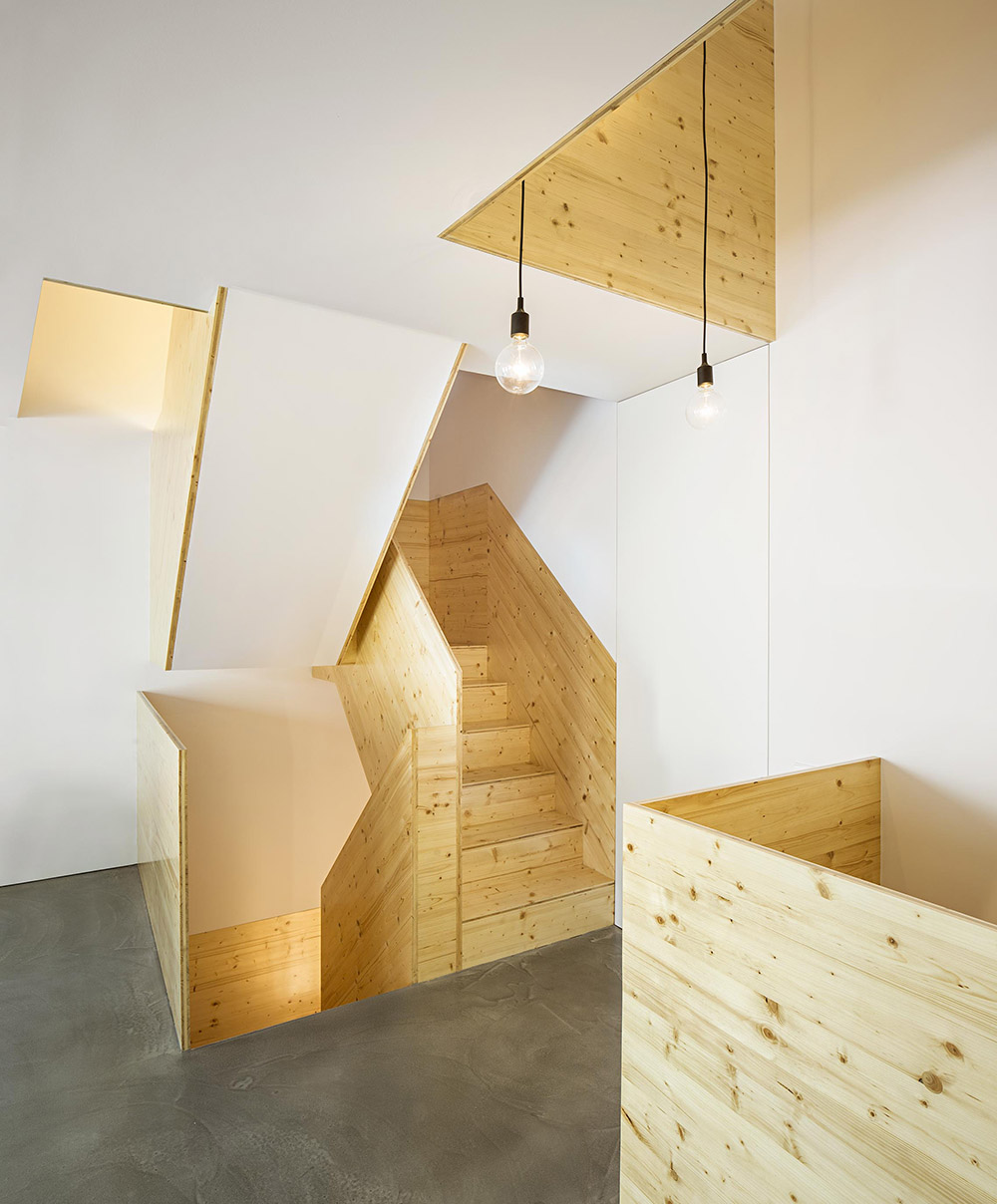

/wp-content/uploads/2014/12/_c_hdqradmZMeqZUjFPJn-0fWTfi_kulxl1nKiPHrMFzmdV5T1IuBOZSU_aDqJhIfbZ0-34A0-Aak7wm43EmdPIe7FqokbwZTuH.jpg

↑  变化的天井让交通空间灵动

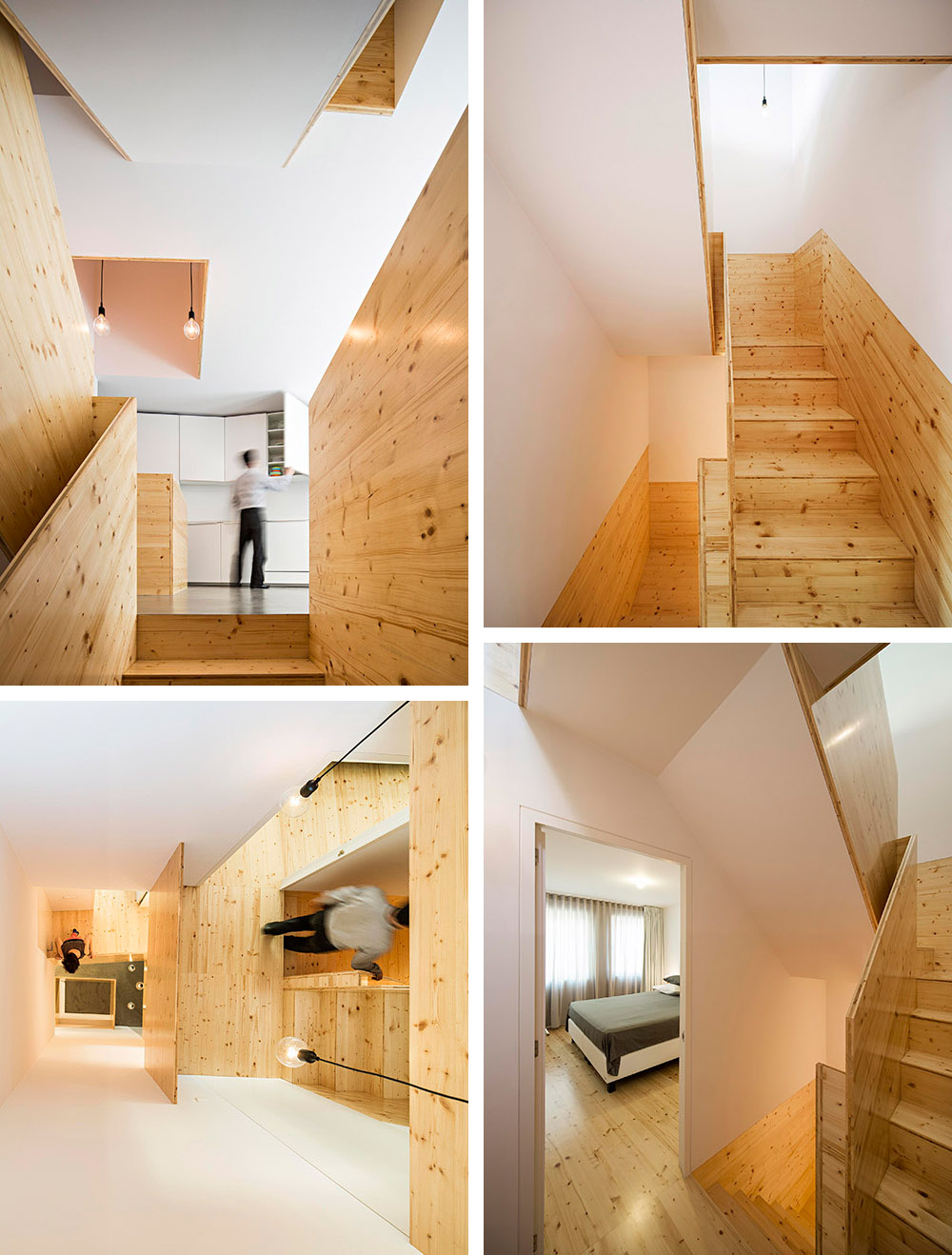

/wp-content/uploads/2014/12/_c_YAB9zjdyEKKPep7DbgWxMvsIHytKGH5feXxy-dhvGVq7CzaXMPeUOyIShmbTwmQ9hghkTslRy0zRKebc__48dDJyFXYt-vX1.jpg

↑  楼梯联系各层

/wp-content/uploads/2014/12/_c_E7COqrlKgMN80gnvDCOhr09w2F5HvNu4dpSYCqLRnyYoSGdLRjCbXLDfh8q5LvJjfj-SfGrrSqe8k5gN7lkV5ccjkcu25wxk.jpg

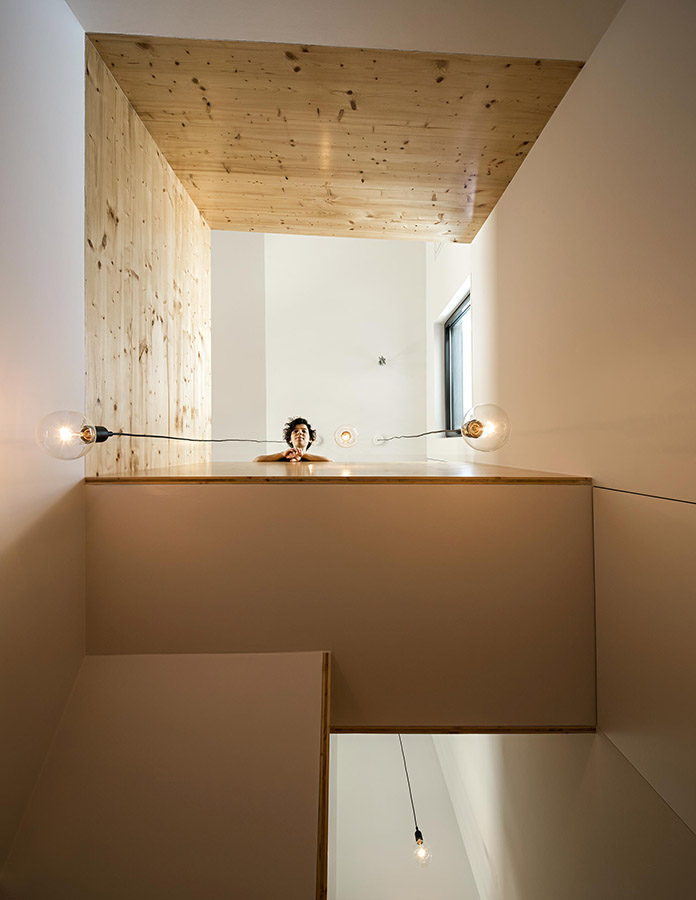

↑  天井

/wp-content/uploads/2014/12/_c_S9lpkkl4h5Ici-XA5cGdVPwP6fSzsDZxSe9r3RXh33n4j0_yrqIAZNALOoIJb8nSDrED34x_19Ph9a1vKvvpw7tFHCMZfbIm.jpg

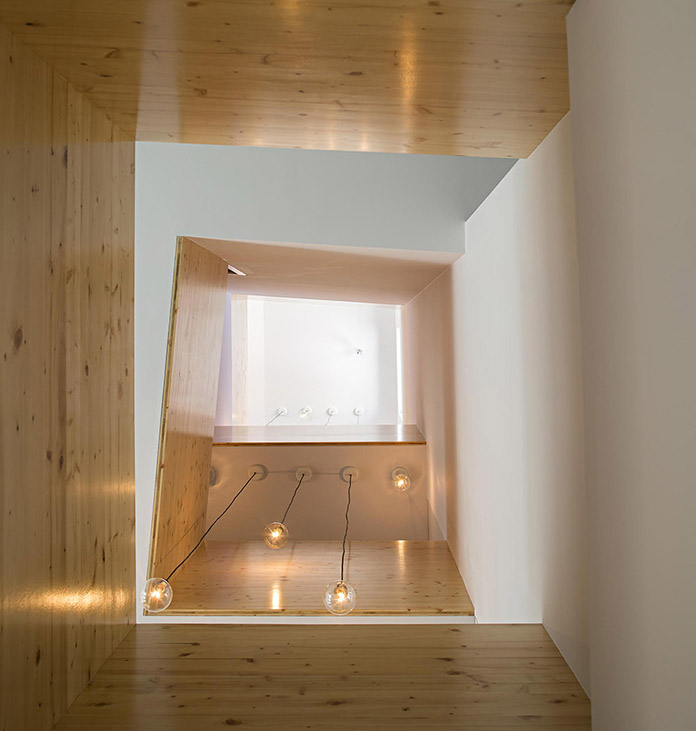

↑  天井

/wp-content/uploads/2014/12/_c_trWHpYGnDTW79RqJTk8y05g1Vc2HhFHM7Cb3Vp2MyNhx5GHMmD3D0sXriokvbndOiYU0-jlus2XseLY-qgsleowQhPuqohWG.jpg

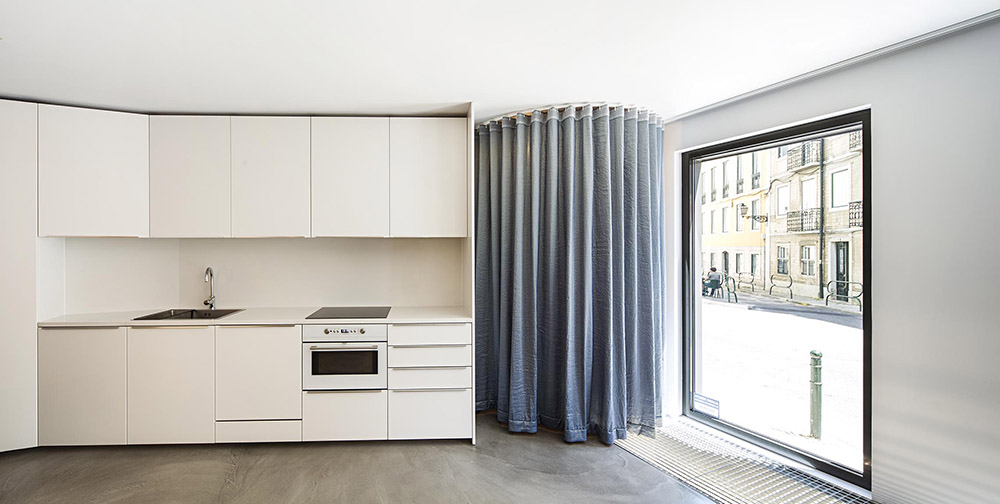

↑  地面层厨房和餐厅

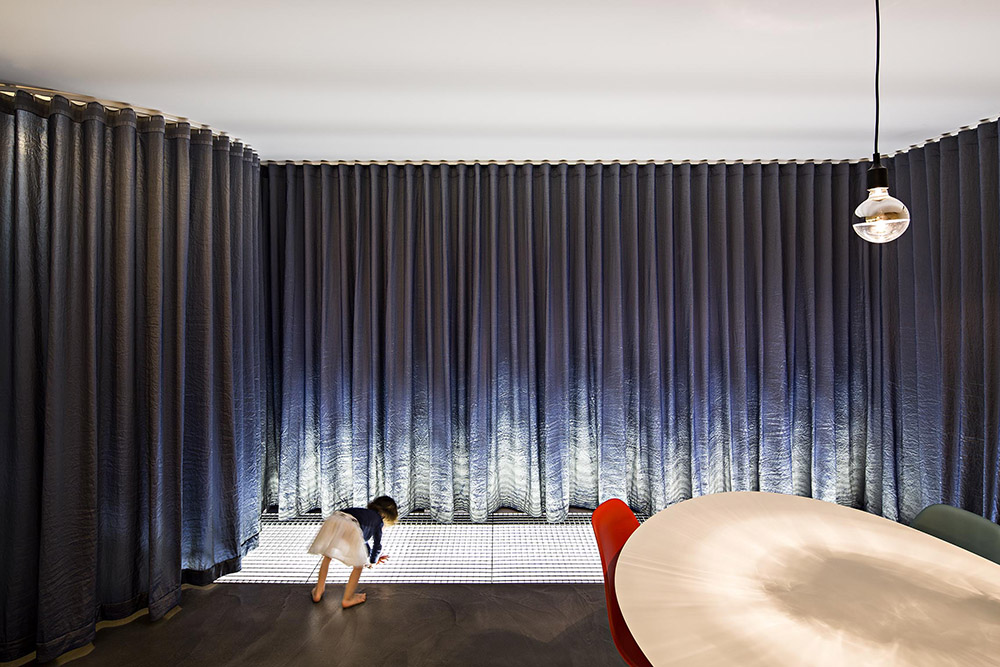

/wp-content/uploads/2014/12/_c_FrGEUDz6A1QoVO9OGTWgTm0vdy5NWWK1BGaJWDPjiAHXDN4lKbIXHCRa_cFTUEWO6029EEaW_PkfyFfp4YI3UbIf982uiPZx.jpg

↑  地面层和地下层之间的地板做了一条可以透光的地板

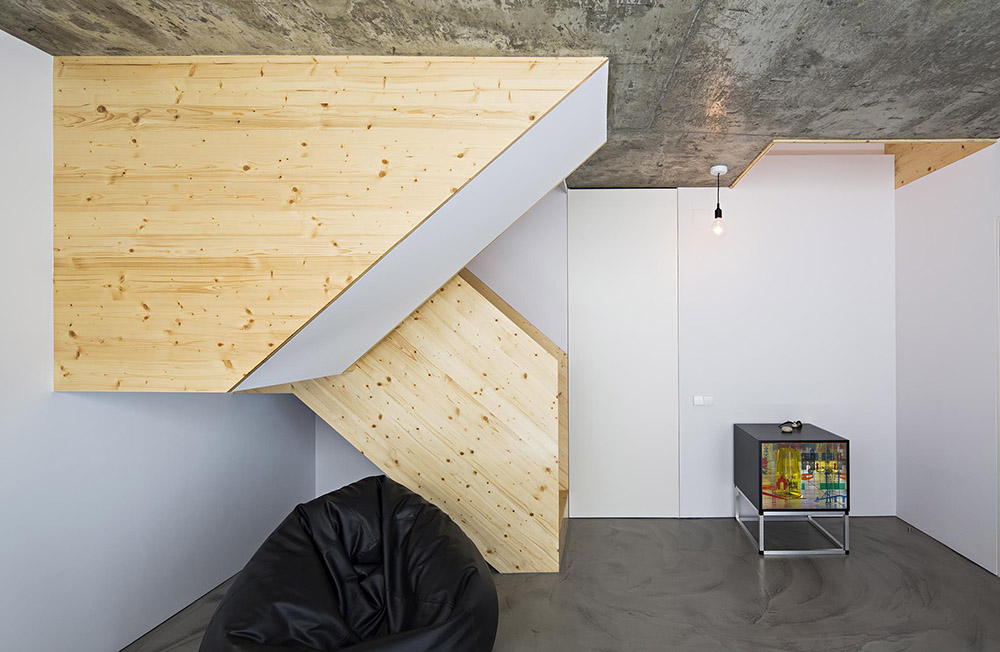

/wp-content/uploads/2014/12/_c_ojaLPvDvweWge9MDrh7fbF3ysKvezZlXn5cKCVpAUthrhpFW7vRGDY-t74V7np5VDRBNOxiyZ7Ob1n2Q_KjhcxVwfZDLEE2a.jpg

↑  自流平混凝土地面和天花的地下室–书房

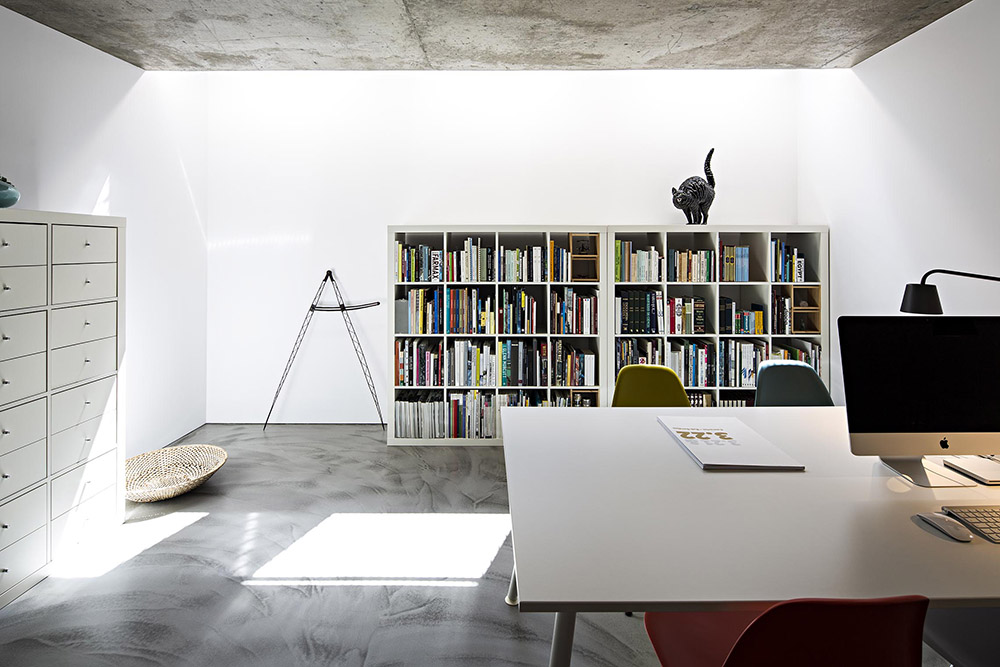

/wp-content/uploads/2014/12/_c_QbK4ZnSLrhEUrFVsHTver7KiJuT_Vu0ldrXsd62oYyJtvQq8Oi7srEYOUn-HZHOmiY8DF7mfgW0VZNh0rqUq5AdcV-V4atHL.jpg

↑  自然光通过地面层的透明地板进入地下室

Hard as it would be to plan a typical construction site in such a small plot, we opted for a light steel construction system – LSF – which has an

excellent thermal and acoustic performance. It is the first building in Lisbon made with this system.

© Camarim 2014

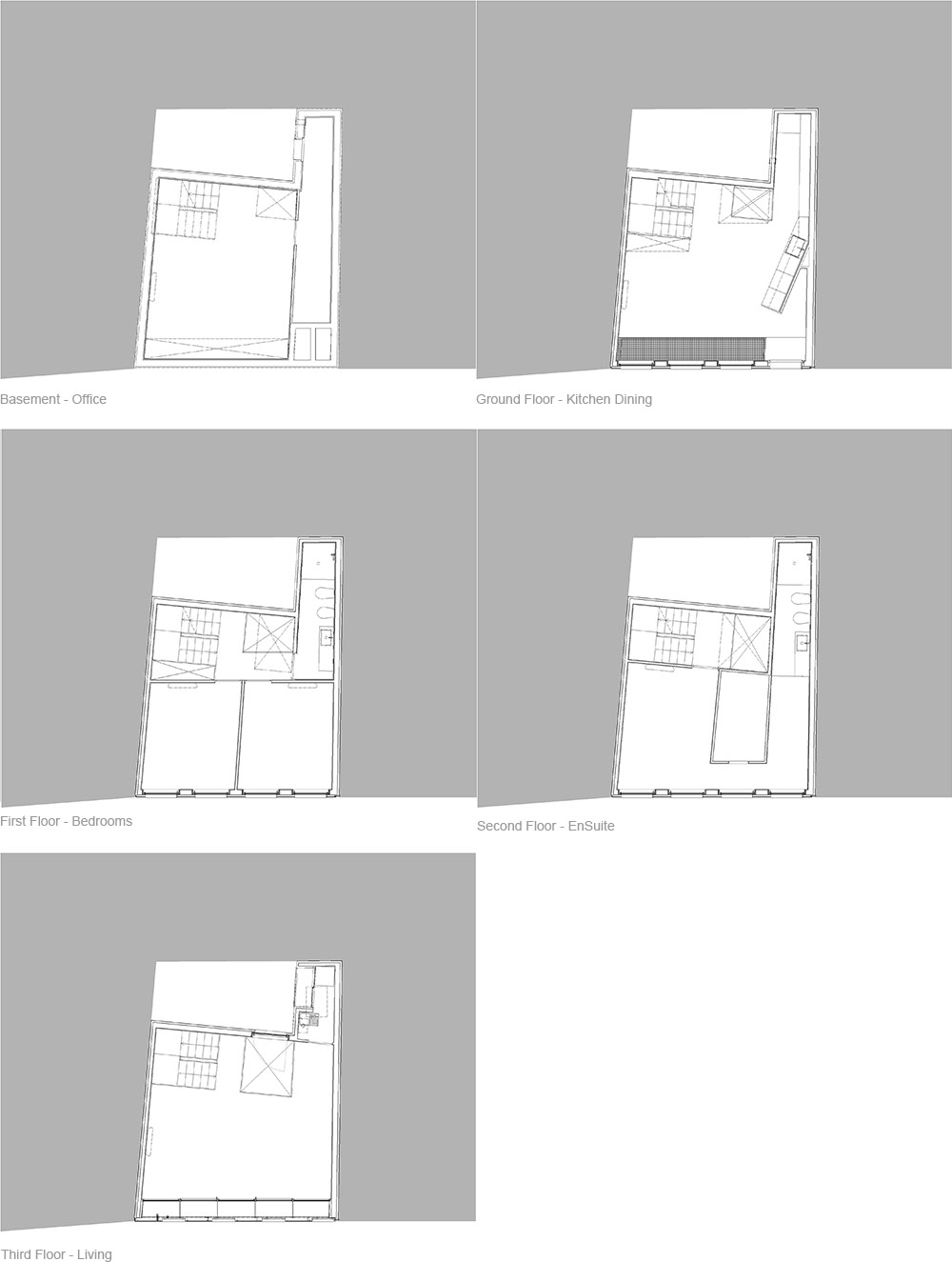

/wp-content/uploads/2014/12/_c_nXEiX7HT5bviK8i-SkEq39FzGC1IjJim5F58adqJiMM-lTDpTt3s8cEw94tyi3nwpXoSo8X5OWe1sDIEai4wmEdRMbnhi6s_.jpg

/wp-content/uploads/2014/12/_c_r4VUGegcYxBsWcoPbhzWQKA5IgACgTZ6svFrN4aqWgXYDCiWGNVzqFDm06Hf8Q_NQ3oxdxoFVpQRwNUk6maT6hI4GZR6PSED.jpg

MATERIALS
Structure: basement – reinforced concrete (visible structural slab); above ground – LSF (light steel frame) system
Exterior Finishings: main façade – plain tiles, engraved tiles and lacquered perforated aluminium with customized pattern; side walls and back
façade – cold white ETICS
Interior Finishings: basement and ground floor – self-levelling concrete; upper floors and stairs – 3-ply wood core in spruce; bathrooms – white
marble from Vila Viçosa, Portugal; ground floor and bedroom openings – wild silk curtains

PROJECT FILE
Project Name: Casa no Príncipe Real
Project Location: Lisbon, Portugal
Site Area: 41 m2
Built Area: 205 m2
Project Completion: 2013
Project by: Camarim
Project Architects: Vasco Correia, Patrícia Sousa
Collaborators: Tiago Garrido, Jonas Grinevicius

COPYRIGHT
Project: Camarim
Photos: Nelson Garrido

MORE:  Camarim Arquitectos
