House in Achladies by Lydia Xynogala

A modern Mediterranean house built with the concept of “aggregate”

Project Specs

Location:

来自 Lydia Xynogala 对gooood的分享。更多请至:Lydia Xynogala on gooood
Appreciation towards Lydia Xynogala for providing the following description:

该住宅位于一处面朝大海的三角形坡地,由一系列连贯的房间连接而成。定义出这些空间的挡土墙有着与周围的地中海景观相一致的特征。

Situated on a sloping triangular site facing the sea, the house is conceived as a series of parallel adjoining rooms. They are created by retaining walls, a common feature in the surrounding Mediterranean landscape.

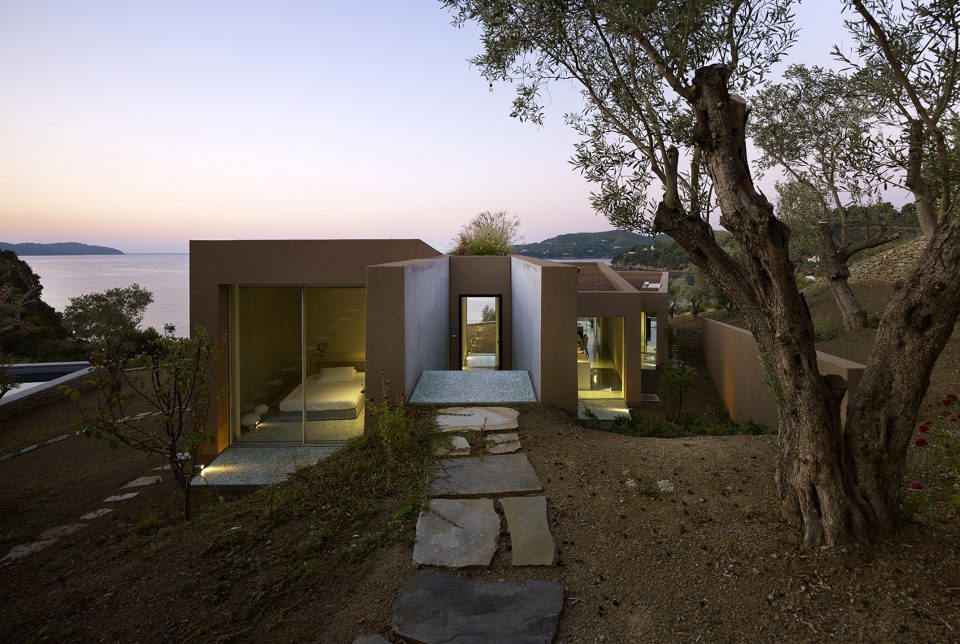

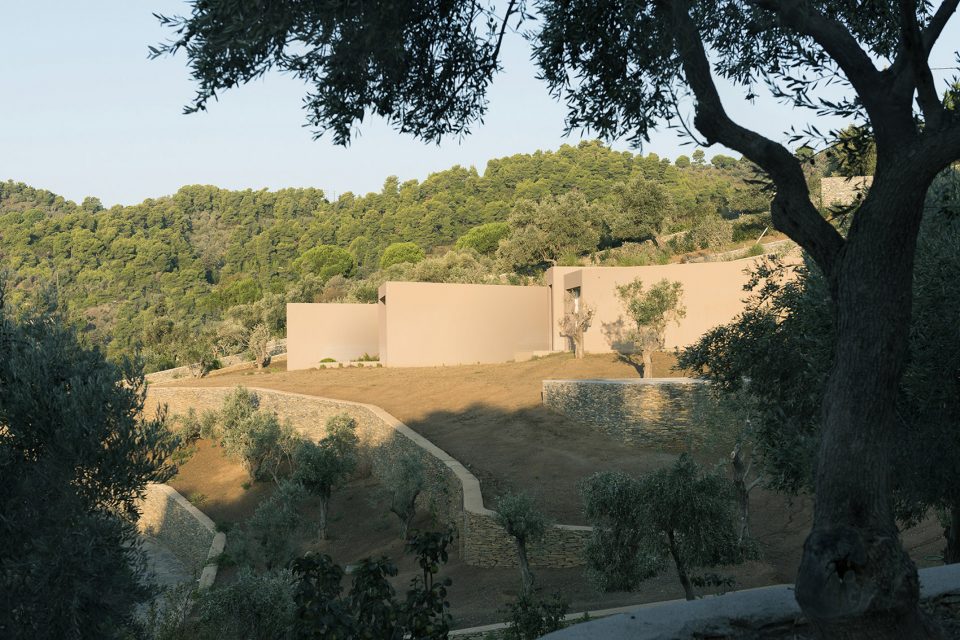

▼住宅外观,exterior view

每个房间根据地形拥有不同的立面,同时各自承担着不同的功能。入口路径位于场地最高处,楼梯顺着斜坡缓缓通向室内。朝海洋方向不断行进的场景构成了室内空间的最初体验。住宅的公共空间位于建筑中央,主卧和客卧位于两侧,南向的窗户带来了临海的宽阔视野,北向的小窗则可以望向坡地。南北通透的朝向为每个房间带来了适宜的对流风。

Each room sits at a different elevation following the topography and contains a dedicated program. Access to the entry volume is located at the highest level of the site. A stair makes the slope flow into the house. This entry condition constitutes the first interior experience of the house, that of a viewing apparatus onto the sea. The public spaces of the house are located in the center, master bedroom and guest rooms are on either side. Each space is focused on a large opening to the south, contemplating the sea. This is complemented by a smaller window to the north, looking towards the slope. These openings also provide efficient cross ventilation for each room.

▼入口路径位于场地最高处,access to the entry volume is located at the highest level of the site

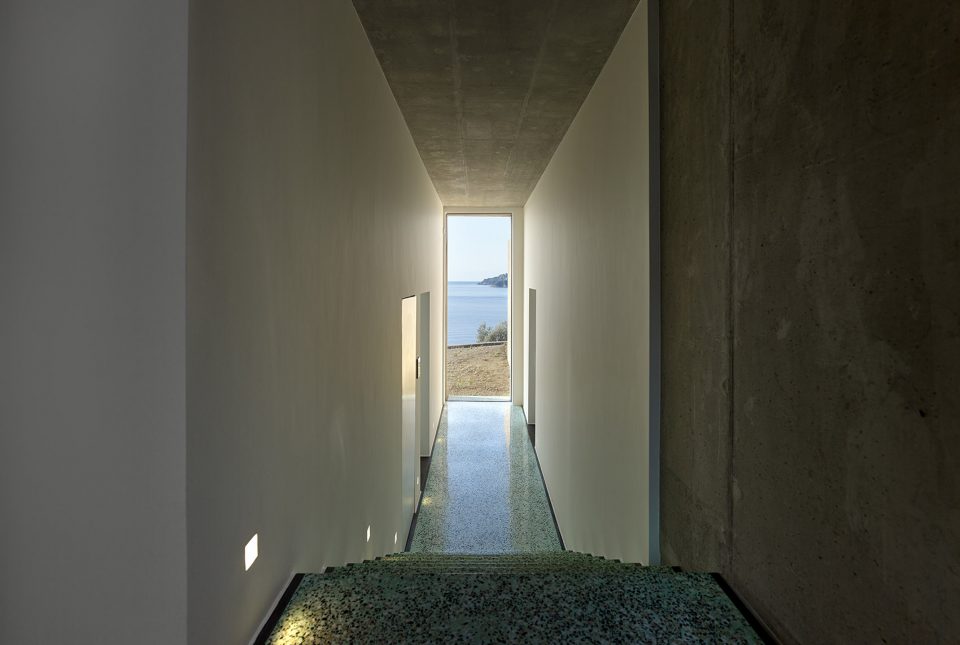

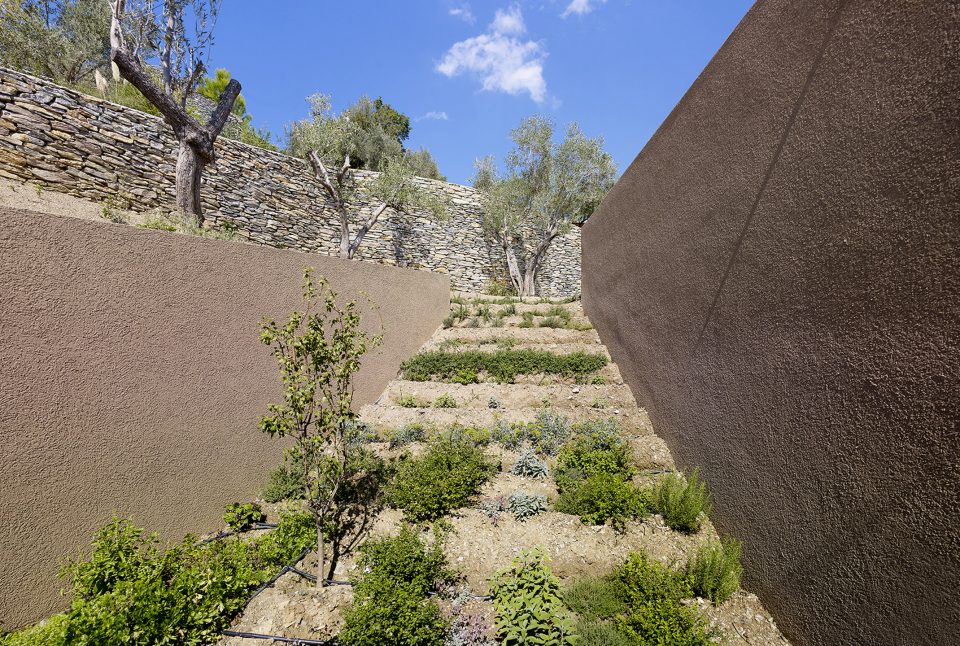

▼楼梯顺着斜坡缓缓通向室内,a stair makes the slope flow into the house

建筑的体量由剪力墙进行分割,保证了每个室外露台的隐蔽性,即使房间彼此相连,从露台上也无法相互看见。装置在双层墙壁中的滑动门标志出通往各空间的路径。入口大门处铺设的灰色大理石强调了“切入”的概念。实体混凝土墙壁带来了强大的吸热和储热能力。朝向马路和周围建筑的东西立面没有设置门窗,使室内免受阳光的暴晒,同时保证了空间的私密性和最大化的临海视野。

The volumes are in shear, a condition that ensures that each outdoor terrace has privacy even if the volumes are adjoining; there are no views from each terrace to the next. Sliding doors through the double walls mark the passage from one space to the next. The notion of a “cut” through the solid walls is emphasized by the grey marble of the thresholds. Walls are constructed from solid concrete and provide large thermal mass. The east and west facades that face the road and the neighboring buildings have no openings. They protect the interior from the heat of the sun. This creates a barely visible configuration of spaces conveying privacy in its interiors but with maximum views towards the sea.

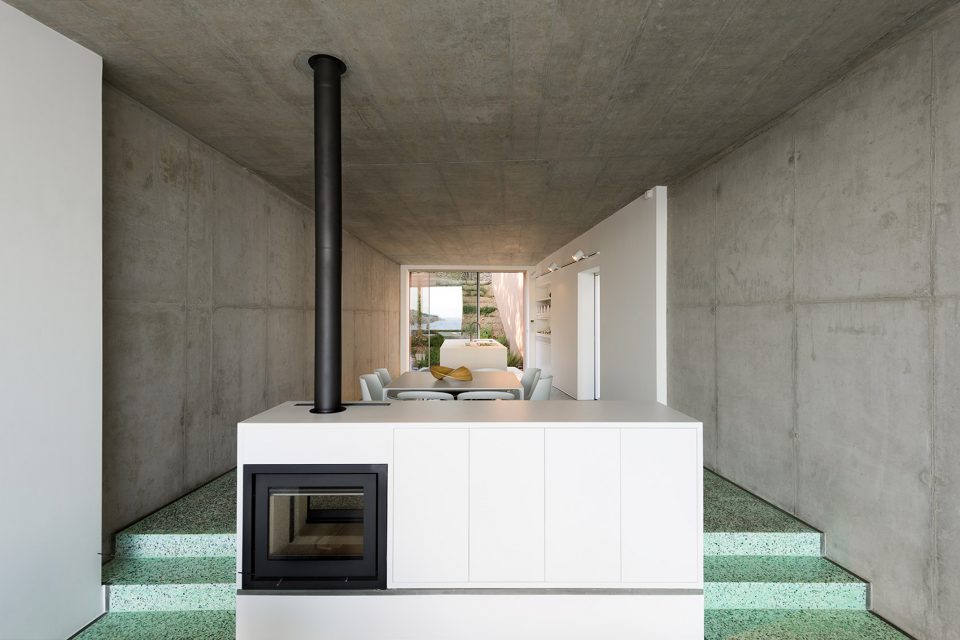

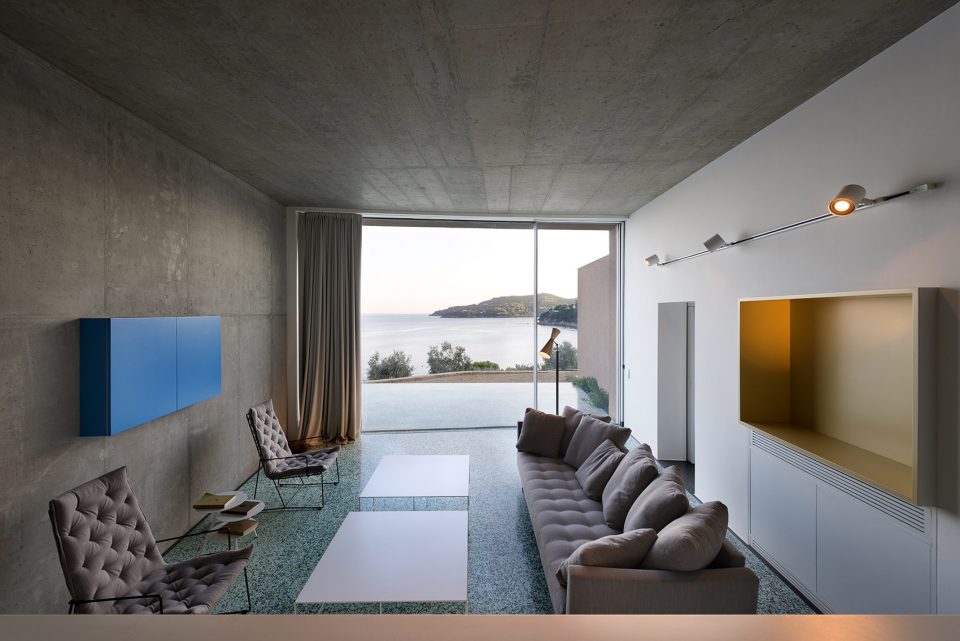

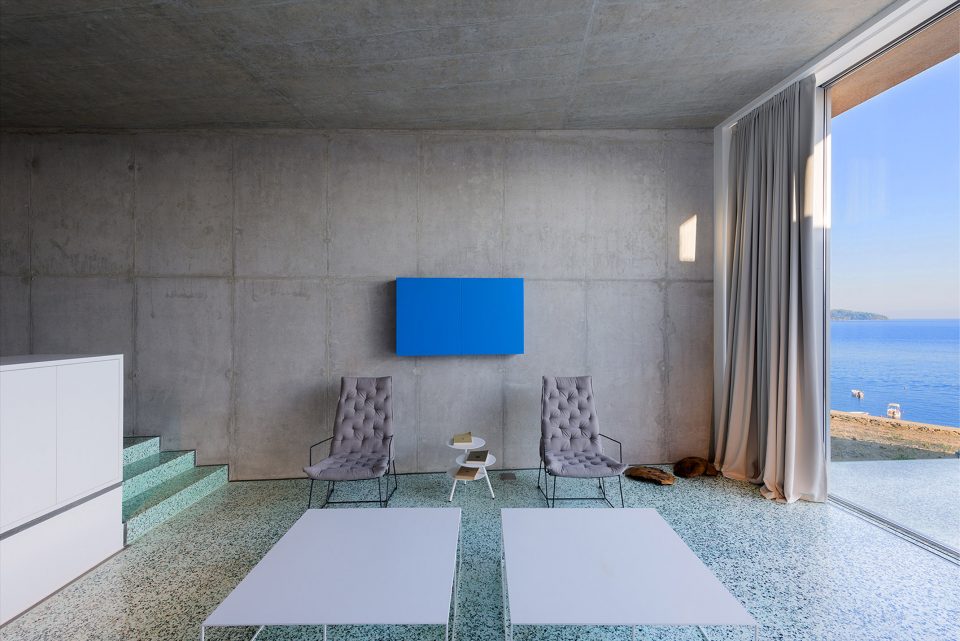

▼客厅,living room

▼实体混凝土墙壁带来强大的吸热和储热能力,the solid concrete walls provide large thermal mass

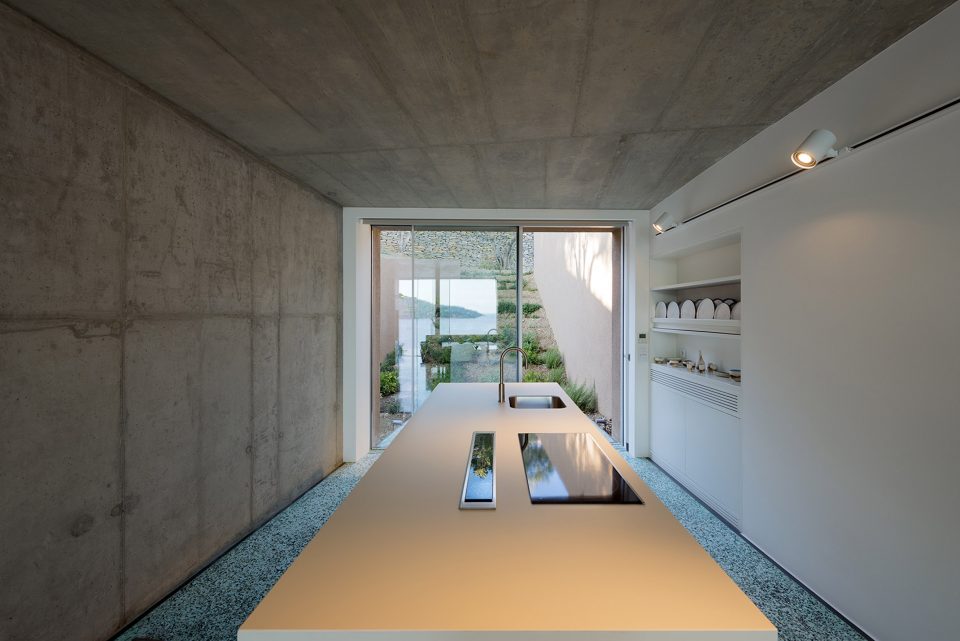

▼厨房,碗柜和储物空间被嵌入双层隔墙,kitchen, with built-in furniture and storage spaces

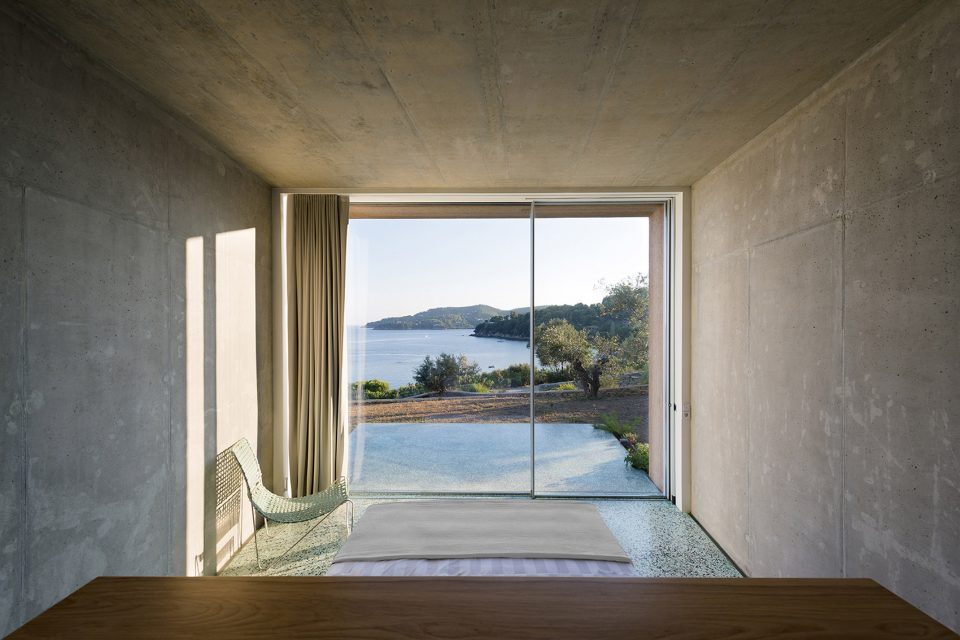

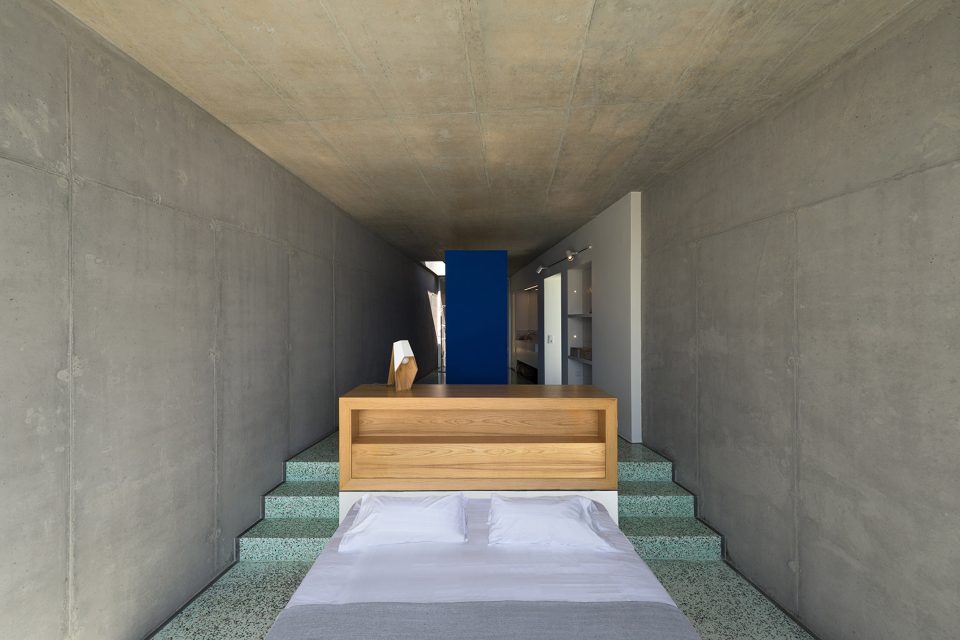

▼南向的主卧室拥有宽阔的视野,the master bedroom with a large opening to the south

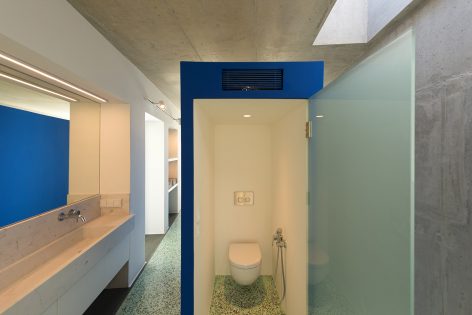

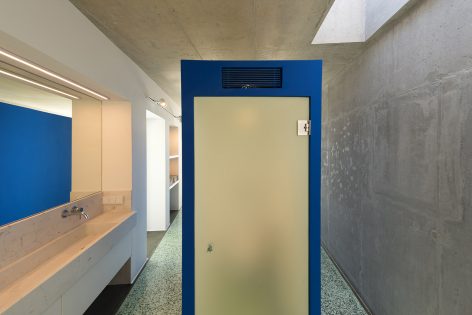

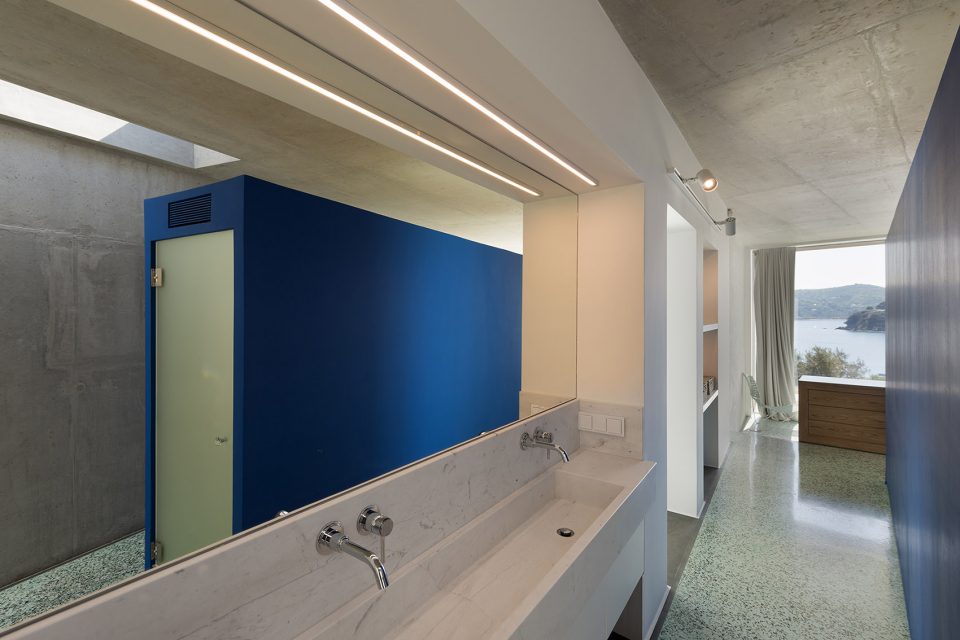

▼主卧室洗手间,master bathroom

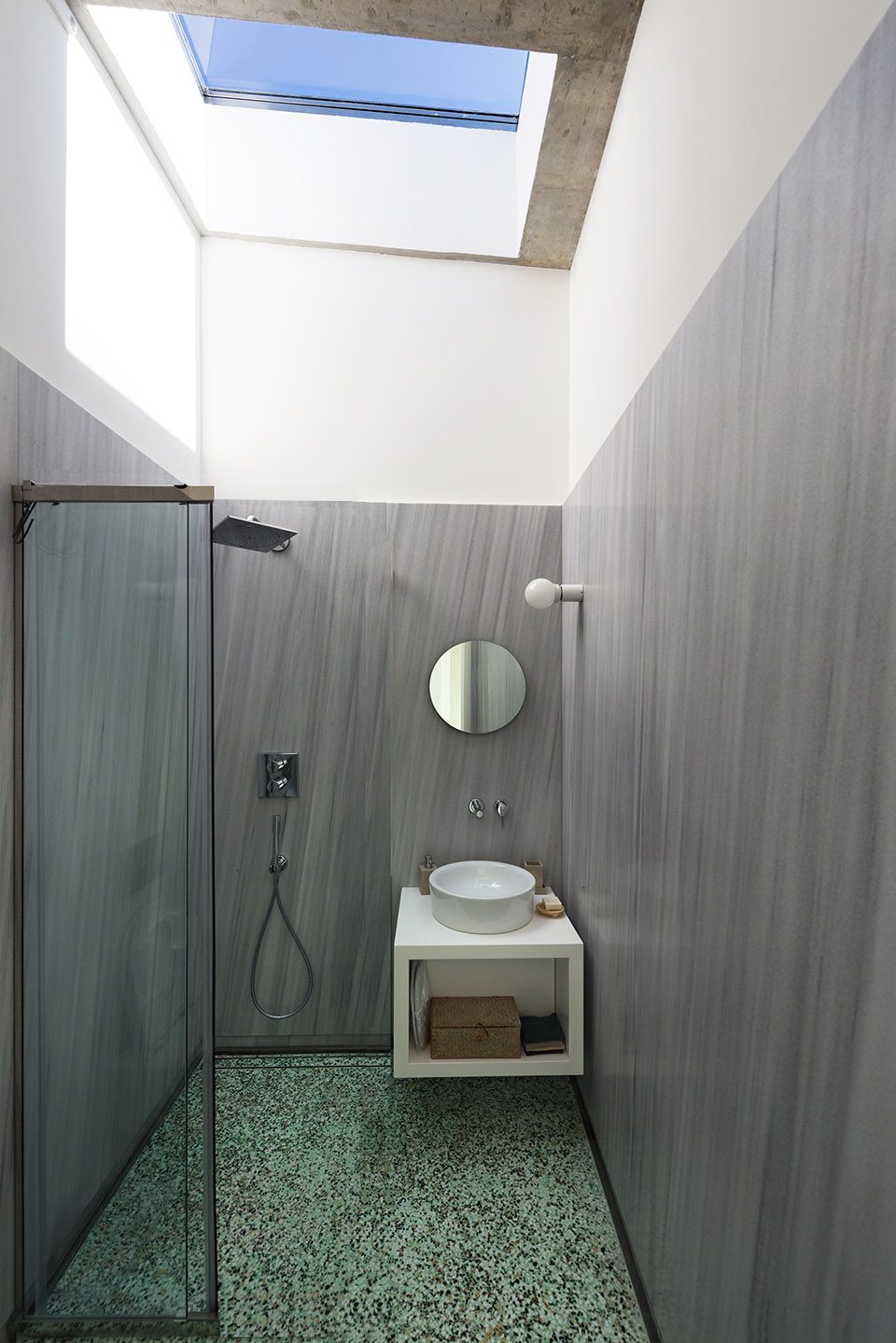

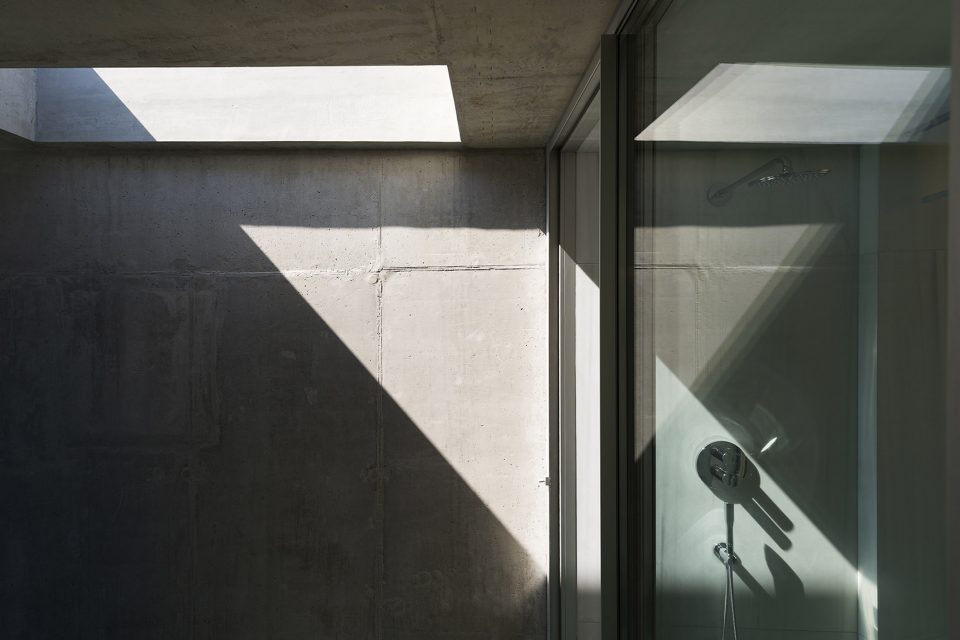

▼带天窗的淋浴房,shower room lit by skylight

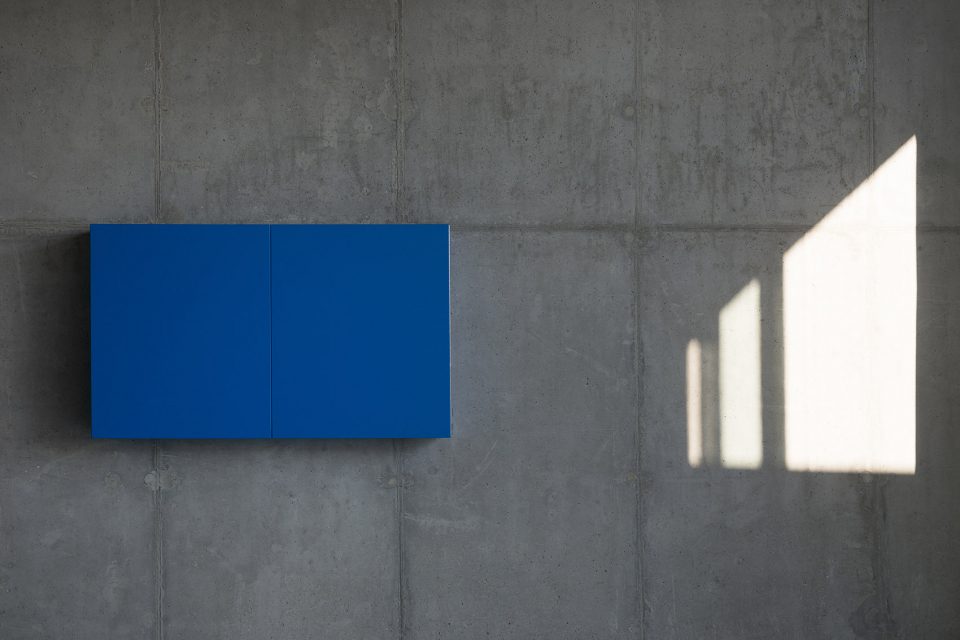

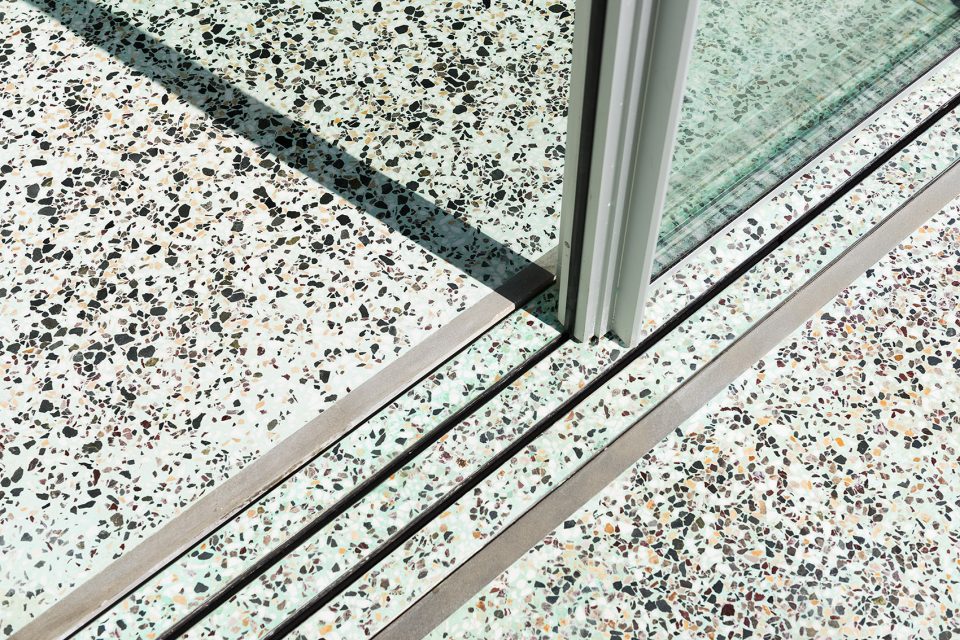

▼室内细部,details

▼不加修饰的混凝土墙面贯穿室内,walls built in raw concrete

“聚合”的概念决定了形式和材料的选择,体现在聚集的体量、不加修饰的混凝土墙壁、水磨石地板以及充斥着碎石和植物的屋顶。双层的室内隔墙装有嵌入式的家具和储物空间,包括写字台、浴室水槽、碗柜和艺术品陈列空间等。这些嵌入式的家具皆为特别定制,沿室内平面的中心线构成一个动态的序列。住宅中选用了与旧式希腊住宅相似的材料,如贯穿室内外的水磨石地板、大理石和灰泥饰面等,但在空间、结构和组合方面则并不相同。

The concept of “aggregate” was a generator of form and selection of materials. Aggregation of volumes, aggregate in the raw concrete walls, in the terrazzo floor, roofs filled with gravel and plants. In the interior at adjoining walls double up: built-in furniture and storage spaces; within them are desks, bathroom sink, plate dresser, artwork display. These built-in furniture are custom designed and are arranged along the centerline of the plan creating a dynamic sequence. Materials were used that are very familiar in older Greek residential interiors such as terrazzo floors, which is present throughout the house inside and outside as well as marble and plaster render, but used in spaces, forms and combinations that are not so familiar.

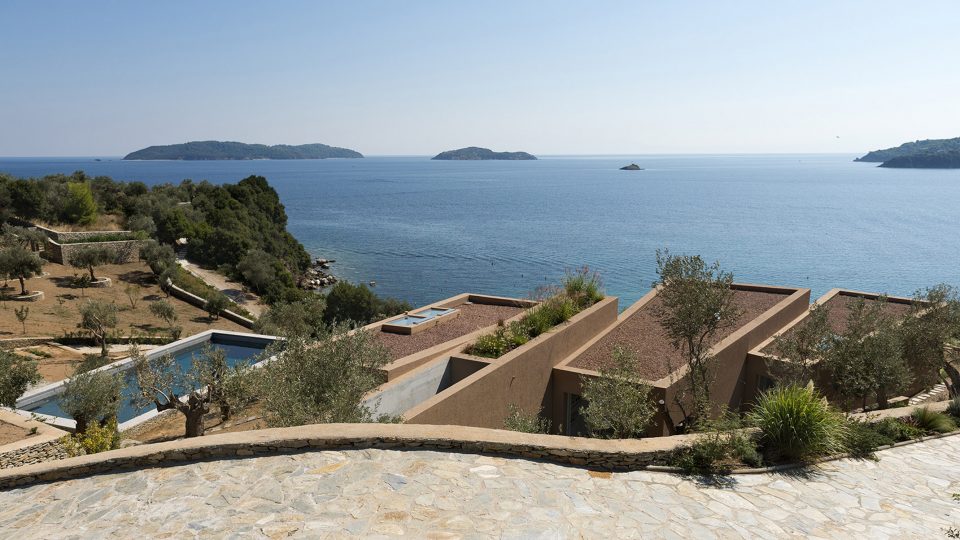

▼屋顶平台,roofs filled with gravel and plants

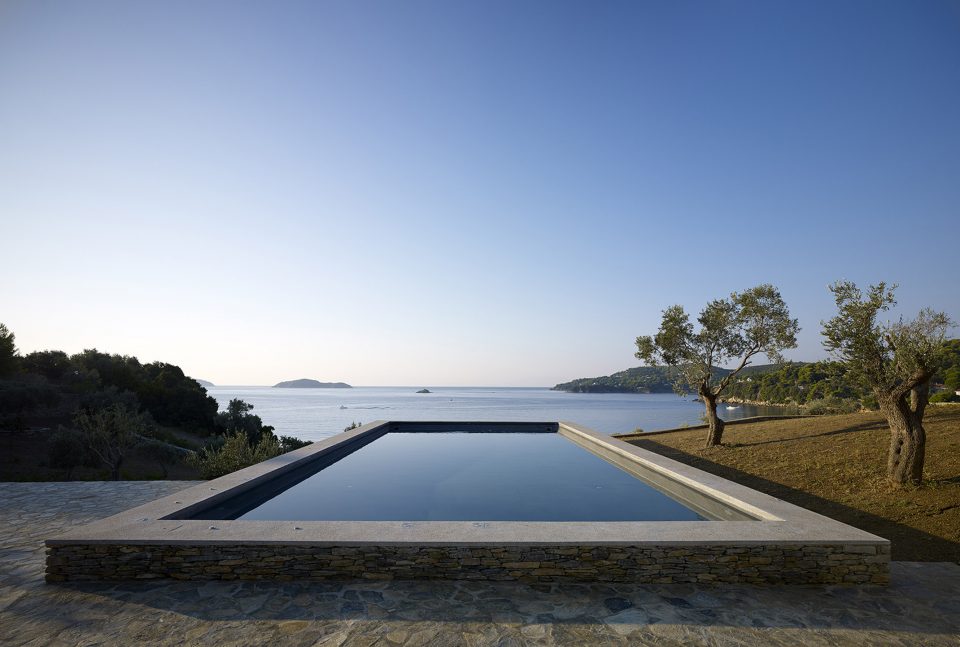

▼游泳池,pool

▼花园,garden

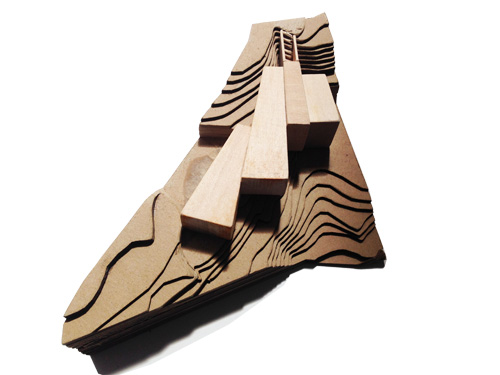

▼模型,model

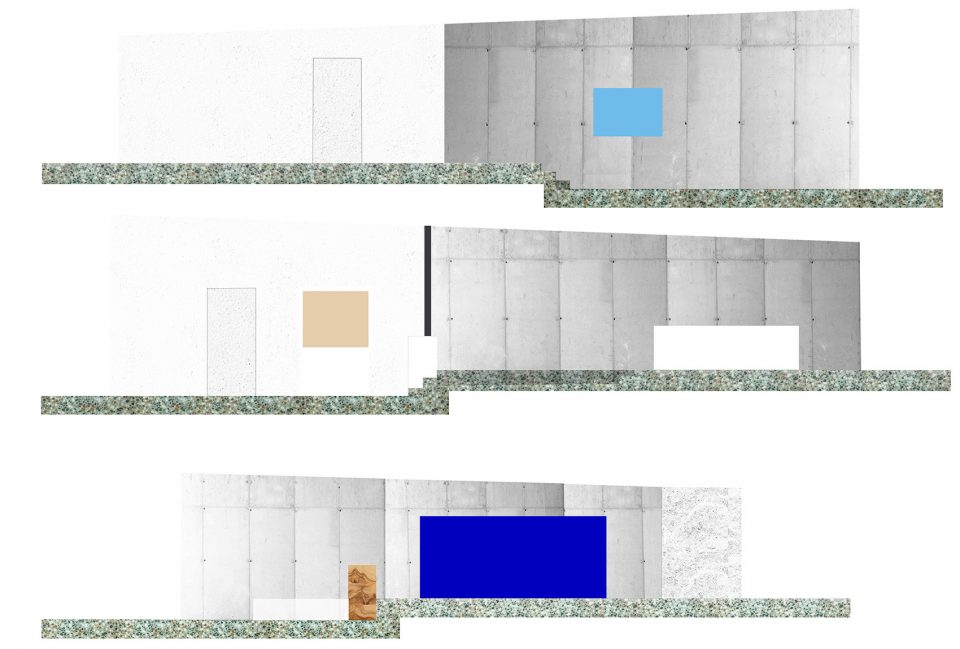

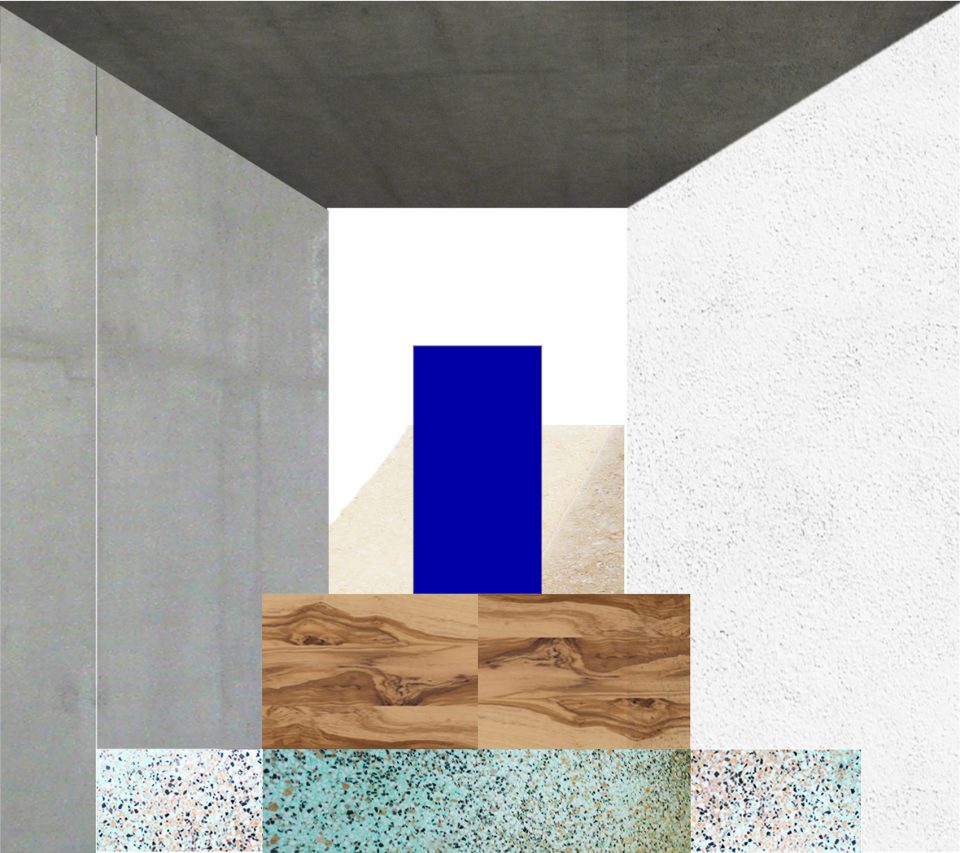

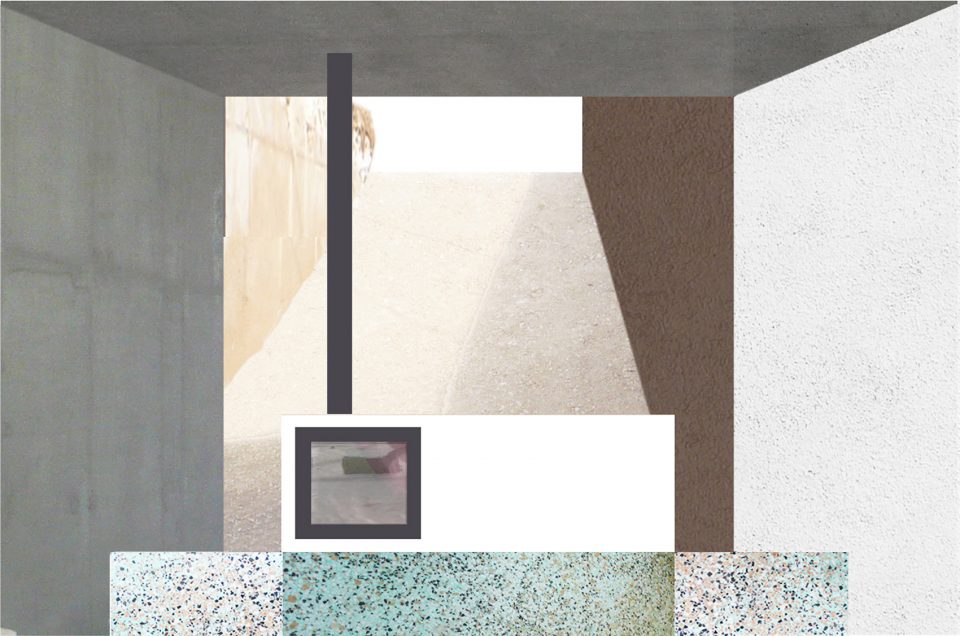

▼设计拼贴,montages

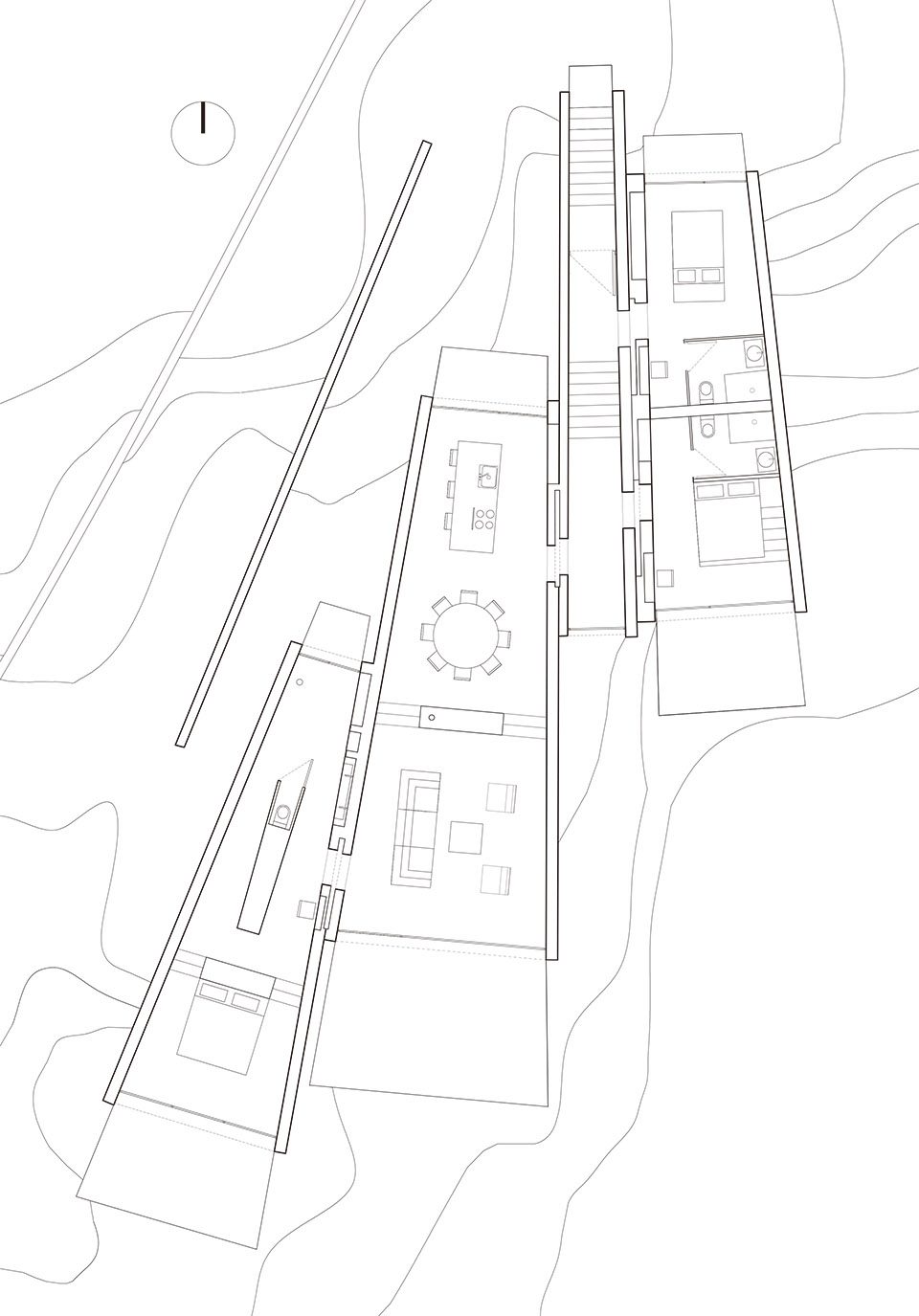

▼平面图,plan

Location: Achladies, Skiathos Island, Greece
Completed: 2016

Architect: Lydia Xynogala, New York (www.lydiaxynogala.com)
Photography: Yiorgis Yerolymbos (http://en.yerolymbos.com)
