Holmene (the islets) by URBAN POWER

Progressive Industrial and natural environment planning

Project Specs

Design Firm:
Location:

非常感谢 URBAN POWER  予gooood分享以下内容。
Appreciations towards URBAN POWER  for providing the following description:



大哥本哈根拟建九座人工岛
GREATER COPENHAGEN EXPANDS WITH NINE NEW ISLANDS

这九座岛屿名为”Holms” (小岛),仅位于哥本哈根以南10公里处,是未来几年在北欧斯堪地那维亚半岛内最大的填海计划。此案面对了这个区域的几项需求: 知识密集产业对用地的需求日渐趋升、生产无化石能源及防洪堤确保现存及未来土地。除此之外,此案也提供了大面积的公共自然环境,增加运动和休闲用地与改善生物多样性的机会。

The Danish Government and Mayors of Greater Copenhagen announces the plans for 3 million sqm land reclamation. The vision, designed by URBAN POWER architecture & planning, deals with urgent environmental and commercial challenges of the metropolitan area. The nine Islands, called Holmene (the Islets), located just 10 km south of Copenhagen, is the largest land reclamation project in Scandinavia in the years to come. They address several needs in the area: A growing demand for sites for knowledge intensive industry, fossil-free energy production and a flood barrier to secure both existing and future areas. Furthermore it adds an enormous public accessible natural area for sports, recreation and improved biodiversity.

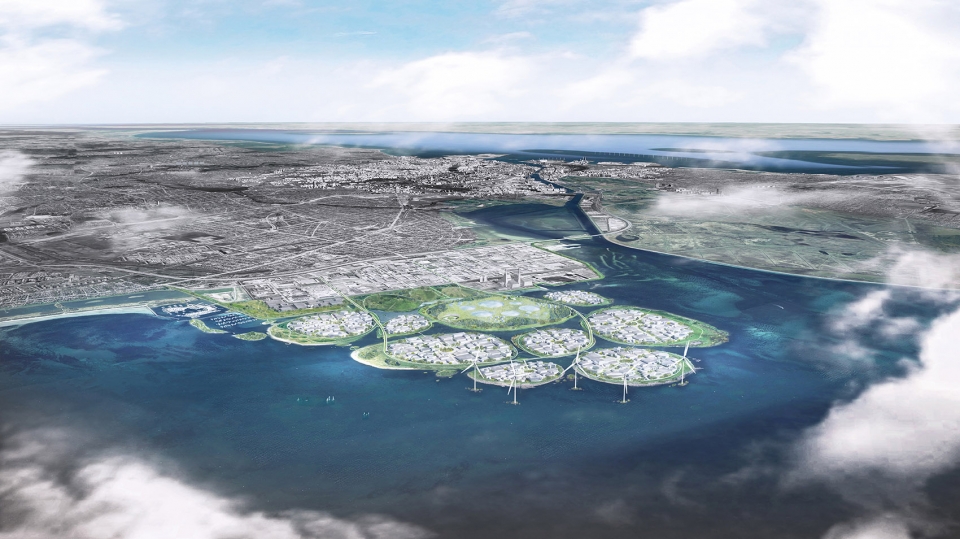

▼Holmene九座人工岛规划鸟瞰,aerial view of the Holmene with nine new islands URBAN POWER for Hvidovre municipality



从哥本哈根的废弃物及废水到无化石能源
Fossil free energy from Copenhageners waste

此人工岛计划中最重要的一部分是URBAN POWER建筑及规划事务所规划将其中一座岛屿专门用作绿色科技及北欧最大的废物能源回收处理厂。由地方上150万市民所产出的生物废物及废水会在这里进行进一步的处理并转换为净水、资源及沼气。加上蓄热、风力发电和其他绿能科技,每年至少可减少7万吨的二氧化碳排放量并生产超过30万兆瓦的无化石能源,相当于哥本哈根人口25%的用电量。这将会是迈向绿色转型很重要的一步。

An essential part of the land reclamation, URBAN POWER designed an area reserved for green technologies and the biggest Waste-to-Energy plant in Northern Europe. Bio waste and waste water from the regions 1.5 million citizens, is handled here and turned into clean water, resources and biogas. Together with heat storage, wind mills and other green technologies, an annual reduction of at least 70.000 tons CO2 and production of more than 300.000 MWh fossil free energy: Equivalent to the power consumption of 25% of the population of Copenhagen city. An important step towards the green transition.

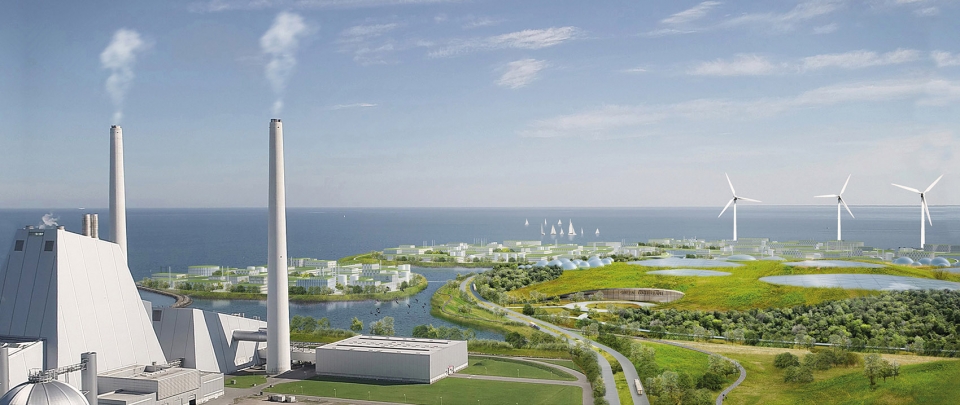

▼人工岛计划中最重要的一部分是将一座岛屿专门用于绿色科技及北欧最大的废物能源回收处理厂,an essential part of the land reclamation is to design an area reserved for green technologies and the biggest Waste-to-Energy plant in Northern Europe URBAN POWER for Hvidovre municipality

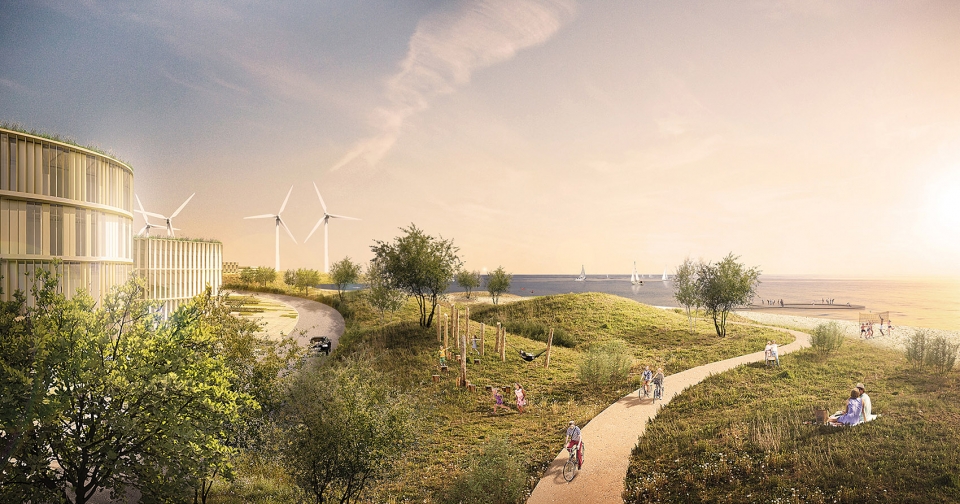

▼海滨公园,bench park URBAN POWER for Hvidovre municipality



具韧性的绿色三角洲
Resilient green delta

哈维德夫市对此案高度的雄心促成了URBAN POWER建筑及规划事务所的加入,他们的设计策略是置入数个小岛而非传统大规模的填海人工岛。URBAN POWER建筑及规划事务所的建筑师Arne Cermak Nielsen说:这个设计策略拥有许多优势,这些人工岛可被分次建造,以防止当经济衰败突然发生时留下一个未完成的案子;此外,这些人工岛可依主题发展,为绿色科技、生物科技、生命科学和未来未知领域等创新产业及研究提供最佳条件。同时他也说:岛与岛之间的流域与岛的海岸拥有独特的潜能,此亲水性是不容小觑的。

因此,每座岛将有各自的自然绿带,用以确保陆地与水之间有宜人的过渡地带。岛屿内多样化的景观提供各种活动发生的可能性,例如:运动、休闲及其他活动。除了主要的岛屿外,周围有一些小岛及礁岩是人无法靠近的,以供自然、野生动物及水最佳的环境条件。剩余土壤是这些人工岛的来源。这不但资助人工岛的建造,同时也解决眼下因地铁及其他建筑建设而导致的土壤过剩问题。此外,也将用这些土壤沿着现有海岸建造自然维护景观:这将创造有环境适应力的景观,面对未来的洪水问题,并连接现有自行车道,形成一个在自然环境中的18公里自行车网络。

The high level of ambitions lead to the involvement of URBAN POWER. Their strategic design introduced a group of islands rather than a traditional massive land reclamation.“The strategy has several advantages: It can be developed stepwise without leaving the impression of an unfinished project, if a new economic recession appear. Furthermore the islands can be thematically developed, leaving the best conditions for the innovative industry and research within green tech, bio tech, life science and future yet unknown sectors”, says Arne Cermak Nielsen, partner of URBAN POWER. He adds: “The quality of being by the water should not be underestimated, and the shores of the islands and the delta that emerge between them has a unique potential”.

As a result each island will have a green belt of nature, that ensures attractive transitions between land and water. The diverse landscape invite for sports and activities in some areas and recreation in others. There’s even several small islets and reefs inaccessible for humans, to provide the best conditions for nature and wildlife at land as well as in the water. Surplus soil is the backbone of the land fill. It finance the construction of the islands and solves an urgent challenge of surplus soil from the regions subway and building projects. The soil will additionally be used to create a natural protective landscape along the existing coastline: It makes the landscape resilient towards future floodings and provides an improved network of 18 km bike routes i green surroundings.

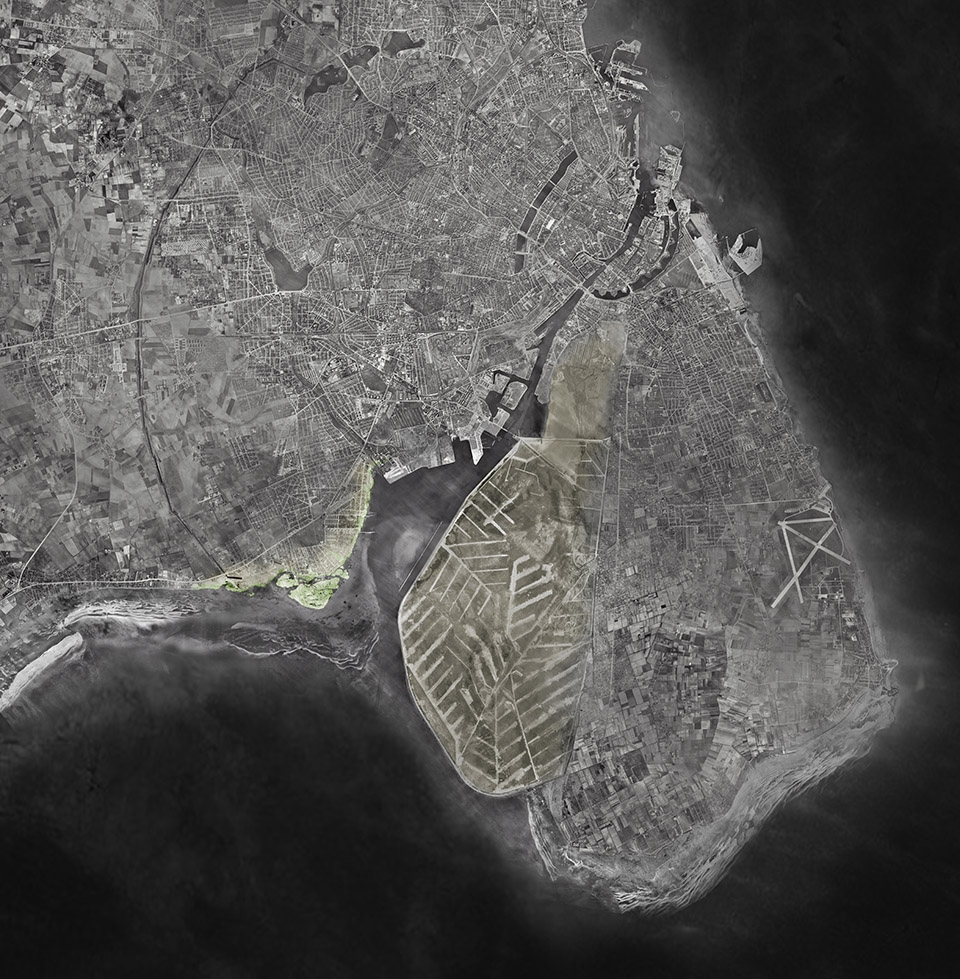

▼人工岛被分次建造,以防止经济衰败留下一个未完成的案子—大哥本哈根1960年景象,the project can be developed stepwise without leaving the impression of an unfinished project-greater Copenhagen 1960 URBAN POWER for Hvidovre municipality

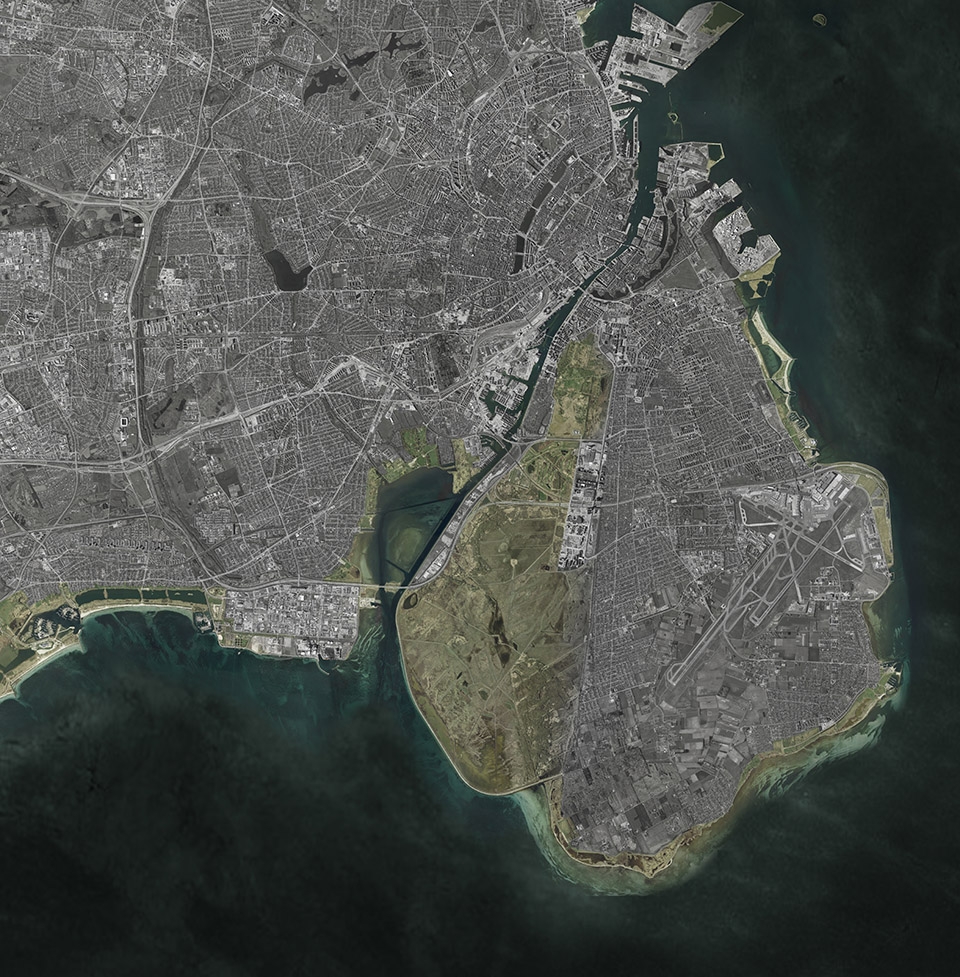

▼大哥本哈根2019年景象,greater Copenhagen 2019 URBAN POWER for Hvidovre municipality

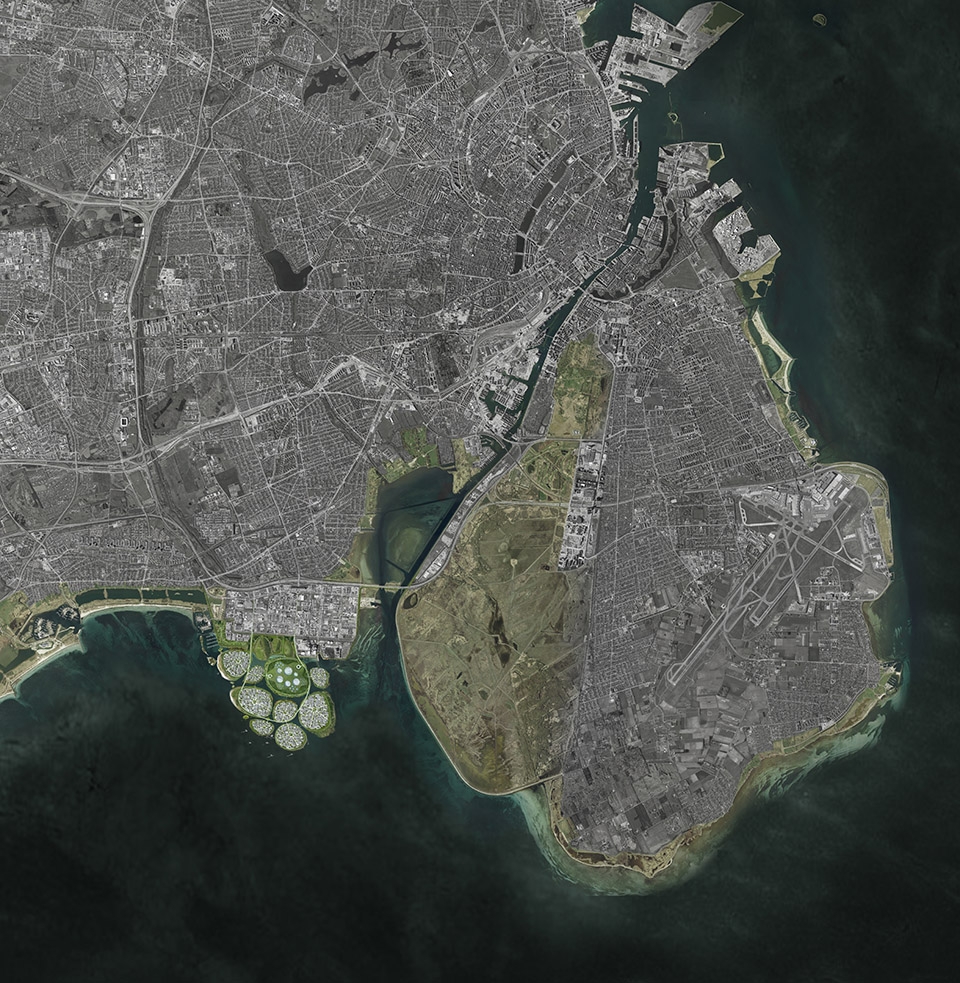

▼大哥本哈根2040年时规划景象,greater Copenhagen 2040 URBAN POWER for Hvidovre municipality



关于HOLMS的要点
FACTS ABOUT HOLMENE

期程|Process

URBAN POWER建筑及规划事务所负责发展Holms的设计策略,将成为北欧斯堪地那维亚半岛未来几年最大最具雄心的人工岛计划。环境评估于2019年开始,2022年开始建造,预计于2040年完工。COWI为此案工程师顾问,负责工程建造、预算、环境影响评估等等其他顾问为DHI-group、MOE、Aglaja及Rambøll。

URBAN POWER architecture & planning has developed the strategic design of Holmene. It’s the largest and most ambitious land reclamation area of Scandinavia in the years to come. The environmental impact assessment starts in 2019. Construction starts in 2022. Project is expected to be completed in 2040. COWI is the consulting engineer on construction, cost, environmental impact etc. Additional advising by DHI-group, MOE, Aglaja and Rambøll

规格|Size

九座岛屿:拥有工业及供运动和休闲的自然环境数个小岛及礁石:供自然环境发展,人无法靠近。230万平方公尺工业用地(大约2400万平方英尺)。70万平方公尺自然环境。由2600万立方公尺剩余土壤建造。

9 islands with industry and accessible natural areal for sports and recreation Several inaccessible islets and reefs for untouched nature. 2,3 million square meter industrial area 0,7 million square meter natural areas. Constructed by 26 million cubic meter of surplus soil.

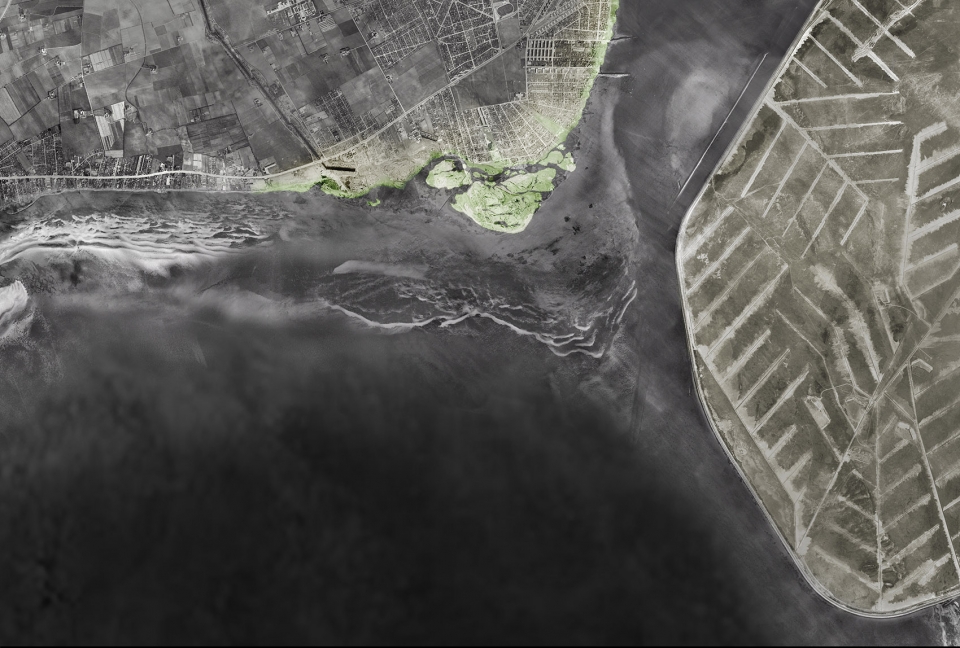

▼近观岛屿1960年景象-规划时重视岛屿亲水性,zoom 1960-the quality of being by the water should not be underestimated URBAN POWER for Hvidovre municipality

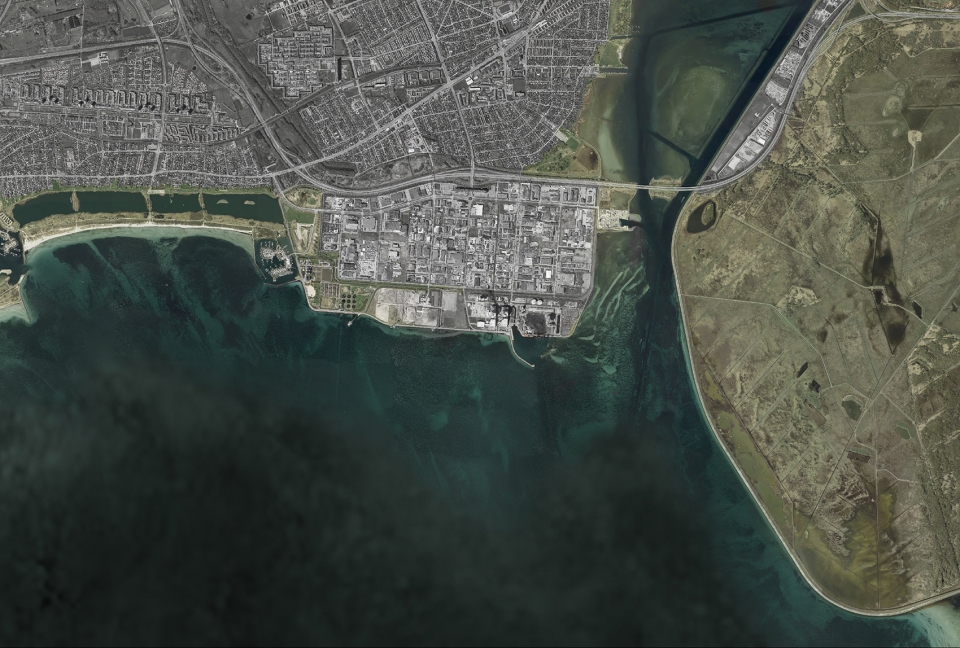

▼近观2019年景象,zoom 2019 URBAN POWER for Hvidovre municipality

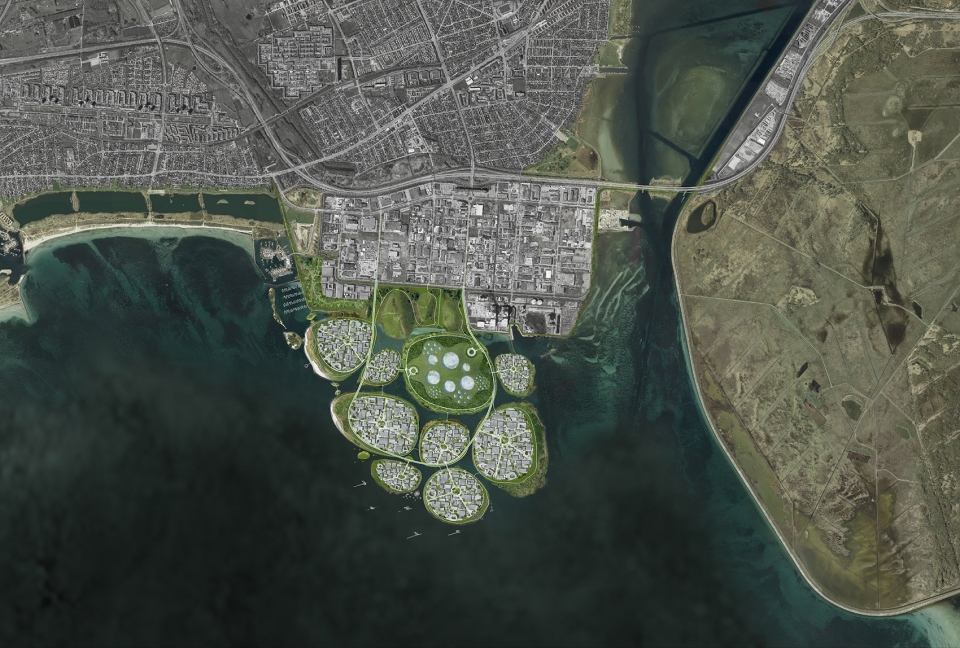

▼近观2040年规划景象-每座岛将有各自的自然绿带,多样化的景观提供各种活动发生的可能性,zoom 2040-each island will have a green belt of nature and diverse landscape invite for activities URBAN POWER for Hvidovre municipality

财务|Economy

资金来自于剩余土壤及土地出售,约4.8亿至5.4亿欧元工程预算约4.25亿欧元。估计有380个新产业及1.2万个工作机会。GDP(Gross Domestic Product,国内生产总值)成长高达70亿欧元。

Income from surplus soil and sale of plots, 480-540 million euro Construction cost, expected 425 million euro. Estimated 380 new businesses and 12000 jobs BNP growth, up to 7 billion euro.

无化石能源生产|Fossil free energy production

预计年产量为32.2万兆瓦。与丹麦综合能源结构相比,二氧化碳排放量预计每年可减少7.4万吨与煤能源相比,二氧化碳排放量预计每年可减少27.8万吨。

Expected annual production of 322.000 MW fossil free energy. Expected 74.000 t of annual CO2 reduction compared with danish energy-mix Expected 278.000 t of annual CO2 reduction compared with energy from coal

项目名称:Holmene (小岛)
设计方设计方:URBAN POWER
公司网站:http://www.urbanpower.dk/index.html
联系邮箱:acn@urbanpower.dk
项目设计 & 完成年份:2018-2040
主创及设计团队:URBAN POWER
项目地址:哈维德夫市, 丹麦
建筑面积:基地面积3,080,000 m2 / 建筑面积1,500,000 m2
摄影版权:URBAN POWER for Hvidovre municipality
合作方:DHI-group, MOE, Aglaja 及 Rambøll
客户:哈维德夫市
Project name: Holmene (the islets)
Design: URBAN POWER
Website http://www.urbanpower.dk/index.html
Contact e-mail: acn@urbanpower.dk
Design year & Completion Year : 2018-2040
Leader Team: URBAN POWER
Project location: Hvidovre, Denmark
Gross Built Area: Site area 3,080,000 m2 / floor area 1,500,000 m2
Photo credits: URBAN POWER for Hvidovre municipality
Partners: DHI-group, MOE, Aglaja and Rambøll
Clients: Hvidovre municipality
