Hirzenbach school complex, Zürich by Boltshauser Architekten

Boltshauser Architekten presents a school complex with deep ‘frames’

Project Specs

Location:

来自 Boltshauser Architekten 对gooood的分享。更多关于他们:Boltshauser Architekten on gooood.
Appreciation towards Boltshauser Architekten for providing the following description:

苏黎世Hirzenbach区域的城市结构如同花环般层次分明,外围的公寓楼高低起伏,环绕着中间开阔、平坦而低矮的学校建筑。而由Basler & Hofmann事务所所新建的建筑意在加强现有城市肌理的逻辑关系,学校建筑的北侧建起了仅有一层高的幼儿园,而南边的半下沉体育馆则充分考虑了其作为开放性公共空间的通透性。新建建筑与现有的学校建筑在空间与造型上相互呼应,充分表达了建筑师对现状的尊重,同时也重新整理的外部空间的结构,三座建筑之间的室外场地将被用作室外活动场地、游戏场地或是安静的休息场地使用。

The development structure of the perimeter in Zurich Hirzenbach as in Wasserfallen’s area-development plan is characterised by a peripheral garland of apartment blocks of varying heights, stepped towards each other around a middle occupied by a flat, solitaire school building. The new configurations aim to reinforce the existing urban-planning logic. The existing school building is expanded to the north by a single-storey kindergarten and to the south by a half-sunken sports hall with due consideration for the permeability of the open space and the low-rise development of the middle. By showing a typological affinity the new buildings continue to respect the existing school as the main building, whilst within their respective positions naturally re-ordering the exterior space into the functional areas of motional, play or intimate zones.

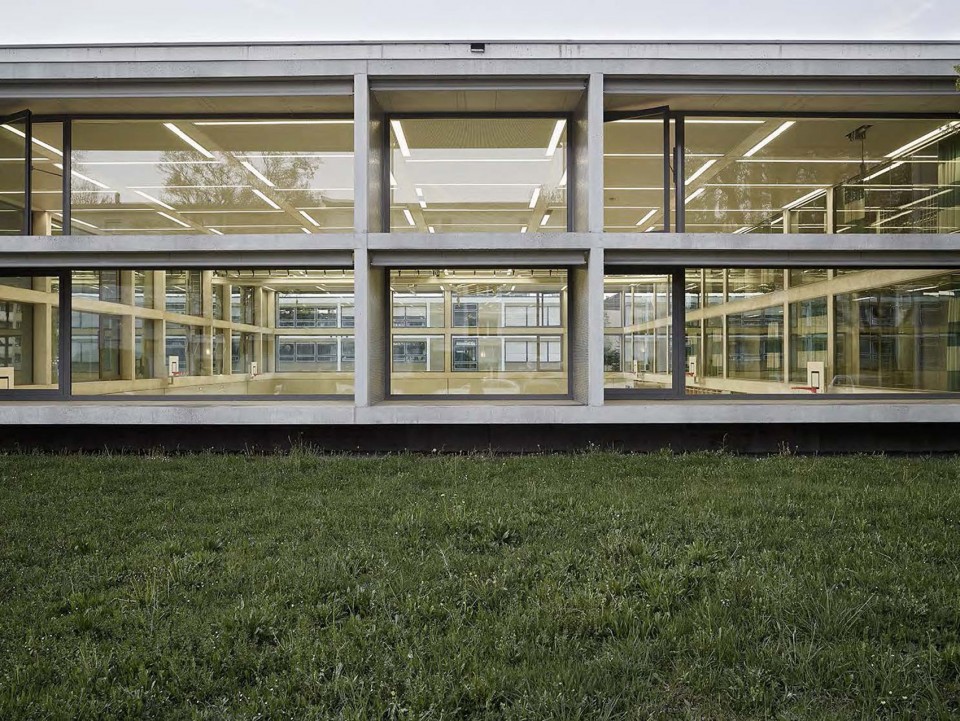

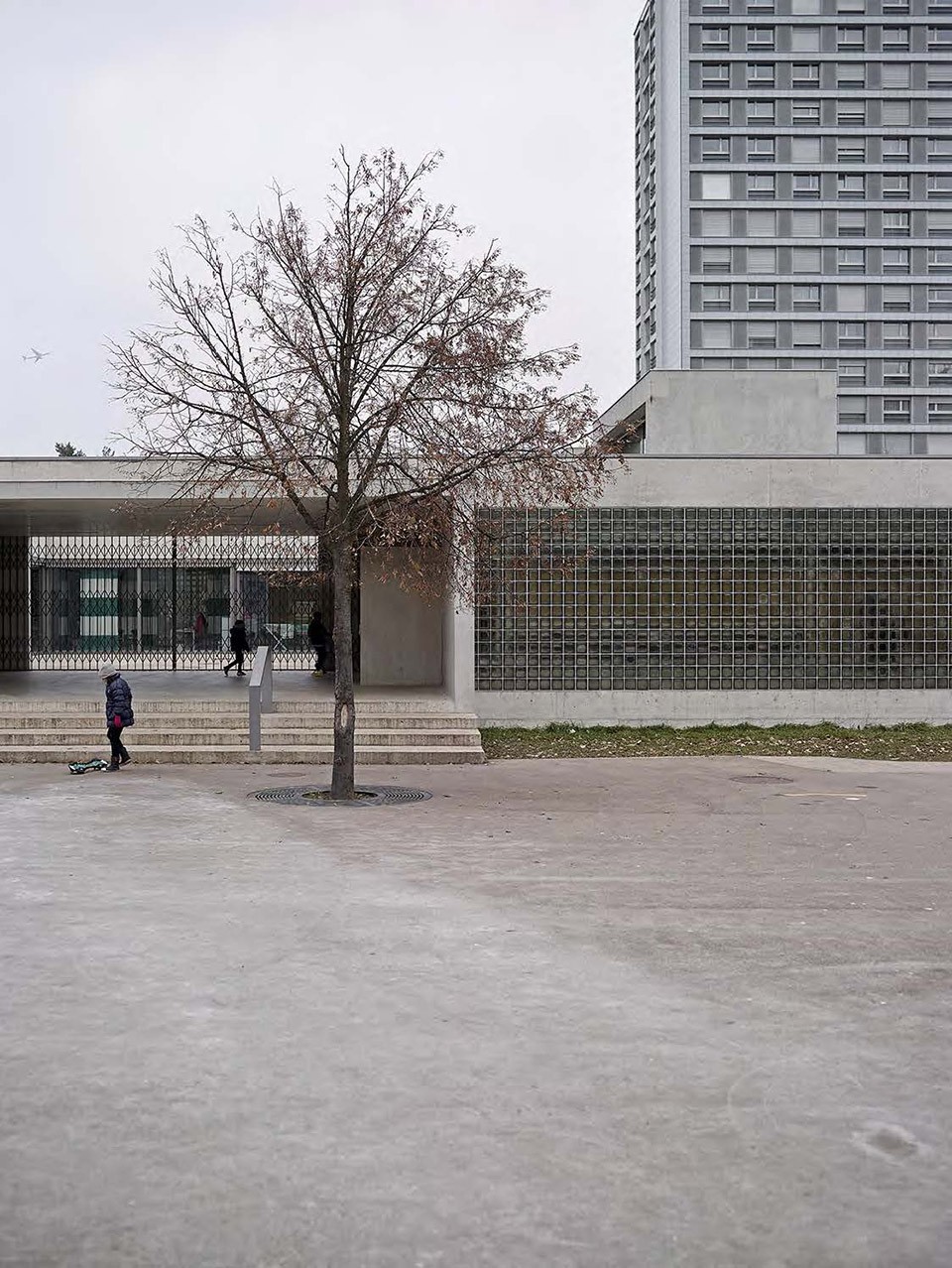

▽ 外围的公寓楼高低起伏,环绕着中间开阔、平坦而低矮的学校建筑,apartment blocks of varying heights surrounds the a middle occupied by a flat, solitaire school building

001-Hirzenbach school complex, Zürich by Basler & Hofmann

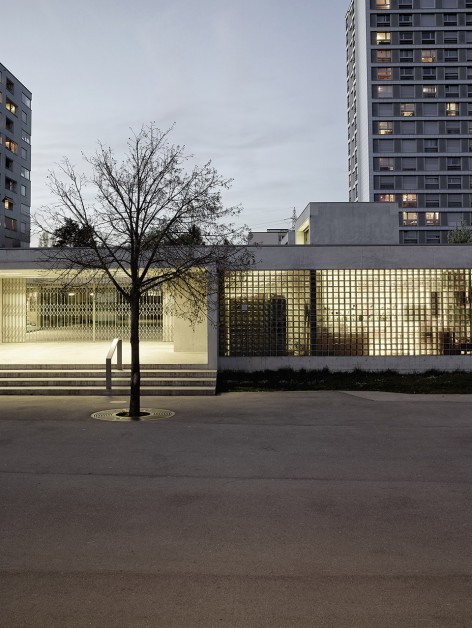

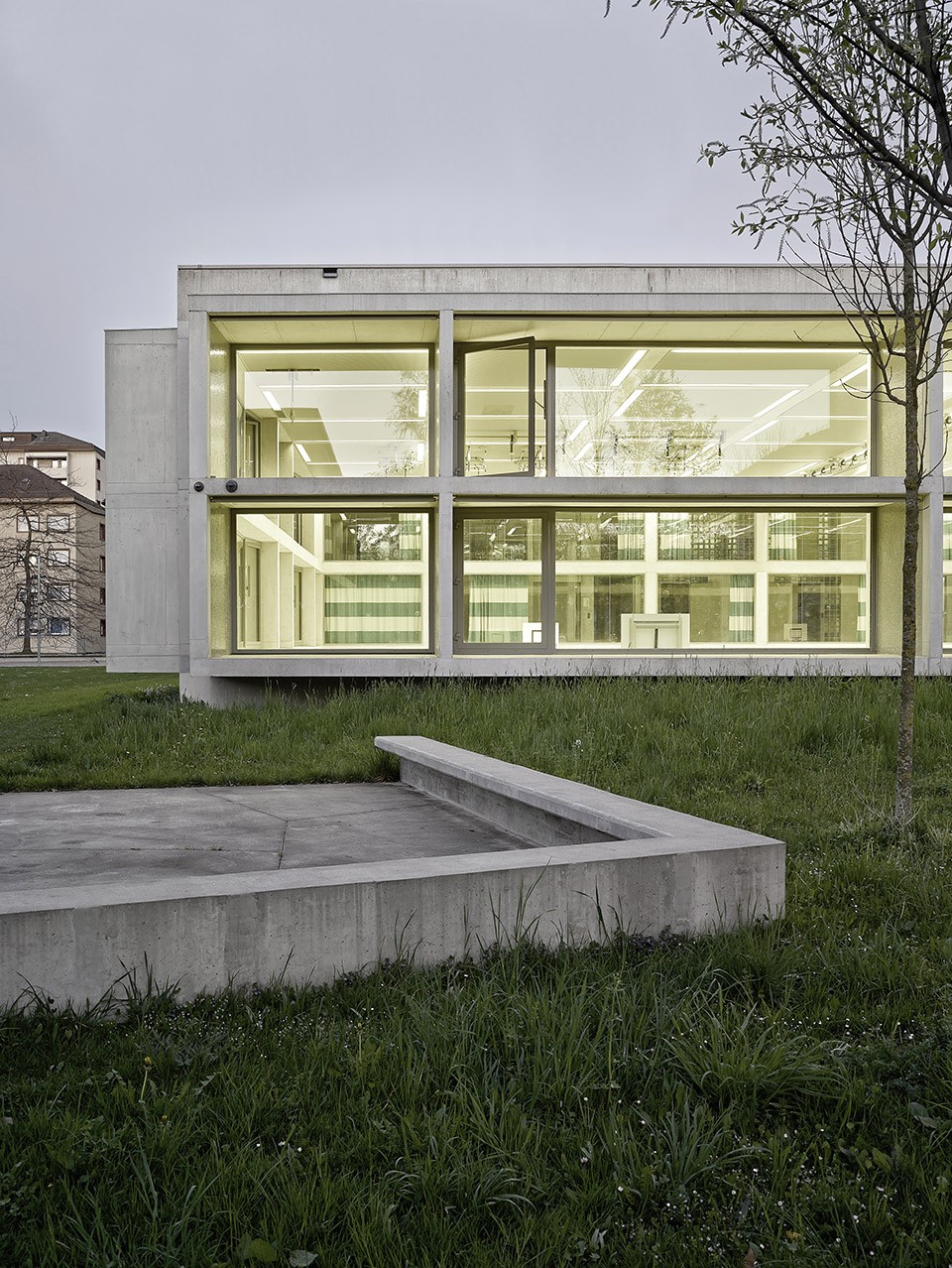

▽ 幼儿园建筑,the kindergarten

002-Hirzenbach school complex, Zürich by Basler & Hofmann

Schulanlage Hirzenbach Zürich     Boltshauser Architekten

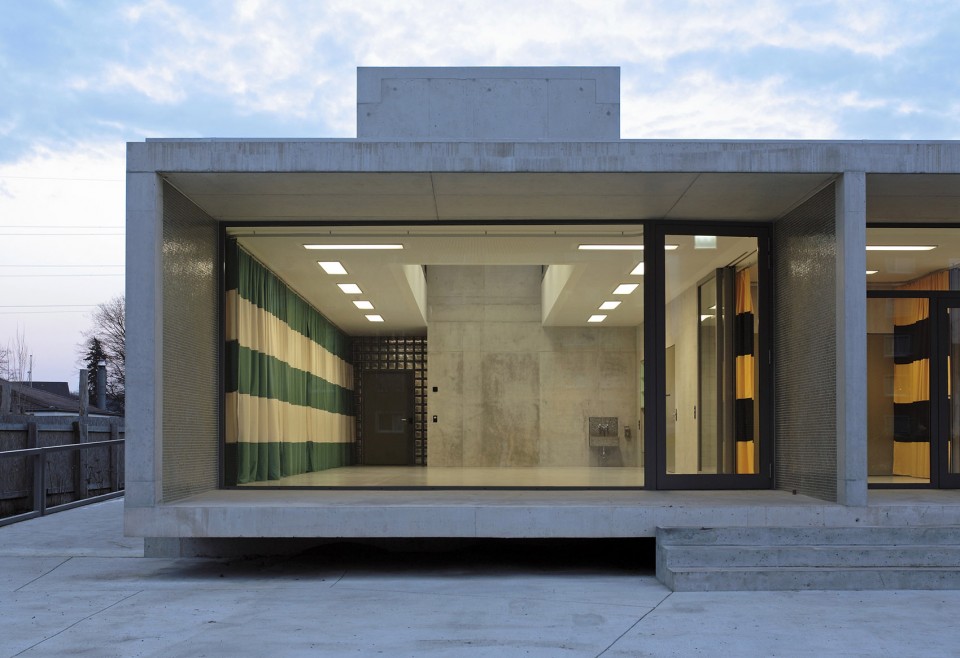

▽ 向外延伸的巨大窗格被用作室外平台,为孩子们提供一个小小的私密场所, the massive brise-soleil frames become an intimate balcony space for the kindergarten

004-Hirzenbach school complex, Zürich by Basler & Hofmann

Boltshauser Architekten

向外延伸的巨大窗格将建筑与其周边环境紧密地连接在了一起,其不仅作为装饰性的结构元素让建筑在平淡无奇的环境中独树一帜,同时也极为使用,巨大的窗格遮挡了刺眼的直射阳光,防止了体育馆中产生眩光,而在幼儿园中,它们又被用作室外平台,为孩子们提供一个小小的私密场所。兼顾保护性与开放性的窗格成为了低矮体量与外侧高大体量之间的过渡,也为人们提供了一个眺望远方的平台。

The two new buildings interlock with their encompassing space via the massive brise-soleil frames developed out of the block. In the process a spatial formulation of the structural skeleton construction of the existing school building is articulated in a functional charging: the transitional layer protects against glare in the sports hall and becomes an intimate balcony space for the kindergarten. The deep ‘frames’ serve the requirement for protection and simultaneously for the greatest possible openness, becoming both an adaptive and viewing space within the large-scale surroundings.

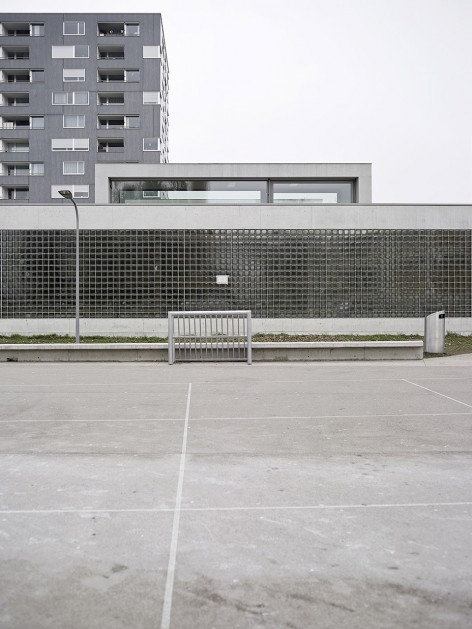

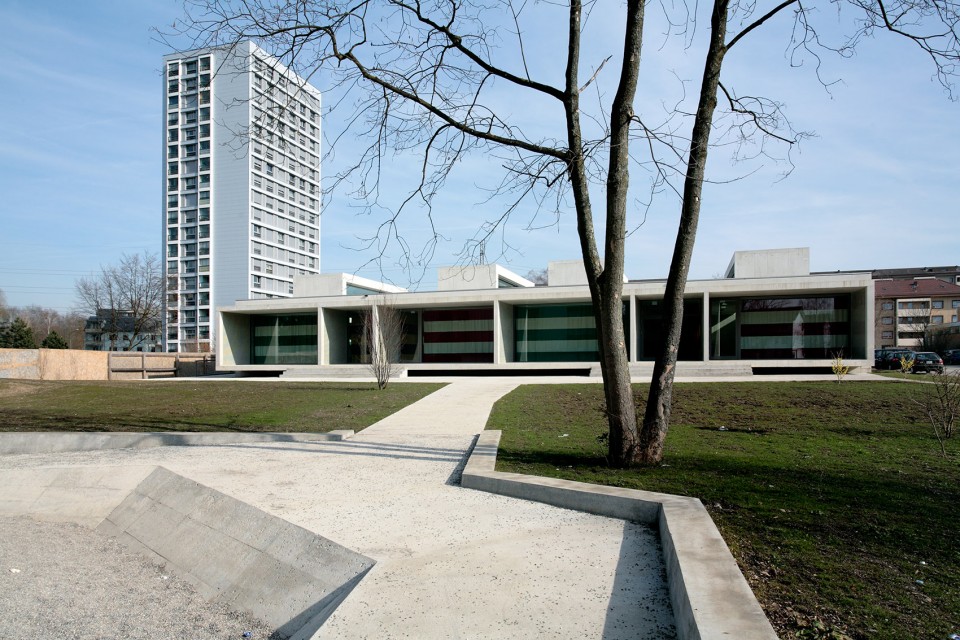

▽ 半下沉的体育馆建筑,the half-sunken sports hall

008-Hirzenbach school complex, Zürich by Basler & Hofmann

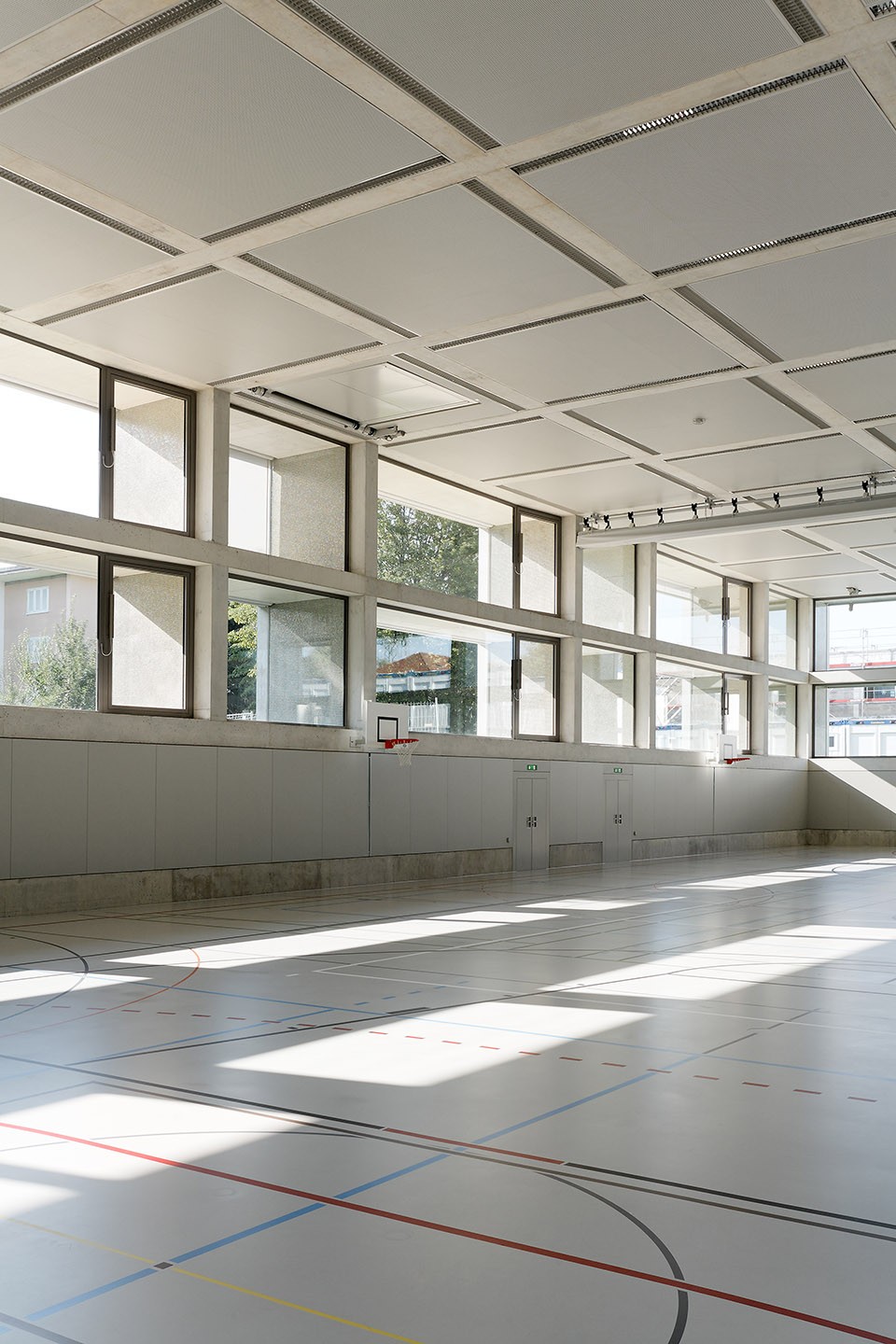

▽ 巨大的窗格遮挡了刺眼的直射阳光,防止了体育馆中产生眩光,the transitional layer protects against glare in the sports hall

009-Hirzenbach school complex, Zürich by Basler & Hofmann

Boltshauser Architekten

011-Hirzenbach school complex, Zürich by Basler & Hofmann

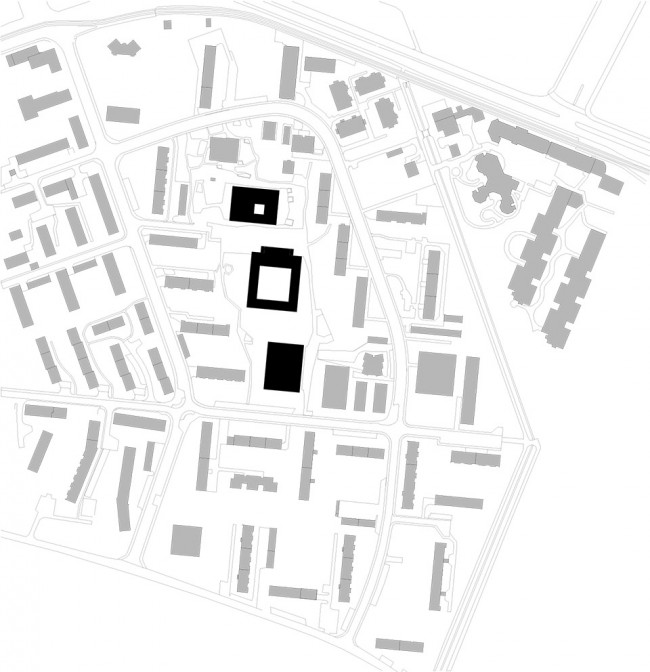

▽ 总平面图,site plan

012-Hirzenbach school complex, Zürich by Basler & Hofmann

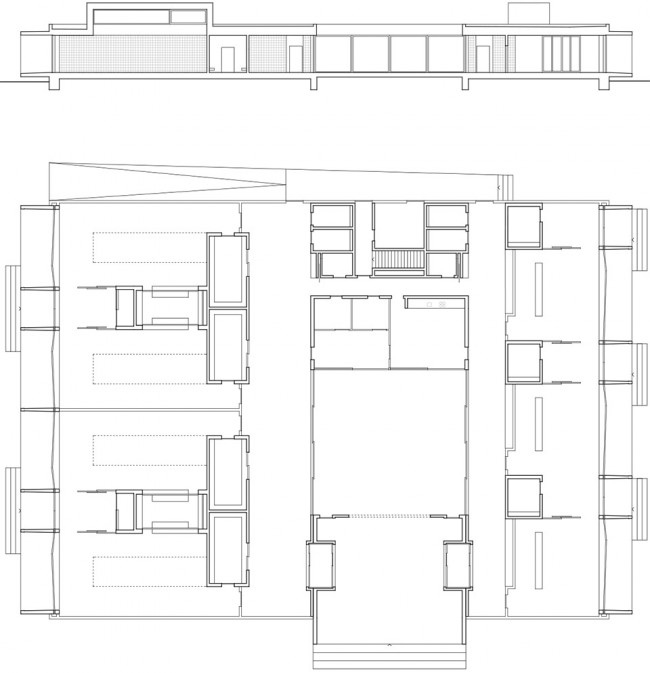

▽ 幼儿园剖面与平面,section and plan of the kindergarten

013-Hirzenbach school complex, Zürich by Basler & Hofmann

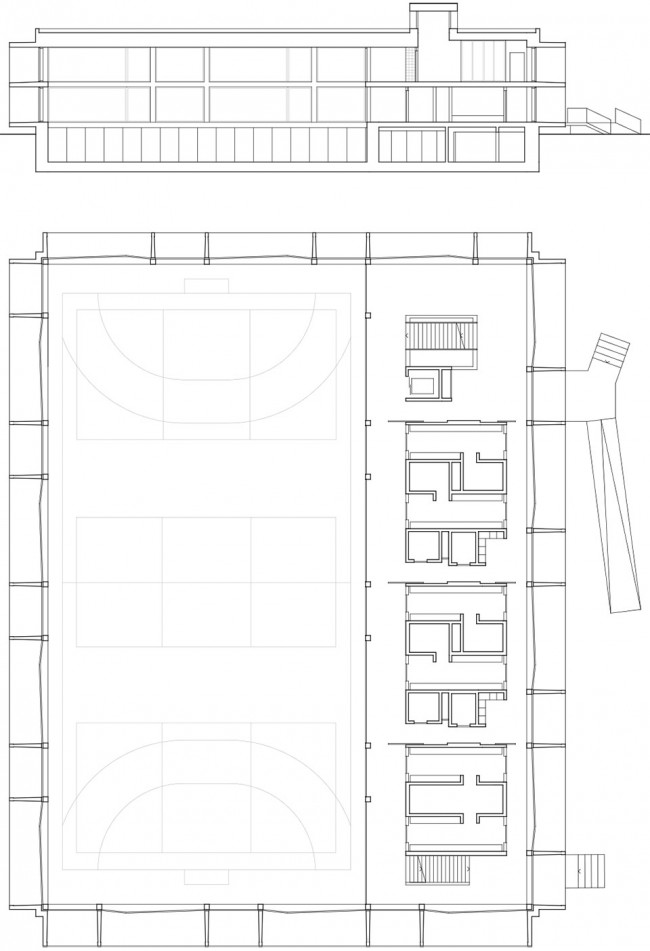

▽ 体育馆剖面与平面,section and plan of the sport hall

014-Hirzenbach school complex, Zürich by Basler & Hofmann



Client: City of Zurich, Department of Building Construction
Building Cost BKP 1-9: CHF 20 Mio.
Completion: 2008

Photo credit: ©Beat Bühler and ©Kuster Frey

Drawings: Boltshauser Architekten
English Text: Boltshauser Architekten
Chinese Text: gooood
