Gaoligong Museum of Handcraft Paper, China / TAO (Trace Architecture Office)

The museum is conceived as a micro-village, a cluster of several small buildings.

Project Specs

Location:

非常感谢 迹·建筑事务所 予gooood分享以下内容。更多关于 TAO on gooood
Appreciation towards Trace Architecture Office for providing the following description:

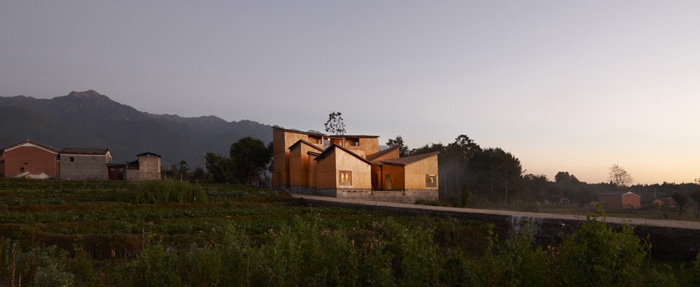

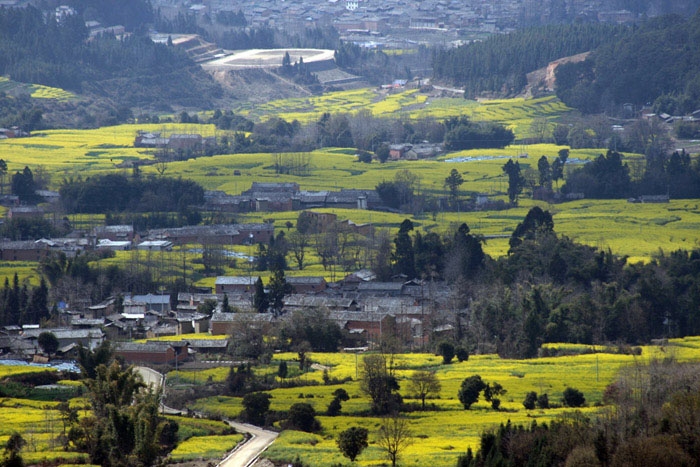

▼远眺博物馆,view from mountain

博物馆建造在云南腾冲高黎贡山下新庄村边的田野中,建筑的目的是为了向来访者展示新庄古老的手工造纸工艺,及相关于手工纸的文化产品,建筑内部也设有办公空间、茶室和客房等。设计将建筑做成由几个小体量组成的一个建筑聚落,如同一个微缩的村庄。而整个村庄连同博物馆又形成一个更大的博物馆——每一户人家都可以向来访者展示造纸的工艺。访问者对建筑的游览将是在内部展览和外部优美的田园景观之间不断转换的一种体验,以此来提示建筑、造纸和环境的不可分。展览部分由六个形状各异的展厅围绕中心庭院组成一条连续的参观路线,中间则是一个可向庭院完全开敞的茶室。二层是办公空间,通过一个室外楼梯联系到三层客房和一个可以观山的屋顶平台。

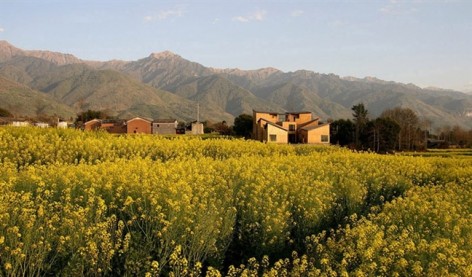

▼从西侧进村道路远看west view fromthe road approaching village

设计采用当地的杉木,竹子、手工纸等低能耗、可降解的自然材料来减少对环境的影响。在建构形式上真实反映材料、结构等元素的内在逻辑,以及建造过程的痕迹与特征。建筑适应当地气候,充分利用当地材料、技术和工艺,结合了传统木结构体系和现代构造做法,全部由当地工匠完成建造,使项目建设本身成为地域传统资源保护和发展的一部分。

The museum is situated in a beautiful landscape next to xinzhuang village under Gaoligong Mountain of Yunnan, a world ecological preserve area in southwest of China.  The village has a long tradition on handcraft paper making. To exhibit the history and culture of paper making, this museum will include gallery, bookstore, work space and guest rooms. The museum is conceived as a micro-village, a cluster of several small buildings.

The spatial concept is to create a visiting experience alternating between interior of galleries and landscape outside when visitor walks through the museum, so as to provoke an awareness of the inseparable relationship between paper making and environment.

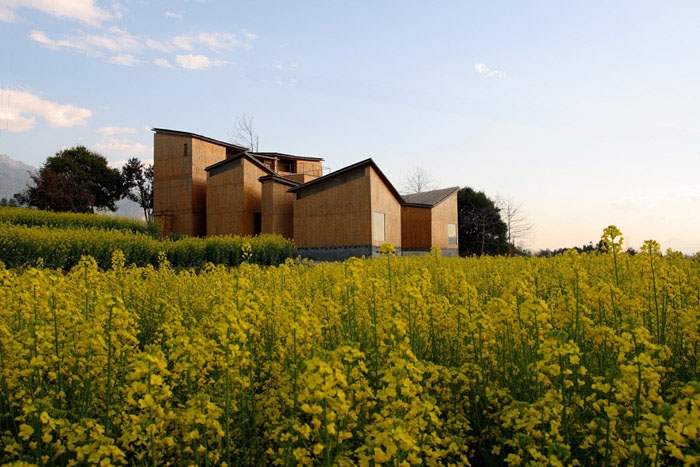

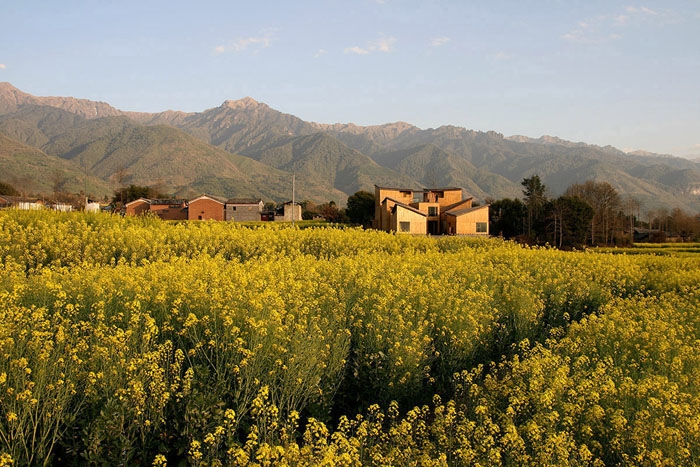

▼从西侧远看建筑,view from west



The design is aimed at making a climate responsive and environment friendly building. Local materials such as wood, bamboo, handcraft paper and volcano stone are used for exterior finish, roof, interior finish and floor respectively. With time passed, these materials will worn and fade into a more harmonious color with the landscape. The construction is to maximize the usage of local materials, technique and craftsmanship. The building combines traditional timber structural system featuring nail-less tenon (SunMao) connection and modern detailing. It was built completely by local builders.

▼从西北侧看view from northwest

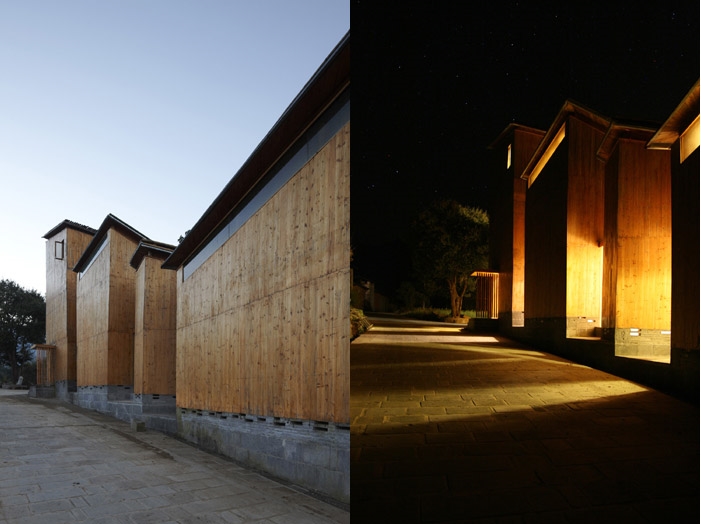

▼夜景nightview



 ▼从西北侧看view from northwest

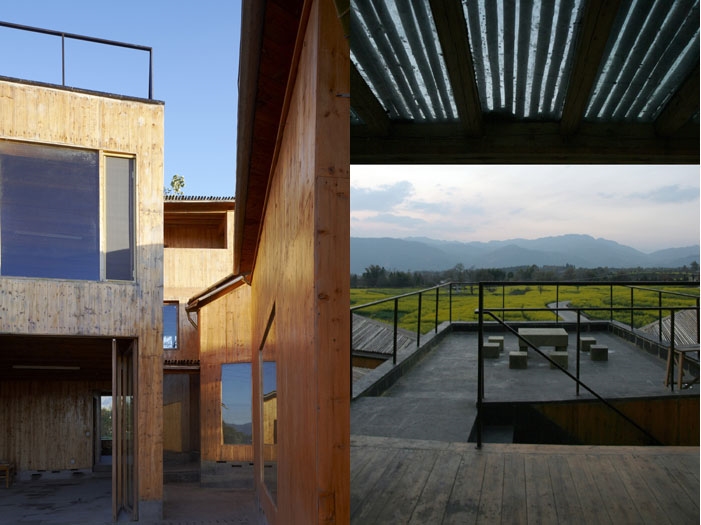

▼庭院view in the courtyard  &  屋顶平台roof terrace

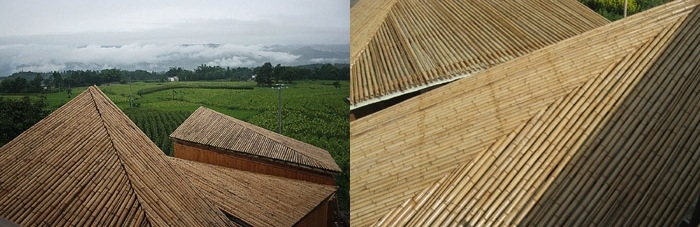

▼展厅屋面gallery roof

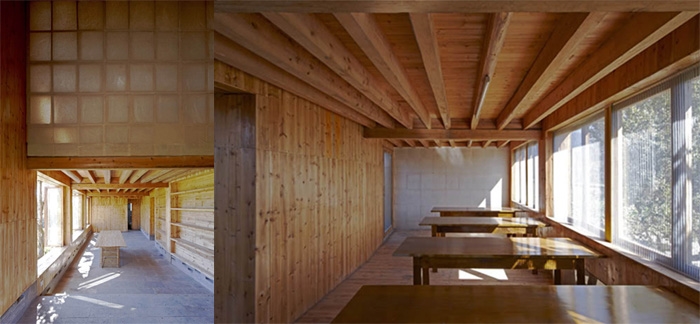

▼展厅室内view inside gallery

▼抄纸歌——展厅四室内view inside gallery

▼建造过程construction process

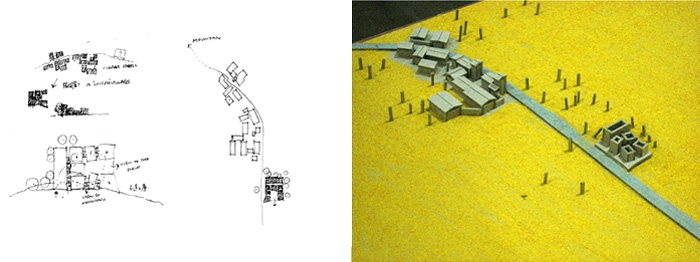

▼概念草图concept sketches

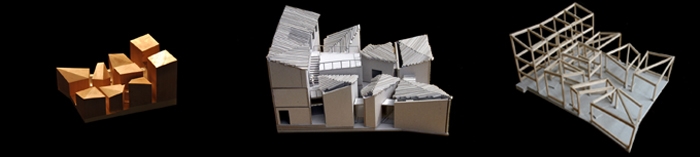

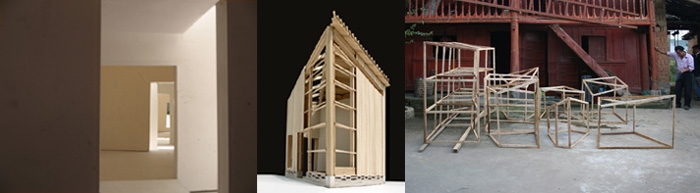

▼模型 model

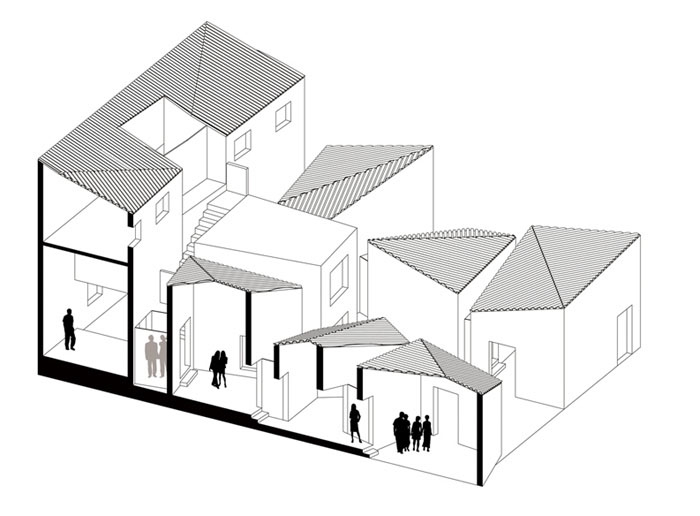

▼轴侧剖面section axonometric

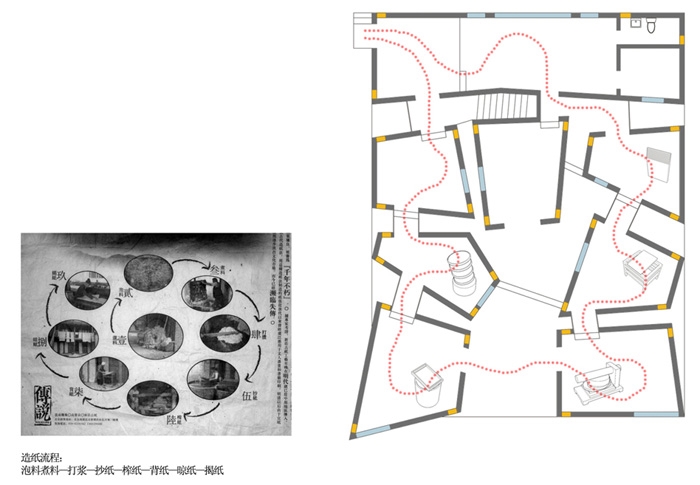

▼平面流线circulation plan



▼立面elevation  点击图片看大图 Click above for larger image

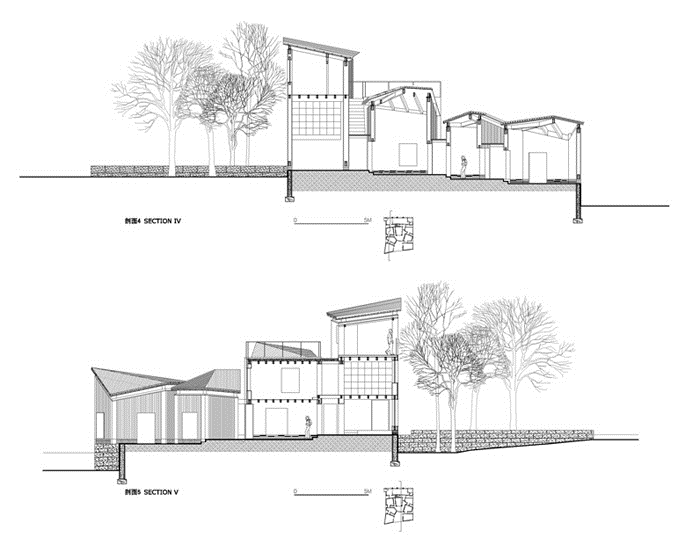

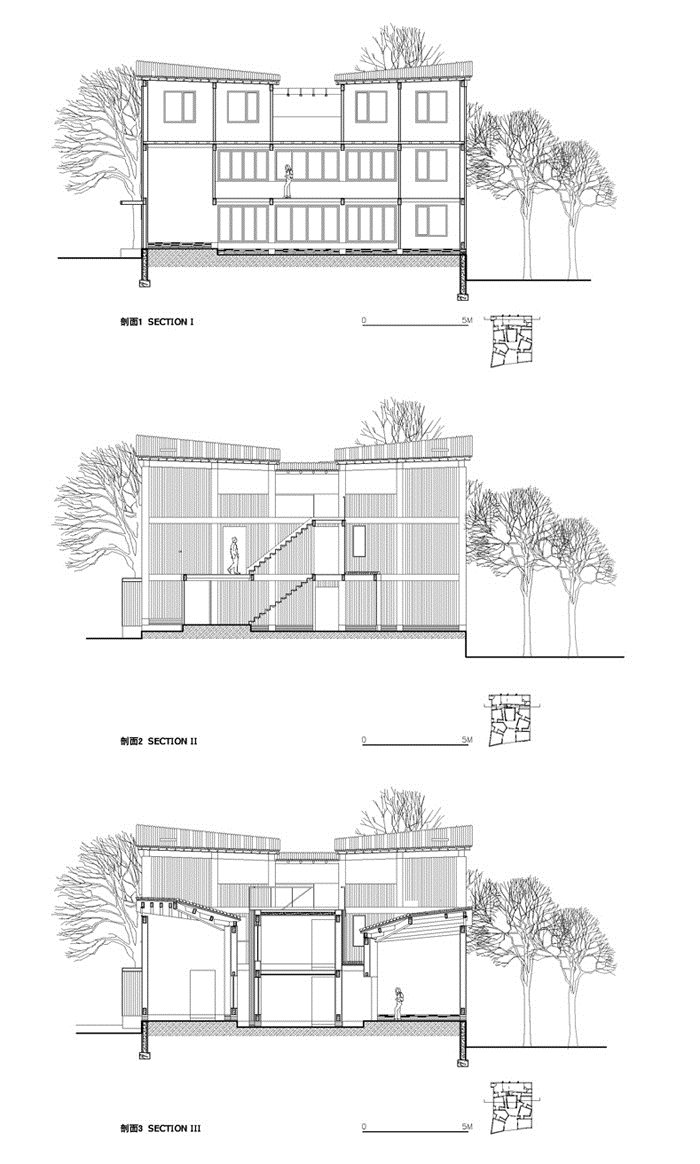

▼剖面Section

▼展厅局部构造轴侧图detail axonometric of gallery

项目名称:高黎贡手工造纸博物馆
项目地点:云南腾冲界头乡新庄村
项目功能:博物馆、书店、茶室、办公、客房等
建筑面积:361平米
设计:2008,4-2009,5
建成:2009,5-2010,12
项目建筑师:华黎 / TAO 迹 . 建筑事务所
设计团队:华黎、黄天驹、李国发、姜楠、孙媛霞、徐银军、杨鹤峰

Project name: Gaoligong Museum of Handcraft Paper
Location: Yunnan, Tengchong, Xinzhuang village
Program: Museum, Work space, Guest room etc.
Floor Area: 361 sq. m.
Design: 2008,4-2009,5
Construction: 2009,5-2010,12
Architect: HUA Li / TAO (Trace Architecture Office)
Design team: HUA Li, Huang Tianju, Li Guofa, Jiang Nan, Sun Yuanxia, Xu Yinjun, Yang Hefeng
