Casa Las Cruces by ASP Arquitectura Sergio Portillo

Interact with the exterior environment in the interior space

Project Specs


非常感谢 ASP Arquitectura Sergio Portillo 予gooood分享以下内容。更多关于他们:ASP Arquitectura Sergio Portillo on gooood. Appreciation towards ASP Arquitectura Sergio Portillo for providing the following description:

Las Cruces住宅位于Valle de Bravo的中心区域,可以享受优美的湖景。业主委托设计师将他们名下一栋房龄超过30年的度假屋改造成一座综合体,包含两栋房屋和大家可以共同使用的公共区域,满足家人的自然成长以及使用需求。

Located in the heart of Valle de Bravo with premium views of the lake, Casa Las Cruces arose from the clients’ need to transform their weekend house, family-owned for more than 30 years, into a two-house complex with shared common areas to be enjoyed and adapted according to the family’s natural growth and usage.

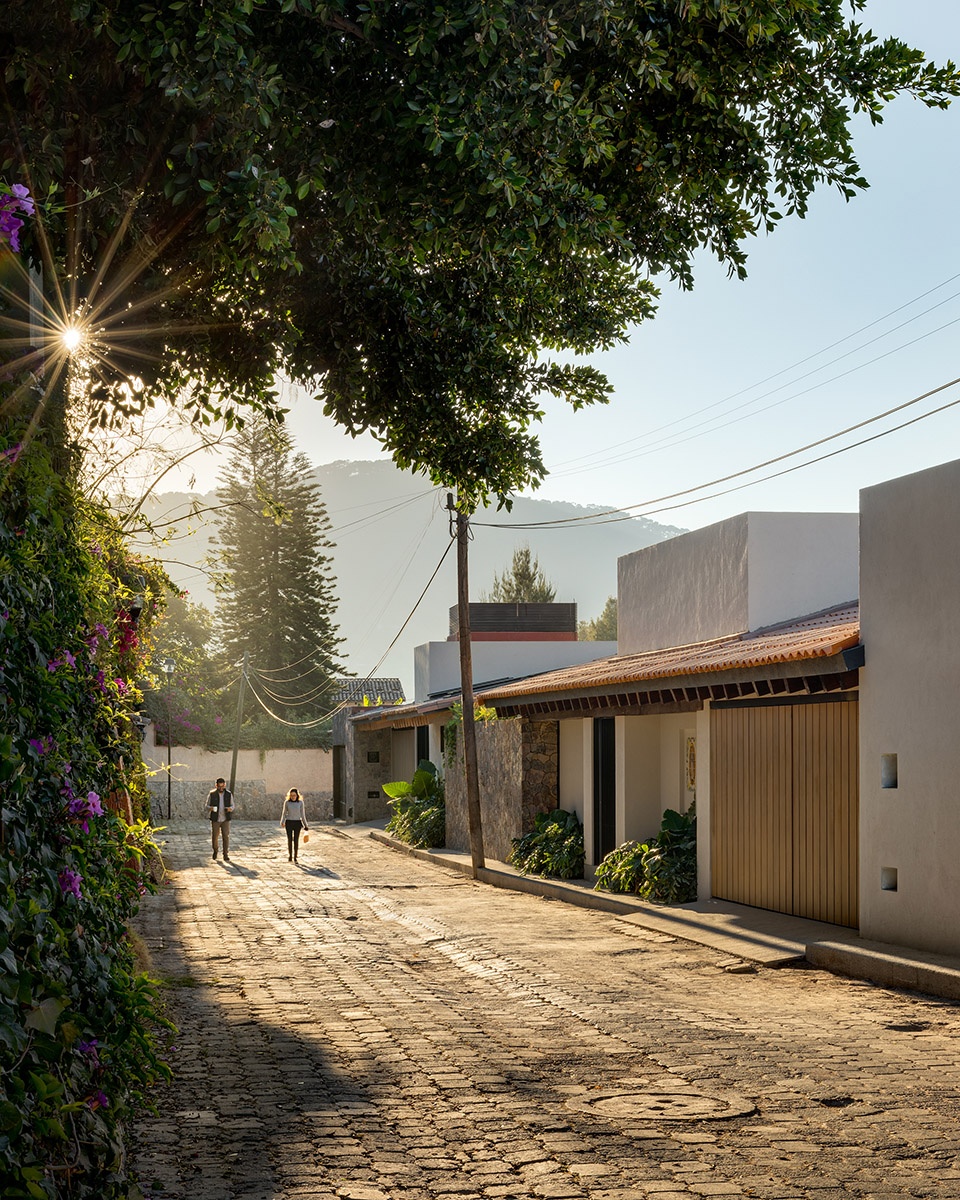

▼项目沿街外观,street view of the project ©Rafael Gamo


The project developed along two main angles: on the one hand, the renovation of the existing house, known as House One, and on the other, the construction of a new house, House Two. From the beginning, we knew that our proposal needed an approach that would respect its environment, but how do you renovate a 30-year-old house without losing its essence? And more importantly, without erasing the clients’ treasured memories? On the other hand, how do you design a new house without devaluing its predecessor and neighbor? The logical response was to begin with the essence of the existing house, recovering the elements that imbued it with value, and then reinterpret and translate them throughout the second house by using and recycling materials from the region, the pre-existing house and previous terrace.

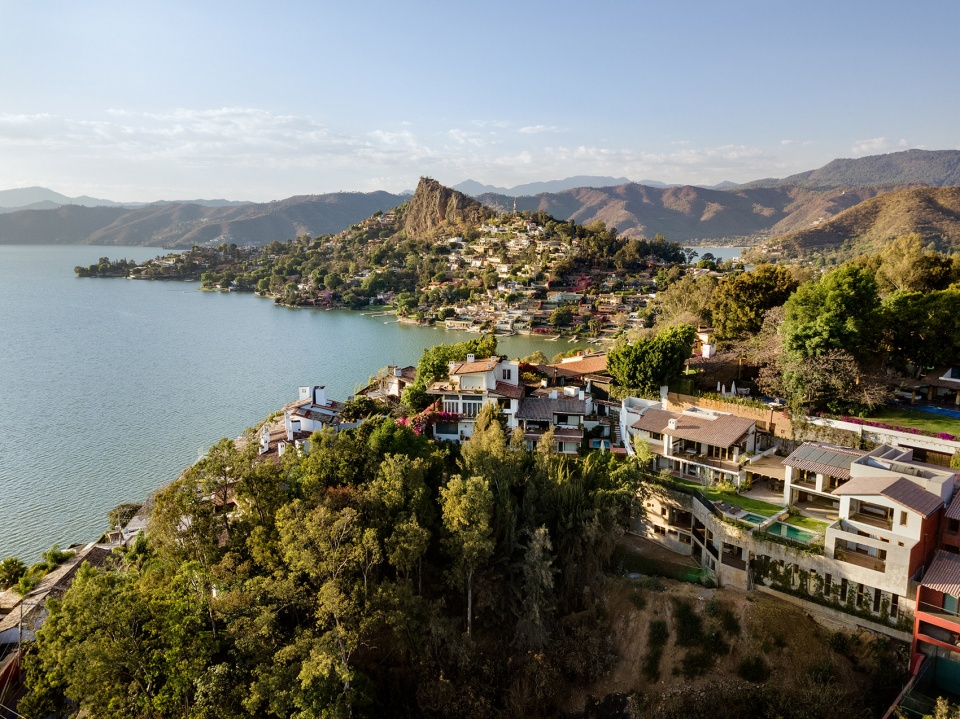

▼项目鸟瞰,由两栋房屋和花园及露台组成,aerial view of the project composed of two houses, garden and terrace ©Rafael Gamo


The grounds already contained one house with a large garden and terrace, and in order to fulfill the clients’ wishes, we built a new house from scratch, on the space formerly occupied by the terrace. Given that the outdoor terrace space was beloved and frequently used by the family, it was redesigned and placed between the two houses, functioning as the heart and unifying element. In this new space, a wooden trellis overhead reused beams from the previous terrace, and the space is crowned with a stone-covered wall and a fishpond surrounded by vegetation. Of the many spaces within the project designed for family living, this is the most important.

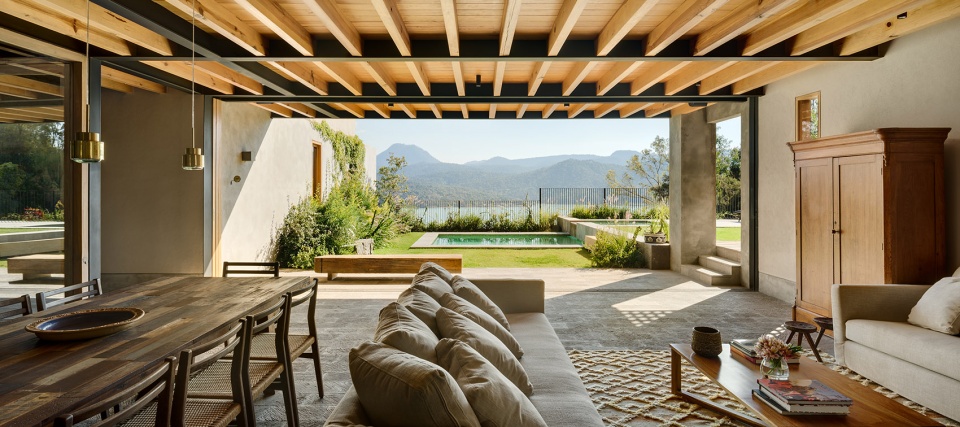

▼新露台连接两栋房屋,new terrace connecting the two houses ©Rafael Gamo

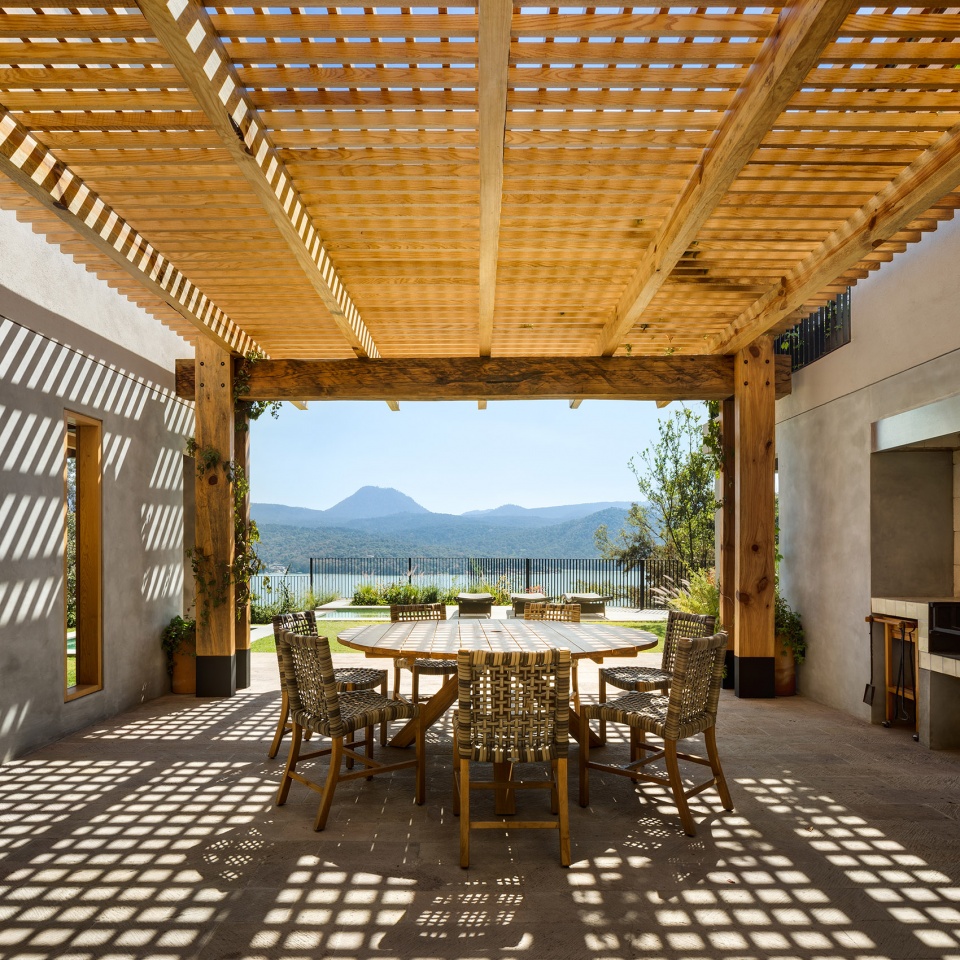

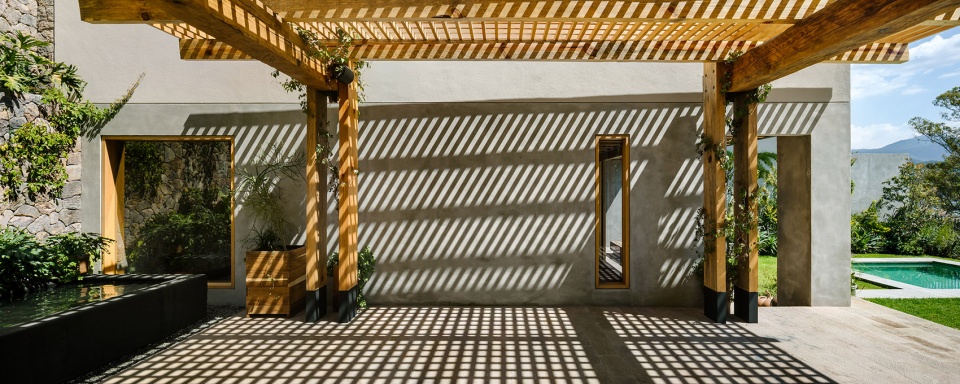

▼露台有回收横梁和木制花架覆盖,the terrace is covered by recycled beams and wooden trellis ©Rafael Gamo

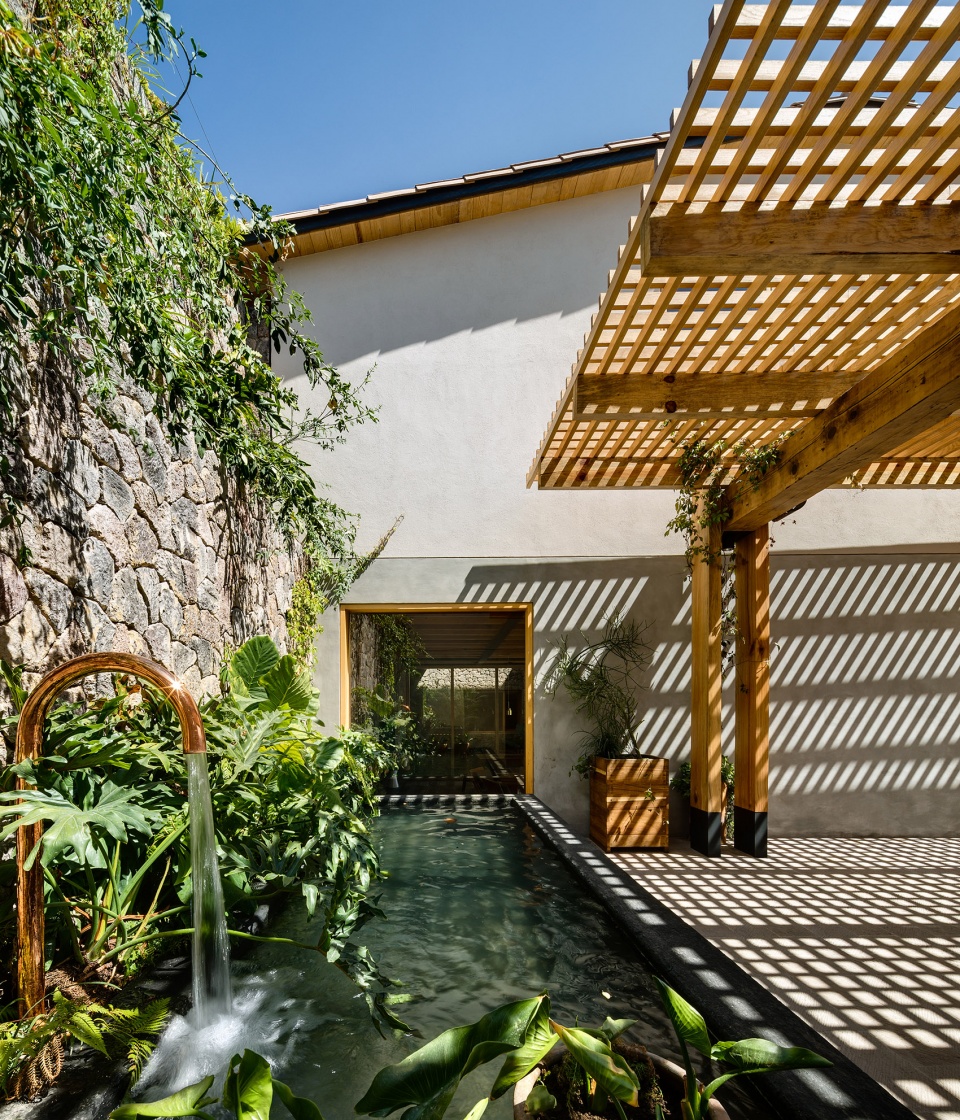

▼露台一侧为石材墙面和鱼塘,stone wall and fishpond crowning the terrace ©Rafael Gamo


The pre-existing house underwent significant remodeling, replacing old amenities for new ones, and walls were reinforced and plastered, to give it the same contemporary touch as the new house. The kitchen and all of the bathrooms were renovated, and a car park and an underground movie room were added. The common areas are located on the top floor, there a terrace and chimney space overlooking the lake was rehabilitated.

▼公共空间,common space ©Rafael Gamo

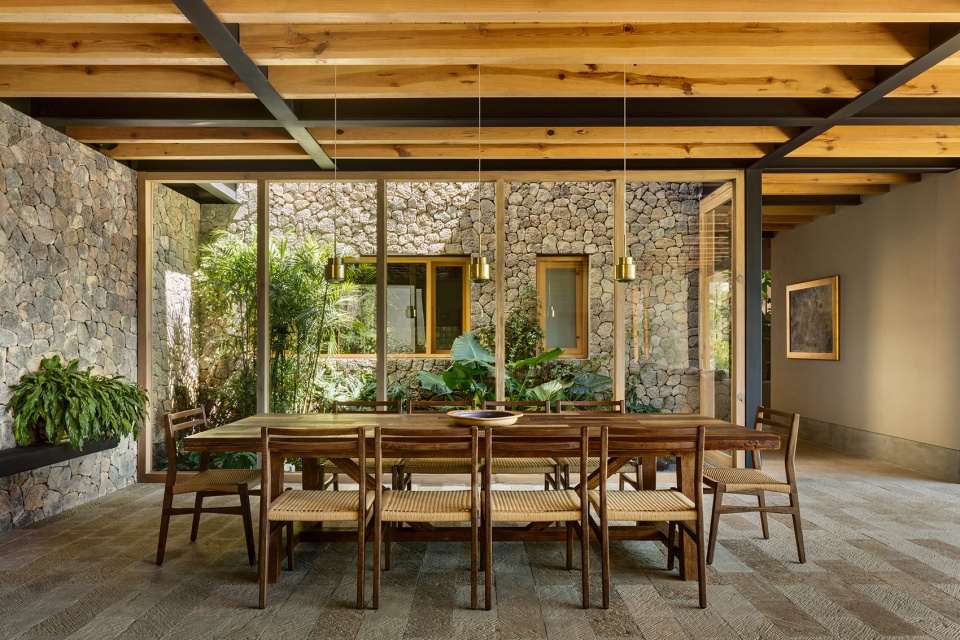

▼餐厅,dining space ©Rafael Gamo

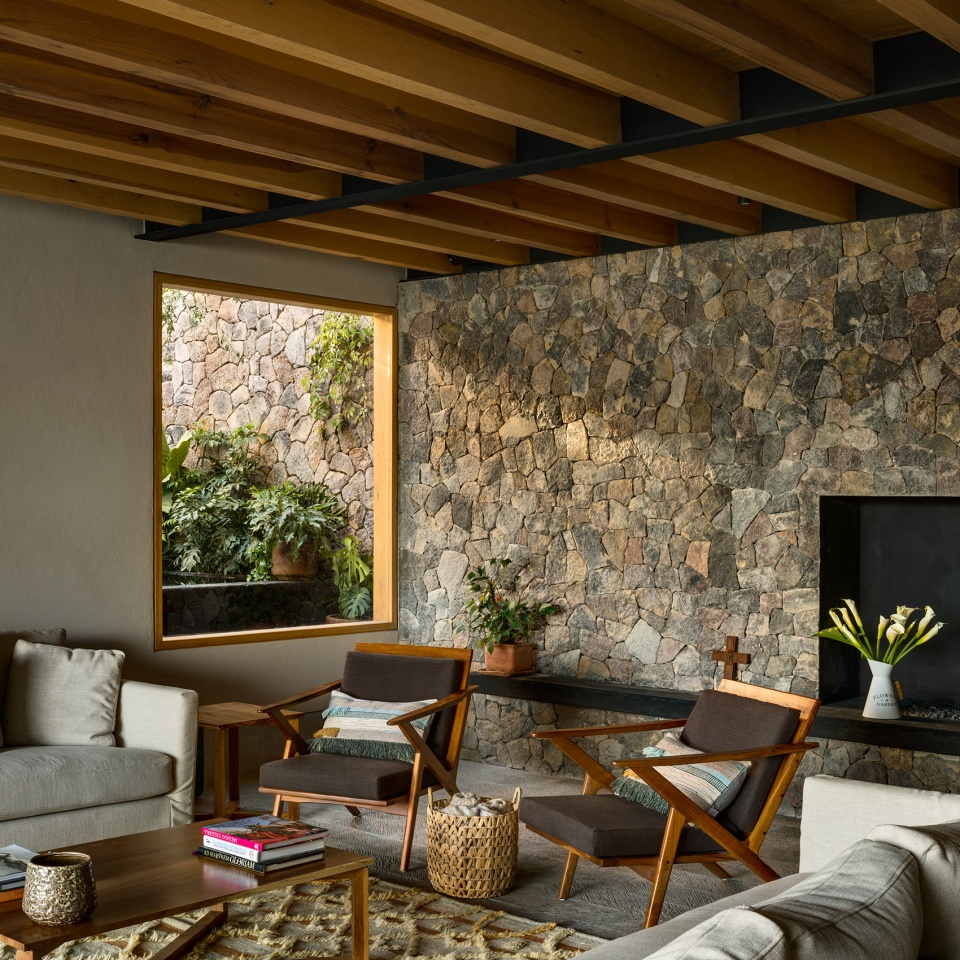

▼客厅一角,corner of the living space ©Rafael Gamo

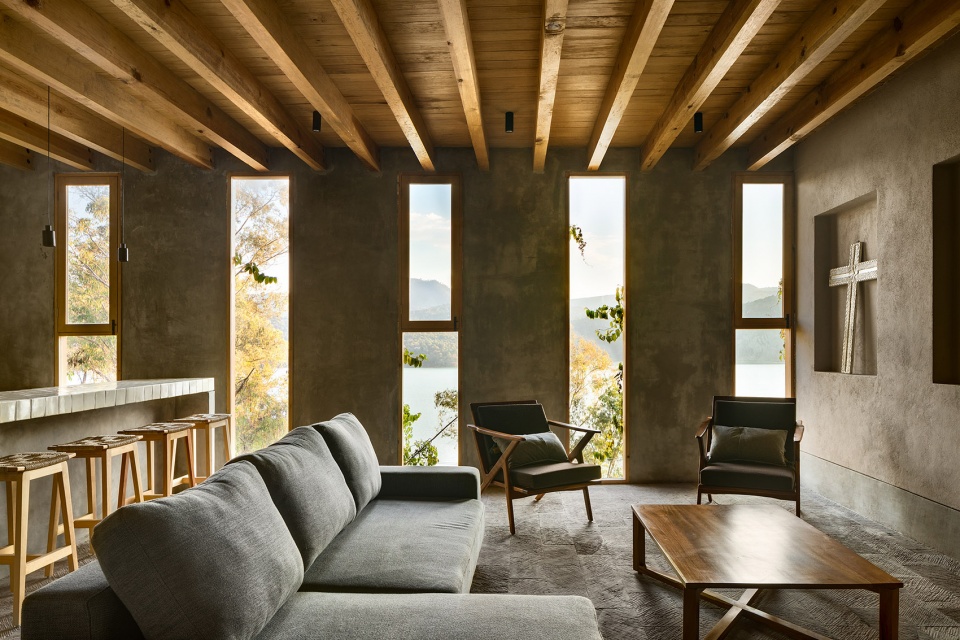

▼地下娱乐室,play room on the basement floor ©Rafael Gamo

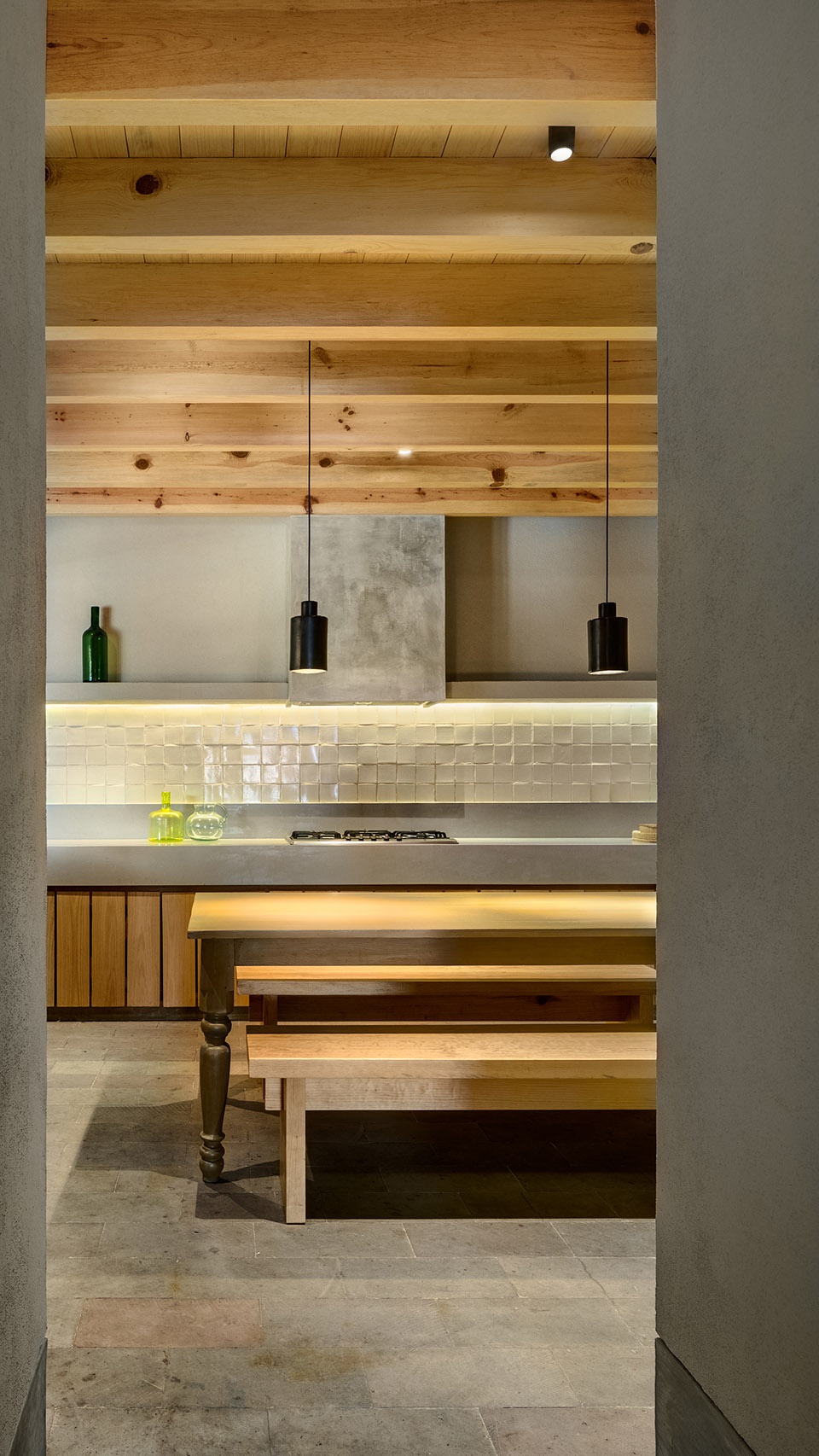

▼厨房,kitchen ©Rafael Gamo

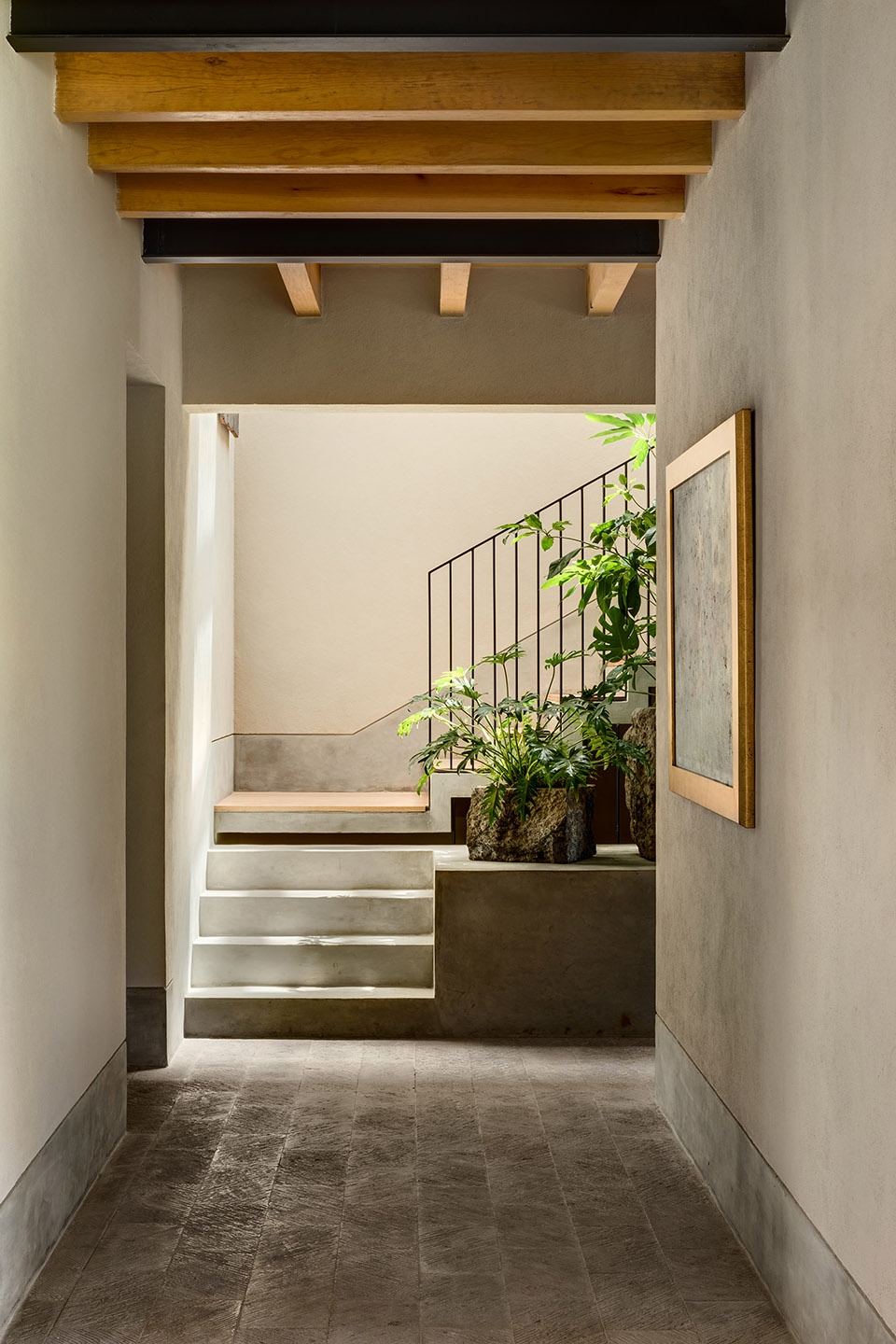

▼楼梯,staircase ©Rafael Gamo

Las Cruces住宅由宽敞的起居室,温馨的厨房,拥有优美景色的露台和阳台,以及多间卧室组成,成为了家庭度假的好去处。项目最重要的特点是人们在房间中的任何角落都可以透过拱顶、窗户或露台等空间,与室外发生关联。建筑使用石材、木材、陶土等自然材料及设计元素,完美地融入了其所处的外界环境之中。

Spacious living rooms, warm kitchens, terraces and balconies to showcase the view, and multiple bedrooms to enjoy weekends with the family are just some of the elements that make up Casa Las Cruces. One of its greatest virtues is from any point within the houses, one interacts with the exterior, either through domes, windows, or patios. This allows the house to blend into the immediate context of the area through the chromatic of its materials and natural finishes, including stone, wood and clay, alongside the design elements.

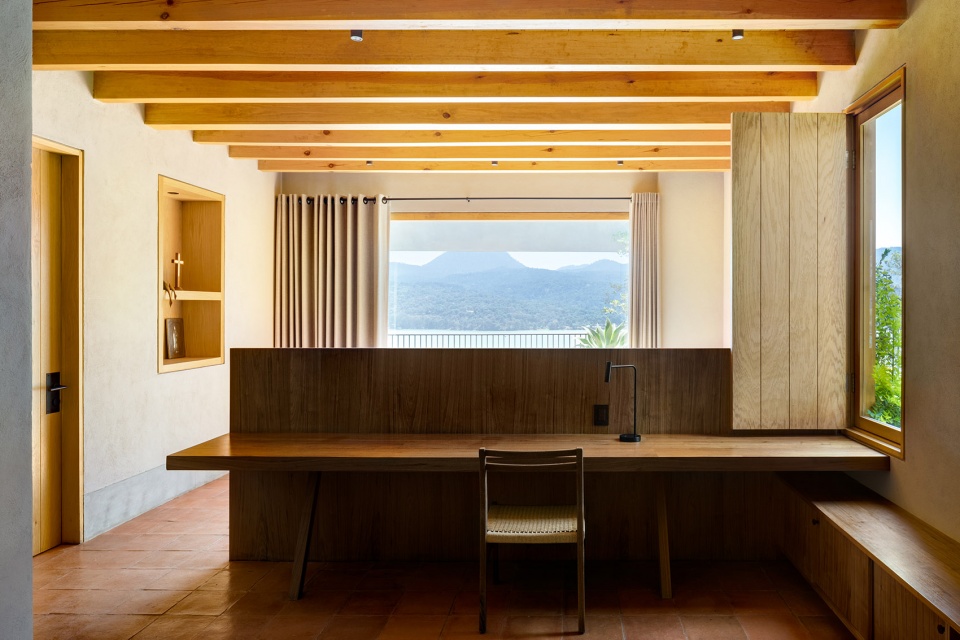

▼套房,suite ©Rafael Gamo

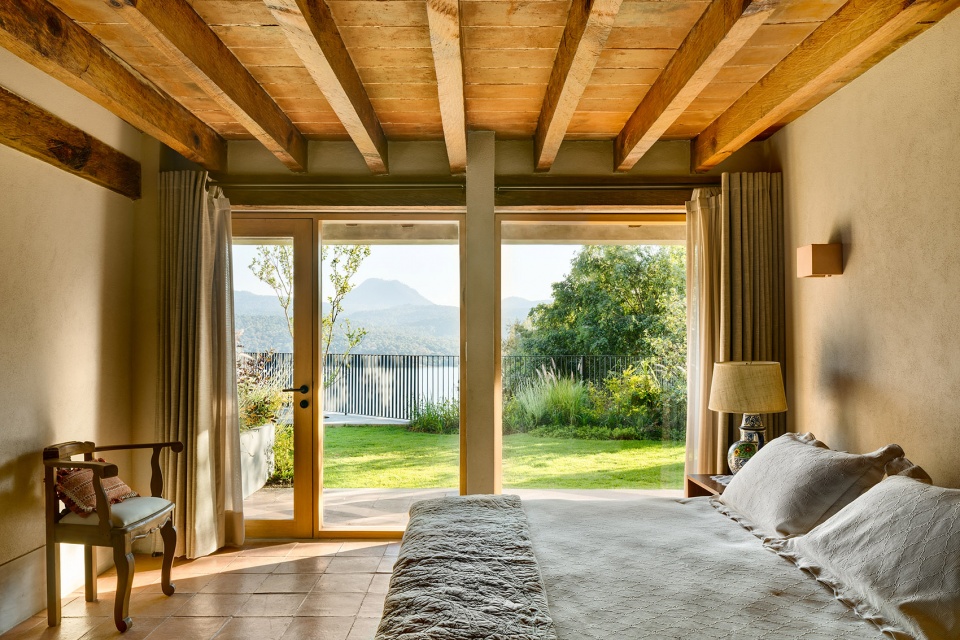

▼卧室,bedroom ©Rafael Gamo

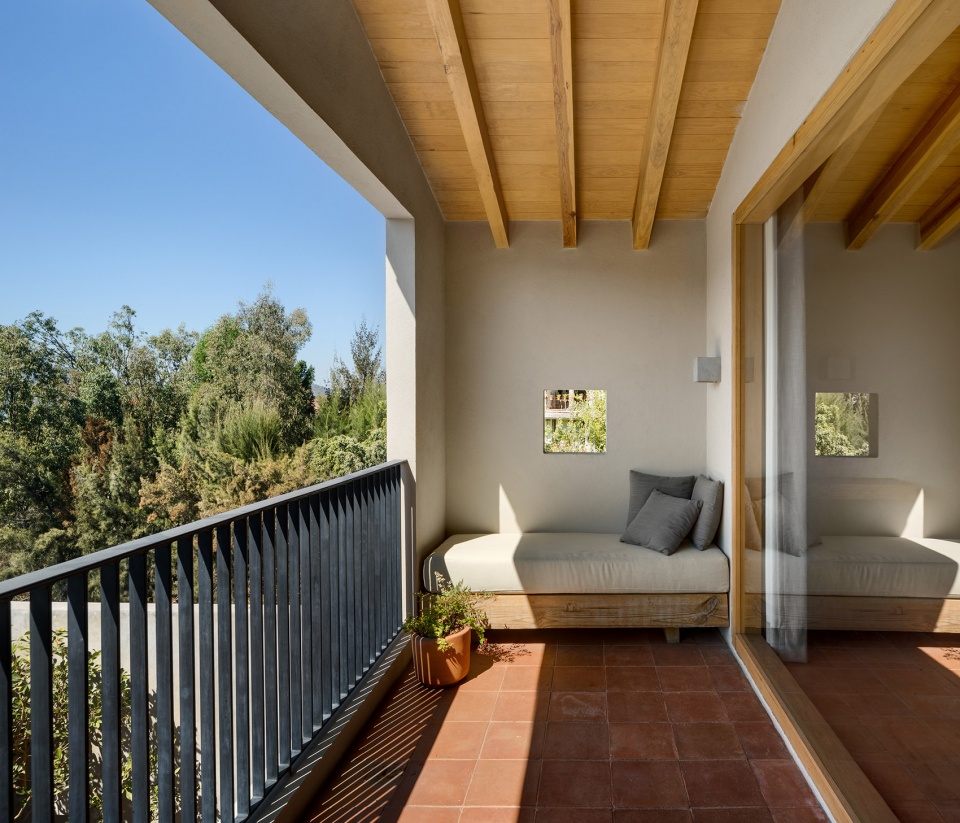

▼室内外产生关联,interact with the exterior in the house ©Rafael Gamo

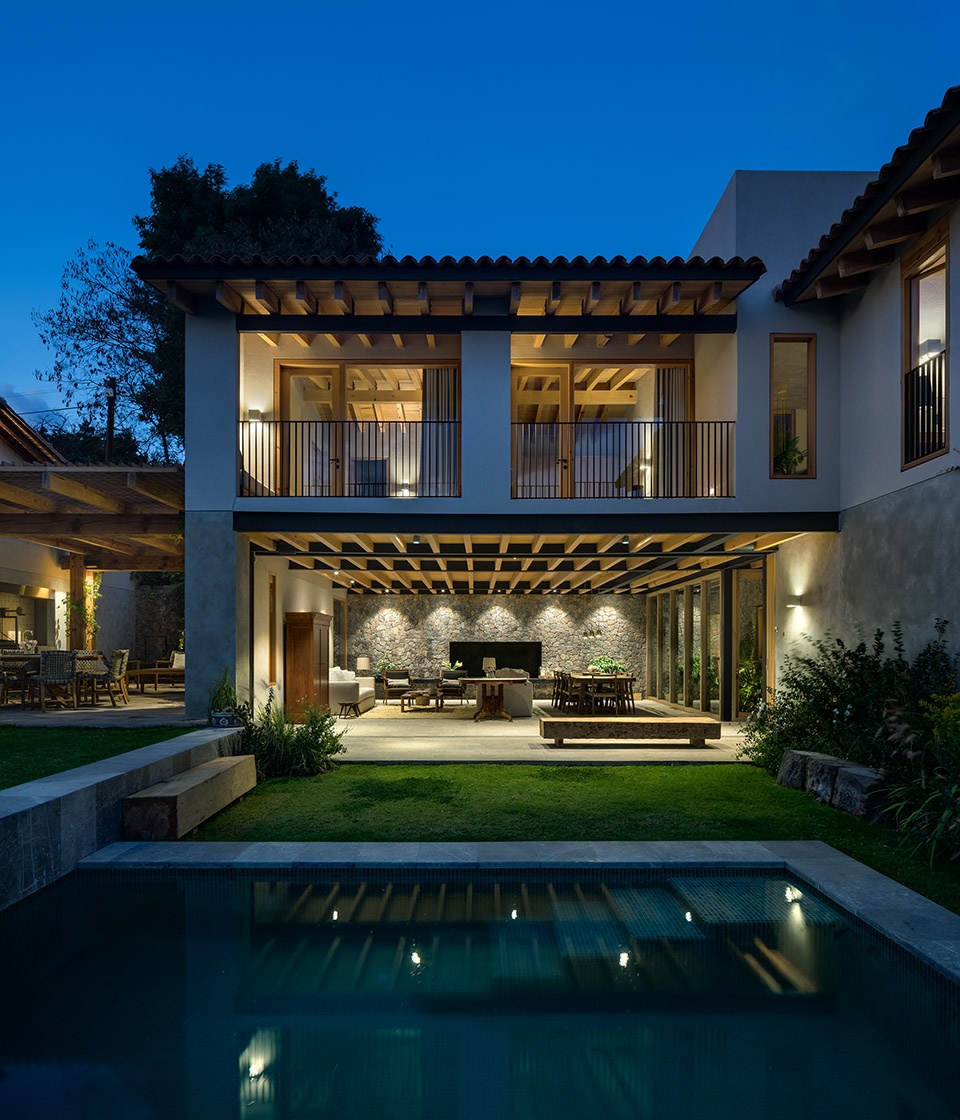

▼夜景,night view ©Rafael Gamo

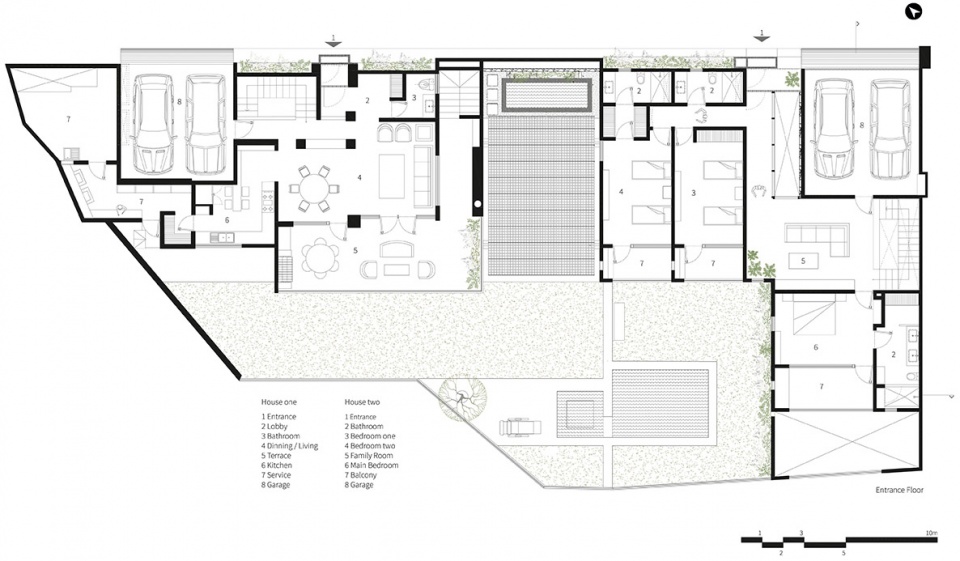

▼入口层平面图,entrance floor plan ©ASP Arquitectura Sergio Portillo

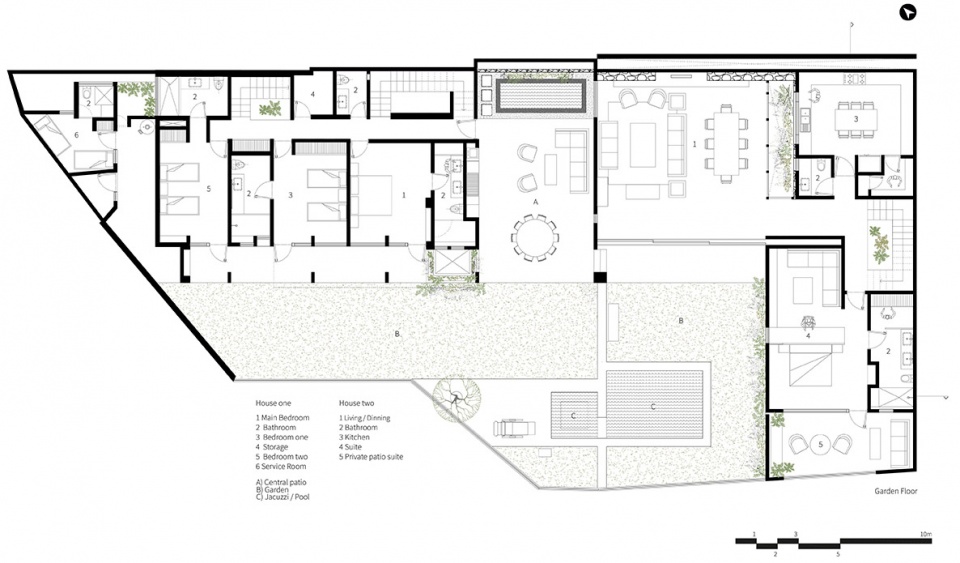

▼花园层平面图,garden floor plan ©ASP Arquitectura Sergio Portillo

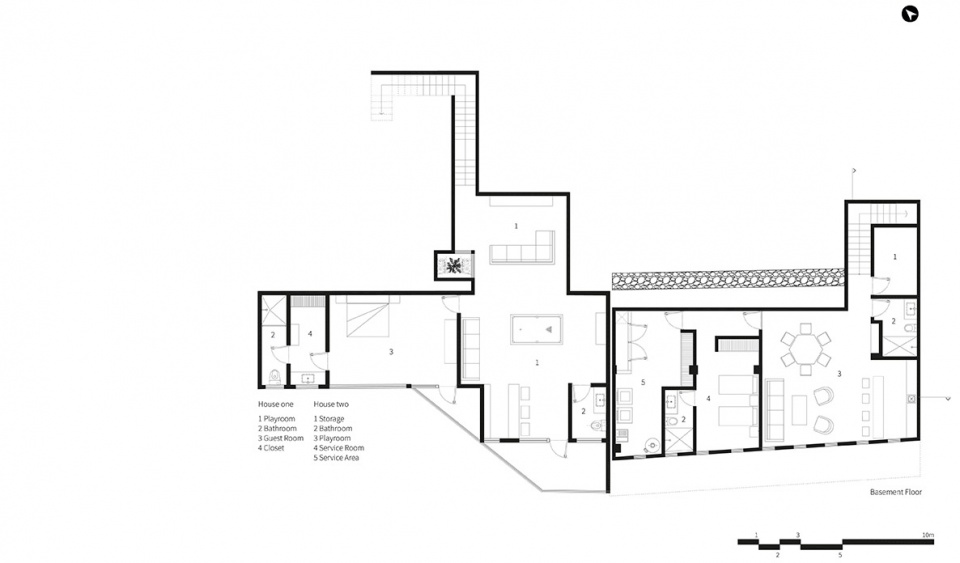

▼地下室平面图,basement floor plan ©ASP Arquitectura Sergio Portillo

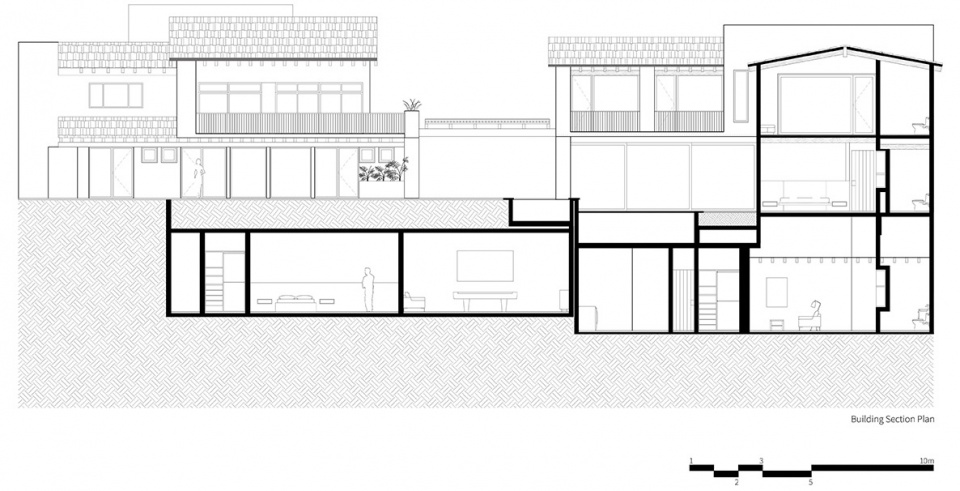

▼剖面图,section ©ASP Arquitectura Sergio Portillo
