CASA IGUANA, Mexico by OBRA BLANCA

a serene house created with simple materials

Project Specs

Location:

非常感谢 OBRA BLANCA 予gooood分享以下内容。更多请至:OBRA BLANCA on gooood
Appreciation towards OBRA BLANCA for providing the following description:

住宅由三个独立体量构成,之间以镂空砖墙围合。通透的菱格消除了空间界限,它的灵感源自本地常见的檐板装饰,多用于墙面和阳台。

Case Iguana can be synthesized in three independent volumes connected by a bridge. The space generated in between is delimited by three lattice facades made out of thin clay bricks arranged in the same way in which a tower of cards is raised, evoking the cornices on walls and balconies used in some of the traditional constructions of the region.

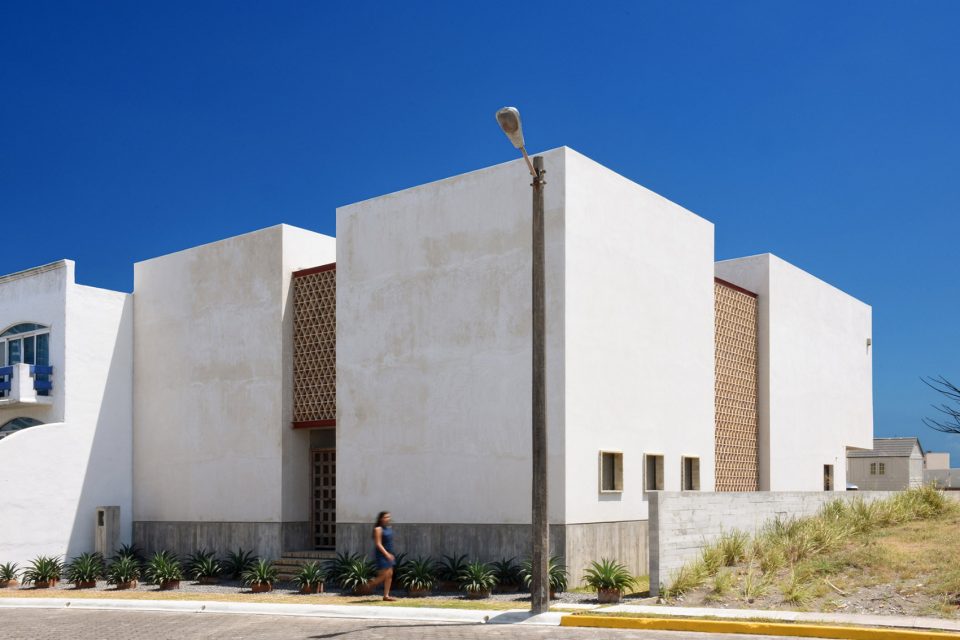

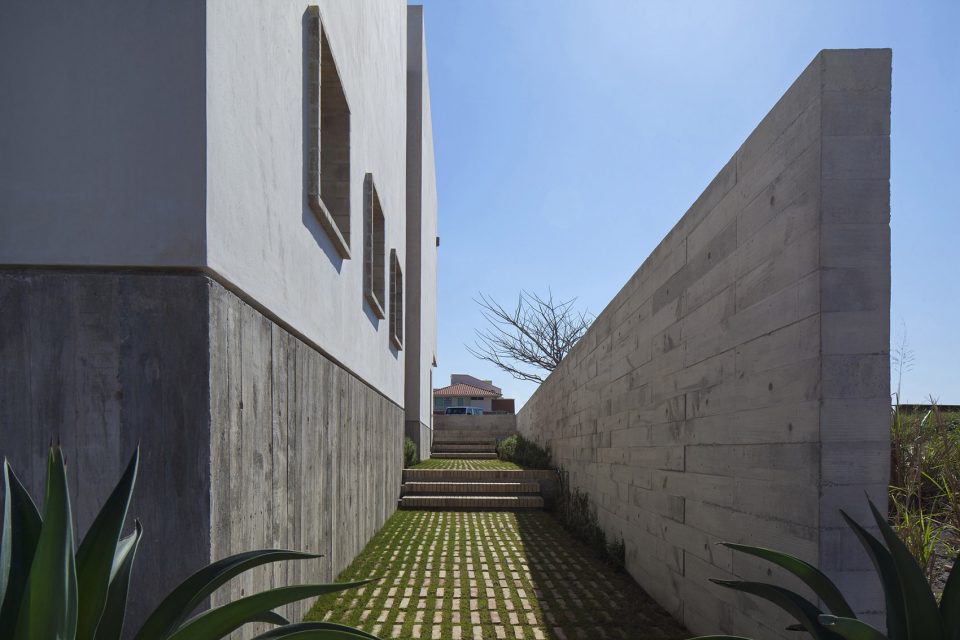

▼建筑外观,exterior view

距离墨西哥湾不到百米,建筑面临着潮湿、强腐蚀和强风环境的挑战。起居空间及服务功能分布于一层,相互连通。二层的卧室区则更加私密,分布于不同的体量之内。混凝土墙直接从基础向上延伸,如同一颗大树将部分树根暴露于土地之上。

Located just four hundred meters away from the Gulf of Mexico, the house faces an environment of high humidity, corrosion and strong wind gusts, called “nortes”.

On the ground floor, the single family house has a public and service program organized within the limits of the three volumes. On the first floor, on the other hand, we find an exclusively private program, distributing one bedroom in each volume.

The house is supported over a concrete skirting board, a monolithic extension of the foundation that emerges from the earth; like the roots of a tree, reflection of its structural basis.

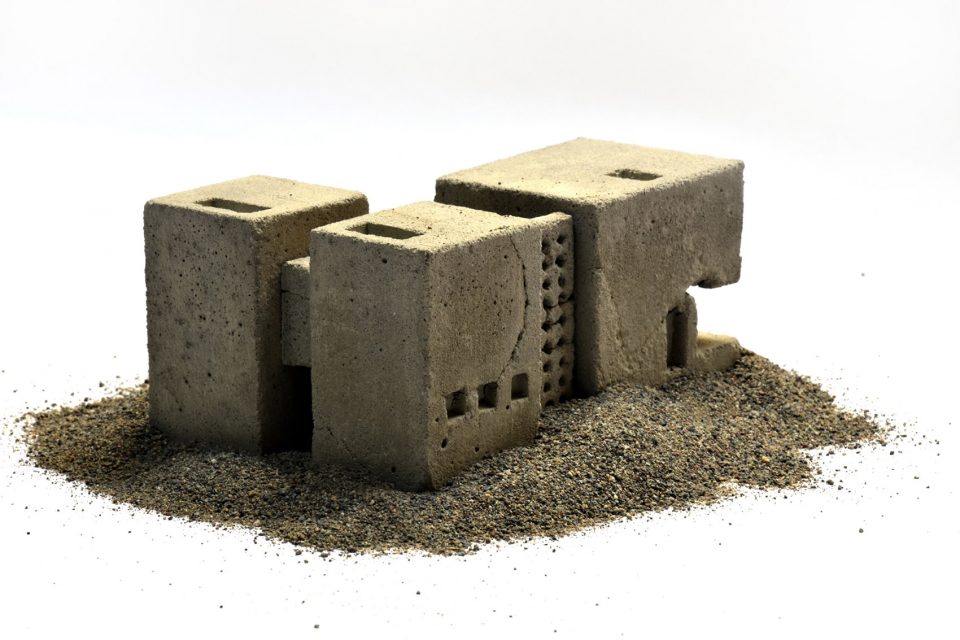

▼建筑模型,the building model

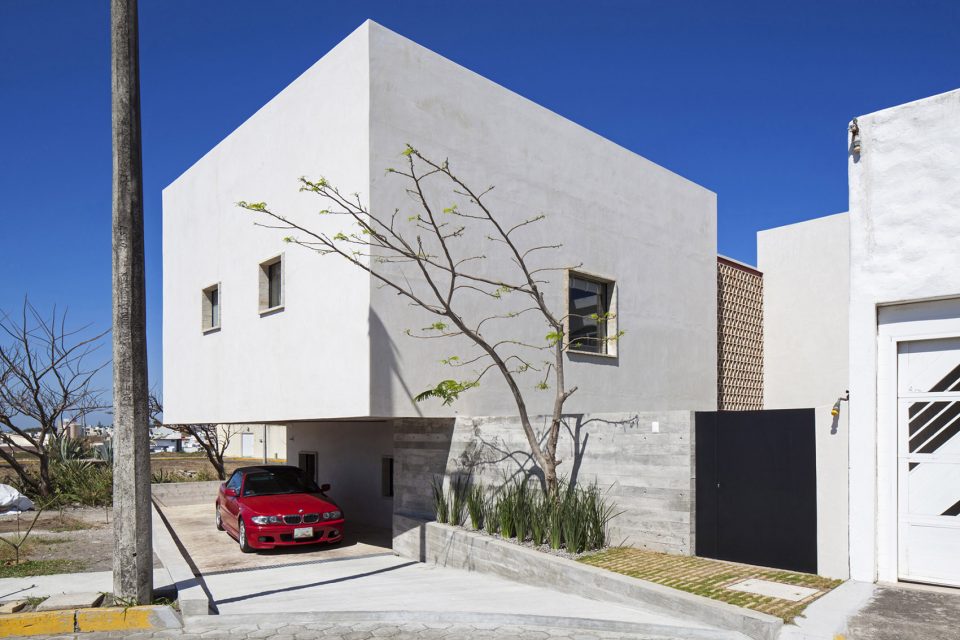

▼二层悬挑下方作为车库,the cantilevered volume create a parking lot

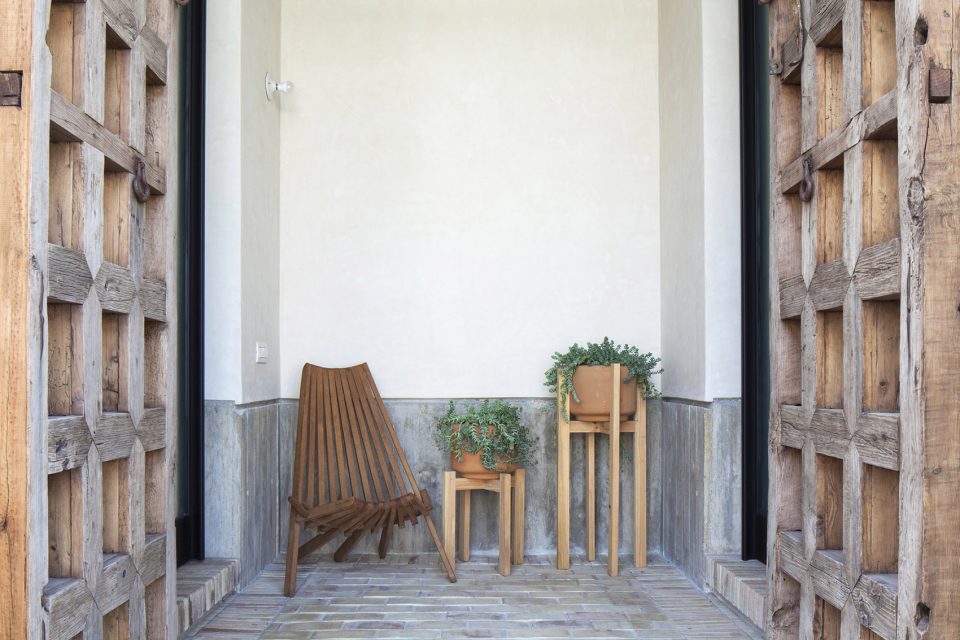

▼入口,the entrance

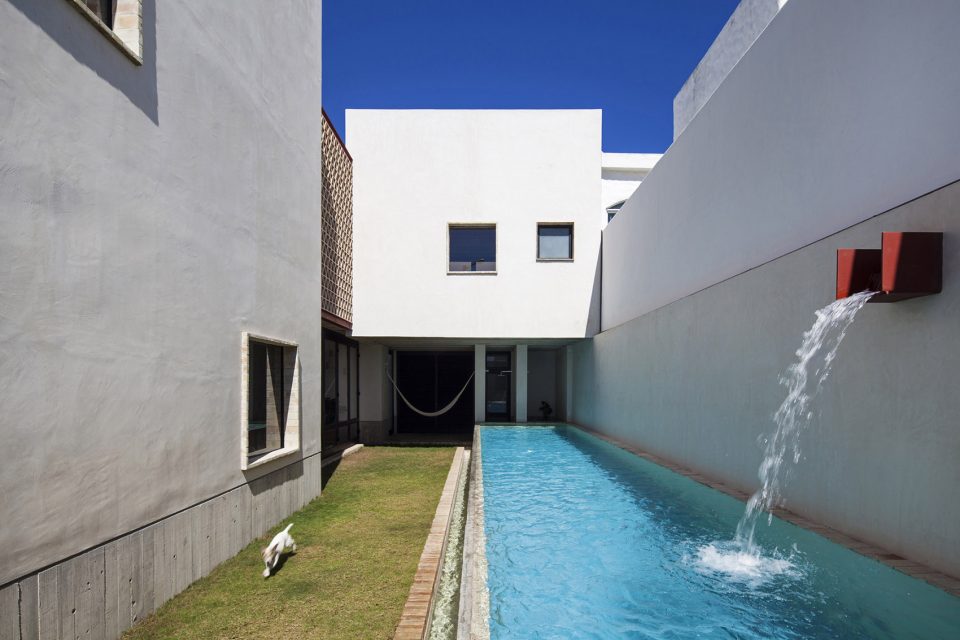

▼穿插的体量间以水景注入活力,the waterscape adds dynamic to the internal space

阳光透过镂空菱格砖墙洒向室内。在光影的变幻中真切感受到时间的流逝。

Light plays an important role when it works in conjunction with the lattice walls. A game of light and shadow runs through the spaces, materializing the passage of time.

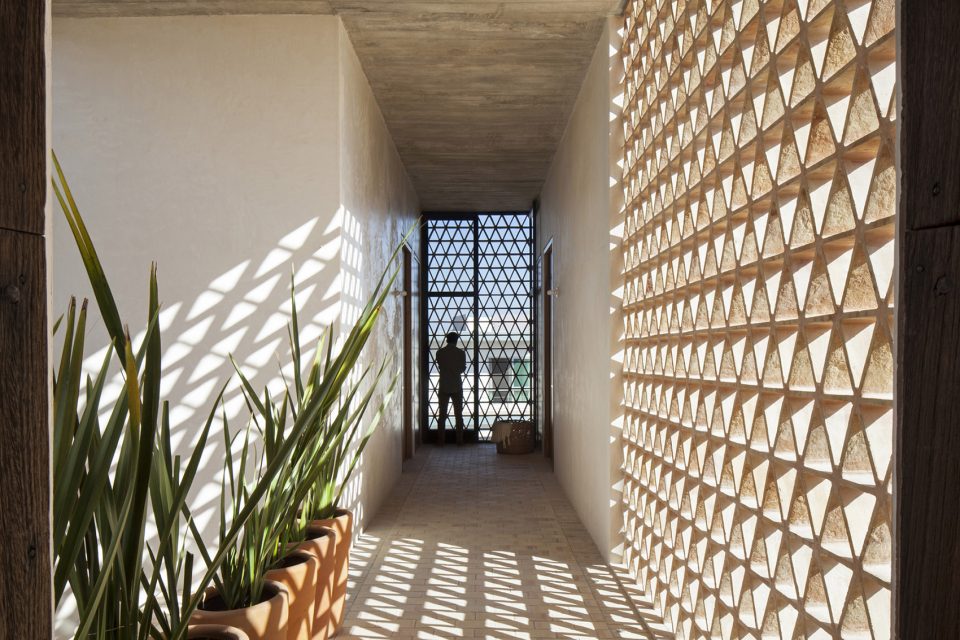

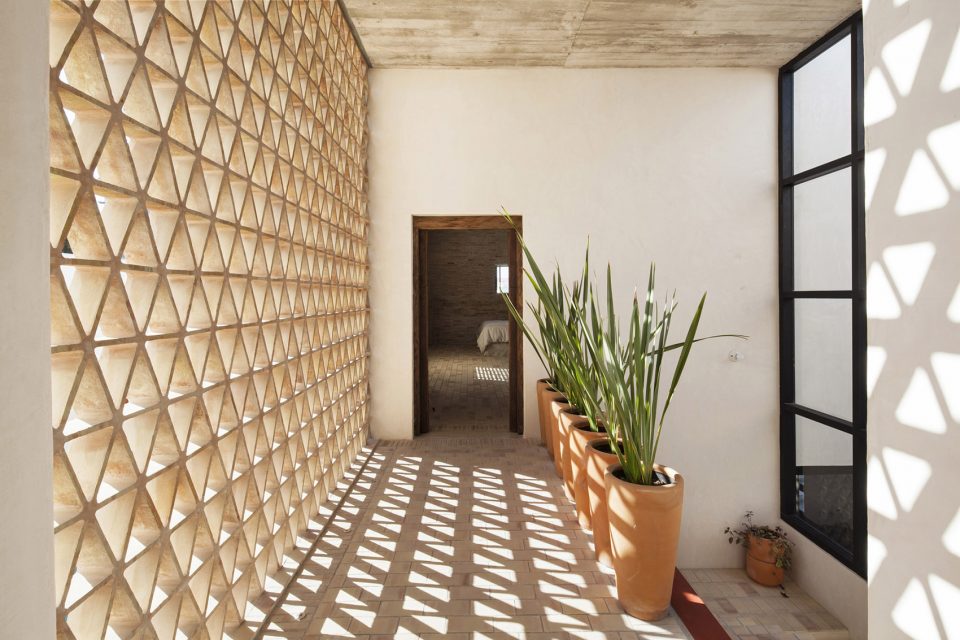

▼镂空菱格砖墙带来丰富的光影,a game of light and shadow runs through the spaces

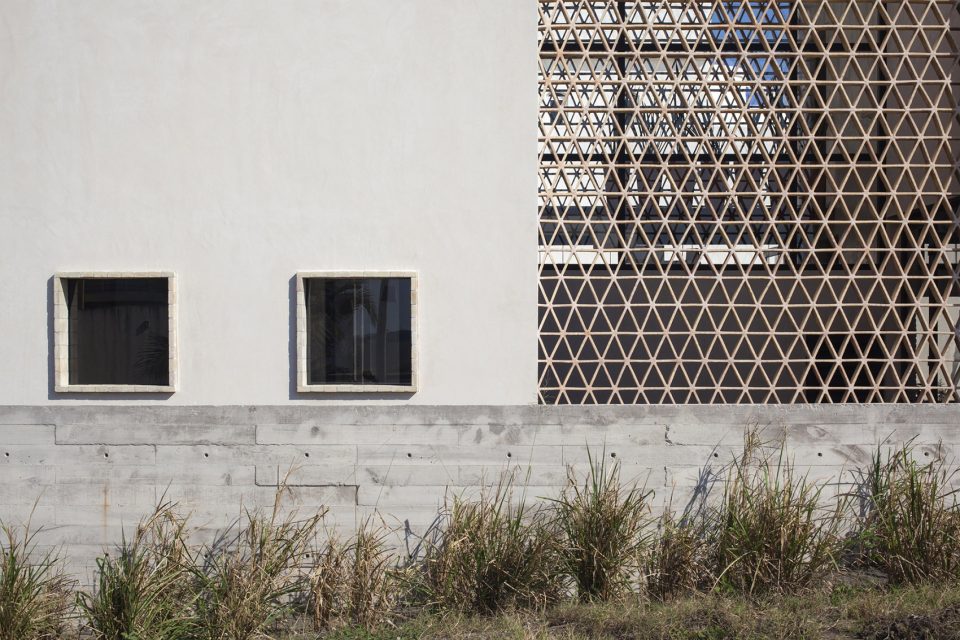

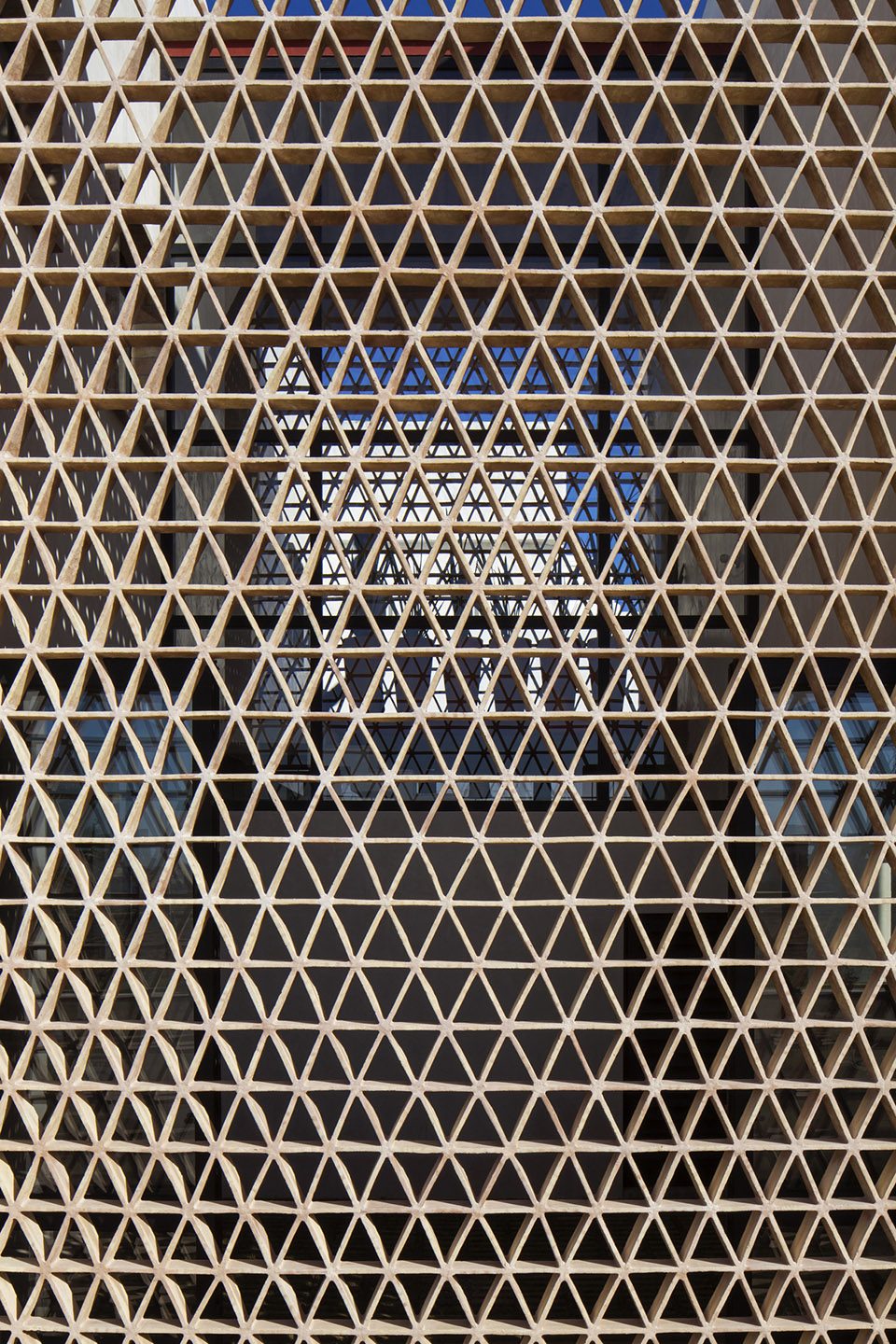

▼砖格细节,the brick wall detail

天然去雕饰的材料赋予建筑质朴的色泽及肌理。混凝土构件及裸露天花板的粗犷被墙面和地板的砖的温暖所中和。外墙采用了易于维护的白水泥及chucum树脂饰面,随着时间推移,为建筑带来岁月的痕迹。

The naturally exposed materials give the house their color and texture inside and outside. The concrete elements and the exposed beam/vault block ceiling system get balanced by the warm feeling of the clay bricks on walls and floors; the external perimeter of each volume is covered with a flattened made by a mixture of white cement and chucum resin. They are all of easy maintenance and enough presence to dignify the work over time.

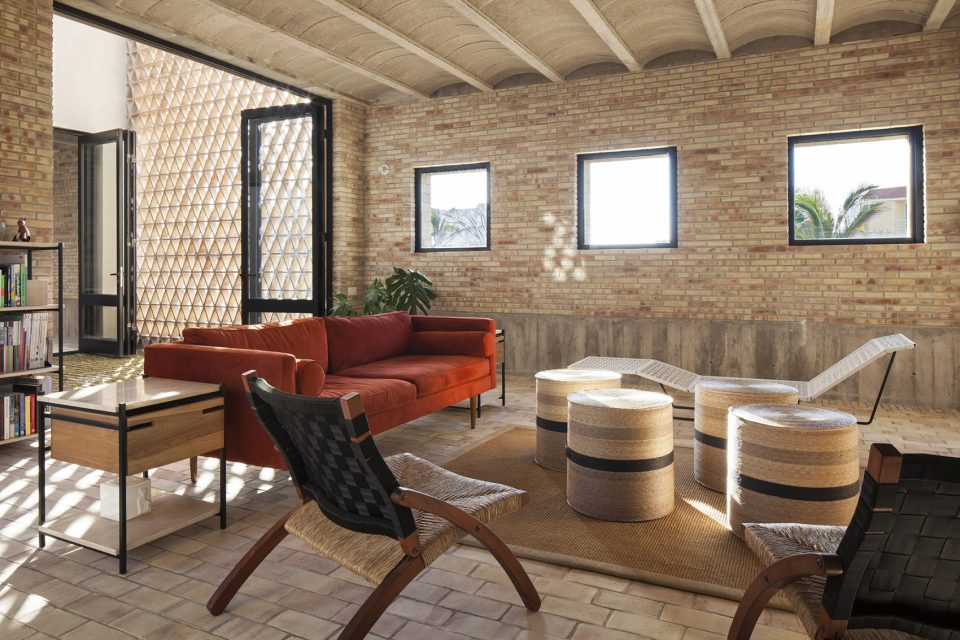

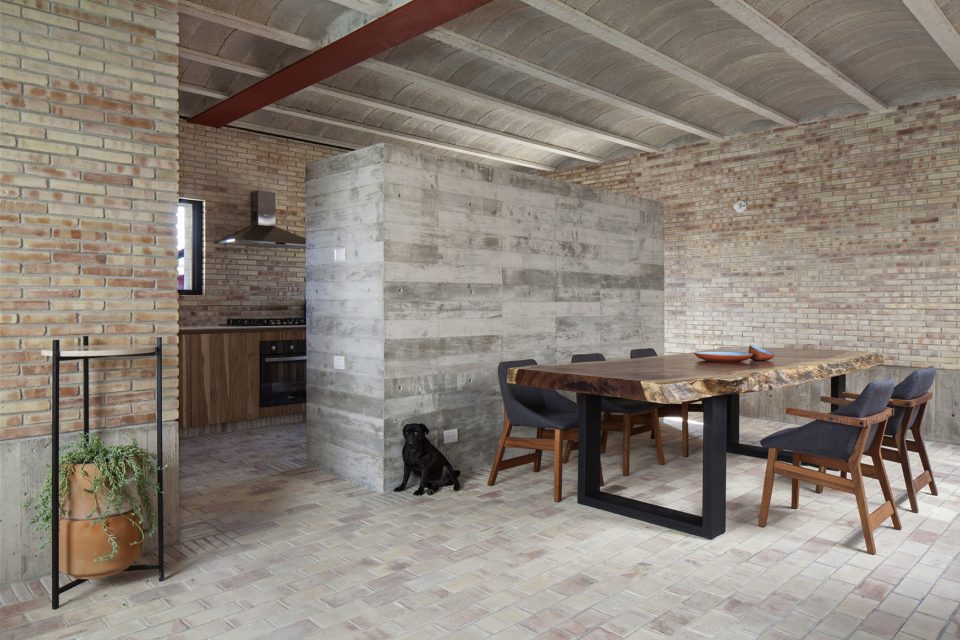

▼天然去雕饰的材料赋予建筑质朴的色泽及肌理,naturally exposed materials give the house their color and texture inside and outside

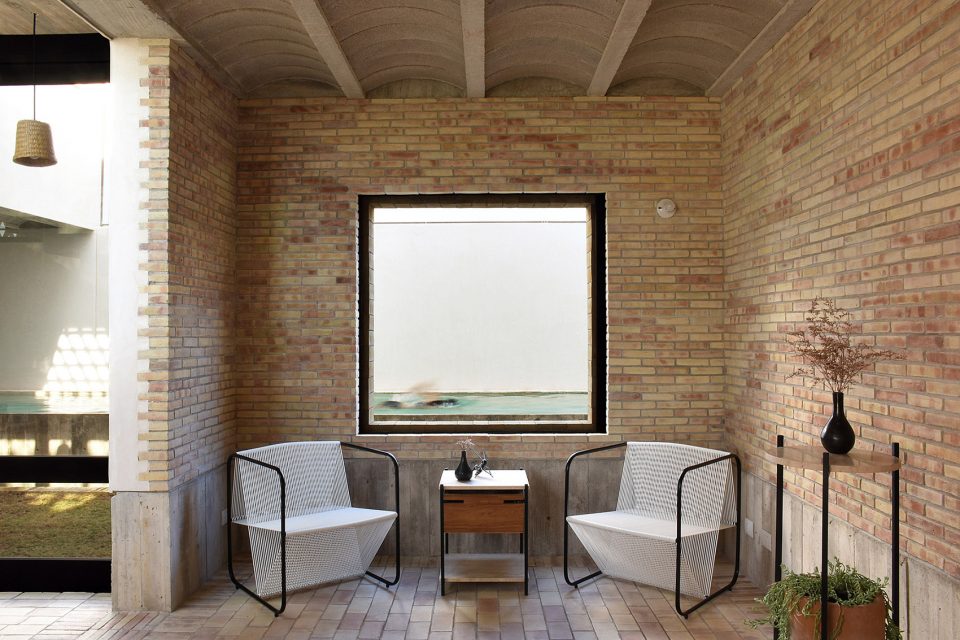

▼窗边精致的家具陈设,the delicate scene by the window

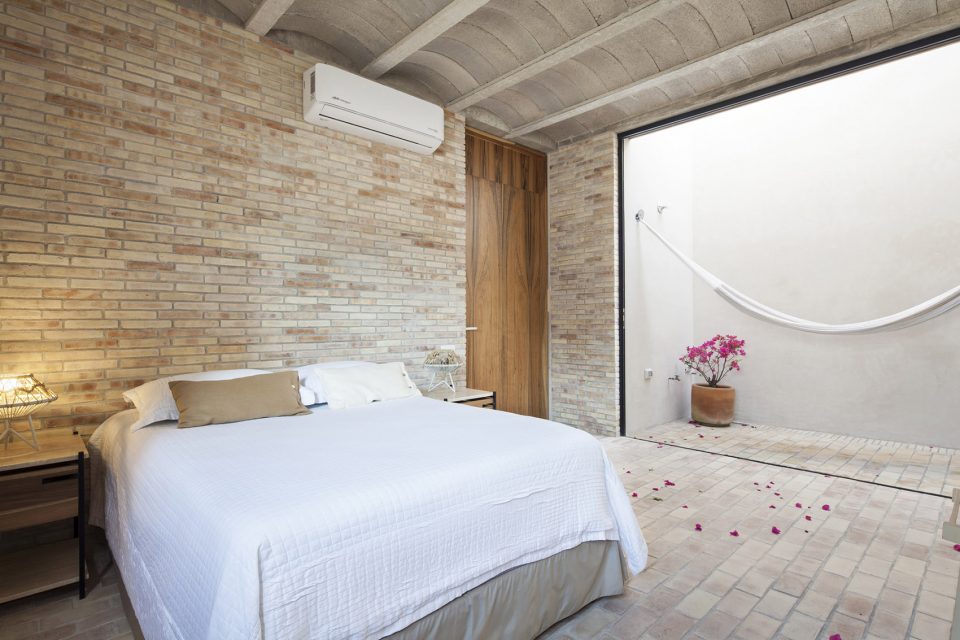

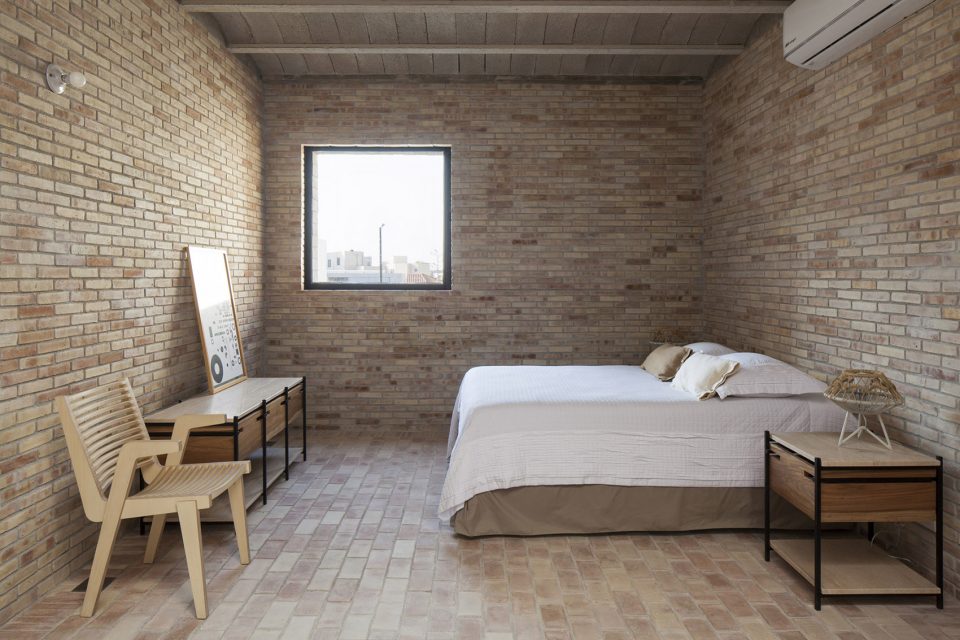

▼卧室,the bedrooms

▼如画的细节,detail view

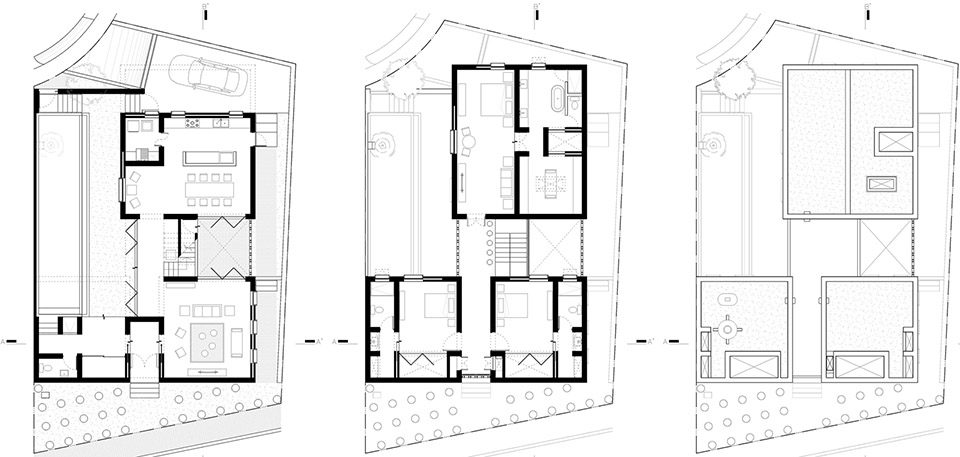

▼平面图,plans

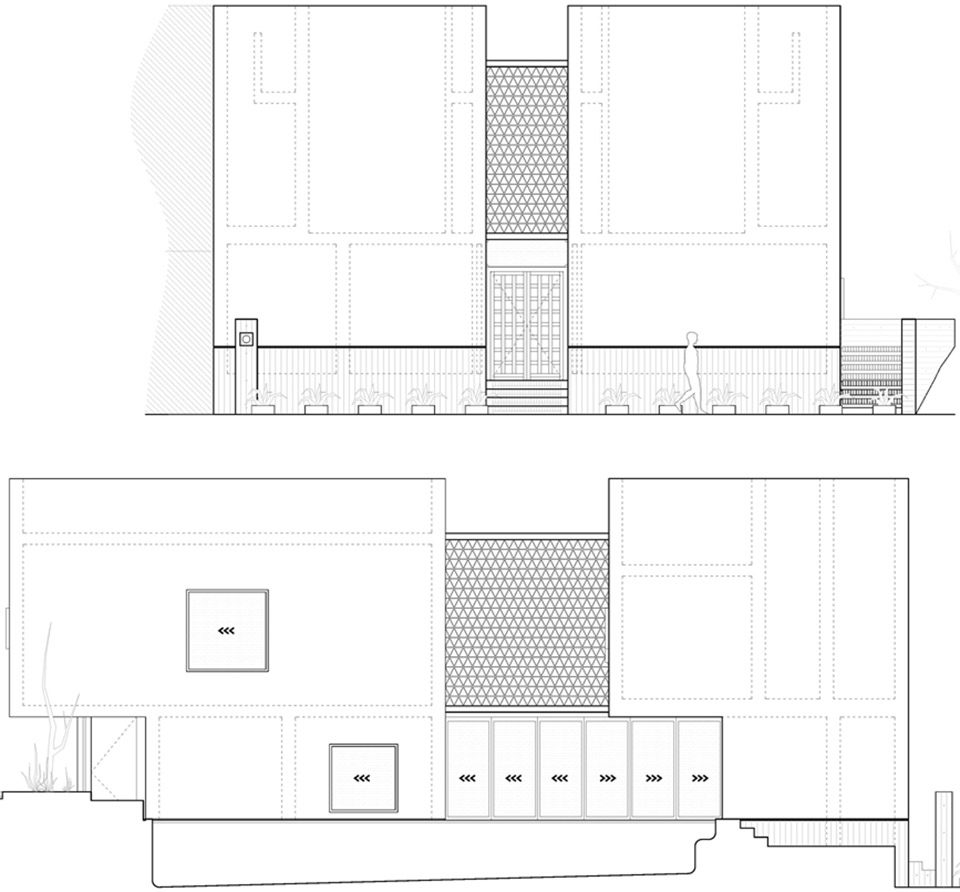

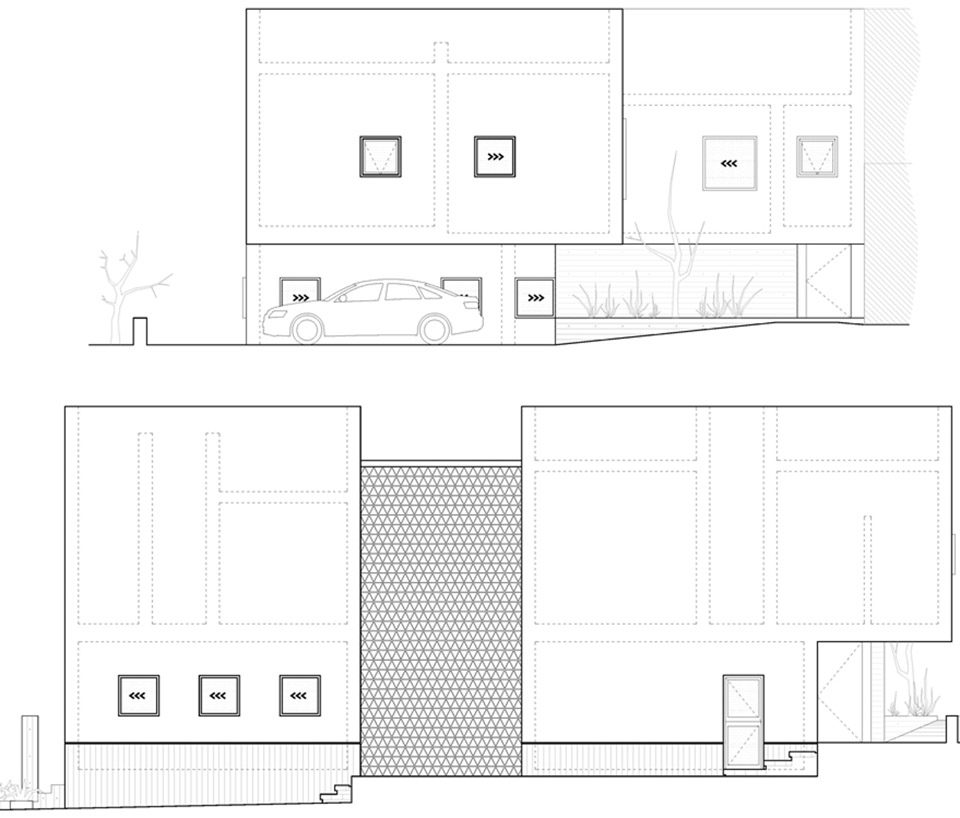

▼立面图,elevation

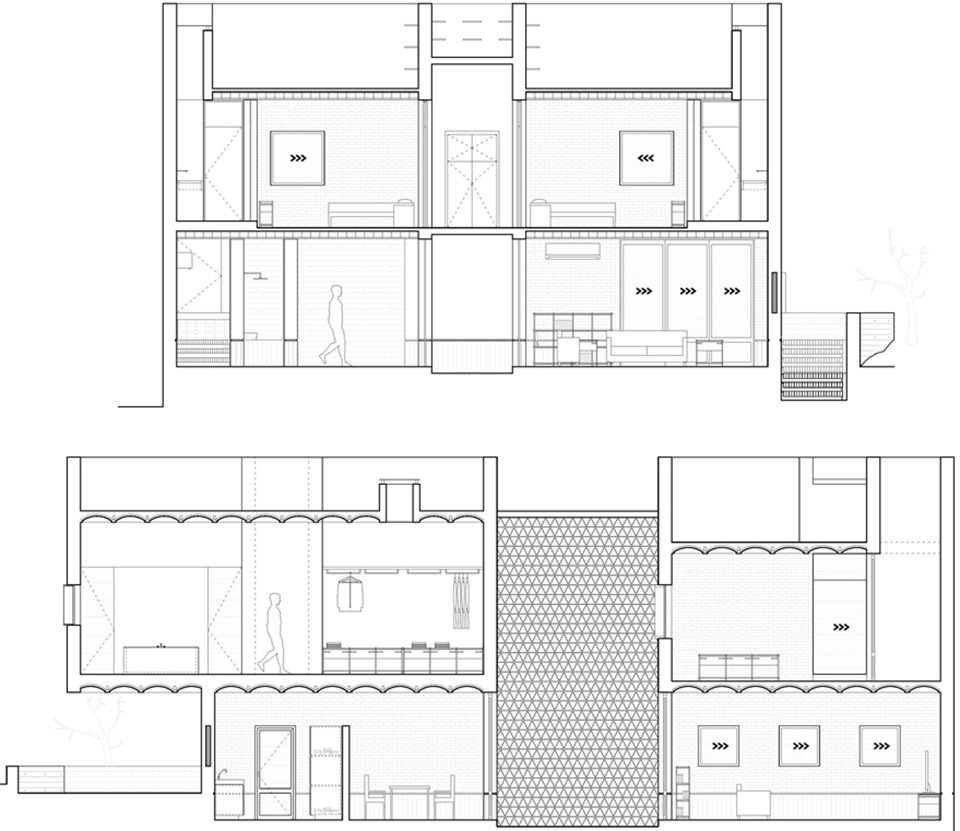

▼剖面图,section

Location: Veracruz, Mexico.
Construction Area: 365 m2
Project Year: 2014
Construction Year: 2016
Photography: Adrian Llaguno / Documentacion Arquitectonica.
Construction: V+B Construcciones.
Structural Engineer: Apolinar Cortez Sanchez.
Materials: Beam/vault block ceiling system, concrete, clay bricks, chucum resin.
