ALEMANYS, 5 – GIRONA (SPAIN) by Anna Noguera

to celebrate essentials such as space, light, shadow, fire, stone, water and silence

Project Specs

Design Firm:

非常感谢设计方Anna Noguera将英文介绍和项目图片授权gooood发行。更多请至:Anna Noguera on gooood
Appreciation towards Anna Noguera for providing the following description:

西班牙ALEMANYS 5住宅。源于最古老的城区,经得起反复品味的改建项目。


▼ 以前的样子, view before the restoration

The Alemanys 5 house is situated in the oldest part of Girona’s “Barri Vell” (Old District) inside the area of the original city walls. Its location on Alemanys Street is special as it stands opposite one of the oldest gates of the wall, which provides views from the house to the Sant Domènec convent, while from the convent the house can be seen with the Cathedral as a backdrop. Although it is difficult to determine the age of the building structures, the most important alteration dates from the sixteenth century and was carried out by Prior Esteve Arrufat. It later underwent many other reforms and additions that disfigured the original interior distribution.

The reform has been approached as a search for the most intrinsic characteristics of the original construction, and the building has been freed of additions, surface elements and recent reforms, interpreting the old elements not so much through an historical perspective as through their architectural qualities.

The minimalistic style of the redevelopment invokes the austerity of past times. There is a dialogue between the new work and the old that seeks to marry past and present. The entry of natural light gives form to the volumes, and the fluidity of the spaces is accentuated. These spaces are defined by stone, wood, iron and concrete, used in their natural colours and textures. The colour of oak adds a touch of warmth while the iron elements strike a contrast with the stone and concrete.

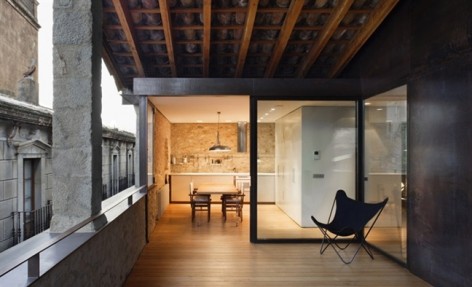

The site consists of a built structure and a lateral garden with the façade giving on to the street. Two centrelines structure the building, one giving on to the street and the other on to the interior part of the plot, with crossed façades giving on to the courtyard and garden. A large covered porch, or “badiu”, crowns the street façade and is one of the most characteristic elements of the house. In the courtyard, an old cistern collects rainwater from the roof to be used for filling the pool and watering the garden.

The new layout respects the logic of the structure and adapts it to the new functional requirements. On the ground floor, the main door gives access to the entrance hall and a small distribution space; on the first floor is an apartment opening on to the courtyard and garden, and the second and third floors house a duplex apartment, with the night spaces on the lower floor and the living room and kitchen on the upper floor enjoying views and a covered terrace.

The project is organised around the two centrelines that structure the floor plan. The staircase has been shifted to place it next to the lift, in the interstitial space between the two directional lines of the centrelines. This space is configured as the hinge that generates the entire layout.

The structural elements are exposed. They are either in concrete made with wooden formwork, or wooden beams and cross pieces for the roof. The lintels and crowning of the stone walls have been executed in steel sheeting one centimetre thick. The staircase and lift space is lined with “corten” steel panels to differentiate it as a hinge space. The floors of the staircase and front centreline are covered in wooden floorboards and those of the back centreline in polished concrete. The stone walls are exposed both in the exterior and in the interior, with special attention paid to the texture, colour and execution of the joins. The exposed stones from the demolished elements have been recovered to use as cladding for the cistern courtyard. There was an emphasis on preserving the natural colour and texture of the materials in order to better integrate them with the colour and texture of the stones.

The garden, enclosed by high stone walls, has been formalised into three consecutive planes that go from hardest to softest: concrete, lawn and water. The paved zone contiguous to the house is in planed concrete and is covered by a set of cables for the wisteria to climb on. The plane of lawn, finished with a steel edge, floats above the water of the pool. It is like a long, dark reservoir that overflows and disappears, reflecting the neighbouring wall.

The final aim of the restoration is to integrate old and new using sober and clean lines and attempting to celebrate essentials such as space, light, shadow, fire, stone, water and silence.Anna Noguera, Architect.


The architectural firm of Anna Noguera was established in Barcelona in 1992. Its areas of expertise cover a broad array of services including construction, public facilities, housing, landscaping, outdoor spaces as well as interior design. In recent years the office has taken part in several tourism projects at international level, performing pre-projects and master plan concepts for spa centres, villages and hotels—in addition to the redevelopment of historic buildings or villages for conversion into tourist destinations. The work of Anna Noguera puts special emphasis on the integration of buildings into the landscape, sustainability and respect for the environment and local traditions, along with attention to detail throughout the entire project. Under this philosophy, the office has received several awards, both in design competitions and for work already built.

Alemanys 5宅子位于西班牙老城Girona的“Barri Vell”,属于一片最古老的区域。宅子紧邻修道院和教堂。至16世纪以来,历经多次整修和添补工程。






Built area:594 m²
Building date:2.006 – 2.009

Building Surveyors:


Construction Company:CAIBA S.A.
Photographer:ENRIC DUCH
