House E17 Metzingen / se(arch)

Flow and tension.

Project Specs

Design Firm:
Location:

非常感谢 se(arch) 将以下内容授权gooood发行。更多请至: se(arch) on gooood
Appreciation towards se(arch) for providing the following description:

(photographer : Zooey Braun)

E17住宅位于历史悠久的葡萄酒榨汁广场Kelternplatz边缘,场地一度用做停车场。

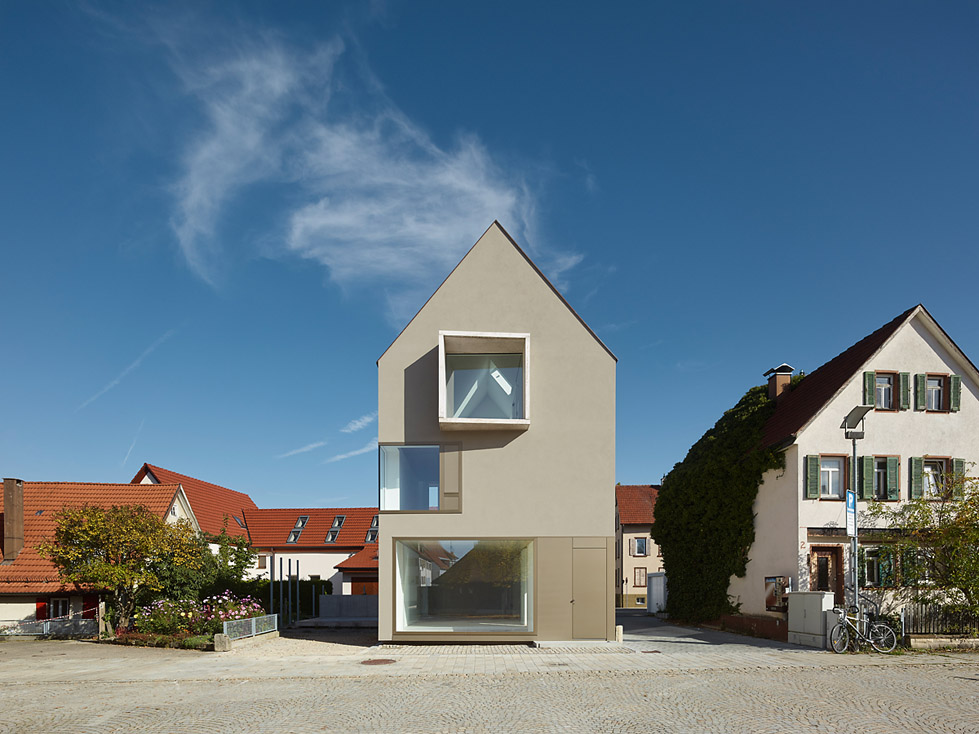

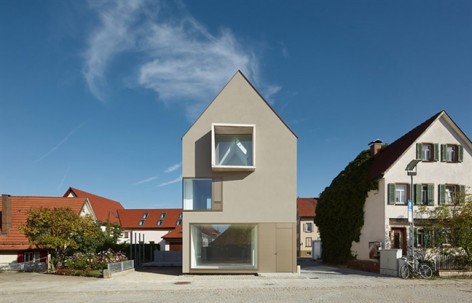

The prominent location of the house is on the edge of the historical Kelternplatz.The Kelternplatz is a market square with seven medieval winepress buildings, which are are declared as historical monument. The sitewas previously used as a parking lot. The historic square gets now with the new building the completion of its northern edge.

/wp-content/uploads/2014/02/_c_JItTv7bwYxYHutH700WUKOt0USSpvcsc7NNAo-aDn3jjb4NqgfbKCYCAso6jqN9TwbKgPvQYCpAR3ypBx1242jPS0BgqUolA.jpg

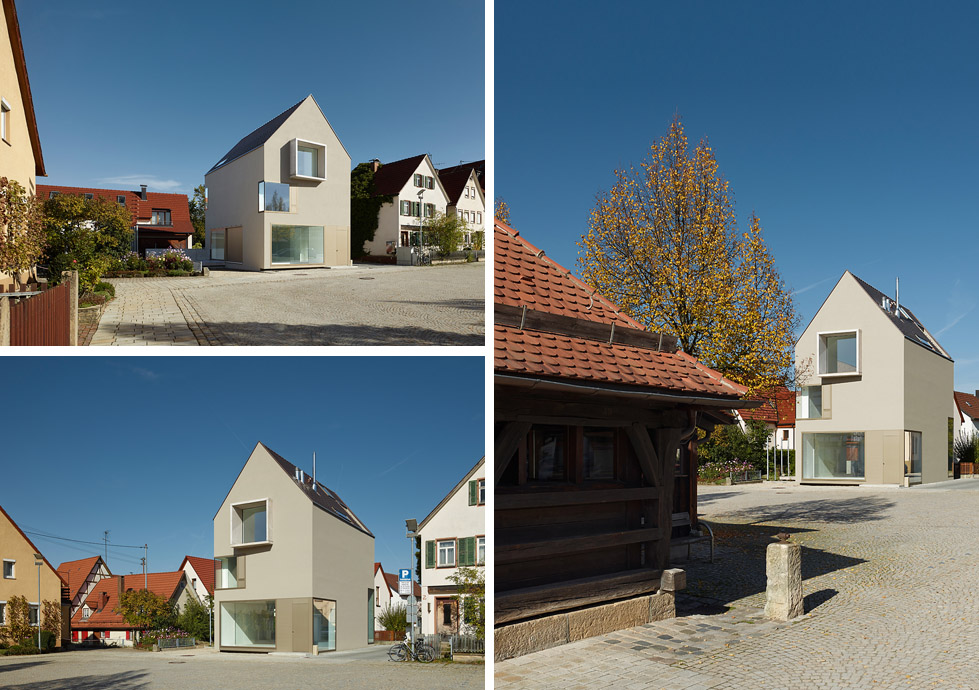

房屋宽 6.5米,长为11.5 米,因为用地限制呈平面布局平行四边形。坡屋顶,加上地下层共四层。

/wp-content/uploads/2014/02/_c_A44VECpcGCVPaEzhOokEk-n1PMHJw3TwyLvmBEDfthUZxKUm1tpvWmZx2BZRzjHTb6n90VA_ZitHEzCIxBMrIbc_jxNQ4IZz.jpg

建筑师将所有的功能服务与储藏区以及主要的楼梯都集中在一条两米宽的区域内,将这条区域放在建筑一侧,留下剩余的空间用作自由的处理,这个空间的楼层轻微相错,依靠辅助楼梯联系,加上开窗引景邀光,最终这个饱览风景的空间变得流动而备具张力。

The house, clearly outlined in its outer form, is based on a parallelogram floor plan. This is the result of the geometry of the site and other building conditions. The house is developed as a πliving space sculpture™. The inside is determined by a composition of free arranged floor levels which transmit a spatial impression. Specific views  through the windows of the historic environment are freezed into images. Those are placed in contrast to the flow of the internal space.

The house measures 11.5 meters x 6.5 meters and arises over 41/2 levels. All service rooms, storage areas and the stairs are concentrated in a 2 meter wide πfunction zone™. This succeeds to keep the remaining volume free and to focus on the space. Vistas and exposures to light are in a balanced tension and continually provide unexpected spatial situations.

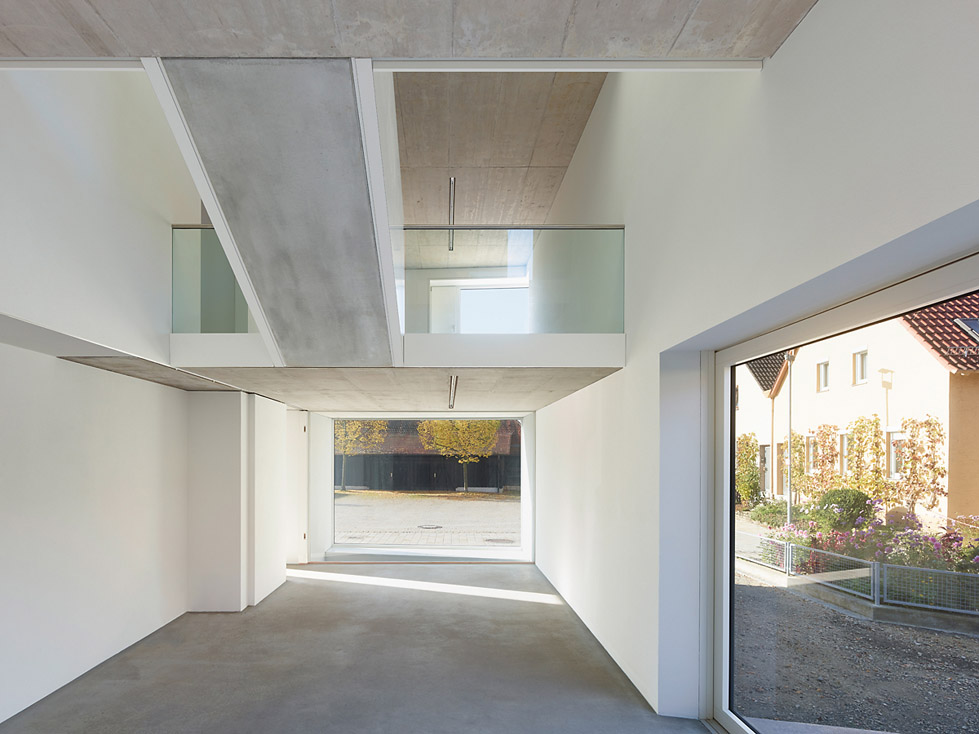

▼ 室内地面层,天花是标高稍微错开经辅助楼梯联系的两个楼板

/wp-content/uploads/2014/02/_c_XnWH9B1hUpP4TvkyVgKaO6vnV1nwDdFhyw2mIoj630RDuQpNn20v9PxaK7pQ590Yk1lpiR1i_WWPiCM1WDrDWtkvQ_JEnigb.jpg

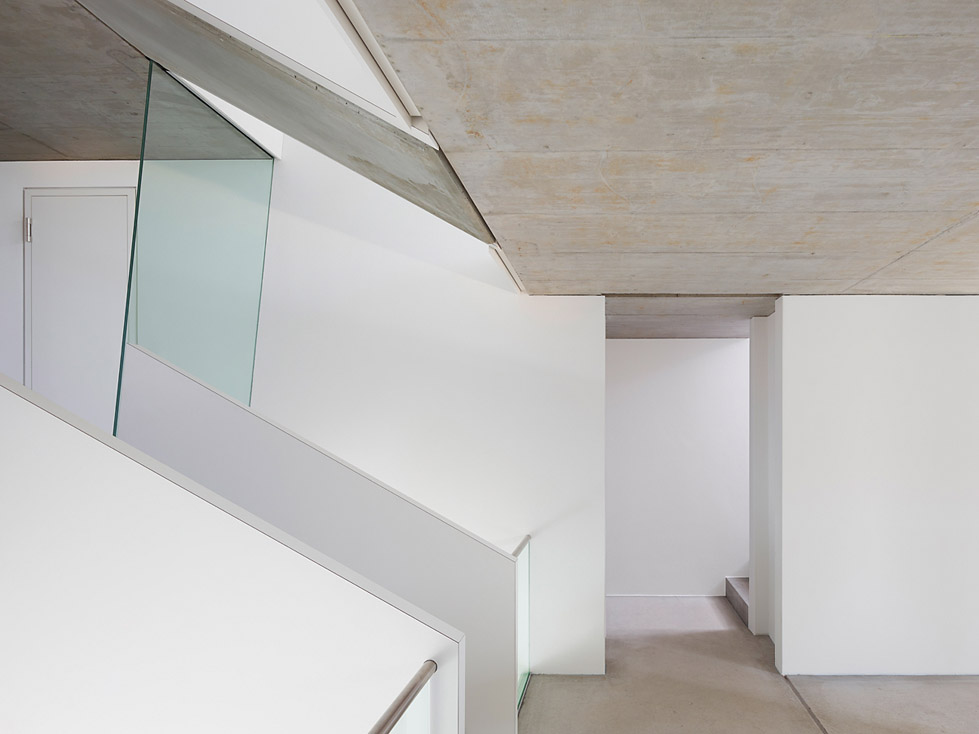

▼二层,看辅助楼梯,尽头洞口联系主要楼梯

/wp-content/uploads/2014/02/_c_q8sXKB8EcVjQLAgwcKYiVGBvCKMzf7FKI30s81jtK_lFxxLgZNcIAldXzruGM161psYeOrMzsNY-6xAzX0BsbqROCIper3xK.jpg

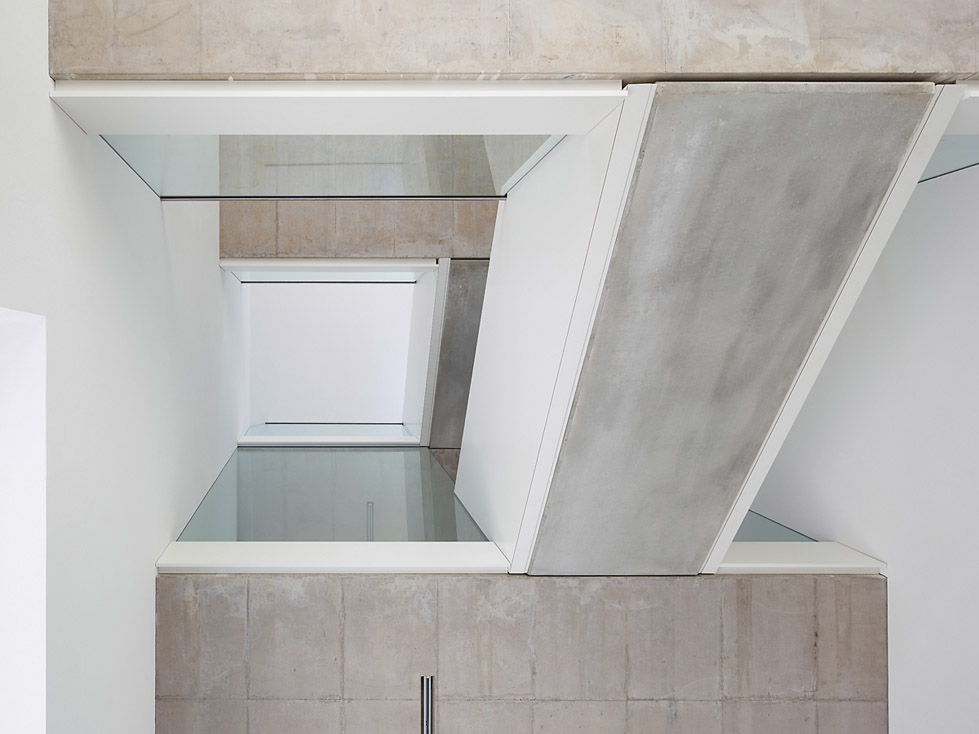

▼ 仰看主要空间楼板

/wp-content/uploads/2014/02/_c_encC97k_ooI9pTGdXOCDVccpG1012Lqlgy9PqiLgreI6yumMUWHhAa5iC_2R7gSF6lAeQKYspjPdIkQeJsOgr7bpUjkbeIxM.jpg

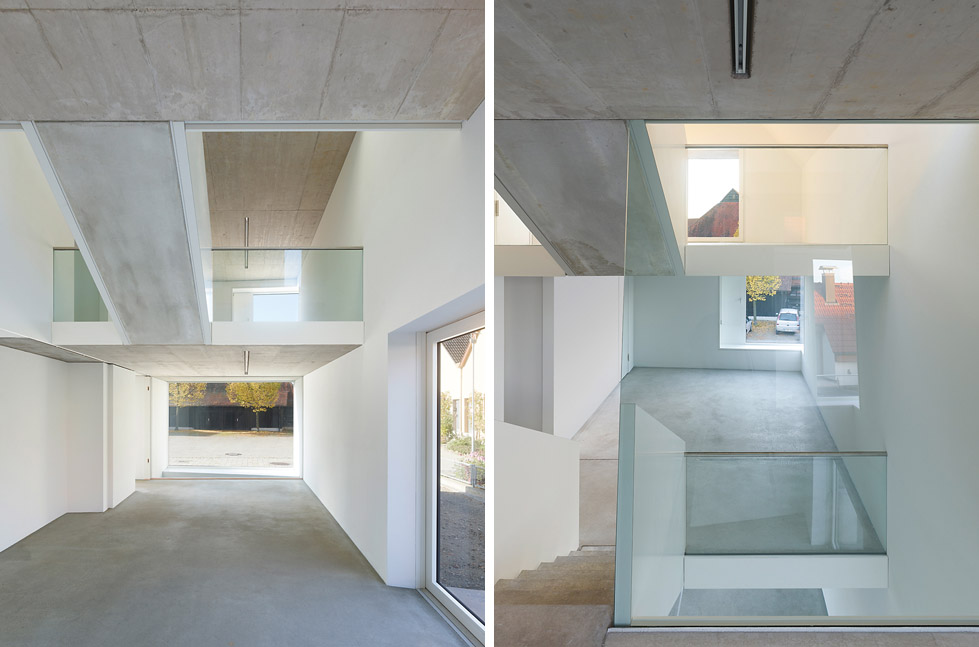

▼空透流动的内部空间

/wp-content/uploads/2014/02/_c_B66mLRqAgOJcSW4CG_9m_PfPqfB4XvysATyZKi5zgWKACaGhdoUzc2LWPnoELkeZCE-ui_1_-JPAEQ7xUUM3vcM4NkMJSHvR.jpg

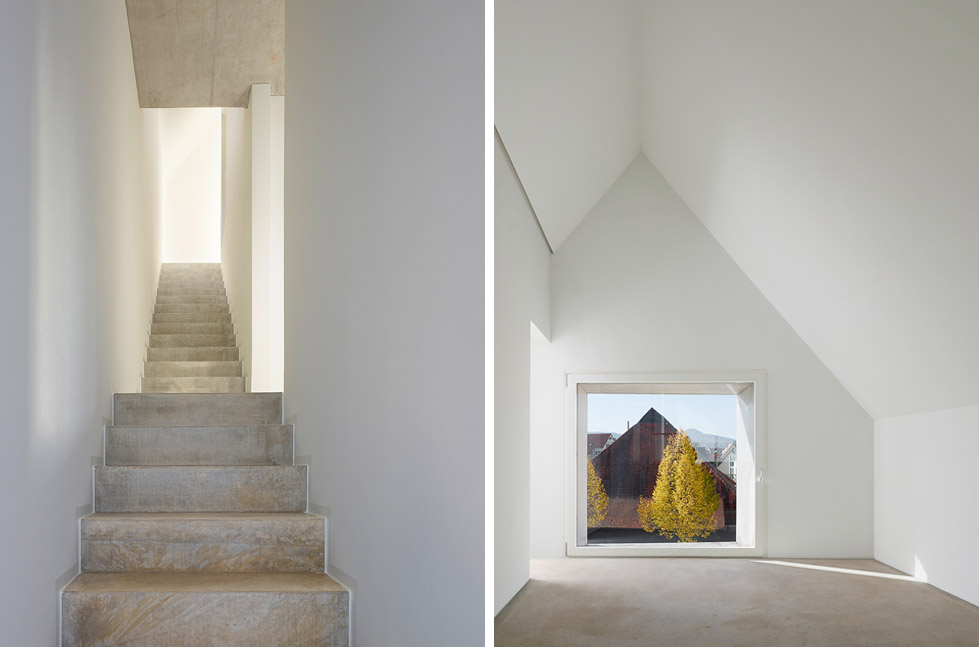

▼(左)主要楼梯(右)从顶层阁楼向窗外看

/wp-content/uploads/2014/02/_c_Zweg19xY973dyBLwhhbjK7lsBwOe6_NmK221QbPkA1HCgyZfI12X1EWyp424RJG-bPed6h1zwJb3rxRsjr2R96DBS7a3ztyU.jpg

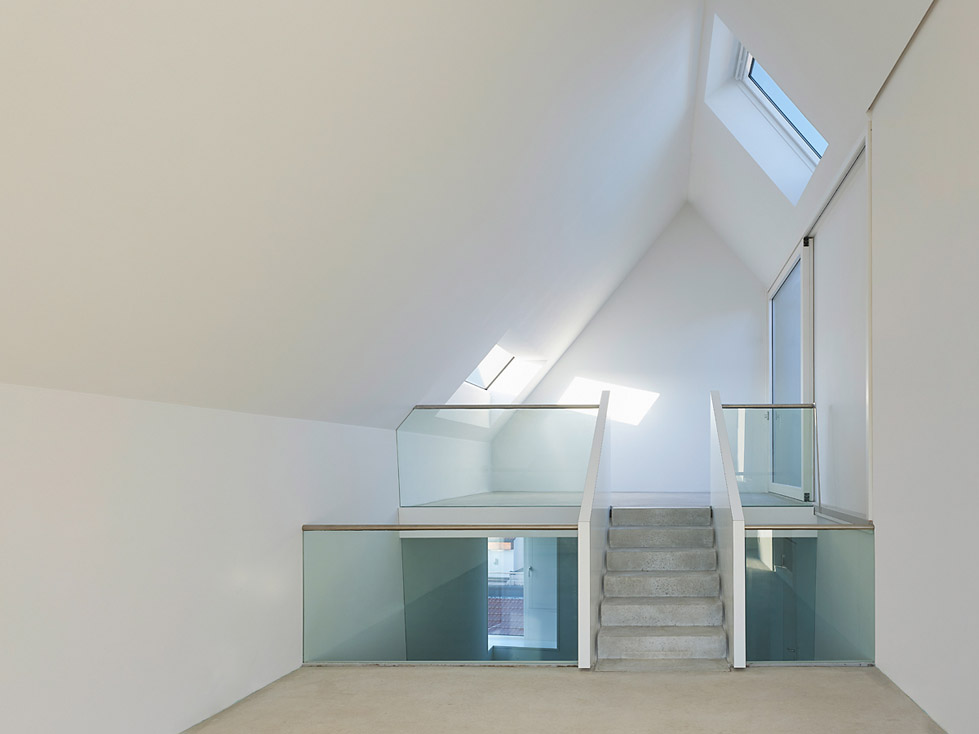

▼ 从顶层阁楼向错层方向看,尽头的推拉门打开是一个两米见方的露天小院,小院另外一侧与浴室相连

/wp-content/uploads/2014/02/_c_siVyqGl2yEQln6CqPywv0o2Ik484tfdt0JelG2oh_Q1Zp_-YA4WT9lGtBdN51Yjeala4W4HP3_XAzzfMVeRtcYnhaouPY7jV.jpg

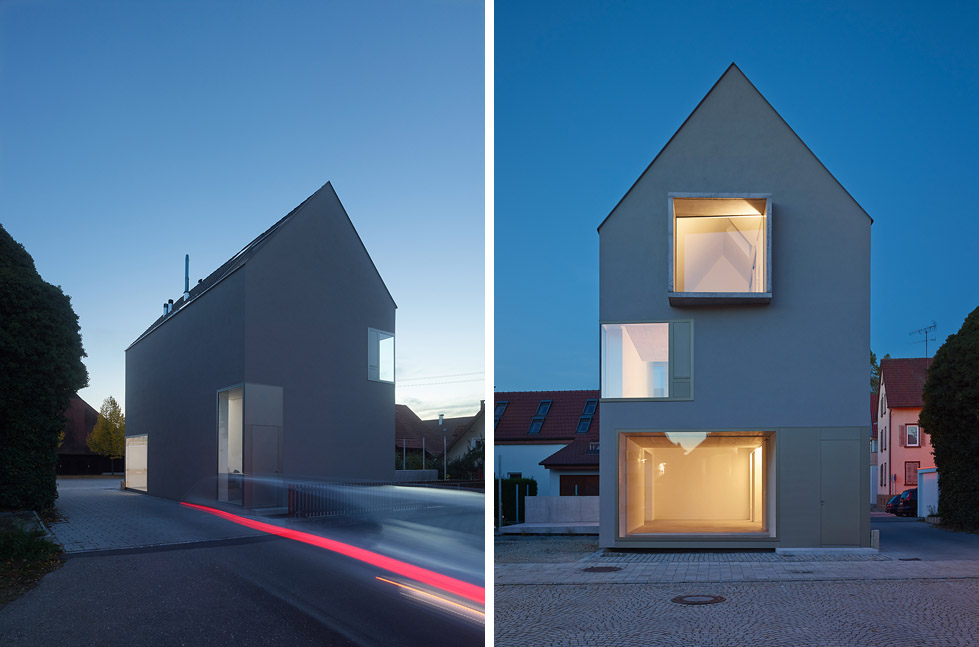

▼夜景

/wp-content/uploads/2014/02/_c_ikiOZoWvhm5TkX3Z81Vq92XfT0zzwnoGDfdoSVM2Rq8f7Ko8S7TLOEovJHrUsppfiLbs1ql629d-7d1XtYAo7oXvH_kBuwly.jpg

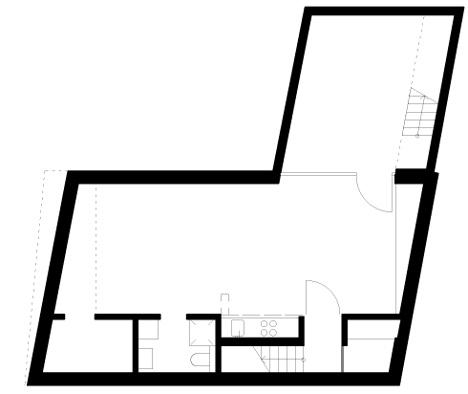

▼ -1F



/wp-content/uploads/2014/02/_c_RwX8nrANVWisQ1j-np6_3bWatK1KAcvdEzVX4HYNoHHqw1LhsJJCmaluvSqfYN7TetrImwKV-Ed5Nqp1O2VoILf6UduT6CYw.gif

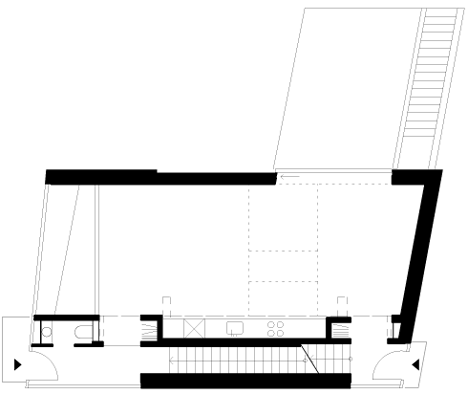

▼ 1F

/wp-content/uploads/2014/02/_c_-0dAns1QGWTlQ2JFjr6khru4PZVBay2HsMT1Gru89kEolprKAfA1fX5W6ZPJTZcDnMHyzLSSC3mKNnNLNeZjB_rtKwVgfYJQ.gif

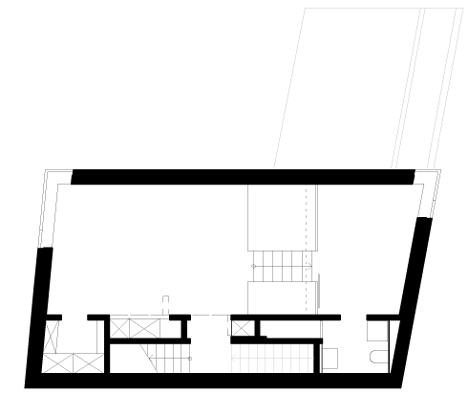

▼2F

/wp-content/uploads/2014/02/_c__4nssIyzNe_BJHJj_vHq-j_PGnZE-WDkC2jbP2hfR86lbzFqs7yhbwp4UDZVGoJ3Pfx-LaJv6cYJBGoQr_0nE8CJ1fN0yn0M.gif

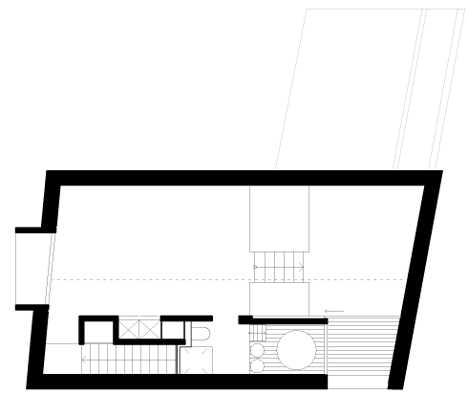

▼3F

/wp-content/uploads/2014/02/_c_-ZTsRY2B238kqKG5h7xkdLPU1kdXonjSWny49c7uGmS7u3_1EnE22e2FW4Ye9MOE4mub7yQCxmTspHOQMPV-KmxYUOokkoin.gif

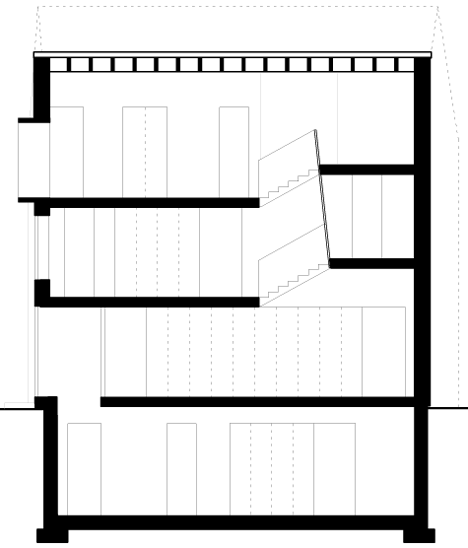

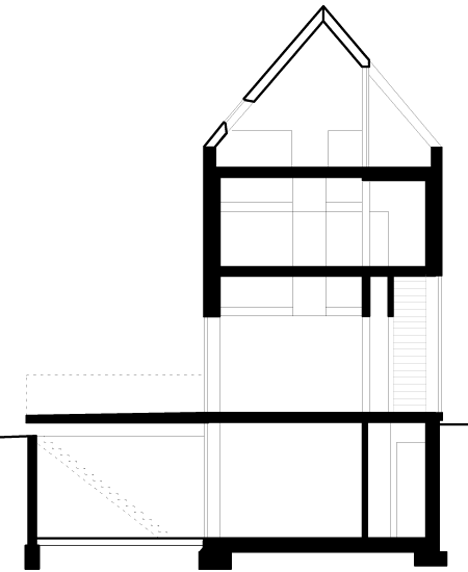

▼SECTION

/wp-content/uploads/2014/02/_c_yhAlZFwYepr8_MBqsMLTDXmMUGWoyADe7GmETlO0Quo-xuj-wNPk_4NaF20rtMTNbcx8w0OVR_biEorMeqAcN4dIlnN4HJRN.gif

▼ SECTION

/wp-content/uploads/2014/02/_c_KDKKGdSjtoy-pHBNwjs1Rw6CDKylO3YU4Xo9v7QUCCODt40yhi7A4lCjB85ux4F6vAdiItMCaV-2C7z6Jphe7ypYZ6ZMJ0E4.gif

House E17
location: Metzingen
client: private
realisation: 2012
floor space: 200 m2

architect
(se)arch architekten bda
Stefanie Eberding und Stephan Eberding
Projektarchitekt: Thomas Wecke

photographer : Zooey Braun
