Football Stadium Borisov / OFIS Architects

Lightweight tensioned textile film.

Project Specs

Design Firm:
Materials:

非常感谢OFIS Architects将以下内容授权gooood发行。
Appreciation towards OFIS Architects for providing the following description:

白俄罗斯鲍里索夫市足球场在2013年将迎来开放。这个在树林中十分耀眼的欧盟四星级足球场拥有13000个座位以及多出要求的3000平方米公共空间。整体统一的造型形成闭合的空间,外壳开着不规则的圆孔,看起来像是轻盈的张拉纺织膜。

The stadium is set to open as the city of Borisov celebrates a significant anniversary in 2013.

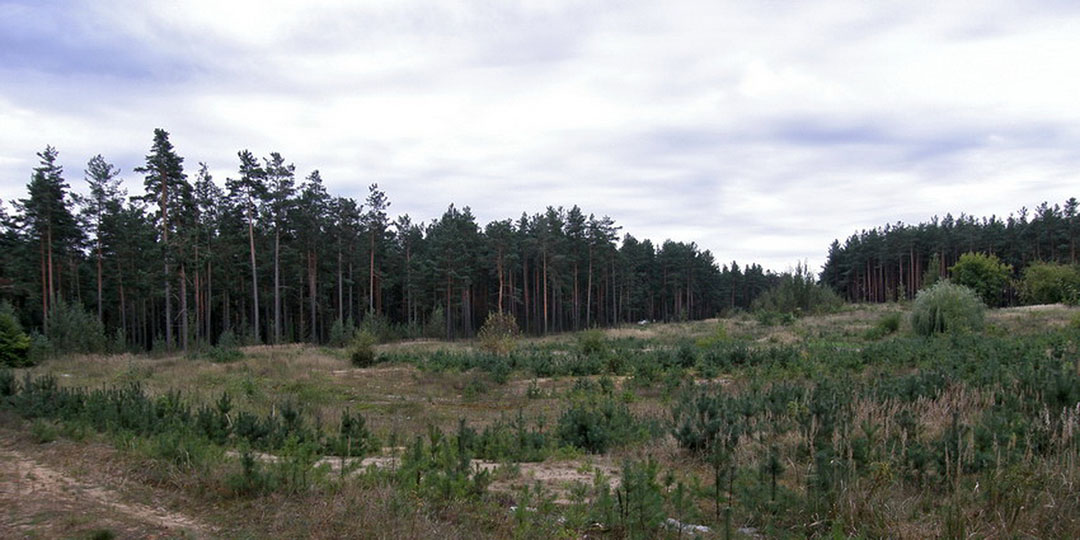

The program takes into account the natural advantages of the location and the existing interventions in the terrain, maintaining as many of the existing trees on site as possible. Because the stadium has 13.000 seats, it will need an additional 3.000 m2 of public space and obtain 4 stars according to UEFA categorization. The stadium will require external elements for traffic organization and controlled/separate access for matches and daily use. Finally, the complex is to have a recognizable image of this dominant city, placed in the soft surrounding greenery.

/wp-content/uploads/2013/10/_c_6pB88zmjtrKTGGcVerp2LrzMrU4u9BGS3VE-cpGHnXfE9PqQTzyltTOINAOeQz28f0qU2fSMH6L5ZrzPRi8cJYJcxeX9HkzU.jpg

足球场外表皮与看台之间的空间用作公共服务和办公。体育馆主要分是个公共入口进入内部,竞技场的内部有良好的静音效果,有利于球员和球迷专注于比赛。85米x105米的体育场其中68米x105m是赛区,剩余的部分则能井井有序的安置广告屏和媒体摄影区。赛场座位区分为普通坐席,贵宾区,运动员休息区以及媒体区。

/wp-content/uploads/2013/10/_c_5odGA3PsjqkgO1uCG9k3dcV0q4oAFBDqXbQQsXuQvXJqWVLQfwzFoKwDCtKlcVAsp32mYuEyR7rW9dxihZOZUDnyU1T_UBIx.jpg

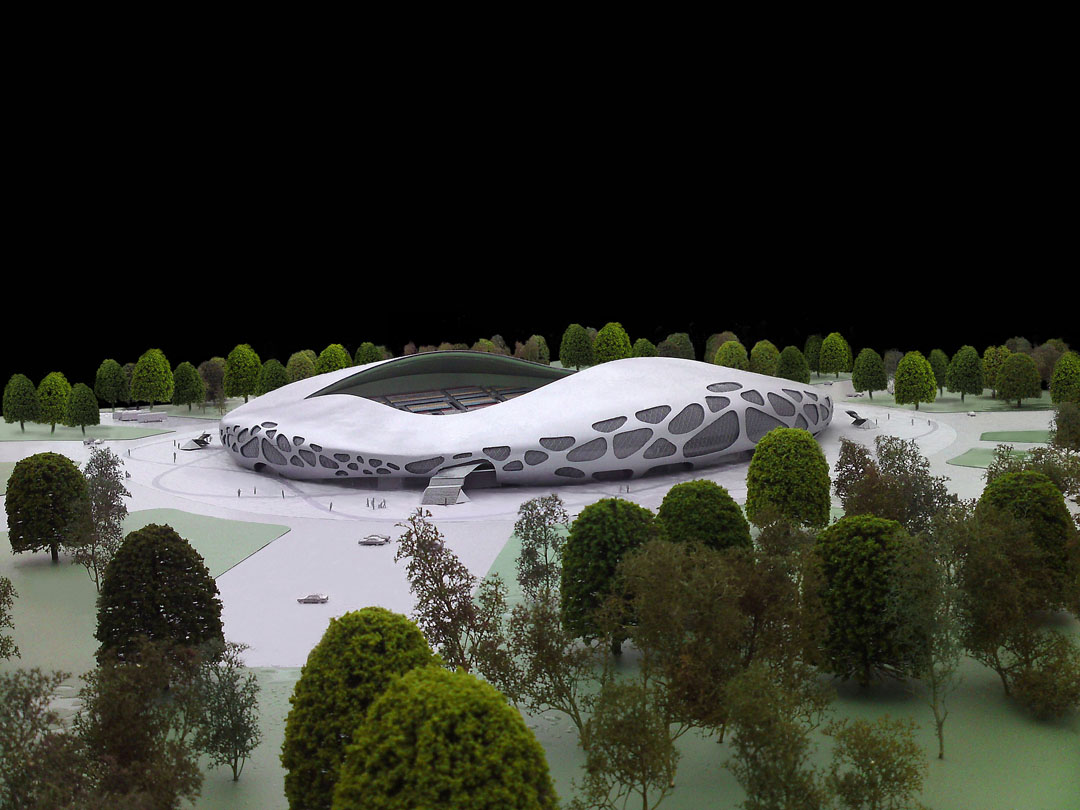

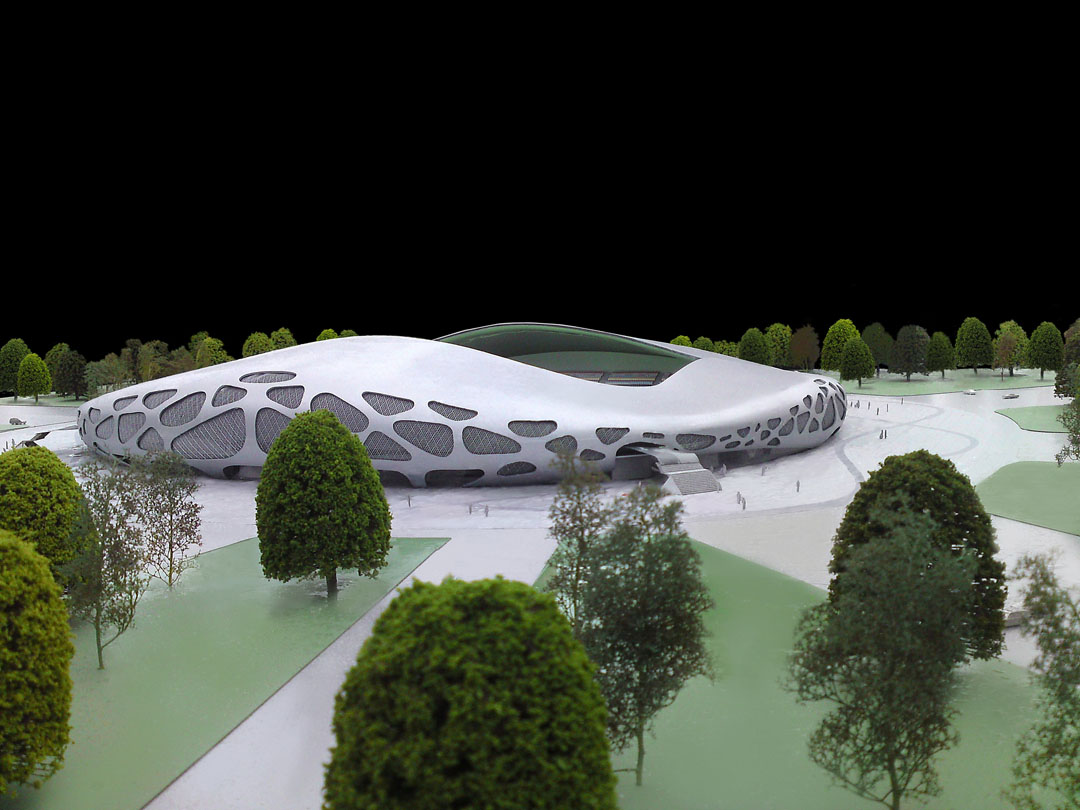

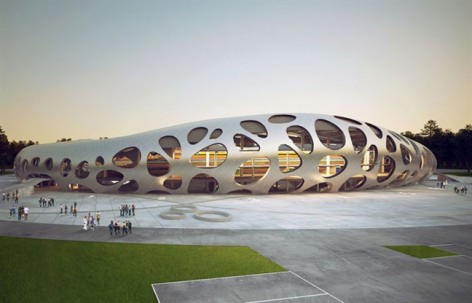

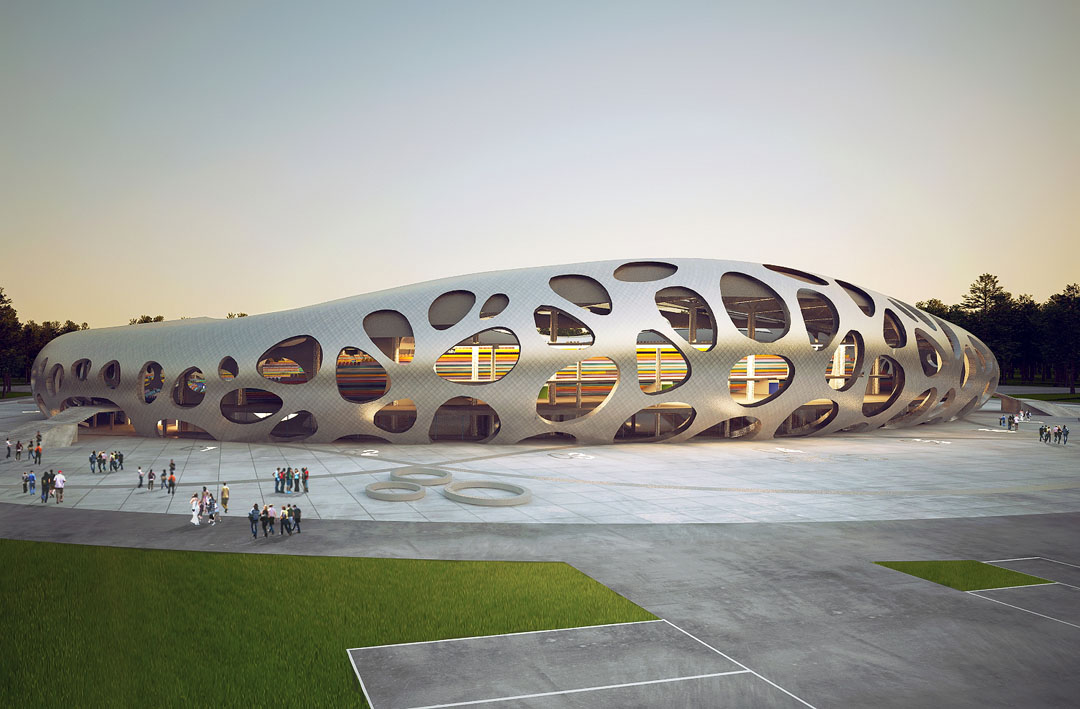

The arena forms a unified rounded dome, giving the impression of a single enclosed object.

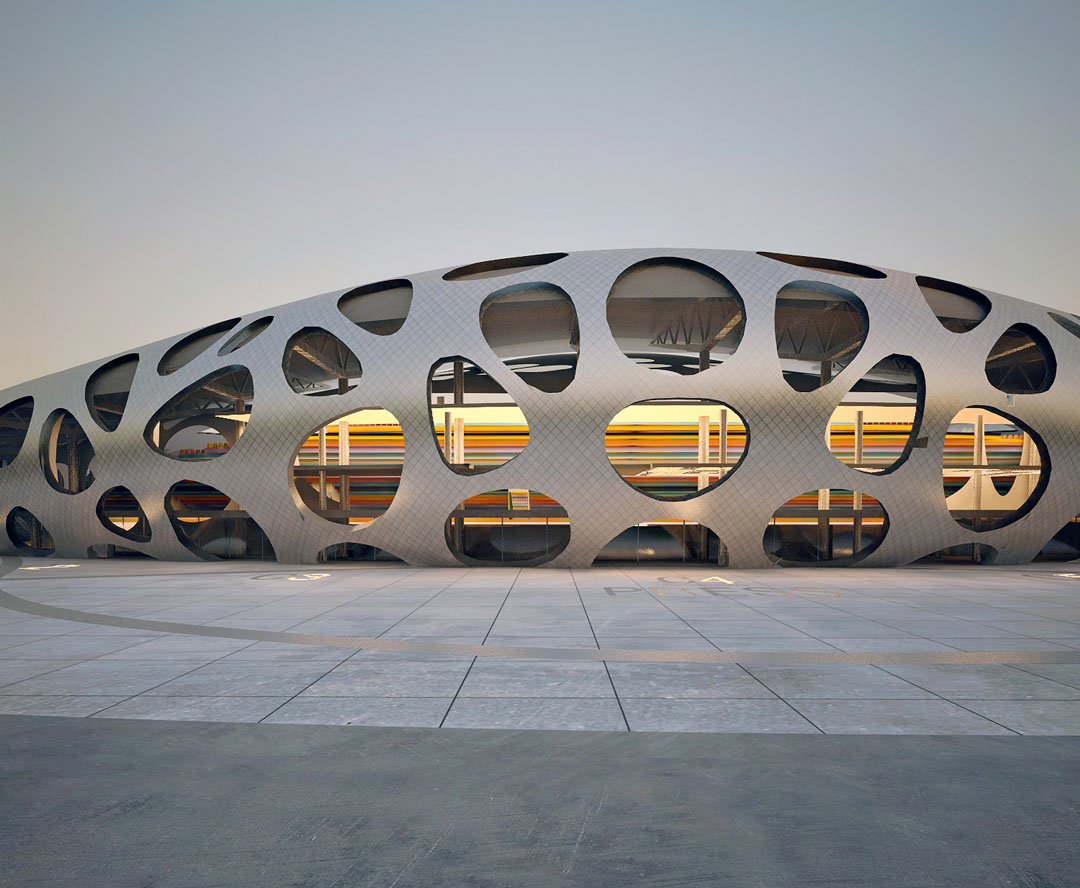

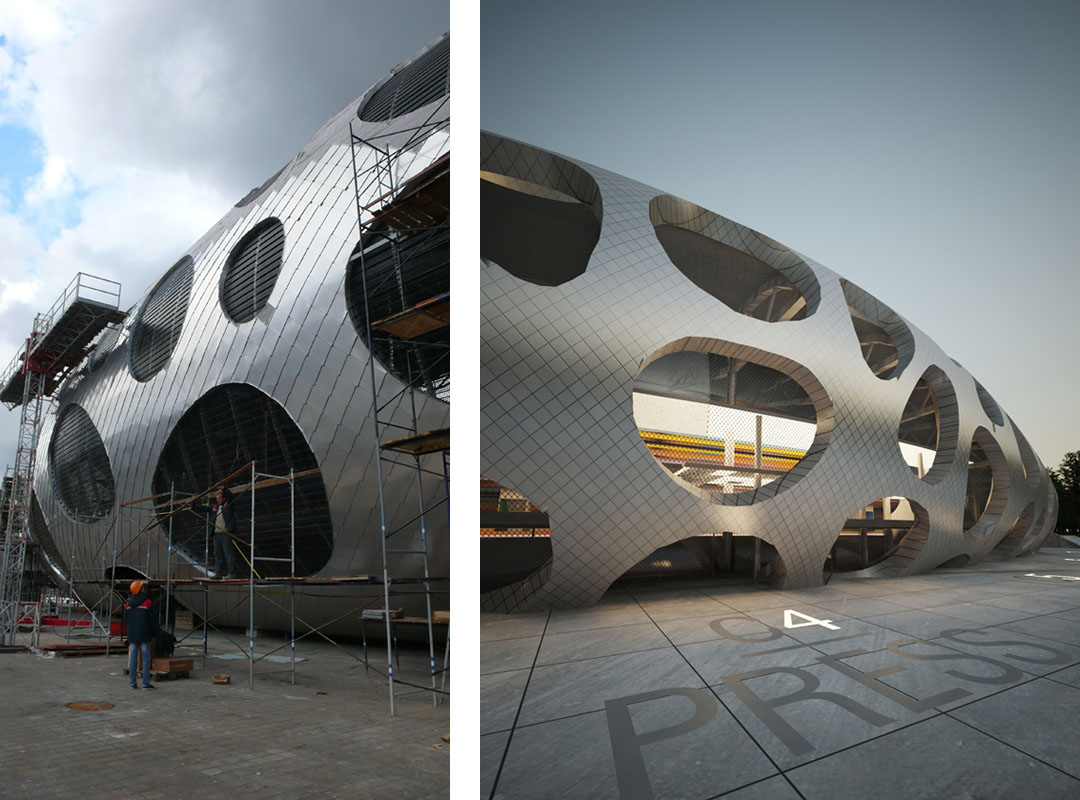

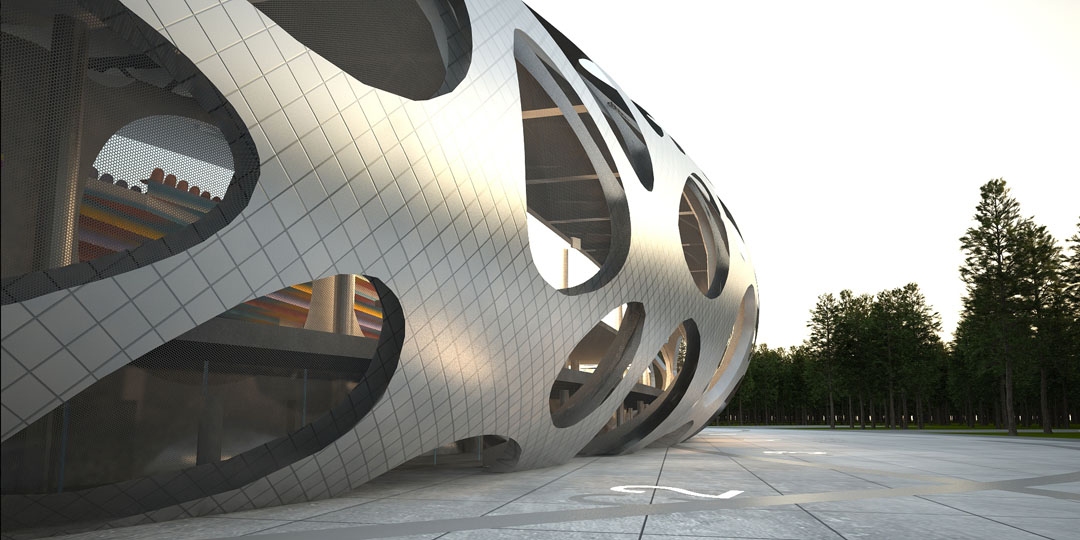

The Skin of the dome gives an impression of a fragile stretched perforated textile pulled over the stadium skeleton. The covered space between the skin and the tribunes is a public street-a vestibule with public program (shops, bars, services, toilets) and galleries above (offices, VIP, press)

/wp-content/uploads/2013/10/_c_gWvKG1YRIFhxndkIWRkWZR02_QrvagqB-eVFQxMmKzFbKeR4QONTfrNMB32H-6JBHomXSRYDOnWFBtew57Cy2_-q4sv2u9hE.jpg

体育场外面的公共广场与地面层的餐厅以及其它公共区域直接联系。 停车场被安置在树林中。

/wp-content/uploads/2013/10/_c_fSvY9GPnNEGmd2TKMKEfYCVL9_UfH5NDpCXQ_EUrgh1MboS9Yn6WFuv3w-vSph4qT8z0-Udc7mbRT7S9zWYGYmgMCeqUJguh.jpg

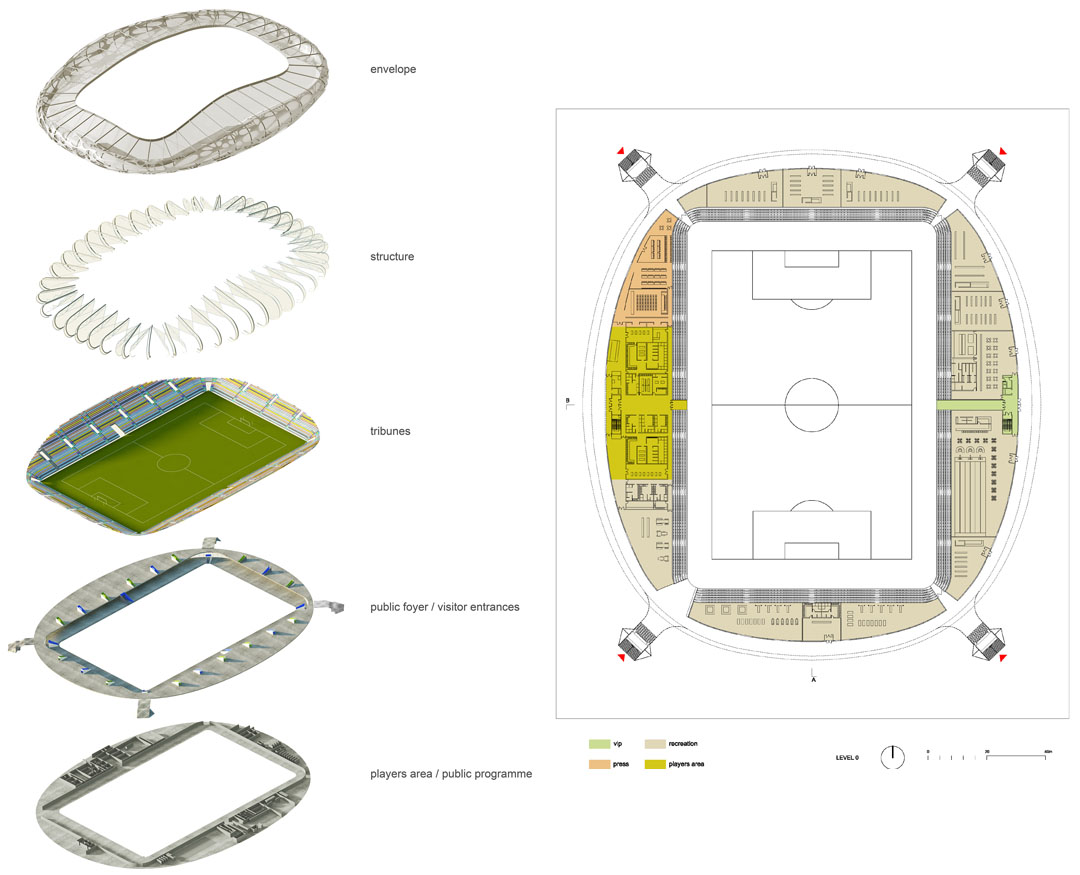

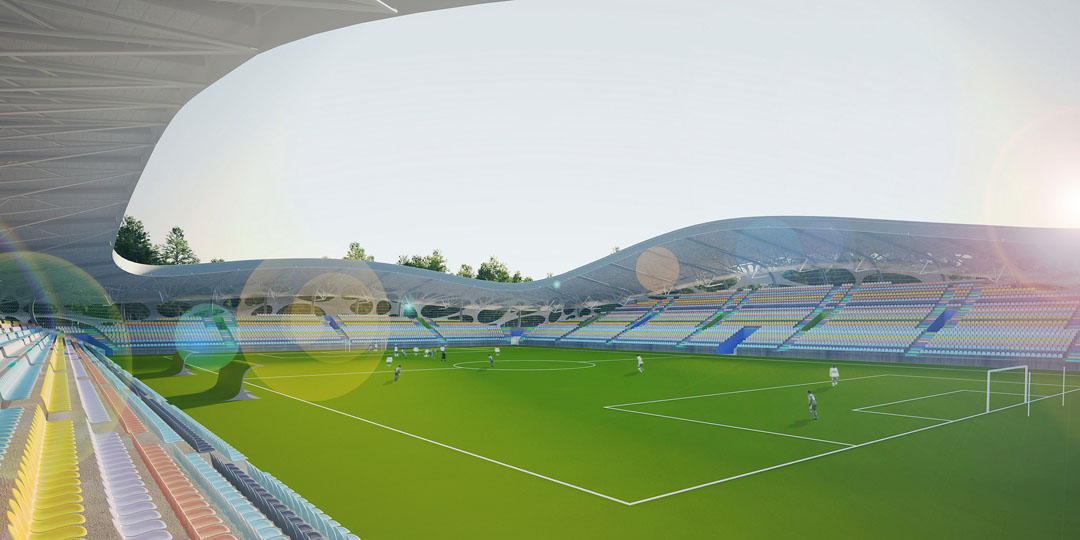

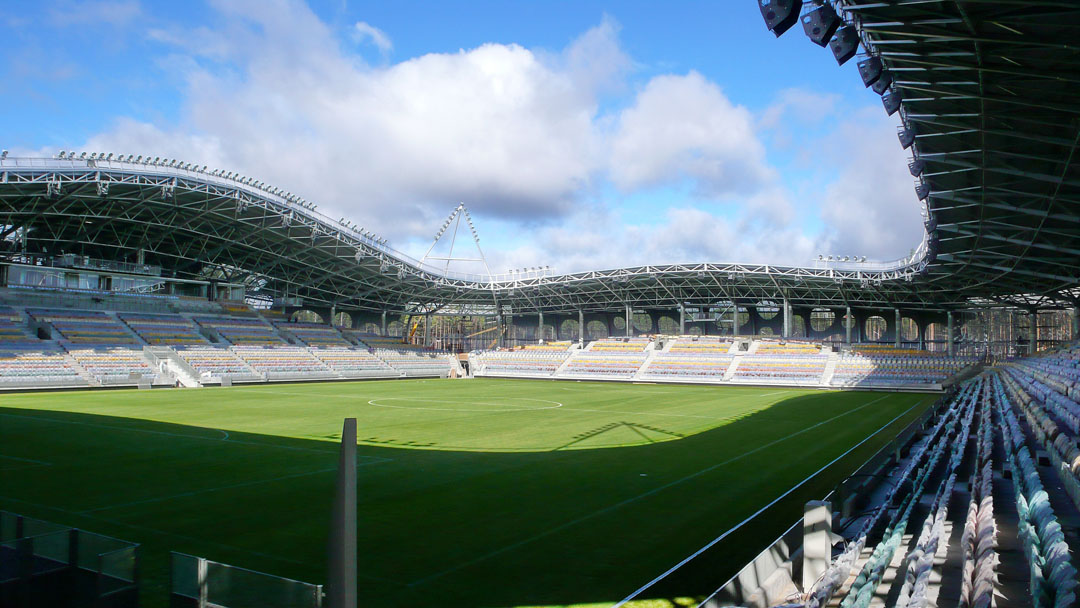

Internally, the rounded arena provides good acoustics and encourages an extrovert atmosphere from the players and the fans alike during the game, but focuses concentration during training time. The playing surface has N-S orientation, with a total area of 85×105 m, on which 68x105m is used for playing. The remaining area allows enough space for the installation of advertising screens, photographers and cameras. The seats are arranged around the playing field in rows of 17 along the sides and rows of 27-28 along the short sides. The upper west gallery is reserved for press cabins, with seats and tables for 40 journalists and direct stair access to the press room and mix zone. In the east are the VIP stands, with 250 seats and bar and entertainment spaces. The VIP is accessed directly via an elevator from the entrance area with a car driveway. The athletes have a separate access on the lower platform, with passage to team buses and parking. At each entry point to the field are two dressing rooms, mix zone, physiotherapy and a space for doping control.

/wp-content/uploads/2013/10/_c_j26ardQkjQ6cbf5LakiBv3QMp5_VwzBpC6_Z-3U0M4Zd7WHoKg4opDQWn8oIuBmhHT_RAvTDznVvXMJjh8b-JXXOu8q00B7l.jpg

There are 4 floors with extra program and service facilities under the west stand area and 3 floors under the east side. The foyer for visitors is located on the first floor level and has 4 stairway access points. It is a covered plateau, naturally ventilated and unheated. Extending all around the inner stadium arena, this space contains the visitor’s toilets, bars, first-aid room and detention: it is a place to break during half-time. 3.000 m2 of public program is distributed at ground level on the north, south and east ends of the structure. In the east, a restaurant and bowling area are located. The restaurant prepares meals for the VIP during the match, with a service elevator for catering to the VIP lounge and bar within its public foyer. In the south, there are public fitness/gym studios. Other public area spaces are designed for various commercial activities. All restaurants have access from the public platform. Around the platform is a rounded pedestrian square, as a peripheral roundabout and meeting area. Parking pockets are organized into the existing forest area.

/wp-content/uploads/2013/10/_c_ode9O2J9i1jSXmkmOuemRtUr62MR2ET4X7_ZSBRdvuyLx1IWQCLKzKX97NiR0R4zJ0q3_4SDlcTLDl3tNHSDiMzOz7rfLNjt.jpg

/wp-content/uploads/2013/10/_c_--rp371dJJpgq3um7F0ofEvI8FiOjhO8JuJQU701GEH2Dcwfh_I8M5VBc1me-LiKqCF9F6XZN-zXSN8oAcnRcQQRLotOvy6V.jpg

/wp-content/uploads/2013/10/_c_W_3p2kn9sNJiieGmKFtSyZhFqhwG7IQCOtxiIgEOAIBHROCUJnKnyDQaMZCjWf9grgBuPlzerNRnSNbFCoWmRAyWCkrKmPYT.jpg

/wp-content/uploads/2013/10/_c_gZDjWYIglKFp0ffcojrsHuMS0b6qL1p_JDD7KP2JkAFlcAOyyQBKnve9UobLtX-ZIkPkIDhAk3yNvC3qgNKt86UaTHnIVK6x.jpg

/wp-content/uploads/2013/10/_c_sIrksaia73BSAm8vSQ-sPbUFUBIXosnHZcaClIk2g_jA9US_qWNLq05xpXsI1uqdV09cchu4rTKFHRePS1fvSsBvcDD72Jyp.jpg

/wp-content/uploads/2013/10/_c_6UqntYXbIBeh0-LfND08hCjcgeJ_bV8CmERTfy2JBJEbranCKSmG_R1AI2SE_C1DYWSrnxE4mbDXld3j8aIRuVPBJ2bnDK1T.jpg

/wp-content/uploads/2013/10/_c_9hU-pYHpt0KL_A804Vdg1KlWk6fSG1iLoCPEzomfnBfsaVz4_mwZy6I0yWgGaCid63OuLWc84oPAaWHsfnFxiESkt1yU3vgp.jpg

/wp-content/uploads/2013/10/_c_00Fj2HZqlE0llD1C9nRJsBn2QZxnFQxvWR1TyHuEzW_hJ8CydZ6qJpSm-ZD2Lx2SPJRcaFpMVIxxGO6oTA9eSAQEAgkQdQ5R.jpg

/wp-content/uploads/2013/10/_c_4fadDQPMyE9xLXJgayW8qxeRRl-cIeN8al3EbCPUp4FHzFfAvwpy07uJK9BV9GxFFEcrwQJp5CJNsFD-ZGr-evbVVmR4FPvu.jpg

/wp-content/uploads/2013/10/_c_uRRg2Hv3_WzRA5ir1_PW5qFEJKZC09IjJJRbVJzLCfYyY8aVa0cQFxAG3s2wDPrNZnfT1-Y8reU4HcII-XPcEb3397CWKxEf.jpg

/wp-content/uploads/2013/10/_c_4FWZALVMt37Z4SIvu76j-zGrIKyg7DnqLw1NI_xf1GNB3oSD2A1e0lwAbzRP9ZruU3ft3giBkSC7iCSlxygs3s6z8dywx5vl.jpg

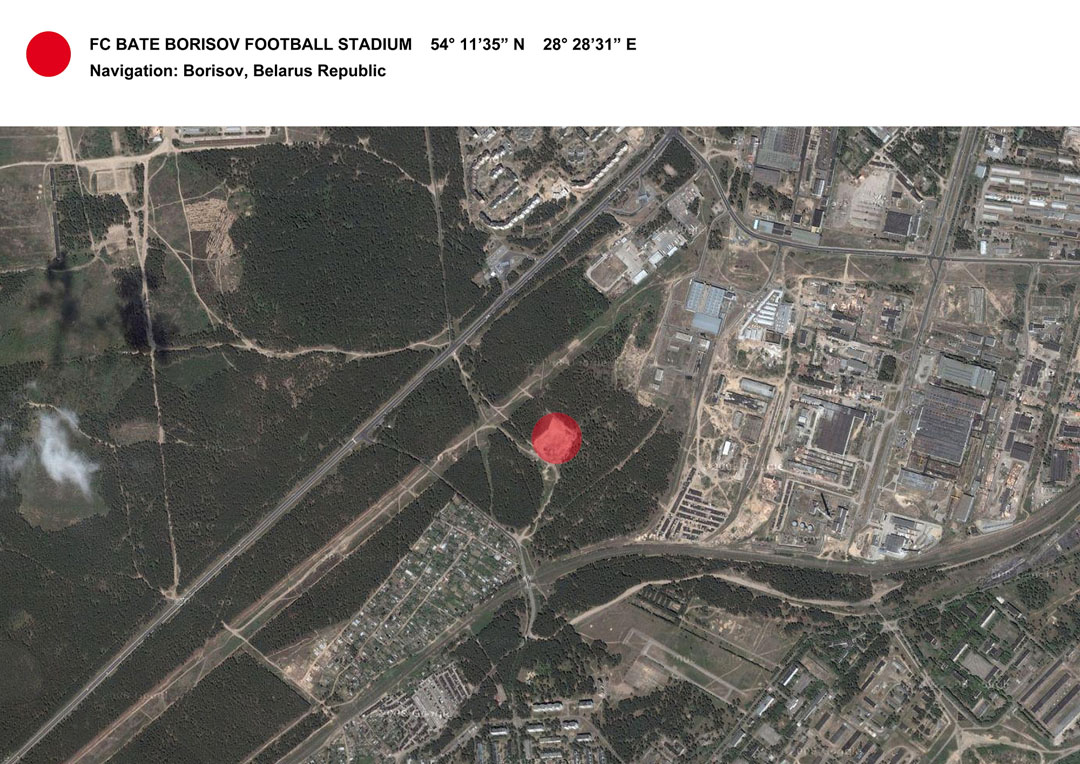

location:Boris, Belarus
status commission 2010 construction 2011 completion 2013
program:football stadium + public program
type:public + private
client:Magnus Group
area:public program 3.628 m2, offices 480 m2, service 2.000 m2
capacity audience 13.000 seats, VIP 620 seats, press seats 100, parking spaces 800
structure steel, reinforced concrete; roof structure- metal beams with aluminium cladding
project team:Rok Oman, Spela Videcnik Rok Gerbec, Janez Martincic, Andrej Gregoric,  Konstantine Bogoslavsky, Janja Del Linz, Katja Aljaz, Ana Kosi, Ieva Cicenaite, Grzegorz Ostrowski, Filip Knapczyk, Sergio Silva Santos, Lorna jackson, Patrycja Majewska, Rita Dolmany, Dusan Chobor
