STC Wharf Renewal Project by Hassell

An entirely new, world class facility upgraded from an 100-year-old timber shipping wharf at Walsh Bay

Project Specs

Design:
Location:

非常感谢 HASSELL 予gooood分享以下内容。更多关于他们:HASSELL on gooood
Appreciation towards HASSELL for providing the following description:

2021年2月,悉尼剧院公司正式重新开放了其位于The Wharf的剧院场馆,这也是其自2018年来,首次以翻新后的面貌向观众开放。

In February 2021, Sydney Theatre Company officially reopened its premises at The Wharf, welcoming audiences for the first time since 2018 to its newly renovated home on Sydney Harbour.

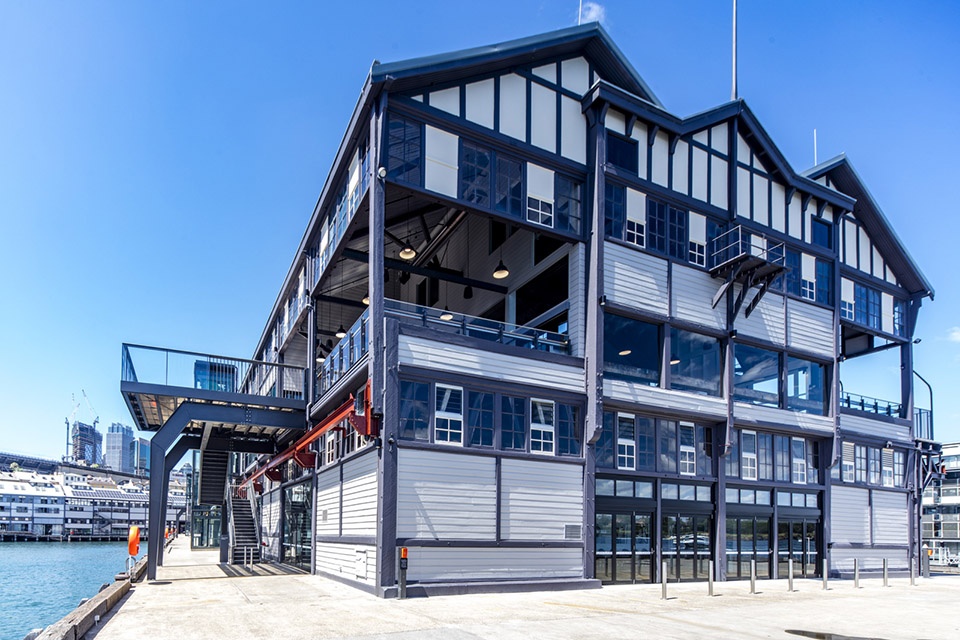

▼从码头望向建筑,The Wharf from the pier © Brett Boardman

位于沃尔什湾的木制船运码头建筑已有100年的历史,1980年代首次由羊毛商店改造为戏剧制作场地,并且赢得设计奖项。本次的更新项目旨在改善设施和交通状况并使剧院空间变得更加现代化。改造后的剧院成为了一座世界级的剧院设施,在容纳完整的戏剧制作流程的同时,为艺术家、工作人员和观众提供了更加完善的体验,同时,旧建筑所留下的精彩细节也得以保留,维持了场所既有的独特气质。

The 100-year-old timber shipping wharf at Walsh Bay – which was first transformed from a wool store to an award-winning theatre-making space in the 1980s – has been upgraded once again to improve facilities and access and to modernise the theatre spaces. The result is an entirely new, world class facility that houses the entire theatre-making process under one roof and provides vastly improved experiences for artists, workers and audiences, while preserving the magnificent heritage details that give the venue its unique character.

▼海港视野,Walsh Bay view © Brett Boardman

▼The Wharf内部空间概览,The Wharf internal view © Brett Boardman



优化的剧院和排练场地
Better theatres and rehearsal spaces

悉尼剧院公司Wharf场馆重建项目更新并升级了两座剧院(Wharf 1和Wharf 2)的内外空间,并提供灵活的座位配置。设计以响应独特的戏剧愿景为出发点,意在为艺术家提供更多表达的空间,同时为观众带来更好的戏剧体验和更高的舒适度。

STC’s Wharf Renewal Project delivers modernised Wharf 1 and Wharf 2 Theatres with flexible seating configurations. These spaces are designed to be responsive to distinctive theatrical visions, offering artists more scope of expression and providing audiences with a greater range of theatre experiences and a higher level of amenity.

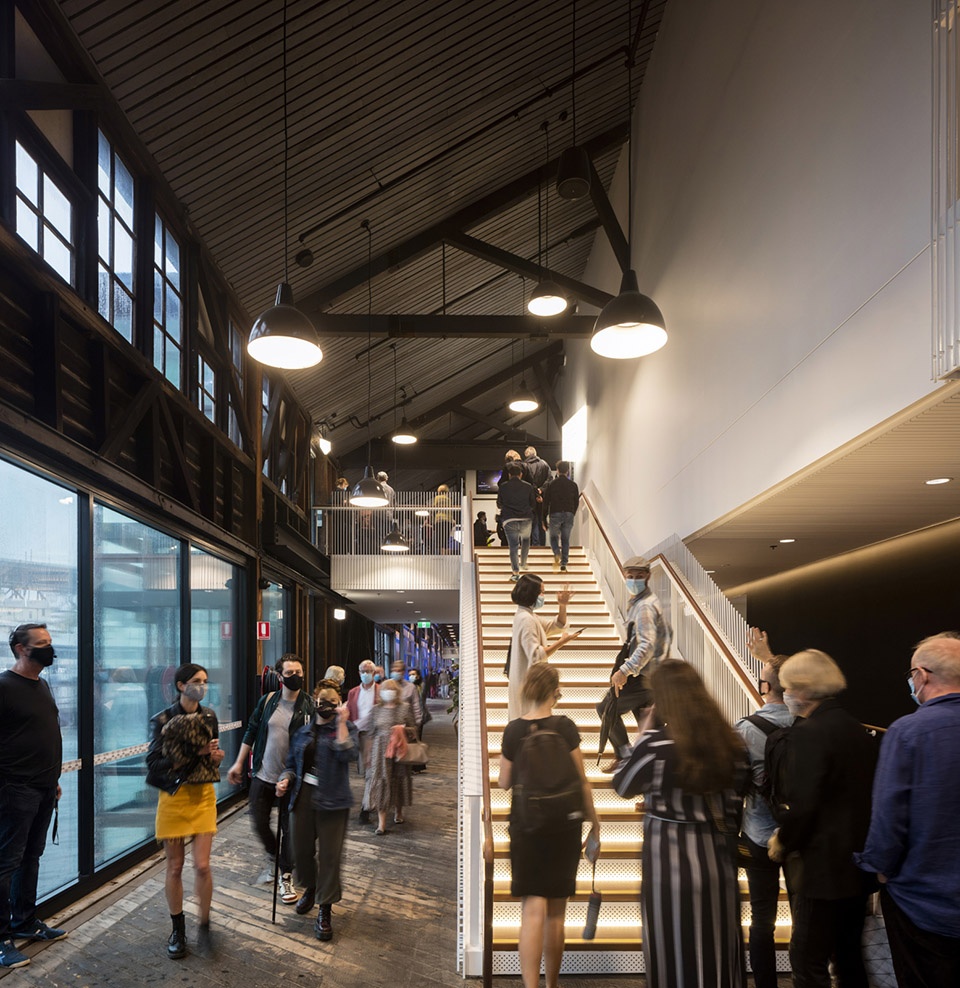

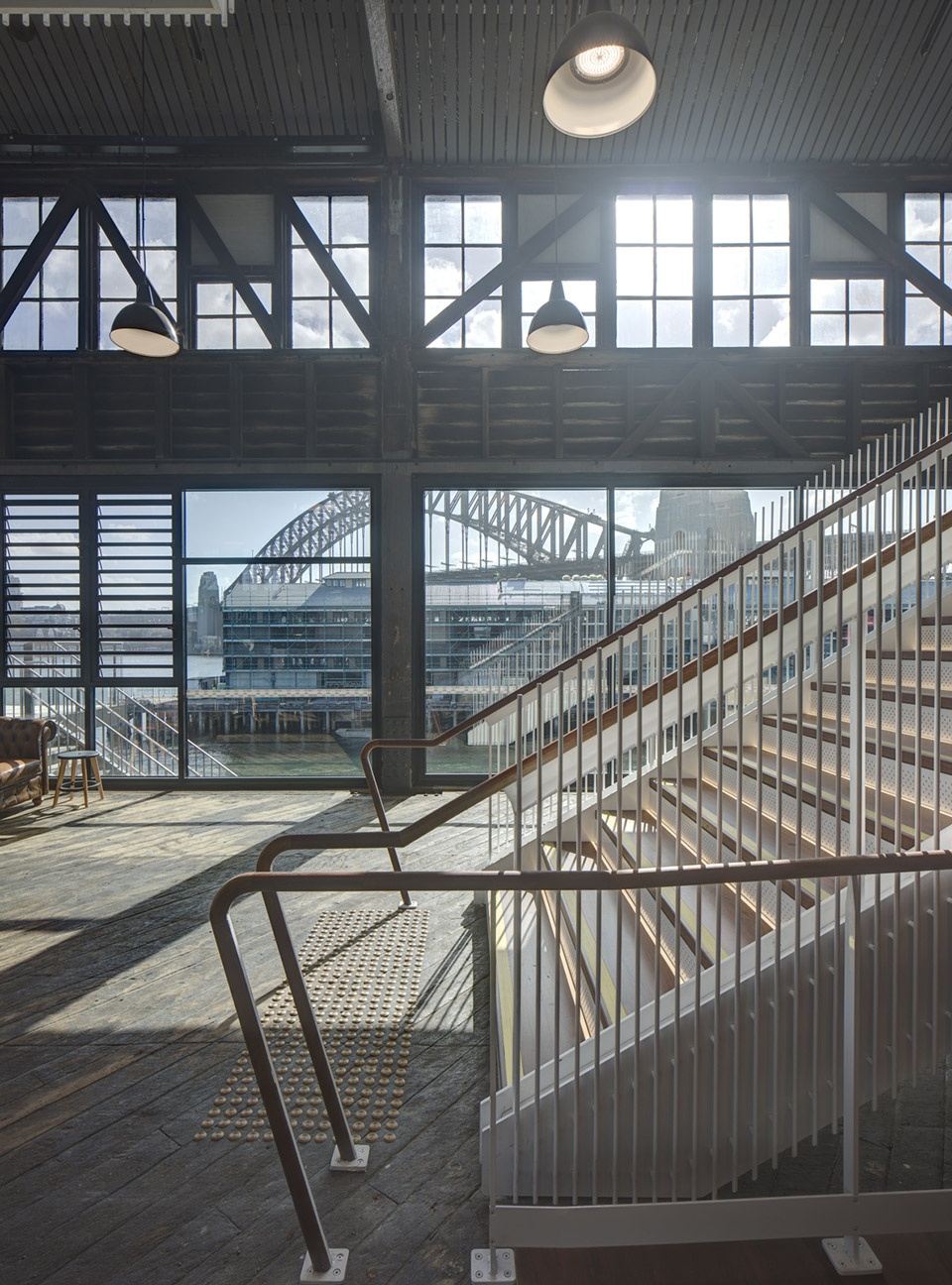

▼通向Wharf 1剧院的楼梯,Stairs to Wharf 1 Theatre © Brett Boardman

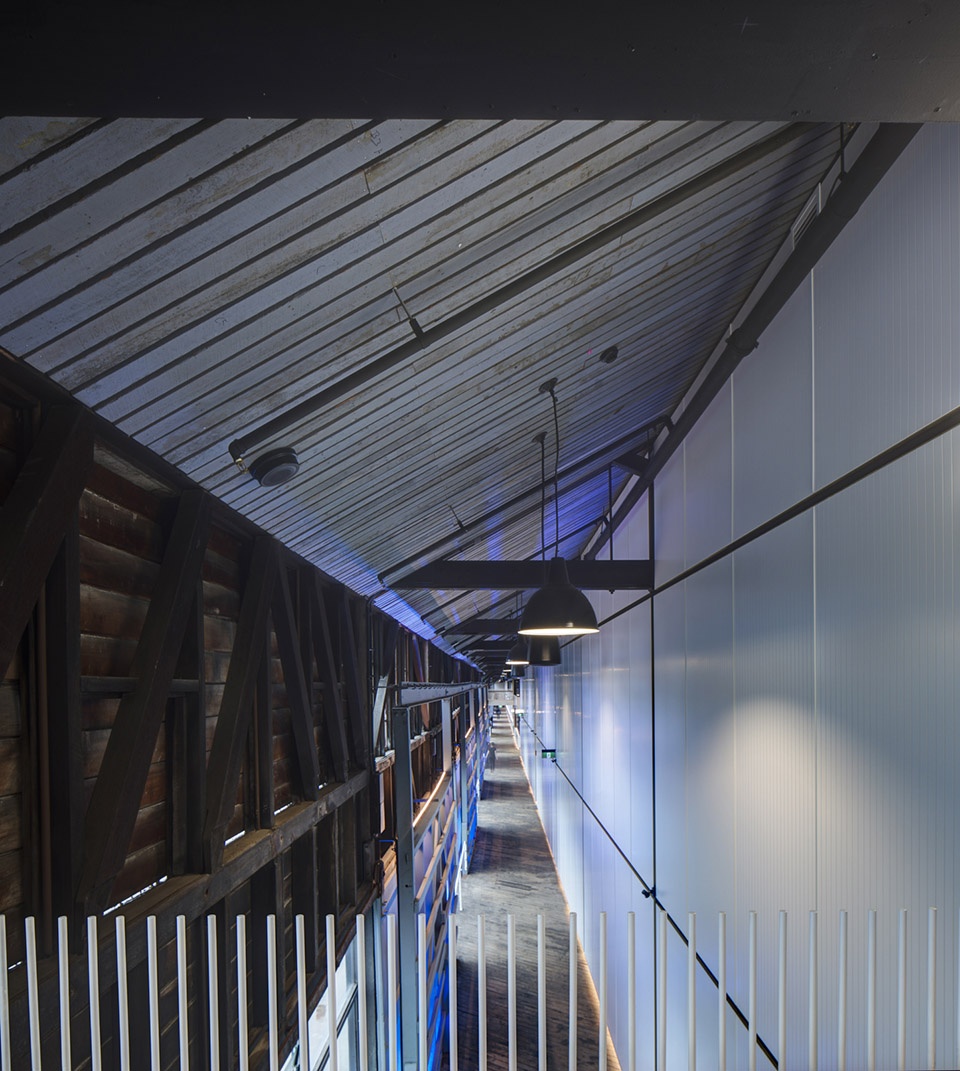

▼剧场外长廊,The long walk © Brett Boardman

除了通过灵活的座位来满足不同的演出需求之外,设计团队还将两座剧院并排放置,并通过一面可移动的墙壁来实现分隔,由此,一个独特的新空间被打造出来。这一设计理念具体借助两扇Skyfold大门而得以实现:它们可以在分隔剧场空间的同时起到隔音的作用,并且与天花板融为一体。在整个项目的开发和设计过程中,设计团队还注重无障碍性、安全性、声学效果和运营效率的提升,以及对既有场地特征的保留和强调。

In addition to incorporating flexible seating to enable different configurations of playing space, a unique new space was created by locating to the two theatres side by side and separated by a removable wall.  This design idea has been made possible by the inclusion of two Skyfold doors which create the walls that separate the two theatre spaces. The Skyfold doors are an acoustic partition which disappear into the ceiling. Throughout the development and design of the project, a focus was also retained on improving accessibility, safety, acoustics and operational efficiency all the while preserving and enhancing the heritage characteristics of the site.

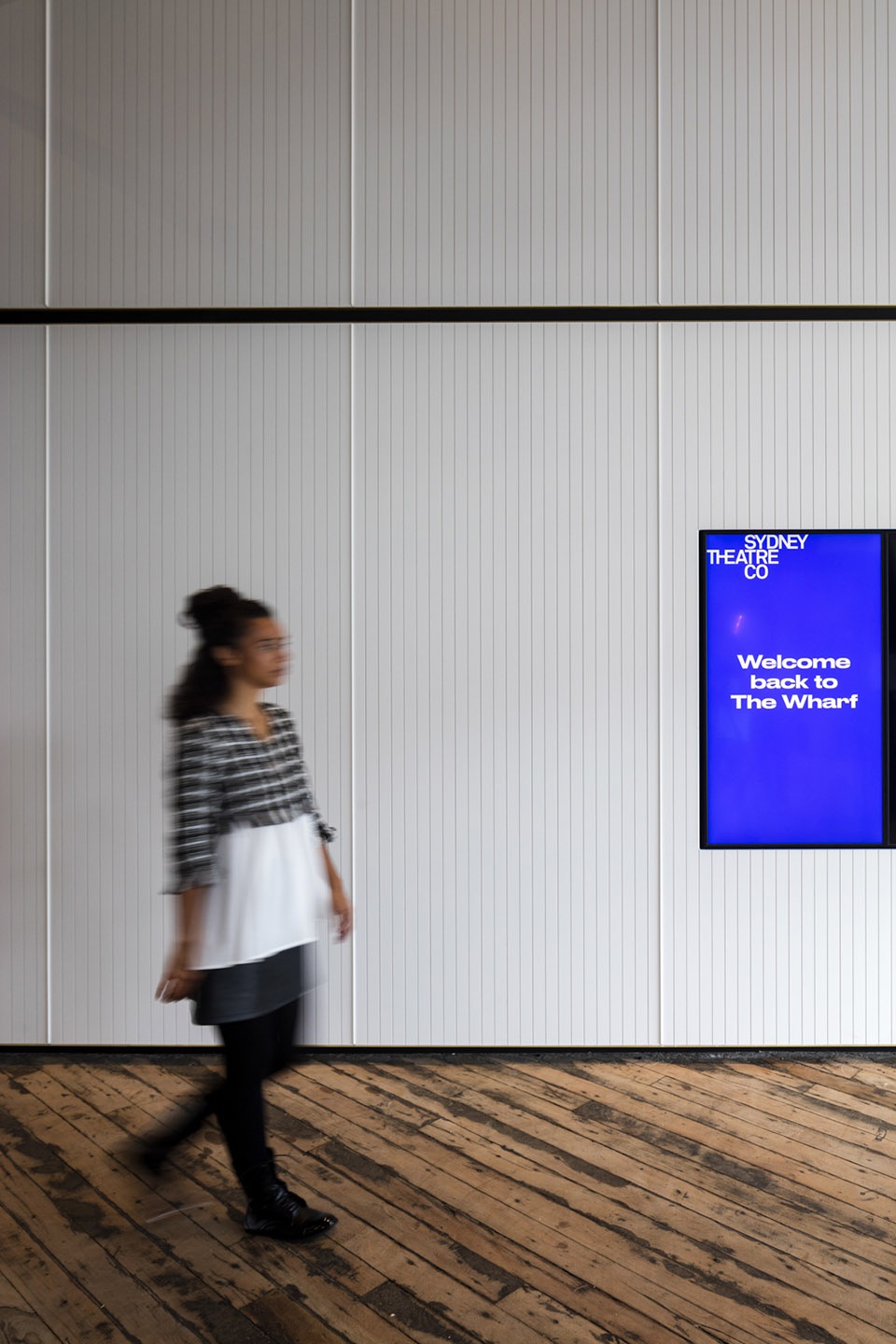

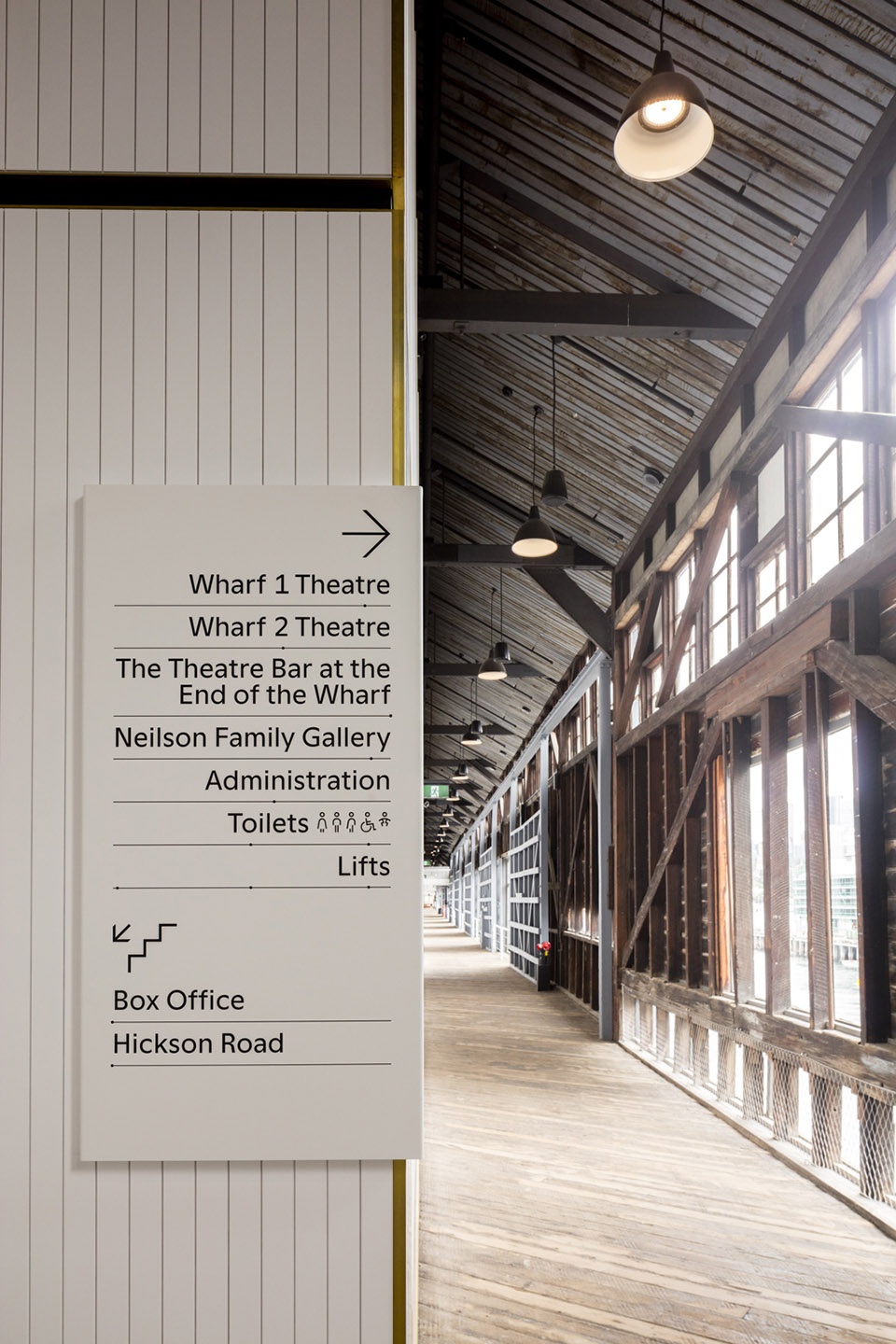

▼走廊和标识,corridor with sign screen © Brett Boardman

▼长廊日景,the long walk in the daytime © Brett Boardman

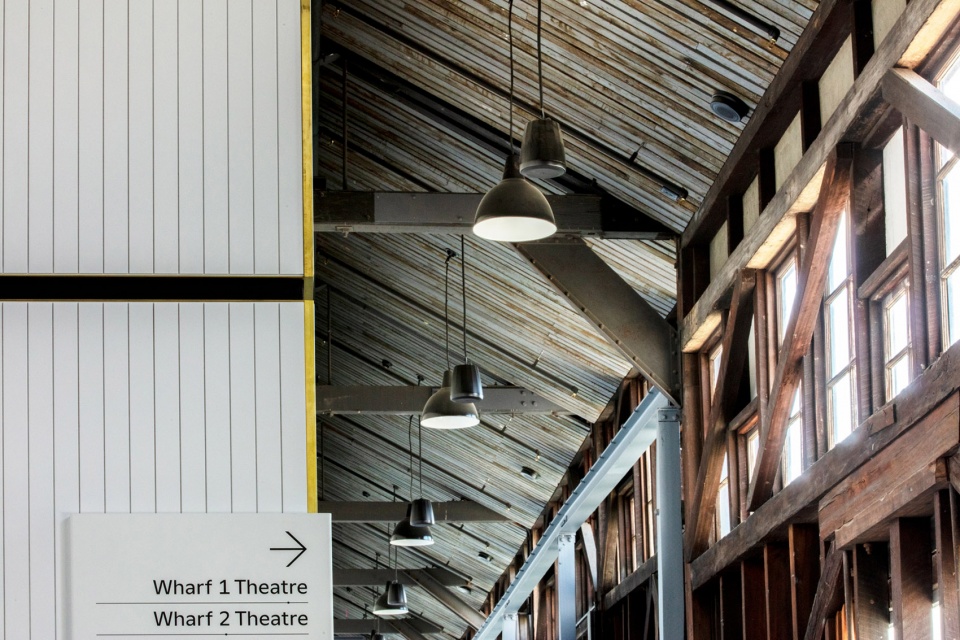

▼天花细节,The ceiling of the long walk © Brett Boardman

在两座剧院中,1号码头(Wharf 1)的规模较大,如今可以根据配置需要容纳350-420人(改造前为320人)。1号码头剧院共有3种主要的座位布局模式,分别为尽端式(End On)、角落式(Corner)和圆形式(In the Round),随着德国Hoac公司提供的灵活平台、以及由比利时Jezet公司为剧院量身打造的座位系统在未来的引入,剧场座位的功能性将得到无限的扩展和提高。其中,角落式的布局沿用了1号码头原来的设计,但在改善视线和增加舞台面积方面均有所增益。

The larger of the two theatres – Wharf 1 – can now seat anywhere between 350 and 420 depending on the configuration. The theatre previously had a seating capacity of 320. There are three main seating configurations in the Wharf 1 Theatre – End On, Corner and In the Round – although endless opportunities exist to expand on these capabilities in the future with the flexible decking (provided by German company Hoac) and seating system custom-designed for STC by Belgian company Jezet. The Corner configuration replicates the old Wharf 1 design but with improved sightlines and a larger stage area.

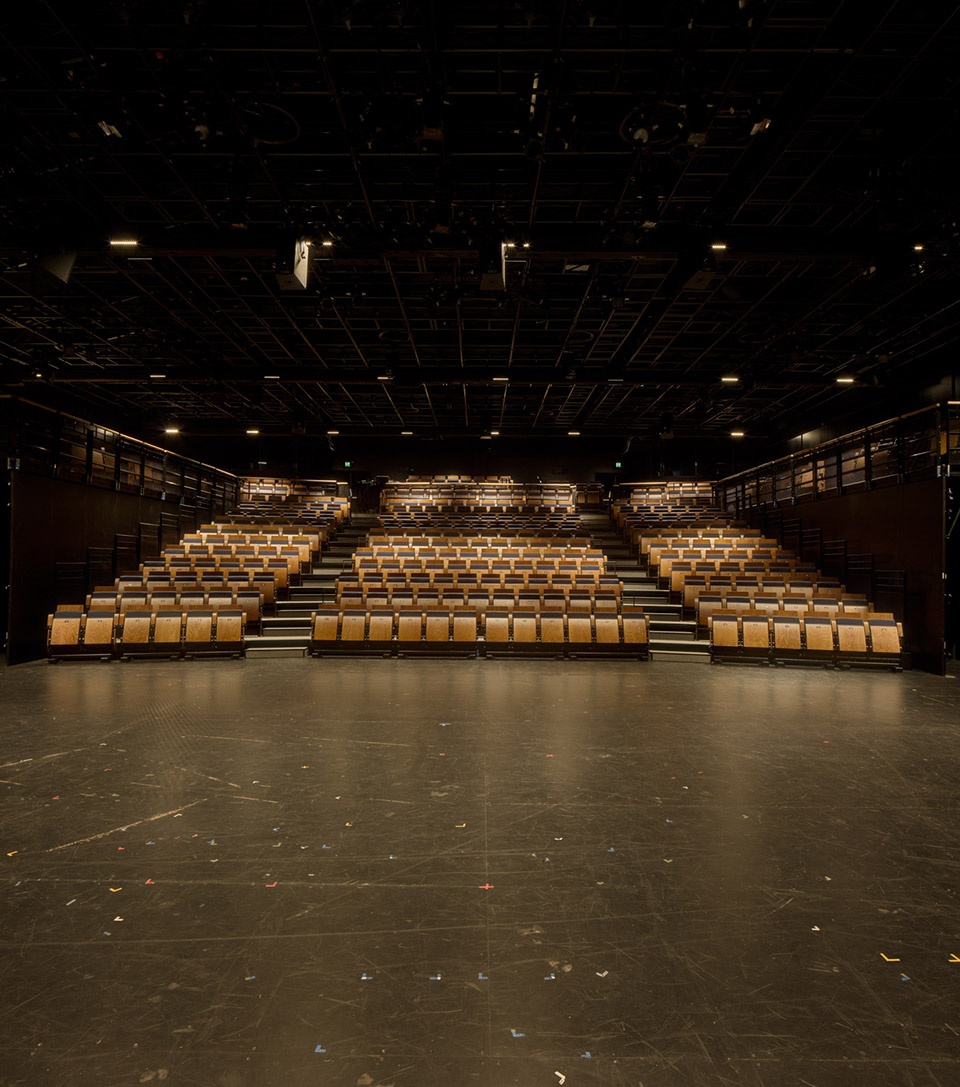

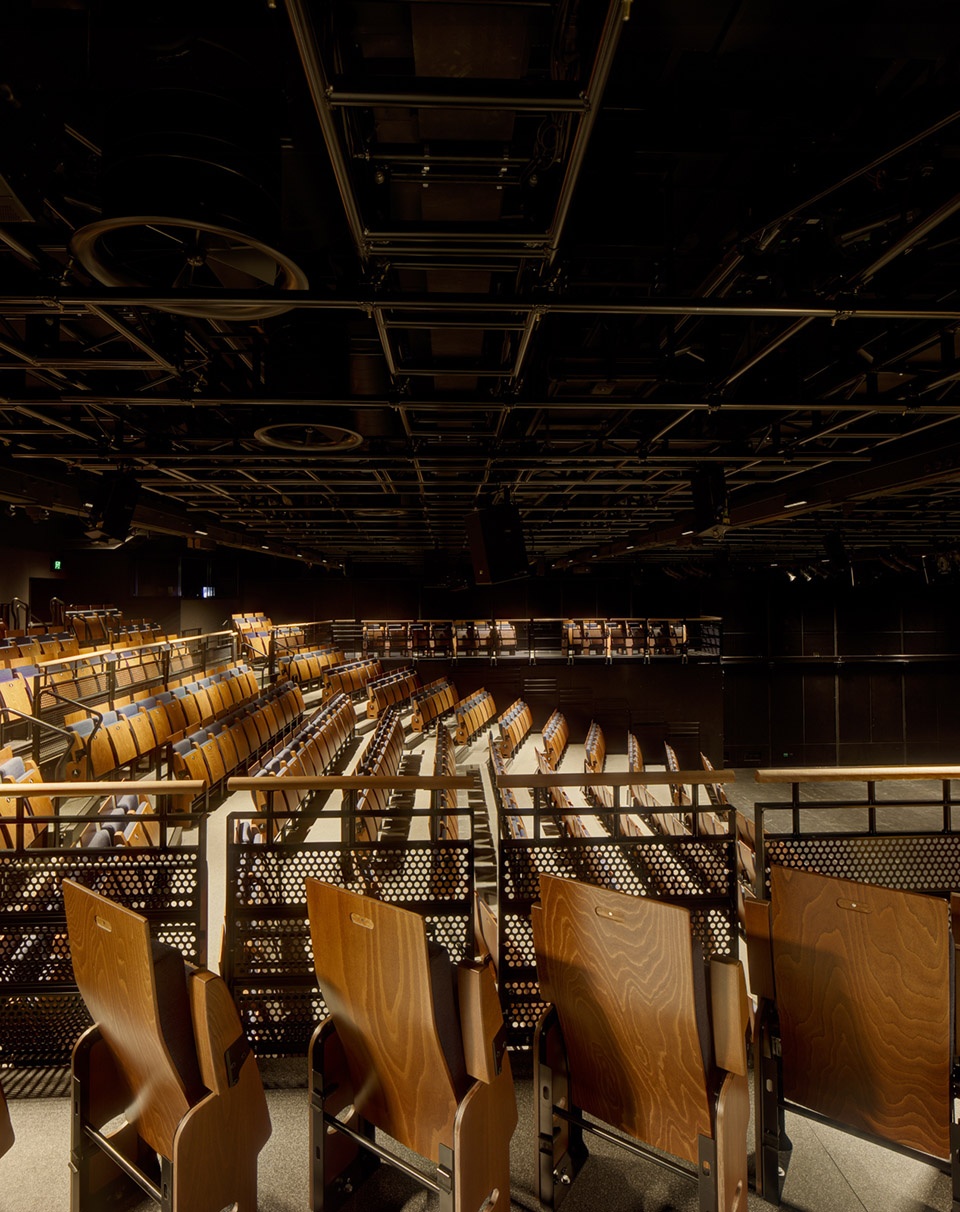

▼Wharf 1剧场内部,Wharf 1 Theatre interior view © Brett Boardman

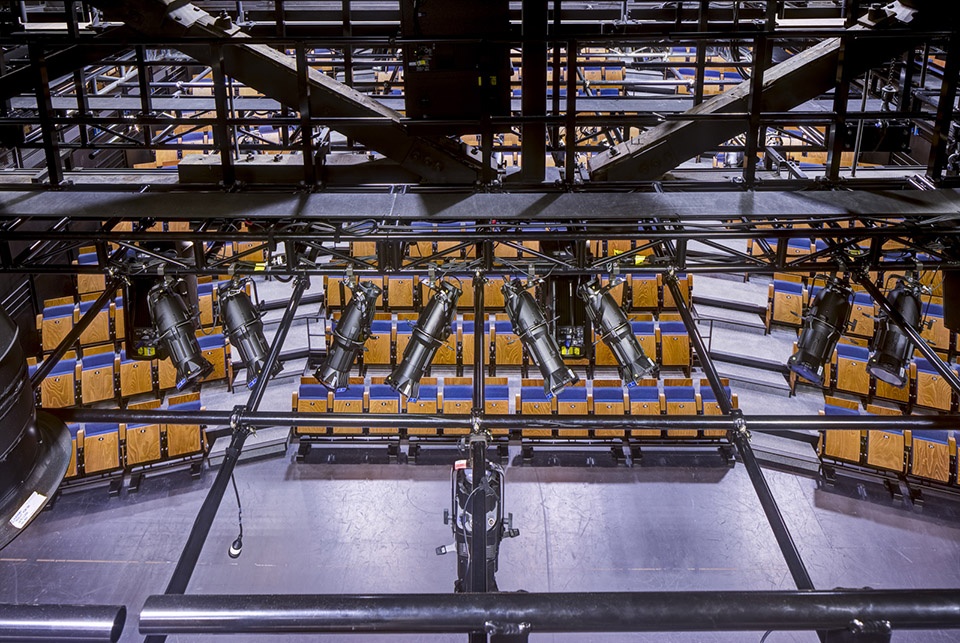

▼舞台设备细节,stage equipment details © Brett Boardman

规模更小一些的2号码头可容纳160人,配置了新的可伸缩座椅,从而可以在1小时内转变成排练室或多功能厅。排练室的音响效果得到提升,空间也变得更加开阔,此外还增设了音乐/声乐训练室和一间录音棚。1号码头现设有6个化妆间和专用的洗手间、淋浴及洗衣房,此外还有独立的假发室和私人花园。2号码头设有三间更衣室、专用洗手间、淋浴间、洗衣房和厨房。

The smaller Wharf 2 Theatre (160 capacity) now has retractable seating so the space can be converted to a rehearsal or multipurpose room in under an hour. The rehearsal spaces have been vastly improved with better acoustics and larger floorspace, as well as the addition of music/vocal coaching rooms and a recording studio. Wharf 1 now has six dressing rooms, as well as dedicated toilet, shower and laundry facilities. There is a separate wig room and a private green room. Wharf 2 now has three dressing rooms, dedicated toilet & shower plus laundry and kitchenette.

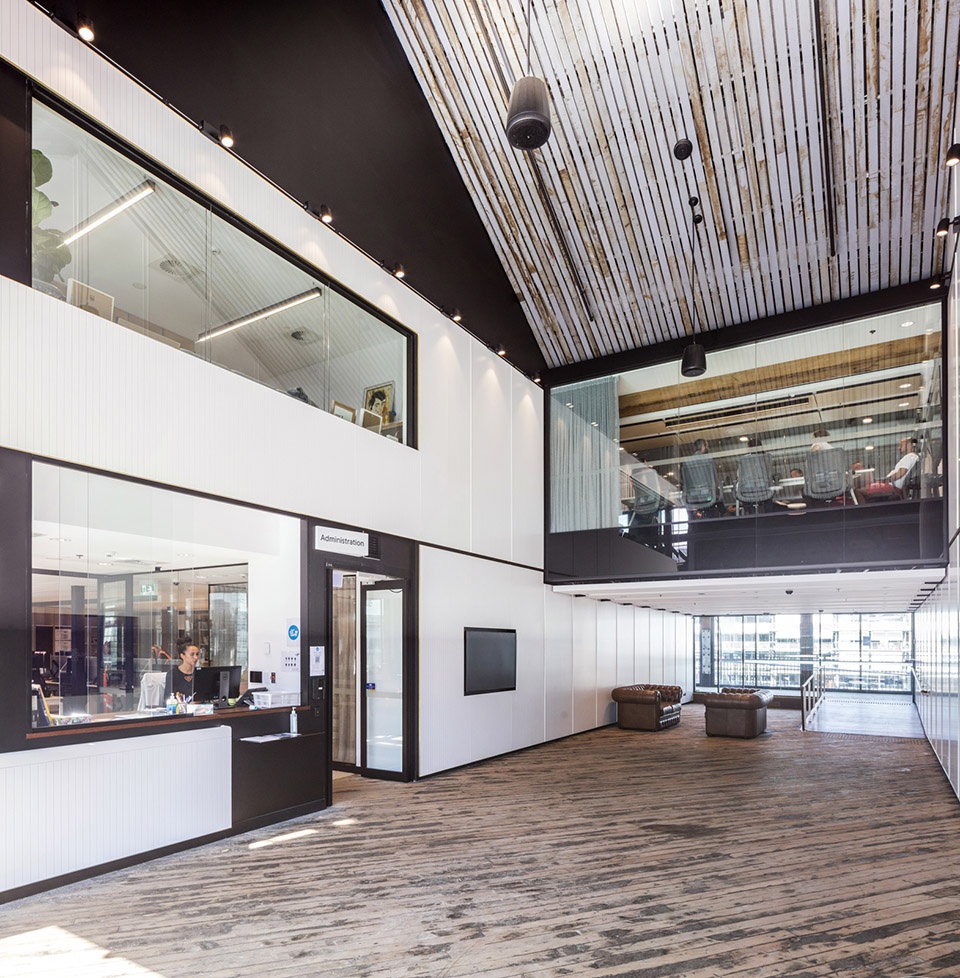

▼通往办公区和后台区的中庭,The Atrium leading to Admin and back of house areas © Brett Boardman

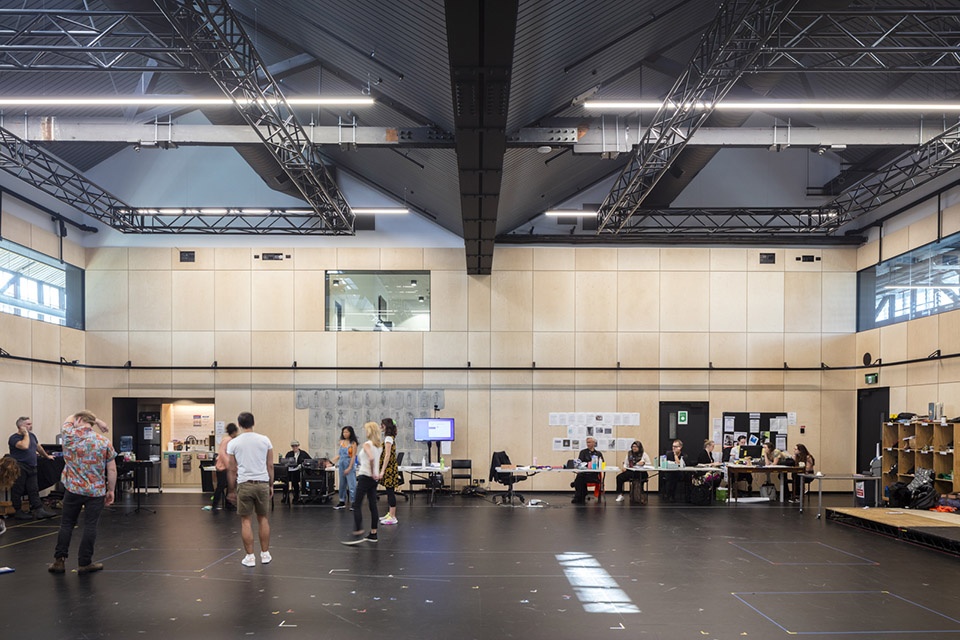

▼排练室,Rehearsal spaces © Brett Boardman

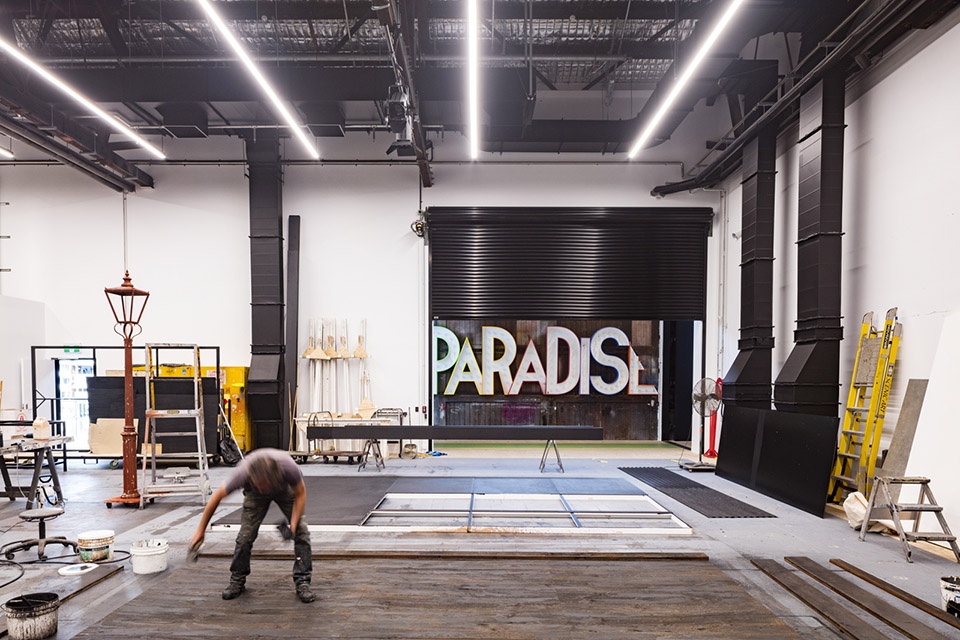

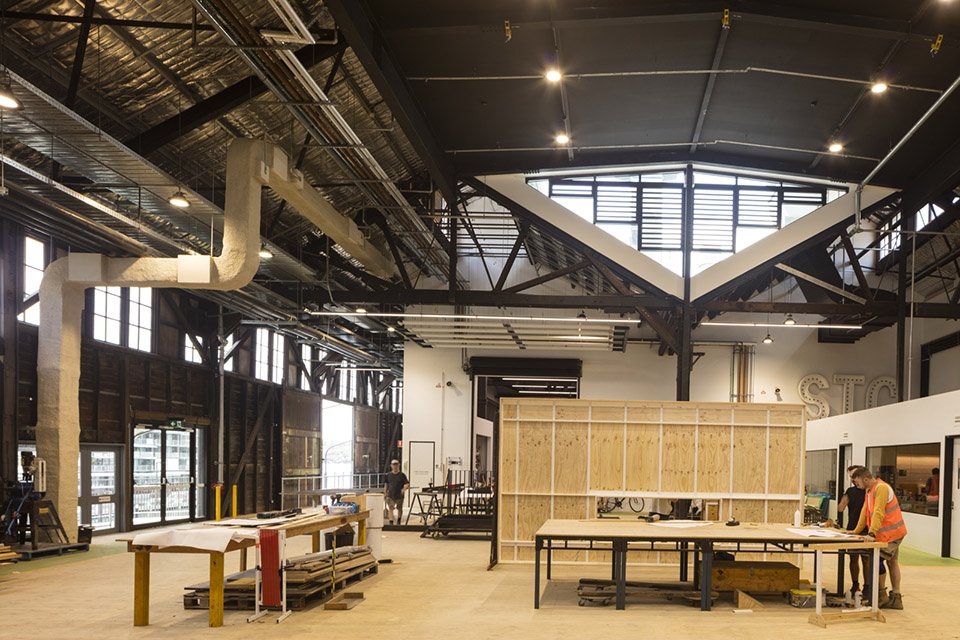

▼工作坊,Workshop spaces © Brett Boardman

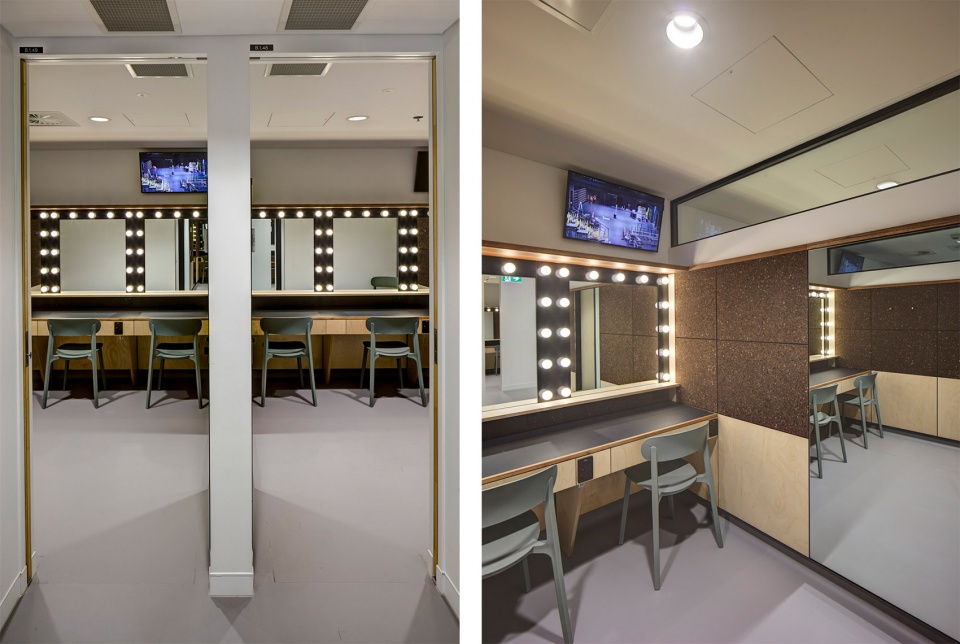

▼新剧院化妆室,Dressing rooms for the new Wharf Theatres © Brett Boardman

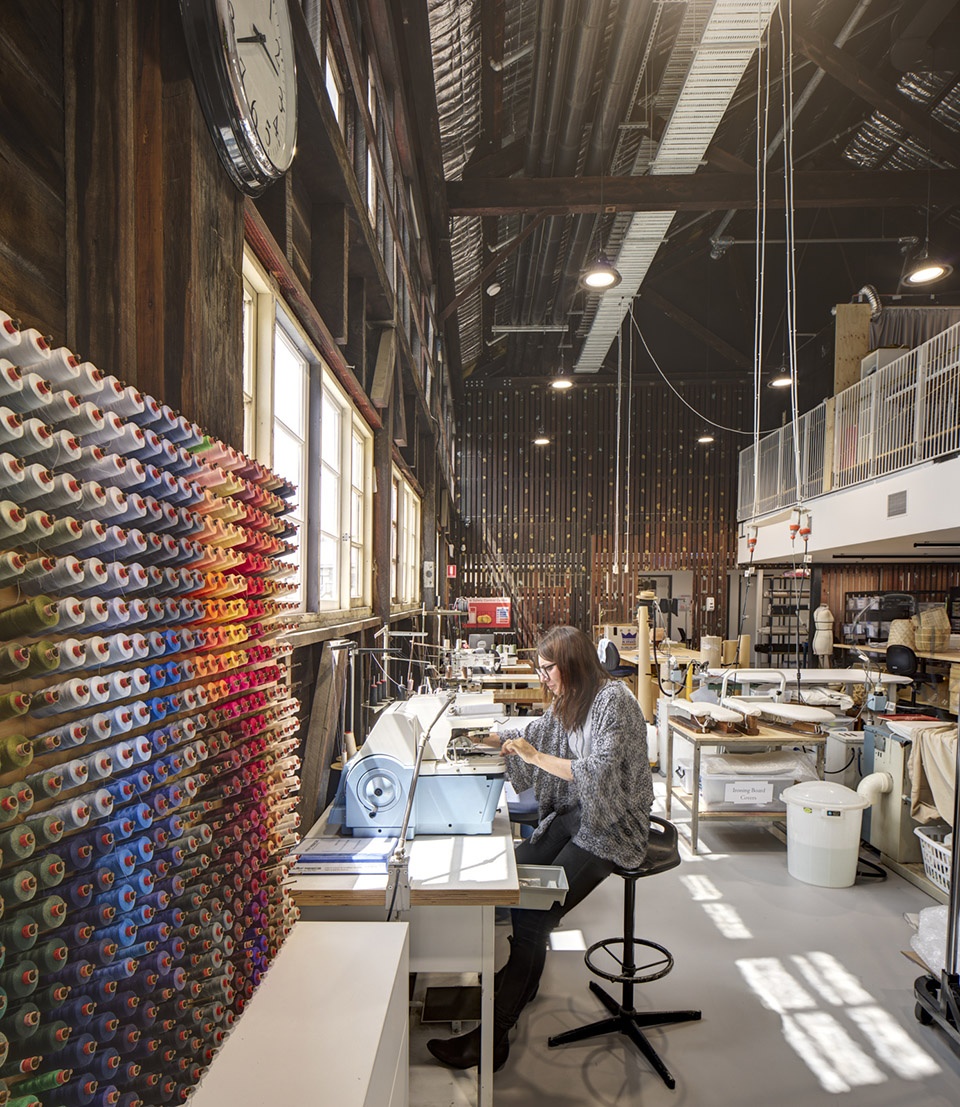

▼服装部门,Costume department © Brett Boardman

场地尽头的酒吧上方还设有尼尔森家庭画廊,可用作School Drama™教学空间、工作坊、排练空间、活动和对外出租场地。

The Neilson Family Gallery is a new space above The Bar at the End of the Wharf that can be used for School Drama™ education, workshops, rehearsals, functions and external venue hire.

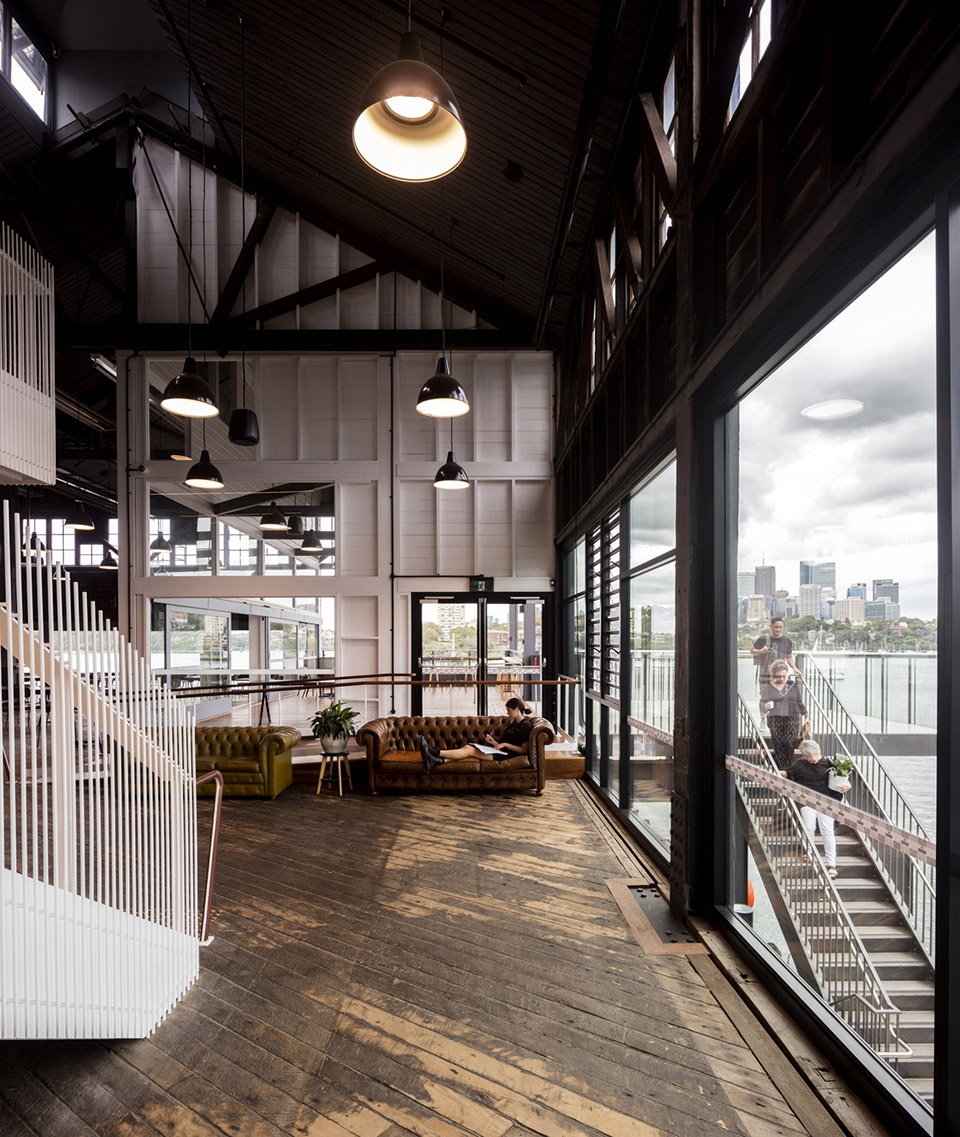

▼休闲区,seating area © Brett Boardman

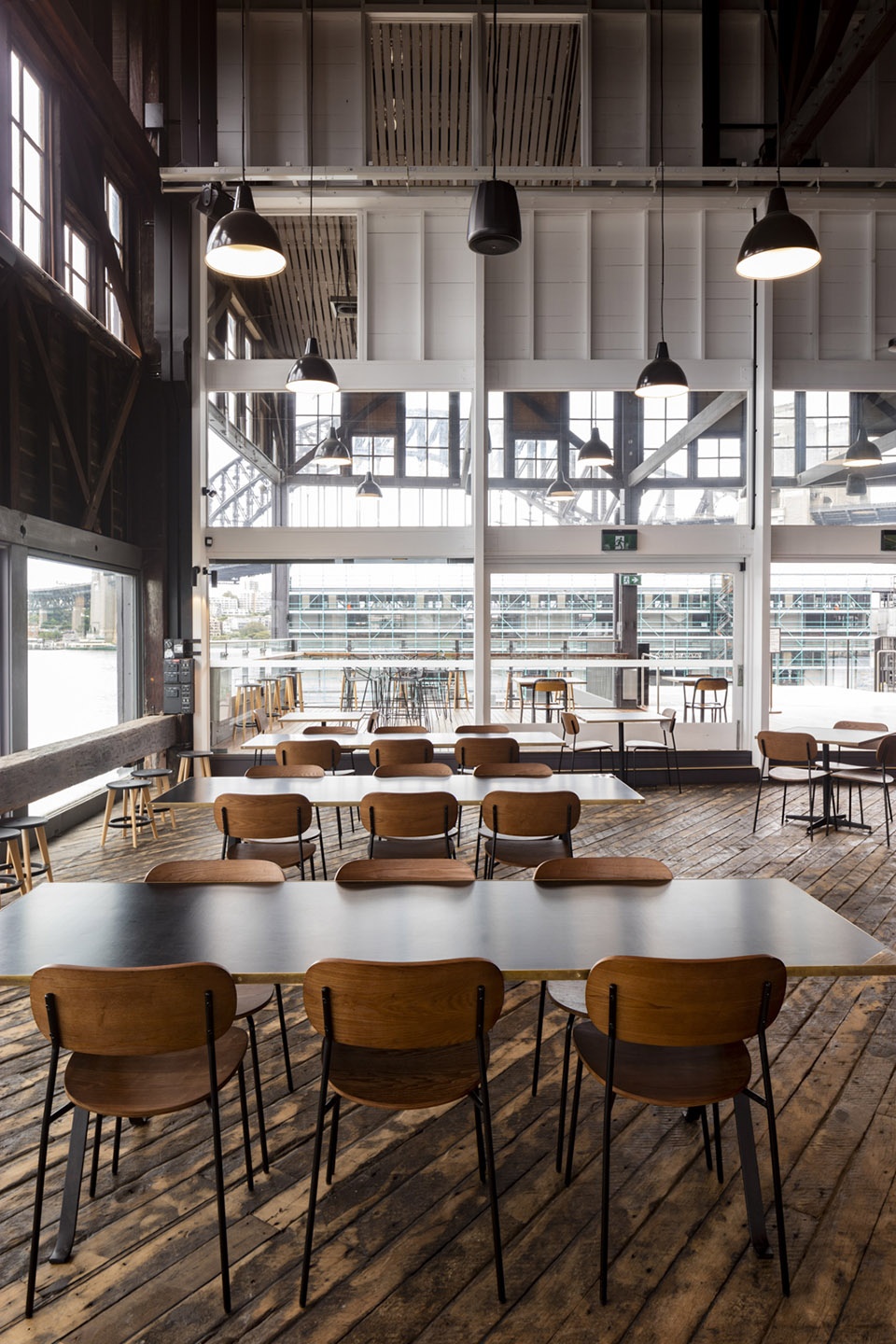

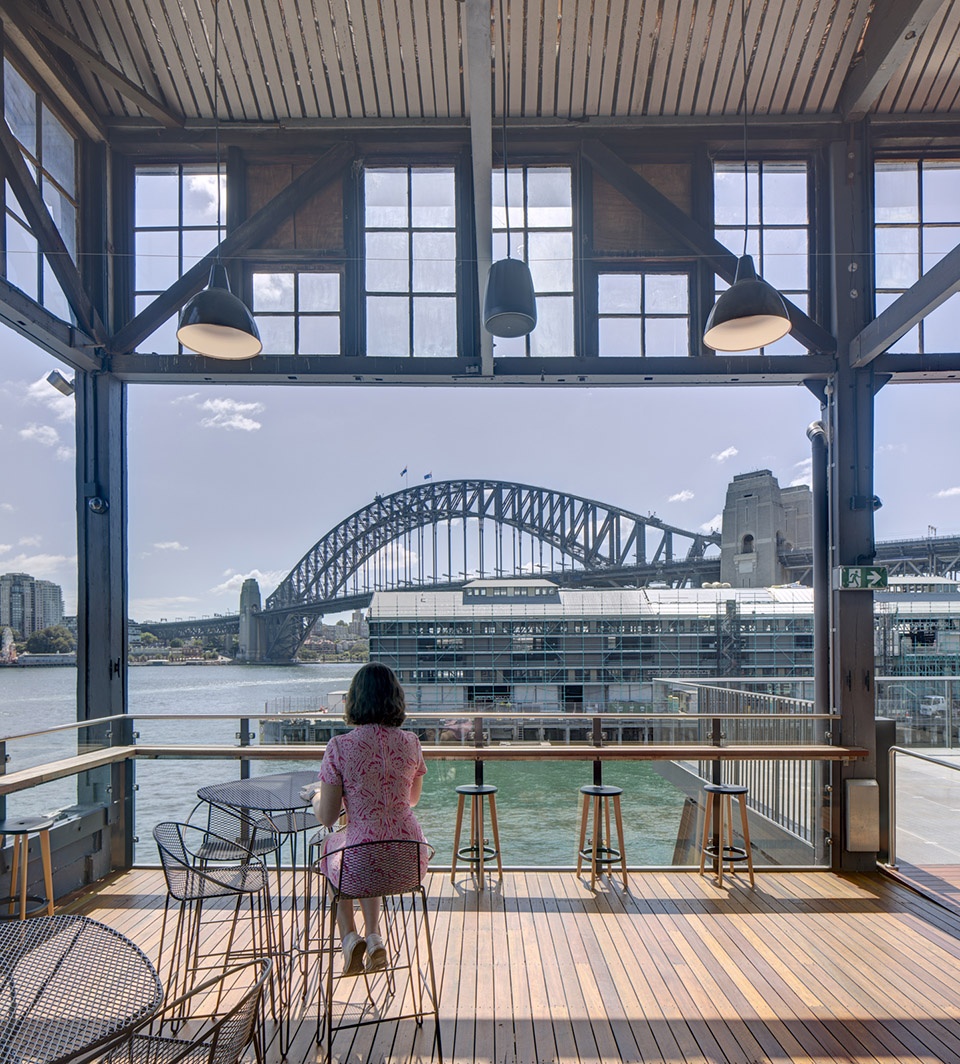

▼酒吧和户外平台,the bar and the terrace © Brett Boardman

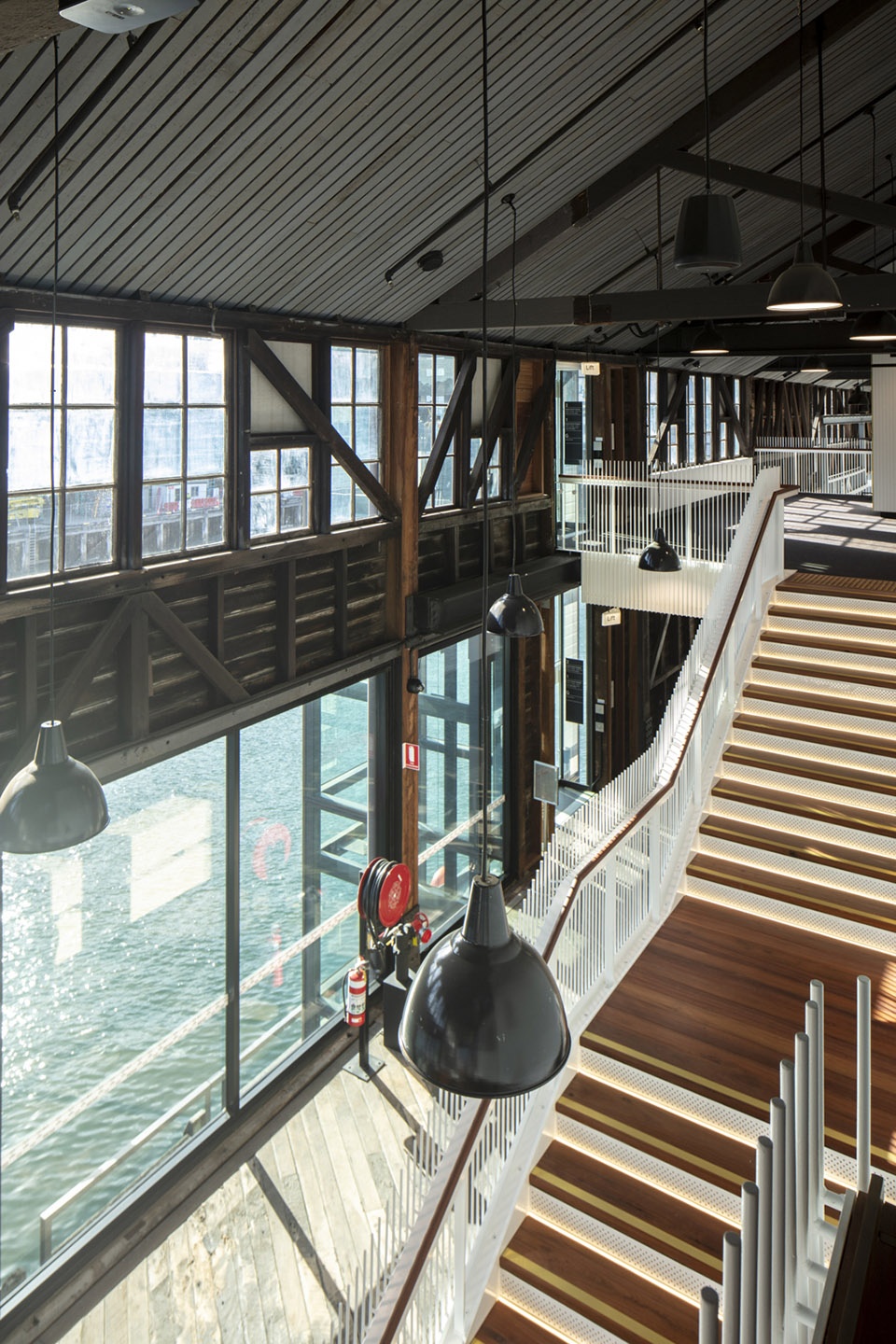

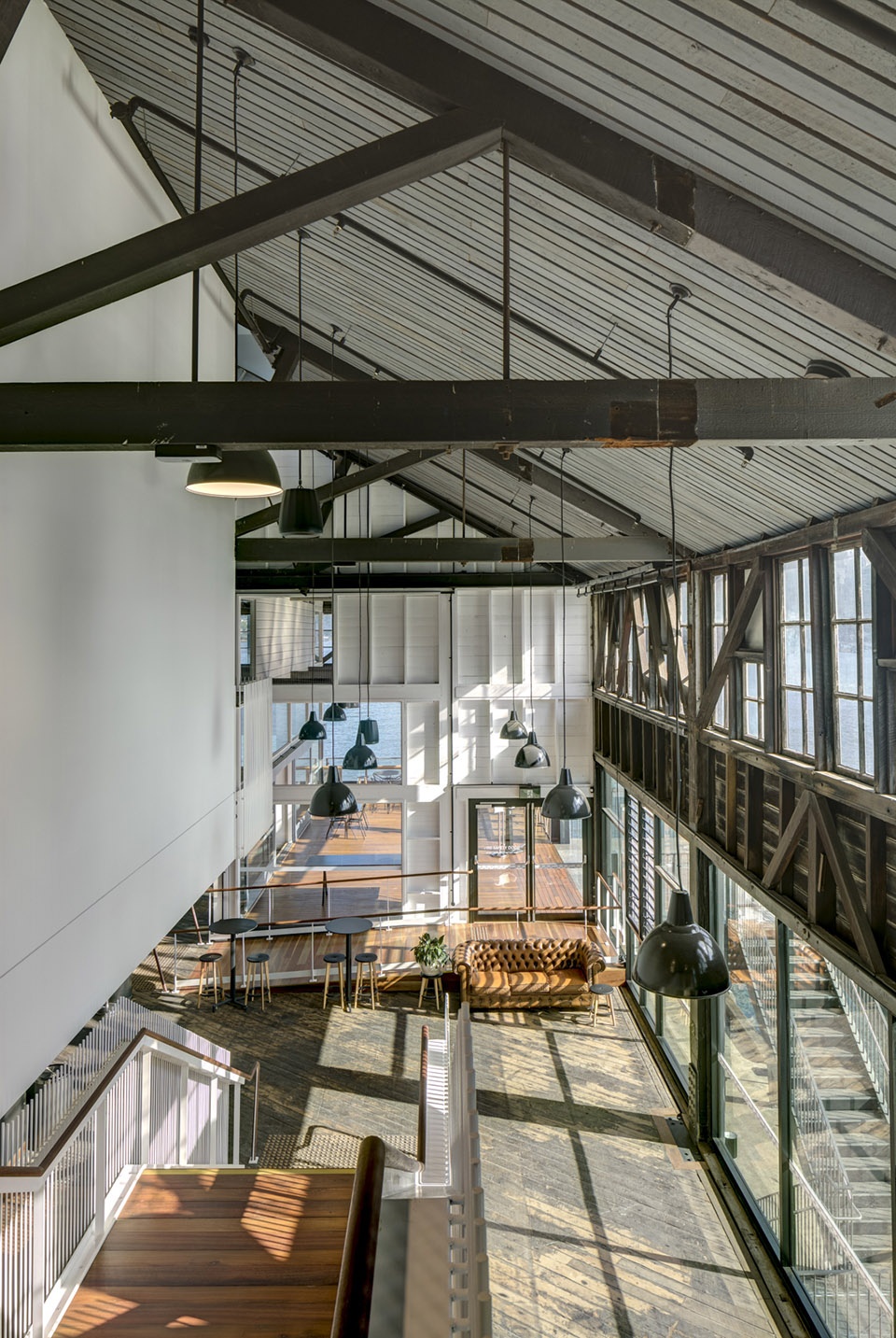

▼通高交通空间,the full height circulation space © Brett Boardman

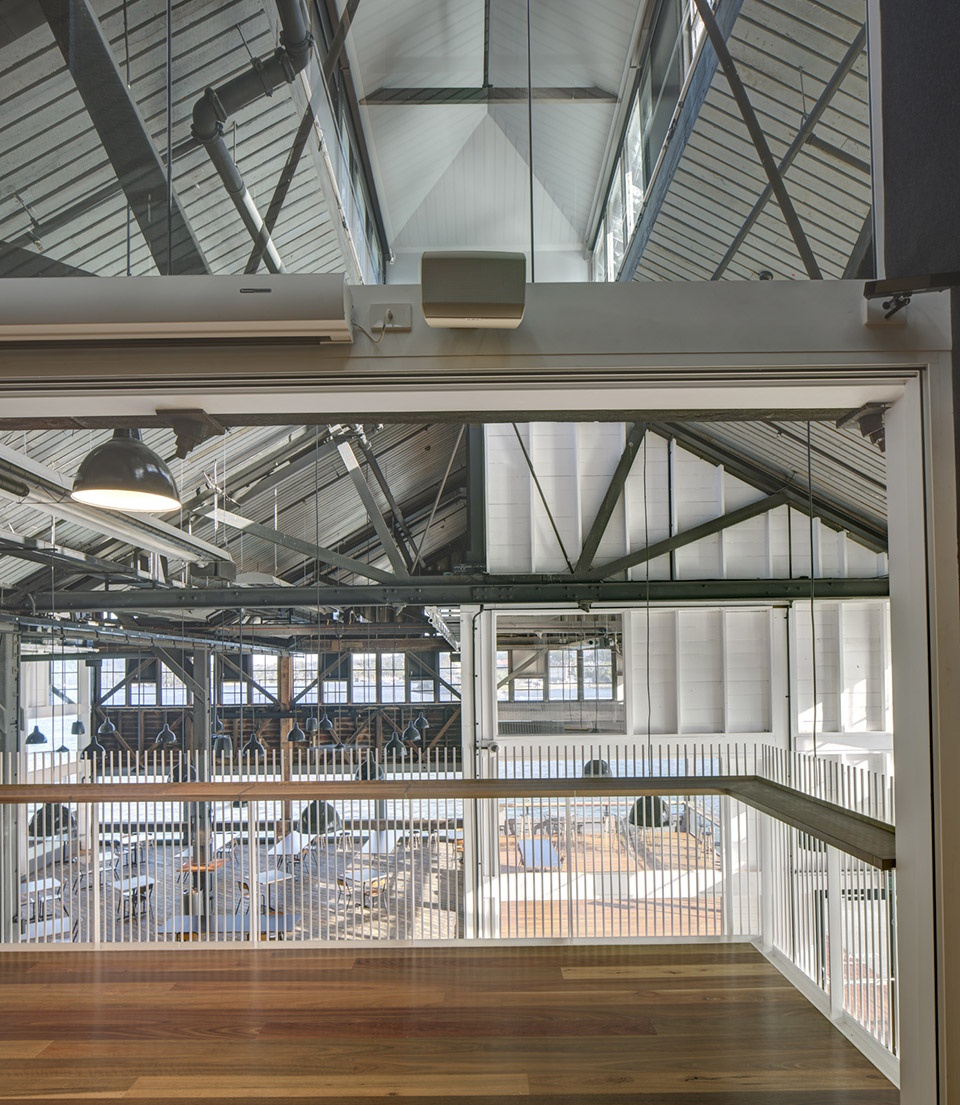

▼顶层画廊空间,gallery space on the top floor © Brett Boardman

1号码头剧院现已安装南半球第一套沉浸式的Meyer Sound Spacemap Go系统,令作曲家和声音设计师更容易地创造出环绕式音响体验,同时扩大音响系统的控制范围。

The Wharf 1 theatre is now home to the first immersive Meyer Sound Spacemap Go system to be installed in the southern hemisphere, which makes it easier for composers and sound designers to create surround sound experiences and offers them a far greater range of sound system control.

▼Wharf 1剧场使用场景,Wharf 1 Theatre © Brett Boardman

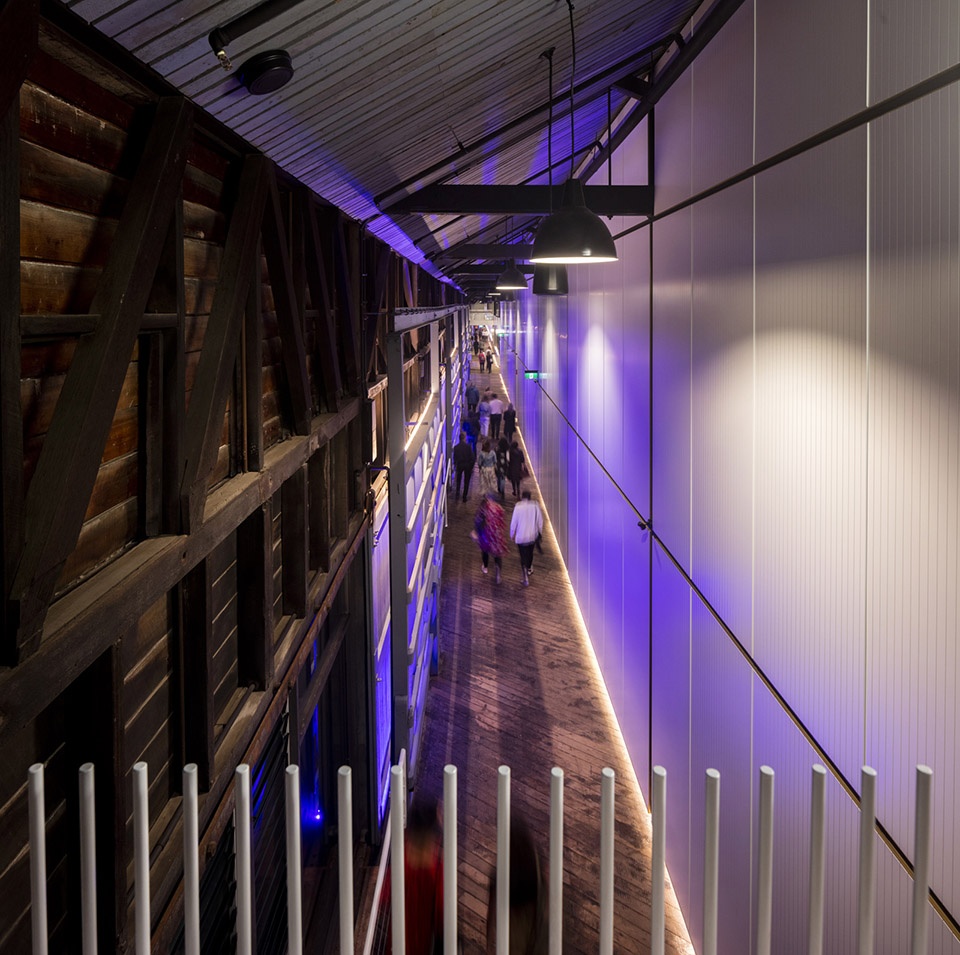

▼演出结束后的长廊,The long walk post-show © Brett Boardman
