Pillars of Dreams by MARC FORNES / THEVERYMANY

The cloud-like continuous skin in two layers

Project Specs

Materials:

感谢 MARC FORNES/THEVERYMANY 予gooood分享以下内容。更多关于他们:MARC FORNES/THEVERYMANY on gooood.
Appreciation towards MARC FORNES/THEVERYMANY for providing the following description:

这个26英尺高的云朵状装置位于北卡罗来纳州夏洛特市的Valerie C. Woodard中心的广场上。

A 26 feet cloud-like formation hovers in the plaza of the Valerie C. Woodard Center in Charlotte, North Carolina.

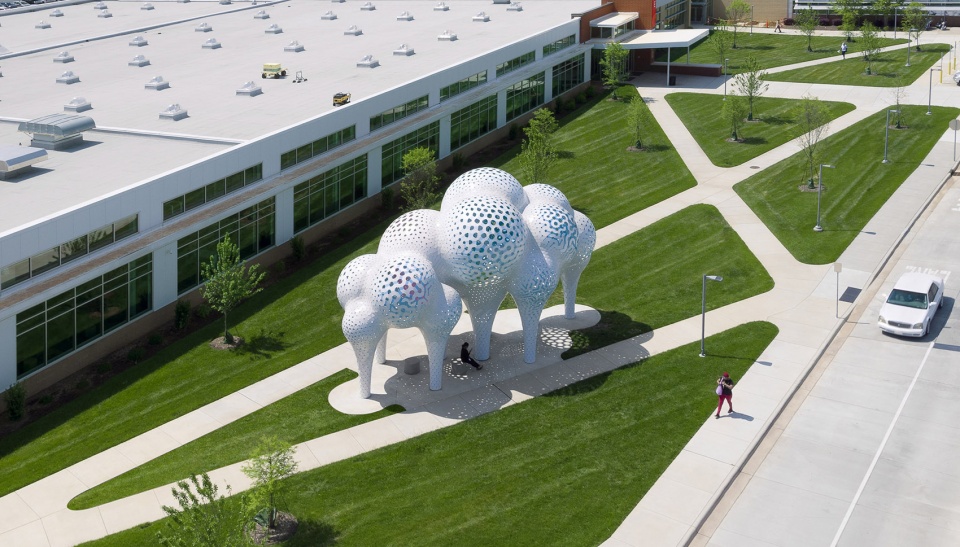

▼展览装置鸟瞰图,bird-eye’s view of the Pillars of Dreams

“梦之柱(Pillars of Dreams)”是一个轻质的地标式展览亭装置;其开放式的空间体量看似是由空气填充而成的,实则是由一个连续的超薄铝制结构表皮围合并支撑起来的。该装置的表皮共有两层,拥有迷宫般的独特形式,在天篷较为宽敞的位置设置一系列开口,并在双曲率表皮的接缝处、或是双曲率表皮分化为九个空心柱的位置逐渐收缩。

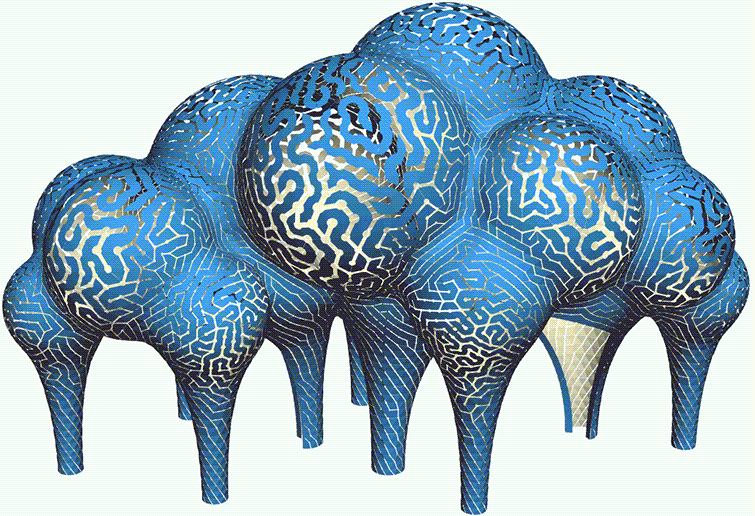

▼展览装置构建过程,buildup process of the Pillars of Dreams

Pillars of Dreams is a landmark pavilion and lightweight structure; its open volumes appear to be filled with air, but they are held up by a continuous structural skin in ultra-thin aluminum. A labyrinth of unique parts unfurl across the surface in two layers, which produce openings over the broader expanses of the canopy and contract where the double-curvature meets in seams or resolves into nine hollow columns.

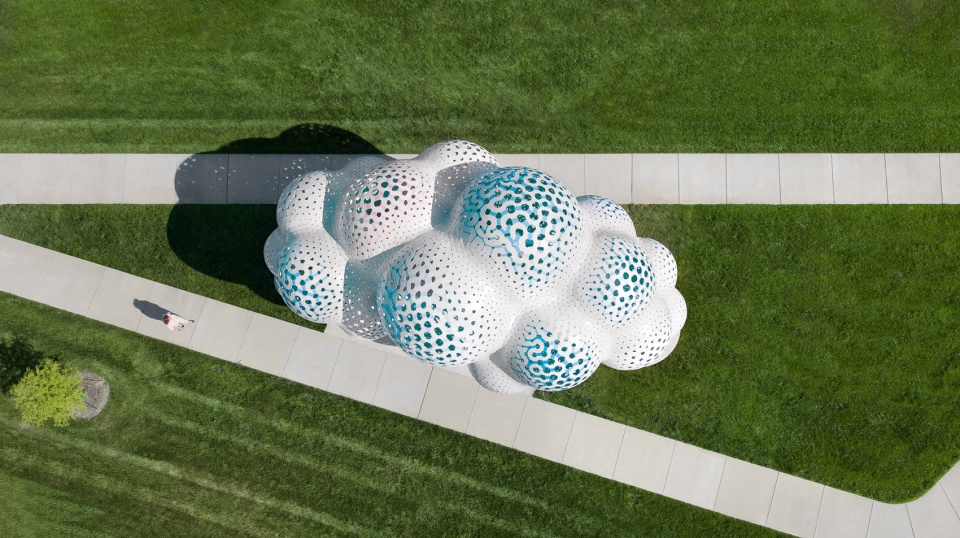

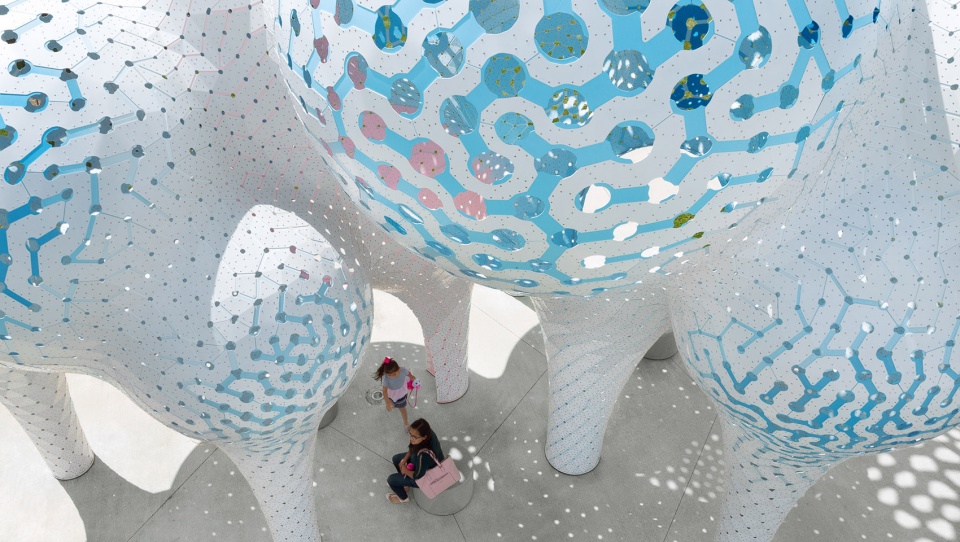

▼展览装置俯视图,采用云朵般的造型,top view of the Pillars of Dreams in a cloud-like formation

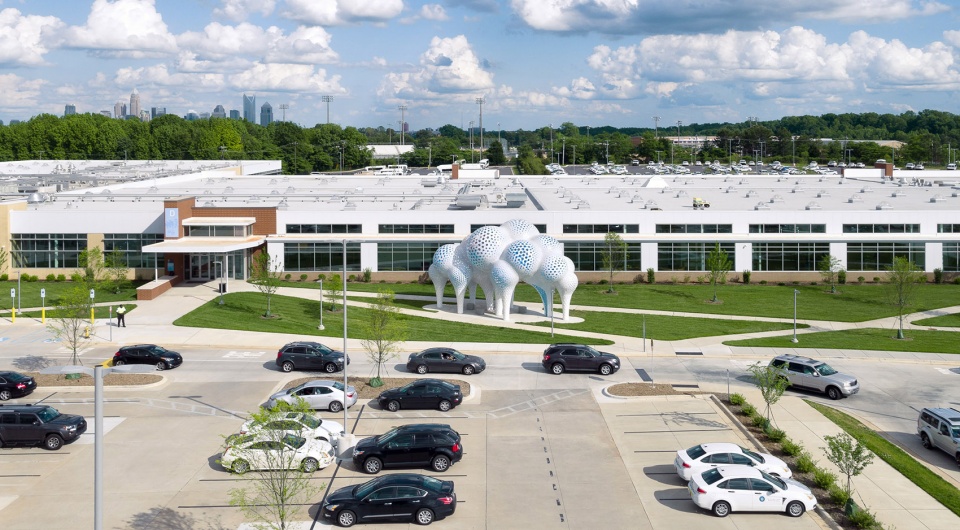

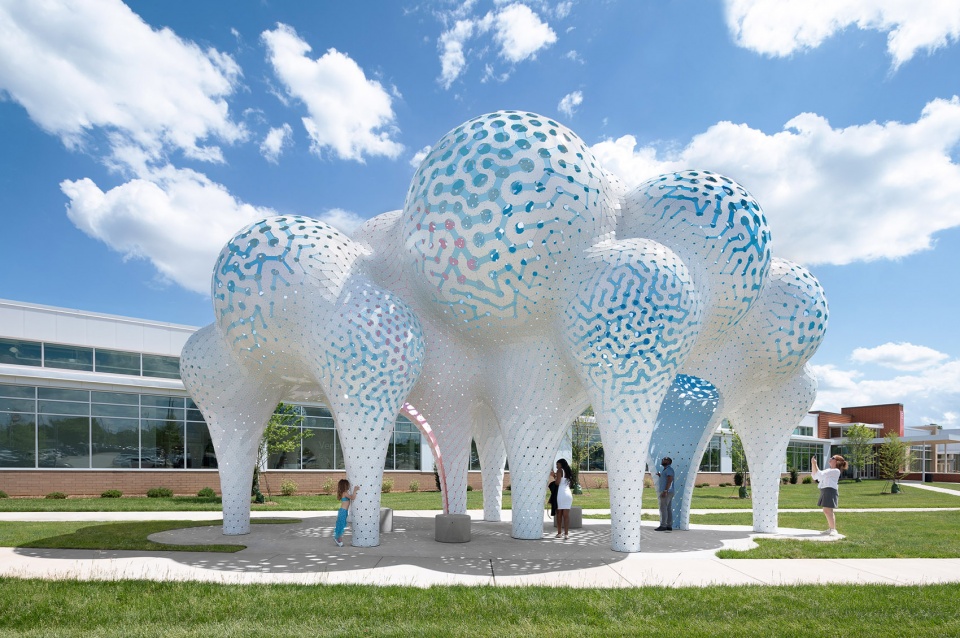

▼展览装置远景图,采用双曲率造型的双层表皮,distant view of the Pillars of Dreams with two-layered double-curvature skin

▼展览装置外观,由一个连续的超薄铝制结构表皮围合并支撑,exterior view of the Pillars of Dreams that is held up by a continuous structural skin in ultra-thin aluminum

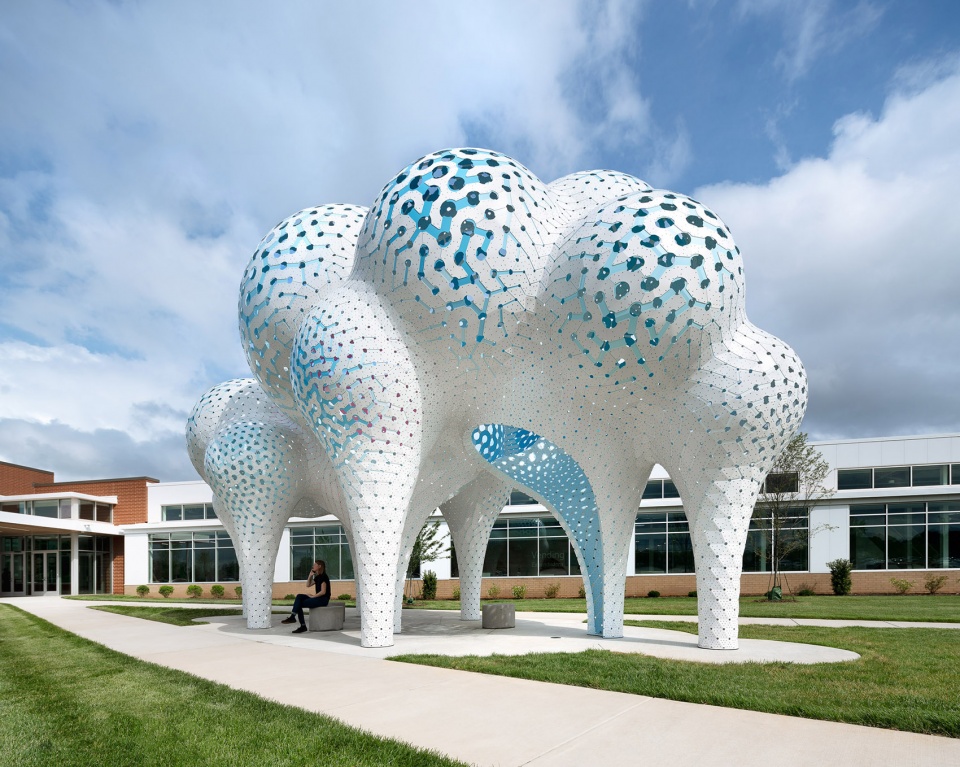

▼展览装置外观,采用白色外表皮,exterior view of the Pillars of Dreams with a white exterior face

展览空间的白色外表皮隐藏了其内部丰富的颜色。内部的蓝色透过白色外表皮上的开口显露出来。从远处看,整个展览装置结构呈现出一种柔和的色调,但是人们仍然可以看到起内部渐变的色彩。街道上的行人们会被其独特的外观而吸引,但只有当他们近距离观察的时候,才能了解这个结构。而随着行人因为好奇心慢慢走近这个展览亭装置,他们所看到的颜色会逐渐变深,最终被空间内部的丰富色彩而包围。

The white exterior face shrouds the saturated coloration on the interior. Openings in the veil suggest the the energy inside, where cross-laminated stripes in a set of bright hues peek out from the interior. From a distance, the structure strikes a soft tone, but the viewer can still register the pulsing glow of the gradient within. It catches the eye from the street, but must be approached to be understood. The intensity of color grows as one nears the pavilion and finally envelopes the viewer upon entry—curiosity rewarded.

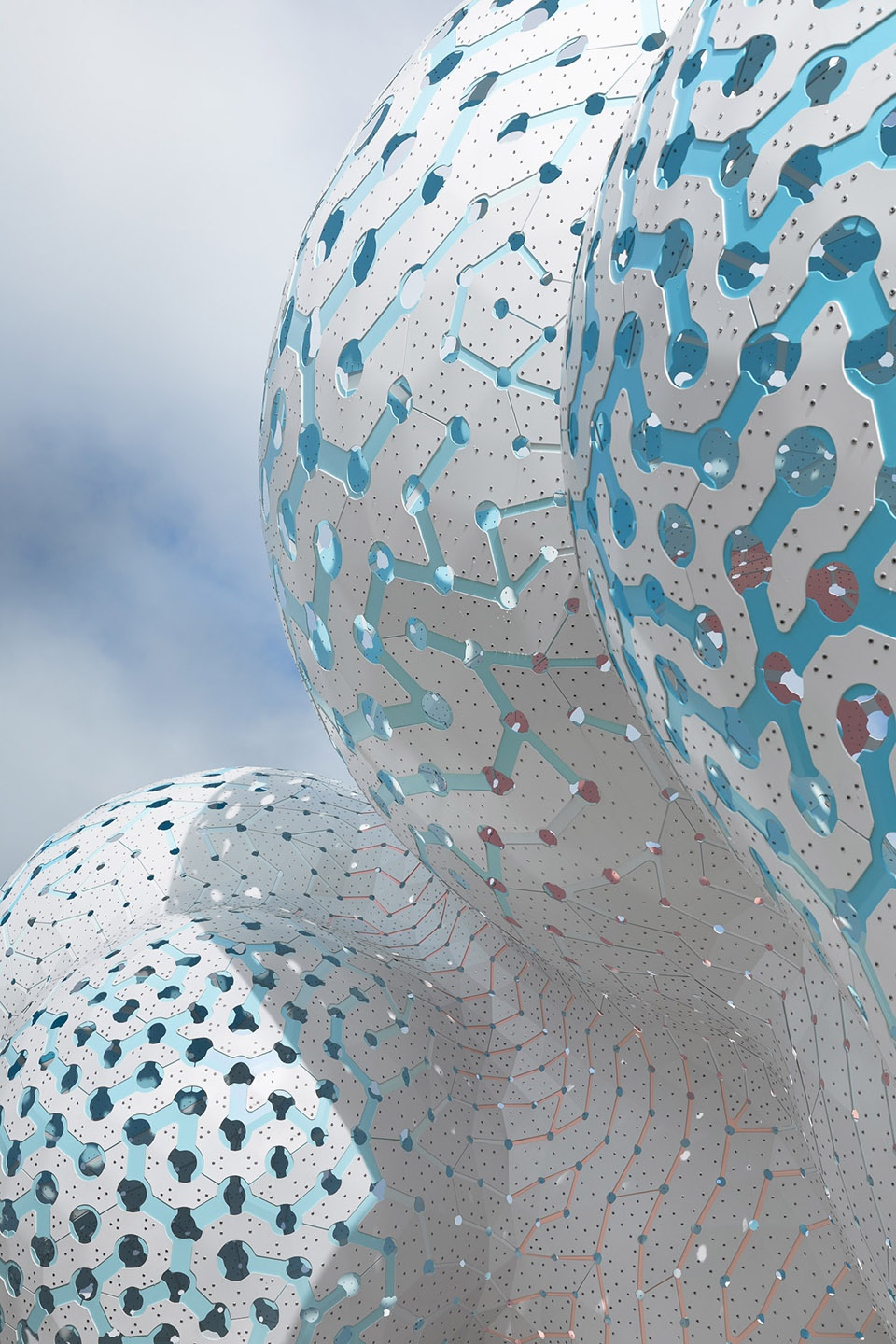

▼展览装置外观局部,内部空间的颜色透过白色外表皮上的开口显露出来,exterior view of the Pillars of Dreams, the interior colors peek out from the openings in the white veil

这种复杂的表皮在装置内部的下方空间中营造出一种极具动感的氛围。内部空间色彩丰富,阳光不仅在这里创造出迷人的光影效果,其投射出的光带也为人们提供了一系列休闲空间——人们可以沿着装置的长边悠闲地散步,也可以借助错列的支撑柱进行一场捉迷藏的游戏,或者就坐在天篷下,享受片刻的宁静时光。

The complex skin generates a dynamic atmosphere in the space below. The atmosphere within, full of color and dappled light, inspires curiosity, collegiality, and a renewed spirit of place. Graphic shadows and projected light patterns lend magic to a casual stroll along its length, a game of tag around staggered legs, or a restful moment seated under the canopy.

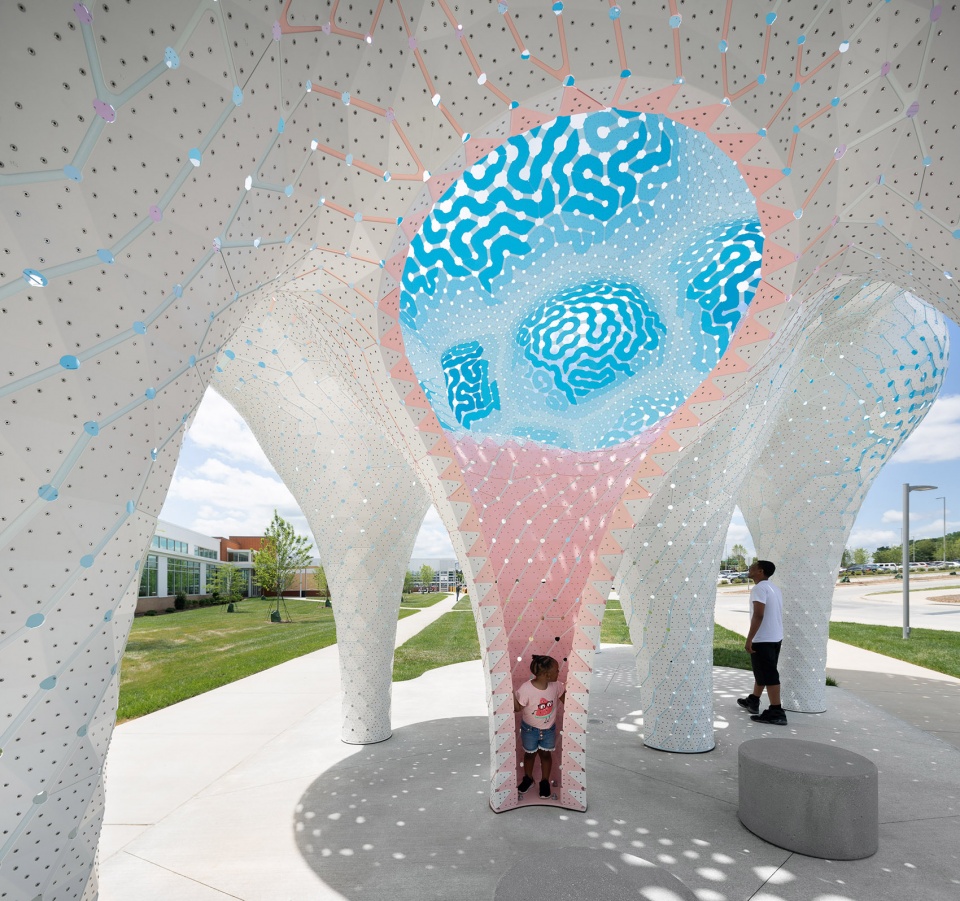

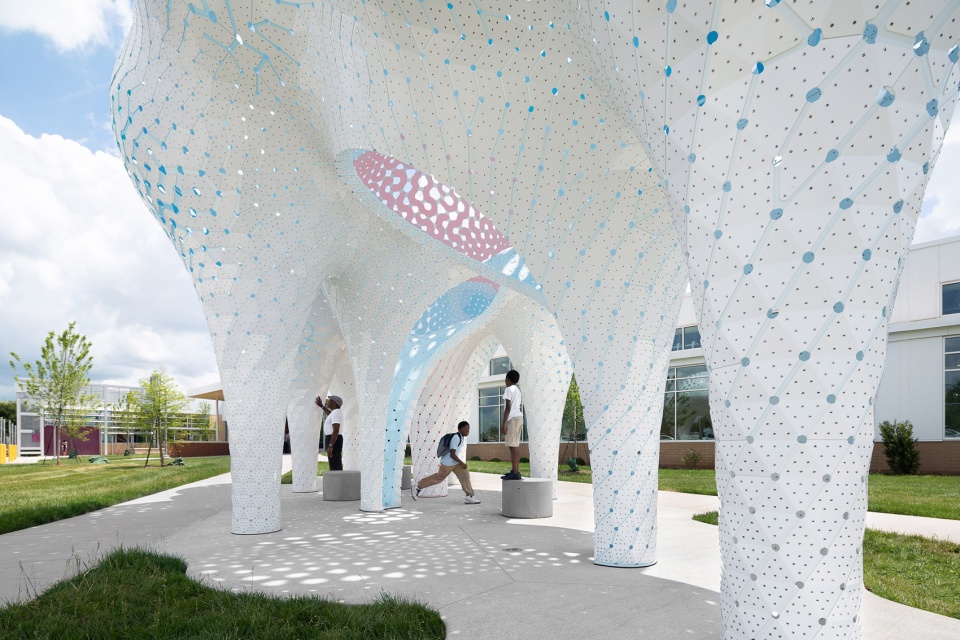

▼装置下方空间局部,可以坐在天篷下享受片刻的宁静时光,the space below the complex skin, people can have a restful moment seated under the canopy

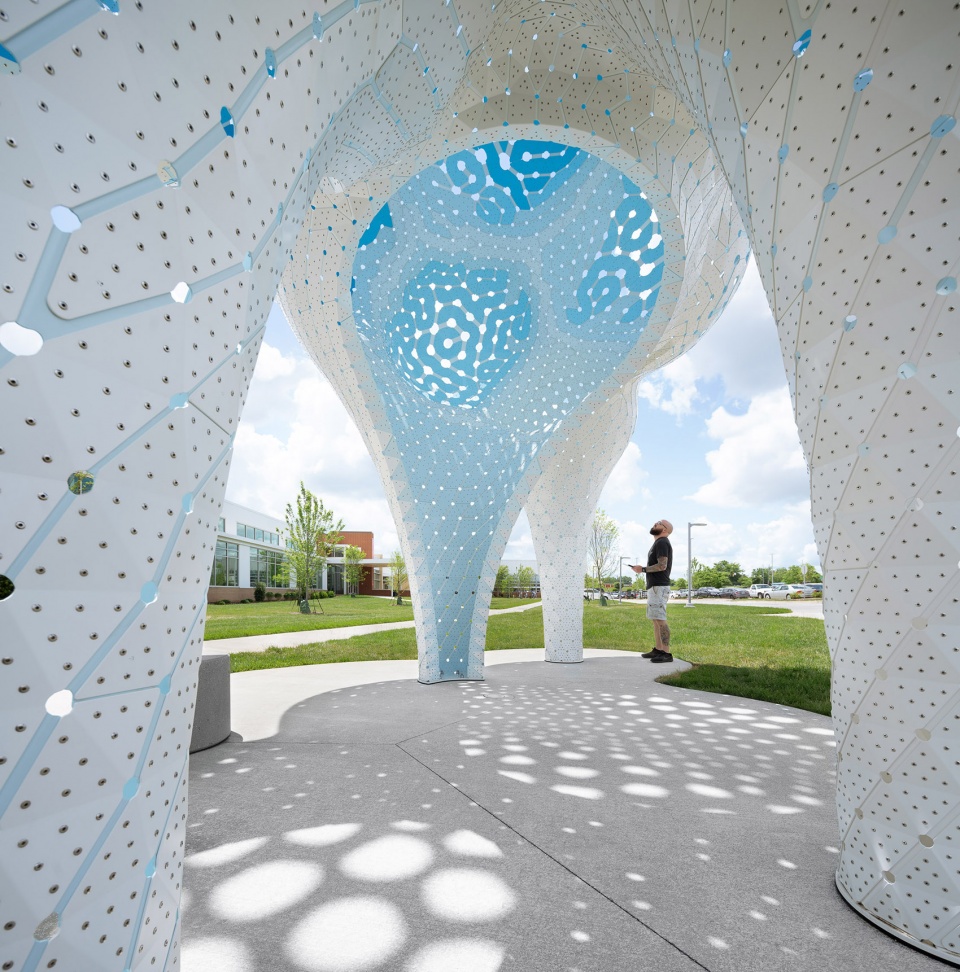

▼装置的内部空间,极具动感,interior space of the Pillars of Dreams in a dynamic atmosphere

▼装置的内部空间,色彩丰富,interior space of the Pillars of Dreams that is full of color

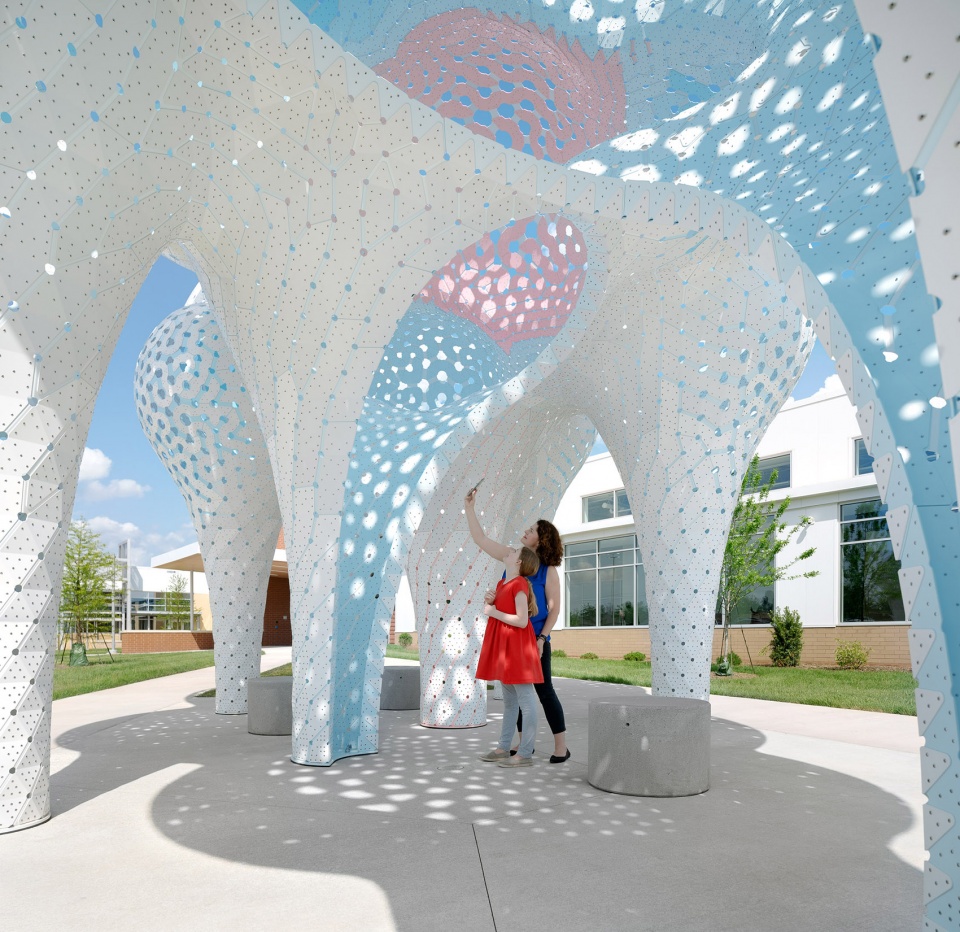

▼装置的内部空间,可以在柱子处捉迷藏,interior space of the Pillars of Dreams, providing a game of tag space around staggered legs

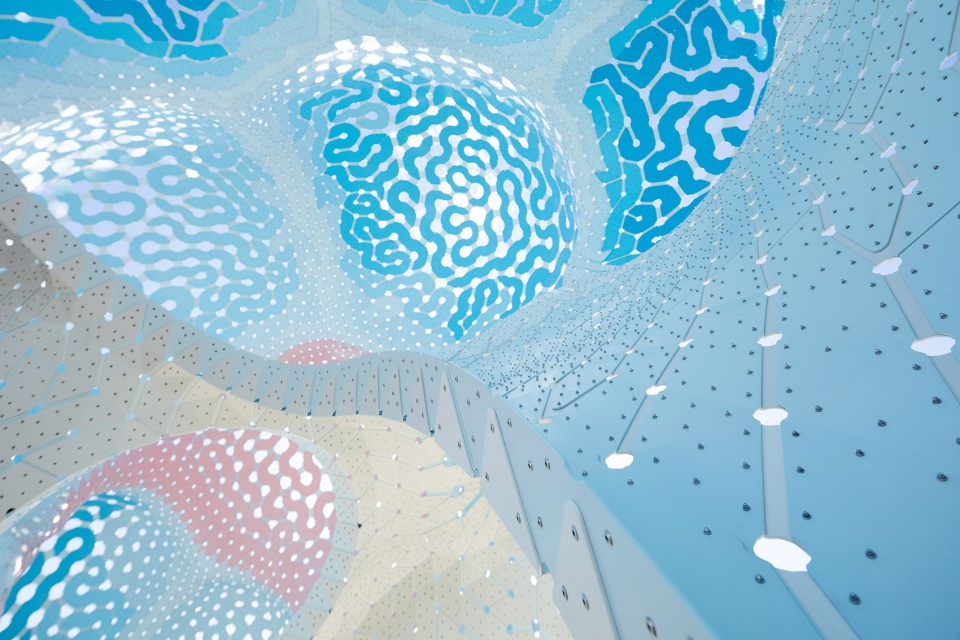

▼装置的内部空间,阳光创造出迷人的光影效果,interior space of the Pillars of Dreams, sunlight creates a light and shadow effect through the skin

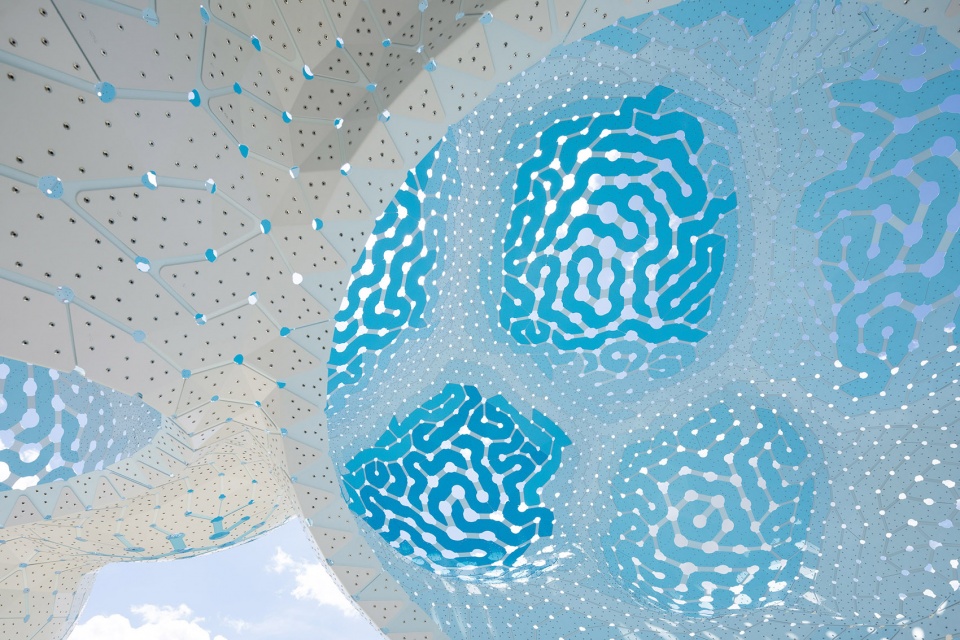

▼装置内表皮细节,details of the inner skin of Pillars of Dreams

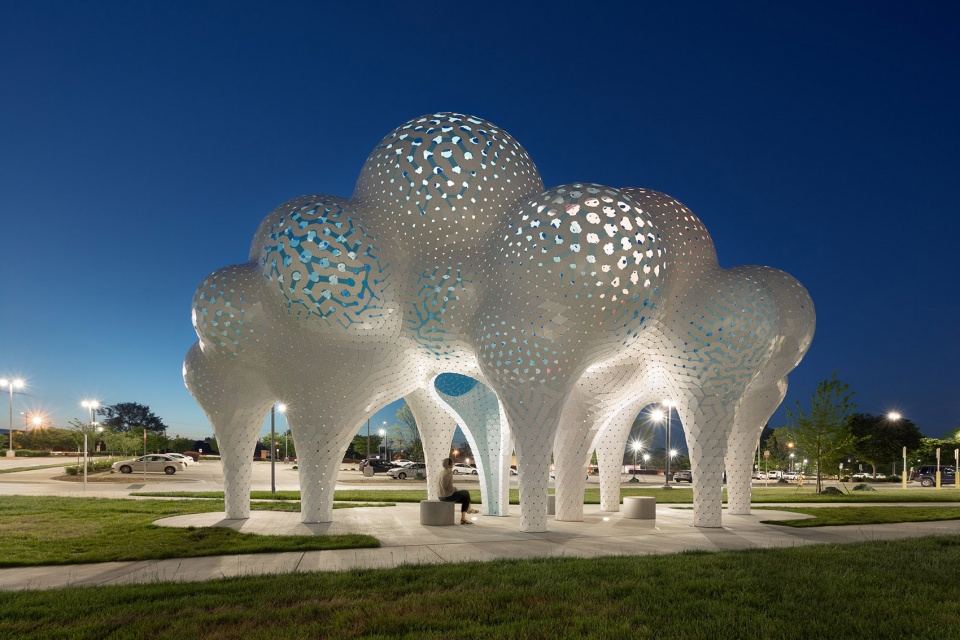

▼展览装置夜景,night view

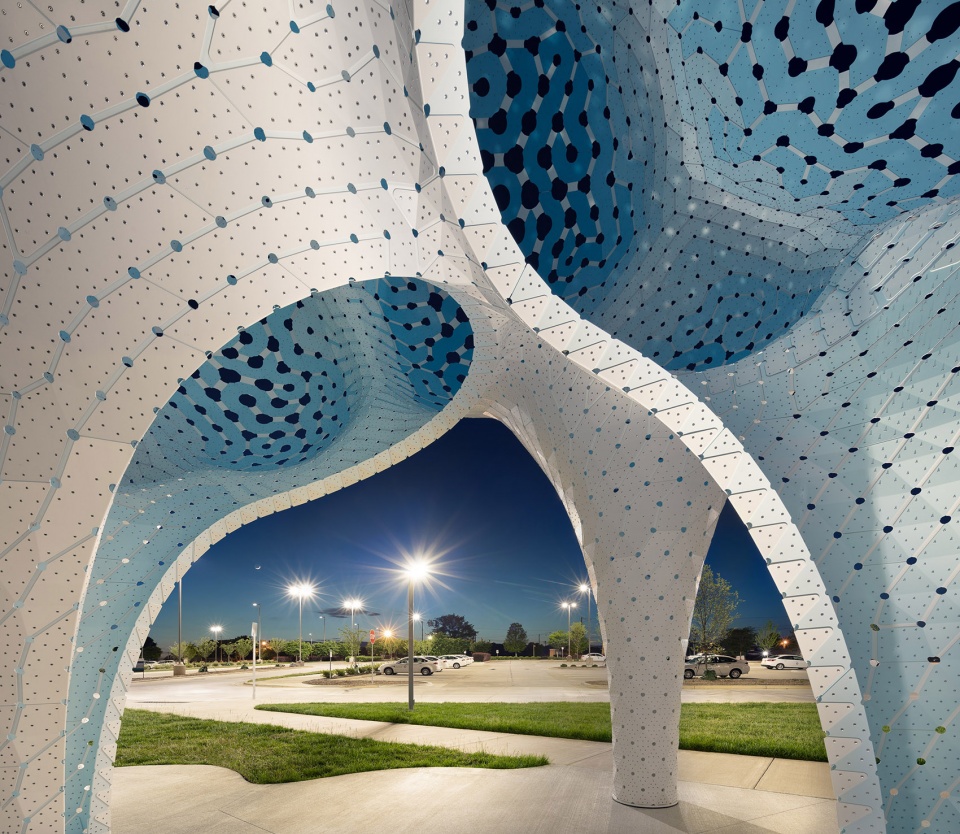

▼装置内部夜景,night view of the interior space

Dimensions: 26.5’ H x 23’ W x 43’ D
Material: two layers of 3mm aluminum
Linear Cut Distance: 11,000 meters
Number of Parts: 3,564
Number of Rivets: 54,000
Design/Build by MARC FORNES / THEVERYMANY
Photography by NAARO
