OCT OH BAY, Shenzhen, China by Laguarda.Low Architects

Illuminate the waterfront space of the city

Project Specs

Location:

感谢 Laguarda.Low Architects (LLA) 予 gooood 分享以下内容。更多关于他们:Laguarda.Low Architects (LLA) on gooood
Appreciation towards.Laguarda.Low Architects (LLA)  for providing the following description:

2020年起分阶段对公众开放的深圳宝安欢乐港湾项目是华侨城集团倾力打造的新一代文旅商业综合体项目,由美国LLA建筑设计公司(Laguarda.Low Architects)担纲项目的总体规划和建筑设计。在项目的海滨文化公园率先亮相之后,其东岸商业街区也在2021年春节开业,为游者提供了新的体验和服务。位于演艺中心另一侧的西岸商业街区今年稍后也将投入运营。届时,项目将以完整的姿态,展现深圳又一个集文化、休闲、商业、旅游于一体的高品质打卡地。

深圳是大湾区发展战略的重中之重,宝安中心区凭借其优势地理位置,也迎来了全面发展的良机,其临海湾区一带更是成为了炙手可热的开发热土。正是在这样的背景下,华侨城集团于数年前谋划在宝安中心区中央轴线和滨海休息带的交汇点上打造欢乐港湾这样一座代表深圳未来创新城市生活方式,体现华侨城文旅开发新一代理念的多功能综合项目。

▼项目视频,Video ©童艳龙

Honoring Shenzhen’s history as a regional market town, the master plan for Bao’an OCT OH BAY breathes new energy into China’s first economic zone. Laguarda.Low Architects’ concept for the 128-acre park is a representation of growth, joining commerce with world-class cultural facilities. Located along a three-quarter mile waterfront site, the program features four primary zones — East and West Waterfront Retail Park; Urban Business Center; and Waterfront Cultural Park.

▼欢乐港湾整体鸟瞰,Overall aerial view of OCT OH Bay ©童艳龙

欢乐港湾项目凭借其开阔的海湾景色、充满情趣的公园设计、优质的文化和艺术设施、独特的地景式建筑、以及开放通透的商业和公共空间构成,反映了深圳发展、创新、活力、多元的城市精神。

Woven throughout this collective of mixed-uses is an ecological blanket – a flowing natural landscape that envelopes the site, connecting the zones via pedestrian paths.

▼港湾东岸鸟瞰,Aerial view of the East side of the project ©童艳龙

▼港湾西岸鸟瞰,Aerial view of the West side of the project ©童艳龙

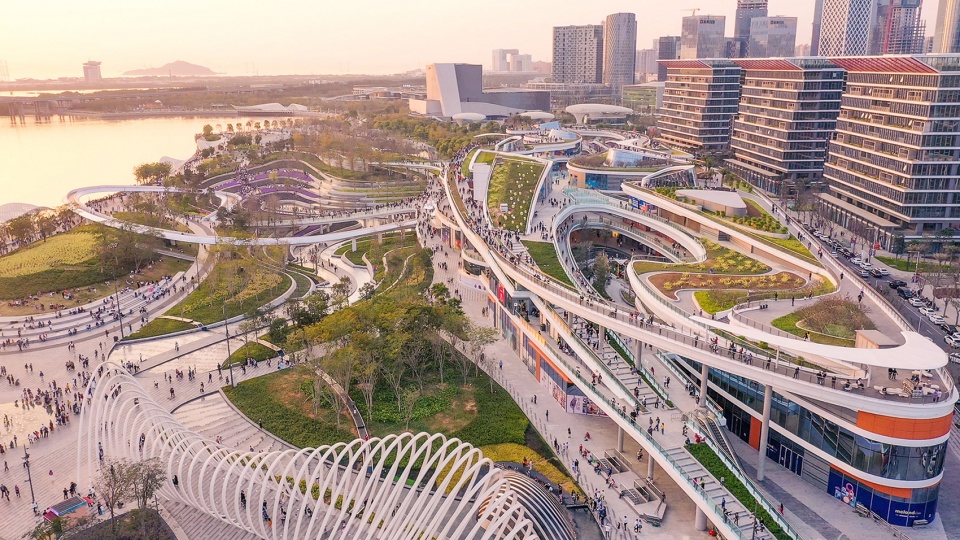

▼鸟瞰东岸商业街区及海滨公园,Aerial view of OCT OH BAY East Waterfront Retail Park ©童艳龙

深圳宝安欢乐港湾包含数个板块:东岸商业街区、西岸商业街区、海滨文化公园、海府一号商务区、演艺中心。项目的总体规划方案由LLA完成,通过对公园游览流线、景观元素及公共空间的精心规划,使得它们与项目的文化、艺术、商业、商务、交通等功能业态有机融合,相辅相成,相得益彰。

The West Waterfront Retail Park includes entertainment venues, leisure facilities and performing arts center all emanating from an expansive open-air plaza. Water serves as a key element of the scheme, separating various aquatic activities while allowing the public to explore the waterfront by boat.

On the East bank, a four-story experiential retail park is linked by gently sloping ramps, escalators and bridges layered beneath an expansive green roof ribbon. The traditional shopping experience is transformed with an abundance of natural light and choreographed circulation. An urban business center composed of terraced office buildings and hotel, serve as backdrop to the harbor, with green roofs set to collect rainwater and limit solar heat gain.

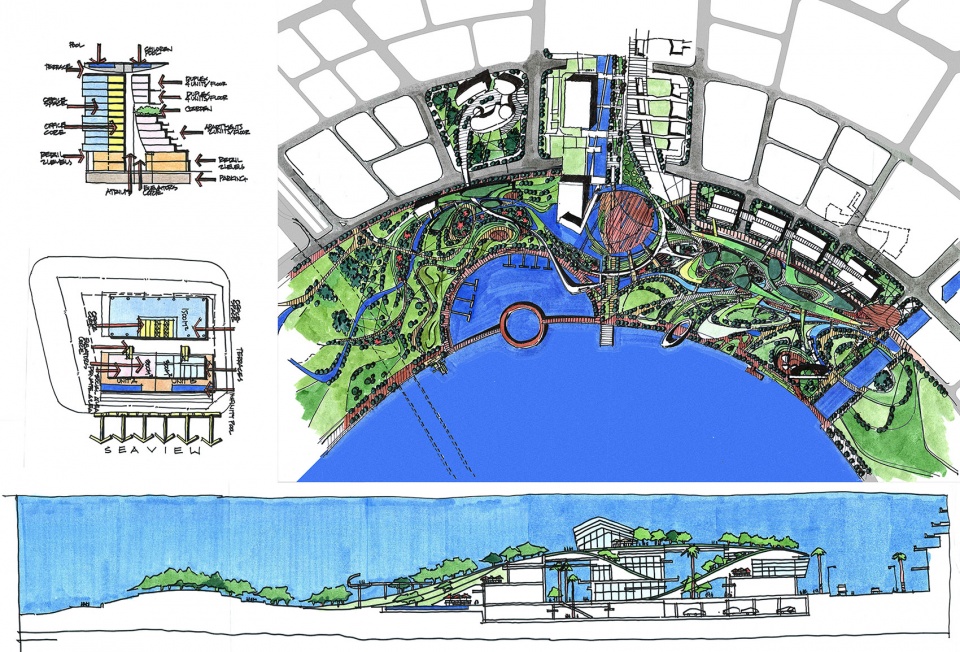

▼欢乐港湾规划手稿,Hand sketches ©LLA

LLA建筑设计公司力求将优美的生态环境和具有高度体验感的城市空间融合到项目的总体规划和建筑组设计中,使其与商务、商业、文化、休闲、居住等人类活动有机融为一体。为此,我们对“传统”的公园概念赋予了新的诠释和内涵,把一般纯粹和相对静态的公共绿色休闲场所与都市商务商业文化等功能融为一体,使公园生态系统成为城市与自然、商务与休闲、多功能互补可持续发展的粘合剂,既改善了城市品质,亦提升了项目价值。

With 1.5 million square feet of mixed-use expansion in the heart of Bao’an, OCT OH BAY sets a precedent for future development in Shenzhen. The streamlined, curvilinear nature of the project and public gathering space are unifying themes, melding the needs of a commercially viable program and burgeoning cultural district at an extraordinary scale.

▼欢乐港湾总平面图,OCT OH BAY site plan ©LLA



东岸商业街区
EAST WATERFRONT RETAIL PARK

2021年初开业的欢乐港湾东岸商业街区计容总建筑面积为3万5千平方米,它西连中央入口广场,东临“湾区之光”摩天轮,北靠“海府一号”商务区,南接公园立体景观。流畅的造型姿态、立体的动线组织、丰富的空间流转、开阔的视野景致,使其成为公园和项目的亮点和打卡地,它远远突破了商业设施单一身份和功能,在艺术性、观赏性、体验感等方面为整个项目增光添彩。

The 35,000 m2 RETAIL PARK consists of multiple pebble-shaped three-story volumes arranged organically along an elaborate waterfront park, facing south. These organic forms harmonize with nature on one side while multiple penetrations along the north side address the urban context. The porous nature of the project naturally draws visitors from the waterfront into the open-air retail environment, integrating shopping, food, and beverage venues seamlessly with nature.

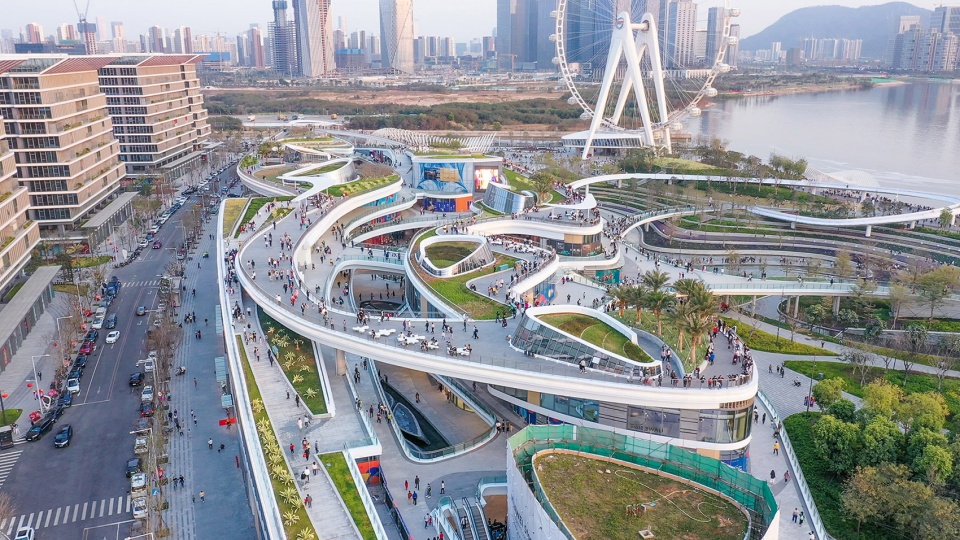

▼鸟瞰东岸商业街区、海滨公园及湾区之光摩天轮,Aerial of the East Waterfront Retail Park and Waterfront Cultural Park ©童艳龙

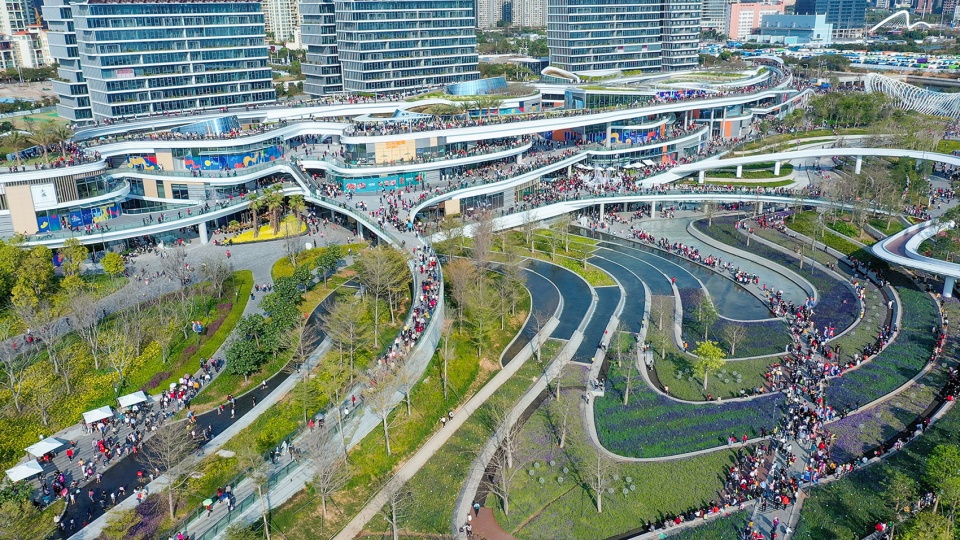

▼东岸商业街区及海滨公园,East Waterfront Retail Park and Cultural Park ©童艳龙

东岸商业街区地上主要二层、局部三层、地下一层,蜿蜒流畅的动线、错落有致的平台、流转交错的造型,给来访者带来生动而丰富的趣味和体验。街区内部空间与外部空间时合时分,行走其间,既可感受街区内部空间序列的丰富变幻,又可远眺海滨公园与前海湾美景。在这里,建筑与自然、商业与休闲完全交织在一起,创造出一种全新的独特体验。

The second and third floor volumes are stacked slightly off-kilter, shifting, and tilting as they rise above the ground plane. This movement creates sheltering overhangs dynamic terraces with breathtaking views beyond the waterfront park to the ocean. The boundary between building and nature, commercial space, and park land, is completely blurred, allowing for an unprecedented integration of retail development and a natural landscape.

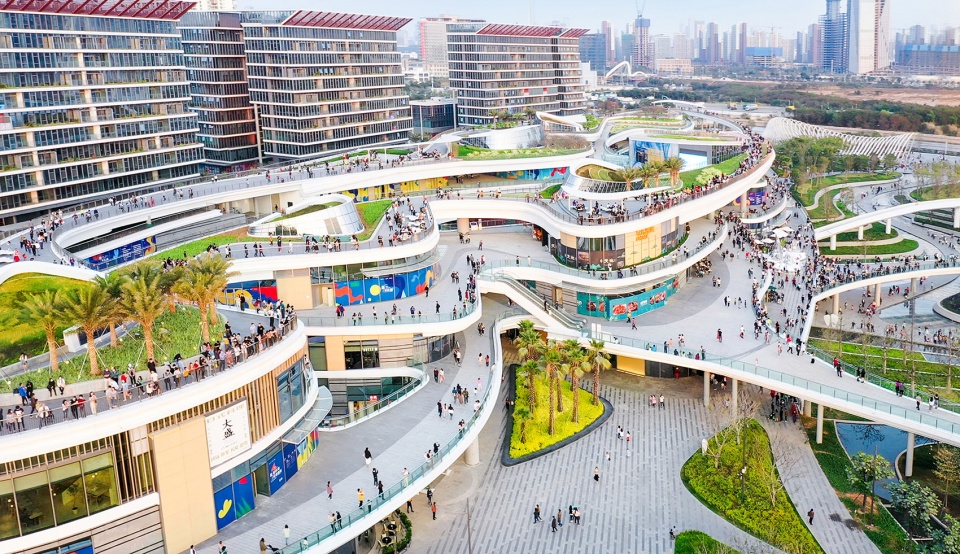

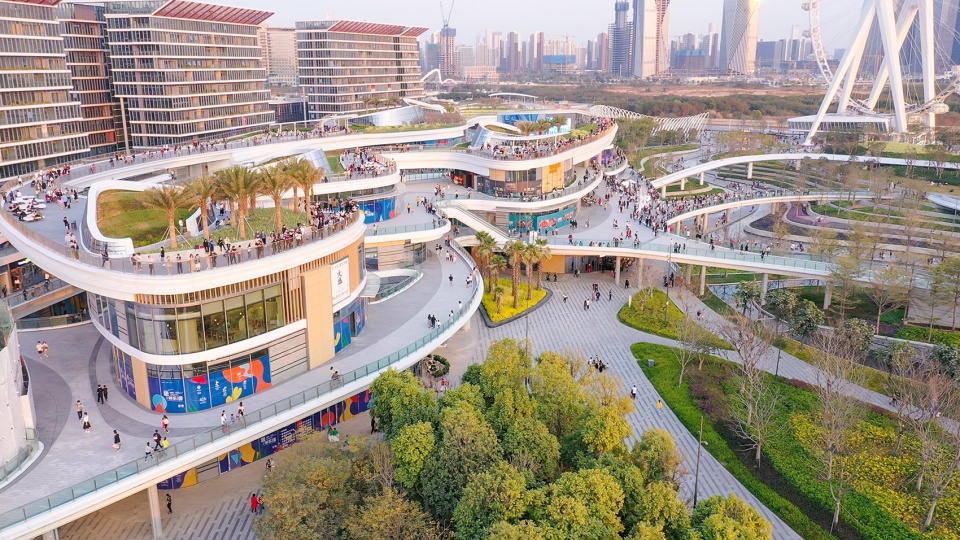

▼东岸商业街区鸟瞰,Aerial view of the East Waterfront Retail Park ©童艳龙

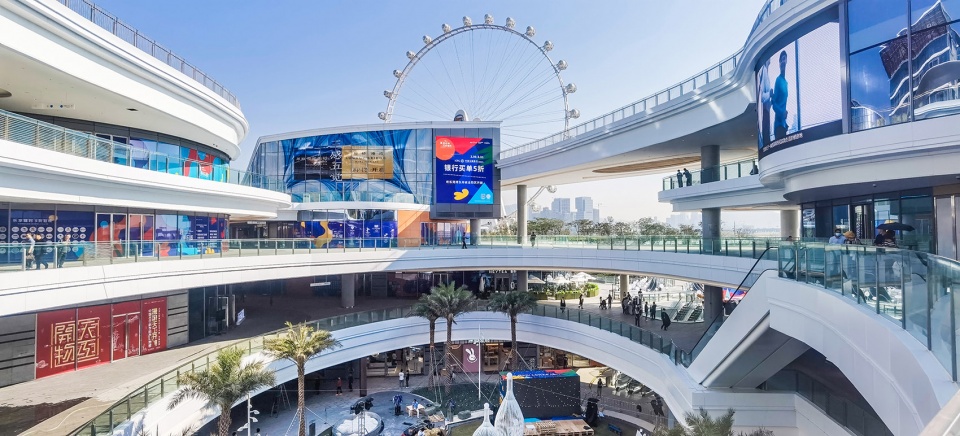

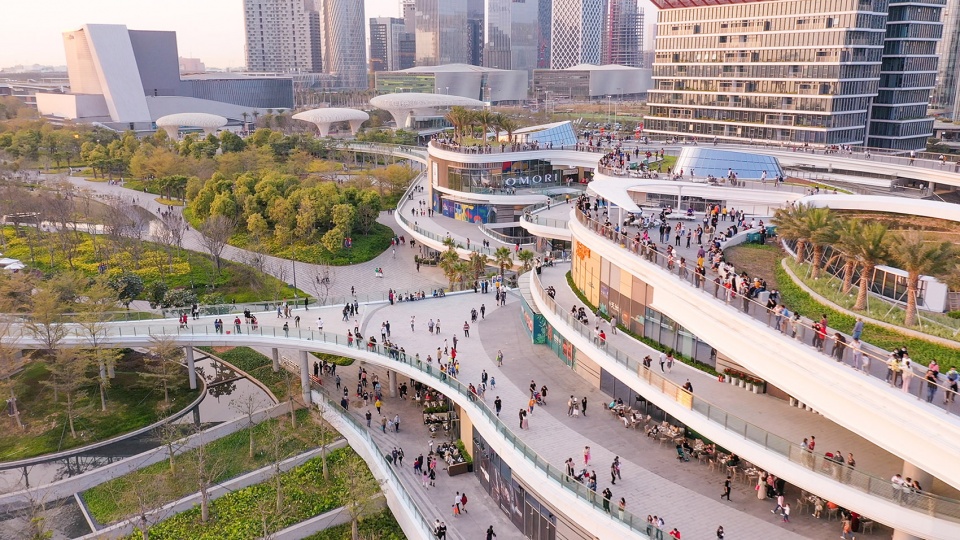

▼东岸商业街区内部,平台错落,Inside view of the East Waterfront Retail Park with staggered platforms ©OCT华侨城

在地下一层商业的中央位置是一个形态完整的下沉广场,它既可举办各种商业和庆典活动,也是连接东北侧地铁站地下商业的空间节点,从这里向南便是海滨公园。位于东西两端的人行坡道为访客提供了从海滨文化公园到商业街区各层及屋顶花园的立体路径,商业街区的动线与公园的游览线路相连接,东岸商业街区的整个南延展面以开敞的姿态拥抱生态景观公园,两者之间展现出一种完美的和谐互动关系。

Located in the center of the lower-level retail is a 50-meter-wide sunken plaza. This celebration space will accommodate diverse events, exhibitions, and impromptu social gatherings. It is the culmination point for public access from the subway station in the north-east and the gateway to the waterfront park through a cascading water garden. The shifting volumes and extensive green roofs funnel breezes throughout the site and provide shade and respite from the sometimes harsh summer heat. Two landscaped gentle pedestrian ramps rise from either end of the project, east and west, to create three-dimensional paths for visitors from public park to every level of the commercial zone including the green roof garden. This vertical pedestrian access conjoins gentle ramps, stairs, and rest zones with trees, flowers, and art installations.

▼鸟瞰东岸商业街区及海滨公园,East Waterfront Retail Park and Cultural Park ©童艳龙

▼步道连接商业街区和滨海公园,Bridges connecting the East Waterfront Retail Park and the Cultural Park ©童艳龙

东岸商业街区柔缓起伏,布满绿植的屋顶,犹如为海滨公园增添了一处独特宜人的空中花园,行走其上,公园和前海湾区的壮丽景色尽收眼底。同时,它也为海府一号提供了一个悦目的近景。

Gently undulated green roofs, as mentioned above, tie all volumes of the development together, creating a unique setting adjacent to and above the waterfront park. From these roofs, visitors have spectacular views of the ocean beyond. The roof garden terrain has a diverse landscape that includes a flower garden, a cascading sculpture garden, an outdoor performance terrace and undulating running trail. The undulating running trail floats above the retail circulation and gives exercise enthusiasts a thrilling experience with 360-degree views from the ocean to the city and beyond.

▼从东岸商业街区绿化屋顶远眺湾区之光摩天轮及海滨文化公园步道,The view of the Bay Glory Ferris Wheel and Waterfront Park Pedestrian Path ©OCT华侨城



绿色生态表现
SUSTAINABILITY

贯穿东西岸商业街区的生态绿化带将水景与绿植引入建筑空间,使景观与建筑自然融合,并与雨篷遮荫、阳台绿化及生态屋顶等协同,形成风道冷巷,极大减少热岛效应。街区建筑通过天窗和天井最大化自然采光效果,并使用太阳能系统持续获取生能源。建筑朝向迎合自然通风需求,通过流线造型和竖向天井的设置增强风压与热压通风,并依托高天花板、可开启式窗口和高能量低速风扇优化室内空气流通。

The ecological green belt that runs through the retail blocks on the east and west banks introduces water features and green plants into the commercial space, the landscape and the architecture are naturally integrated. Along with awnings, green balconies, and ecological roofs to form air ducts and cold lanes, which greatly reduces urban heat island effect. The retail streets maximize natural lighting through skylights and patios, and use solar systems to continuously obtain energy. The orientation of the buildings caters to the demand of natural ventilation. The streamlined shape and vertical patio are designed to enhance wind pressure and thermal pressure ventilation. High ceilings, openable windows and high-energy low-speed fans are used to optimize indoor air circulation.

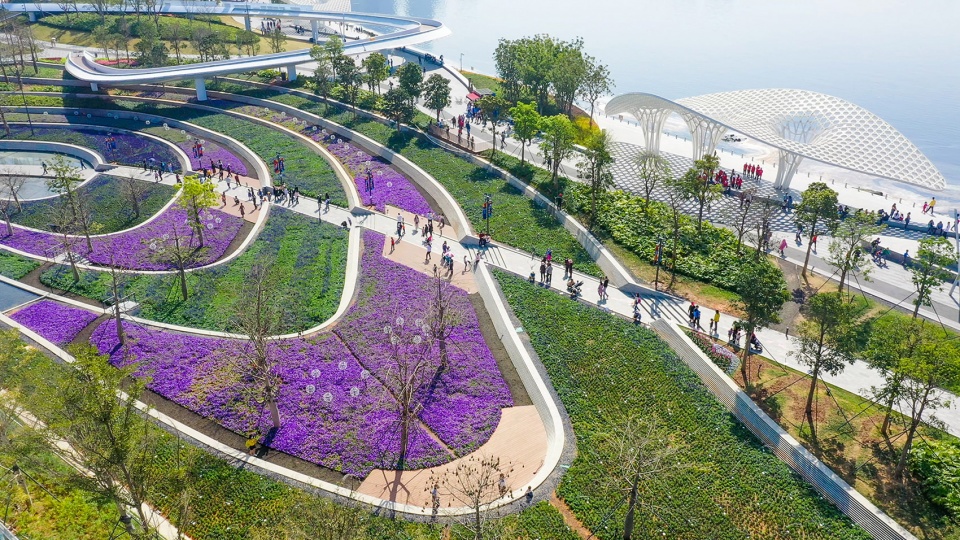

▼海滨公园景观,Waterfront Cultural Park ©童艳龙



海府一号
URBAN BUSINESS CENTER

“海府一号”建筑群与东岸商业街区的北侧隔路相望,同时与宝安中心区的数条主要城市道路相连接,位于其地下的商业一端连接地铁站,另一端连接东岸商业街区,为项目提供了便利多样的接入。

The urban business center is located across the road from the north side of the East Waterfront Retail Park. It provides convenient and diverse access from all directions of the project. The complex connects the subway station on one end, and to the retail park on the other end, as well as connecting with several major urban roads in the central area of Bao’an district.

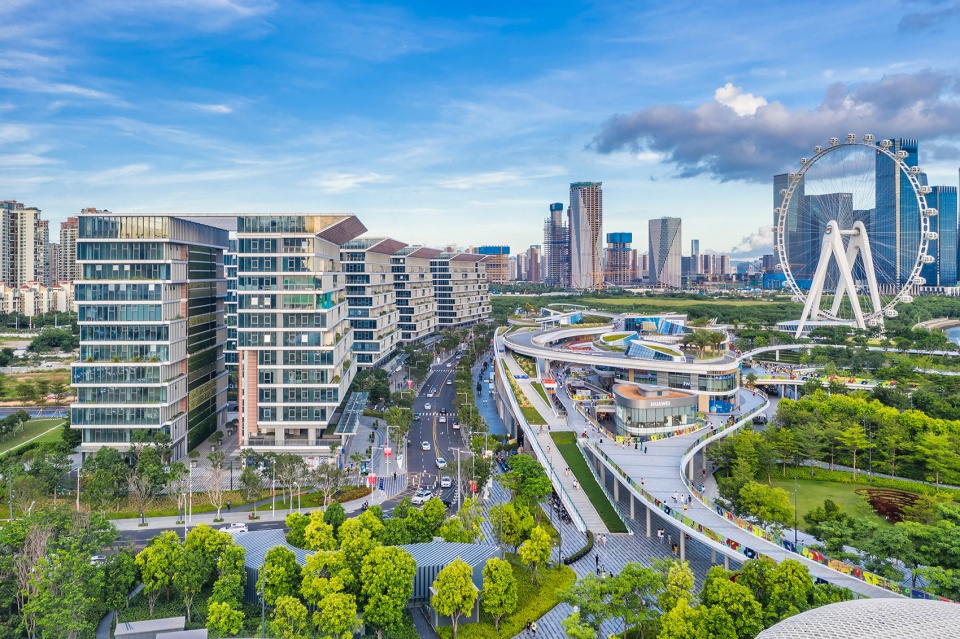

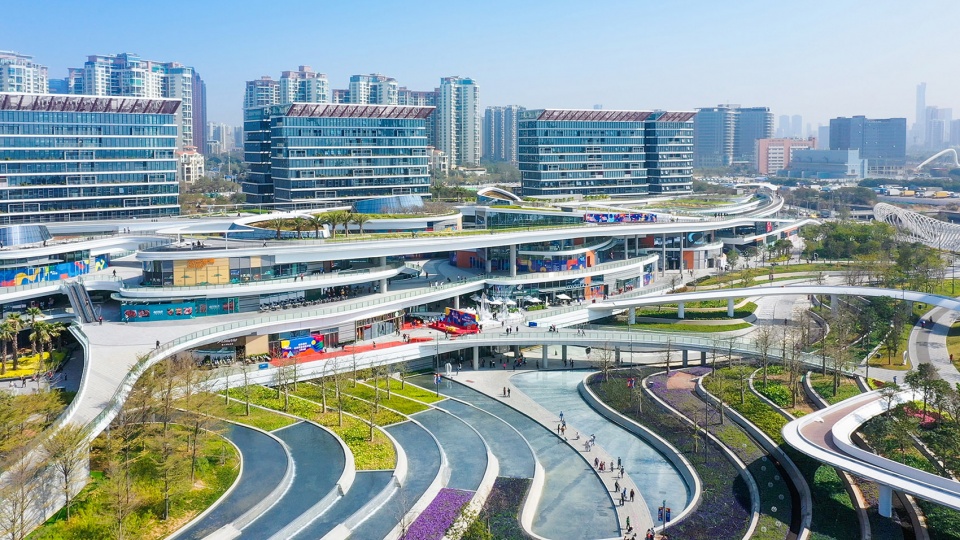

▼鸟瞰东岸滨海商业街区和海府一号,Aerial view of the East Waterfront Retail Park and the Urban Business Center ©童艳龙

▼越过东岸商业街区看海府壹号,View to the Urban Business Center through the East Waterfront Retail Park ©童艳龙

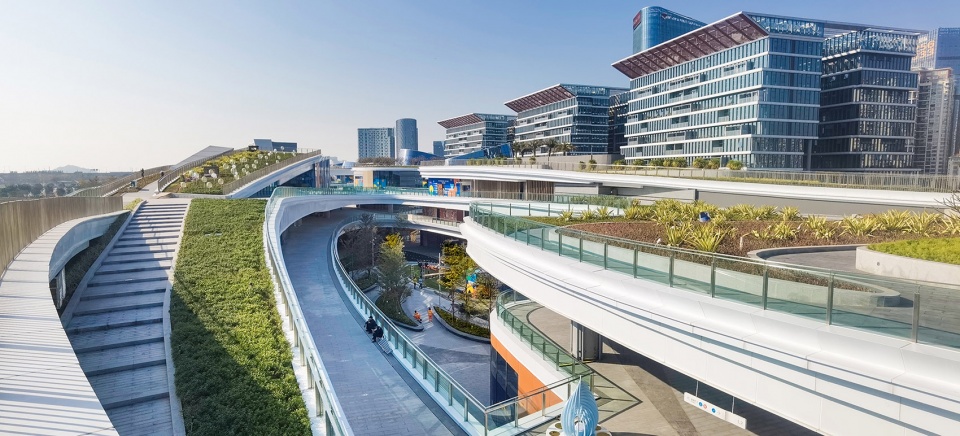

▼从东岸商业街区绿色屋顶看海府一号,View of the Urban Business Center from the green roof of Retail Park ©OCT华侨城

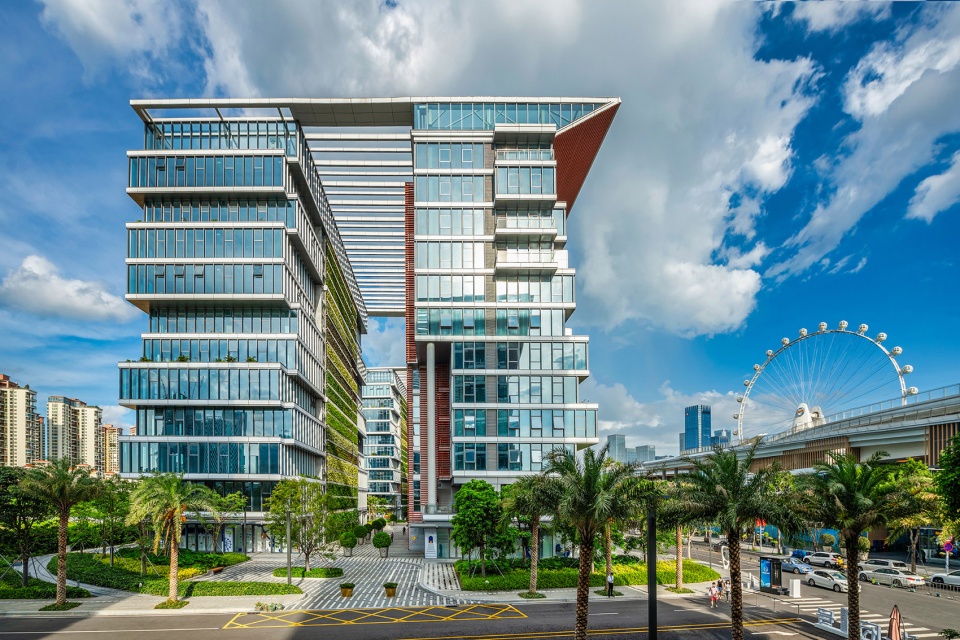

▼欢乐港湾海府一号, Urban Business Center ©童艳龙

海府一号由4栋海景企业会馆、3栋生态企业总部、1栋集中商业以及1栋酒店构成。建筑造型呈阶梯式,层层退台让视野更开阔,可以享受滨海公园,湾区之光等全维度景观。空中花园和建筑立面独特的垂直绿化,营造出健康生态的办公体验,达到全球绿色环保建筑LEED-ND金级预认证标准。

The Urban Business Center consists of four office towers with ocean view, three ecological corporate headquarters, one commercial building and one hotel. The stepped back terraces provide an open view for visitors to enjoy the full-dimensional landscape of the waterfront park and the beautiful bay scenery. The sky garden and the unique vertical green wall create a healthy and ecological office experience and meet the LEED-ND gold pre-certification standard.

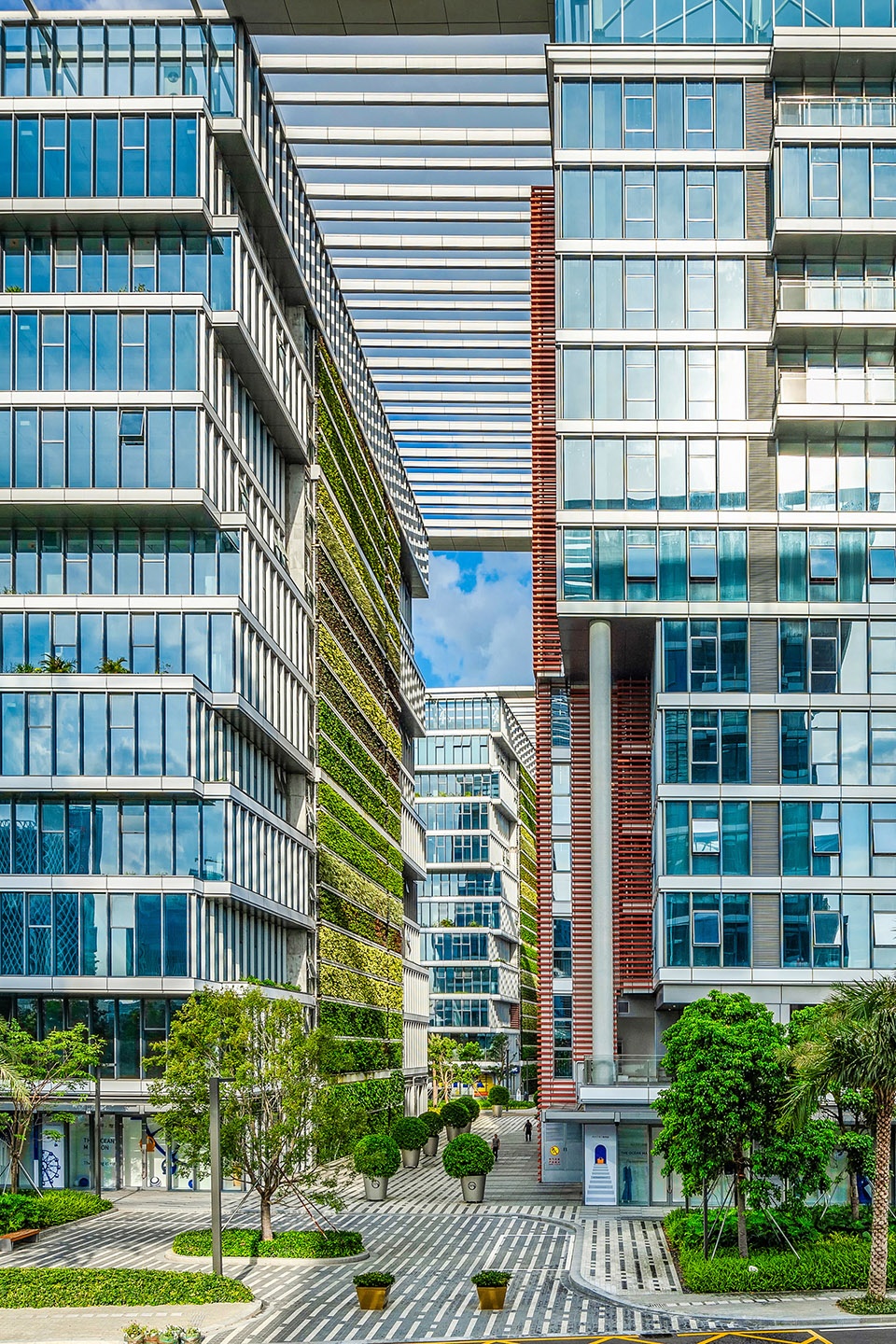

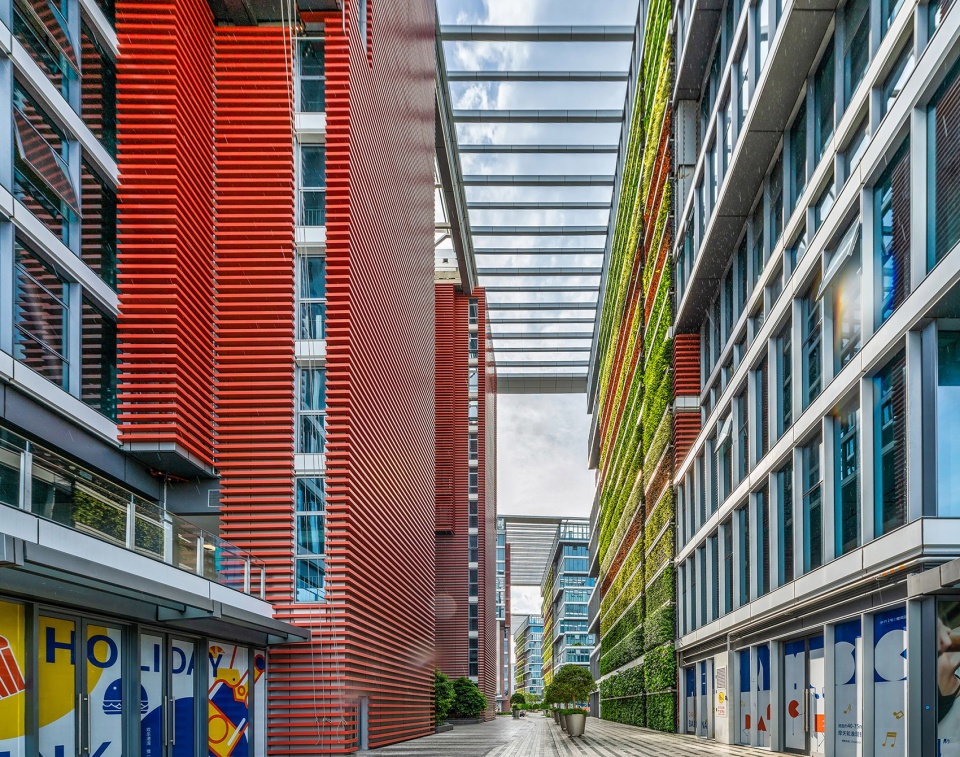

▼欢乐港湾海府一号 绿化墙面,Urban Business Center green wall ©童艳龙

宝安欢乐港湾以充满想象力的形式完美融合了自然生态与都市生活,为深圳市民及来访者提供了一种全新的体验,在宝安的海岸线上嵌入了一颗璀璨的明珠,为深圳贡献了又一个闪亮的地标,是深圳引领全国城市建设的又一个范例。

OCT OH BAY is a new, exciting hub that seamlessly links nature and urban life in an imaginative, exhilarating way along a spectacular waterfront in the district of Bao’an, in the city of Shenzhen.

▼中心广场及大型艺术装置“云端”,Central Plaza and Pergola ©童艳龙

▼夜晚装置下部的灯光,Illumination under the Pergola ©深圳市千百辉智能工程有限公司

▼中心广场大型艺术装置“云端”及夜景喷泉,Night view of central plaza, pergola and fountain ©童艳龙

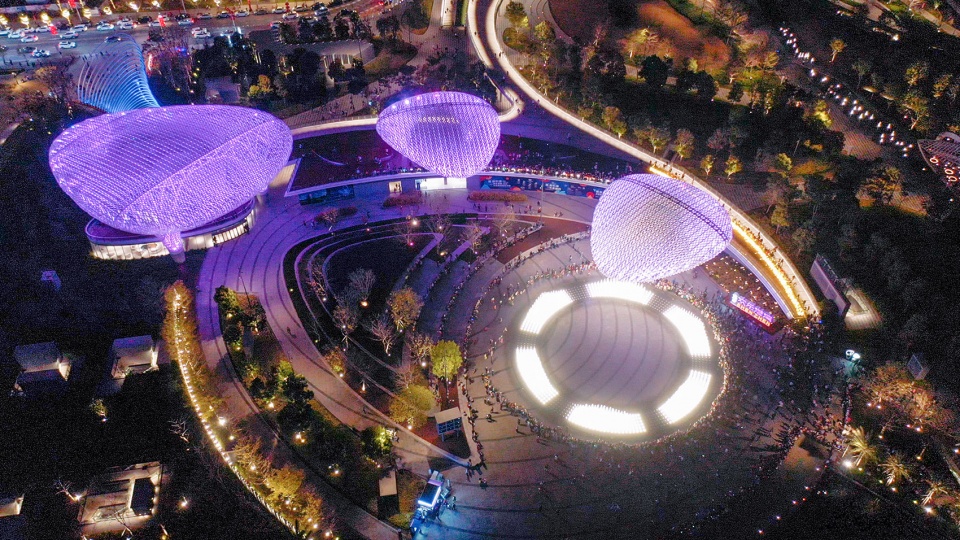

▼欢乐港湾东岸夜景鸟瞰,Top view of OCT OH BAY East bank in the night ©童艳龙

▼东岸商业街区及海府一号平面图,East Waterfront Retail Park and Urban Business Center Roof Plan ©LLA

项目名称:深圳宝安欢乐港湾东岸集群建筑设计
业主:华侨城集团
项目地址:广东省深圳市宝安区海天路与宝华路交汇处
占地面积:43 公顷
完工时间:海滨文化公园于2020年8月开业
东岸商业街区于2021年2月开业
整体预计将于2021年9月完工
设计公司:LLA建筑设计公司 / Laguarda.Low Architects (LLA)
LLA设计范围:总体规划、东西岸商业街区、海府一号及公园园区相关配套设施(游客接待中心、入口广场、园区公共卫生间、公交车站、及摩天轮售票厅)建筑设计
LLA公司网站:www.laguardalow.com
项目网站:https://www.octohbay.net/
项目总控 / 总规划师、总建筑师:Pablo Laguarda / FAIA、总裁
资深项目设计师:Junkyeu Song / LEED AP、副总裁
资深项目管理:James Wu / 总裁、中国区域总监
资深项目管理 / 技术总控:Jin Liang / AIA、副总裁
项目经理:Chen Han、Xinzhi Pan / LEED AP
项目协调:Christina Wu
LLA项目团队主要成员:Jiteng Yang、Yiheng Yu、Insuk Shin、Sara Yarisolian、Yuchen Zhao、Zhaoyuan Gou
摄影师:童艳龙,部分照片由OCT华侨城集团提供
景观设计:SWA、AUBE欧博设计
施工图深化设计:华森建筑设计
照明设计:朗程照明设计 Light Cibles

Project Name: OCT OH BAY
Client: OCT Group
Address: Haitian Rd. and Baohua Rd, Bao’an, Shenzhen, China
Size: 43 ha
Status: Waterfront Cultural Park opened to public in Aug. 2020
East Waterfront Retail Park opened in Feb.2021
West Waterfront Retail Park will be open in Sep. 2021
Design Firm: Laguarda.Low Architects (LLA)
Design Scope: Masterplan of OCT OH BAY, Architecture Design of East and West Waterfront Retail Park, Urban Business District (Office Towers), Hotel, Central Plaza, Visitor Center, Restrooms, Bus Terminal, and Ferris Wheel Reception Office
LLA Website: www.laguardalow.com
Project Website: https://www.octohbay.net/
Lead Architect | Principal-in-Charge: Pablo Laguarda / FAIA
Senior Project Designer: Junkyeu Song / LEED AP
Senior Project Manager: James Wu
Senior Project Manager: Jin Liang / AIA
Project Manager: Chen Han, Xinzhi Pan / LEED AP
Project Coordinator: Christina Wu
LLA Team Member: Jiteng Yang, Yiheng Yu, Insuk Shin, Sara Yarisolian, Yuchen Zhao, Zhaoyuan Gou
Photographer: Tong Yanlong, OCT Group
Landscape Design: SWA, AUBE
Construction Document Development: Huasen Architects (HSA)
Lighting Design: Light Cibles
