Cumbres House by ASP Arquitectura Sergio Portillo

A consecutive housing project with a large patio that generates a dialog between indoor and outdoor contexts

Project Specs


非常感谢 ASP Arquitectura Sergio Portillo 予gooood分享以下内容。更多请至: ASP Arquitectura Sergio Portillo on gooood
Appreciation towards ASP Arquitectura Sergio Portillo for providing the following description:


This project is located in a housing development in Mexico City. This is a consecutive housing project in which the restrictions, with a reduced separation between the houses, affects the views and how the orientations are leveraged. In response, the decision was made to create a large patio that develops the home’s spaces, and generates a dialog between indoor and outdoor contexts that allows light to enter while providing the structure with visual and thermostatic self-sufficiency.

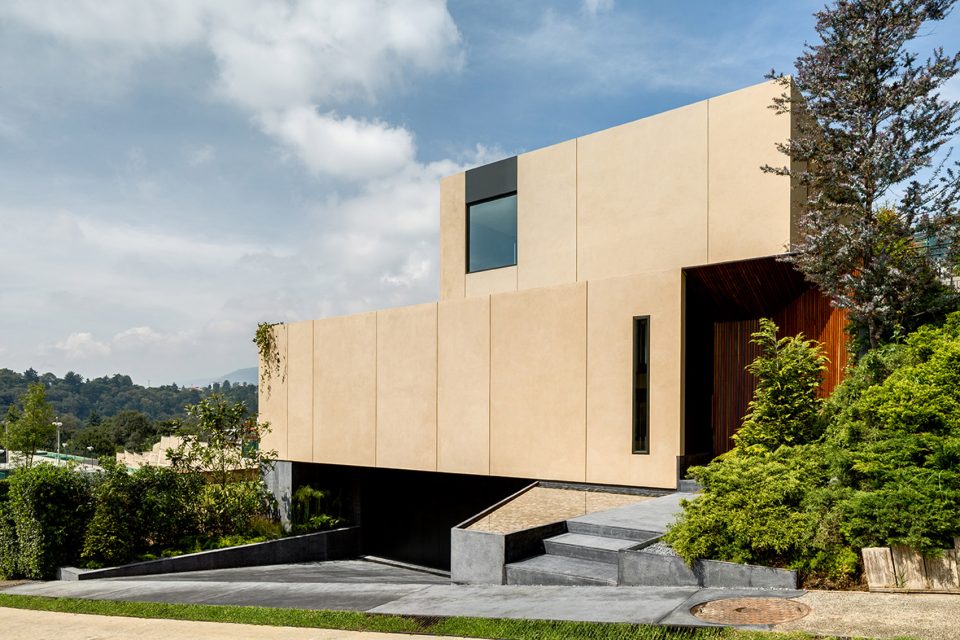

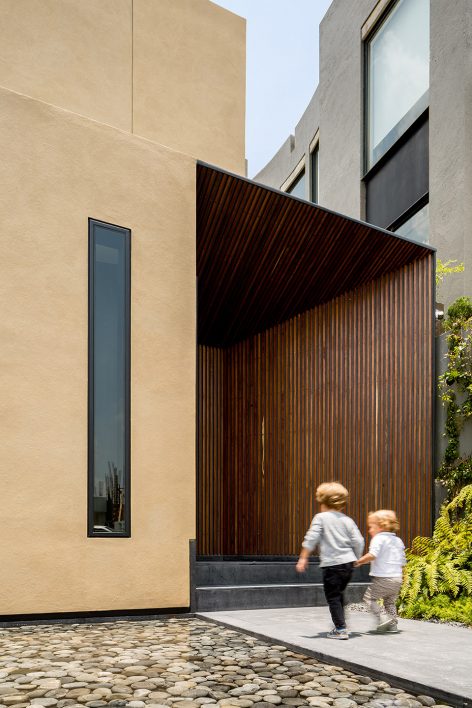

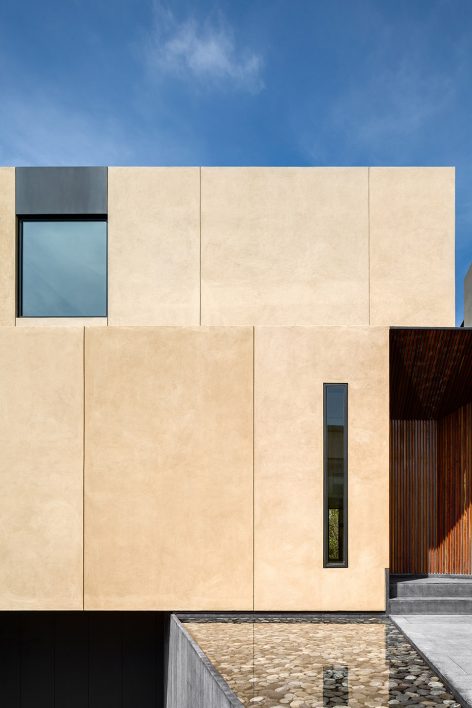

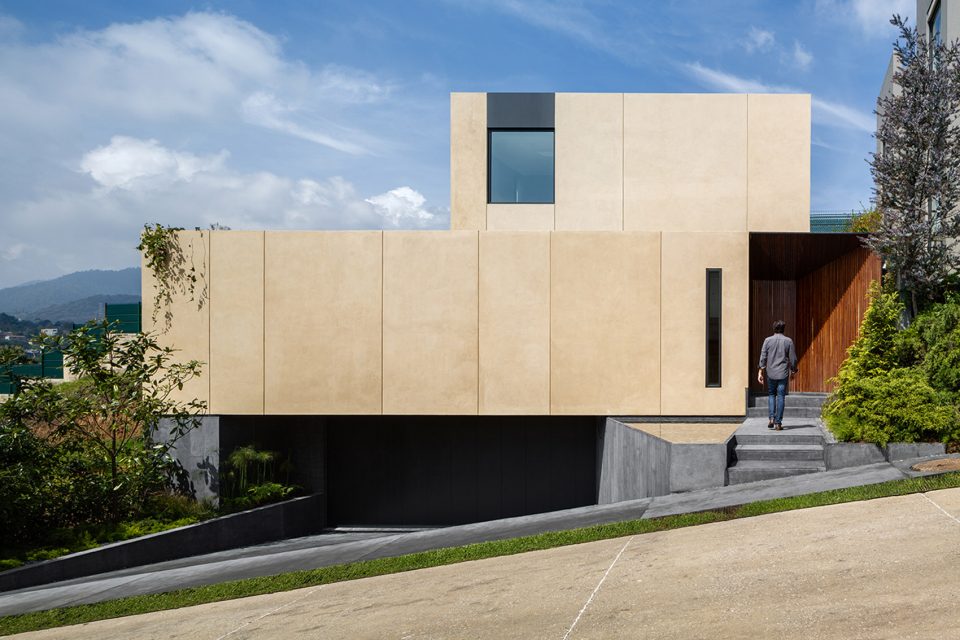

▼住宅外观,external view





Its independence is also visible in the raw materials used to build the structure. The shape of the footprint and the regulated limits led us to a solution involving soil excavation and removal, resulting in a collaboration with the environment to leverage the property’s most important resource, which was the soil itself. We used it to produce compressed earth blocks (CEB) at the site; these, in addition to providing a real solution that reduce its environmental footprint, provide it with a rooted sense of belonging in which the color scheme is defined by the site itself, and not by the architect.

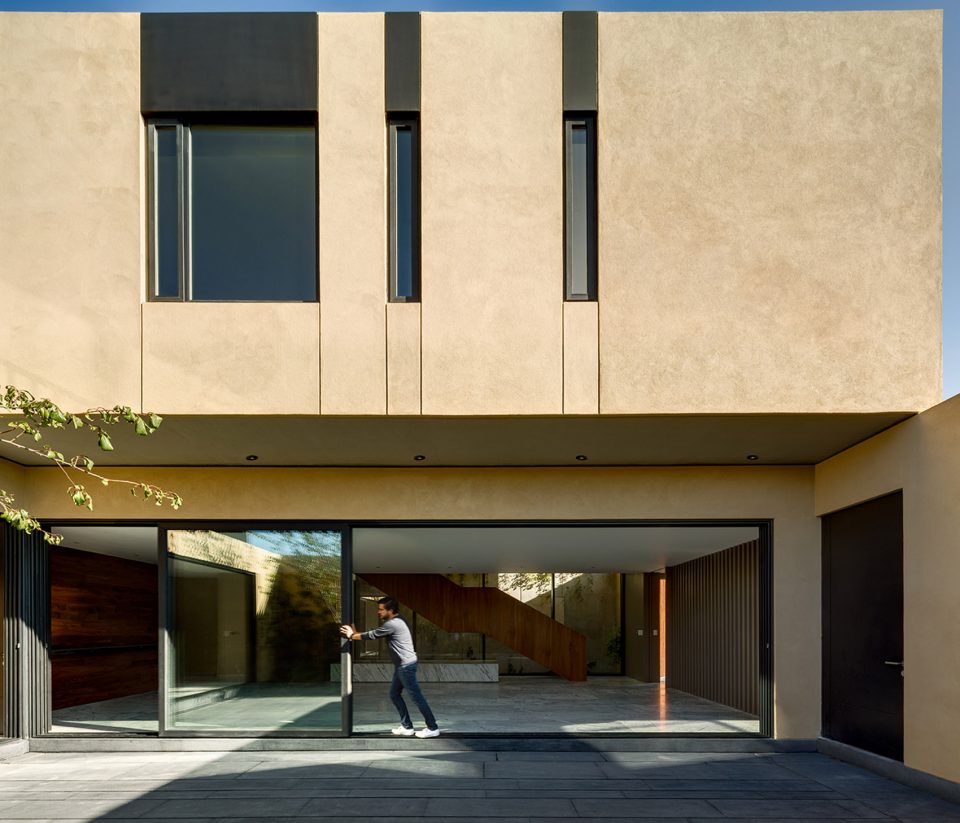

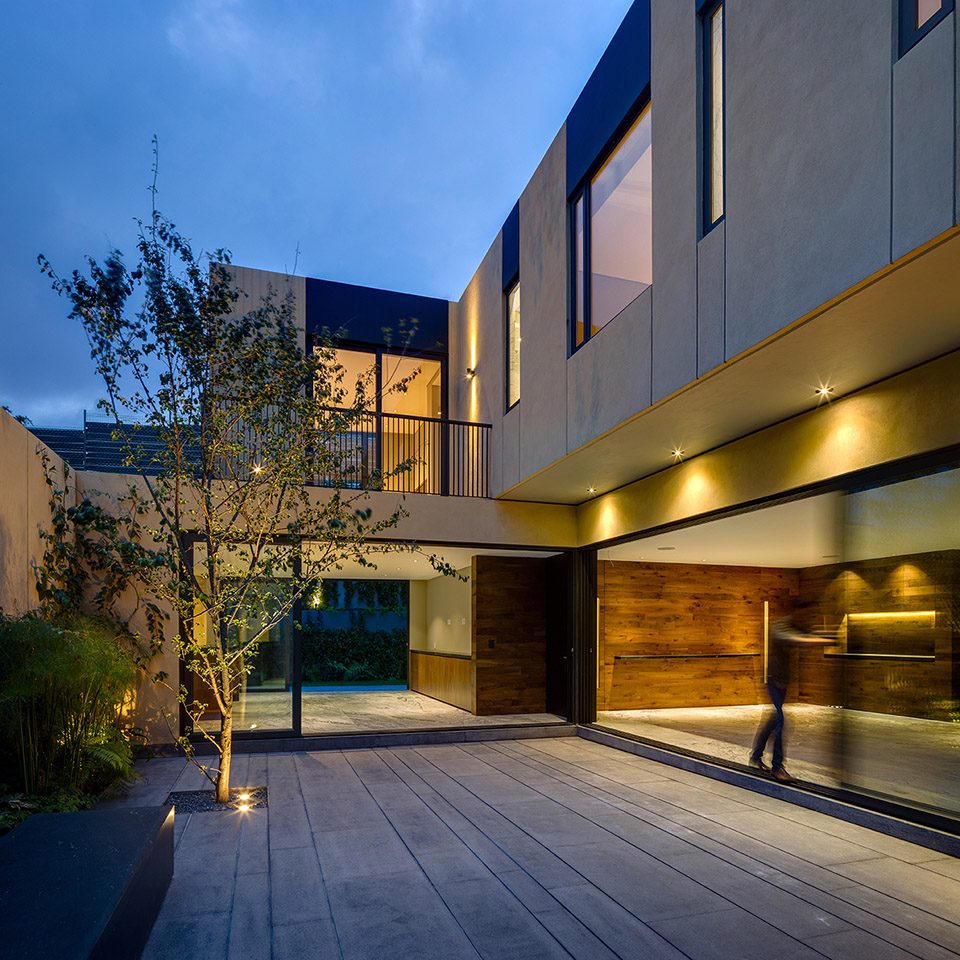

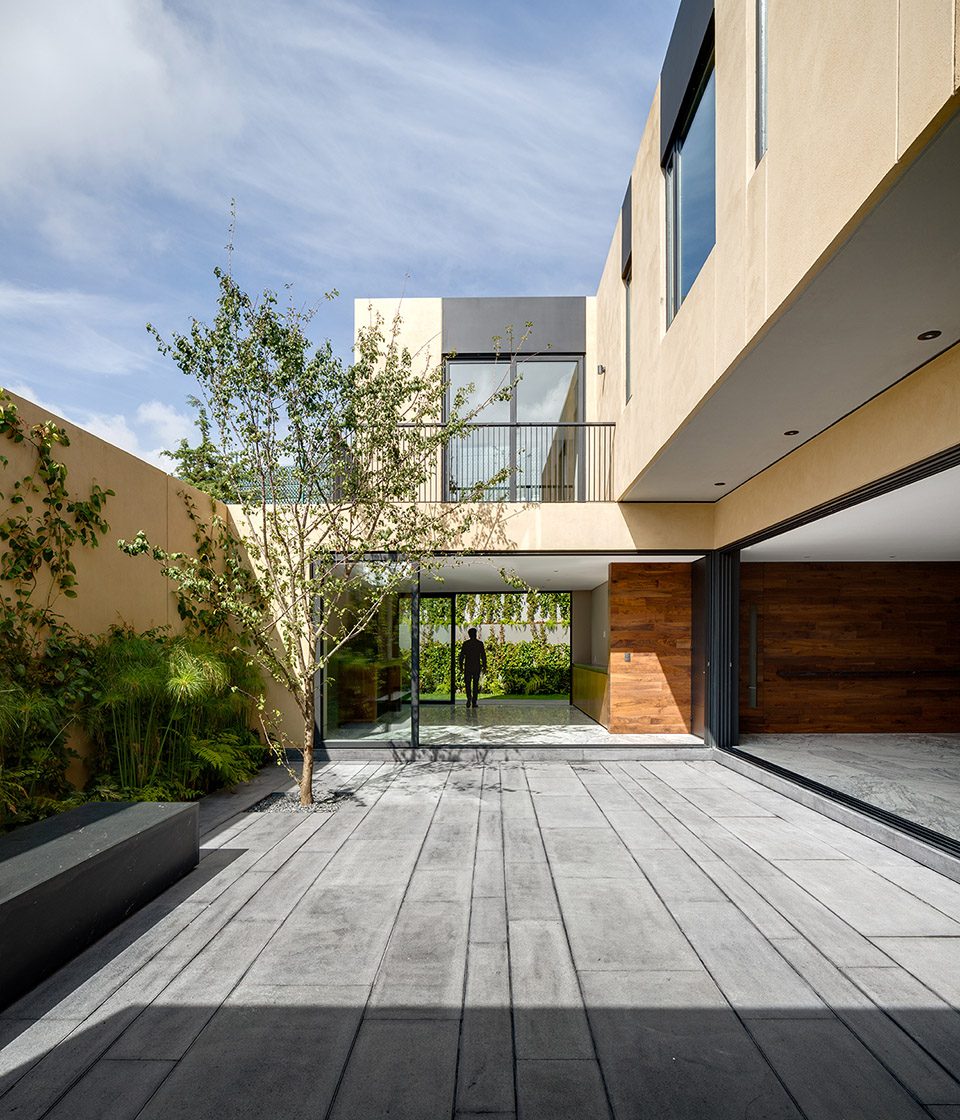

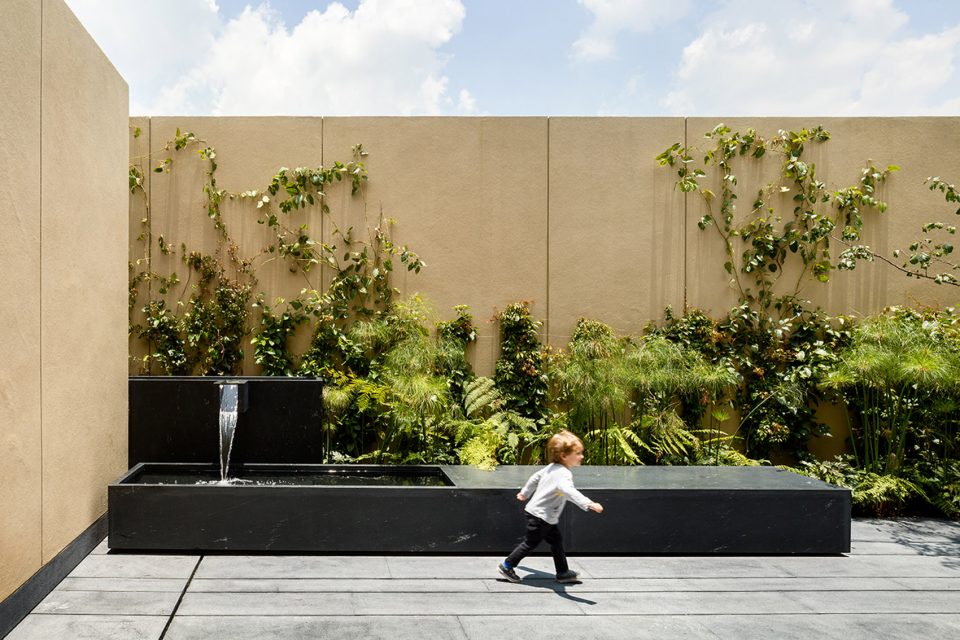

▼宽阔的天井解决了场地的限制, a large patio deals with the restriction of the site

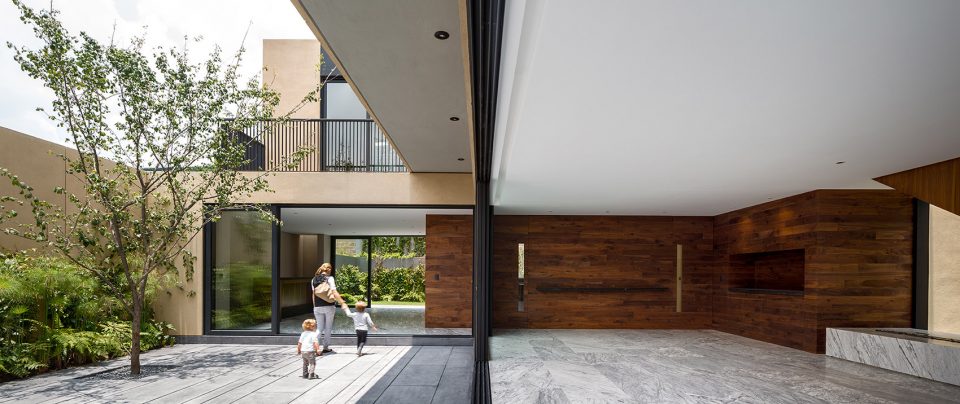

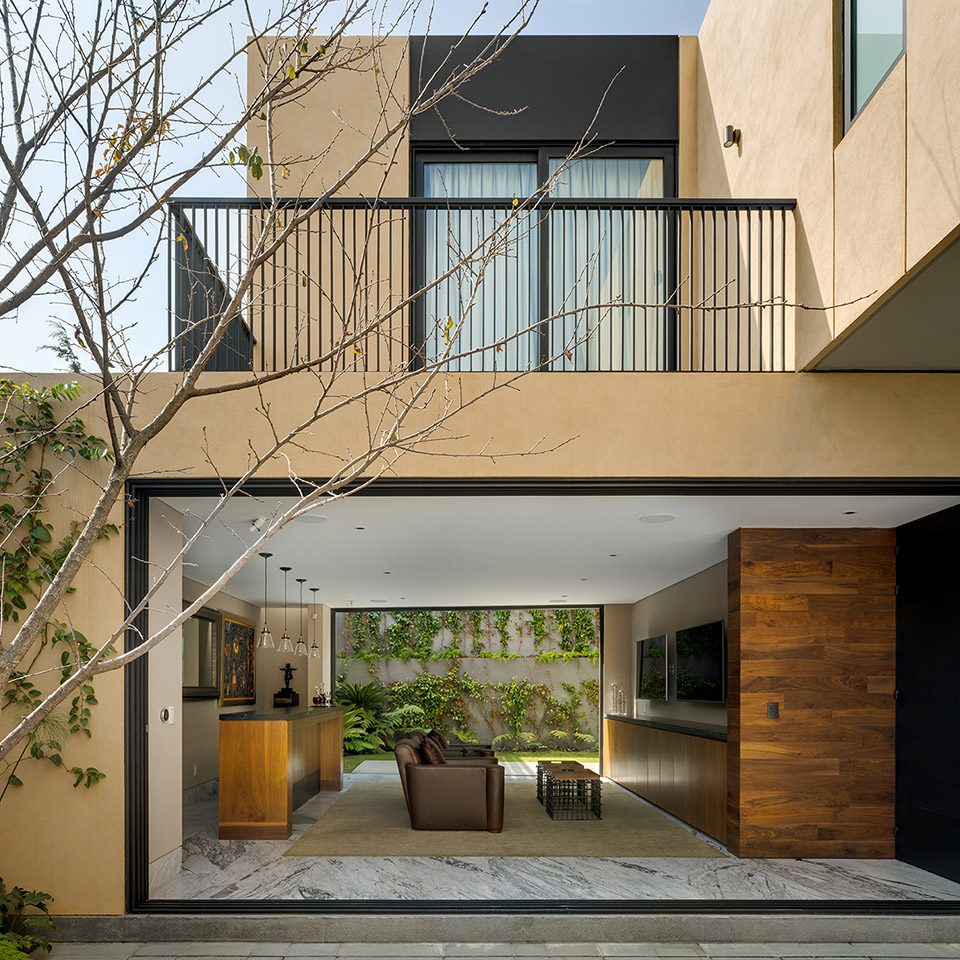

▼连贯、通透的室内外空间,a consecutive housing project based on an open floor plan



From the exterior, the project appears to be a grouping of extruded blocks that allude to the impenetrability and the massiveness of the material, while the interior highlights the openness and lightness of these elements in an open floor plan. Throughout the project, the earth functions as the project’s unifying element.

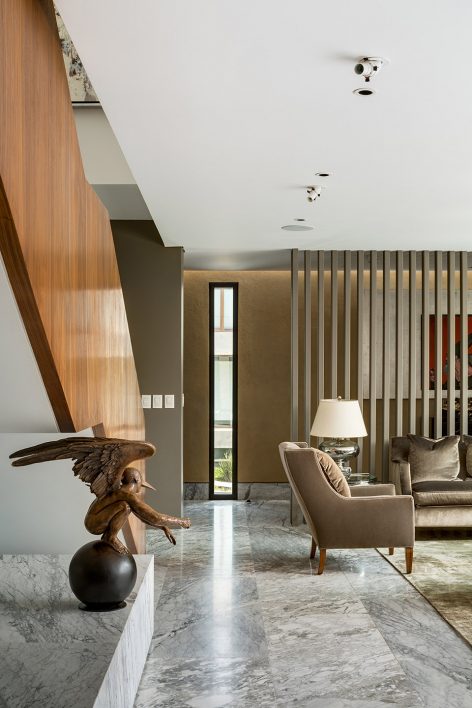

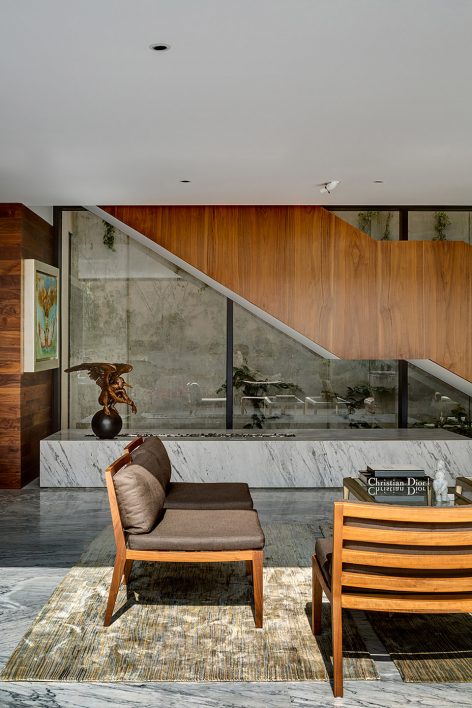

▼首层大厅,main hall

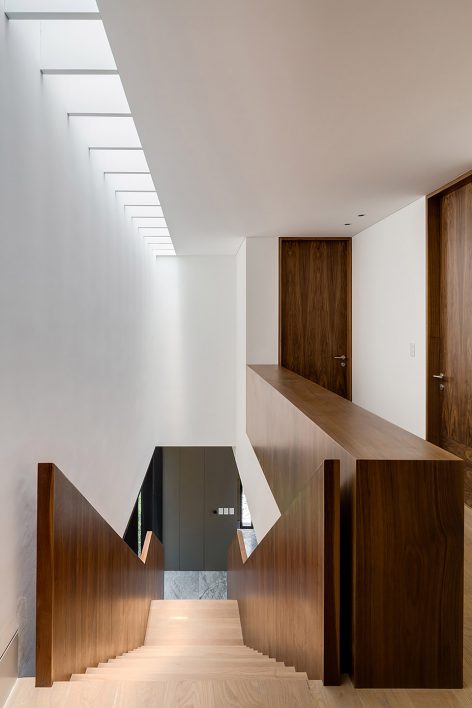

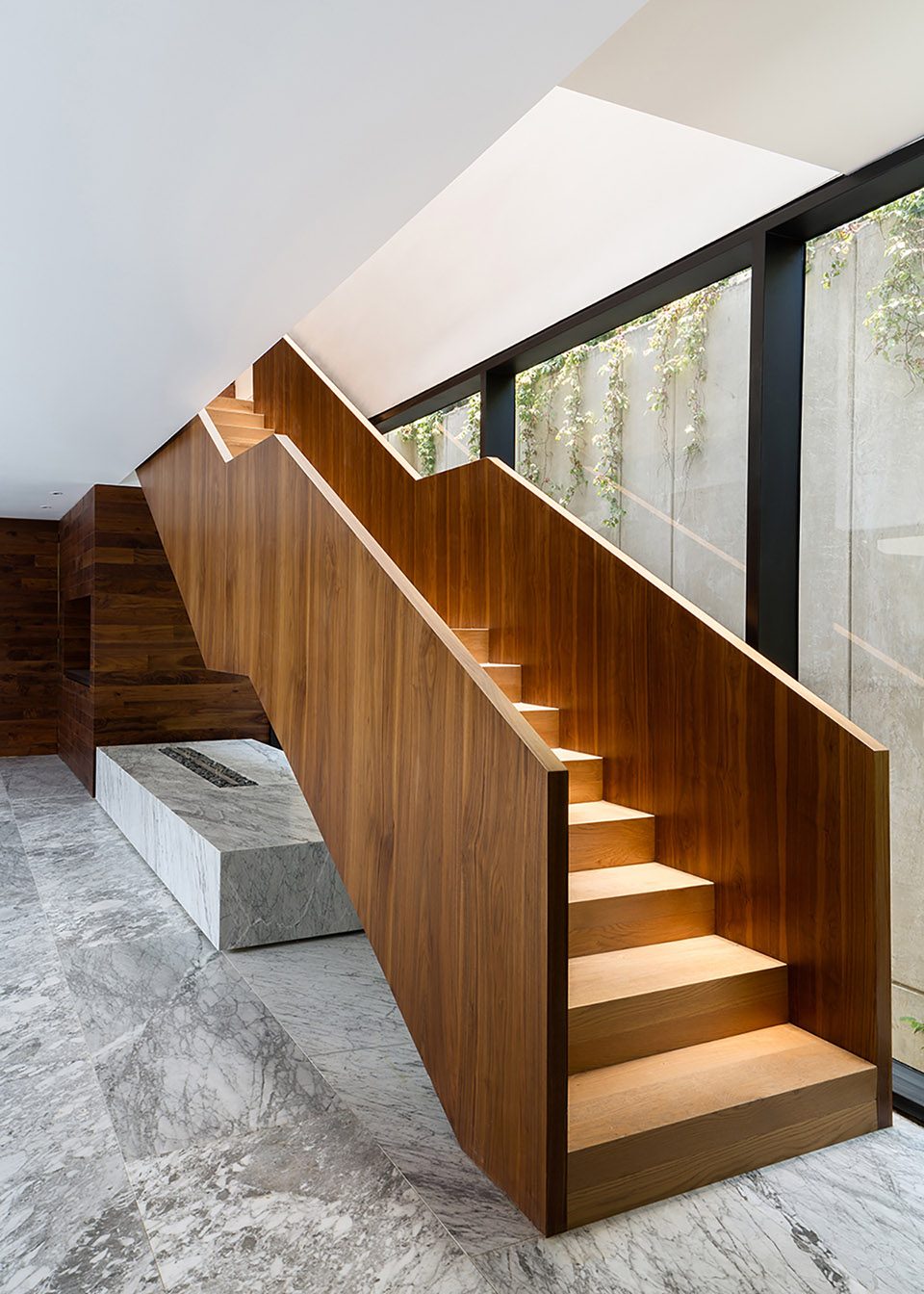

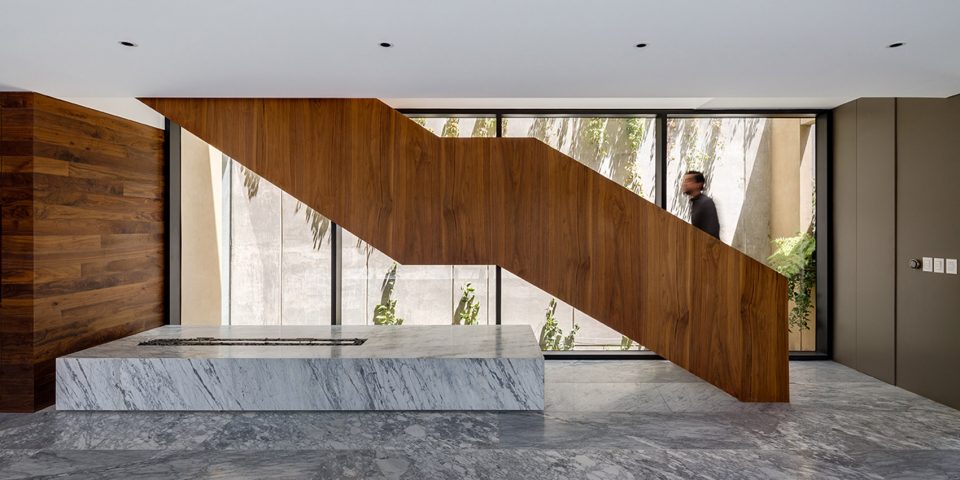

▼宽敞的楼梯通向二层,a large staircase leads to the first floor

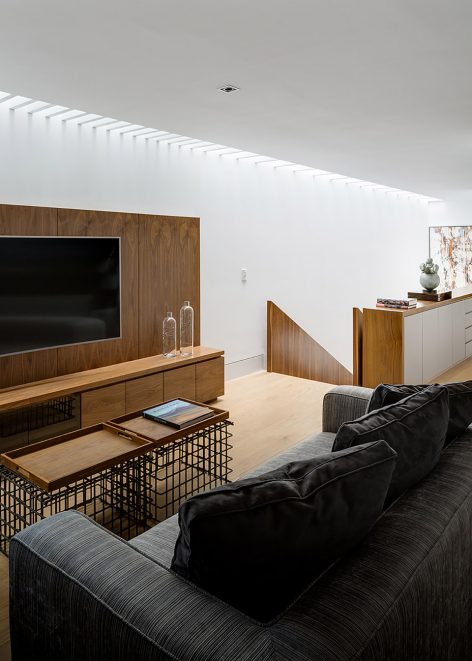

▼二层起居空间,living area on the first floor

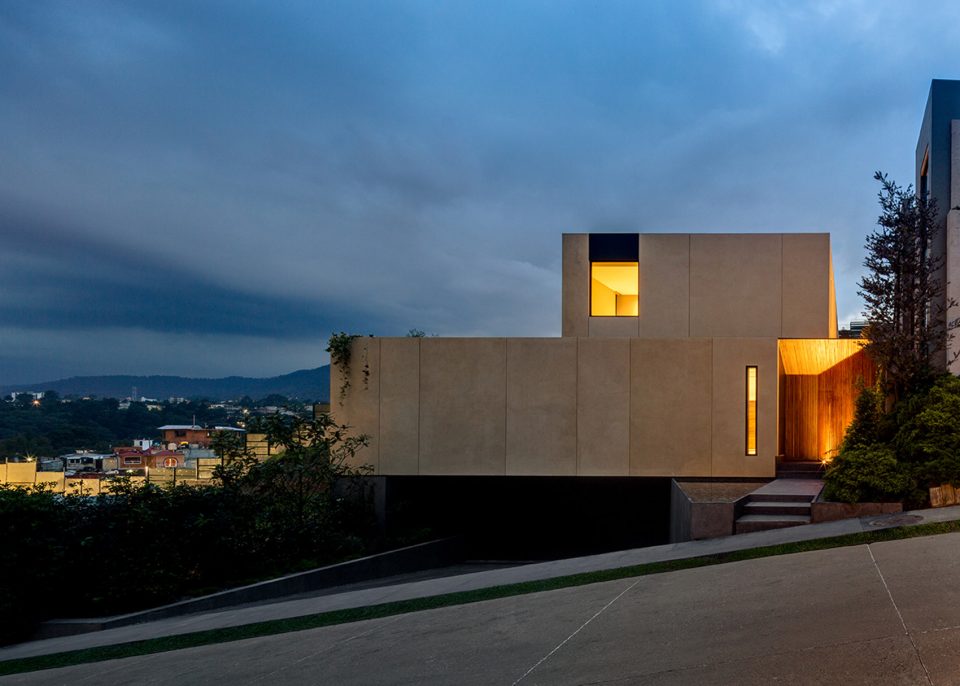

▼夜景,night view

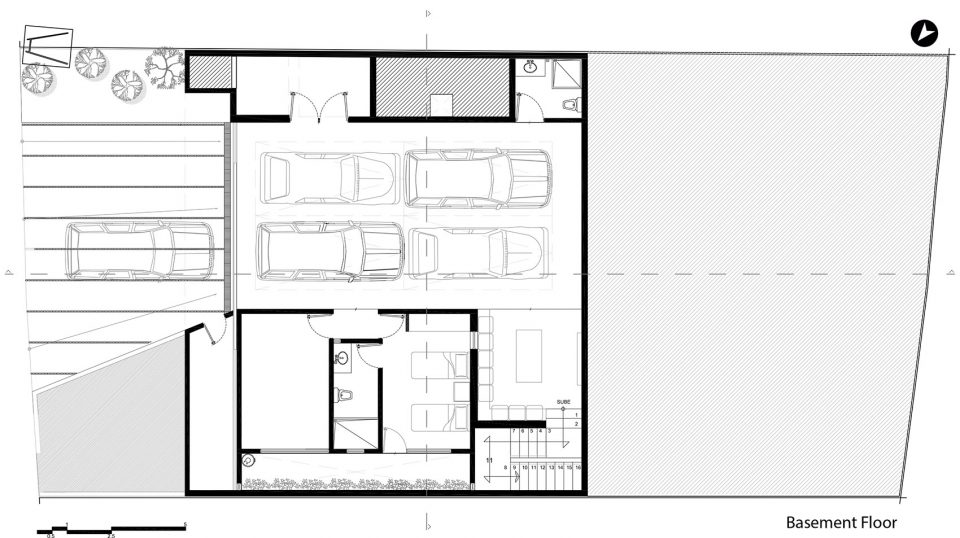

▼地下室平面图,basement plan

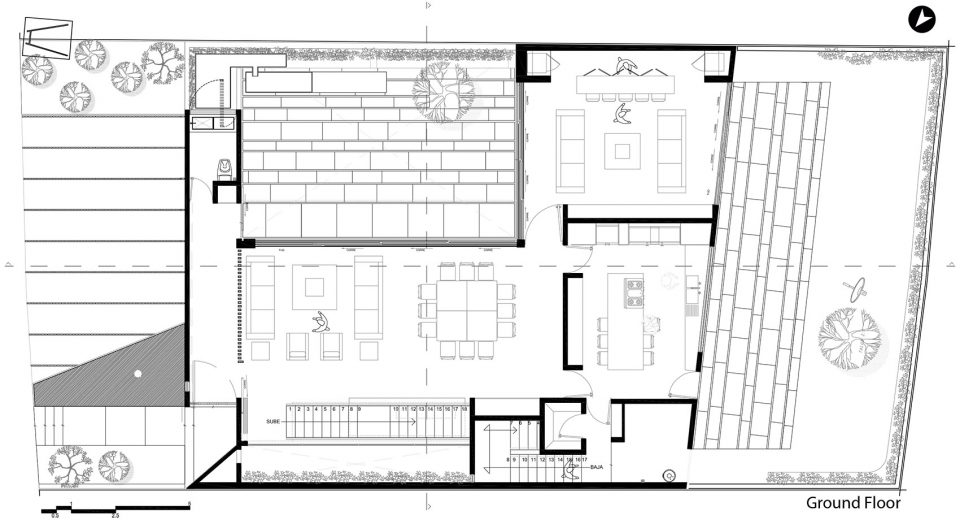

▼首层平面图,ground floor plan

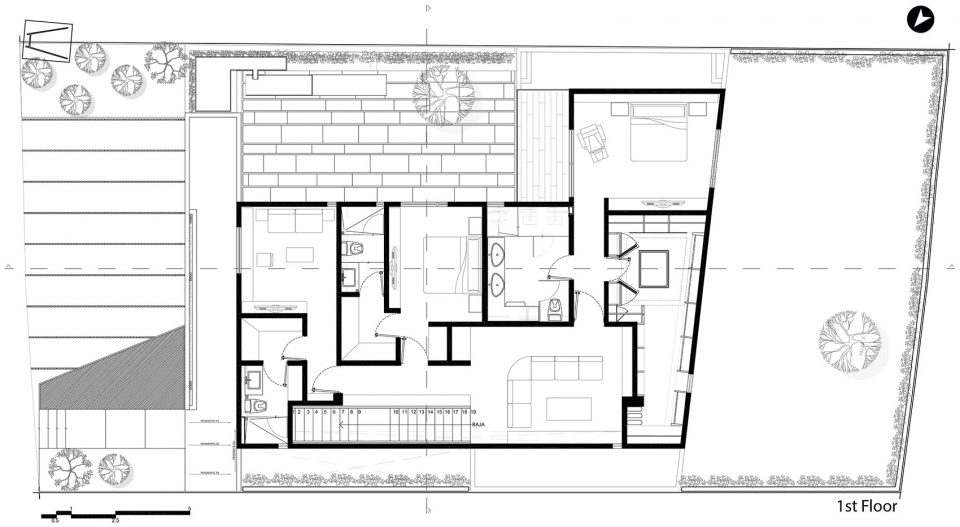

▼二层平面图,first floor plan

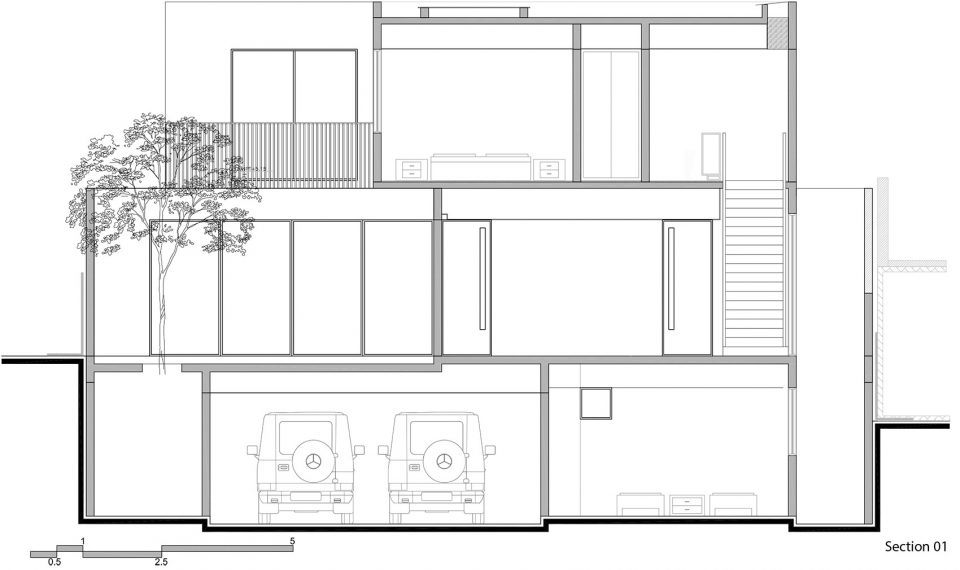

▼剖面图01,section 01

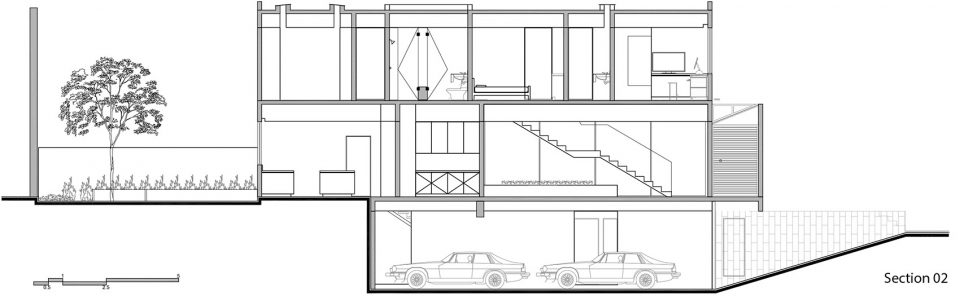

▼剖面图02,section 02

Project: Cumbres House
Location: Cumbres de Santa Fe, Álvaro Obregón, Cuidad de México.
Client: Privado
Area: 517 m2
Year: 2016.
Architects: ASP Arquitectura Sergio Portillo
Architect in Charge: Sergio Portillo Alarcón
Collaborators: Rafael Ovalle, Francisco Machuca.
Construction: LINEAL Construcción y Desarrollo Arquitectónico.
Engineering: Grupo R (Jaime Rangel)
Lighting Design: ASP Arquitectura Sergio Portillo
Landscape design: ASP Arquitectura Sergio Portillo – David Villanueva
Photography: Rafael Gamo
