Arsenal B47 / transformation by Ralph Germann architectes

Open the door, beautiful scenery will run into the house.

Project Specs

Location:

非常感谢Ralph Germann architectes将以下授权gooood发行。更多请至:Ralph Germann architectes on gooood
Appreciation towards Ralph Germann architectes for providing the following description:

Arsenal为瑞士军队在第二次世界大战期间所建造,现在需要转化为居住空间。建筑师保留了原有的结构,在内部加入了一个与墙壁有一定距离的玻璃立方体。原来墙上一些历史痕迹比如标示“charge maximum 1500 kg au m2”[maximum load 1500 kg/m2]”被保留了下来。

Architect: Ralph Germann architectes (www.ralphgermann.ch)
Furniture & Interior Design by Ralph Germann architectes
Photographer: Lionel Henriod / mc2
Photo stylist: Patricia Schmid

The owner of the arsenal wanted to convert this former Swiss army building, constructed during the Second World War, into a habitable space.

Architect Ralph Germann’s transformation involved inserting a glass cube into the old structure, an option which meant he didn’t have to touch the patina of the walls, and was able to preserve the roof and some historic details such as the “charge maximum 1500 kg au m2”[maximum load 1500 kg/m2] sign on the wall.

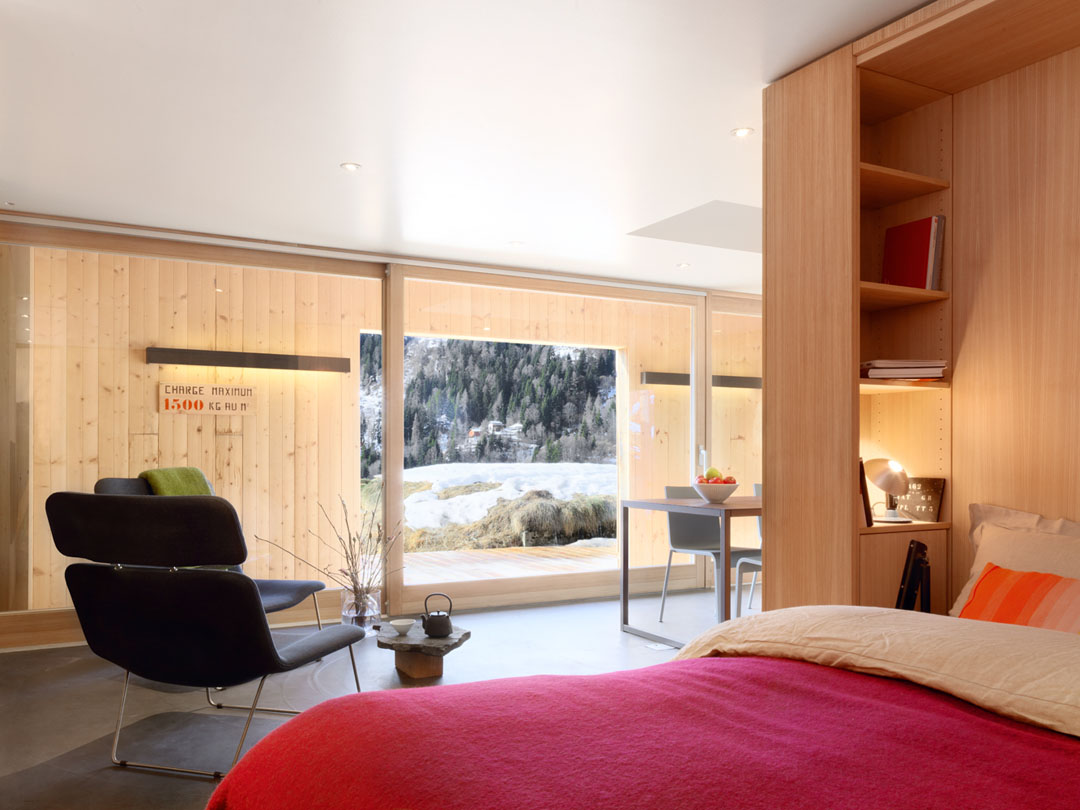

▼建筑师保留建筑原有的结构,在其内部加入一个与墙壁有一定距离的玻璃立方体。

/wp-content/uploads/2013/08/_c_atmD_wwqDXdOsIQXJ4Kfnv_Win6piwM0dlEVyRUpLxBci6Davh2hyfNBkW2BNeE3EJ4bjI7o1LAWSxEFvRhpJ3e8vMne2Otx.jpg

建筑师在内部只使用了最简单原始的材料,比如落叶松,板岩,玻璃,金属,然后采用简洁的线条让小屋备具品质。为了让这个独自处于山野的小空间更让人放松,设计师在空间中加上了活泼的紫红色,比如卫生间的色彩。在这里,功能是最重要的,光线和空间位居其次。在玻璃的盒子中心设计师又加了一个木盒子,这个盒子是功能的心脏,提供厕所,壁柜,甚至床(床在不使用的时候可以折叠进木盒子)。五脏俱全的舒适小屋面积为49平方米。

玻璃盒子与原有建筑之间的空间可以作为凉爽的回廊,打开原有建筑的木门,美丽的风光和自然的采光便跑进屋中。

Whilst wishing to preserve this testimony to the past, the architect retained only simple materials – noble and solid – including larch, slate, glass and metal. And by interpreting them using clean, pure lines, he has given the chalet a timeless feel. To avoid sliding into an atmosphere of austerity, Ralph Germann has added an unexpected touch of colour behind the cloakroom door: a bold shade of fuchsia.

This design, functional above all else, places the emphasis on light and space. To achieve the second, the architect has designed another cube – but in wood this time. Set within the heart of the glass structure, it houses the WCs, cupboards, and even the bed, which folds up when not in use. This optimises space in this area, which measures only 49 m2.

A large picture window – that can be concealed or revealed thanks to double wooden doors – and a long, horizontal window ensure excellent lighting.

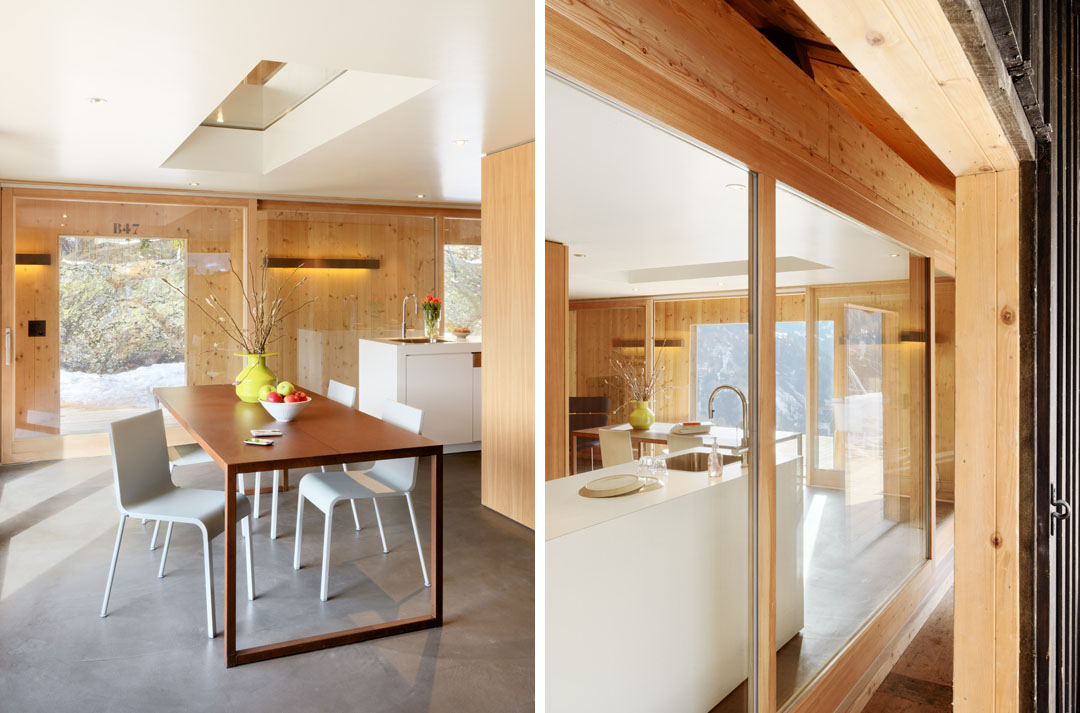

▼五脏俱全的舒适小屋面积为49平方米。玻璃盒子与原有建筑间的空隙是凉爽的回廊。

/wp-content/uploads/2013/08/_c_4tt_SMRltKWEVIu0SoUIA75JfsQRzyP3Ir0zUF_Ls1iAYBkr29iSeU-mD5G37PTcJu1p5n_dQ7HB0rBtBB727UOJvRFjb9m1.jpg

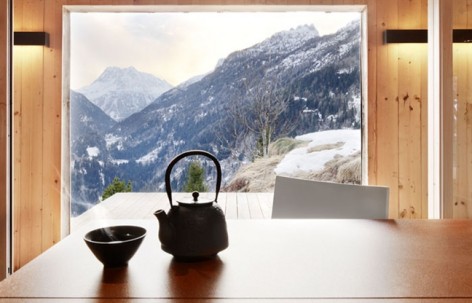

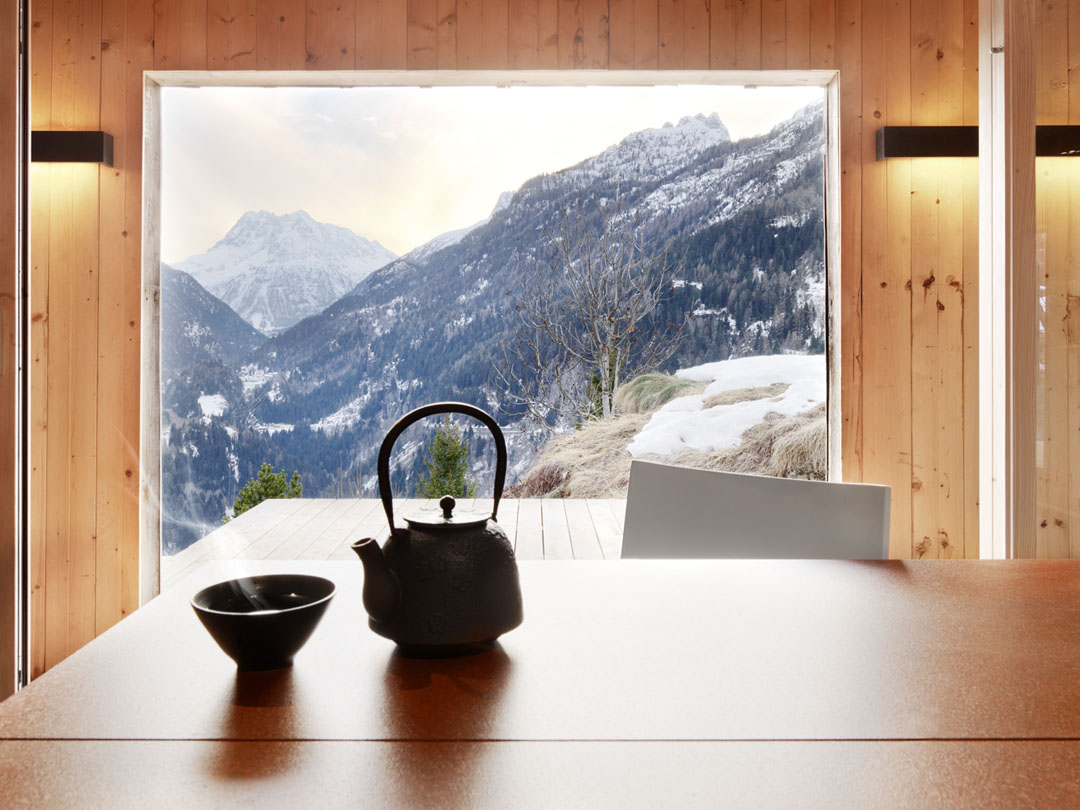

▼打开原有建筑的木门,美丽的风光和自然的采光便跑进屋中。

/wp-content/uploads/2013/08/_c_VqIZT7qTf8vh9R5RLeIJhOy9Rni2rGU6ocpVj5d9fzTiTte3zEiSx2mSj07CjlxQSDsd_KBwOZ8ufiWX1rXcZ7TdSTTy033h.jpg

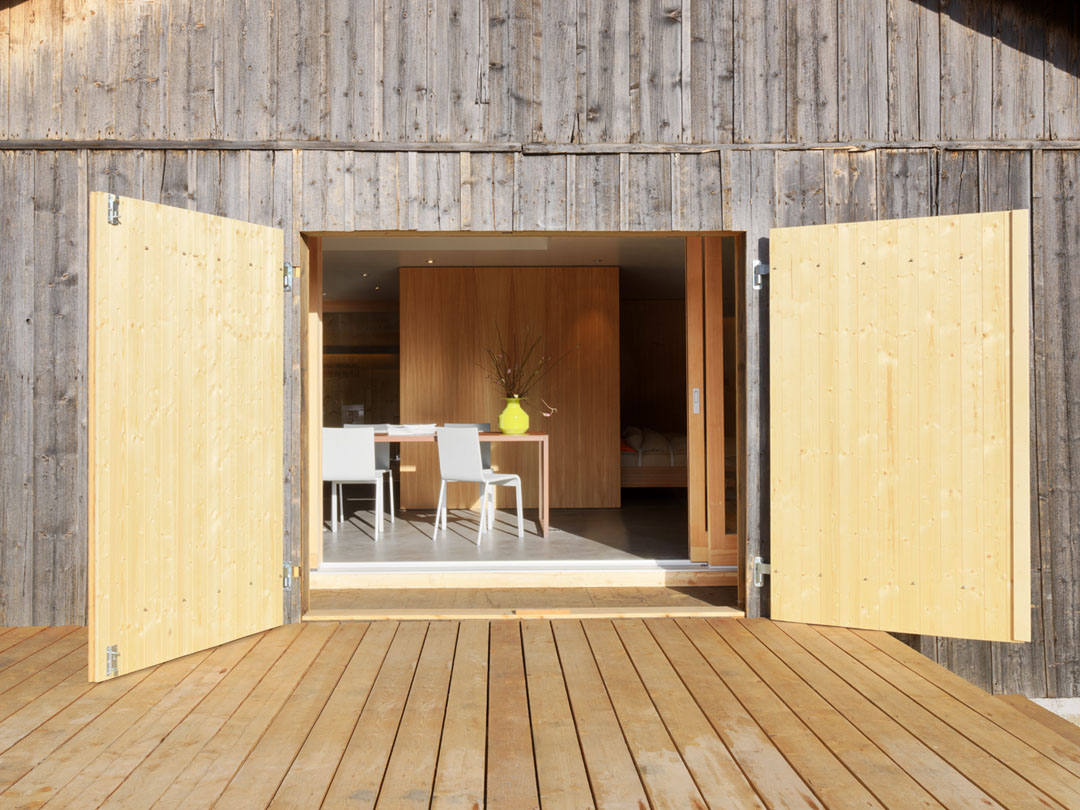

▼从室外看室内

/wp-content/uploads/2013/08/_c_u5XulGA_EqwZp5uMI0W5kzsmmjkXLVTbMHxauvxp7-h4XmejFb9UfXk04sADdQNppCfmryvZFNgNFLTaoqyLFwdiY79iPPW2.jpg

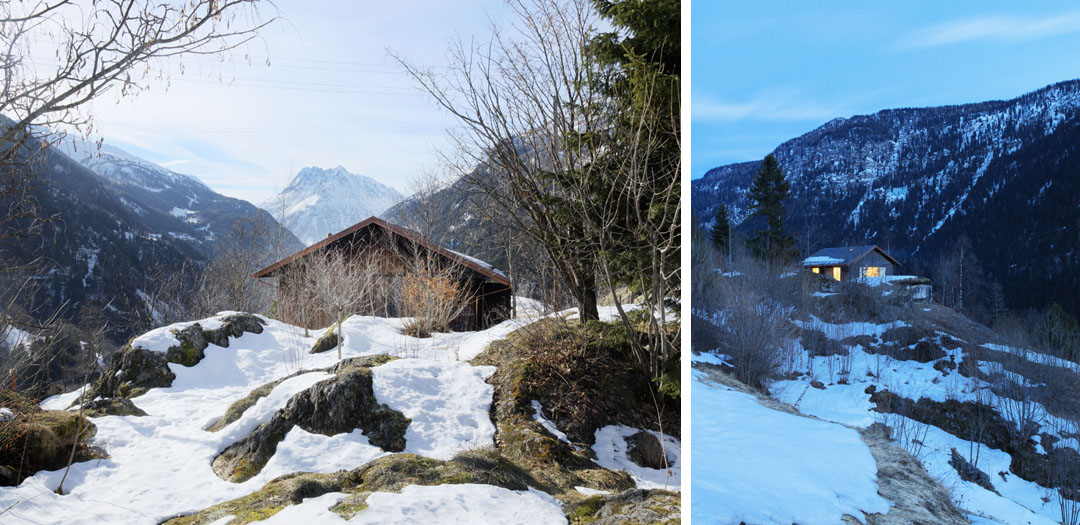

▼建筑外观,位于瑞士皑皑白雪的群山之中。

/wp-content/uploads/2013/08/_c_r_IZk4H6Qw0R1_8e7gFkJbjYr2NAINEwH7cdRRjAq6nVzOewZlWPjfEc6i95hlYu7IXnMekyXk1QpBtrlSSHD3tI6OJcZi_g.jpg

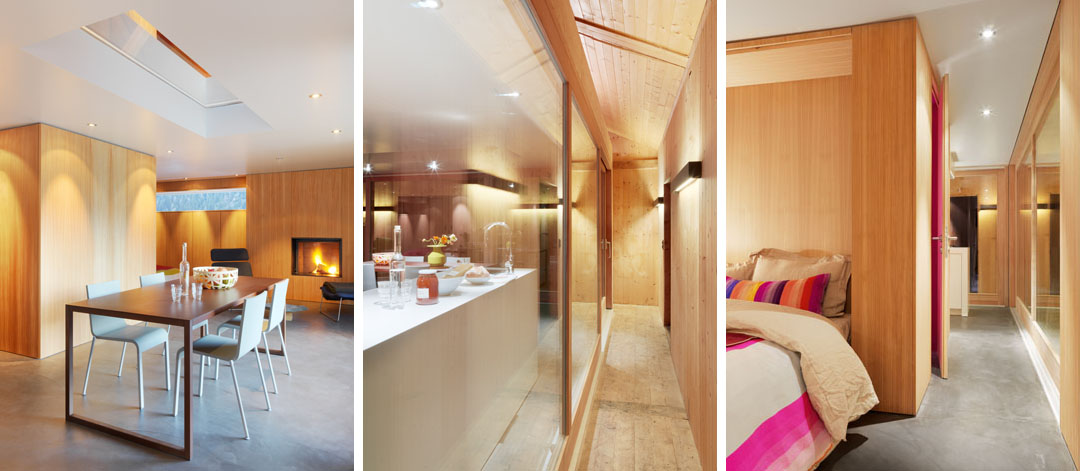

▼(左)采用简洁的线条让小屋备具品质(中)使用最简单原始的材料,比如落叶松,板岩,玻璃,金属。(右)为了让这个独自处于山野的小空间更让人放松,设计师在空间中加上了活泼的紫红色,比如房间配饰色彩和隐藏在木盒子中的卫生间色彩。

/wp-content/uploads/2013/08/_c_yojhtpM4tthvzZIg7TcsoZpR-5O4kKkkMyyUA0MFcFksa1Eviv5xYN6SIHkLeAHmKE1xgrrmh3_f4ZXs38g_sUAJUofYUSsA.jpg

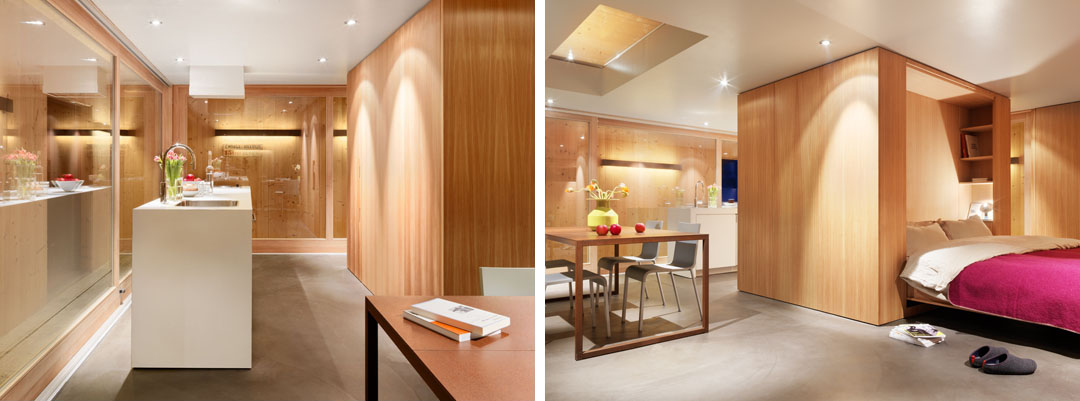

▼在玻璃的盒子中心设计师又加了一个木盒子,这个盒子是功能的心脏,提供厕所,壁柜,甚至床(床在不使用的时候可以折叠进木盒子)。

/wp-content/uploads/2013/08/_c_fBcLOKRJ6QLCus8bkAlyabYoM1hkIpXm10wi7bgXSGIGTVlyAw5a5HdnPjcIPB54rpzSJxR2AaR2tHdktlEk3clI6TiAV8T8.jpg

/wp-content/uploads/2013/08/_c_5bi9ddN1PhVm26uD69dzE2UDH0o_7WkeNQ8cI9Kdy5MqOstXpAM9LHHiYfKtQ3J3n3mTM67eu3Rjz_6XrdKubPVKlZOz_lWN.jpg



Ralph Germann architectes

Founded in 2002 by Ralph Germann, the firm is a multidisciplinary practice based in Vevey, Switzerland, with a team of seven collaborators. Ralph Germann is active in various fields from architecture to furniture design.

Its architecture can be defined in two words : aesthetics and functionality. From uncluttered or monastic interior to vernacular architecture, its projects create clever interiors where minimalism means comfort.

The designed buildings are also dotted with unique furniture, customized for each space, underlying the views and perspectives as the main assets of these projects.
