Anadara, Barangaroo By FJMT Studio

Gentle viewing experience.

Project Specs

Design Firm:

来自 FJMT Studio 对gooood的分享。更多关于他们:FJMT Studio on gooood.
Appreciation towards FJMT Studio  for providing the following description:


Anadara’s unique design represents earth, water and sky, expressed by the earthy terracotta coloured façade to the south which is contrasted by a striking, white curvilinear feature to the north, coined ‘The Cloud.’  The expressive, organic form of the northern apartments celebrates and defines the adjacent public square and is reminiscent of the free-forms of clouds and waves that complement our sandstone harbour headlands. Our approach was to articulate this long linear building into two primary forms; a carefully scaled rectilinear form that defines the waterfront, and a higher more organic form to addresses the main public open space. These architectural forms are combined with a linear canopy, gentle terracing and landscape to characterise the public waterfront.

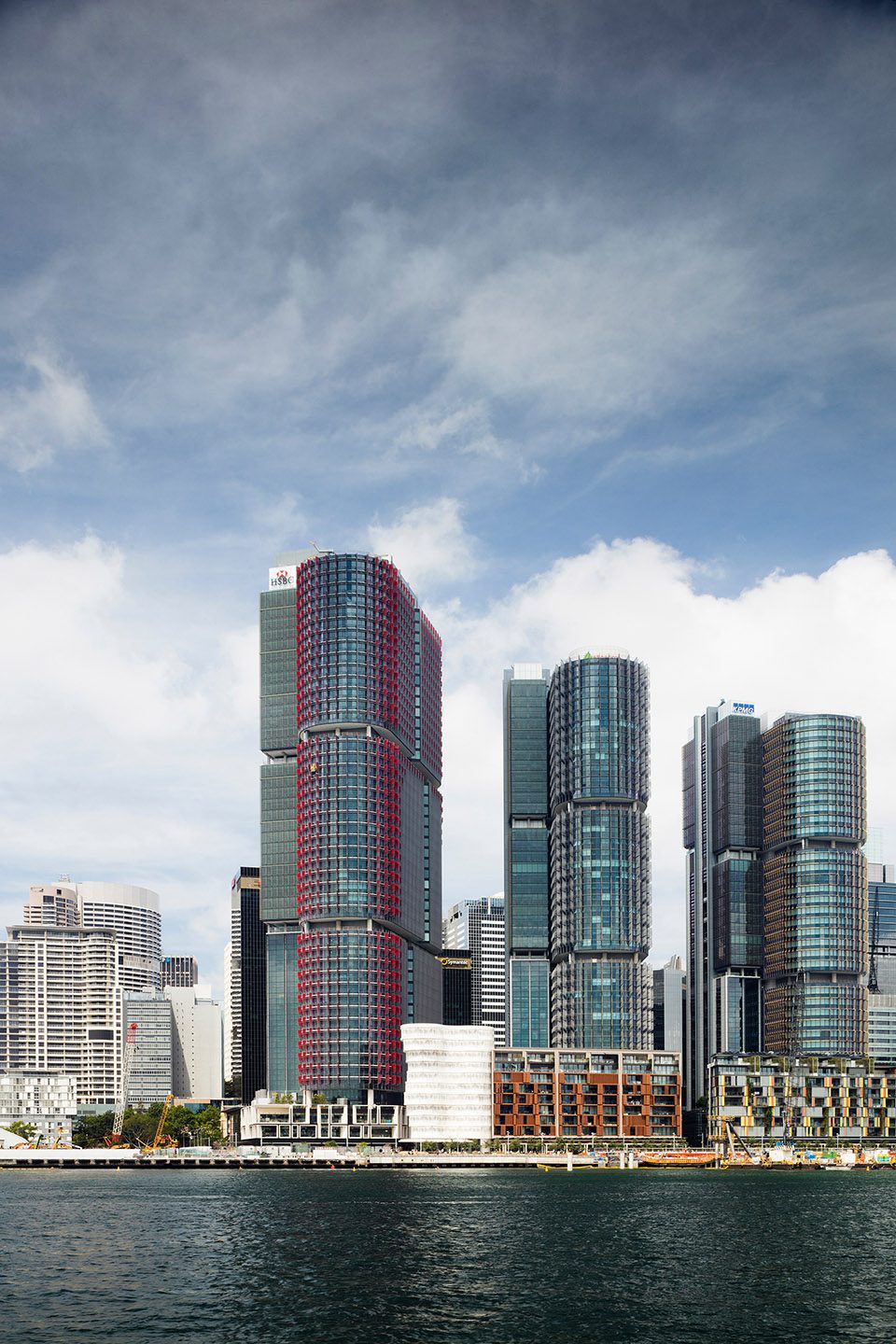

▼远眺建筑全貌,full view

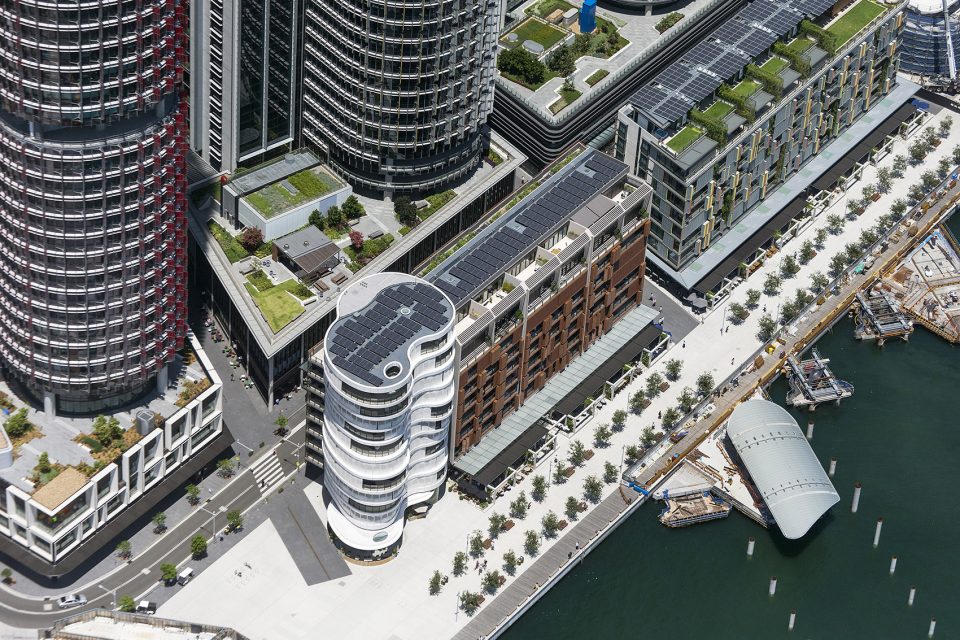

▼鸟瞰建筑,bird view


As the building is located in the vibrant new precinct of Barangaroo South, it was imperative to preserve a sense of privacy for the apartments facing both the waters edge and the commercial towers. The curved forms of ‘The Cloud’ are created through fixed and operable perforated screens that can slide along the gentle curves while preserving a flush skin to the building when closed. The pattern to the outside of The Cloud softens the material used and allows maximum harbour views through the eye level, whilst maintaining a private outdoor realm for the apartments. Likewise, the eastern façade provides balcony setbacks and recessed oblique windows to enable views along the length of the street rather than directly across the road toward the commercial street frontage. Again, screens are used to increase privacy and further articulate the facade.

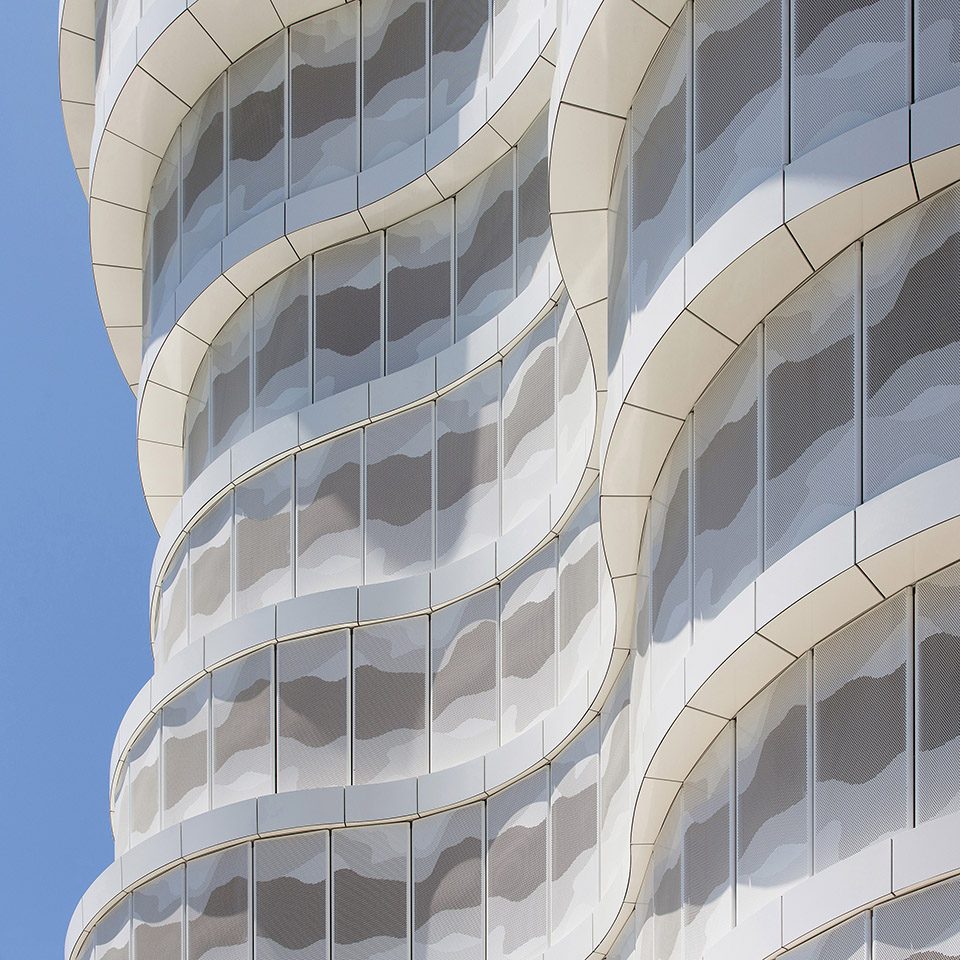

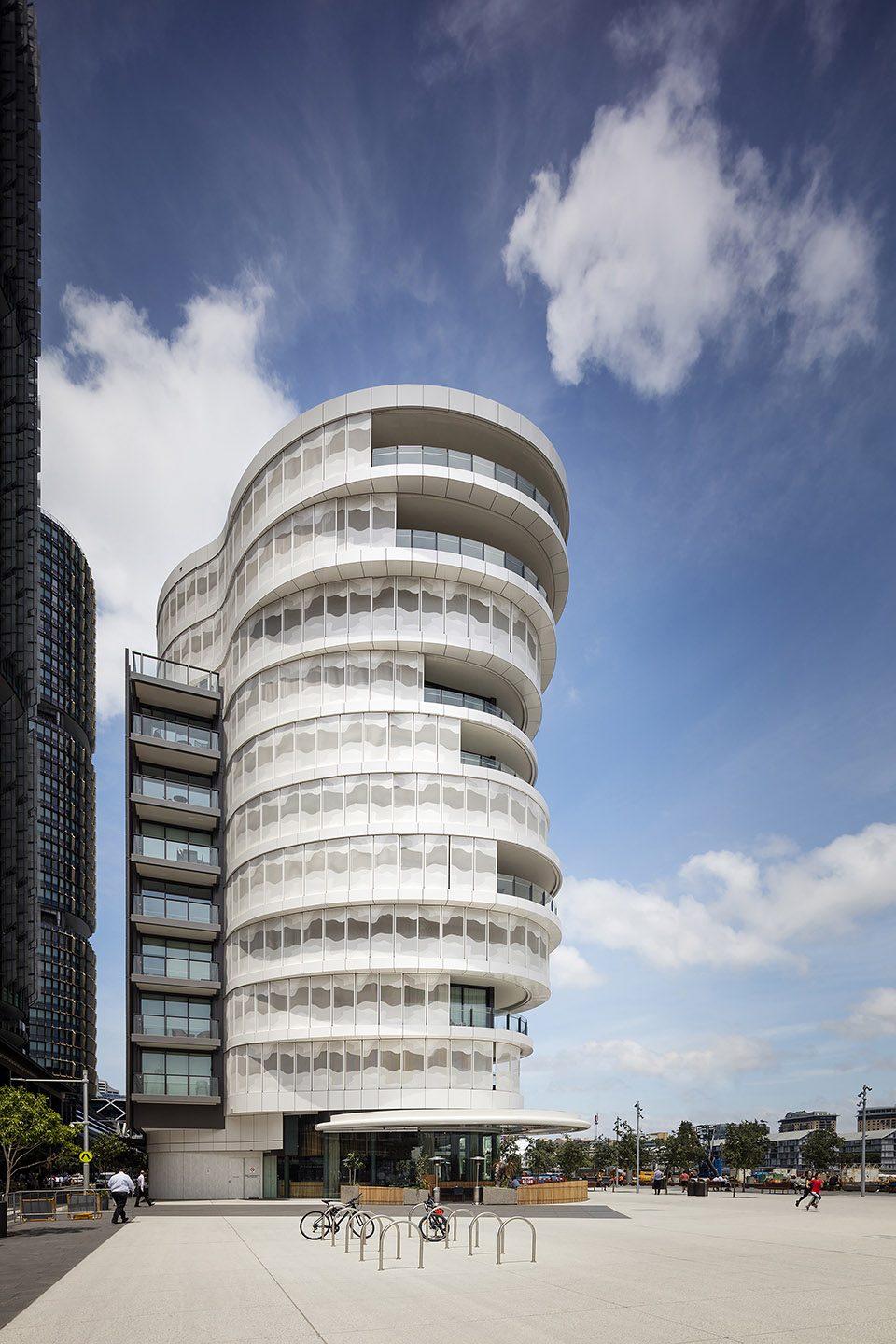

▼柔和的曲线立面,the curved form facade

▼云朵图案的屏风围合观景阳台,the cloud screen encloses the balcony


By setting back the top level, the impact of the building envelope along the public domain is reduced. This allows the public to look up and past the form to engage with the sky by looking through the rooftop louvres and beyond.As part of Barangaroo South, the most significant site opportunity is the ability to reconnect the harbour to the western edge of the CBD. Its in the optimum position along the waters edge and benefits from uninterrupted views of the harbour to the west. The public domain adjacent to the waterfront also connects back to Darling Harbour to the south reinforcing the public connectivity and walking trail along the harbour foreshore.

▼顶层后移加强屋顶观景体验,by setting back the top level allows the public to look up

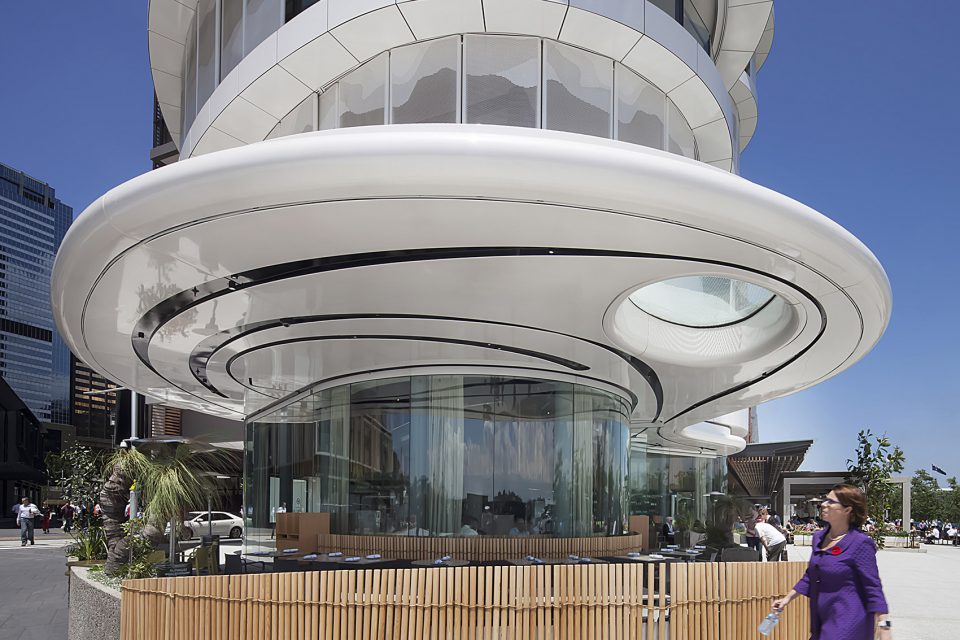

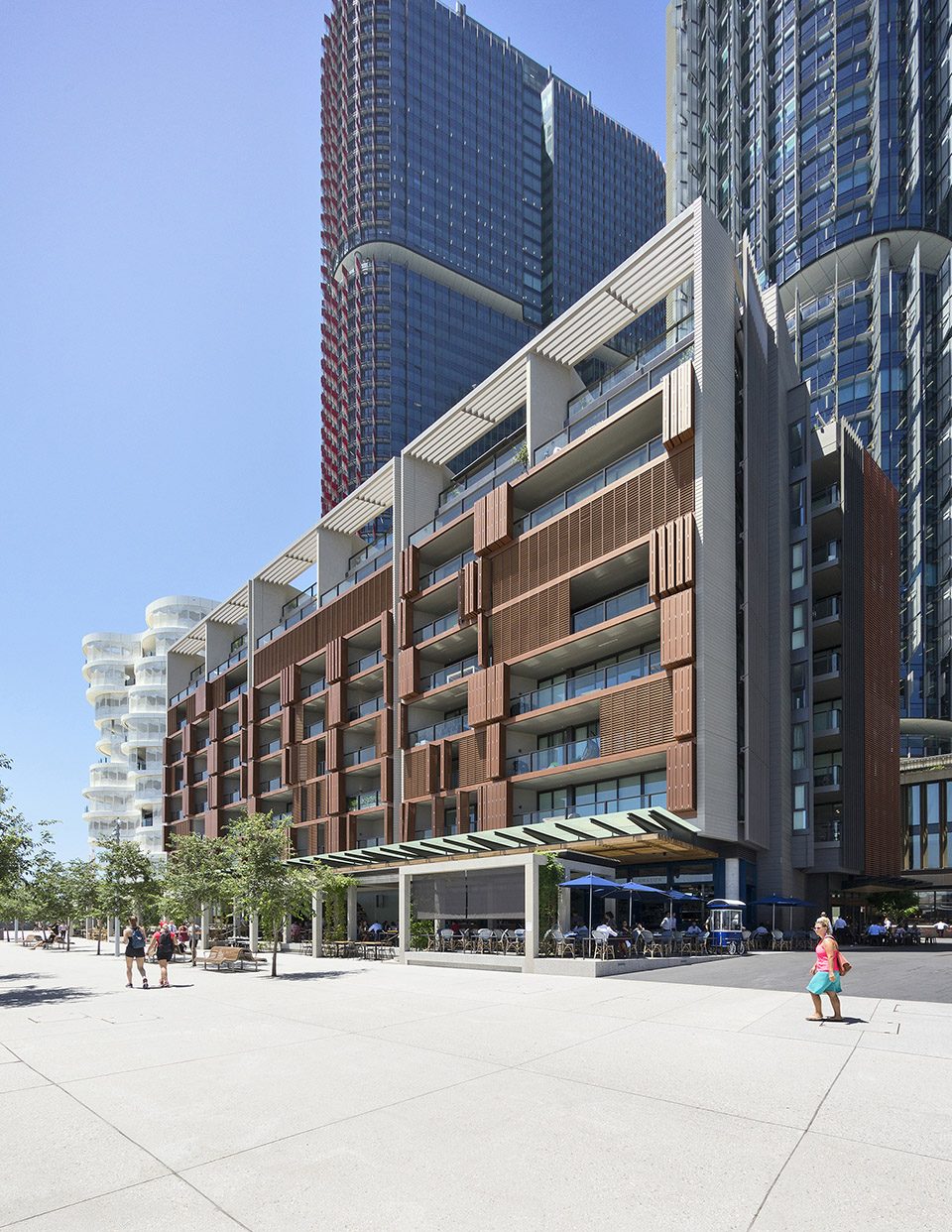

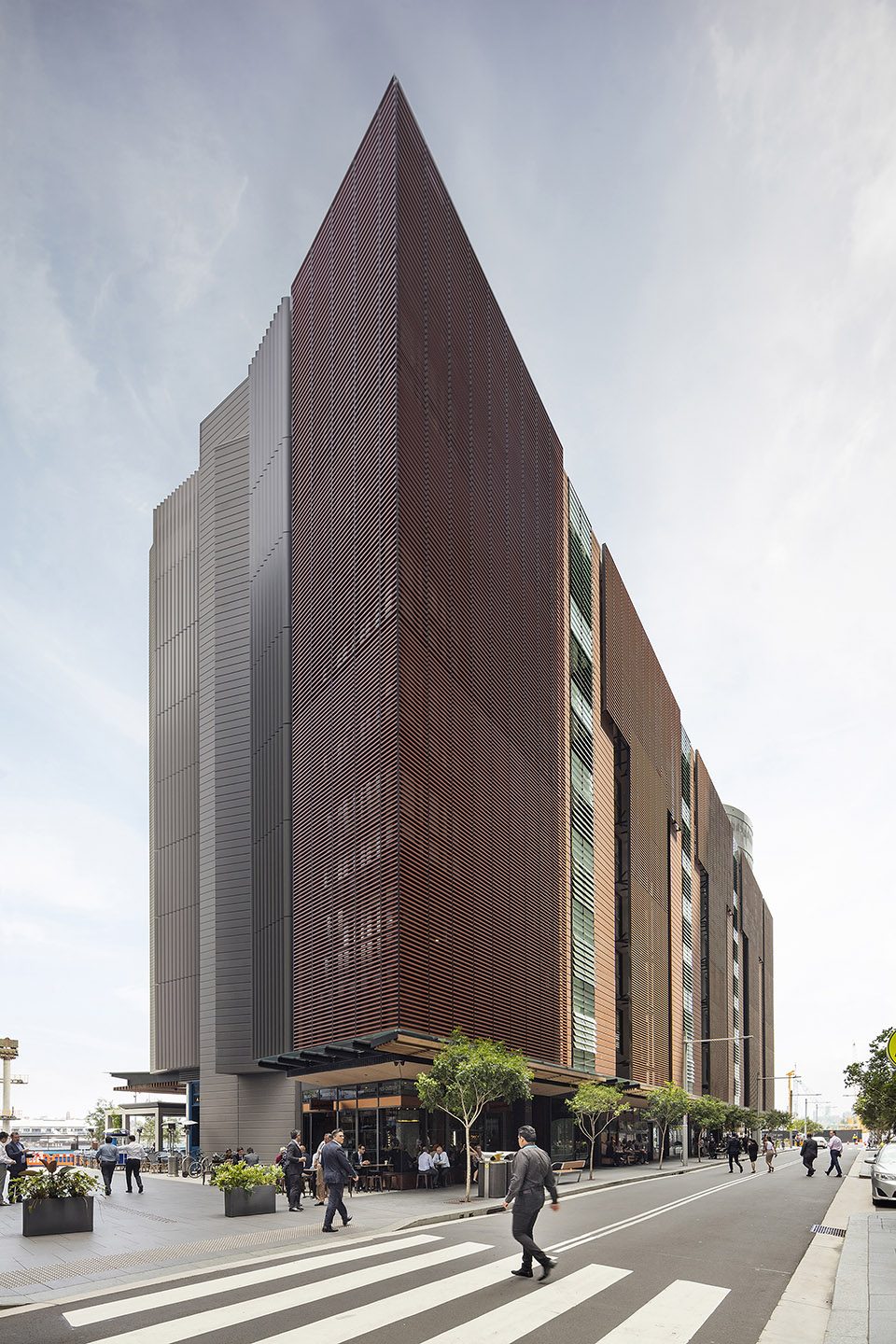

▼与曲线建筑完全不同的另一组成部分,the other part of the architecture

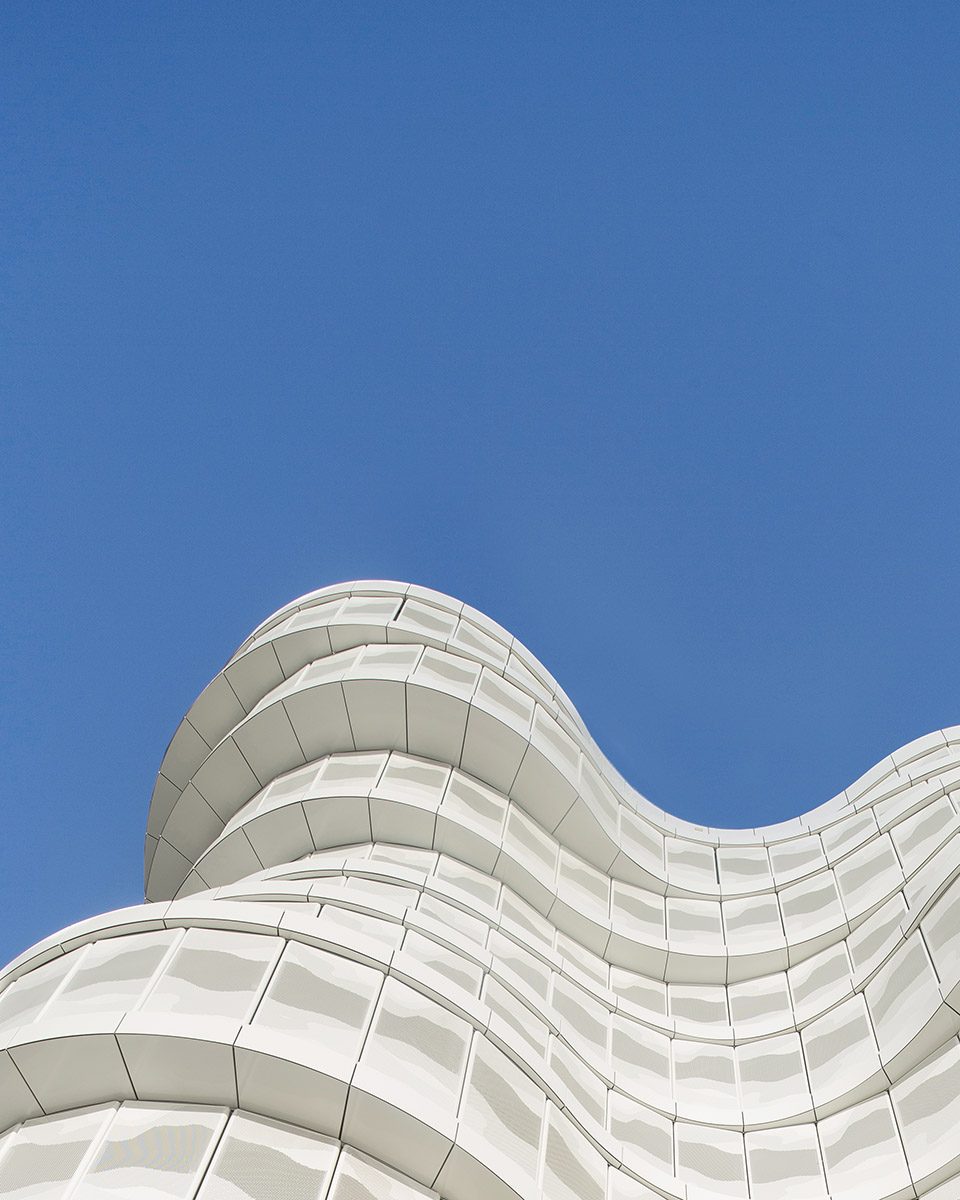

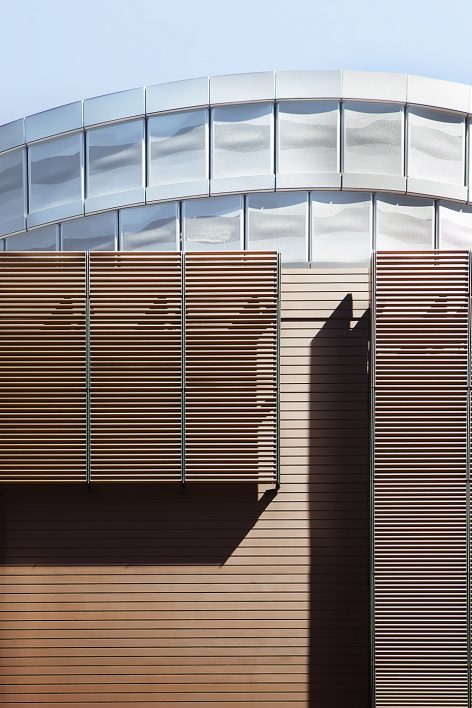

▼独特的曲线设计,unique curved design

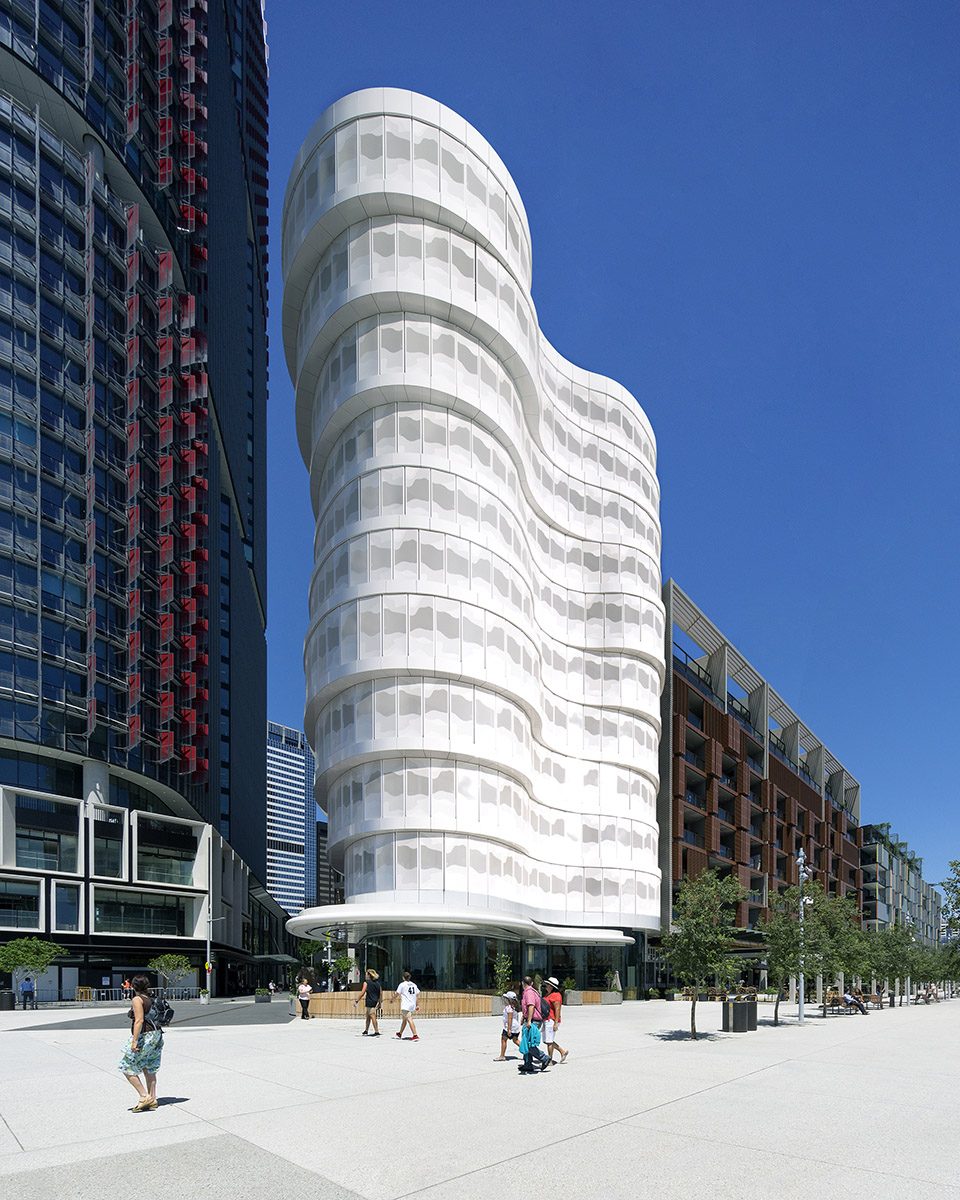

▼灵感取自天,地,水的设计,design represents earth, water and sky



Anadara and the activated retail at ground level serves to reinforce this opportunity providing a dynamic public realm, while the northern end of the site opens to a public square encouraging activity for the broader site of Barangaroo and the CBD. The apartments contribute to the liveliness of the precinct providing an active public and residential community along the harbours edge.

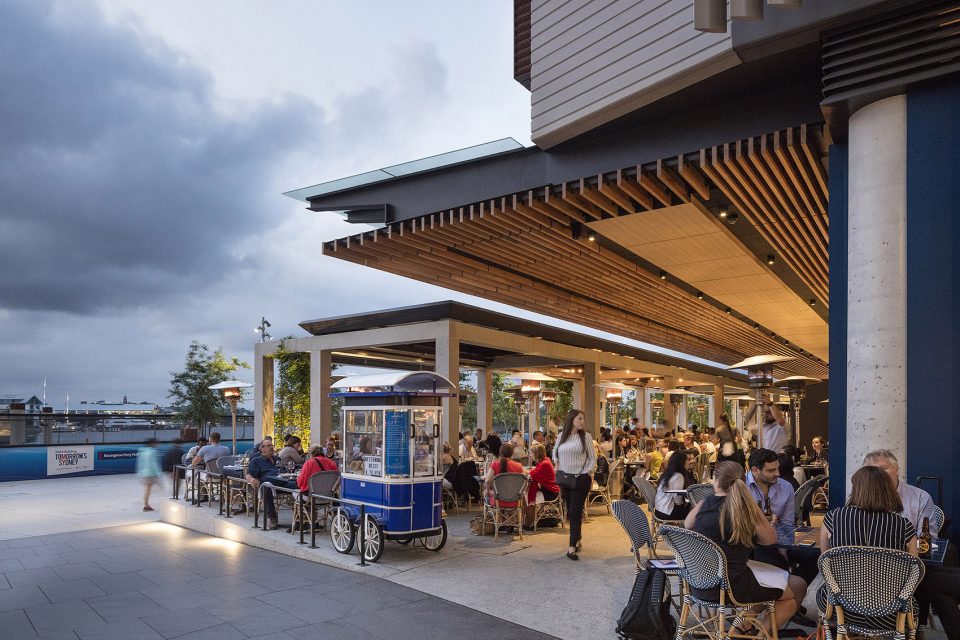

▼底层商铺另街区充满生气,the activated retail at ground level providing a dynamic public realm

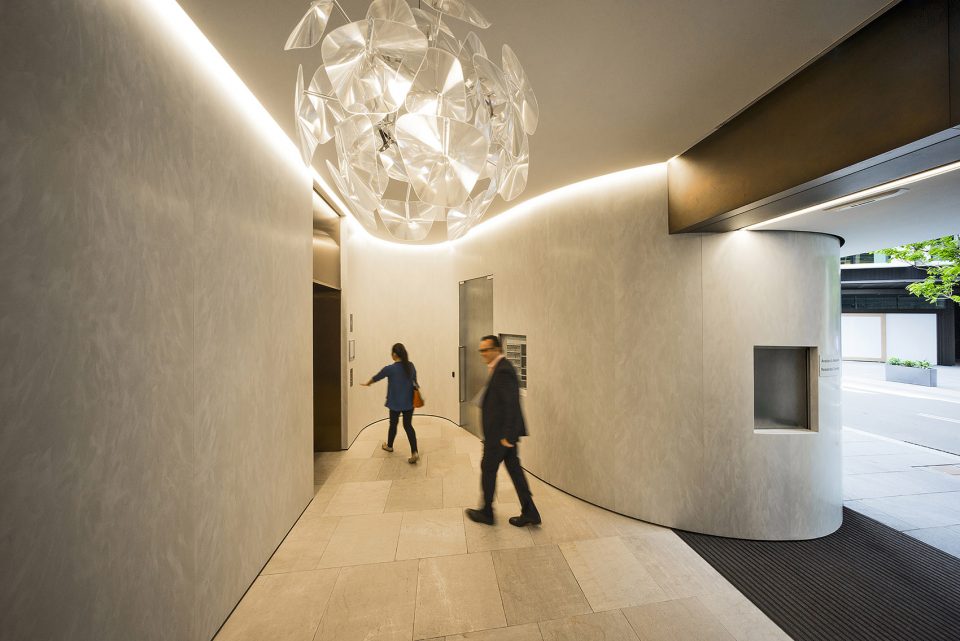

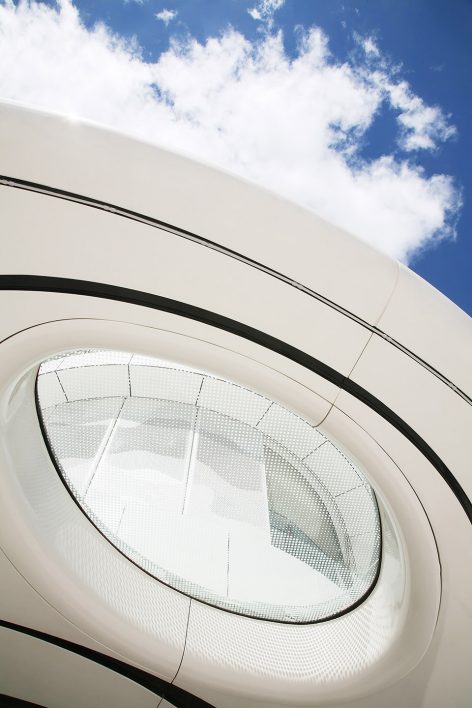

▼入口也采用曲线元素,the curved elements are also used in the entrance design

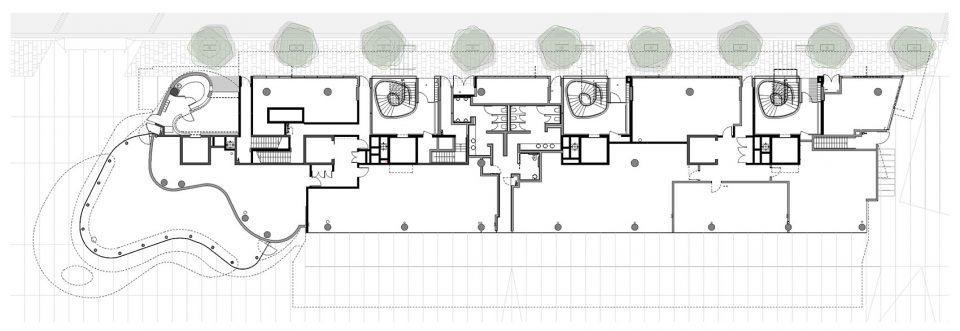

▼底层平面图,the ground floor plan

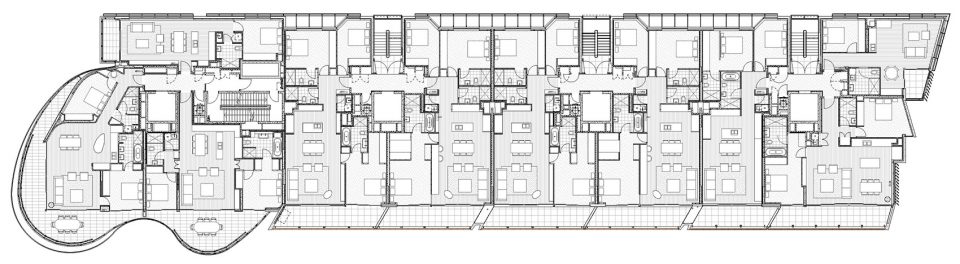

▼六层平面图,level 6

▼九层平面图,level 9

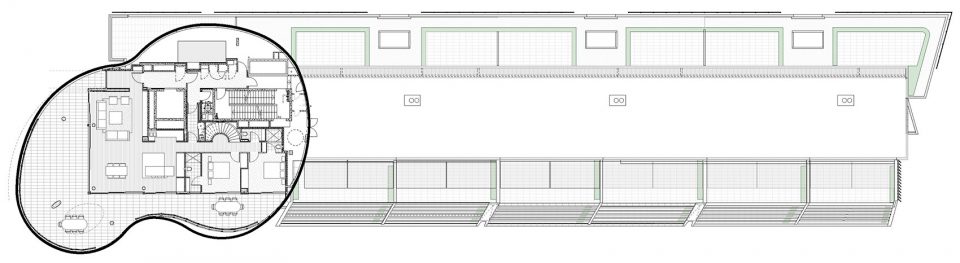

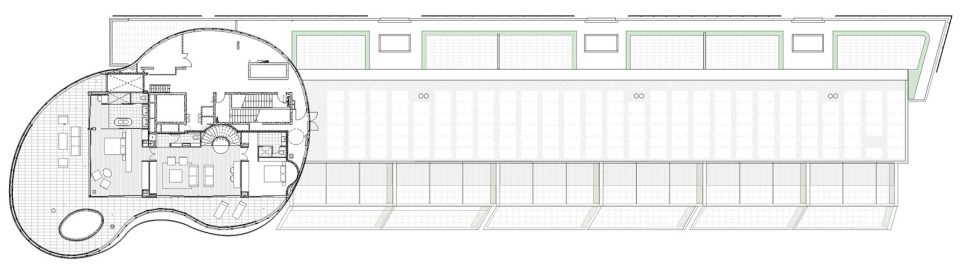

▼十层平面图,level 10

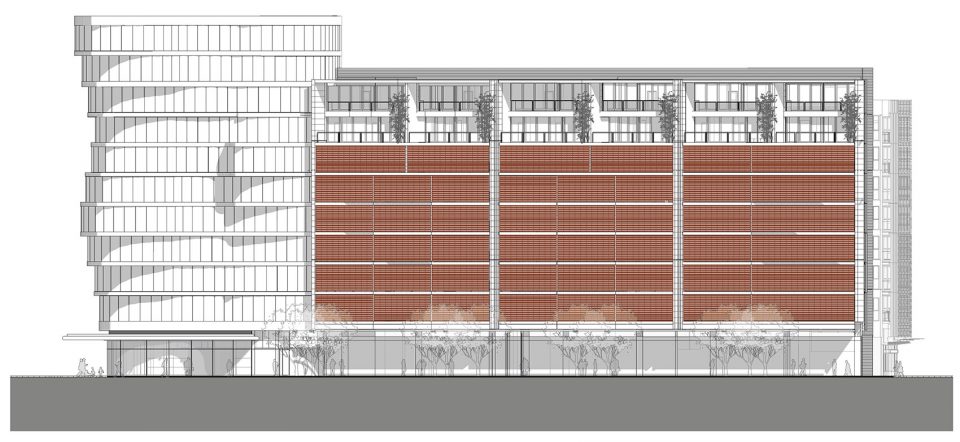

▼西立面图,west elevation

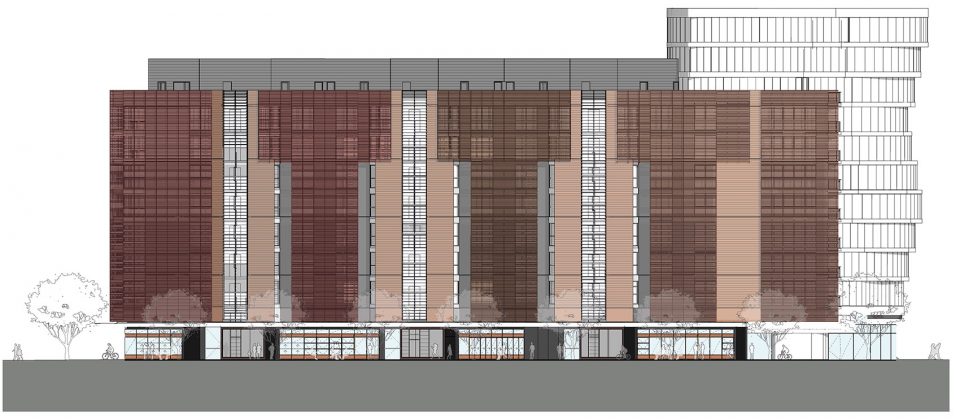

▼东立面图,east elevation

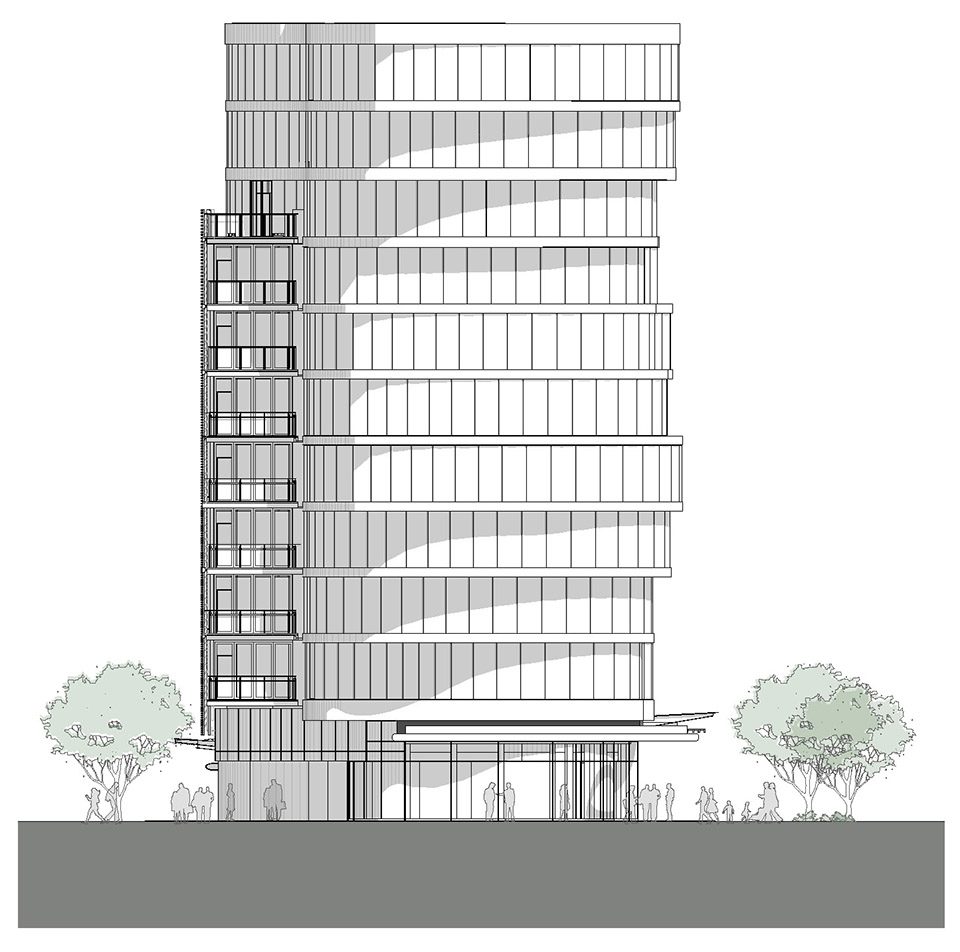

▼北立面图,north elevation


Client: Lend Lease
Design Team
Architect: fjmt
Collaborating Architect: Lend Lease Design
Consultant Team
Interiors: BKH, SJB
Structural: Calibre Consulting
Mechanical: AECOM
Hydraulic: SPP Group
Fire: Warren Smith & Partners
Facade: Arup
Survey: Rygate
BCA, DDA & Certi er: McKenzie, One Group Acoustics – Renzo Tonin
Wind: Cermak Peterka Peterson
Builder: Lend Lease
Photography: John Gollings, Brett Boardman, Rose Repetti, Andrew Chung
