非常感谢 大舍建筑 予gooood分享以下内容。更多关于他们: Atelier Deshaus on gooood
Appreciation towards Atelier Deshaus for providing the following description:

大谷仓的场地位于良渚文化村玉鸟流苏地块，在良渚文化艺术中心（大屋顶）的西侧。狭长的场地提示了纵向的线性建筑体量。在此我们希望塑造的不仅是一个具有地标性的精神建筑，同时也是一个能够容纳多元性活动的场所。

▼视频，video ©Daily 建筑摄影

The site of the Big Barn is within the Yu Niao Liu Su Area of Liangzhu New Town, to the west of the Liangzhu Center of Arts (the Big Roof). The long and narrow site indicates a horizontal and linear architectural volume. We hope to create here not only a spiritual architecture as a landmark, but a place to accommodate diverse activities.

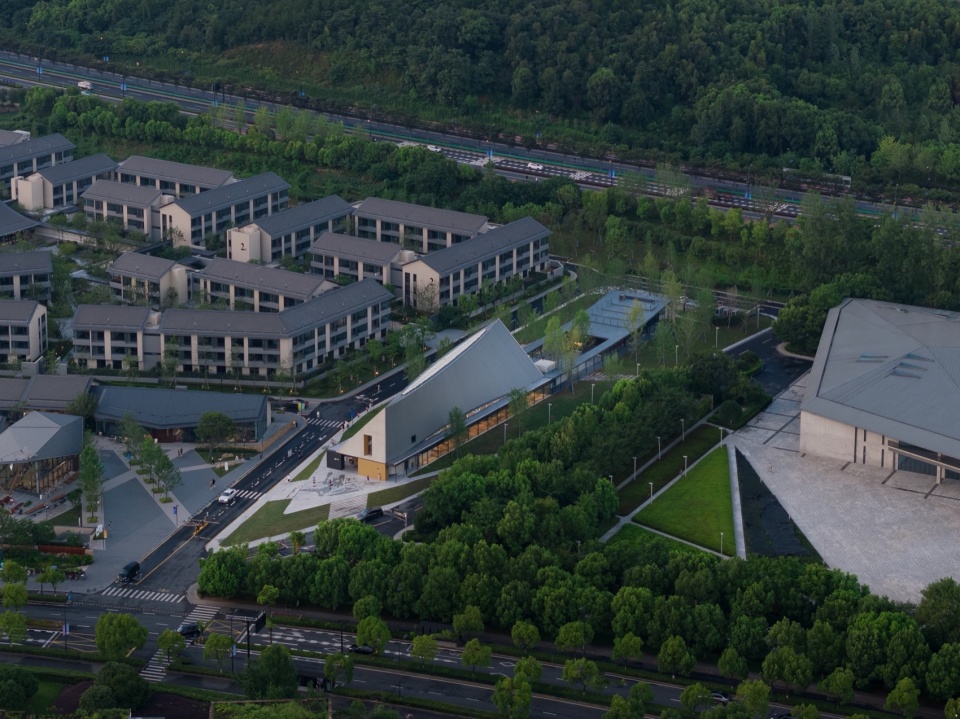

▼场地鸟瞰，aerial view of the site © 是然建筑摄影

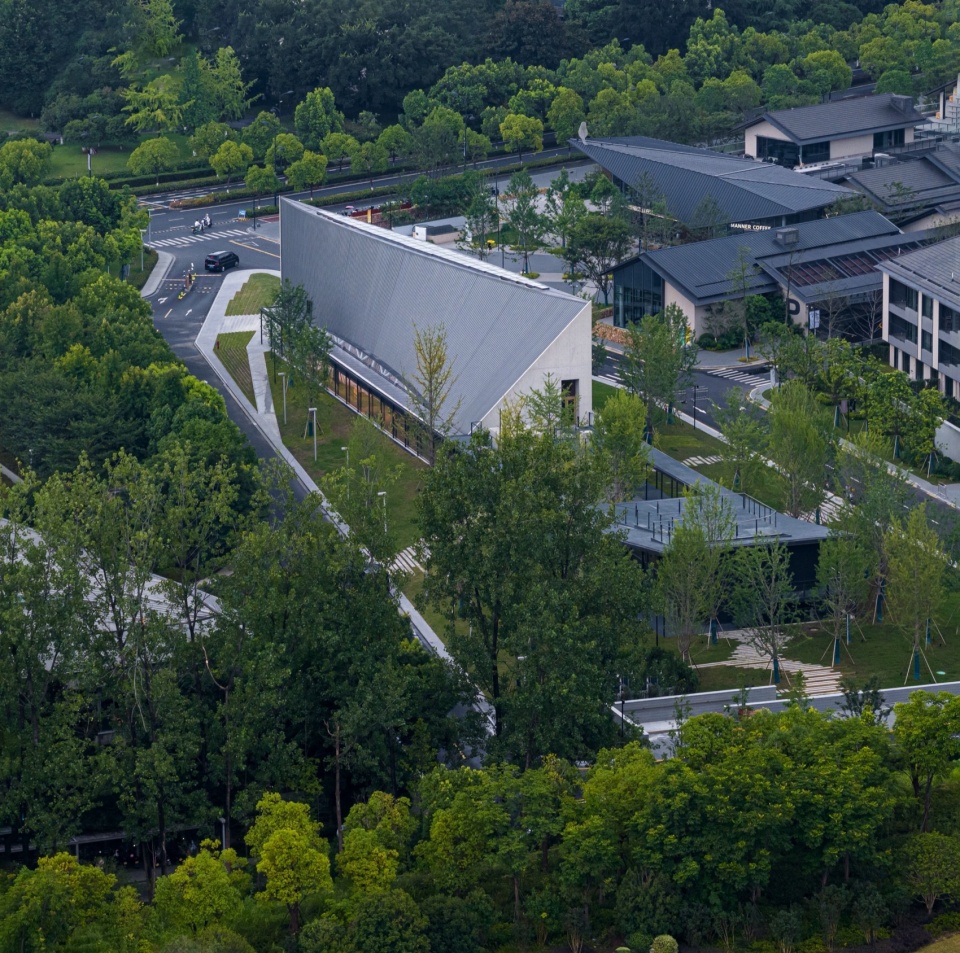

▼建筑鸟瞰，aerial view of the building © 是然建筑摄影

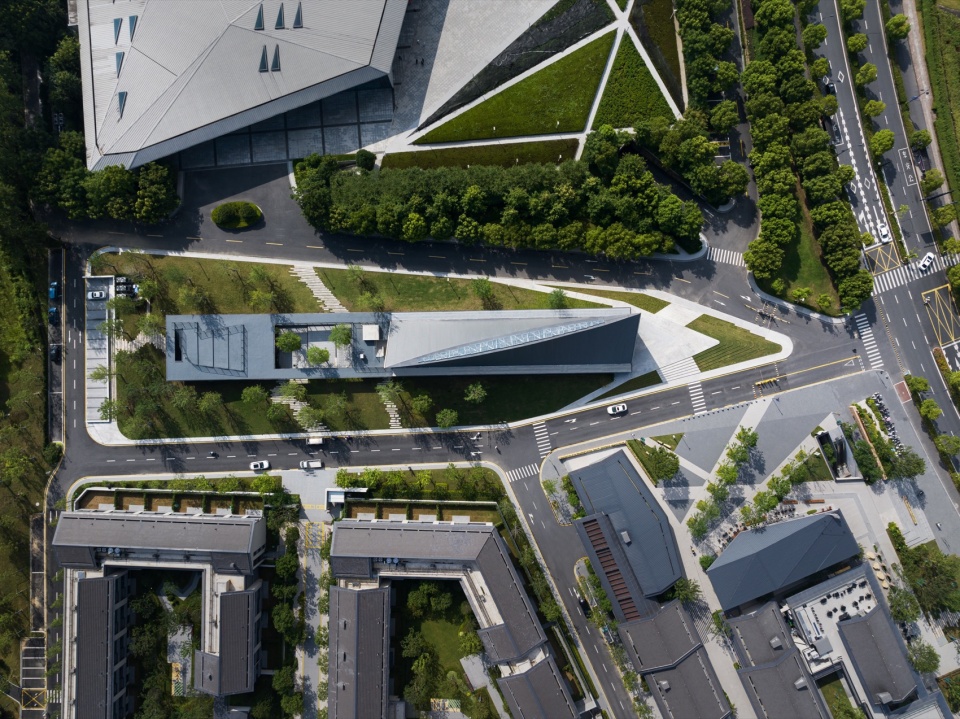

▼顶视图，top view © 是然建筑摄影

设计沿用屋顶、梁柱与基座(亼 + 屮 + 囗)的三要素构成，这一原型最早见于良渚文化遗址内出土的一件陶器上雕刻的图形，它暗示了这块土地上建筑的起源。在此历史原型之上，令场地上的结构系统与空间系统互相作用，以创造出特别的场所。

▼轴测拆解示意图，axonometric diagram © 大舍建筑设计事务所

The design follows the composition of the three elements, roof, column and base (Ji”亼”+Cao”屮”+Wei”囗”). The prototype was first revealed engraved on a ceramic piece in the Archaeological Ruins of Liangzhu City, indicating the origins of architecture on this land. Based on such a historical prototype, the structural and spatial systems interact with one another on the site, seeking to create a special place.

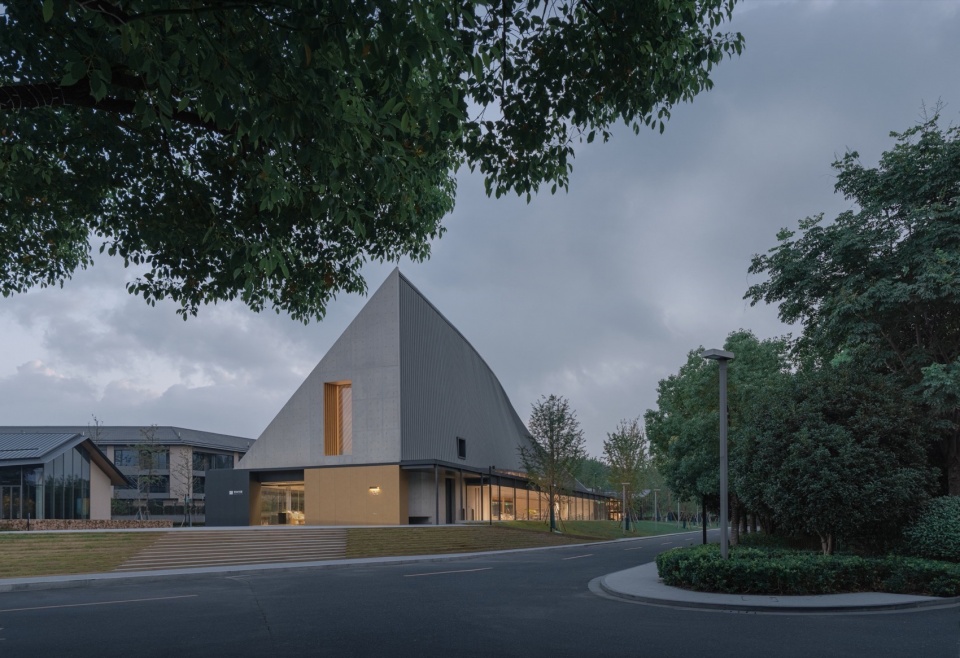

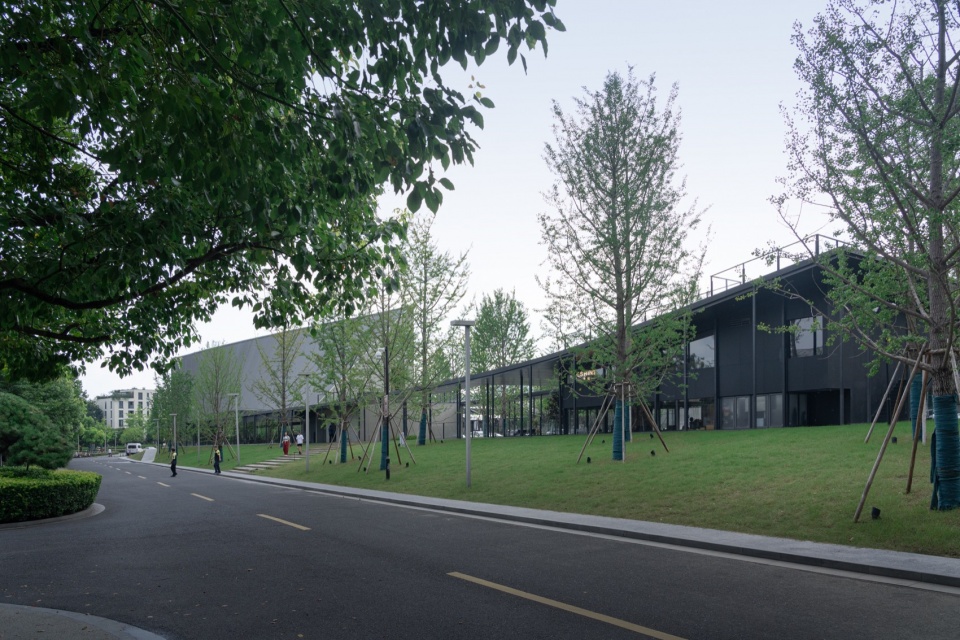

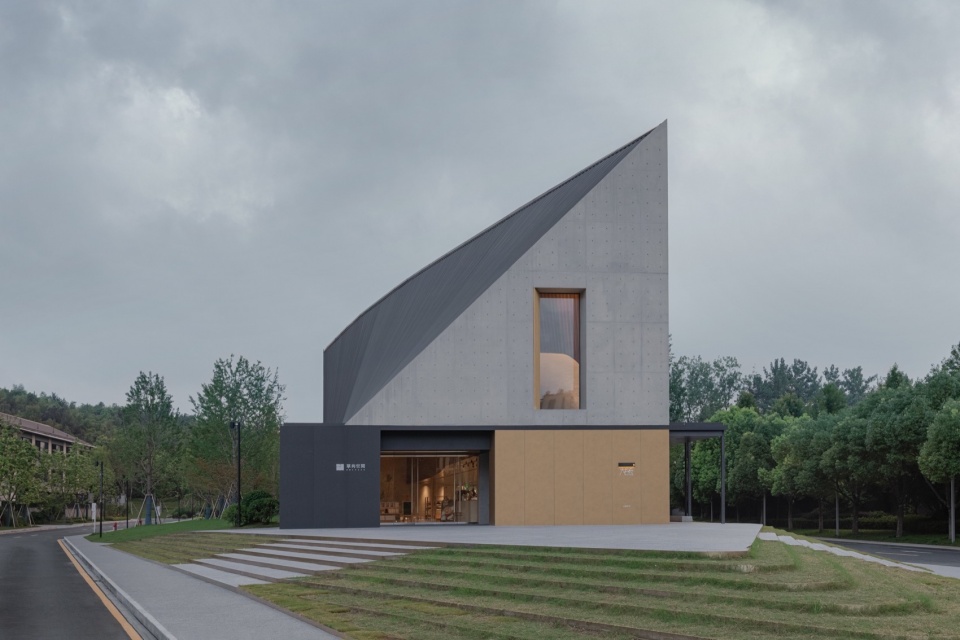

▼街道视角，street view © 是然建筑摄影

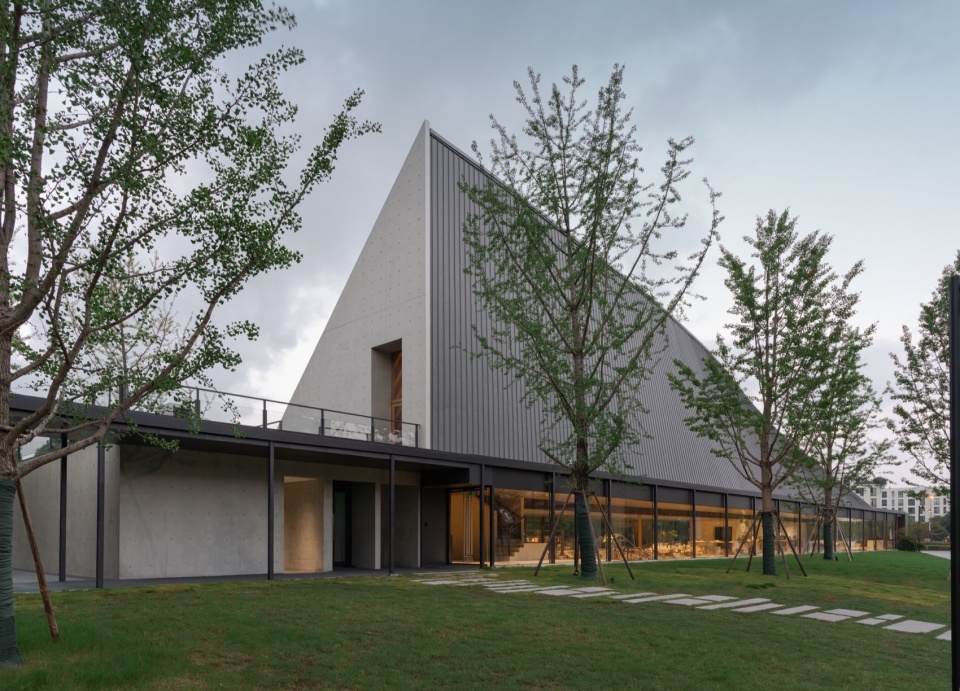

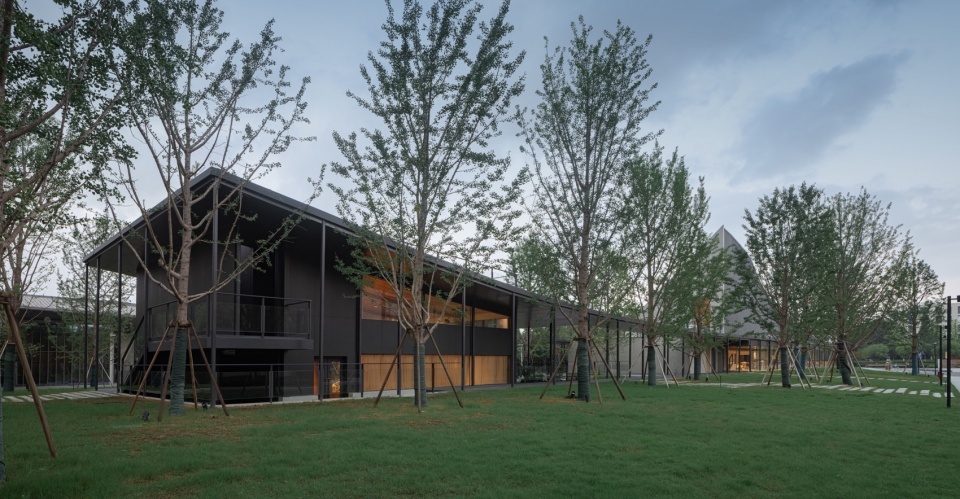

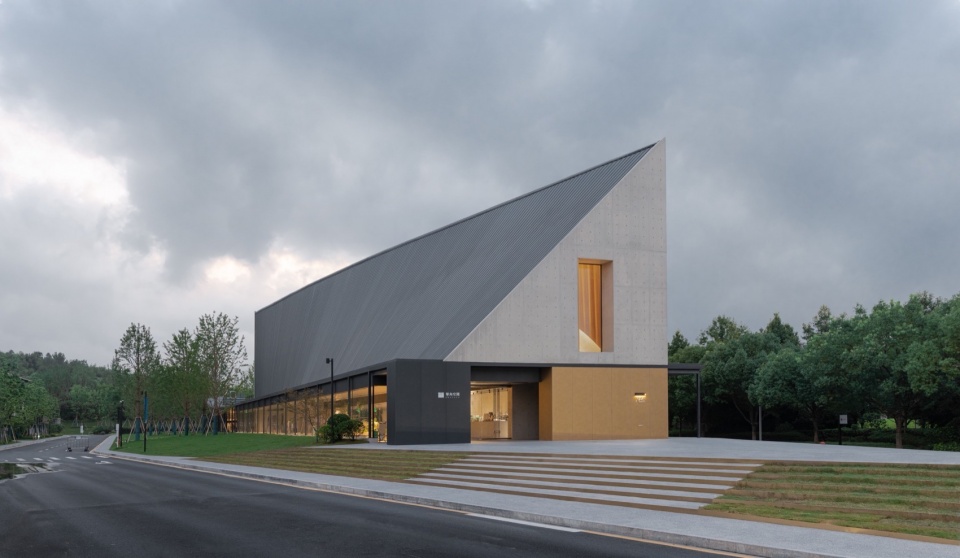

▼建筑外观，exterior view of the project © 是然建筑摄影

▼抬升的屋顶，the raised roof © 是然建筑摄影

常规的双坡顶根据功能需求延展为线性的长坡，然后根据场地周边空间关系将屋脊调整为一根斜线，再进一步打开屋脊、引入自然天光，由此产生的曲面屋顶不仅获得了空间的精神性，同时还成为了桥型的壳体结构。长达56米的钢木混合壳体屋顶，由两端山墙的混凝土框架剪力墙作为垂直支撑，这样建筑的两侧外墙就完全解放了出来，创造了连续开放的视野。

▼屋顶原始与最终结构设计，original and final structural design of the roof © 大舍建筑设计事务所

The conventional double-pitched roof is extended into a linear long roof due to functional needs. The ridge twists into a diagonal line based on the surrounding spatial conditions, and further opens up to introduce natural skylight. Thus the curved roof not only achieves the spirituality of space, but becomes a bridge type shell structure. The shell roof of steel and wood at the span of 56 meters are vertically supported by the concrete shear walls at both ends, so that the two other sides of the building is completely open, providing a continuous and spatious view.

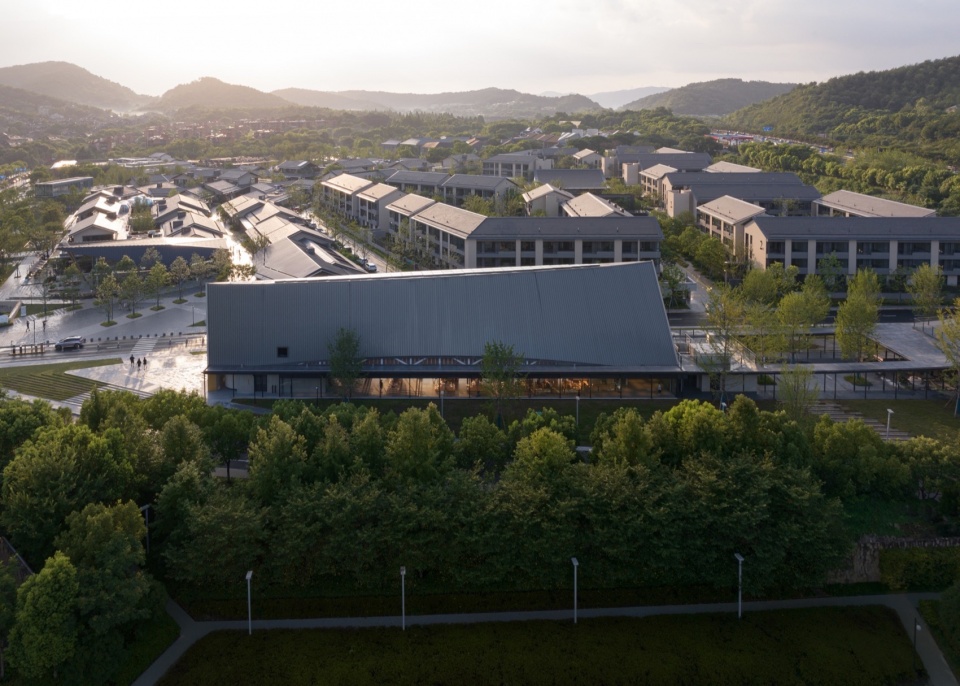

▼鸟瞰，bird ‘s-eye view © 是然建筑摄影

▼设计沿用屋顶、梁柱与基座(亼 + 屮 + 囗)的三要素构成，the design follows the composition of the three elements, roof, column and base (Ji”亼”+Cao”屮”+Wei”囗”) © 是然建筑摄影

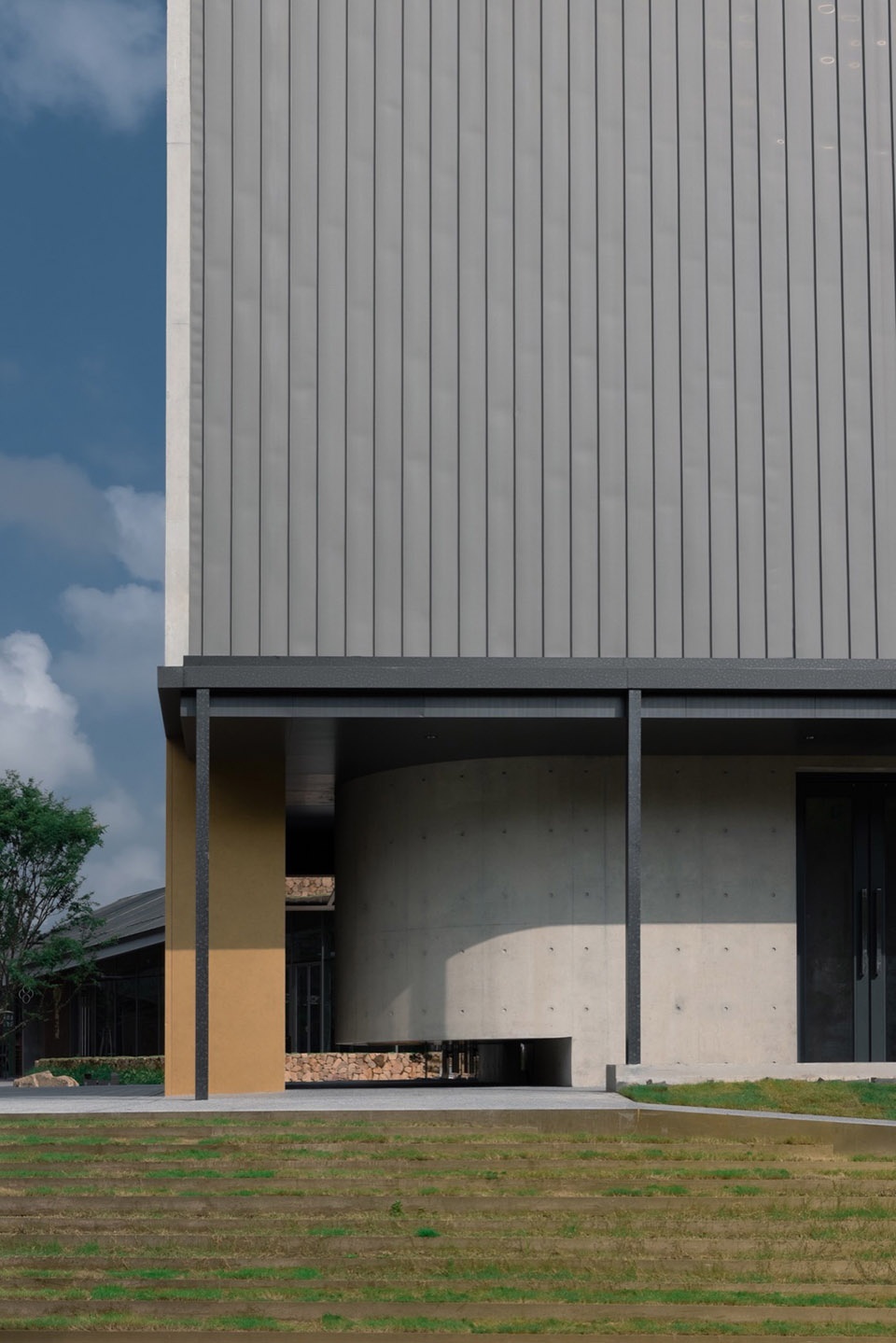

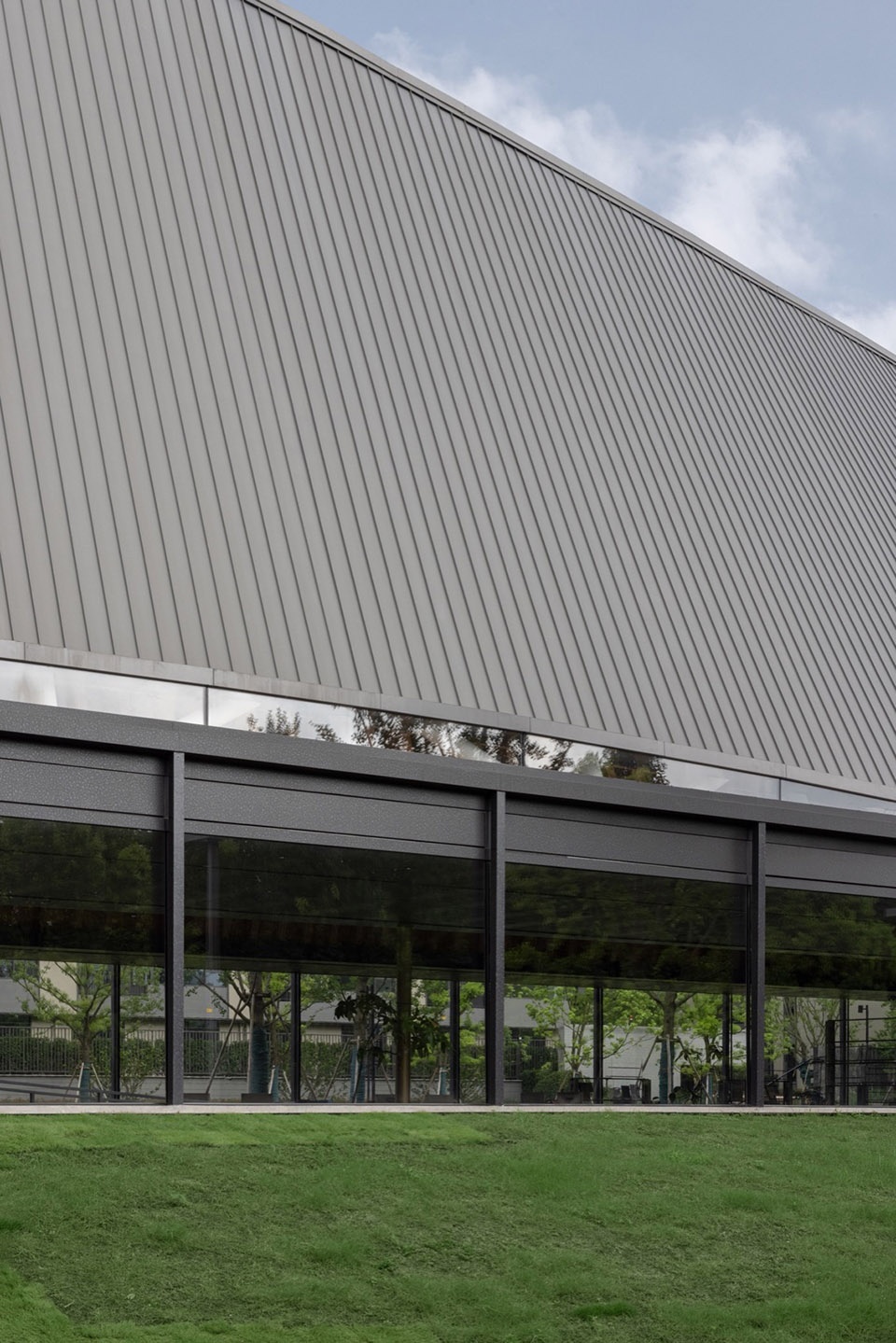

▼外立面近景，closer view of the facade © 是然建筑摄影

▼建筑细部，details of the building © 是然建筑摄影

屋檐两侧长向的细钢柱回廊也提供了屋面的面外抗风结构系统，同时强化了向两侧环境水平向的开放性。水平回廊向场地纵向延展并慢慢扬起，形成了一处开放的庭院空间。

The long thin steel column corridors on both sides of the eaves also provide the roof with an exterior wind resistance structural system, and stress the horizontal openness towards both sides. The corridors stretch along the site and slowly elevate, forming an open-air courtyard space.

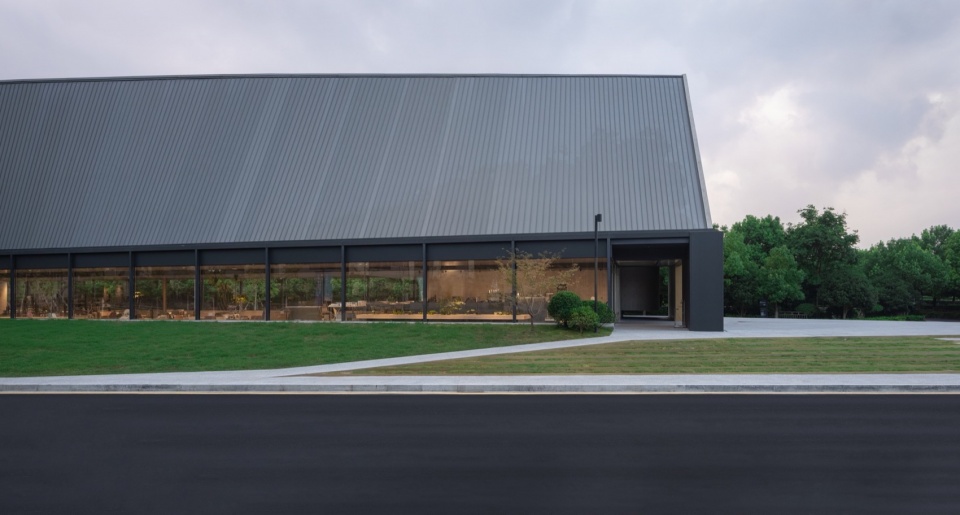

▼街道视角，street view © 是然建筑摄影

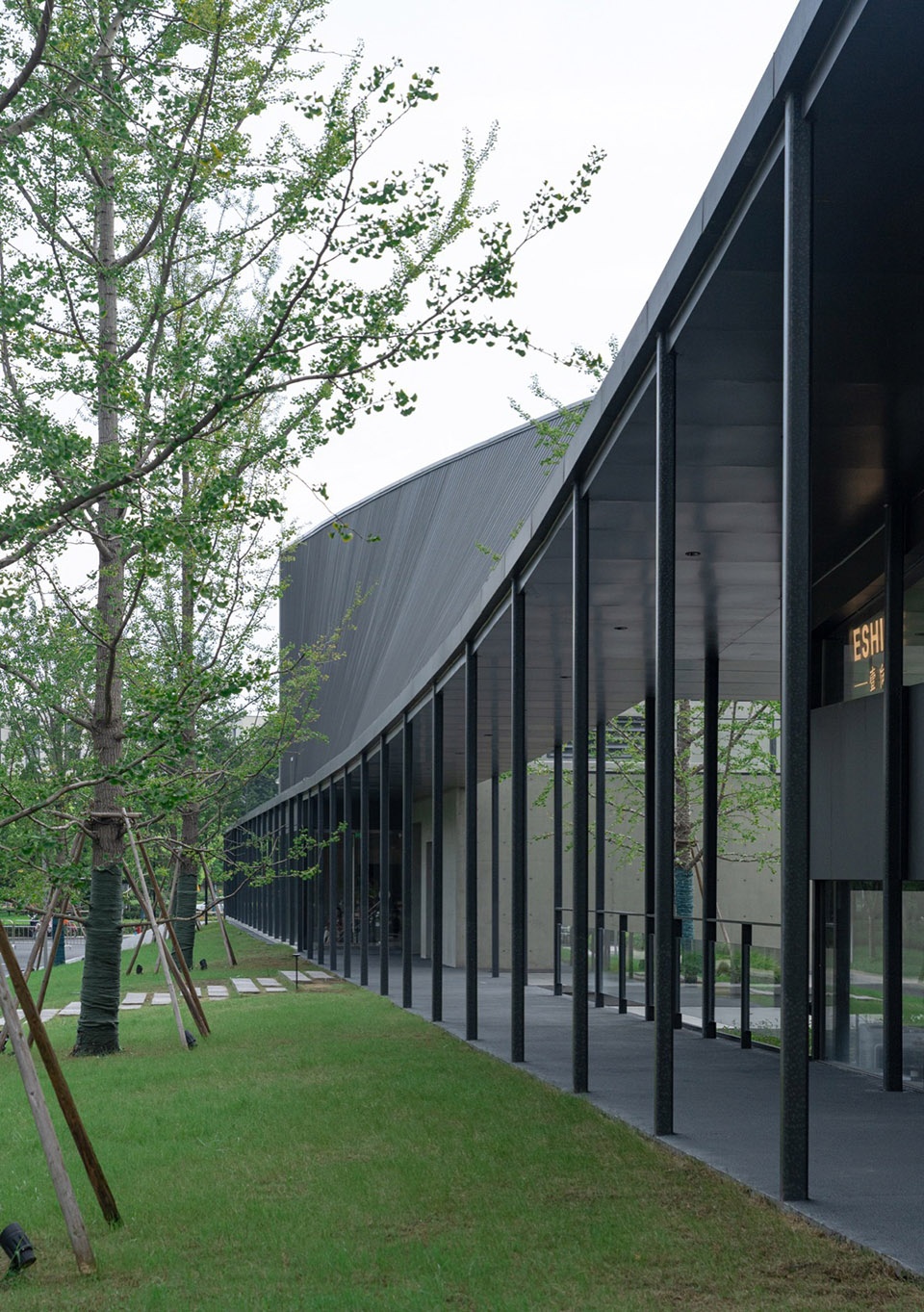

▼回廊，veranda © 是然建筑摄影

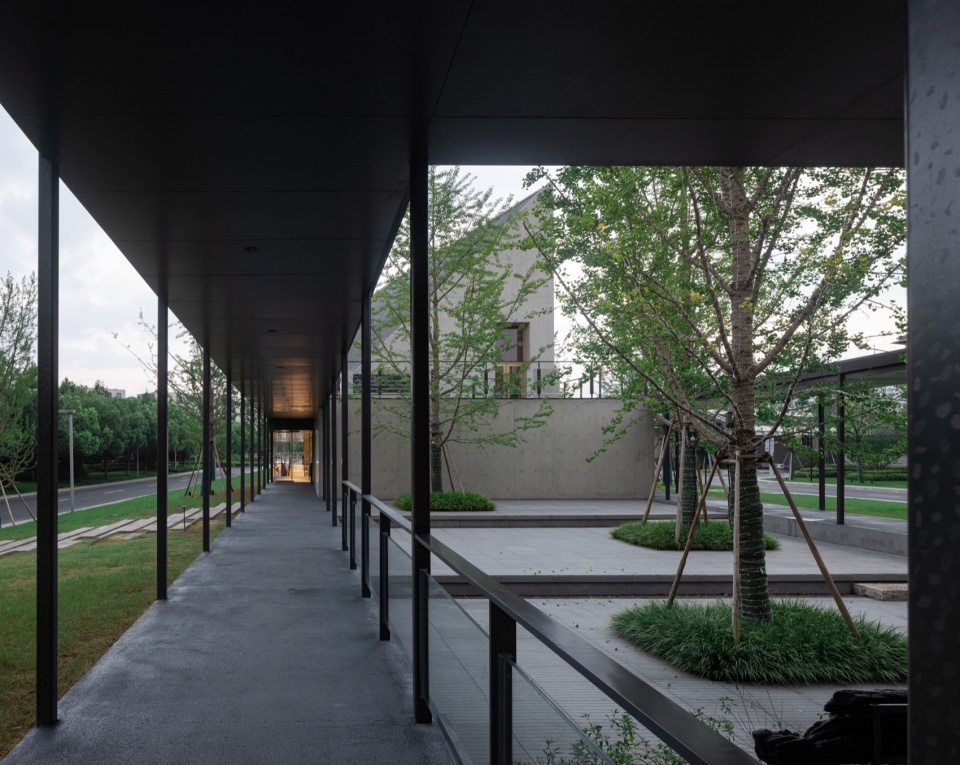

▼开放的廊下空间，open space under eaves © 是然建筑摄影

▼庭院空间，courtyard © 是然建筑摄影

整体抬高70cm的微地形场地形成了景观化的建筑基座，并在室内形成了下跌式的纵向变化空间，创造了具备当代感的“基座”体验。大谷仓的屋顶不仅提供了通高的精神性大空间，还容纳了一个夹层空间，提供了多尺度功能的场所可能。

The micro-terrain site lifted 70 centimeters from the ground generates a base for the architecture in means of landscape, and results in descending space in the interiors, giving an experience of a contemporary “base”. The roof of the Big Barn not only provides a big space of spirituality, but also holds an interlayered space, offering spatial potentials for multi-scale functions.

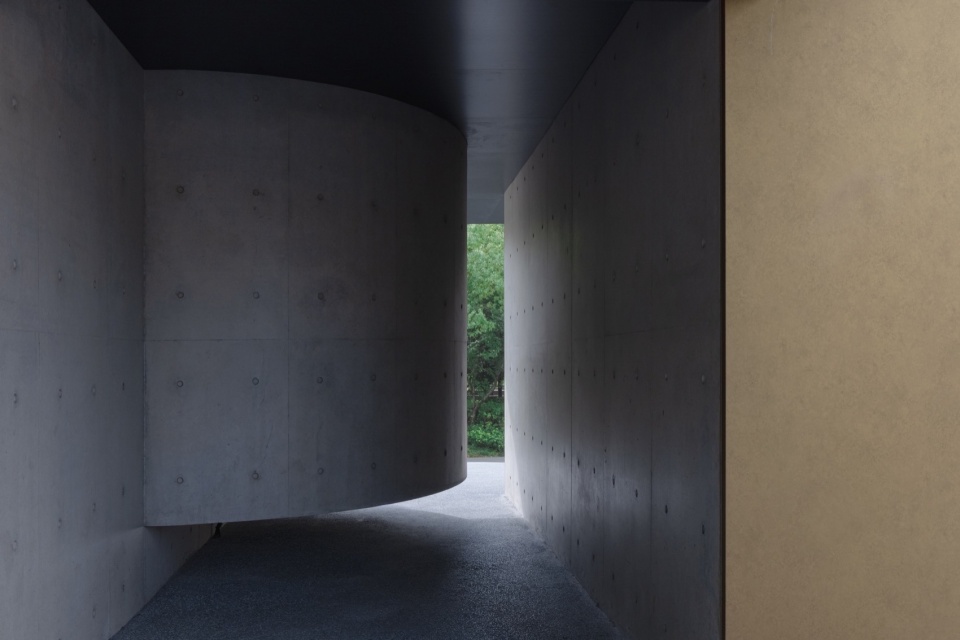

▼入口，entrance © 是然建筑摄影

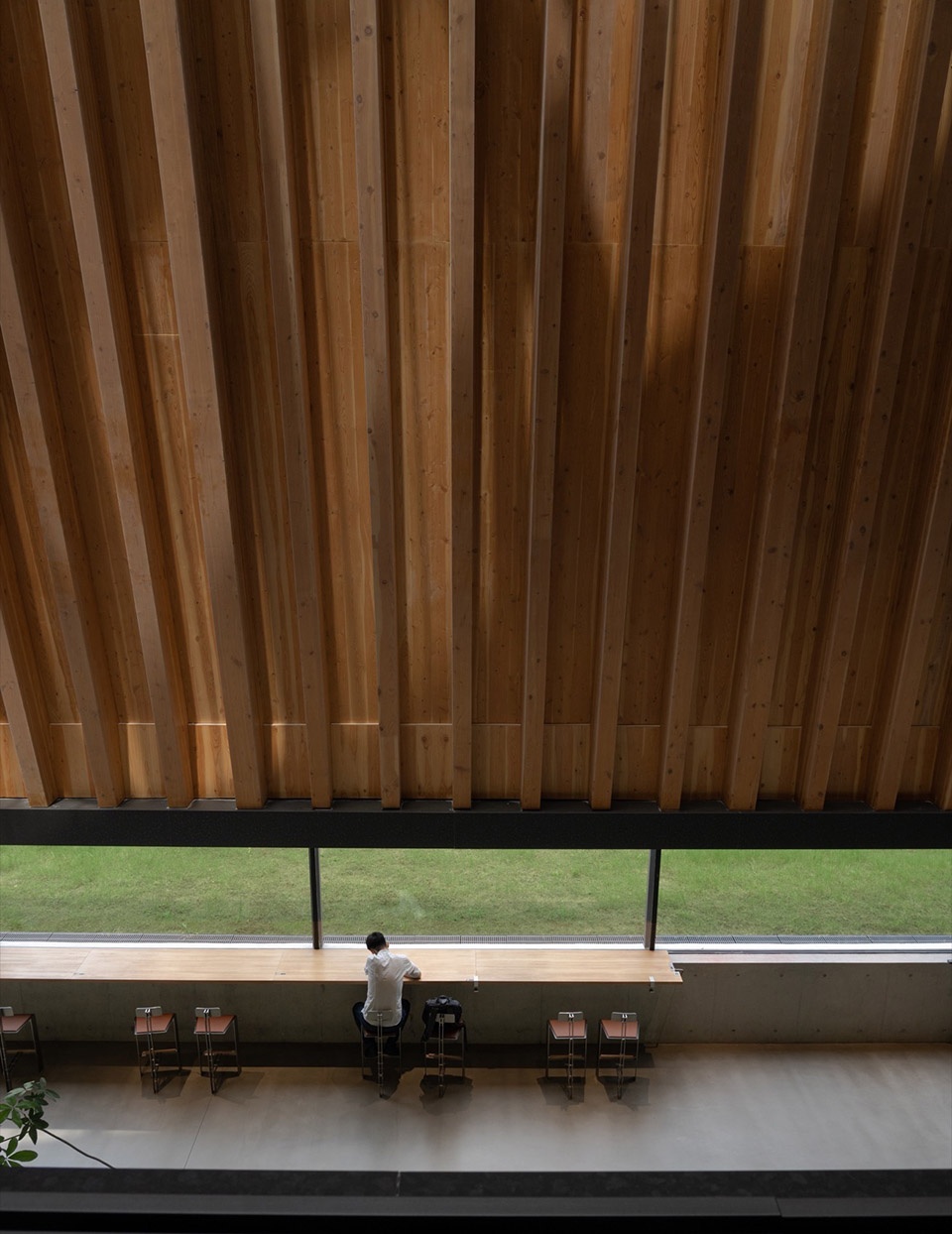

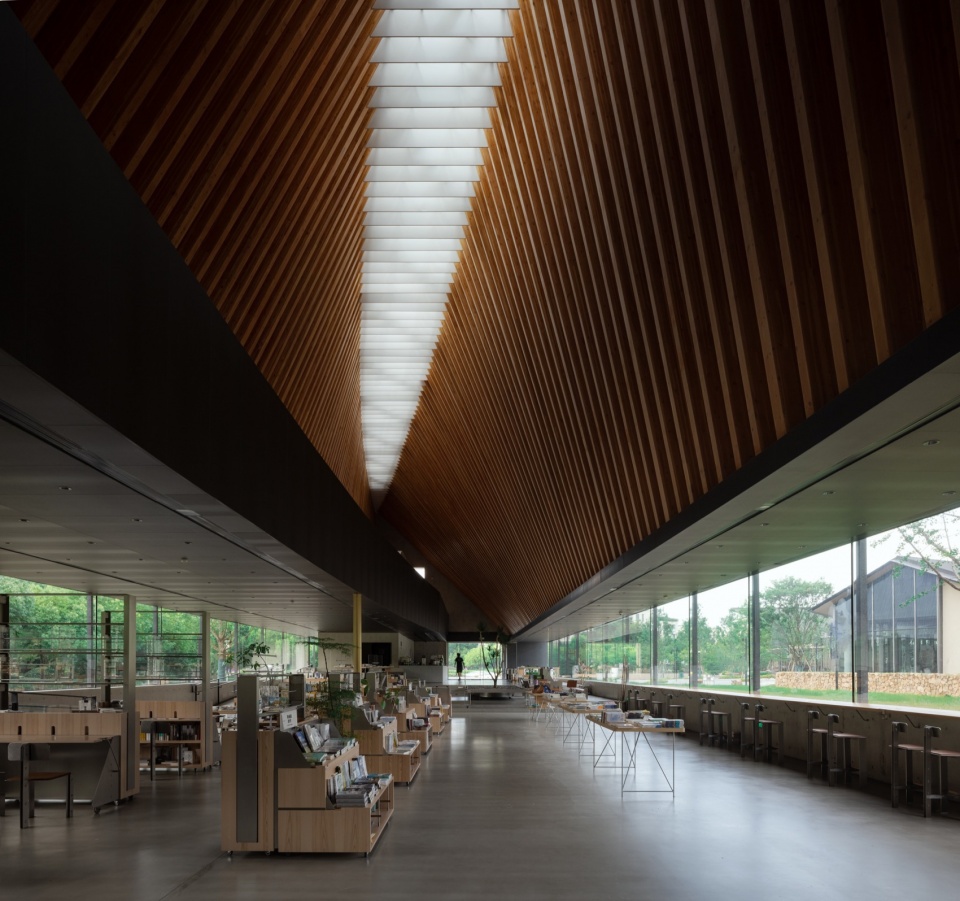

▼书店空间，bookstore © 是然建筑摄影

▼下跌式的纵向变化空间，descending space in the interiors © 是然建筑摄影

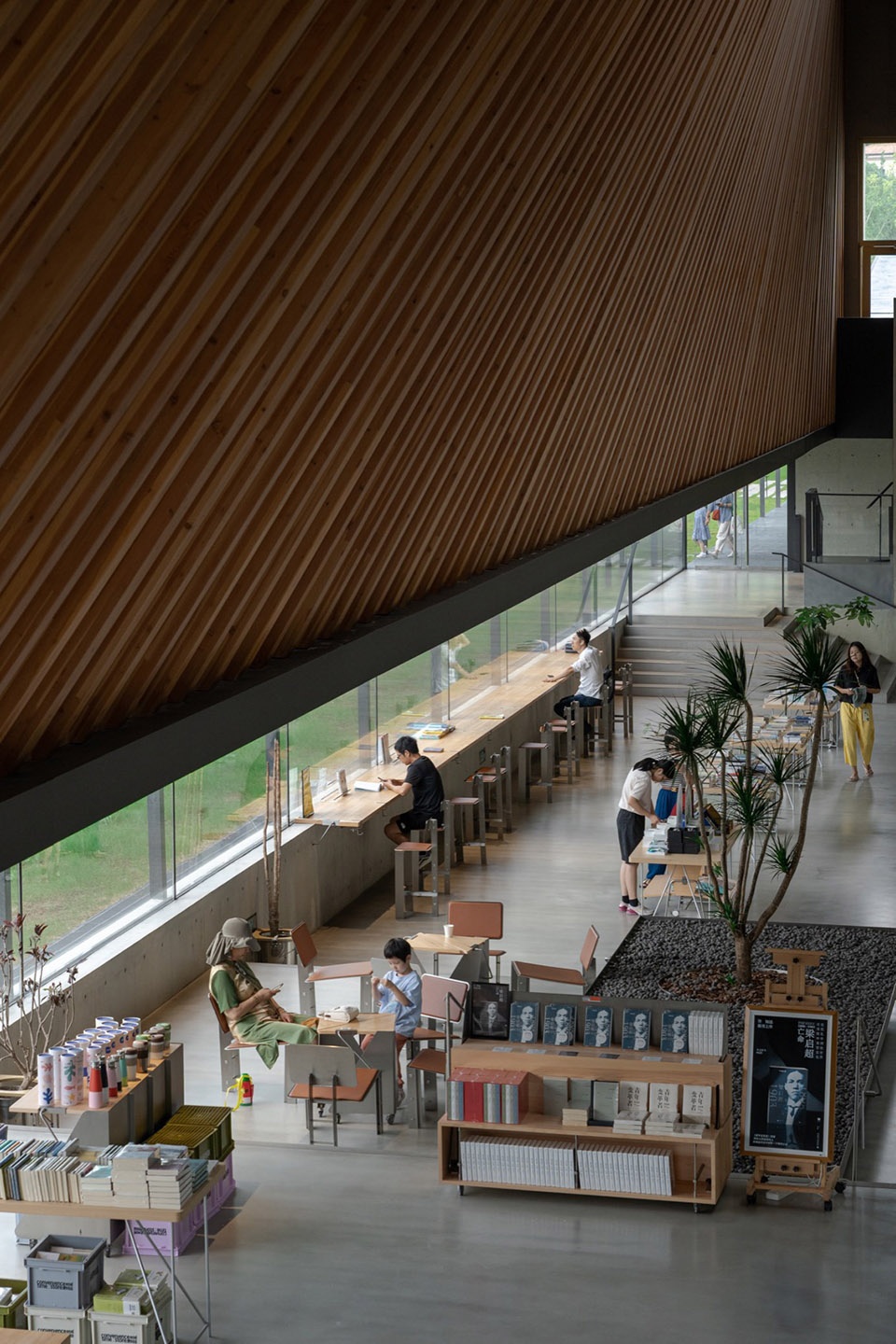

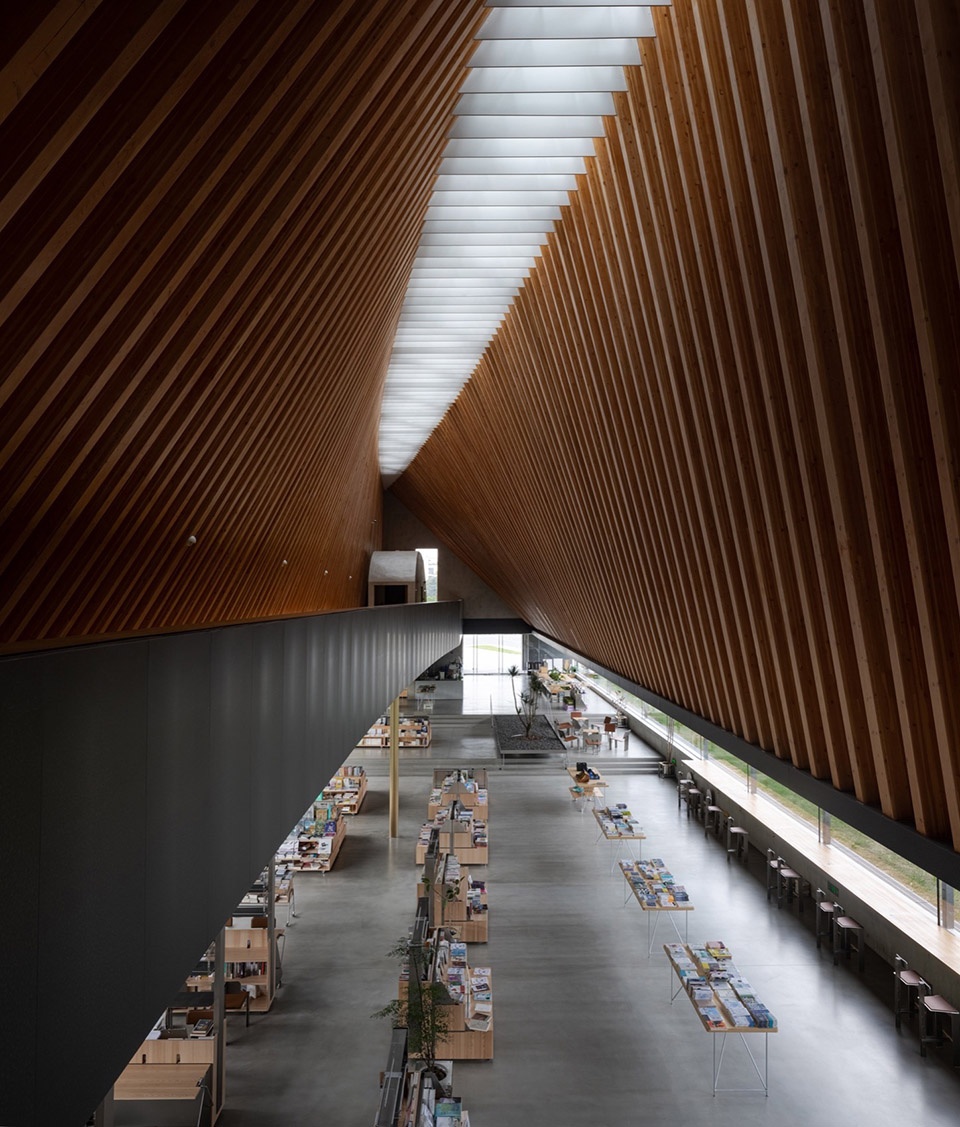

▼俯视书店，overlooking the book store area © 是然建筑摄影

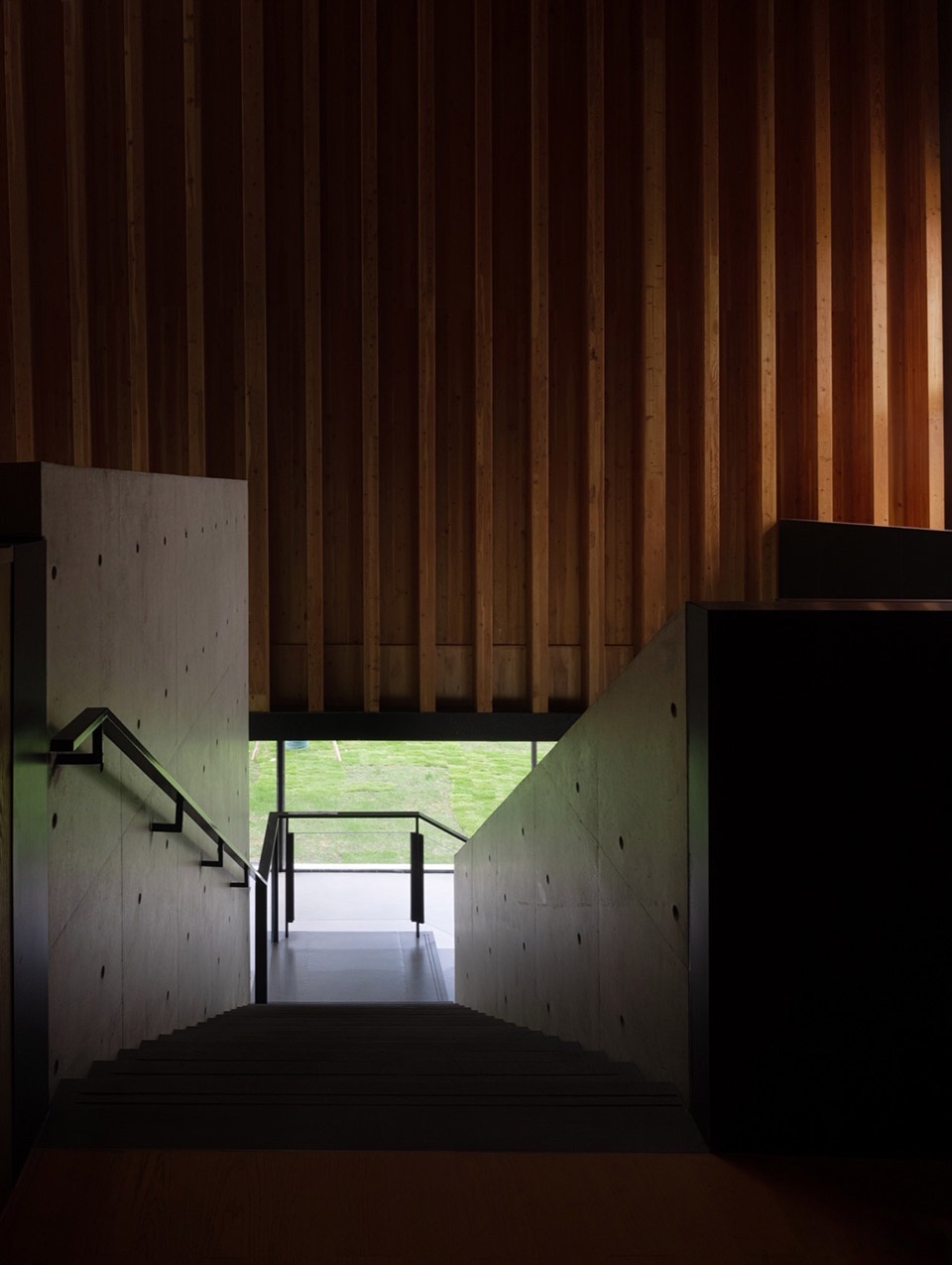

▼楼梯，staircase © 是然建筑摄影

进入空间几乎是没有准备的，人们好像在进入的瞬时便坠入空间，即刻沉浸其中，从而形成了一个令人记忆深刻的场所。

Entering the space feels almost defenseless. One seems to fall into the space when entering, immersed within it immediately, thus making it a memorable place.

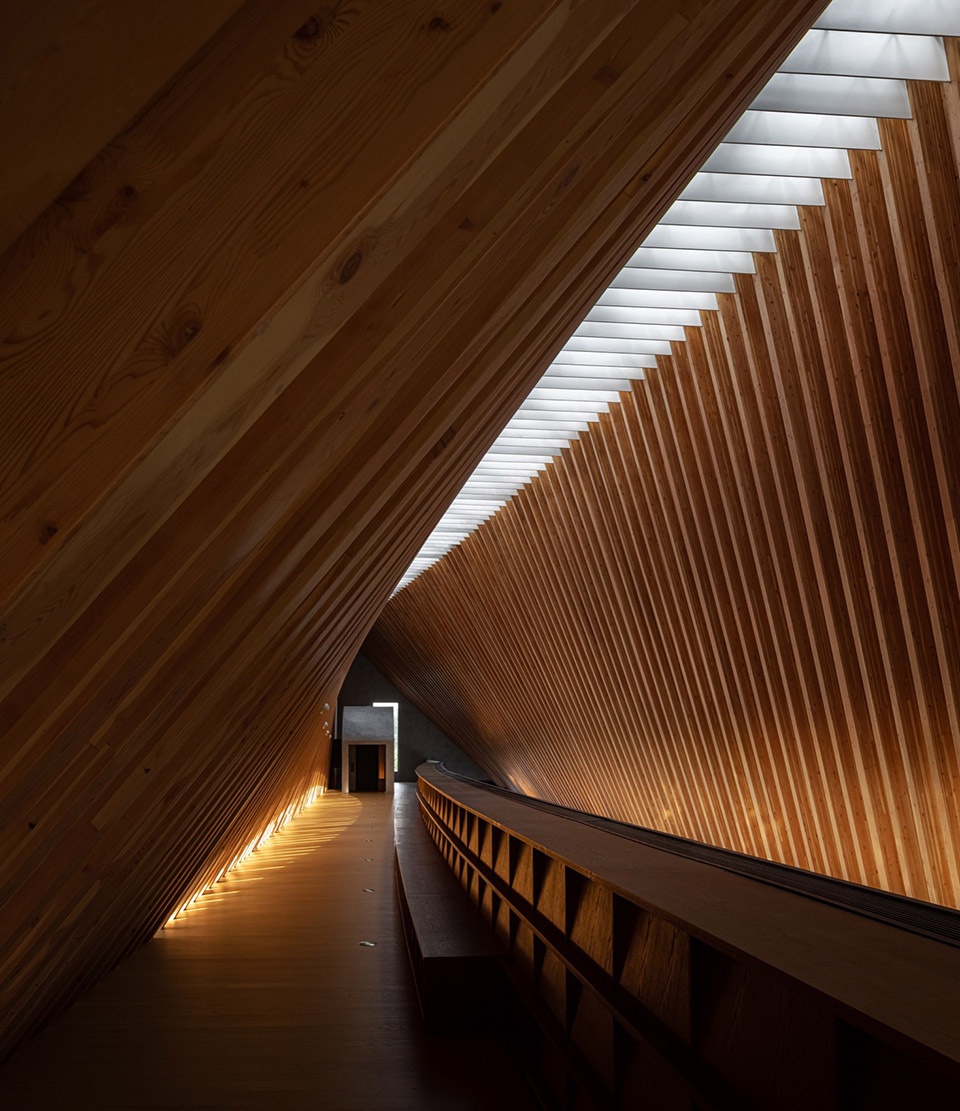

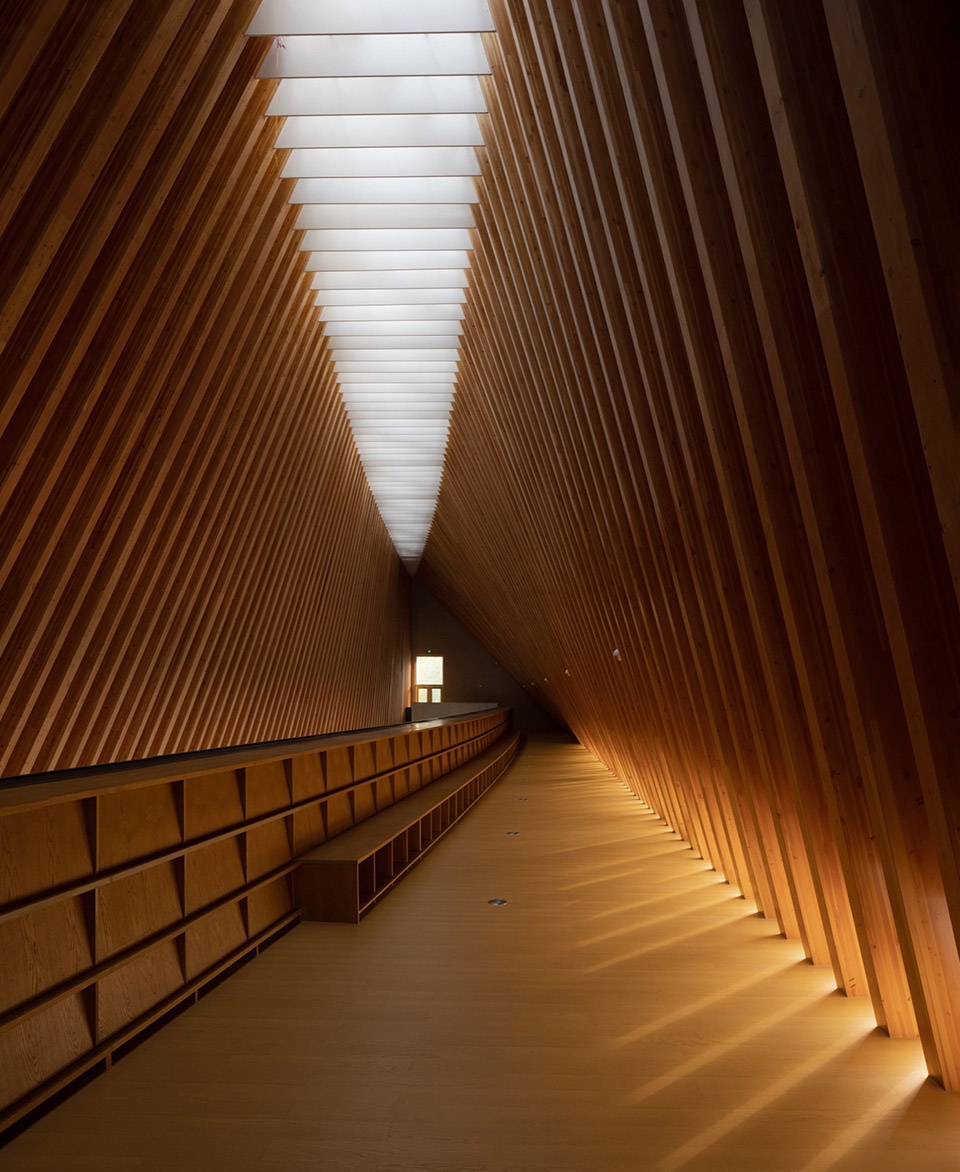

▼夹层空间，mezzanine © 是然建筑摄影

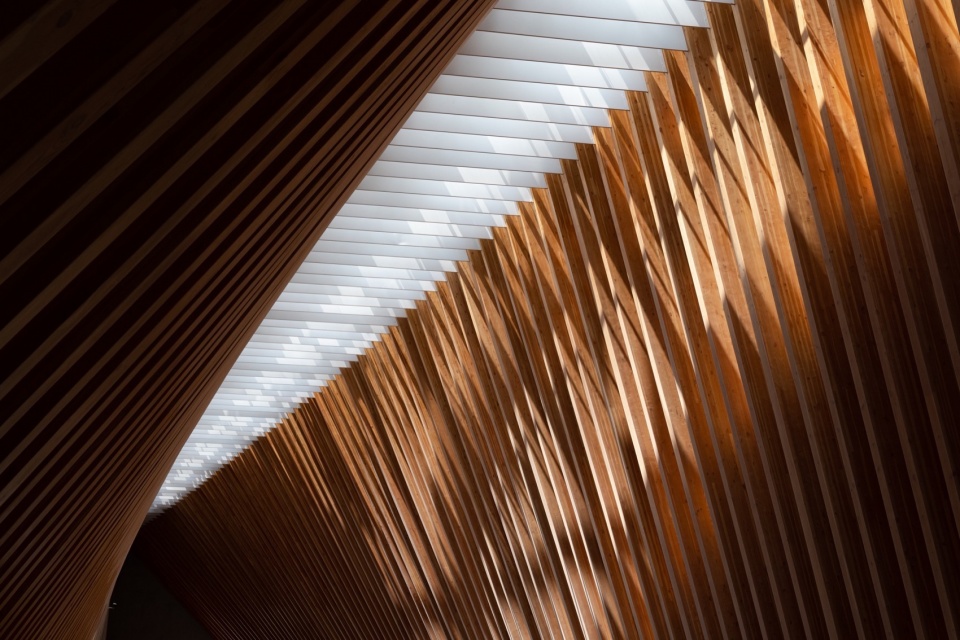

▼天窗，skylight © 是然建筑摄影

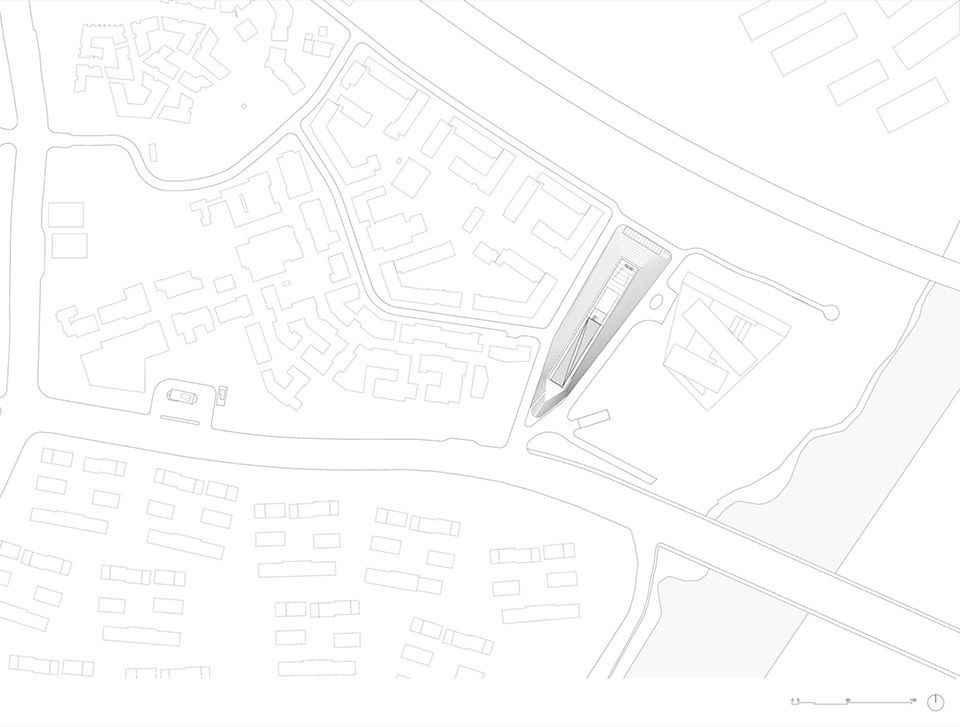

▼总平面图，master plan © 大舍建筑设计事务所

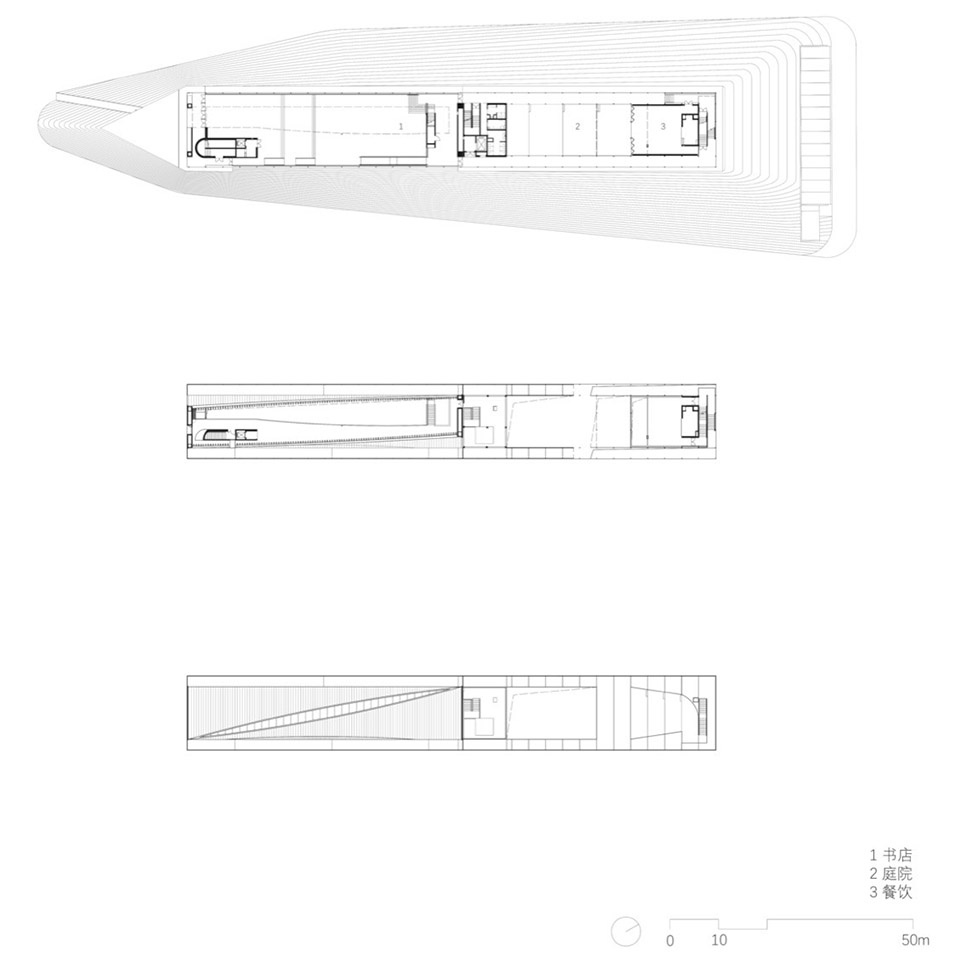

▼平面图，plans © 大舍建筑设计事务所

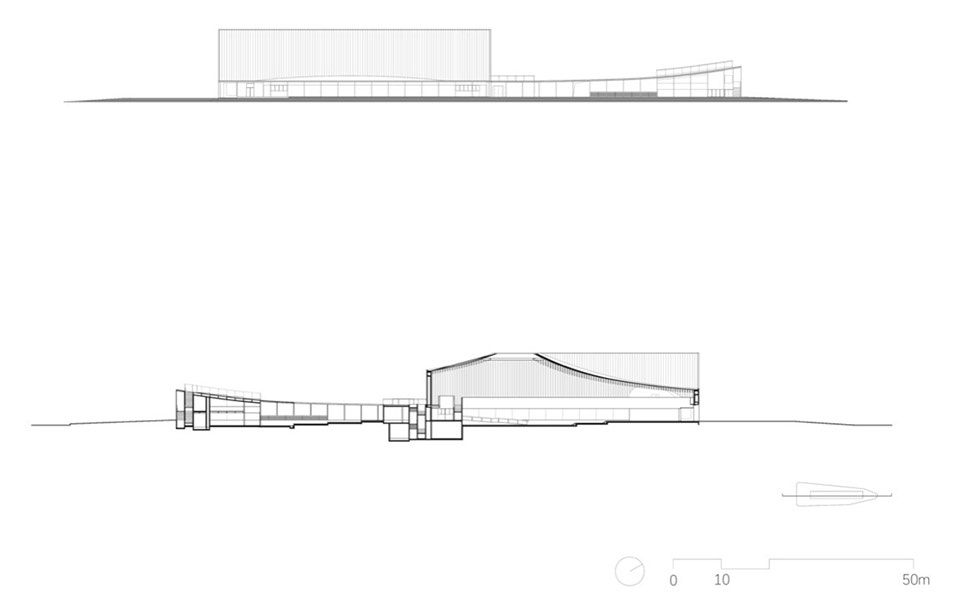

▼立面图与剖面图，elevation and section © 大舍建筑设计事务所

项目名称：大谷仓（玉鸟流苏小镇中心）
项目地点：杭州市余杭区良渚街道玉鸟集1-101
建筑师：大舍建筑设计事务所
设计团队：柳亦春、沈雯、吉宏亮、张晓琪、王轶、张准（结构）、胡晓劼（结构）
结构设计顾问：和作结构建筑研究所
土建施工图配合单位：浙江青墨工程设计有限公司
幕墙设计：浙江中南幕墙设计研究院泰幕咨询所
景观设计：重庆承迹景观规划设计有限公司
照明设计：上海驭韶照明设计有限公司（室内）、上海佐一照明设计有限公司（室外）
室内施工图配合单位：杭州潘天寿环境艺术设计有限公司
委托机构：杭州万科
建设单位：杭州长源旅游发展有限公司
土建施工：杭州市建设集团有限公司
钢结构施工：杭州市建设集团有限公司
木构施工：上海隽执建筑科技有限公司
幕墙施工：浙江大燕建设有限公司
室内装修：安徽翱运建筑装饰工程有限公司
景观施工：浙江易道景观工程有限公司
设计时间：2020.05-2021.05
建成时间：2023.04
建筑面积：1846.94㎡

Project Name: The Big Barn (Town Center of Yu Niao Liu Su)
Location: 1-101 Birland, Liangzhu Community, Hangzhou, Zhejiang Province
Architects: Atelier Deshaus
Design Team: Liu Yichun, Shen Wen, Ji Hongliang, Zhang Xiaoqi, Wang Yi, Zhang Zhun (structure), Hu Xiaojie (structure)
Structure Consultant: AND Office
Construction Drawing Cooperation: Qingmo Architecture
Curtain Wall Design: Zhongnan Curtain Wall Design & Research Institute, Taimu Consultant Group
Landscape Design: Change Studio
Lighting Design: Shanghai Yushao Lighting Design Co., Ltd. (interior); Shanghai Zuoyi Lighting Design Co., Ltd. (exterior)
Interior Construction Drawing: Hangzhou Pantianshou Environmental Art Design Co., Ltd.
Client: Hangzhou Vanke
Construction: Hangzhou Changyuan Tourism Development Co., Ltd.
Civil Construction: Hangzhou Construction Group Co., Ltd.
Steel Structure Construction: Hangzhou Construction Group Co., Ltd.
Wood Structure Construction: Shanghai Junzhi Construction Technology Co., Ltd.
Curtain Wall Construction: Zhejiang Dayan Construction Co., Ltd.
Interior Construction: Anhui Aoyun Architectural Decoration Engineering Co., Ltd.
Landscape Construction: Zhejiang Yidao Landscape Engineering Co., Ltd.
Design Period: 2020.05-2021.05
Completion: 2023.04
Gross Floor Area: 1846.94㎡
